前言

参考RancherLabs 文章： ( Rancher2.6全新Monitoring快速入门_RancherLabs的博客-CSDN博客

对rancher monitor使用过程中的配置讲解补充，补充了alertmanger发送钉钉告警的实现过程，通过安装dingtalk插件完成钉钉机器人告警推送，详细如下

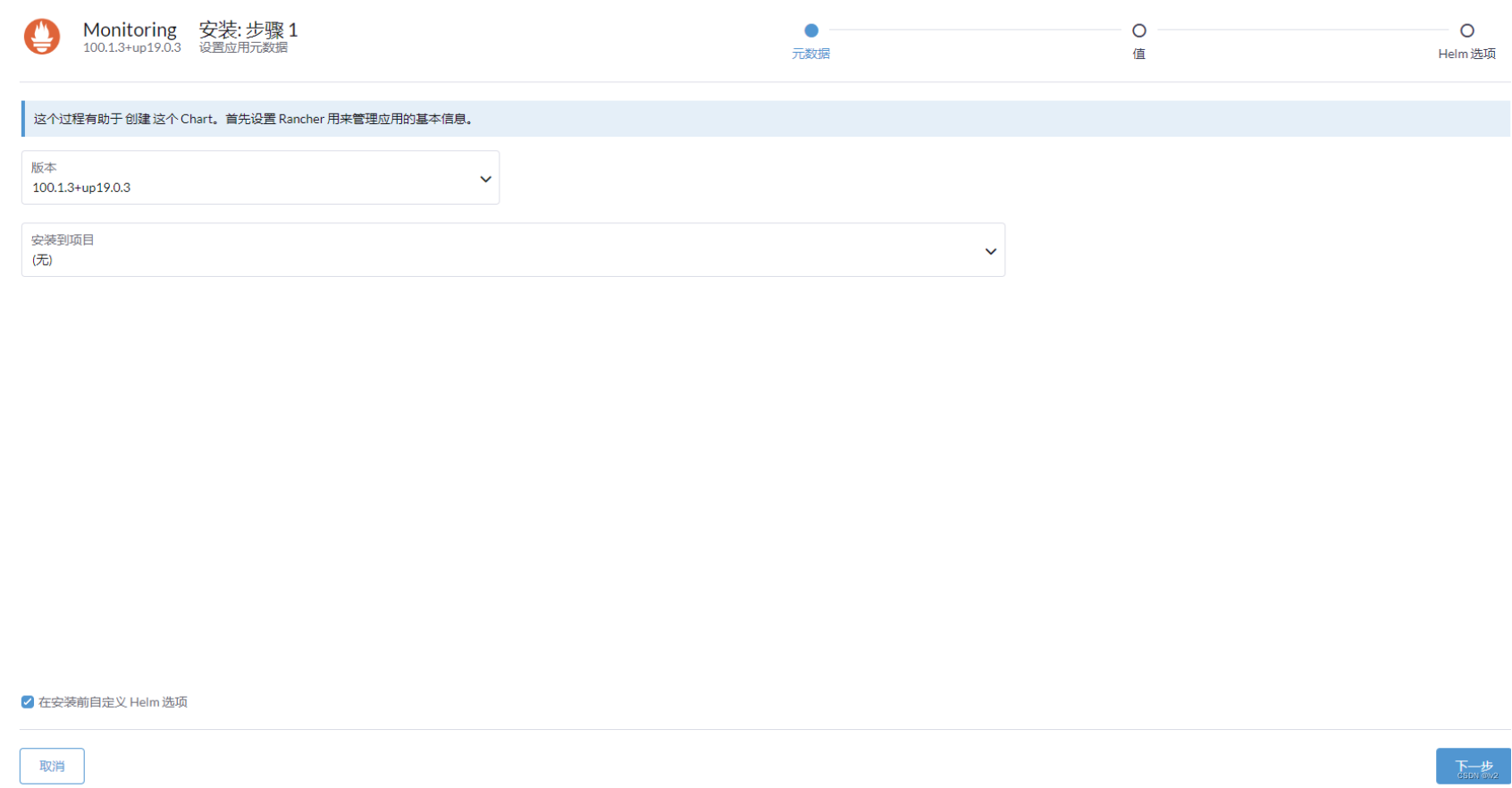

1. 安装monitor

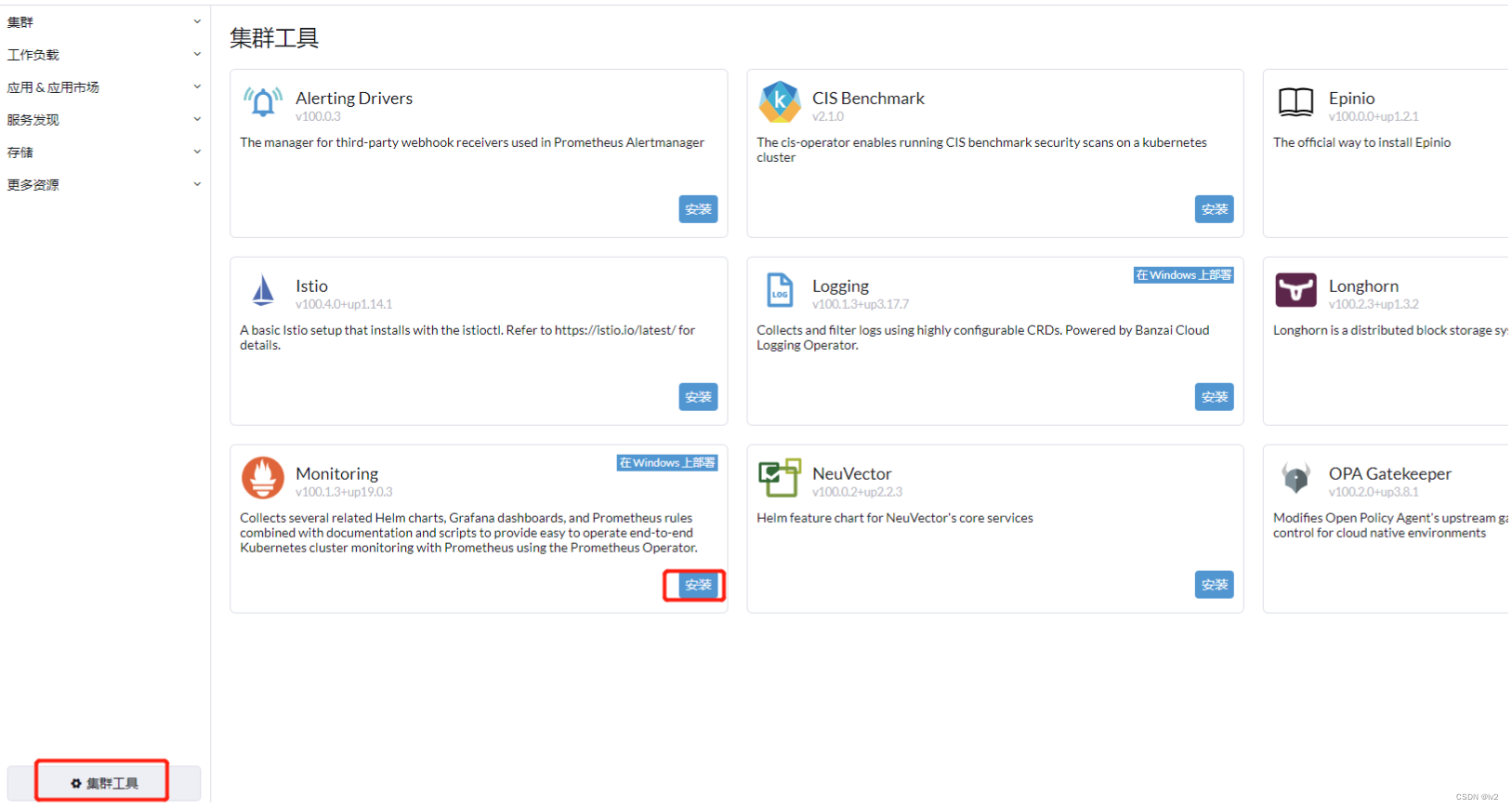

集群-集群工具Monitoring

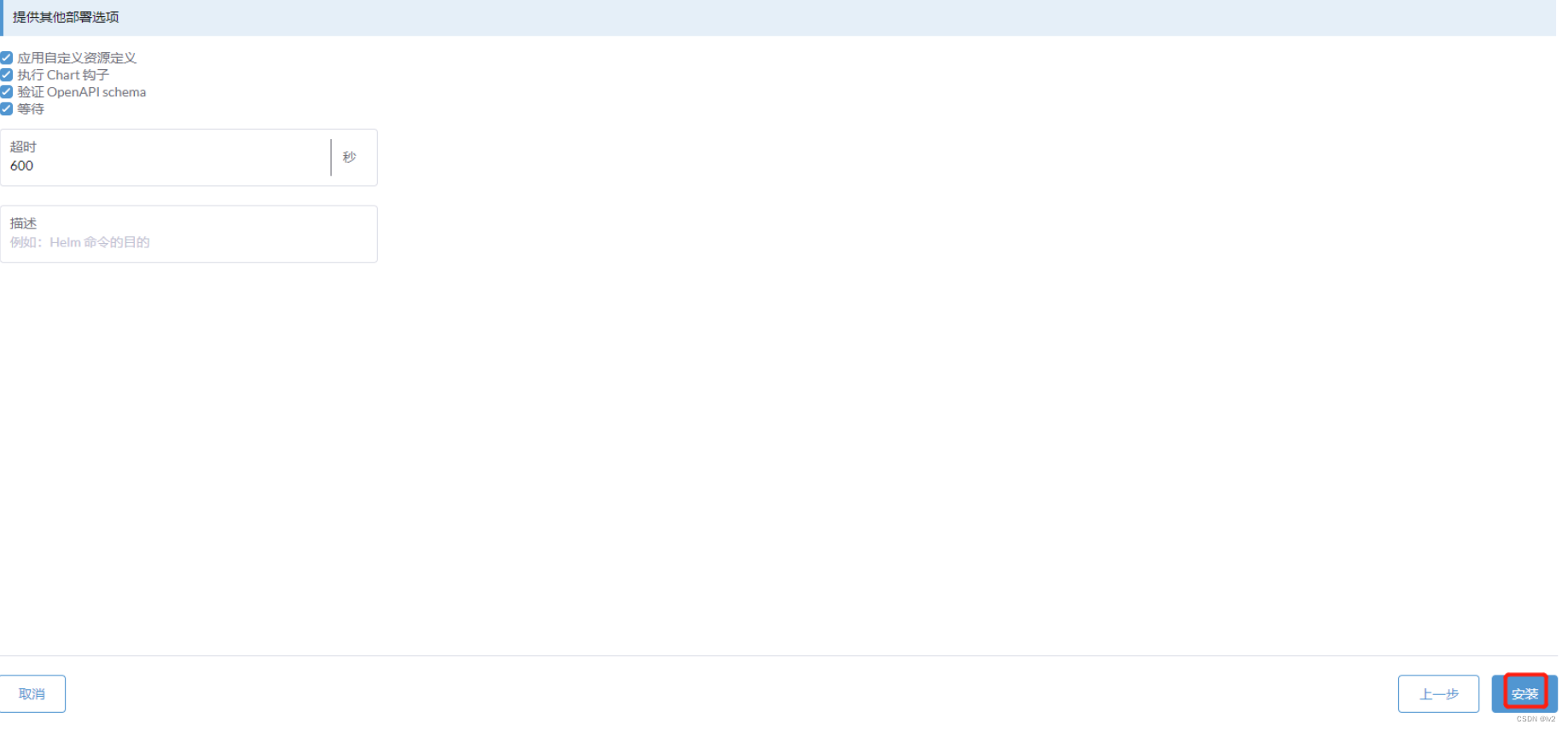

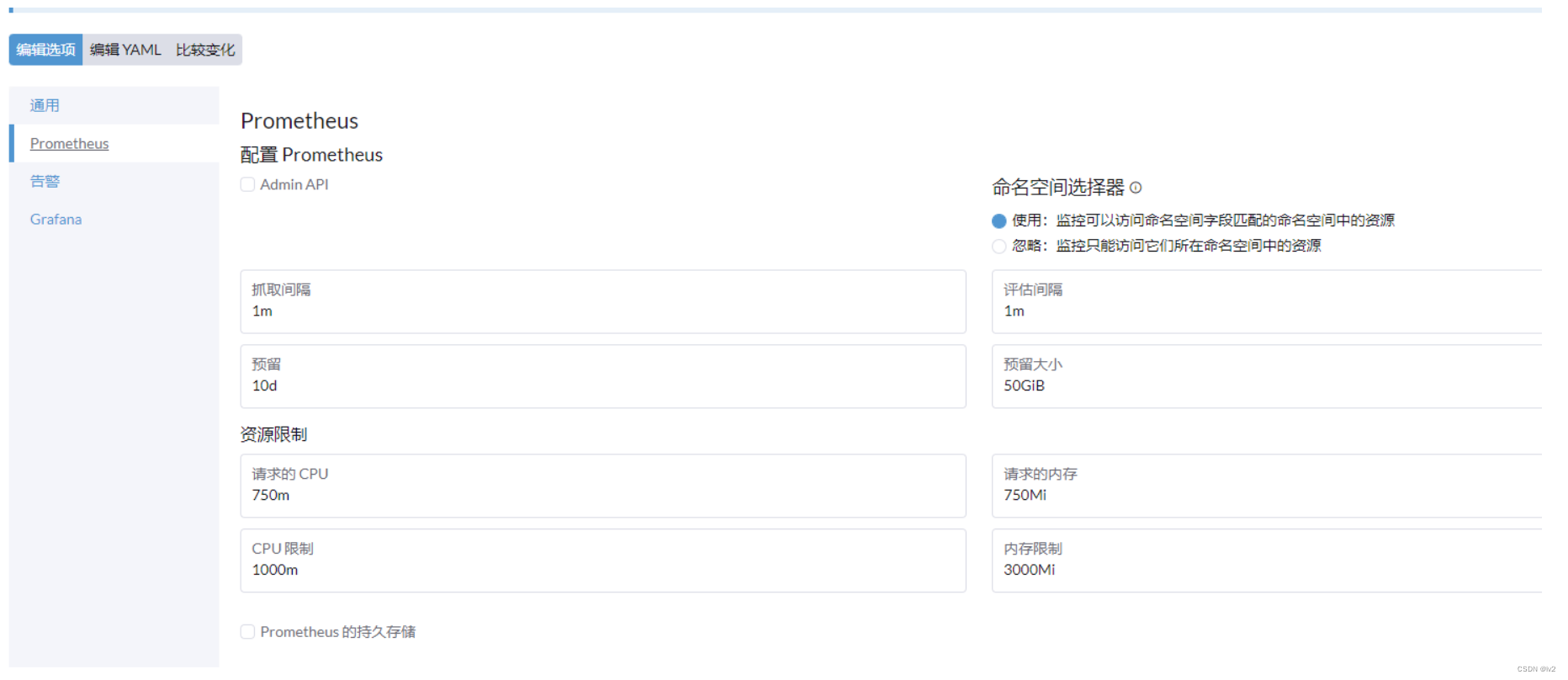

根据实际需求修改部署要求：如持久化，数据保存时长等

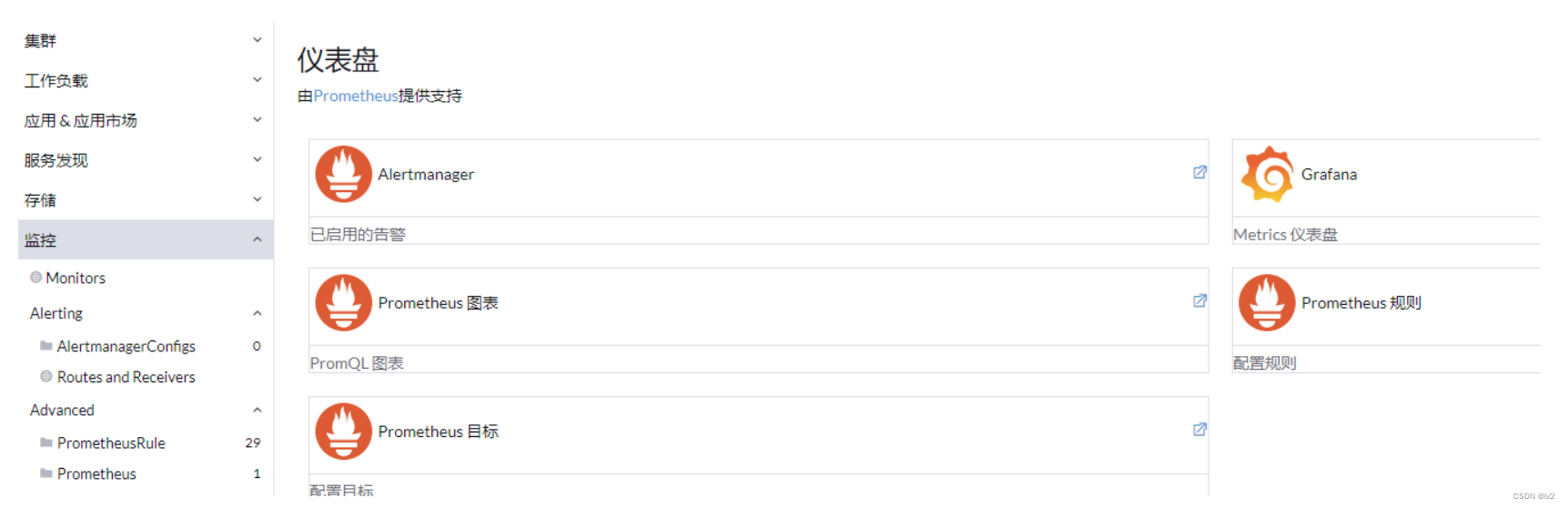

安装完毕后可在： 集群-监控，查看仪表盘

分别可查看alertmanger、grafana和prometheus web界面

2. 安装prometheus-webhook-dingtalk

2.1 配置钉钉告警配置文件

注意：先创建钉钉机器人，安全验证配置secret，用于下面的配置文件中

创建dingtalk config.yml

# url和secret改为自己的机器人webhook地址和secret
templates:- /etc/prometheus-webhook-dingtalk/dingding.tmpl
targets:k8s:url: https://oapi.dingtalk.com/robot/send?access_token="你的钉钉webhook"secret: "你的钉钉webhook secret"message:title: '{{ template "ops.title" . }}'text: '{{ template "ops.content" . }}'

 2.2 创建钉钉告警模板

dingding.tmpl

{{ define "__subject" }}
[{{ .Status | toUpper }}{{ if eq .Status "firing" }}:{{ .Alerts.Firing | len }}{{ end }}]
{{ end }}
{{ define "__alert_list" }}{{ range . }}
---[告警程序]: gz-test-k8s [告警级别]: {{ index .Labels.severity }} [告警类型]: {{ index .Labels.alertname }} [故障实例]: {{ index .Labels.instance }} [告警主题]: {{ index .Annotations.summary }}[告警详情]: {{ index .Annotations.description }}[触发时间]: {{ (.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
{{ end }}{{ end }}
{{ define "__resolved_list" }}{{ range . }}
---[告警程序]: gz-test-k8s[告警级别]: {{ index .Labels.severity }} [告警类型]: {{ index .Labels.alertname }} [故障实例]: {{ index .Labels.instance }} [告警详情]: {{ index .Annotations.description }}[状态]: 恢复正常[触发时间]: {{ (.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}  [恢复时间]: {{ (.EndsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
{{ end }}{{ end }}
{{ define "ops.title" }}
{{ template "__subject" . }}
{{ end }}
{{ define "ops.content" }}
{{ if gt (len .Alerts.Firing) 0 }}
**侦测到{{ .Alerts.Firing | len  }}个故障**
{{ template "__alert_list" .Alerts.Firing }}
---
{{ end }}
{{ if gt (len .Alerts.Resolved) 0 }}
**恢复{{ .Alerts.Resolved | len  }}个故障**
{{ template "__resolved_list" .Alerts.Resolved }}
{{ end }}
{{ end }}
{{ define "ops.link.title" }}{{ template "ops.title" . }}{{ end }}
{{ define "ops.link.content" }}{{ template "ops.content" . }}{{ end }}
{{ template "ops.title" . }}
{{ template "ops.content" . }}

2.3 创建dingtalk configmap配置文件

将以上的配置文件保存为文件，通过kubectl创建configmap

$  kubectl create configmap dingtalk-cm --from-file=config.yml=config.yml --from-file=dingding.tmpl=dingding.tmpl -n cattle-monitoring-system
$  kubectl get cm dingtalk-cm  -n cattle-monitoring-system
NAME          DATA   AGE
dingtalk-cm   2      87m

2.4 安装dingtalk

部署文件 dingtalk.yaml

apiVersion: v1
kind: Service
metadata:name: dingtalknamespace: cattle-monitoring-system
spec:selector:app: dingtalkports:- name: httpprotocol: TCPport: 8060targetPort: 8060
---
apiVersion: apps/v1
kind: Deployment
metadata:name: dingtalknamespace: cattle-monitoring-systemlabels:app: dingtalk
spec:replicas: 1strategy:rollingUpdate:maxSurge: 25%maxUnavailable: 25%type: RollingUpdateselector:matchLabels:app: dingtalktemplate:metadata:labels:app: dingtalkspec:restartPolicy: "Always"containers:- name: dingtalkimage: timonwong/prometheus-webhook-dingtalkimagePullPolicy: "IfNotPresent"volumeMounts:- name: dingtalk-confmountPath: /etc/prometheus-webhook-dingtalk/resources:limits:cpu: "400m"memory: "500Mi"requests:cpu: "100m"memory: "100Mi"ports:- containerPort: 8060name: httpprotocol: TCP readinessProbe:failureThreshold: 3periodSeconds: 5initialDelaySeconds: 30successThreshold: 1tcpSocket:port: 8060livenessProbe:tcpSocket:port: 8060initialDelaySeconds: 30periodSeconds: 10volumes:- name: dingtalk-confconfigMap:name: dingtalk-cm

部署到命名空间下：cattle-monitoring-system

> kubectl get deployments.apps dingtalk -n cattle-monitoring-system
NAME       READY   UP-TO-DATE   AVAILABLE   AGE
dingtalk   1/1     1            1           68m
> kubectl get svc dingtalk -n cattle-monitoring-system
NAME       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
dingtalk   ClusterIP   10.43.245.38           8060/TCP   69m

2.5 dingtalk调用方法

# 和alertmanager部署在同个命名空间则可以使用以下的方式调用
# http://dingtalk:8060/dingtalk/"你的钉钉webhook名字"/send
# 如配置了k8s的接收者，地址如下
http://dingtalk:8060/dingtalk/k8s/send

3. 配置告警

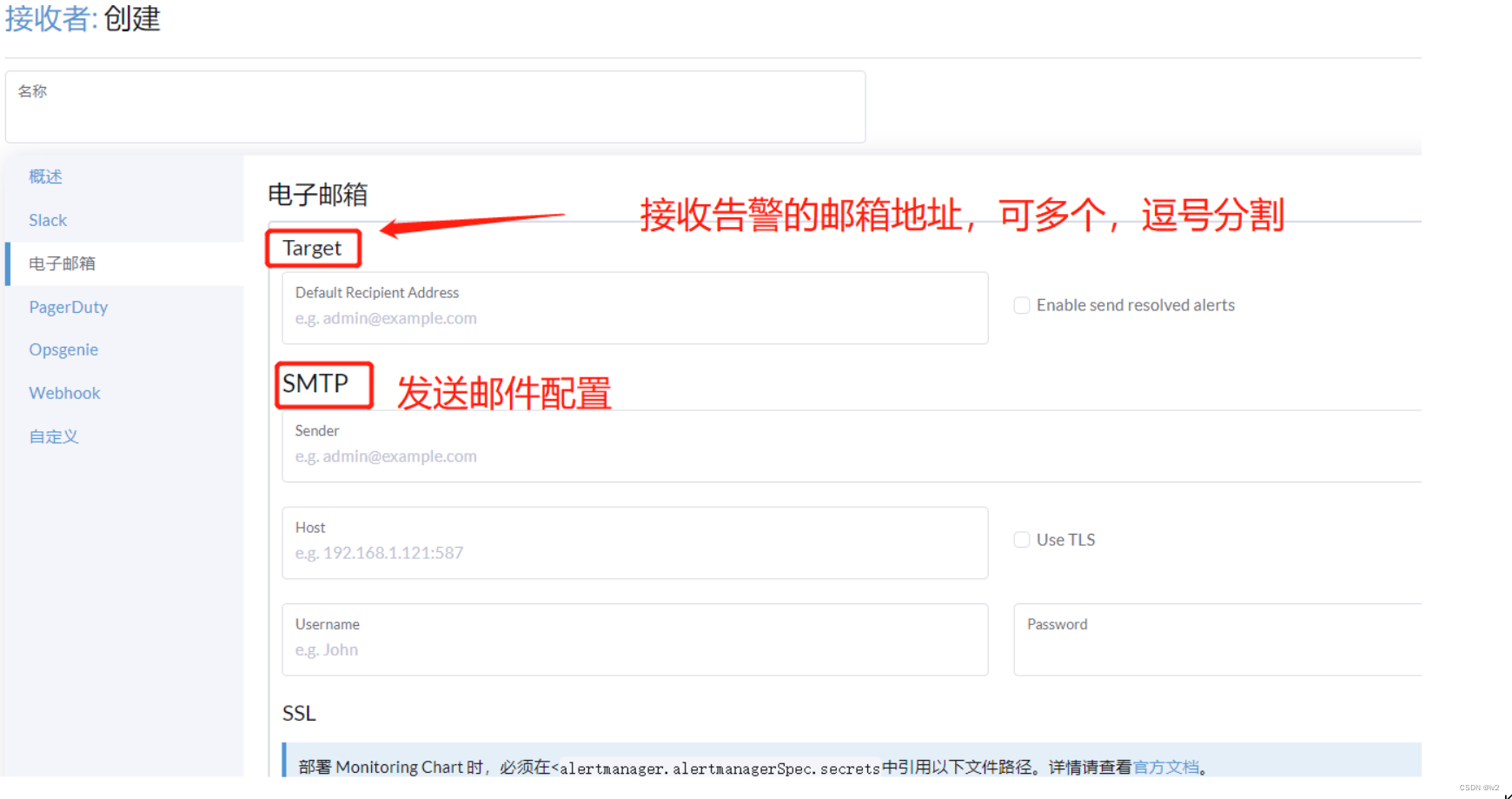

3.1 配置告警接收者

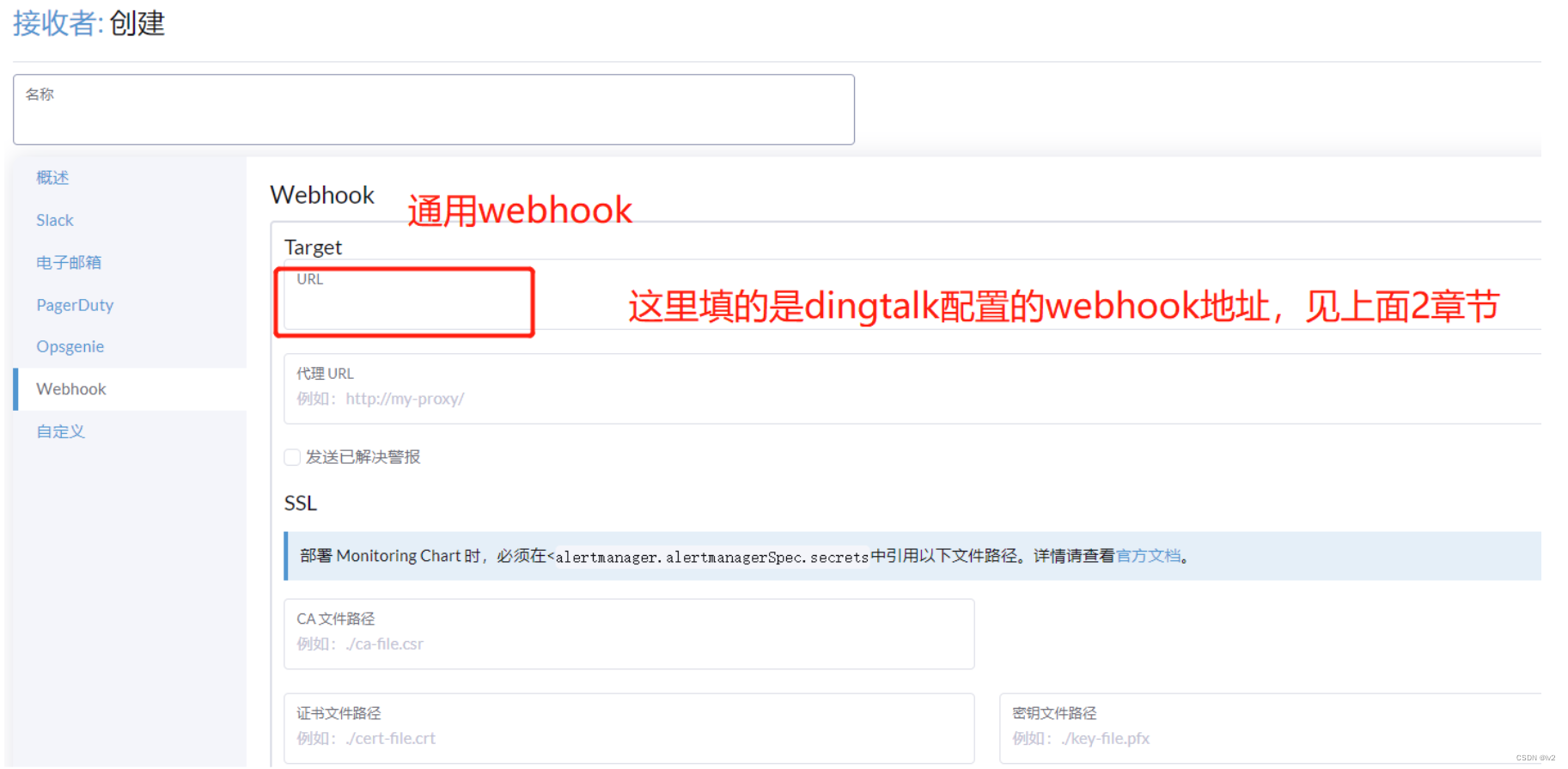

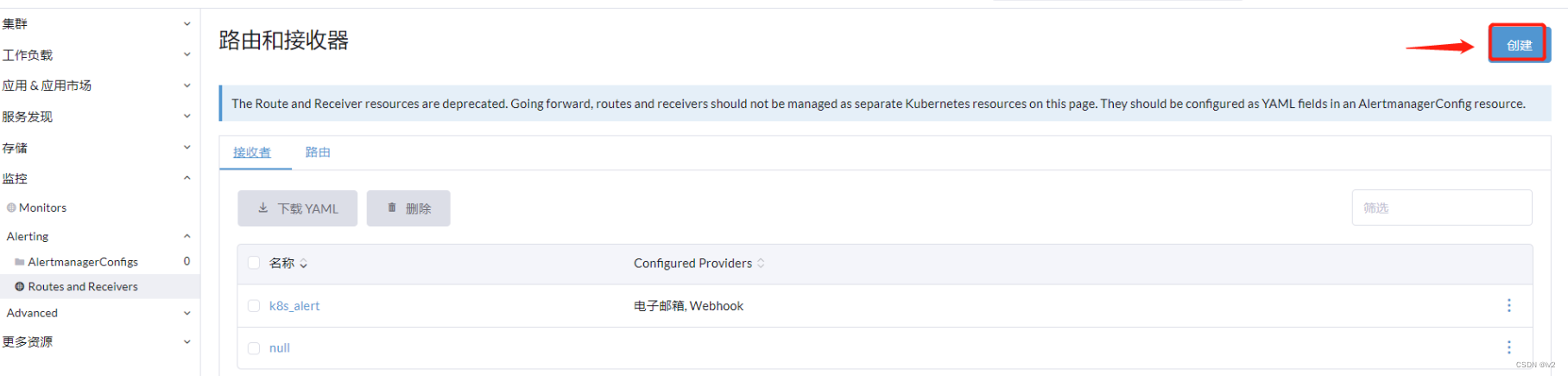

集群-监控-Alerting-Routes and Receivers-接收者-创建

创建一个默认接收者，同时接收邮件和钉钉告警

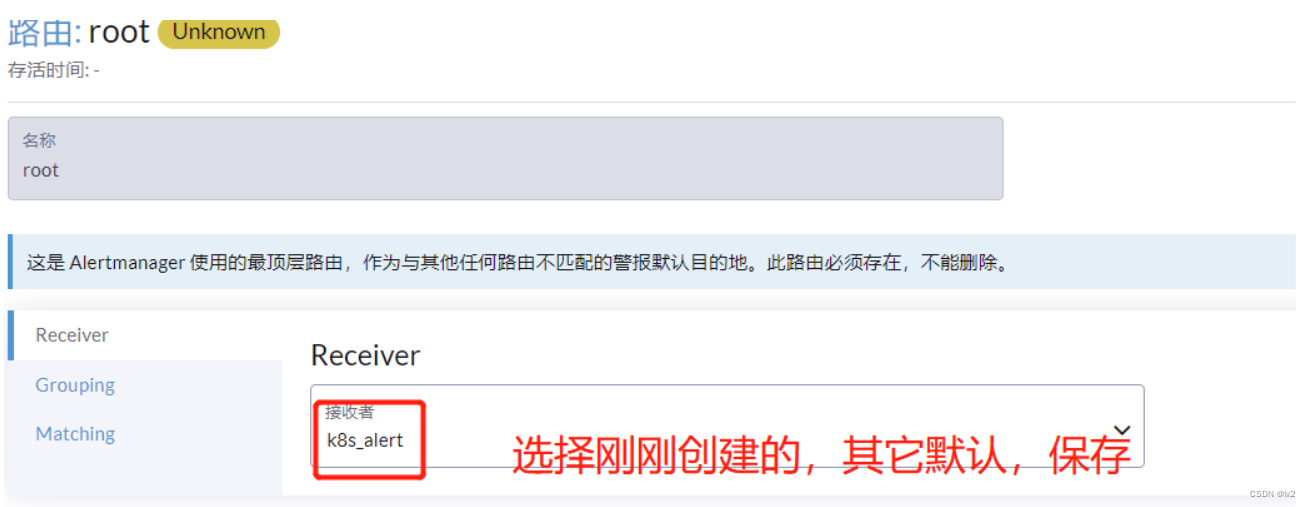

3.2 配置路由默认告警接收者

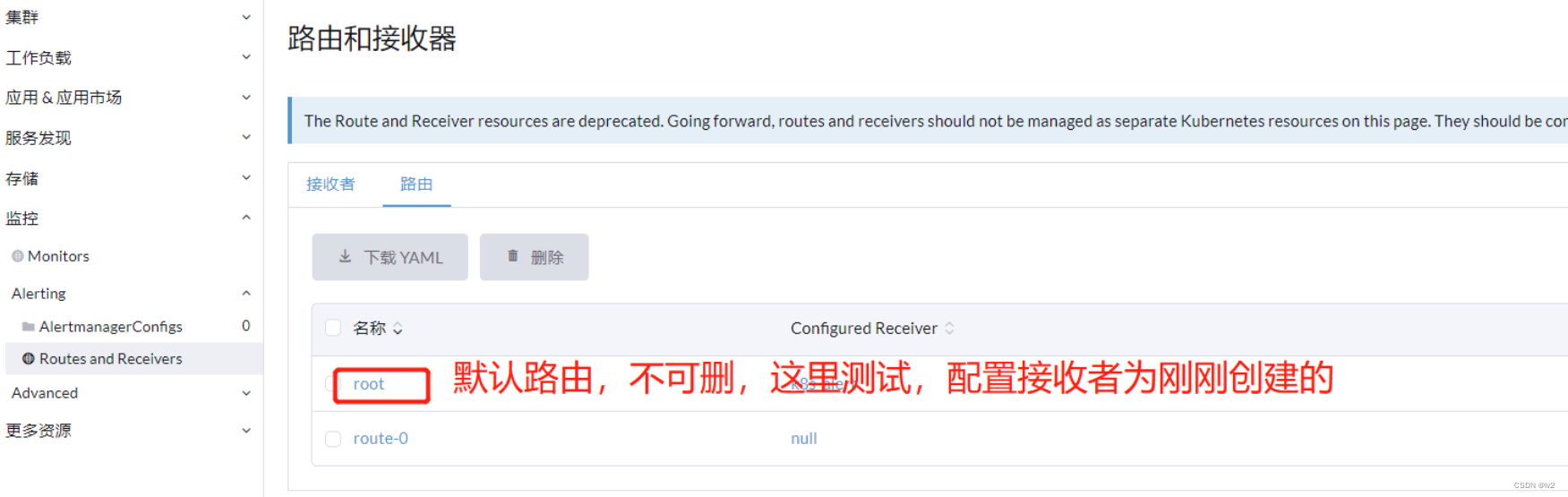

集群-监控-Alerting-Routes and Receivers-路由

root匹配全部告警规则，不可删除

4. 测试

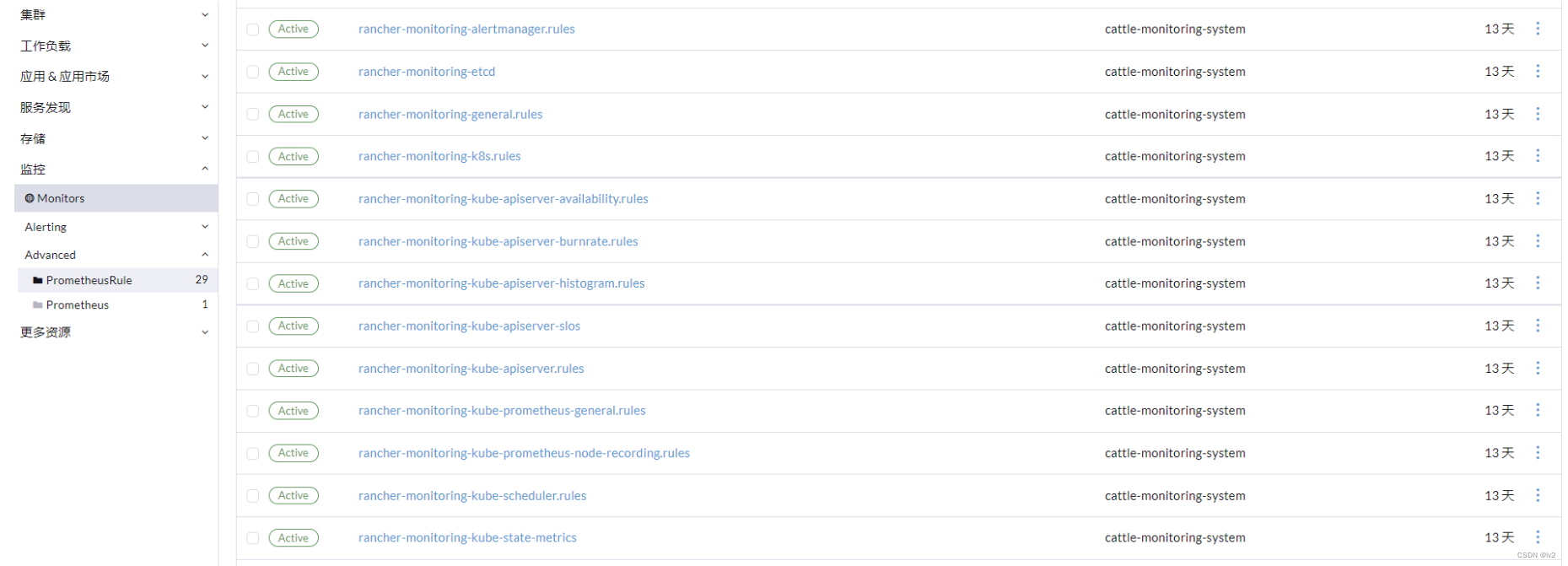

rancher monitor安装后，默认配置了针对组件、节点、pod的告警策略，可在 集群-监控-Advanced-PrometheusRule 查看，修改或新增，具体按实际需要

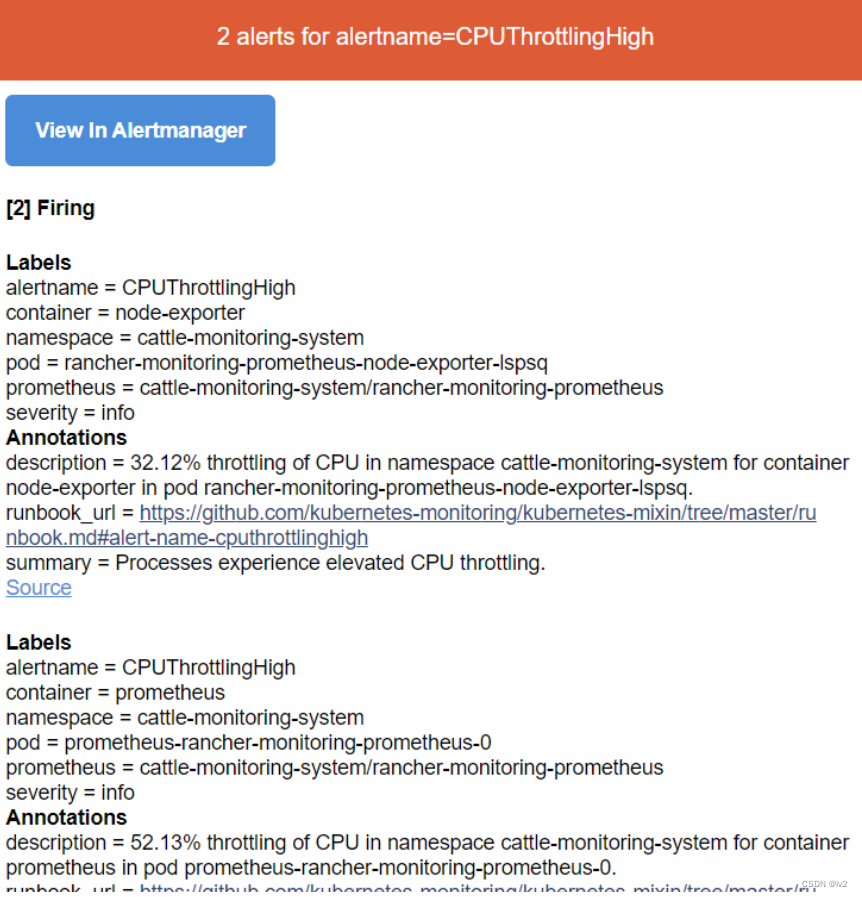

在本配置了接收者和路由后，可以看到当触发告警时，收到对应的邮件通知

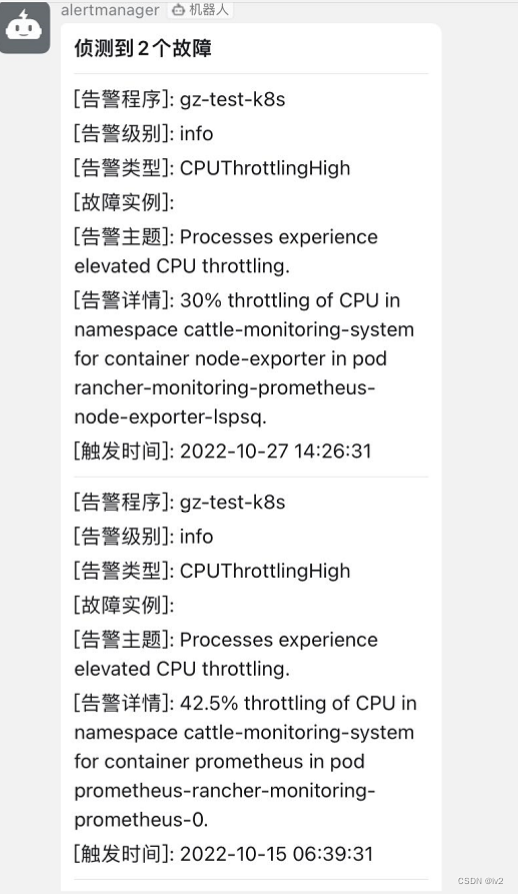

钉钉告警
