项目需要，写个小工具来实现图像颜色格式的转换，主要的 Feature 如下：

1. 支持输入输出图像格式选择：
2. 支持对输入图像进行缩放；
3. 支持对输入输出图像预览；

支持的图像格式转换如下：

•  YUV420P
•  NV12
•  NV21
•  YUV422P
•  NV16
•  YUYV422
•  UYVY422
•  YVYU422
•  RGB24
•  BGR24
•  ARGB
•  RGBA
•  RGB565BE
•  RGB565LE
•  RGB444BE
•  RGB444LE

由于输入输出为纯图片文件，所以需要指定图像的宽高信息；

1. Qt 集成 FFmpeg

Qt 中集成 FFmpeg 的文章非常多，大家可以自行搜索，这里简单的提一下集成的过程；

Windows 上，集成 FFmpeg 的方式有 2 种：

1. 下载 FFmpeg 的库，代码中引用头文件来使用 FFmpeg；

2. 下载 FFmpeg 源码，自行构建；

这里选择第一种，下载 FFmpeg 的 DLL 来集成；

1.1 下载 FFmpeg

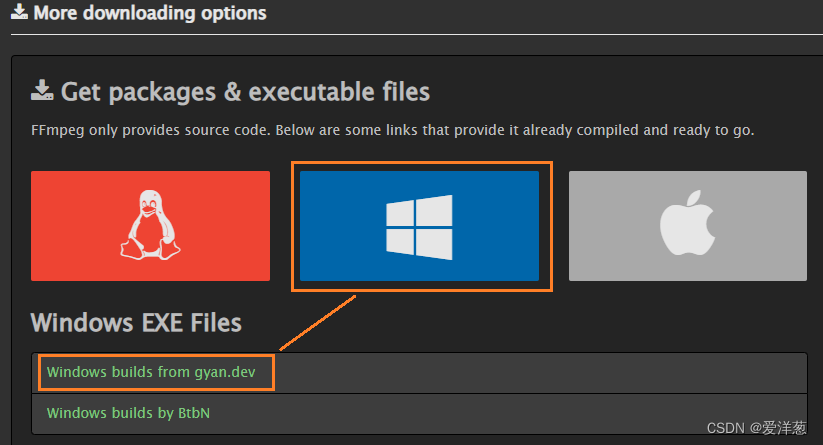

下载地址：Download FFmpeg

 选择 Windows，下面有 2 个 build，随便选一个，我选择的是第一个；

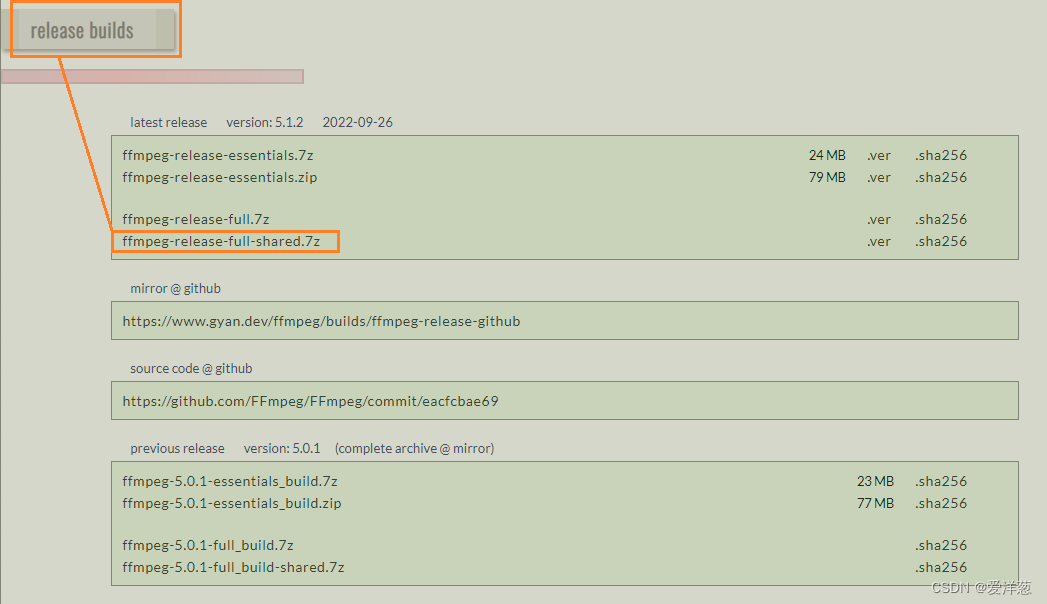

进入后，最先看到的是 master 的 build，咱们选个 Release 的稳定版的，shared 代表是动态链接库，我们选他：

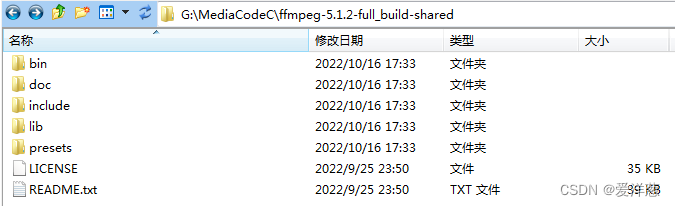

 解压后如下：

 我们要 3 部分，头文件、动态库、和导入库：

动态库在：ffmpeg-5.1.2-full_build-shared\bin

头文件在：ffmpeg-5.1.2-full_build-shared\include

导入库在：ffmpeg-5.1.2-full_build-shared\include\lib

1.2 Qt 集成 FFmpeg

1.2.1 修改 .pro 文件

在 Qt 的工程文件中，指定 FFmpeg 导入的头文件以及库的地方

#-------------------------------------------------
#
# Project created by QtCreator 2022-10-16T17:35:35
#
#-------------------------------------------------QT       += core gui
RC_ICONS = logo.icogreaterThan(QT_MAJOR_VERSION, 4): QT += widgetsTARGET = YUVEyes
TEMPLATE = app# The following define makes your compiler emit warnings if you use
# any feature of Qt which has been marked as deprecated (the exact warnings
# depend on your compiler). Please consult the documentation of the
# deprecated API in order to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS
# You can also make your code fail to compile if you use deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0CONFIG += c++11SOURCES += \main.cpp \mainwindow.cpp \qtffmpegutils.cppHEADERS += \mainwindow.h \qtffmpegutils.h \error_code.hFORMS += \mainwindow.ui# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += targetwin32: {FFMPEG_HOME=G:\MediaCodeC\ffmpeg-5.1.2-full_build-shared#设置 ffmpeg 的头文件INCLUDEPATH += $$FFMPEG_HOME/include#设置导入库的目录一边程序可以找到导入库# -L ：指定导入库的目录# -l ：指定要导入的 库名称LIBS +=  -L$$FFMPEG_HOME/lib \-lavcodec          \-lavdevice         \-lavfilter         \-lavformat         \-lavutil           \-lpostproc         \-lswresample       \-lswscale
}RESOURCES += \src.qrc

1.2.2 放入 dll 文件

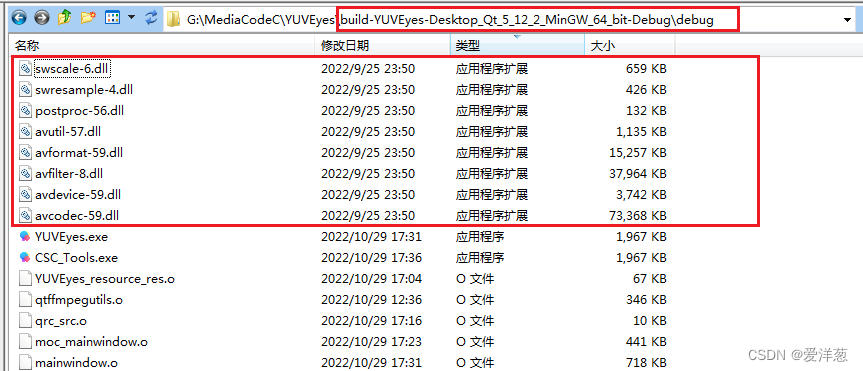

Qt 编译的时候，会生成一个编译的文件夹，将我们用到的 dll 扔进去：

 好了，基本环境准备完毕；

1.2.3 代码中使用 FFmpeg

在代码中，包含 FFmpeg 的头文件即可使用 FFmpeg 的库了：

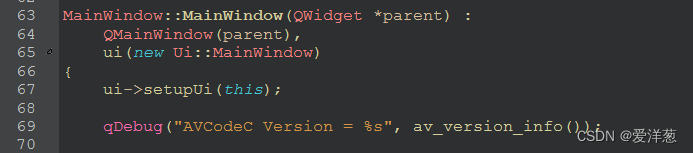

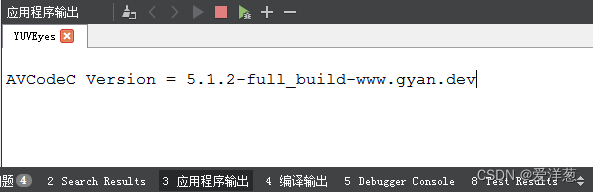

 打印 FFmpeg 的 AVCodec 版本号：

2. 图像格式转换

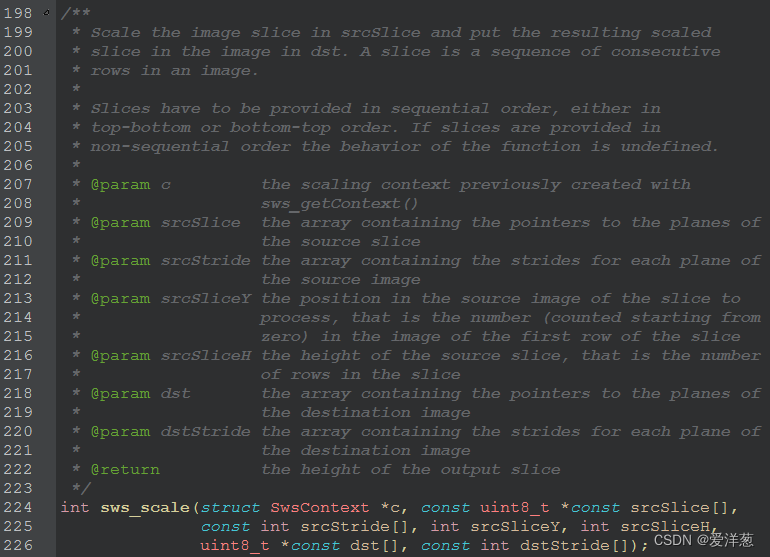

图像格式转换可以使用 FFmpeg 的 sws_scale 函数进行，该函数的原型为：

能够支持不同 AVPixelFormat 的像素格式转换，并且能够进行缩放功能；

这里定义一个专门使用的类 qtffmpegutils.h，来进行转换工作：

#ifndef QTFFMPEGUTILS_H
#define QTFFMPEGUTILS_Hextern "C"{
#include "libswscale/swscale.h"
#include "libavutil/opt.h"
#include "libavutil/imgutils.h"
}#include "error_code.h"typedef struct {const char *filename;int width;int height;AVPixelFormat format;
} RawVideoFile;typedef struct {char *pixels;int width;int height;AVPixelFormat format;
} RawVideoFrame;class QtFFmpegUtils
{
public:QtFFmpegUtils();static int convertRawVideo(RawVideoFile &in, RawVideoFile &out);static int convertToRGB888(RawVideoFile &in, uint8_t *rgb888_data);static int getBufferSize(AVPixelFormat pix_fmt, int width, int height);//static void convertRawFrame(RawVideoFrame &in, RawVideoFrame &out);
};#endif // QTFFMPEGUTILS_H

在 qtffmpegutils.cpp 中调用了 FFmpeg 的 sws_scale 逻辑：

#include "qtffmpegutils.h"
#include
#include QtFFmpegUtils::QtFFmpegUtils()
{}int QtFFmpegUtils::convertRawVideo(RawVideoFile &in, RawVideoFile &out)
{int ret = APP_SUCCESS;SwsContext *ctx = nullptr;uint8_t *inData[4], *outData[4];int inStrides[4], outStrides[4];int inFrameSize, outFrameSize;QFile inFile(in.filename);QFile outFile(out.filename);ret = av_image_alloc(inData, inStrides, in.width, in.height, in.format, 1);if(ret < 0){char errbuf[1024];av_strerror(ret,errbuf,sizeof (errbuf));qDebug() << "av_image_alloc inData error:" << errbuf;ret = APP_FFMPEG_ALLOC_FAILED;goto alloc_failed_1;}ret = av_image_alloc(outData, outStrides, out.width, out.height, out.format, 1);if (ret < 0) {char errbuf[1024];av_strerror(ret, errbuf, sizeof (errbuf));qDebug() << "av_image_alloc outData error:" << errbuf;ret = APP_FFMPEG_ALLOC_FAILED;goto alloc_failed_2;}ret = APP_SUCCESS;ctx = sws_getContext(in.width, in.height, in.format,out.width, out.height, out.format,SWS_BILINEAR, nullptr, nullptr, nullptr);if (!ctx) {qDebug() << "sws_getContext error";ret = APP_FFMPEG_SWS_GETCTX_FAILED;goto get_ctx_failed;}if (!inFile.open(QFile::ReadOnly)) {qDebug() << "open in file failure";ret = APP_OPENFILE_FAILED;goto in_file_open_falied;}if (!outFile.open(QFile::WriteOnly)) {qDebug() << "open out file failure";ret = APP_OPENFILE_FAILED;goto out_file_open_failed;}inFrameSize  = av_image_get_buffer_size(in.format, in.width, in.height, 1);outFrameSize = av_image_get_buffer_size(out.format, out.width, out.height, 1);while (inFile.read((char *)inData[0], inFrameSize) == inFrameSize) {sws_scale(ctx, inData, inStrides, 0, in.height, outData, outStrides);outFile.write((char *)outData[0], outFrameSize);}outFile.close();
out_file_open_failed:inFile.close();
in_file_open_falied:sws_freeContext(ctx);
get_ctx_failed:av_freep(&outData[0]);
alloc_failed_2:av_freep(&inData[0]);
alloc_failed_1:return ret;
}int QtFFmpegUtils::convertToRGB888(RawVideoFile &in, uint8_t *rgb888_data)
{int ret = APP_SUCCESS;SwsContext *ctx = nullptr;uint8_t *inData[4], *outData[4];int inStrides[4], outStrides[4];int inFrameSize, outFrameSize;QFile inFile(in.filename);ret = av_image_alloc(inData, inStrides, in.width, in.height, in.format, 1);if(ret < 0){char errbuf[1024];av_strerror(ret,errbuf,sizeof (errbuf));qDebug() << "av_image_alloc inData error:" << errbuf;ret = APP_FFMPEG_ALLOC_FAILED;goto alloc_failed_1;}ret = av_image_alloc(outData, outStrides, in.width, in.height, AV_PIX_FMT_RGB24, 1);if (ret < 0) {char errbuf[1024];av_strerror(ret, errbuf, sizeof (errbuf));qDebug() << "av_image_alloc outData error:" << errbuf;ret = APP_FFMPEG_ALLOC_FAILED;goto alloc_failed_2;}ret = APP_SUCCESS;ctx = sws_getContext(in.width, in.height, in.format,in.width, in.height, AV_PIX_FMT_RGB24,SWS_BILINEAR, nullptr, nullptr, nullptr);if (!ctx) {qDebug() << "sws_getContext error";ret = APP_FFMPEG_SWS_GETCTX_FAILED;goto get_ctx_failed;}if (!inFile.open(QFile::ReadOnly)) {qDebug() << "open in file failure";ret = APP_OPENFILE_FAILED;goto in_file_open_falied;}inFrameSize  = av_image_get_buffer_size(in.format, in.width, in.height, 1);outFrameSize = av_image_get_buffer_size(AV_PIX_FMT_RGB24, in.width, in.height, 1);if (inFile.read((char *)inData[0], inFrameSize) == inFrameSize) {sws_scale(ctx, inData, inStrides, 0, in.height, outData, outStrides);memcpy(rgb888_data, outData[0], outFrameSize);}else {qDebug("Read not finished");ret = APP_READ_FILE_NOT_FINISHED;}inFile.close();
in_file_open_falied:sws_freeContext(ctx);
get_ctx_failed:av_freep(&outData[0]);
alloc_failed_2:av_freep(&inData[0]);
alloc_failed_1:return ret;
}int QtFFmpegUtils::getBufferSize(AVPixelFormat pix_fmt, int width, int height)
{return av_image_get_buffer_size(pix_fmt, width, height, 1);
}

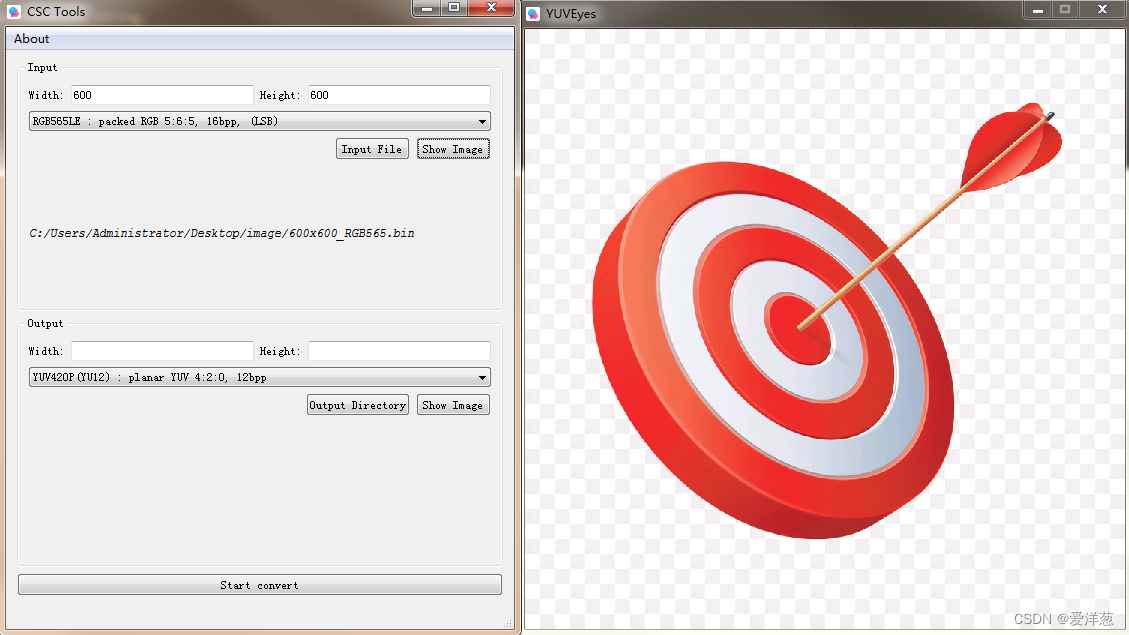

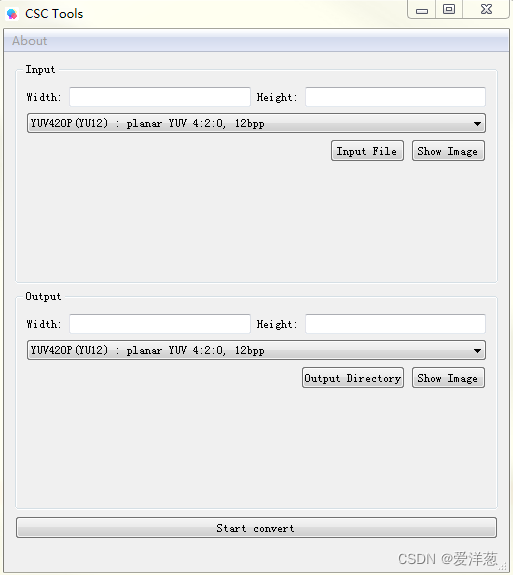

3. 预览

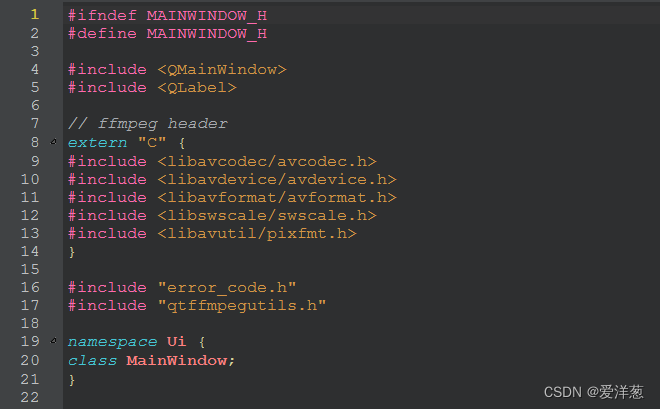

代码中，使用一个 QLabel 作为预览输入输出的图片，mainwindow.h 定义如下：

#ifndef MAINWINDOW_H
#define MAINWINDOW_H#include
#include // ffmpeg header
extern "C" {
#include
#include
#include
#include
#include
}#include "error_code.h"
#include "qtffmpegutils.h"namespace Ui {
class MainWindow;
}class MainWindow : public QMainWindow
{Q_OBJECTpublic:explicit MainWindow(QWidget *parent = nullptr);~MainWindow();private:Ui::MainWindow *ui;AVPixelFormat mInputFormat;AVPixelFormat mOutputFormat;QLabel *mLabel;// Format debug functionQString GetAVPixelFormatString(AVPixelFormat format);void ShowImageInRGB888(RawVideoFile in);private slots:void on_OpenInputFileBtn_Clicked();void on_SelectOutputFileBtn_Clicked();void on_StartConvertBtn_Clicked();void on_ShowInputImageBtn_Clicked();void on_ShowOutputImageBtn_Clicked();void on_InputFormatComboBox_Activated(int item_idx);void on_OutputFormatComboBox_Activated(int item_idx);void on_AboutActicon_Clicked(bool trigger);
};#endif // MAINWINDOW_H

mainwindow.cpp 逻辑如下，主要处理一些按键之类的逻辑和显示 QLabel：

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include "qtffmpegutils.h"#include
#include
#include
#include
#include
#include #define WIDTH_IN_4K             3840
#define HEIGHT_IN_4K            2160#define MAX_SUPPORT_WIDTH       (WIDTH_IN_4K)
#define MAX_SUPPORT_HEIGHT      (HEIGHT_IN_4K)#define RGB888_IN_BYTE          (8)typedef struct _DebugFormatInfo {AVPixelFormat format;QString string;
} _DebugFormatInfo_t;static AVPixelFormat ComboxSupportFormatList[] = {AV_PIX_FMT_YUV420P,AV_PIX_FMT_NV12,AV_PIX_FMT_NV21,AV_PIX_FMT_YUV422P,AV_PIX_FMT_NV16,AV_PIX_FMT_YUYV422,AV_PIX_FMT_UYVY422,AV_PIX_FMT_YVYU422,AV_PIX_FMT_RGB24,AV_PIX_FMT_BGR24,AV_PIX_FMT_ARGB,AV_PIX_FMT_RGBA,AV_PIX_FMT_RGB565BE,AV_PIX_FMT_RGB565LE,AV_PIX_FMT_RGB444BE,AV_PIX_FMT_RGB444LE
};static _DebugFormatInfo_t DebugFormatInfo[] = {{AV_PIX_FMT_YUV420P,        "AV_PIX_FMT_YUV420P "},{AV_PIX_FMT_NV12,           "AV_PIX_FMT_NV12    "},{AV_PIX_FMT_NV21,           "AV_PIX_FMT_NV21    "},{AV_PIX_FMT_YUV422P,        "AV_PIX_FMT_YUV422P "},{AV_PIX_FMT_NV16,           "AV_PIX_FMT_NV16    "},{AV_PIX_FMT_YUYV422,        "AV_PIX_FMT_YUYV422 "},{AV_PIX_FMT_UYVY422,        "AV_PIX_FMT_UYVY422 "},{AV_PIX_FMT_YVYU422,        "AV_PIX_FMT_YVYU422 "},{AV_PIX_FMT_RGB24,          "AV_PIX_FMT_RGB24   "},{AV_PIX_FMT_BGR24,          "AV_PIX_FMT_BGR24   "},{AV_PIX_FMT_ARGB,           "AV_PIX_FMT_ARGB    "},{AV_PIX_FMT_RGBA,           "AV_PIX_FMT_RGBA    "},{AV_PIX_FMT_RGB565BE,       "AV_PIX_FMT_RGB565BE"},{AV_PIX_FMT_RGB565LE,       "AV_PIX_FMT_RGB565LE"},{AV_PIX_FMT_RGB444BE,       "AV_PIX_FMT_RGB444BE"},{AV_PIX_FMT_RGB444LE,       "AV_PIX_FMT_RGB444LE"}
};MainWindow::MainWindow(QWidget *parent) :QMainWindow(parent),ui(new Ui::MainWindow)
{ui->setupUi(this);qDebug("AVCodeC Version = %s", av_version_info());mInputFormat  = ComboxSupportFormatList[0];mOutputFormat = ComboxSupportFormatList[0];mLabel = new QLabel();ui->lineEdit_Input_W->setValidator(new QIntValidator(0, MAX_SUPPORT_WIDTH, this));ui->lineEdit_Input_H->setValidator(new QIntValidator(0, MAX_SUPPORT_HEIGHT, this));ui->lineEdit_Output_W->setValidator(new QIntValidator(0, MAX_SUPPORT_WIDTH, this));ui->lineEdit_Output_H->setValidator(new QIntValidator(0, MAX_SUPPORT_HEIGHT, this));connect(ui->Btn_OpenInputFile, SIGNAL(clicked()), this, SLOT(on_OpenInputFileBtn_Clicked()));connect(ui->Btn_SelectOutputFile, SIGNAL(clicked()), this, SLOT(on_SelectOutputFileBtn_Clicked()));connect(ui->Btn_ShowInputImage, SIGNAL(clicked()), this, SLOT(on_ShowInputImageBtn_Clicked()));connect(ui->Btn_ShowOutputImage, SIGNAL(clicked()), this, SLOT(on_ShowOutputImageBtn_Clicked()));connect(ui->Btn_StartConvert, SIGNAL(clicked()), this, SLOT(on_StartConvertBtn_Clicked()));connect(ui->comboBoxIn, SIGNAL(activated(int)), this, SLOT(on_InputFormatComboBox_Activated(int)));connect(ui->comboBoxOut,SIGNAL(activated(int)), this, SLOT(on_OutputFormatComboBox_Activated(int)));connect(ui->actionVersion, SIGNAL(triggered(bool)), this, SLOT(on_AboutActicon_Clicked(bool)));
}MainWindow::~MainWindow()
{delete ui;
}void MainWindow::on_OpenInputFileBtn_Clicked()
{QFileDialog *fileDialog = new QFileDialog(this);fileDialog->setWindowTitle(tr("Open File"));fileDialog->setDirectory(".");fileDialog->setViewMode(QFileDialog::Detail);if(fileDialog->exec() == QDialog::Accepted) {QString path = fileDialog->selectedFiles()[0];QFileInfo fileInfo(path);if (fileInfo.isFile()) {ui->Label_InputFilePath->setText(path);} else {QMessageBox::information(nullptr, tr("Warning"), tr("Not exist :") + path);}}
}void MainWindow::on_SelectOutputFileBtn_Clicked()
{QFileDialog *fileDialog = new QFileDialog(this);fileDialog->setWindowTitle(tr("Select Location"));fileDialog->setDirectory(".");fileDialog->setViewMode(QFileDialog::Detail);if(fileDialog->exec() == QDialog::Accepted) {QString path = fileDialog->selectedFiles()[0];QFileInfo fileInfo(path);if (fileInfo.isFile()) {QMessageBox::StandardButton rb = QMessageBox::question(nullptr,tr("Question"),tr("Output File exist, Do you want cover it?"),QMessageBox::Yes | QMessageBox::No,QMessageBox::Yes);if(rb == QMessageBox::Yes) {ui->Label_OutputFilePath->setText(path);}} else {ui->Label_OutputFilePath->setText(path);}}
}void MainWindow::on_ShowInputImageBtn_Clicked()
{bool ok = false;int input_w, input_h;QString input_file_path;RawVideoFile video_info;input_w = ui->lineEdit_Input_W->text().toInt(&ok, 10);input_h = ui->lineEdit_Input_H->text().toInt(&ok, 10);// Check if the input file not be setinput_file_path = ui->Label_InputFilePath->text();if (input_file_path.isEmpty()){QMessageBox::information(nullptr, tr("Warning"), tr("Select a input file first"));return;}std::string in_str = input_file_path.toStdString();video_info.width = input_w;video_info.height = input_h;video_info.format = mInputFormat;video_info.filename = in_str.c_str();ShowImageInRGB888(video_info);
}void MainWindow::on_ShowOutputImageBtn_Clicked()
{bool ok = false;int output_w, output_h;QString output_file_path;RawVideoFile video_info;output_w = ui->lineEdit_Output_W->text().toInt(&ok, 10);output_h = ui->lineEdit_Output_H->text().toInt(&ok, 10);// Check if the output file not be setoutput_file_path = ui->Label_OutputFilePath->text();if (output_file_path.isEmpty()){QMessageBox::information(nullptr, tr("Warning"), tr("Select a input file first"));return;}std::string in_str = output_file_path.toStdString();video_info.width = output_w;video_info.height = output_h;video_info.format = mOutputFormat;video_info.filename = in_str.c_str();ShowImageInRGB888(video_info);
}void MainWindow::on_InputFormatComboBox_Activated(int item_idx)
{mInputFormat = ComboxSupportFormatList[item_idx];qDebug("InputFormatComboBox Item=%d", item_idx);
}void MainWindow::on_OutputFormatComboBox_Activated(int item_idx)
{mOutputFormat = ComboxSupportFormatList[item_idx];qDebug("OutputFormatComboBox Item=%d", item_idx);
}void MainWindow::on_StartConvertBtn_Clicked()
{bool ok = false;int input_w, input_h, output_w, output_h;QString input_file_path, output_file_path;RawVideoFile in;RawVideoFile out;int ret;// Check if the input file is nullif (ui->lineEdit_Input_W->text().isEmpty()      ||ui->lineEdit_Input_H->text().isEmpty()  ||ui->lineEdit_Output_H->text().isEmpty() ||ui->lineEdit_Output_W->text().isEmpty()){QMessageBox::information(nullptr, tr("Warning"), tr("Please add input/output width/height info!"));return;}input_w = ui->lineEdit_Input_W->text().toInt(&ok, 10);if (ok != true){QMessageBox::information(nullptr, tr("Warning"), tr("input_w String to Int failed"));return;}input_h = ui->lineEdit_Input_H->text().toInt(&ok, 10);if (ok != true){QMessageBox::information(nullptr, tr("Warning"), tr("input_h String to Int failed"));return;}output_w = ui->lineEdit_Output_W->text().toInt(&ok, 10);if (ok != true){QMessageBox::information(nullptr, tr("Warning"), tr("output_w String to Int failed"));return;}output_h = ui->lineEdit_Output_H->text().toInt(&ok, 10);if (ok != true){QMessageBox::information(nullptr, tr("Warning"), tr("output_h String to Int failed"));return;}// Check if the input file not be setinput_file_path = ui->Label_InputFilePath->text();if (input_file_path.isEmpty()){QMessageBox::information(nullptr, tr("Warning"), tr("Select a input file first"));return;}// Check if the output file not be setoutput_file_path = ui->Label_OutputFilePath->text();if (output_file_path.isEmpty()){QMessageBox::information(nullptr, tr("Warning"), tr("Select a output file"));return;}std::string in_str = input_file_path.toStdString();std::string out_str = output_file_path.toStdString();in.width = input_w;in.height = input_h;in.format = mInputFormat;in.filename = in_str.c_str();out.width = output_w;out.height = output_h;out.format = mOutputFormat;out.filename = out_str.c_str();qDebug("StartConvert input w=%d, h=%d", input_w, input_h);qDebug("             input format=%s", GetAVPixelFormatString(mInputFormat).toStdString().data());qDebug("             output w=%d, h=%d", output_w, output_h);qDebug("             output format=%s", GetAVPixelFormatString(mOutputFormat).toStdString().data());ret = QtFFmpegUtils::convertRawVideo(in, out);if (ret == APP_SUCCESS) {QMessageBox::information(nullptr, tr("Congratulation!"), tr("Convert Successfully"),QMessageBox::Yes, QMessageBox::Yes);} else {QMessageBox::information(nullptr, tr("Oops"), tr("Convert Failed : ") + QString::number(ret, 10),QMessageBox::Yes, QMessageBox::Yes);}
}void MainWindow::ShowImageInRGB888(RawVideoFile in)
{uint8_t *rgb888_data = nullptr;int ret = APP_SUCCESS;int buffer_size = 0;buffer_size = QtFFmpegUtils::getBufferSize(AV_PIX_FMT_RGB24, in.width, in.height);//rgb888_data = (uint8_t *)malloc(in.width * in.height * RGB888_IN_BYTE);rgb888_data = (uint8_t *)malloc(buffer_size);if (rgb888_data == nullptr) {QMessageBox::information(nullptr, tr("Warning"), tr("Malloc failed"));return;}ret = QtFFmpegUtils::convertToRGB888(in, rgb888_data);if (ret == APP_SUCCESS) {qDebug("Convert to RGB888 Successful");} else {QMessageBox::information(nullptr, tr("Oops"), tr("Show Image Failed : ") + QString::number(ret, 10),QMessageBox::Yes, QMessageBox::Yes);}QImage *qimage = new QImage(rgb888_data, in.width, in.height, QImage::Format_RGB888);QPixmap pixmap = QPixmap::fromImage(*qimage);//mLabel->setGeometry(100, 100, in.width, in.height);mLabel->setMaximumSize(in.width, in.height);mLabel->resize(in.width, in.height);mLabel->setPixmap(pixmap);mLabel->show();free(rgb888_data);
}void MainWindow::on_AboutActicon_Clicked(bool trigger)
{QMessageBox MBox;MBox.setWindowTitle("CSC Tools");MBox.setText("Powered by StephenZhou\n\nSoftware Version : V1.0 Beta \n\nGenerate at 2022.10.29");MBox.setIconPixmap(QPixmap(":/logo.ico"));MBox.exec();
}QString MainWindow::GetAVPixelFormatString(AVPixelFormat format)
{QString str = "N/A";for (unsigned int i = 0; i < sizeof(DebugFormatInfo) / sizeof(_DebugFormatInfo_t); i++) {if (format == DebugFormatInfo[i].format){str = DebugFormatInfo[i].string;break;}}return str;
}

4. 项目地址
