第一步:下载依赖

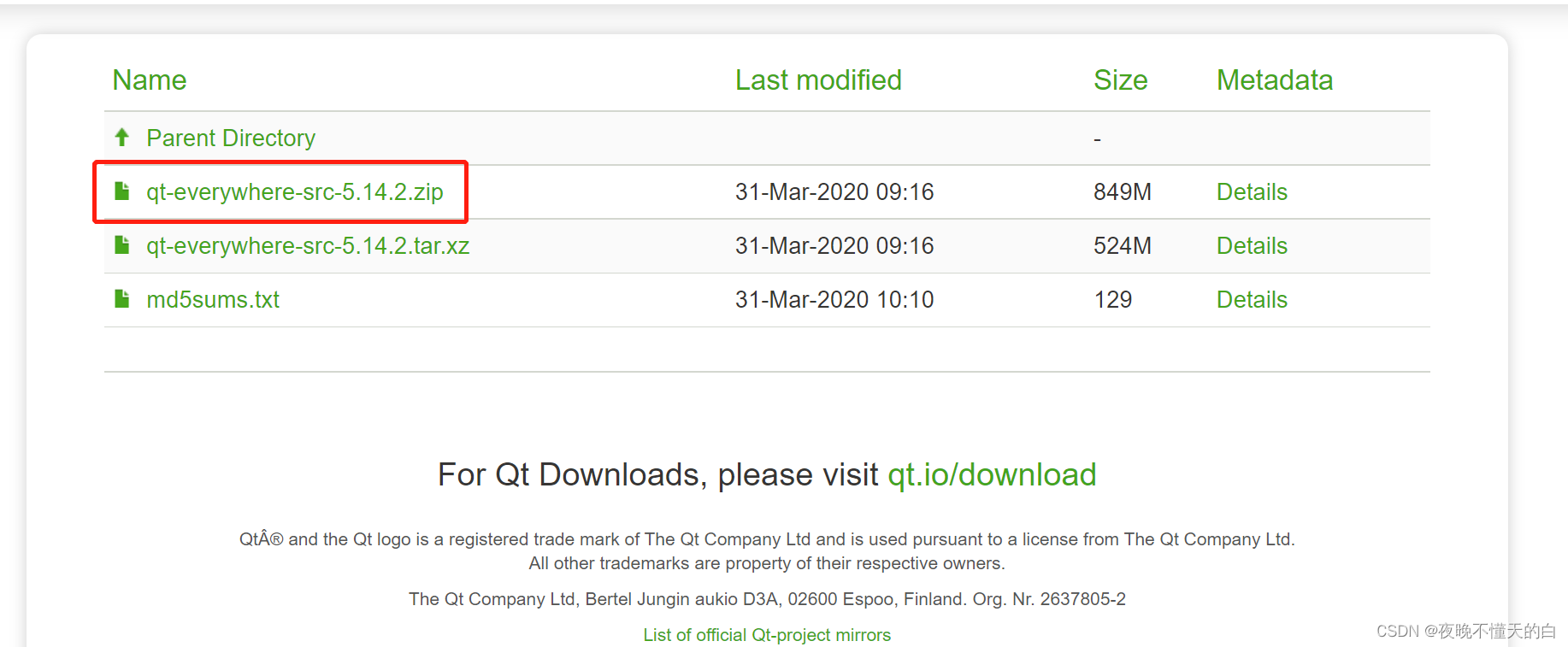

1.1去Qt官方下载Qt5.14.2的源代码:

Index of /archive/qt/5.14/5.14.2/singlehttps://download.qt.io/archive/qt/5.14/5.14.2/single/

 下载链接:https://download.qt.io/archive/qt/5.14/5.14.2/single/qt-everywhere-src-5.14.2.zip

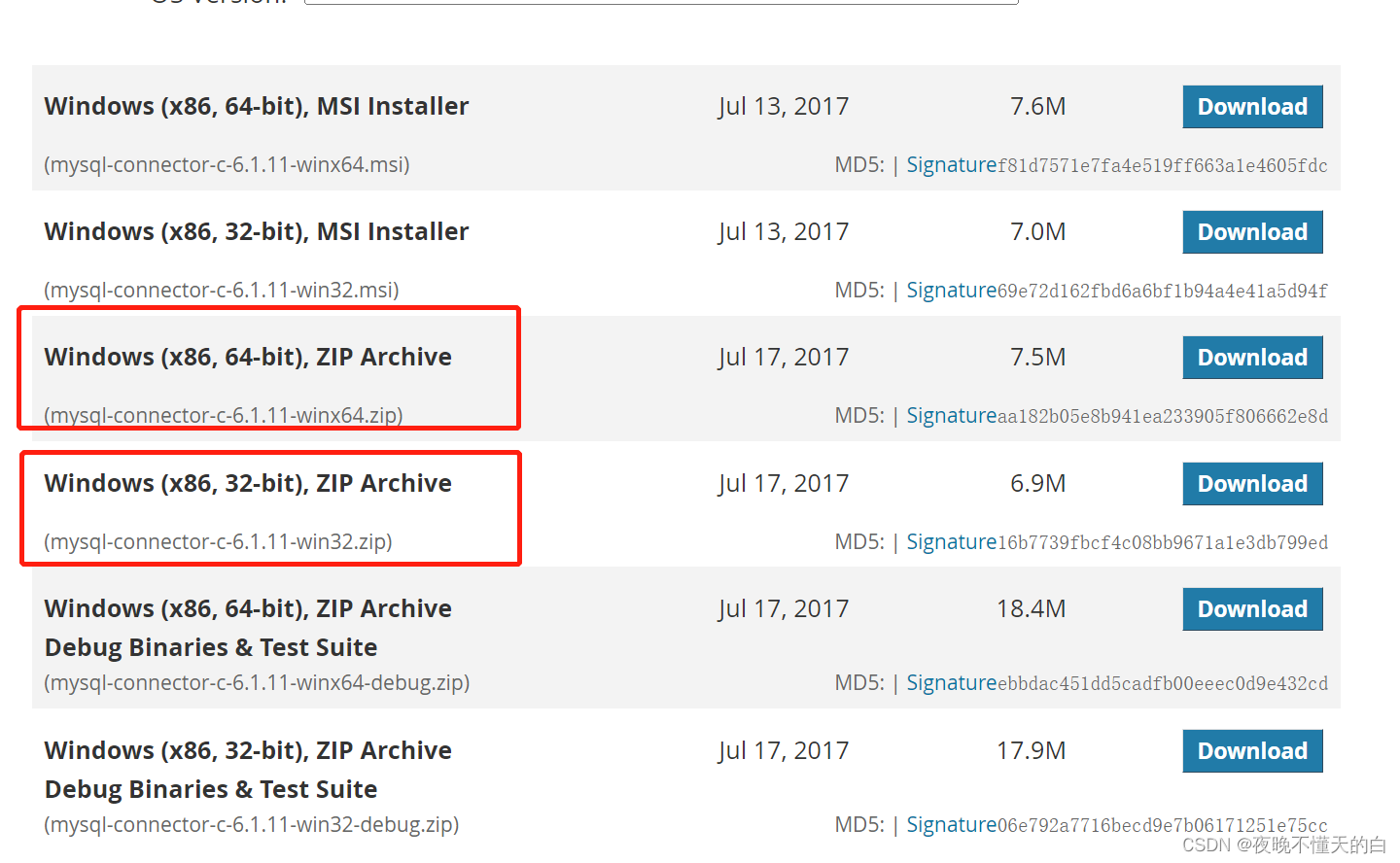

 1.2去Mysql官网下载Mysql SDK

MySQL :: Download MySQL Connector/C (Archived Versions)https://downloads.mysql.com/archives/c-c/

32位SDK下载链接:https://cdn.mysql.com/archives/mysql-connector-c/mysql-connector-c-6.1.11-win32.ziphttps://cdn.mysql.com/archives/mysql-connector-c/mysql-connector-c-6.1.11-win32.zip

64位SDK下载链接:

https://cdn.mysql.com/archives/mysql-connector-c/mysql-connector-c-6.1.11-winx64.ziphttps://cdn.mysql.com/archives/mysql-connector-c/mysql-connector-c-6.1.11-winx64.zip

第二步:编译和配置

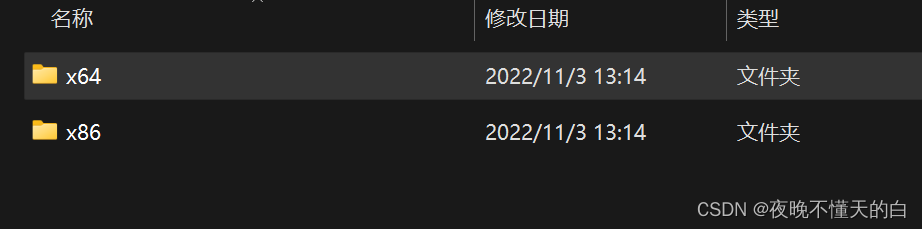

2.1解压mysql-connector-c-6.1.11-win32.zip和mysql-connector-c-6.1.11-winx64.zip,然后新建文件夹mysql,将32位的文件夹命名为x86,将64位的文件夹命名为x64,将其拷贝到mysql文件夹中.

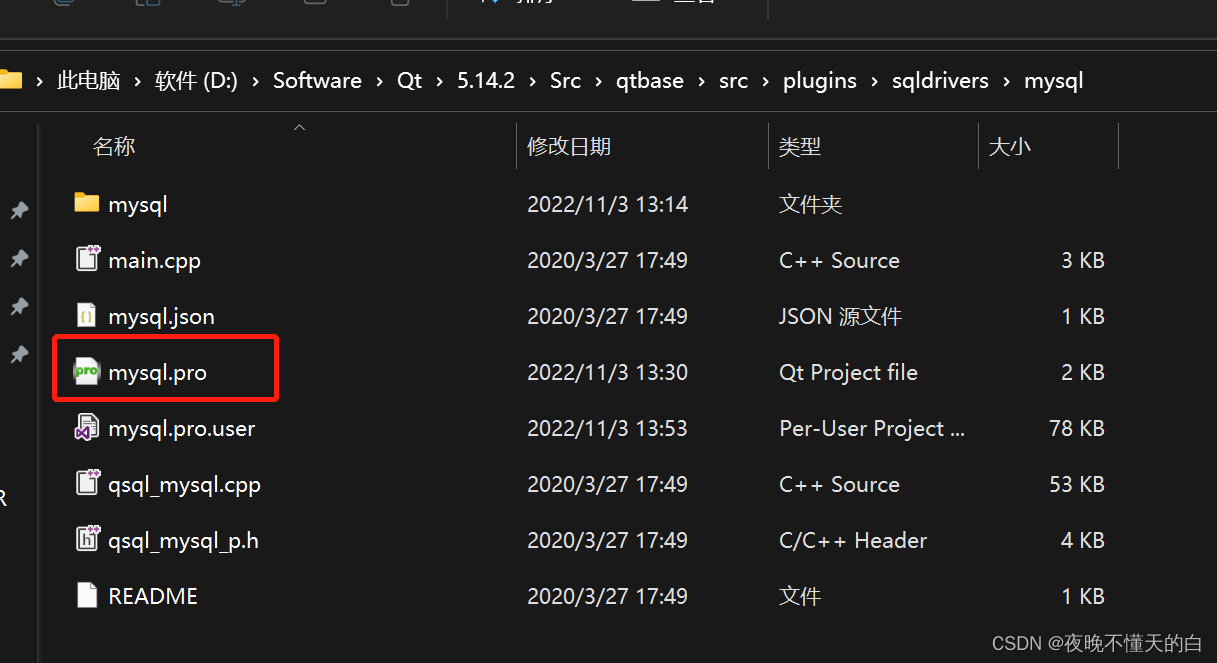

2.2解压qt-everywhere-src-5.14.2.zip,(你的qt源代码目录下)\qtbase\src\plugins\sqldrivers\mysql\,将mysql文件夹拷贝进去,然后双击打开mysql.pro.如下图所示:

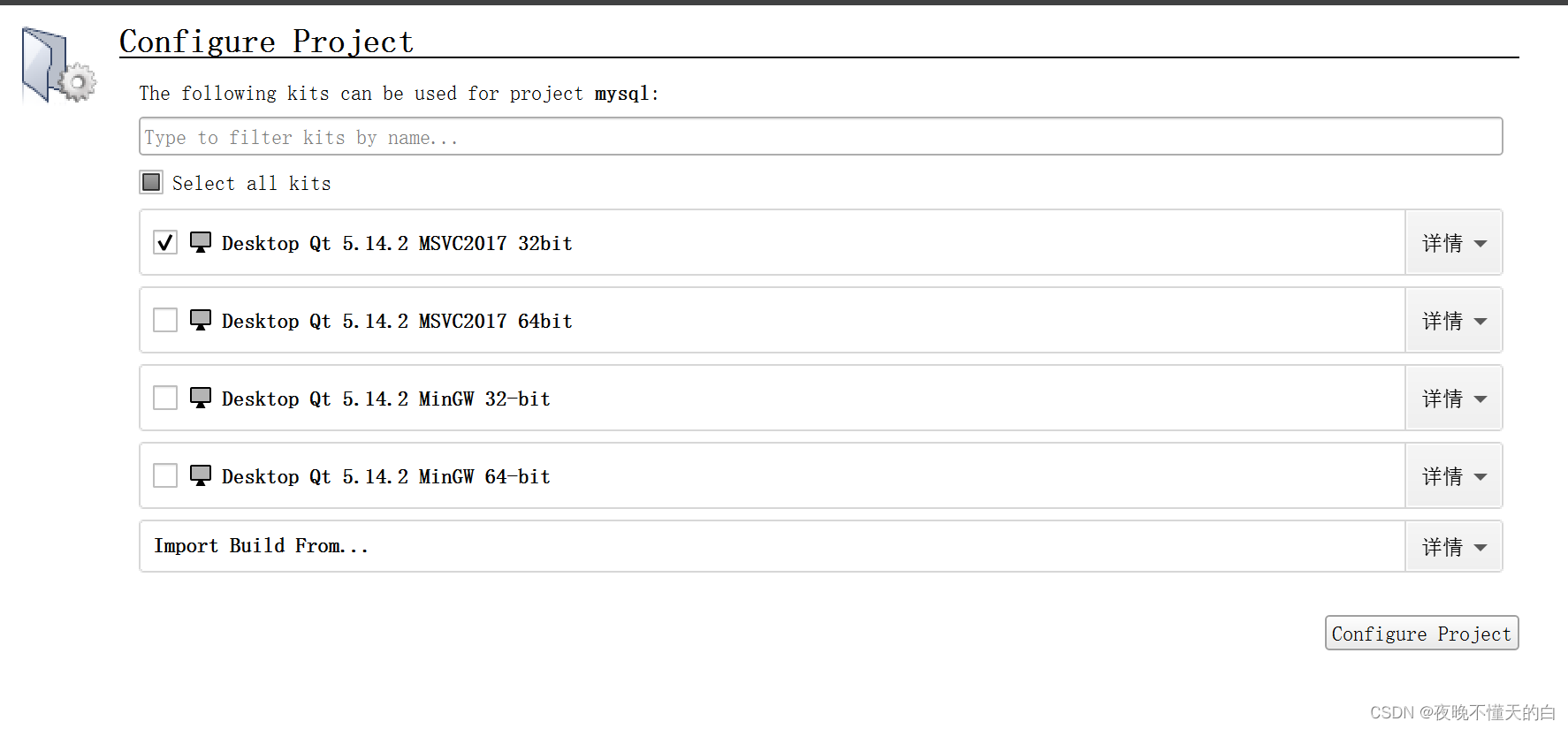

2.3打开项目文件之后,如下图所示:

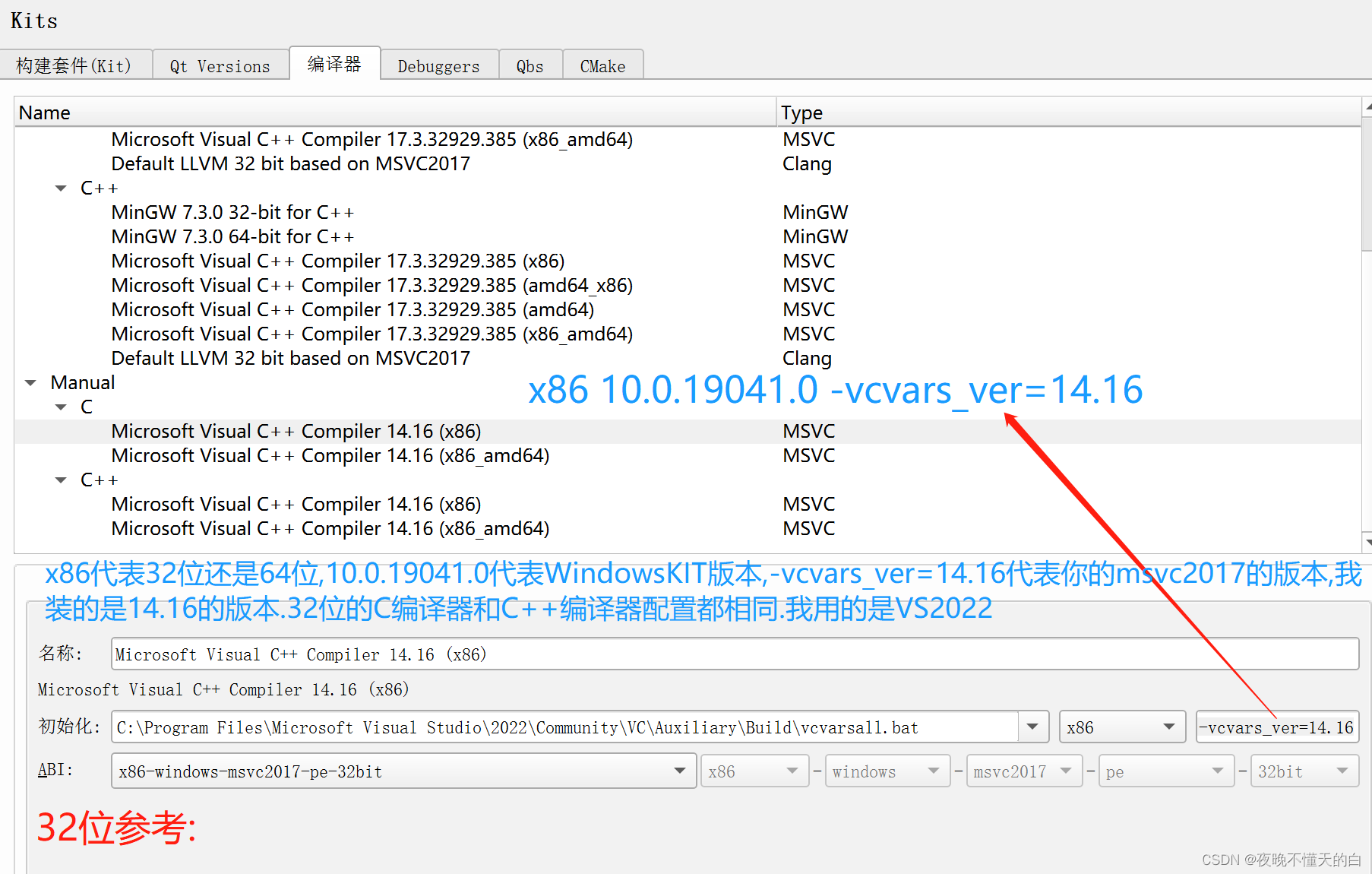

 如果你的Desktop Qt 5.14.2 MSVC2017 32bit和Desktop Qt5.14.2 MSVC2017 64bit同时有感叹号,请参考下方文档,进行自定义配置:

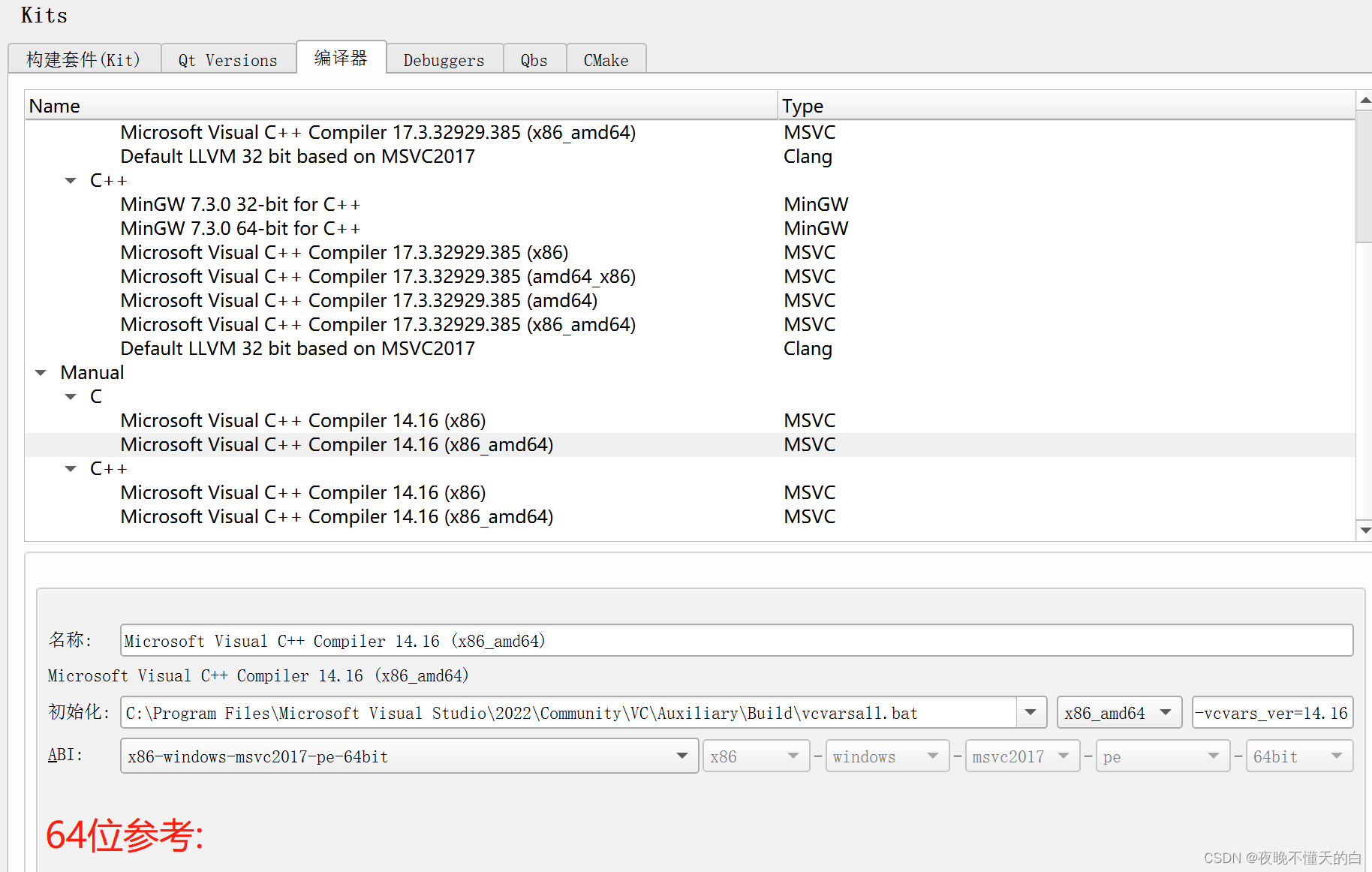

Qt 添加MSVC2017编译器（2022年保姆级教程，不安装完整VS）_Copperxcx的博客-CSDN博客_msvc2017https://blog.csdn.net/Copperxcx/article/details/122540629?spm=1001.2014.3001.5506我的配置仅供参考:

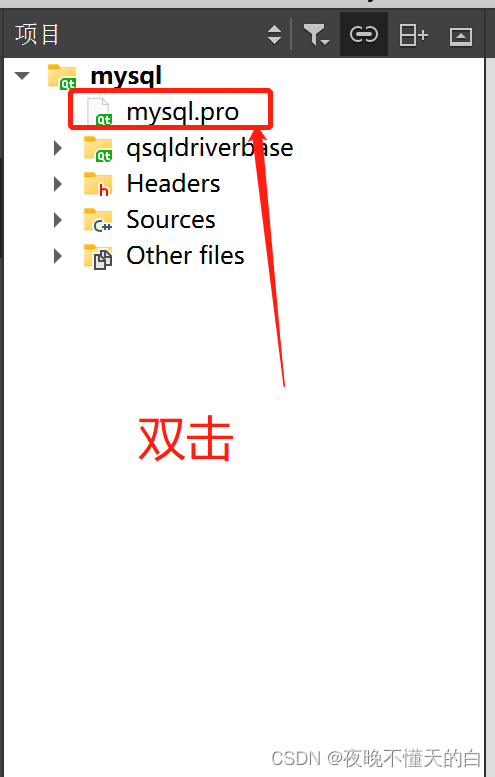

 2.4配置好了之后打开,如下图所示:

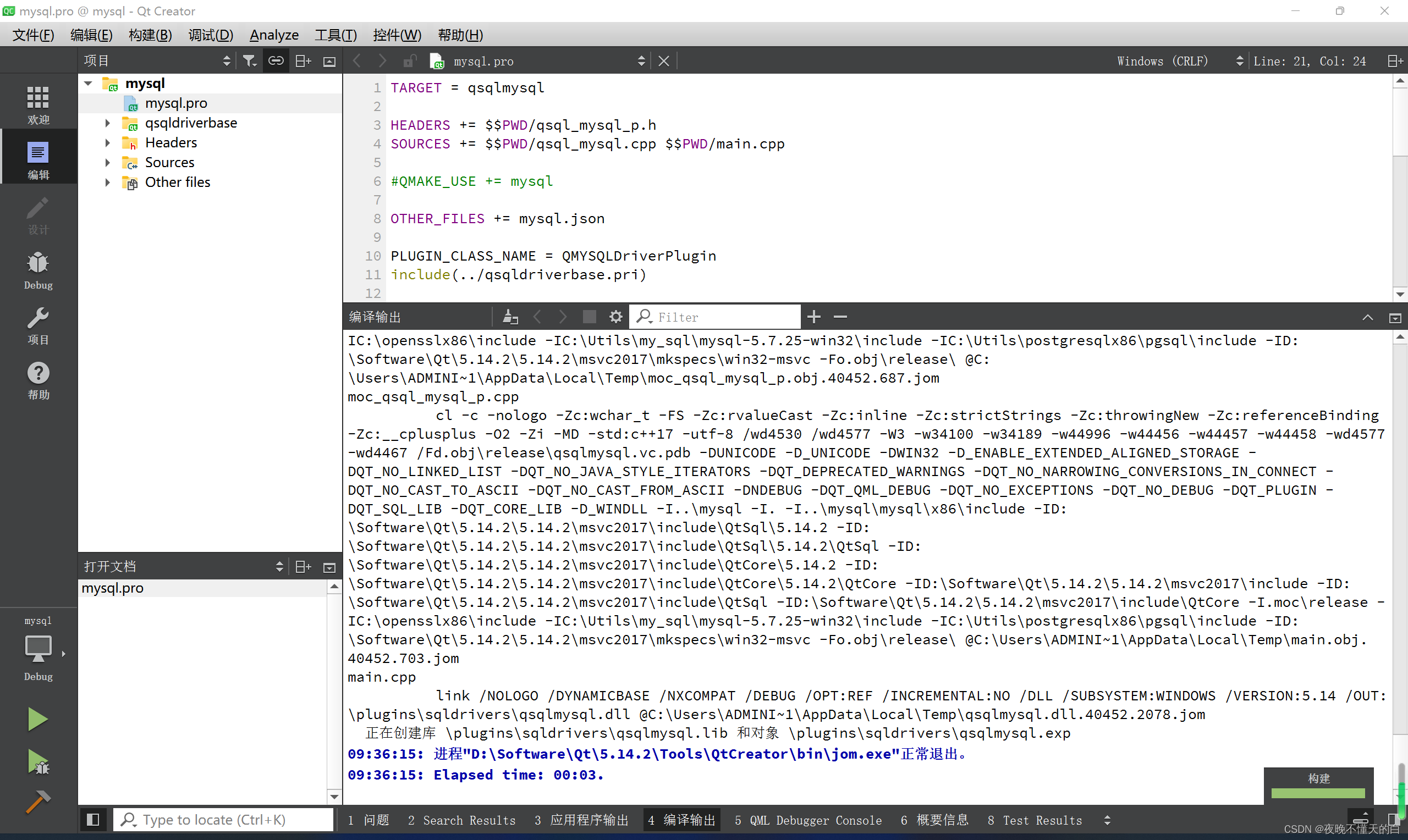

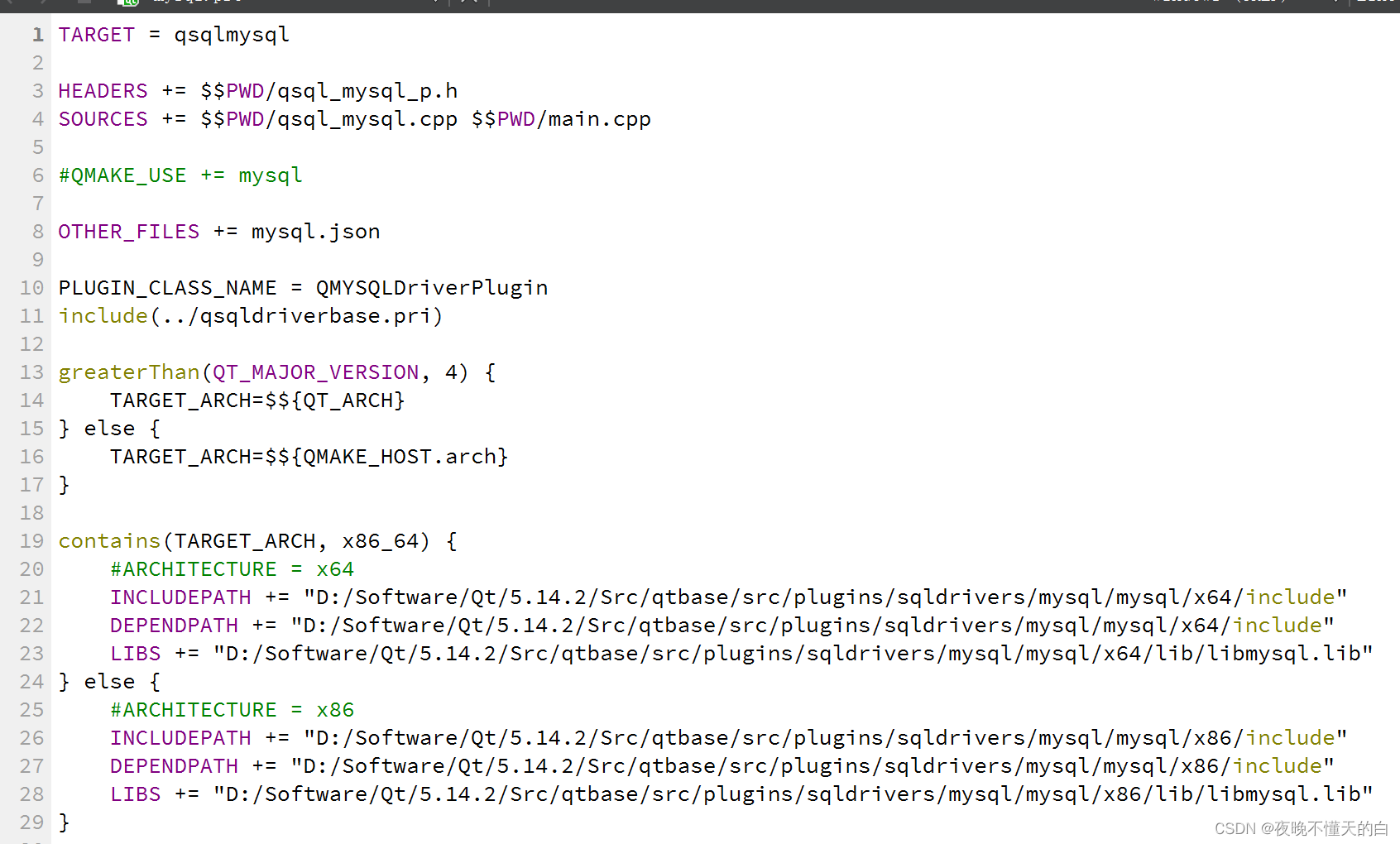

修改mysql.pro文件参数为下图:

TARGET = qsqlmysqlHEADERS += $$PWD/qsql_mysql_p.h
SOURCES += $$PWD/qsql_mysql.cpp $$PWD/main.cpp#QMAKE_USE += mysqlOTHER_FILES += mysql.jsonPLUGIN_CLASS_NAME = QMYSQLDriverPlugin
include(../qsqldriverbase.pri)greaterThan(QT_MAJOR_VERSION, 4) {TARGET_ARCH=$${QT_ARCH}
} else {TARGET_ARCH=$${QMAKE_HOST.arch}
}contains(TARGET_ARCH, x86_64) {#ARCHITECTURE = x64INCLUDEPATH += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x64/include"DEPENDPATH += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x64/include"LIBS += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x64/lib/libmysql.lib"
} else {#ARCHITECTURE = x86INCLUDEPATH += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x86/include"DEPENDPATH += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x86/include"LIBS += "D:/Software/Qt/5.14.2/Src/qtbase/src/plugins/sqldrivers/mysql/mysql/x86/lib/libmysql.lib"
}

上述的INCLUDEPATH,DEPENDPATH和LIBS根据自己的路径进行设置.

2.5点击QtCreator上方的菜单栏中的构建(B)->重新构建所有项目.(此处只是生成了,Windows下的32位的Debug和Release的dll,你也可以生成Windows64位,MinGW32位和64位的库,只需要点击左下角小电脑更改编译器即可).

2.6在D盘根目录找到plugins\sqldrivers\qsqlmysqld.dll和qsqlmysql.dll(如果找不到那么就装个everything进行搜索吧)将其分别拷贝到你的Qt安装目录下的msvc2017\plugins\sqldrivers\(这是32位的目录),如果是64位的需要拷贝到msvc2017_64\plugins\sqldrivers\.

2.7找到mysql文件夹,将libmysql.dll拷贝到msvc2017\bin目录下.

自此所有编译和配置操作完毕,接下来进行测试!

第三步:测试

#include
#include
#include
#include
#include int main(int argc, char *argv[])
{QApplication a(argc, argv);QtWidgetsApplication1 w;w.show();//查看Qt支持的数据库qDebug() << QSqlDatabase::drivers();QSqlDatabase database = QSqlDatabase::addDatabase("QMYSQL");database.setHostName("192.168.211.128");  //设置主机地址database.setPort(3306);  //设置端口 默认3306database.setDatabaseName("table_one");  //设置数据库名称database.setUserName("test");  //对应数据库的用户名database.setPassword("123456");//对应数据库的密码if (!database.open())qDebug() << "failed" << database.lastError().text();elseqDebug() << "success";QSqlQuery query;query.prepare("select * from hardware");query.exec();while (query.next()){QSqlRecord record = query.record();for (int i = 0; i < record.count(); ++i){qDebug() << record.fieldName(i) << "->" << record.value(i).toString();}printf("\n");}database.close();return a.exec();
}

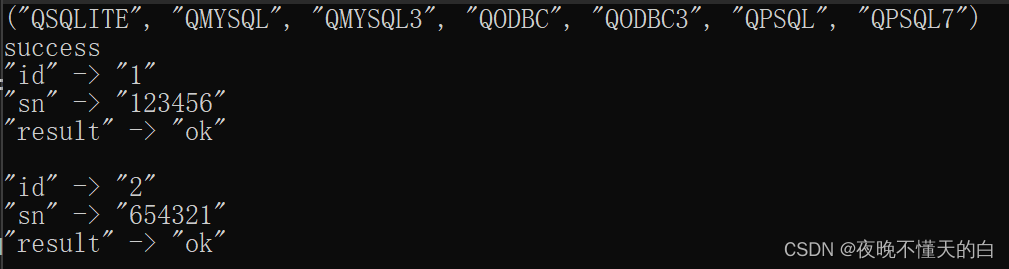

运行结果:

 如果你的Mysql数据连不上,报错SSL connection error: unknown error number,参考链接:

QT连接mysql：实现5.9.0的32位QT连接8.0的64位mysql并且解决SSL​“SSL connection error: unknown error number QMYSQL错误_Nova_SSS的博客-CSDN博客https://blog.csdn.net/Nova_SSS/article/details/125379858?spm=1001.2014.3001.5506

已编译好的分享给大家,链接地址:

Qt5.14.2插件qsqlmysql.dll-C++文档类资源-CSDN文库https://download.csdn.net/download/qq_31629063/86899370
