理论

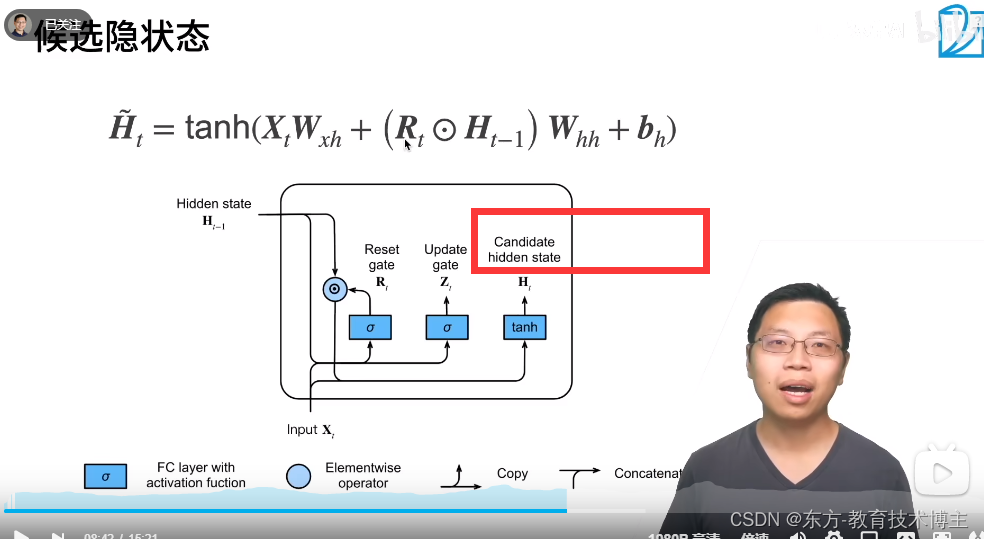

候选隐藏状态。
圆圈 表示 按元素乘法。

这里面的 这个符号值得是 按元素相乘。
Rt理解为 和Ht 长度一样的一维向量。（这么理解）

这里如果Rt长的像0的话，那么乘出来的结果，就也像0。

要是像0 的话，相当于是说 把上一刻的隐藏转态给遗忘掉。

在这里Rt是可以学的。
全是0的话，相当于回到初始转态。
全是1的话，都保留。

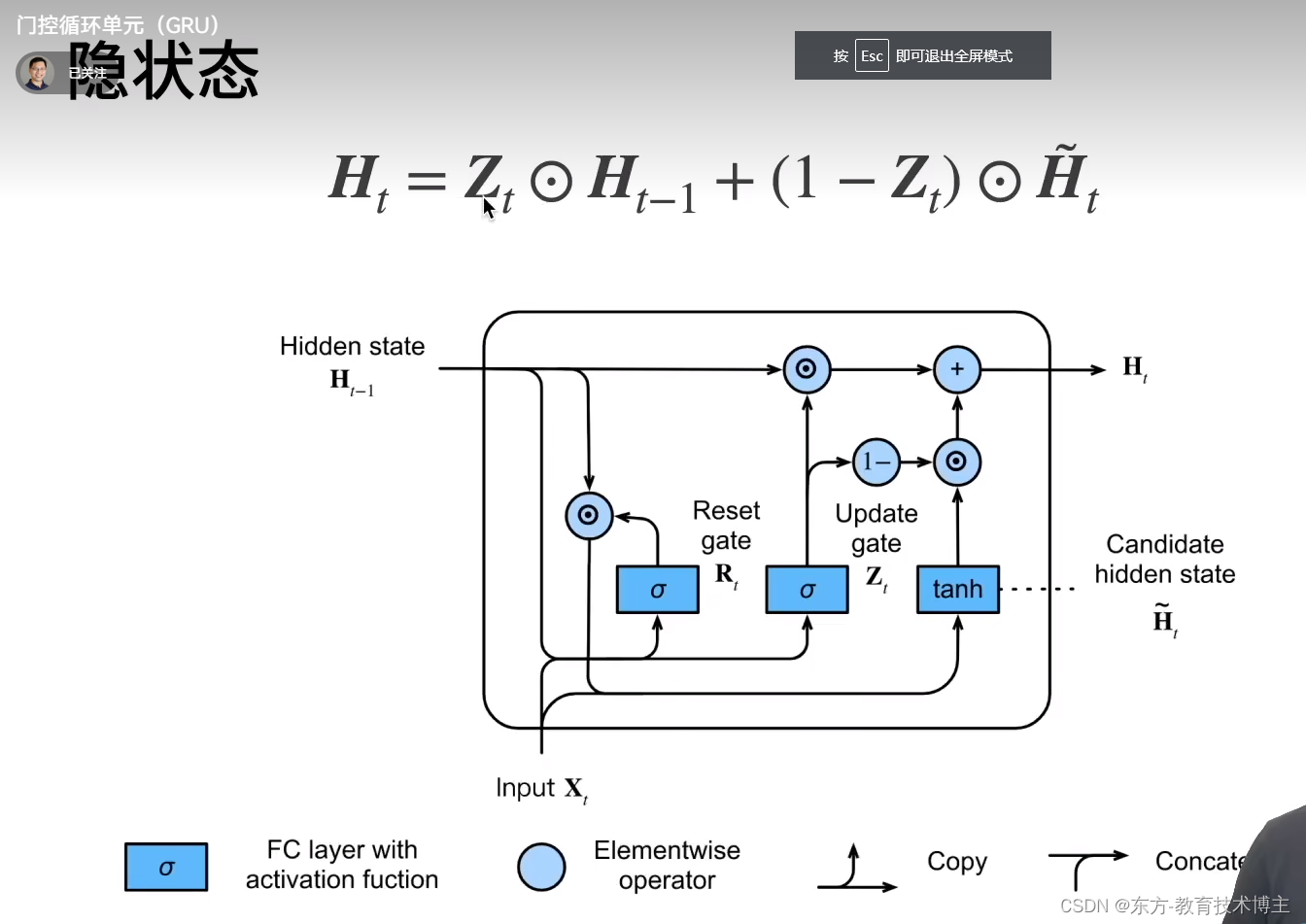

真正的隐状态：

假设Zt都等于1，那么就相当于只看过去的状态，不看现在的状态，
如果Zt都等于0，那么相当于只看当前状态，

Zt可以理解为 过去隐藏状态 ，在当前隐藏状态中，占了多少的权重。

感觉GRU里reset和update这个命名挺精髓的：
1.理论上Whh完全具备reset的能力，使得公式退化为全连接(Whh全为0)，但是专门加了一个reset，且sigmoid为激活函数（特性是输出值0-1，且模仿的是0到1的阶跃），给我的感觉是在设计网络的时候专门引导网络更容易重置Ht-1项，在这里reset名副其实。
2.而update的设计，让我想到的是resnet里面引入X的操作，只是这里引入的是Ht-1，而且通过update门来控制两边的权重；如果忽略update门的权重，可以看做resnet当中关于Ht和Ht-1的残差块（resnet是f(x)与x的块）。但是在这里因为update门也是sigmoid函数，使得函数以较大的可能性在使用Ht-1和ht两种情况中做选择，相对于RNN当中，它给的是输出Ht-1的可能，那这个update门是不是叫remember门更为合适。
欢迎指正，特别是老师！

特别的：
Z里面全0，
R里面全1的情况，相当于把前面的隐藏状态直接拿过来用。
就是RNN。

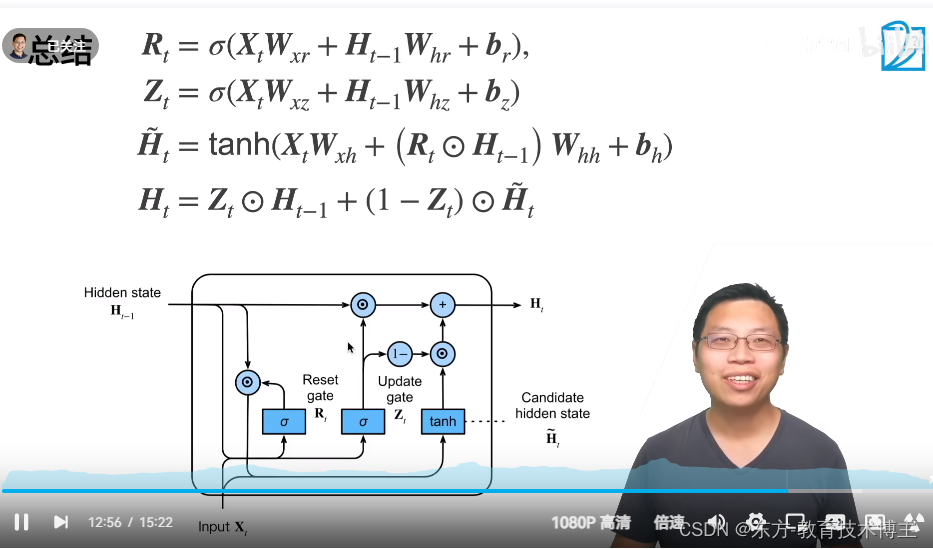

代码实现

其实实现 不算是 复杂，
就是上面图里面的公式，拿过来到
从零实现：

import torch
from torch import nn
from d2l import torch as d2lbatch_size, num_steps = 32, 35
train_iter, vocab = d2l.load_data_time_machine(batch_size, num_steps)# 初始化模型参数
def get_params(vocab_size, num_hiddens, device):num_inputs = num_outputs = vocab_sizedef normal(shape):return torch.randn(size=shape, device=device) * 0.01def three():return (normal((num_inputs, num_hiddens)), normal((num_hiddens, num_hiddens)),torch.zeros(num_hiddens, device=device))W_xz, W_hz, b_z = three()  # GRU多了这两行W_xr, W_hr, b_r = three()  # GRU多了这两行W_xh, W_hh, b_h = three()W_hq = normal((num_hiddens, num_outputs))b_q = torch.zeros(num_outputs, device=device)params = [W_xz, W_hz, b_z, W_xr, W_hr, b_r, W_xh, W_hh, b_h, W_hq, b_q]for param in params:param.requires_grad_(True)return params# 定义隐藏状态的初始化函数
def init_gru_state(batch_size, num_hiddens, device):return (torch.zeros((batch_size, num_hiddens), device=device),)
# 定义门控循环单元模型
def gru(inputs, state, params):W_xz, W_hz, b_z, W_xr, W_hr, b_r, W_xh, W_hh, b_h, W_hq, b_q = paramsH, = stateoutputs = []for X in inputs:Z = torch.sigmoid((X @ W_xz) + (H @ W_hz) + b_z)R = torch.sigmoid((X @ W_xr) + (H @ W_hr) + b_r)H_tilda = torch.tanh((X @ W_xh) + ((R * H) @ W_hh) + b_h)H = Z * H + (1 - Z) * H_tildaY = H @ W_hq + b_qoutputs.append(Y)return torch.cat(outputs, dim=0), (H,)
# 训练
vocab_size, num_hiddens, device = len(vocab), 256, d2l.try_gpu()
num_epochs, lr = 500, 1
model = d2l.RNNModelScratch(len(vocab), num_hiddens, device, get_params,init_gru_state, gru)
d2l.train_ch8(model, train_iter, vocab, lr, num_epochs, device)

简洁实现：

# 简洁实现
num_inputs = vocab_size
gru_layer = nn.GRU(num_inputs, num_hiddens)
model = d2l.RNNModel(gru_layer, len(vocab))
model = model.to(device)
d2l.train_ch8(model, train_iter, vocab, lr, num_epochs, device)

运行结果：

time traveller

time traveller ate ate te ate ate te ate ate te ate ate te ate a

time traveller the the the the the the the the the the the the t

time travellere the the the the the the the the the the the the

time travellere the the the the the the the the the the the the

time traveller the the the the the the the the the the the the t

time travellere the the the the the the the the the the the the

time traveller an the the the the the the the the the the the th

time travellerererererererererererererererererererererererererer

time travellere the the the the the the the the the the the the

time travellere the the the the the the the the the the the the

time travellere the the the the the the the the the the the the

time travellere the the the the the the the the the the the the

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the the thered the the thered the the thered the

time traveller the the the the the the the the the the the the t

time traveller the the the the the the the the the the the the t

time traveller the time traveller the time traveller the time tr

time traveller the the thing the time the traceller the thing th

time traveller the three dimensions of the time trave all the ti

time traveller the three dimensions of the time traveller the tr

time traveller the proples that is a somient and the three and t

time traveller the three dimensions of the three dimensions of t

time traveller than a man a cour a courar this is in time travel

time traveller than a man existery light of shace and they tound

time traveller that is the time travellerit s ageat on the than

time traveller scollised of ho s all phace and they thinkness ge

time travellerist four dimensions of space why is thend whing th

time travellerit s agee trantionirg inewald the ment light of sh

time travellerit that is the stacl proceeded anyreal inds reccan

time traveller spoce the about in the foom the prowel instimited

time traveller proceeded anyreal thing so move about in all only

time traveller smiling and they it isspone of the grove is a mom

time traveller sot a on thisknow of cheirumone fire iftine in an

time travellerit soug i now have abeet in wilb have no means of

time traveller for so it will be convenient to speak of himwas e

time traveller proceeded anyreal body must have extension in fou

time traveller for so it will be convenient to speak of himwas e

time travelleryou can show black is white by argument said filby

time travelleryou can show black is white by argument said filby

time travelleryou can show black is white by argument said filby

time traveller for so it will be convenient to speak of himwas e

time travelleryou can show black is white by argument said filby

time travelleryou can show black is white by argument said filby

time travellery contenter mimensions of space ghic dimensions of

perplexity 1.2, 9001.5 tokens/sec on cpu
time travellery contenter mimensions of space ghic dimensions of
travelleryou can showarde thing there was is alw ys canemer
