学习说明：最近发现了一个宝藏仓库，将常见的文本分类方法做了一个介绍、及封装。现在将学习这仓库的一些笔记记录如下

参照资料

649453932/Chinese-Text-Classification-Pytorch: 中文文本分类，TextCNN，TextRNN，FastText，TextRCNN，BiLSTM_Attention，DPCNN，Transformer，基于pytorch，开箱即用。 (github.com)

中文文本分类 pytorch实现 - 知乎 (zhihu.com)

文章目录

• • • 参照资料
    • TextRNN
    • TextRNN + Attention
    • TextCNN
    • TextRCNN
    • DPCNN
    • FastText
    • Transformers

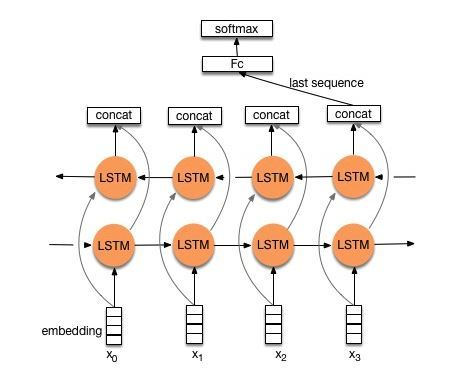

TextRNN

1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练的词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]
3. 双向LSTM：隐层大小为hidden_size，得到所有时刻的隐层状态（前向隐层+后向隐层拼接）。[batch_size,seq_len,hidden_size * 2]
4. 拿出最后时刻的隐层值：[batch_size,hidden_size * 2]
5. 全连接：num_class是预测的类别数。[batch_size,num_class]
6. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：LSTM能比较好的捕捉长距离语义关系，但由于其递归结构，不能并行计算，速度慢

代码如下：

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.lstm = nn.LSTM(config.embed, config.hidden_size, config.num_layers,bidirectional=True, batch_first=True, dropout=config.dropout)self.fc = nn.Linear(config.hidden_size * 2, config.num_classes)def forward(self, x): # x：{[batch_size，seq_len]，batch_size}x, _ = x # x：[batch_size,seq_len]out = self.embedding(x)  # out：[batch_size, seq_len, embeding]out, _ = self.lstm(out) # out：[batch_size,seq_len,hidden_size * 2]out = self.fc(out[:, -1, :])  # out：[batch_size，class_nums]return out

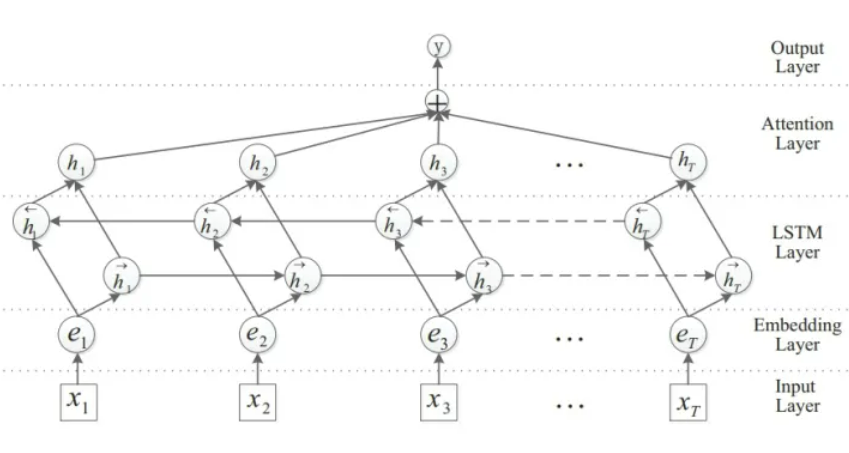

TextRNN + Attention

1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]
3. 双向LSTM：隐层大小为hidden_size，得到所有时刻的隐层状态（前向隐层+后向隐层拼接）。[batch_size,seq_len,hidden_size * 2]
4. 初始化一个可学习的权重矩阵w。w = [hidden_size * 2,1]
5. 对LSTM的输出进行非线性激活后与w进行矩阵相乘，并经softmax归一化，得到每时刻的分值。[batch_size,seq_len,1]
6. 将LSTM的每一时刻的隐层状态乘对应的分值求和，得到加权平均后的终极隐层值。[batch_size,hidden_size * 2]
7. 对终极隐层值进行非线性激活后送入两个连续的全连接层。[batch_size,num_class]
8. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：其中4~6步是attention机制计算过程，其实就是对lstm每刻的隐层进行加权平均。比如句长为4，首先算出4个时刻的归一化分值：[0.1, 0.3, 0.4, 0.2]，然后
h终极=0.1h1+0.3h2+0.4h3+0.2h4h_{终极}=0.1h_1 + 0.3h_2 + 0.4h_3 + 0.2 h_4 h终极​=0.1h1​+0.3h2​+0.4h3​+0.2h4​
代码如下

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.lstm = nn.LSTM(config.embed, config.hidden_size, config.num_layers,bidirectional=True, batch_first=True, dropout=config.dropout)self.tanh1 = nn.Tanh()# self.u = nn.Parameter(torch.Tensor(config.hidden_size * 2, config.hidden_size * 2))self.w = nn.Parameter(torch.zeros(config.hidden_size * 2))self.tanh2 = nn.Tanh()self.fc1 = nn.Linear(config.hidden_size * 2, config.hidden_size2)self.fc = nn.Linear(config.hidden_size2, config.num_classes)def forward(self, x): # x：{[batch_size,seq_len],[batch_size]}x, _ = x # x：[batch_size,seq_len]emb = self.embedding(x) # emb：[batch_size,seq_len,embedding]H, _ = self.lstm(emb) # H：[batch_size,seq_len,hidden_size * 2]M = self.tanh1(H)  # M：[batch_size,seq_len,hidden_size * 2]# M = torch.tanh(torch.matmul(H, self.u))alpha = F.softmax(torch.matmul(M, self.w), dim=1).unsqueeze(-1) # alpha：[batch_size,seq_len,1]out = H * alpha # out：[batch_size,seq_len,hidden_size * 2]out = torch.sum(out, 1) # out：[batch_size,hidden_size * 2]out = F.relu(out) # out：[batch_size,hidden_size * 2]out = self.fc1(out) # out：[batch_size,hidden_size2]out = self.fc(out)  # out：[batch_size,num_classes]return out

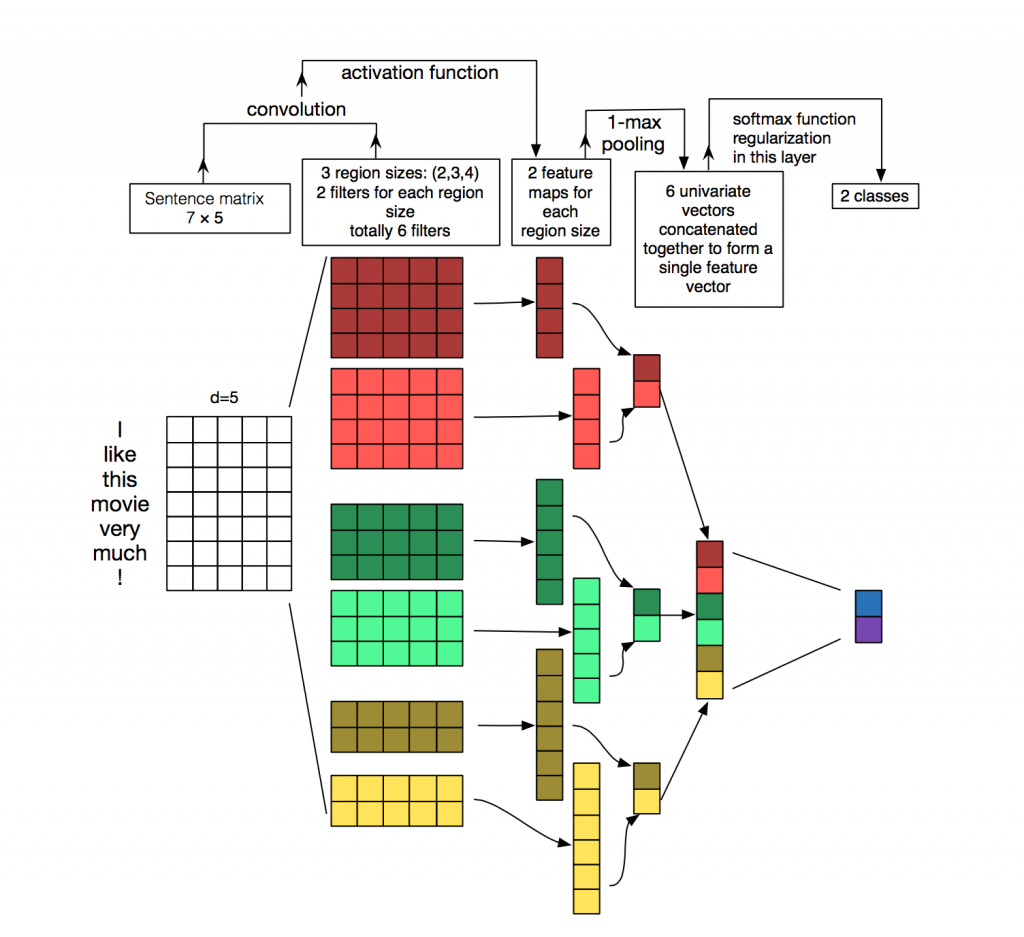

TextCNN

1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]
3. 卷积层：NLP中卷积核宽度与embed-size相同，相当于一维卷积。3个尺寸的filter_sizes卷积核（2，3，4），每个尺寸的卷积核num_filters有256个，卷积后得到三个特征图[batch_size,num_filters,seq_len - filter_sizes + 1]
   • [batch_size,num_filters,seq_len-1]
   • [batch_size,num_filters,seq_len-2]
   • [batch_size,num_filters,seq_len-3]
4. 池化层：对三个特征图做最大池化
   • [batch_size,num_filters]
   • [batch_size,num_filters]
   • [batch_size,num_filters]
5. 拼接：[batch_size,num_filters * 3]
6. 全连接：num_class是预测的类别数。[batch_size,num_class]
7. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：卷积操作相当于提取了句中的2-gram，3-gram，4-gram信息，多个卷积是为了提取多种特征，最大池化将提取到最重要的信息保留

代码如下：

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.convs = nn.ModuleList([nn.Conv2d(1, config.num_filters, (k, config.embed)) for k in config.filter_sizes])self.dropout = nn.Dropout(config.dropout)self.fc = nn.Linear(config.num_filters * len(config.filter_sizes), config.num_classes)def conv_and_pool(self, x, conv): # x：[batch_size,1,seq_len,embedding]，conv：Conv2d(1,num_filters,kernerl_size=(filter_sizes,embedding),stride=(1,1))x = F.relu(conv(x)).squeeze(3) # x：[batch_size,num_filters,seq_len - filter_sizes + 1]x = F.max_pool1d(x, x.size(2)).squeeze(2) # x：[batch_size,num_filters]return xdef forward(self, x): # x：{[batch_size,seq_len],[batch_size,]}x, _ = x # x：[batch_size,seq_len]out = self.embedding(x)  # out：[batch_size, seq_len, embedding]out = out.unsqueeze(1) # out：[bacth_size,1,seq_len,embedding]out = torch.cat([self.conv_and_pool(out, conv) for conv in self.convs], 1) # out：[batch_size,num_filters * len(filter_sizes)]out = self.dropout(out) # out：[batch_size,num_filters * len(filter_sizes)]out = self.fc(out) # out：[batch_size,num_classes]return out

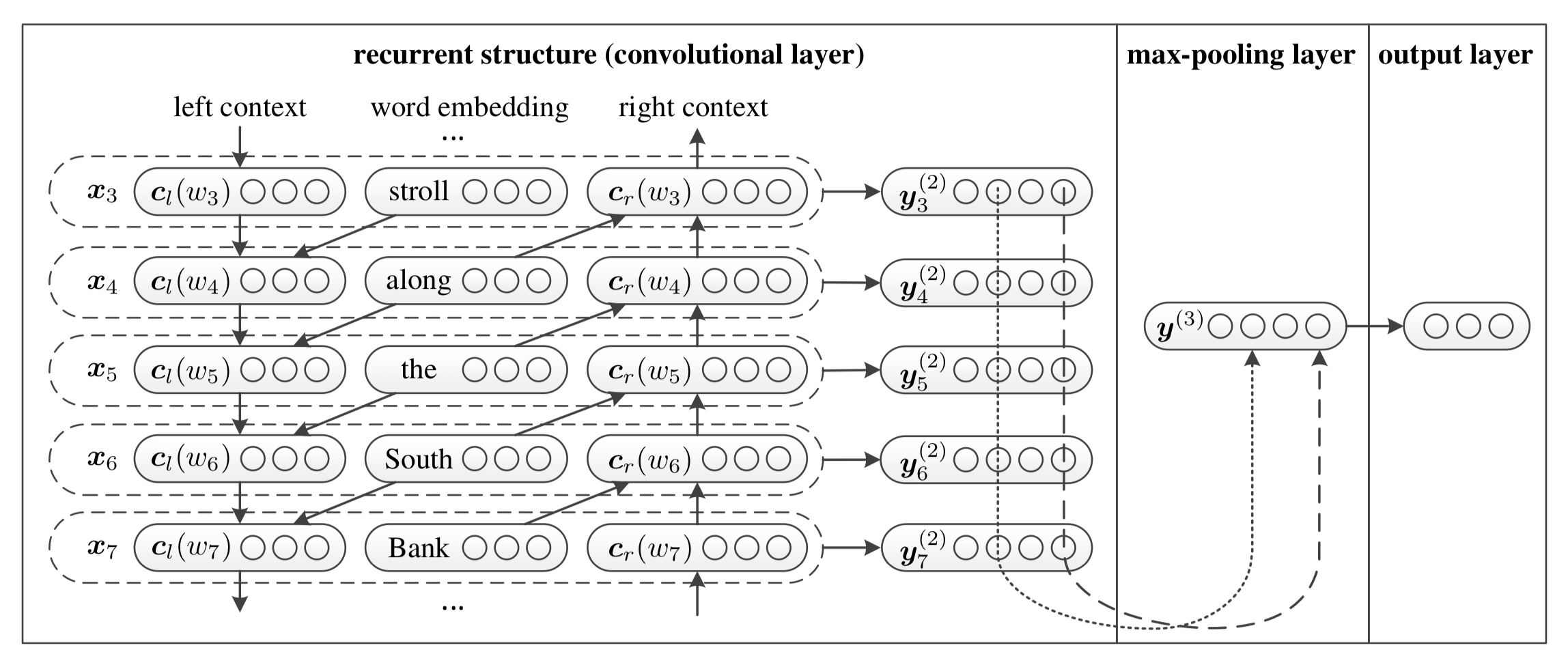

TextRCNN

1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练的词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]
3. 双向LSTM：隐层大小为hidden_size，得到所有时刻的隐层状态（前向隐层+后向隐层拼接）。[batch_size,seq_len,hidden_size * 2]
4. 将embedding层与LSTM输出拼接，进行非线性激活。[batch_size, seq_len, hidden_size * 2 + embed_size]
5. 池化层：seq_len个特征中取最大的。[batch_size, hidden_size * 2 + embed_size]
6. 全连接：num_class是预测的类别数。[batch_size,num_class]
7. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：

双向LSTM每一时刻的隐层值(前向+后向)都可以表示当前词的前向和后向语义信息，将隐藏值与embedding值拼接来表示一个词；然后用最大池化层来筛选出有用的特征信息。就做了一个池化，所以被称之为RCNN

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.lstm = nn.LSTM(config.embed, config.hidden_size, config.num_layers,bidirectional=True, batch_first=True, dropout=config.dropout)self.maxpool = nn.MaxPool1d(config.pad_size)self.fc = nn.Linear(config.hidden_size * 2 + config.embed, config.num_classes)def forward(self, x): # x：{[batch_size，seq_len]，batch_size}x, _ = x # x：[batch_size,seq_len]emb = self.embedding(x) # emb：[batch_size, seq_len, embedding]out, _ = self.lstm(emb) # out：[batch_size,seq_len,hidden_size * 2]out = torch.cat((emb, out), 2) # out：[batch_size,seq_len,hidden_size * 2 + embedding]out = F.relu(out) # out：[batch_size,seq_len,hidden_size * 2 + embedding]out = out.permute(0, 2, 1) # out：[batch_size,hidden_size * 2 + embedding,seq_len]out = self.maxpool(out).squeeze() # out：[batch_size,hidden_size * 2 + embedding]out = self.fc(out) # out：[batch_size,num_classes]return out

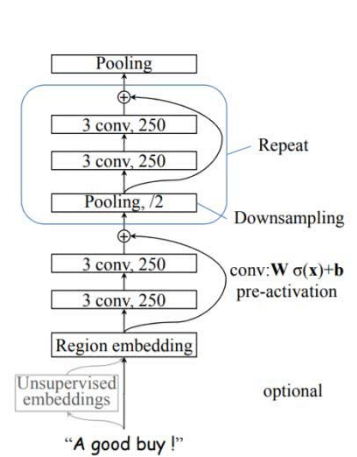

DPCNN

1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练的词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]
3. 进行卷积：尺寸为3的卷积核num_filters为250，论文中称这层为region embedding。[batch_size, num_filters, seq_len - 3 + 1]
4. 接两层卷积(+relu)，每层都是num_filters为250，尺寸为3的卷积核（等长卷积，先padding再卷积，保证卷积前后序列的长度不变）。[batch_size,num_filters,seq-len-3+1]
5. 接下来进行上图中小框的操作
   • 进行大小为3，步长为2的最大池化，将序列长度压缩为原来的1/2（进行采样）
   • 接两层等长卷积(+relu)，每层都是num_filters为250，尺寸为3的卷积核
   • 上述两结果相加，残差连接
   • 重复以上步骤，直至序列长度等于1。[batch_size,num_filters,1,1]
6. 全连接：num_class是预测的类别数。[batch_size,num_class]
7. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：TextCNN的过程类似于提取N-Gram信息，而且只有一层，难以捕捉长距离特征。反观DPCNN，可以看出它的region embedding就是一个去掉池化层的TextCNN,再将卷积层叠加

每层序列长度都减半，可以这么理解：相当于再N-Gram上在再做N-Gram。越往后的层，每个位置融合的信息越多，最后一层提取的就是整个序列的语义信息

代码如下：

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.conv_region = nn.Conv2d(1, config.num_filters, (3, config.embed), stride=1)self.conv = nn.Conv2d(config.num_filters, config.num_filters, (3, 1), stride=1)self.max_pool = nn.MaxPool2d(kernel_size=(3, 1), stride=2)self.padding1 = nn.ZeroPad2d((0, 0, 1, 1))  # top bottomself.padding2 = nn.ZeroPad2d((0, 0, 0, 1))  # bottomself.relu = nn.ReLU()self.fc = nn.Linear(config.num_filters, config.num_classes)def forward(self, x): # x：{[batch_size,seq_len],[batch_size,]}x, _ = x # x：[batch_size,seq_len]x = self.embedding(x) # x：[batch_size,seq_len,embedding]x = x.unsqueeze(1)  # x：[batch_size,1,seq_len,embedding]x = self.conv_region(x)  # x：[batch_size, num_filters, seq_len-3+1, 1]x = self.padding1(x)  # x：[batch_size, num_filters, seq_len, 1]x = self.relu(x)  # x：[batch_size, num_filters, seq_len, 1]x = self.conv(x)  # x：[batch_size, num_filters, seq_len-3+1, 1]x = self.padding1(x)  # x：[batch_size, num_filters, seq_len, 1]x = self.relu(x)  # x：[batch_size, num_filters, seq_len, 1]x = self.conv(x)  # x：[batch_size, num_filters, seq_len-3+1, 1]while x.size()[2] > 2:x = self._block(x) # x：[batch_size,num_filters,1,1]x = x.squeeze()  # x：[batch_size,num_filters]x = self.fc(x) # x：[batch_size,num_class]return xdef _block(self, x): # x：[batch_size, num_filters, seq_len-3+1, 1]x = self.padding2(x)px = self.max_pool(x)x = self.padding1(px)x = F.relu(x)x = self.conv(x)x = self.padding1(x)x = F.relu(x)x = self.conv(x)# Short Cutx = x + pxreturn x

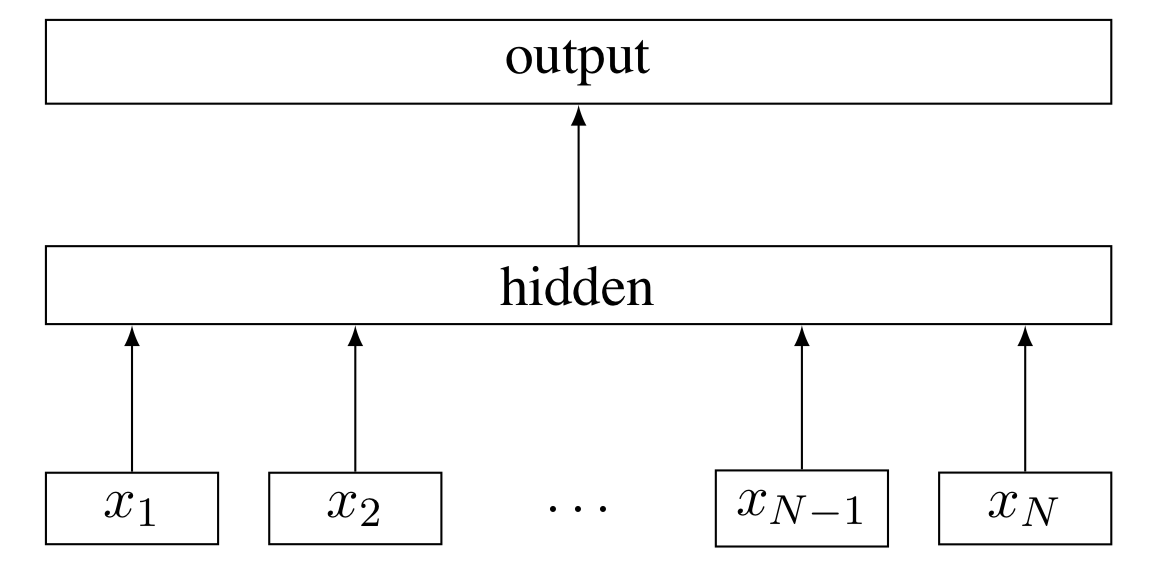

FastText

0. 用哈希算法将2-gram、3-gram信息分别映射到两张表内
1. 模型输入：[batch_size,seq_len]
2. 经过embedding层：加载预训练的词向量或随机初始化，词向量维度为embed_size。[batch_size,seq_len,embed_size]，同理：
   • 2-gram：[batch_size, seq_len, embed_size]
   • 3-gram：[batch_size, seq_len, embed_size]
3. 拼接embedding层：batch_size, seq_len, embed_size * 3]
4. 求所有seq_len个词的均值：[batch_size, embed_size * 3]
5. 全连接+非线性激活：隐层大小hidden_size。[batch_size,hidden_size]
6. 全连接：num_class是预测的类别数。[batch_size,num_class]
7. 预测：sotfmax归一化，将num_class个数中概率最大的数对应的类作为最终预测。[batch_size,1]

分析：不加N-Gram信息，就是词袋模型。对于N-Gram，我们设定一个词表，这个词表大小自己设定大小，理论上越大效果越好，但N-Gram词表大小太大，机器会承受不了，不同的N-Gram用哈希算法可能会映射到词表同一位置，这是一个弊端，但影响不是很大。对于N-Gram词表大小对效果的影响，可以描述为：一分价钱1分货，十分价钱1.1分货

代码如下：

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.embedding_ngram2 = nn.Embedding(config.n_gram_vocab, config.embed)self.embedding_ngram3 = nn.Embedding(config.n_gram_vocab, config.embed)self.dropout = nn.Dropout(config.dropout)self.fc1 = nn.Linear(config.embed * 3, config.hidden_size)# self.dropout2 = nn.Dropout(config.dropout)self.fc2 = nn.Linear(config.hidden_size, config.num_classes)def forward(self, x): # x：{[batch_size,seq_len],[batch_size,],[batch_size,seq_len],[batch_size,seq_len]}out_word = self.embedding(x[0]) # out_word：[batch_size,seq_len,embedding]out_bigram = self.embedding_ngram2(x[2]) # out_bigram：[batch_size,seq_len,embedding]out_trigram = self.embedding_ngram3(x[3]) # out_trigram：[batch_size,seq_len,embedding]out = torch.cat((out_word, out_bigram, out_trigram), -1) # out：[batch_size,seq_len,embedding * 3]out = out.mean(dim=1) # out：[batch_size,embedding * 3]out = self.dropout(out)out = self.fc1(out) # out：[batch_size,hidden_size]out = F.relu(out)out = self.fc2(out) # out：[batch_size,num_class]return out

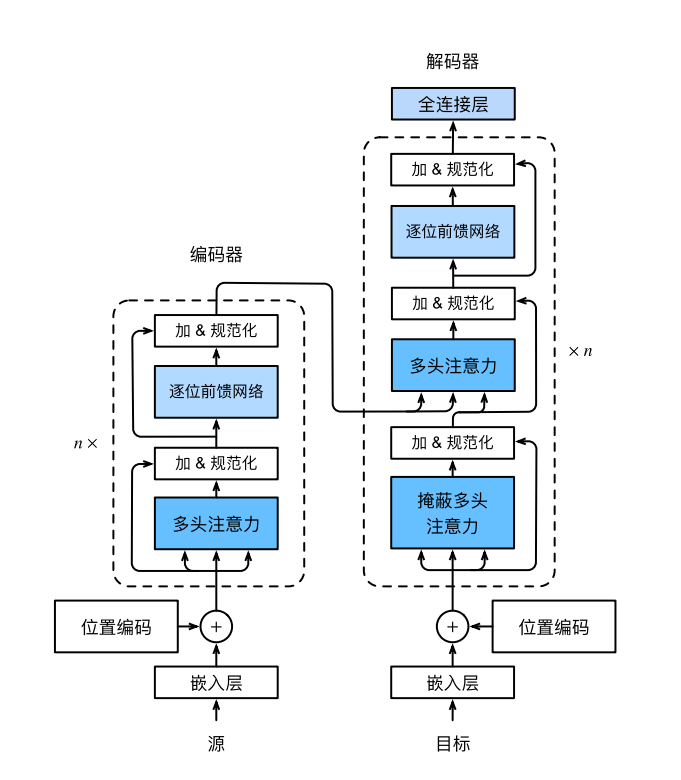

Transformers

详细说明：(203条消息) Transformer原理以及文本分类实战_五月的echo的博客-CSDN博客_transformer文本分类

代码如下：

class ConfigTrans(object):"""配置参数"""def __init__(self):self.model_name = 'Transformer'self.dropout = 0.5                              self.num_classes = cfg.classes                      # 类别数self.num_epochs = 100                # epoch数self.batch_size = 128             # mini-batch大小self.pad_size = cfg.nV                     # 每句话处理成的长度(短填长切)，这个根据自己的数据集而定self.learning_rate = 0.001                    # 学习率self.embed = 50          # 字向量维度self.dim_model = 50      # 需要与embed一样self.hidden = 1024 self.last_hidden = 512self.num_head = 5       # 多头注意力，注意需要整除self.num_encoder = 2    # 使用两个Encoder，尝试6个encoder发现存在过拟合，毕竟数据集量比较少（10000左右），可能性能还是比不过LSTM
config = ConfigTrans()

class Model(nn.Module):def __init__(self, config):super(Model, self).__init__()if config.embedding_pretrained is not None:self.embedding = nn.Embedding.from_pretrained(config.embedding_pretrained, freeze=False)else:self.embedding = nn.Embedding(config.n_vocab, config.embed, padding_idx=config.n_vocab - 1)self.postion_embedding = Positional_Encoding(config.embed, config.pad_size, config.dropout, config.device)self.encoder = Encoder(config.dim_model, config.num_head, config.hidden, config.dropout)self.encoders = nn.ModuleList([copy.deepcopy(self.encoder)# Encoder(config.dim_model, config.num_head, config.hidden, config.dropout)for _ in range(config.num_encoder)])self.fc1 = nn.Linear(config.pad_size * config.dim_model, config.num_classes)# self.fc2 = nn.Linear(config.last_hidden, config.num_classes)# self.fc1 = nn.Linear(config.dim_model, config.num_classes)def forward(self, x): # x：{[batch_size,seq_len],[batch_size,]}out = self.embedding(x[0]) # out：[batch_size,seq_len,embedding]out = self.postion_embedding(out) # out：{batch_size,seq_len,embedding}for encoder in self.encoders:out = encoder(out) # out：[batch_size,seq_len,dim_model]out = out.view(out.size(0), -1) #  out：[batch_size,seq_len * dim_model]# out = torch.mean(out, 1)out = self.fc1(out) # out：[batch_size,num_class]return outclass Encoder(nn.Module):def __init__(self, dim_model, num_head, hidden, dropout):super(Encoder, self).__init__()self.attention = Multi_Head_Attention(dim_model, num_head, dropout)self.feed_forward = Position_wise_Feed_Forward(dim_model, hidden, dropout)def forward(self, x): # x：[batch_size,seq_len,dim_model]out = self.attention(x) # out：[batch_size,seq_len,dim_model]out = self.feed_forward(out) # out：[batch_size,seq_len,dim_model]return outclass Positional_Encoding(nn.Module):def __init__(self, embed, pad_size, dropout, device):super(Positional_Encoding, self).__init__()self.device = deviceself.pe = torch.tensor([[pos / (10000.0 ** (i // 2 * 2.0 / embed)) for i in range(embed)] for pos in range(pad_size)])self.pe[:, 0::2] = np.sin(self.pe[:, 0::2])self.pe[:, 1::2] = np.cos(self.pe[:, 1::2])self.dropout = nn.Dropout(dropout)def forward(self, x):out = x + nn.Parameter(self.pe, requires_grad=False).to(self.device)out = self.dropout(out)return outclass Scaled_Dot_Product_Attention(nn.Module):'''Scaled Dot-Product Attention '''def __init__(self):super(Scaled_Dot_Product_Attention, self).__init__()def forward(self, Q, K, V, scale=None):'''Args:Q: [batch_size, len_Q, dim_Q]K: [batch_size, len_K, dim_K]V: [batch_size, len_V, dim_V]scale: 缩放因子 论文为根号dim_KReturn:self-attention后的张量，以及attention张量'''attention = torch.matmul(Q, K.permute(0, 2, 1)) # Q*K^T，attention：[batch_size * num_head,seq_len,seq_len]if scale:attention = attention * scale# if mask:  # TODO change this#     attention = attention.masked_fill_(mask == 0, -1e9)attention = F.softmax(attention, dim=-1) # attention：[batch_size * num_head,seq_len,seq_len]context = torch.matmul(attention, V) # context：[batch_size * num_head,seq_len,dim_head]return contextclass Multi_Head_Attention(nn.Module):def __init__(self, dim_model, num_head, dropout=0.0):super(Multi_Head_Attention, self).__init__()self.num_head = num_headassert dim_model % num_head == 0 # head数必须能够整除隐层大小self.dim_head = dim_model // self.num_head # 按照head数量进行张量均分self.fc_Q = nn.Linear(dim_model, num_head * self.dim_head) # Q，通过Linear实现张量之间的乘法，等同手动定义参数W与之相乘self.fc_K = nn.Linear(dim_model, num_head * self.dim_head)self.fc_V = nn.Linear(dim_model, num_head * self.dim_head)self.attention = Scaled_Dot_Product_Attention()self.fc = nn.Linear(num_head * self.dim_head, dim_model)self.dropout = nn.Dropout(dropout)self.layer_norm = nn.LayerNorm(dim_model)def forward(self, x): # x：[batch_size,seq_len,embedding]batch_size = x.size(0)Q = self.fc_Q(x) # Q：[batch_size,seq_len,dim_model]K = self.fc_K(x) # K：[batch_size,seq_len,dim_model]V = self.fc_V(x) # V：[batch_size,seq_len,dim_model]Q = Q.view(batch_size * self.num_head, -1, self.dim_head) # Q：[batch_size * num_head,seq_len,dim_head] 注意：dim_head = dim_model / num_headK = K.view(batch_size * self.num_head, -1, self.dim_head) # K：[batch_size * num_head,seq_len,dim_head]V = V.view(batch_size * self.num_head, -1, self.dim_head) # V：[batch_size * num_head,seq_len,dim_head]# if mask:  # TODO#     mask = mask.repeat(self.num_head, 1, 1)  # TODO change thisscale = K.size(-1) ** -0.5  # sqrt(1/dim_head)，根号dk分之一，对应Scaled操作，缩放因子context = self.attention(Q, K, V, scale)# Scaled_Dot_Product_Attention计算，context：[batch_size * num_head,seq_len,dim_head]context = context.view(batch_size, -1, self.dim_head * self.num_head) # context：[batch_size,seq_len,num_head * dim_head]out = self.fc(context) # out：[batch_size,seq_len,dim_model]out = self.dropout(out)out = out + x  # 残差连接out = self.layer_norm(out)return outclass Position_wise_Feed_Forward(nn.Module):def __init__(self, dim_model, hidden, dropout=0.0):super(Position_wise_Feed_Forward, self).__init__()self.fc1 = nn.Linear(dim_model, hidden)self.fc2 = nn.Linear(hidden, dim_model)self.dropout = nn.Dropout(dropout)self.layer_norm = nn.LayerNorm(dim_model)def forward(self, x): # x：[batch_size,seq_len,dim_model]out = self.fc1(x) # out：[batch_size,seq_len,hidden]out = F.relu(out)out = self.fc2(out) # out：[batch_size,seq_len,dim_model]out = self.dropout(out)out = out + x  # 残差连接out = self.layer_norm(out)return out
