💥1 概述

支持向量机(SVM)以结构风险最小化为基本原则，可以实现风险的最小化控制，最小二乘支持向量机(LS-SVM)在继承SVM优点的基础上进行了相应的改进，通过平方项优化指标，以等式约束条件替换原来的不等式约束条件，可以加快求解速度。应用LS-SVM算法，可以有效处理非线性问题，可以选择应用其中的 RBF 核函数 K：

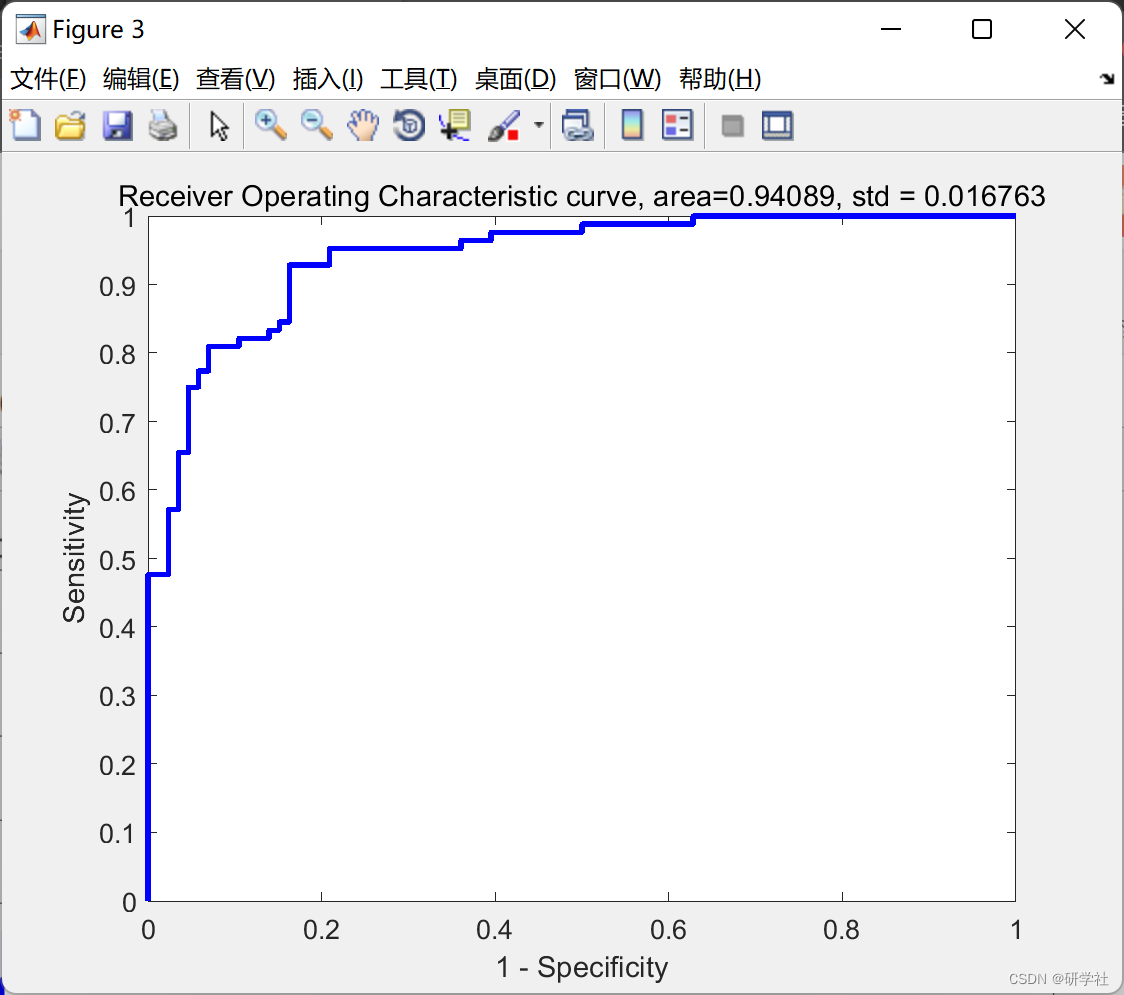

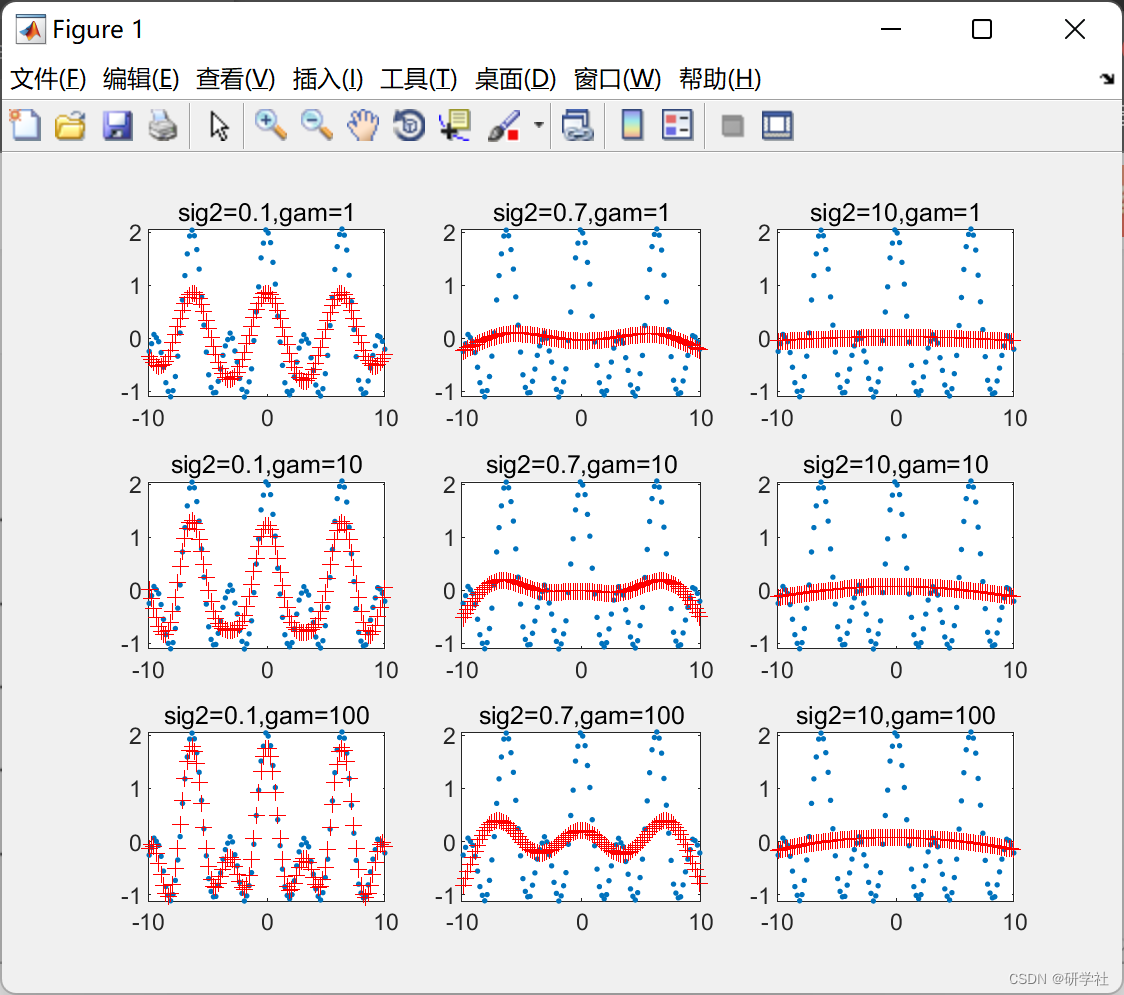

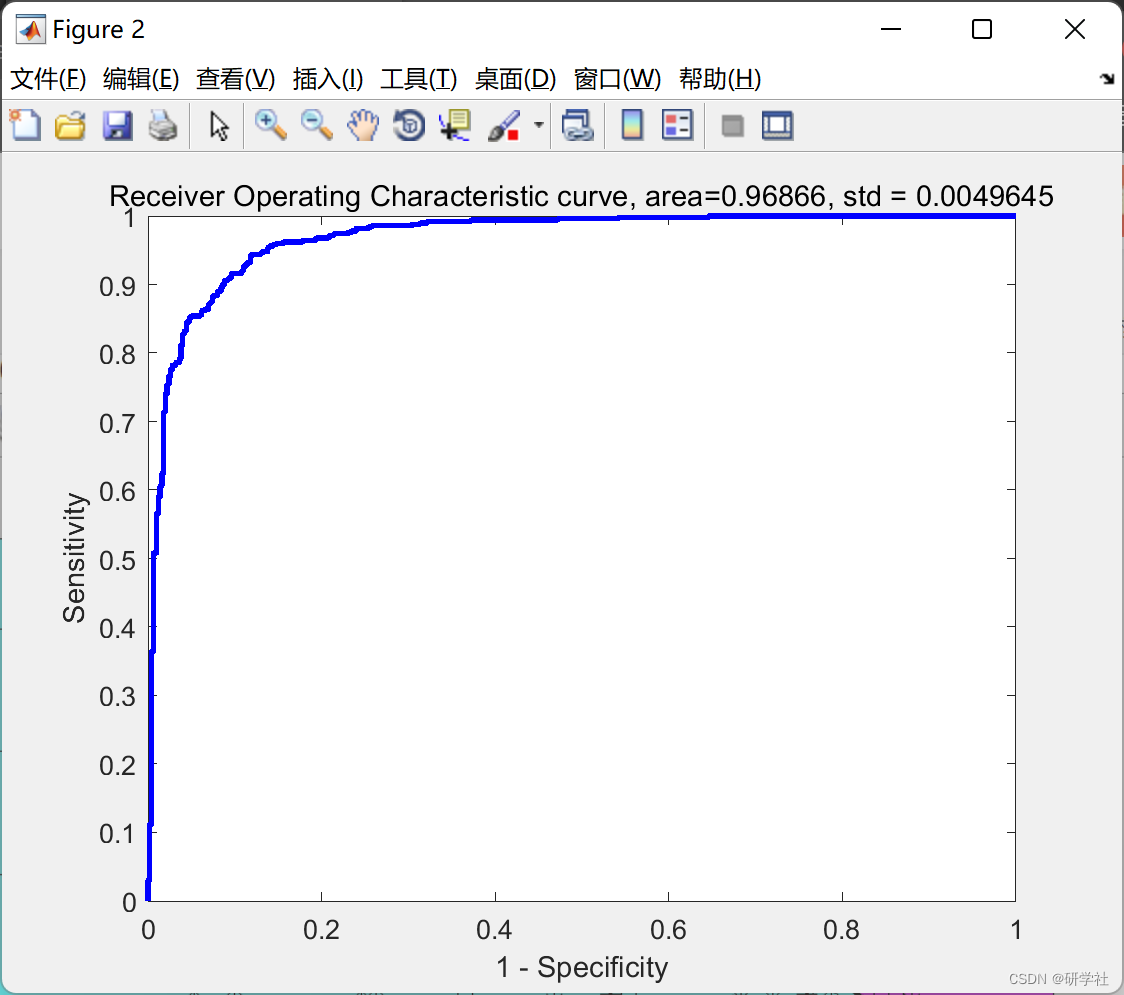

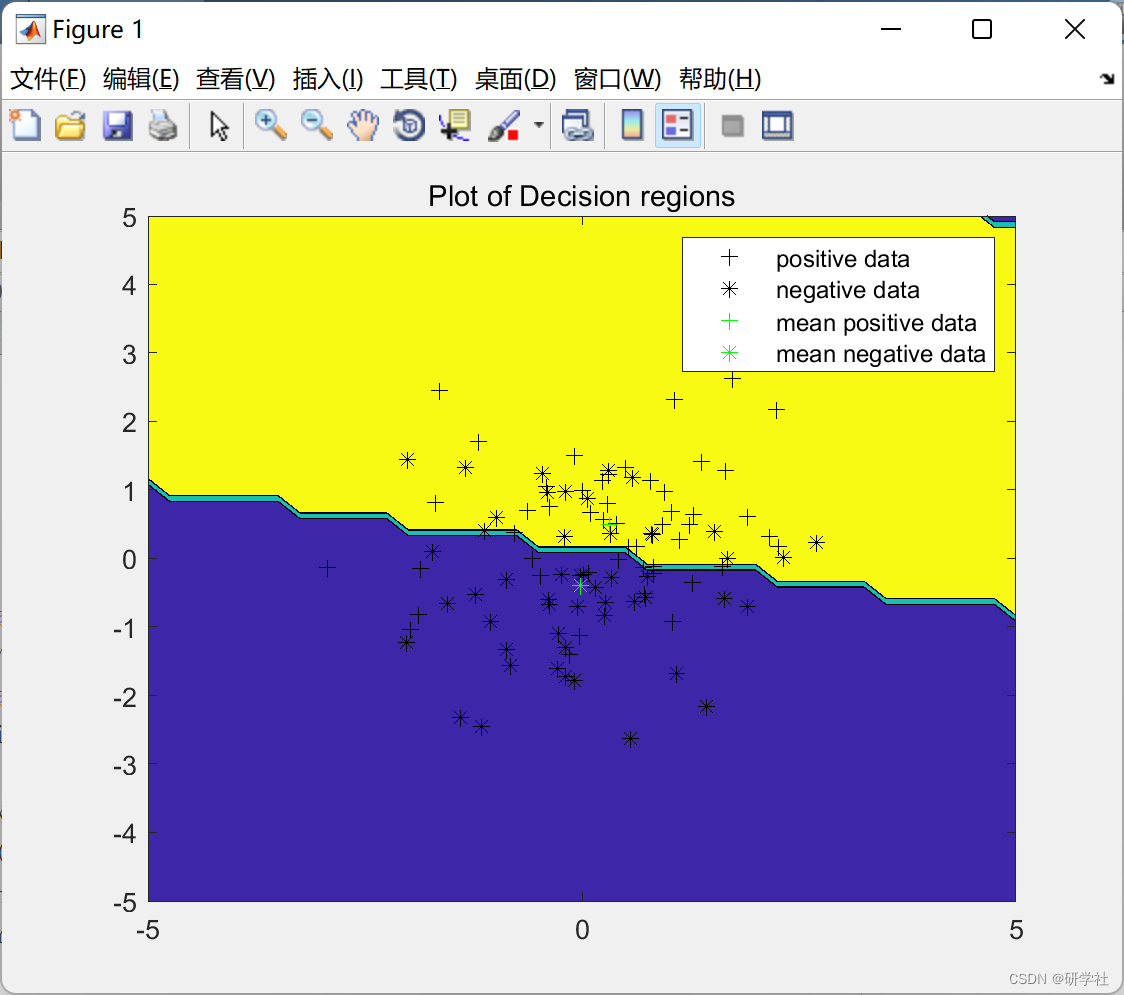

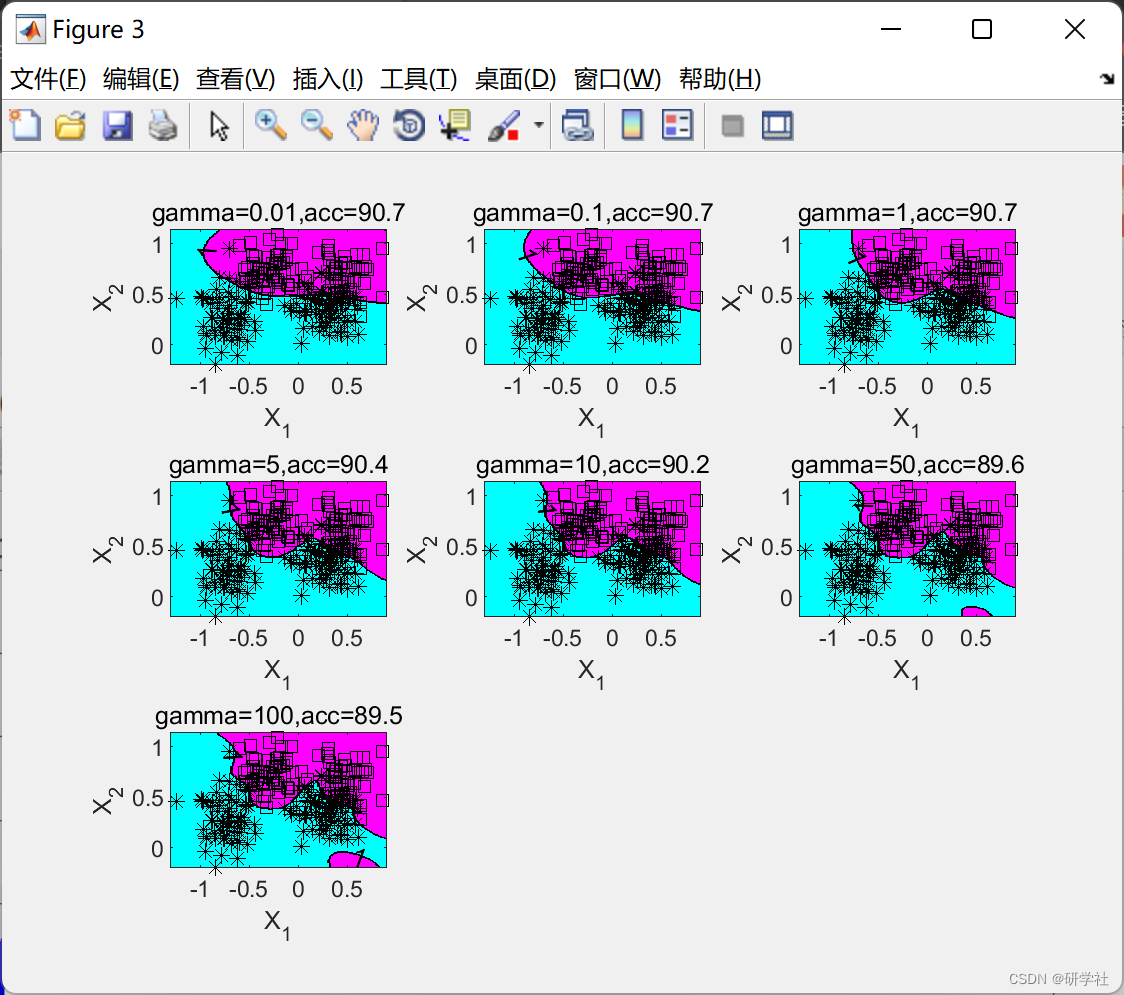

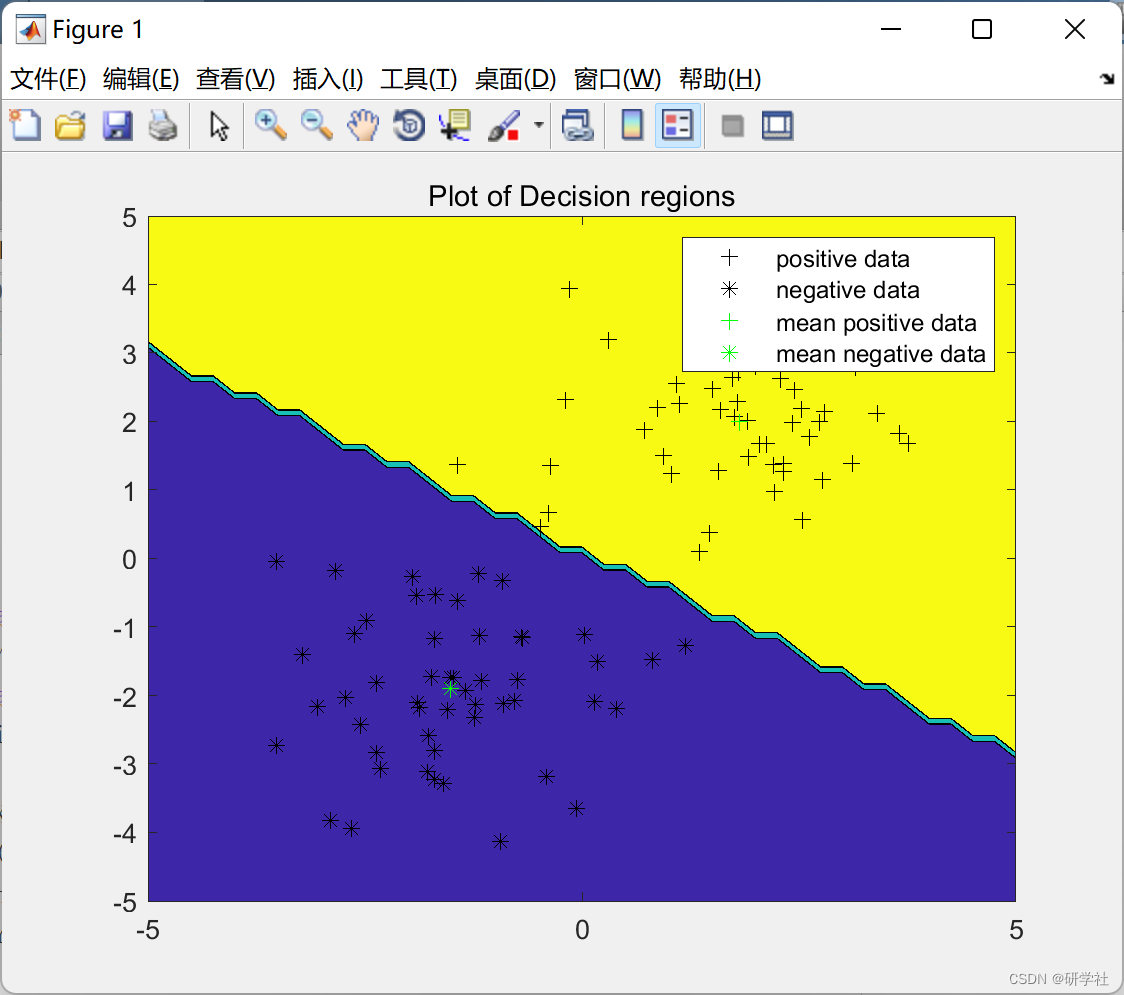

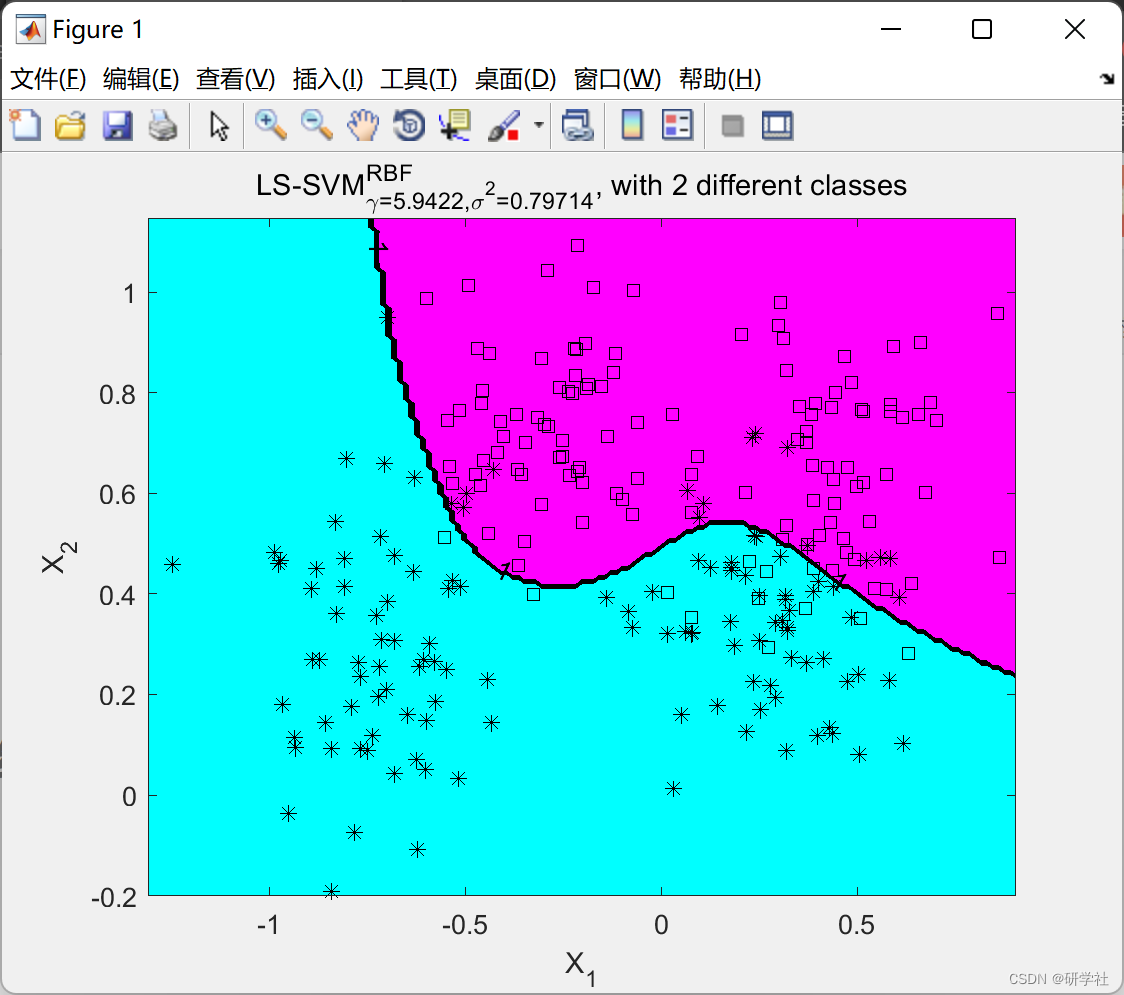

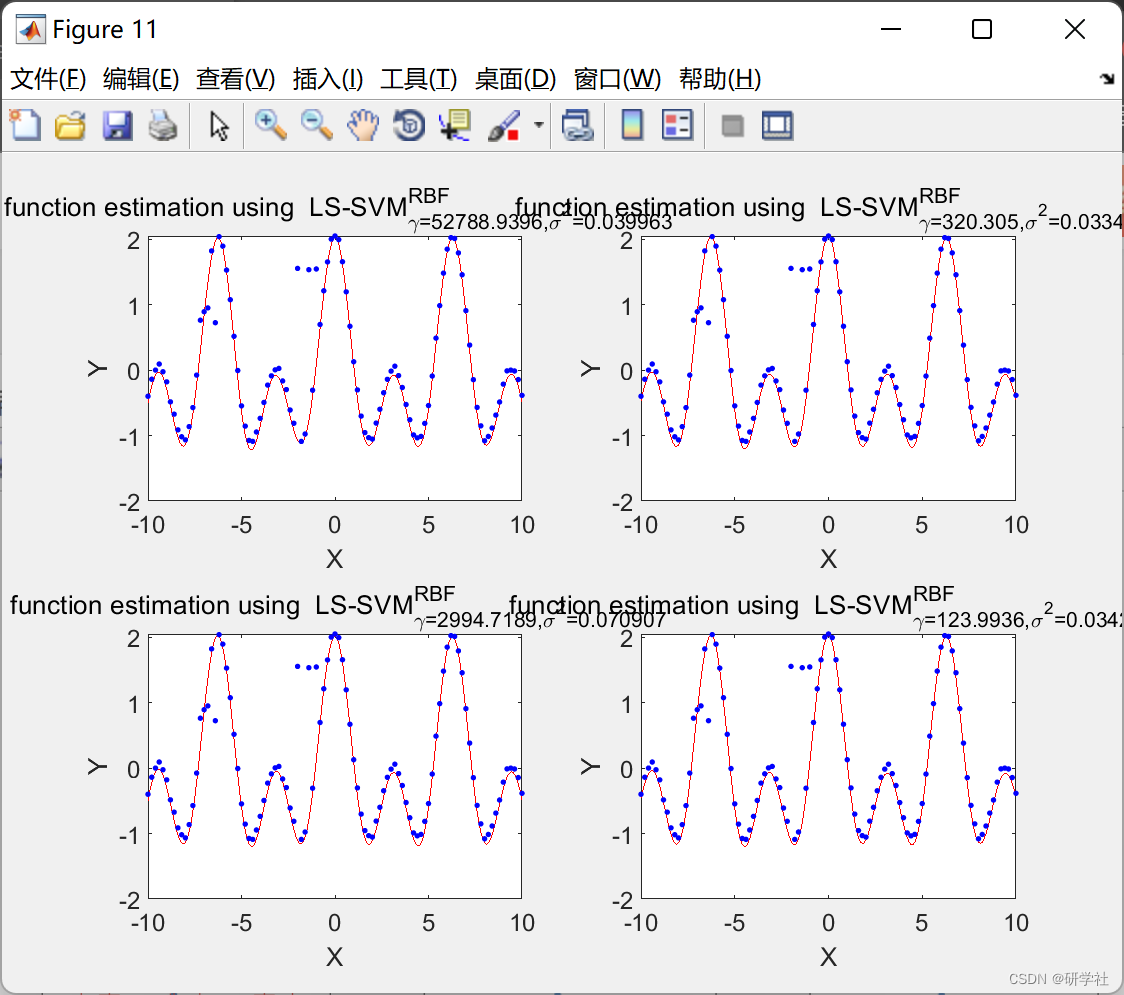

📚2 运行结果

​

 ​

 ​

​ ​

 ​

​

​

 部分代码：

X=(-10:0.1:10)';
Y = cos(X) + cos(2*X) + 0.1.*rand(length(X),1);

Xtrain = X(1:2:length(X));
Ytrain = Y(1:2:length(Y));
Xtest = X(2:2:length(X));
Ytest = Y(2:2:length(Y));

%%
sigs = [0.1 0.7 10 0.1 0.7 10 0.1 0.7 10]; gammas=[1 1 1 10 10 10 100 100 100];
for i=1:length(gammas)
    gam = gammas(i);
    sig2 = sigs(i);

    mdl_in = {Xtrain,Ytrain,'f',gam,sig2,'RBF_kernel'};
    [alpha,b] = trainlssvm(mdl_in);
    subplot(3, 3, i);
    plotlssvm(mdl_in, {alpha,b});

    YtestEst = simlssvm(mdl_in, {alpha,b},Xtest);
    plot(Xtest,Ytest,'.');
    hold on;
    plot(Xtest,YtestEst,'r+');
    %legend('Ytest','YtestEst');
    title(['sig2=' num2str(sig2) ',gam=' num2str(gam)]);
    hold off
end

%%
cost_crossval = crossvalidate({Xtrain,Ytrain,'f',gam,sig2},10);
cost_loo = leaveoneout({Xtrain,Ytrain,'f',gam,sig2});

optFun = 'gridsearch';
globalOptFun = 'csa';
mdl_in = {Xtrain,Ytrain,'f',[],[],'RBF_kernel',globalOptFun};
[gam,sig2,cost] = tunelssvm(mdl_in, optFun,'crossvalidatelssvm',{10,'mse'})

% mdl_in = {Xtrain,Ytrain,'f',gam,sig2,'RBF_kernel'};
% [alpha,b] = trainlssvm(mdl_in);

% plotlssvm(mdl_in, {alpha,b});

% YtestEst = simlssvm(mdl_in, {alpha,b},Xtest);
% plot(Xtest,Ytest,'.');
% hold on;
% plot(Xtest,YtestEst,'r+');
% legend('Ytest','YtestEst');

%%
optFun = 'gridsearch';
globalOptFun = 'csa';
mdl_in = {Xtrain,Ytrain,'f',[],[],'RBF_kernel',globalOptFun};
tic
for i=1:20
    [gam_csa_grid(i),sig2_csa_grid(i),cost_csa_grid(i)] = tunelssvm(mdl_in, optFun,'crossvalidatelssvm',{10,'mse'});
end
t1=toc;
t1=t1/20;

[c,idx]=min(cost_csa_grid); a=gam_csa_grid(idx);
fprintf('min=%0.5f \nmean=%0.5f \nvar=%0.5f \n', c, mean(cost_csa_grid), var(cost_csa_grid))
b=sig2_csa_grid(idx);
fprintf('t=%0.5f s \ngam=%0.5f \nsig2=%0.5f \n', mean(t1), a, b)

%%
optFun = 'simplex';
globalOptFun = 'csa';
mdl_in = {Xtrain,Ytrain,'f',[],[],'RBF_kernel',globalOptFun};
tic
for i=1:20
    [gam_csa_simplex(i),sig2_csa_simplex(i),cost_csa_simplex(i)] = tunelssvm(mdl_in, optFun,'crossvalidatelssvm',{10,'mse'});
end
t1=toc;
t1=t1/20;

[c,idx]=min(cost_csa_simplex); a=gam_csa_simplex(idx); b=sig2_csa_simplex(idx);
fprintf('min=%0.5f \nmean=%0.5f \nvar=%0.5f \n', c, mean(cost_csa_simplex), var(cost_csa_simplex))
fprintf('t=%0.5f s \ngam=%0.5f \nsig2=%0.5f \n', mean(t1), a, b)
%%
optFun = 'gridsearch';
globalOptFun = 'ds';
mdl_in = {Xtrain,Ytrain,'f',[],[],'RBF_kernel',globalOptFun};
tic
for i=1:20
    [gam_ds_grid(i),sig2_ds_grid(i),cost_ds_grid(i)] = tunelssvm(mdl_in, optFun,'crossvalidatelssvm',{10,'mse'});
end
t1=toc;
t1=t1/20;

[c,idx]=min(cost_ds_grid); a=gam_ds_grid(idx); b=sig2_ds_grid(idx);
fprintf('min=%0.5f \nmean=%0.5f \nvar=%0.5f \n', c, mean(cost_ds_grid), var(cost_ds_grid))
fprintf('t=%0.5f s \ngam=%0.5f \nsig2=%0.5f \n', mean(t1), a, b)

%%
optFun = 'simplex';
globalOptFun = 'ds';
mdl_in = {Xtrain,Ytrain,'f',[],[],'RBF_kernel',globalOptFun};
tic
for i=1:20
    [gam_ds_simplex(i),sig2_ds_simplex(i),cost_ds_simplex(i)] = tunelssvm(mdl_in, optFun,'crossvalidatelssvm',{10,'mse'});
end
t1=toc;
t1=t1/20;

[c,idx]=min(cost_ds_simplex); a=gam_ds_simplex(idx); b=sig2_ds_simplex(idx);
fprintf('min=%0.5f \nmean=%0.5f \nvar=%0.5f \n', c, mean(cost_ds_simplex), var(cost_ds_simplex))
fprintf('t=%0.5f s \ngam=%0.5f \nsig2=%0.5f \n', mean(t1), a, b)

%%
sig2 = 0.5; gam = 10;
criterion_L1 = bay_lssvm({Xtrain,Ytrain,'f',gam,sig2},1)
criterion_L2 = bay_lssvm({Xtrain,Ytrain,'f',gam,sig2},2)
criterion_L3 = bay_lssvm({Xtrain,Ytrain,'f',gam,sig2},3)

%%
gam=100; sig2=0.05;
[~,alpha,b] = bay_optimize({Xtrain,Ytrain,'f',gam,sig2}, 1);
[~,gam] = bay_optimize({Xtrain,Ytrain,'f',gam,sig2},2);
[~,sig2] = bay_optimize({Xtrain,Ytrain,'f',gam,sig2},3);
sig2e = bay_errorbar({Xtrain,Ytrain,'f',gam,sig2},'figure');

%%
load iris;
gam=5; sig2=0.75;
cnt=1;
for gam=[1 10 100]
    for sig2=[0.2 1 10]
        subplot(3,3,cnt);
        bay_modoutClass({X,Y,'c',gam,sig2},'figure');
        cnt=cnt+1;
    end
end

%%
X = 10.*rand(100,3)-3;
Y = cos(X(:,1)) + cos(2*(X(:,1))) +0.3.*randn(100,1);
[selected, ranking, costs2] = bay_lssvmARD({X,Y,'class', 100, 0.1});

%%
X = (-10:0.2:10)';
Y = cos(X) + cos(2*X) +0.1.*rand(size(X));
out = [15 17 19];
Y(out) = 0.7+0.3*rand(size(out));
out = [41 44 46];
Y(out) = 1.5+0.2*rand(size(out));

mdl_in = {X, Y,'f', 100, 0.1,'RBF_kernel'};
[alpha,b] = trainlssvm(mdl_in);
plotlssvm(mdl_in, {alpha,b});


🎉3 参考文献

部分理论来源于网络，如有侵权请联系删除。

[1]赵舵.基于天气类型聚类和LS-SVM的光伏出力预测方法[J].光源与照明,2022(6):82-84

[2]教传艳.基于自适应LS-SVM的柴油机废气再循环冷却控制系统设计[J].计算机测量与控制,2022,30(2):124-128144
