光流法draw_flow()函数报错

 1 import cv22 from scipy import *3 4 5 def draw_flow(im, flow, step=16):6     """ Plot optical flow at sample points7     spaced step pixels apart. """8     h, w = im.shape[:2]9     y, x = mgrid[step / 2:h:step, step / 2:w:step].reshape(2, -1)
10     fx,fy = flow[y, x].T
11     # create line endpoints
12     lines = vstack([x, y, x + fx, y + fy]).T.reshape(-1, 2, 2)
13     lines = int32(lines)
14     # create image and draw
15     vis = cv2.cvtColor(im, cv2.COLOR_GRAY2BGR)
16     for (x1, y1), (x2, y2) in lines:
17         cv2.line(vis, (x1, y1), (x2, y2), (0, 255, 0), 1)
18     cv2.circle(vis, (x1, y1), 1, (0, 255, 0), -1)
19     return vis
20 # setup video capture
21 cap = cv2.VideoCapture(0)
22 ret, im = cap.read()
23 prev_gray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)
24 while True:
25 # get grayscale image
26     ret, im = cap.read()
27     gray = cv2.cvtColor(im, cv2.COLOR_BGR2GRAY)
28     # compute flow
29     flow = cv2.calcOpticalFlowFarneback(prev_gray, gray, None, 0.5, 3, 15, 3, 5, 1.2, 0)
30     prev_gray = gray
31     # plot the flow vectors
32     cv2.imshow('Optical flow', draw_flow(gray, flow))
33     if cv2.waitKey(10) == 27:
34         break

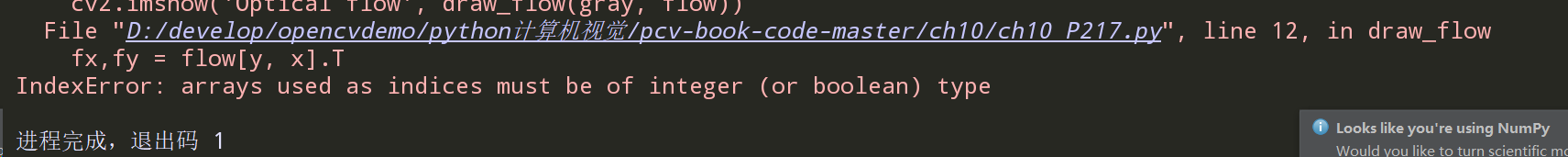

报错：

解决方案行加上.astype(int)就解决了

y, x = mgrid[step / 2:h:step, step / 2:w:step].reshape(2, -1).astype(int) #以网格的形式选取二维图像上等间隔的点，这里间隔为16，reshape成2行的array
