1--源码

import torch
import math
import numpy as np
import torch.nn as nnclass Pos_Embed(nn.Module):def __init__(self, channels, num_frames, num_joints):super().__init__()# 根据帧序和节点序生成位置向量pos_list = [] for tk in range(num_frames):for st in range(num_joints):pos_list.append(st)position = torch.from_numpy(np.array(pos_list)).unsqueeze(1).float()  # num_frames*num_joints, 1pe = torch.zeros(num_frames * num_joints, channels)  # T*N, Cdiv_term = torch.exp(torch.arange(0, channels, 2).float() * -(math.log(10000.0) / channels))pe[:, 0::2] = torch.sin(position * div_term)  # 偶数列 # 偶数C维度sinpe[:, 1::2] = torch.cos(position * div_term)  # 奇数列 # 奇数C维度cospe = pe.view(num_frames, num_joints, channels).permute(2, 0, 1).unsqueeze(0)  # T N C -> C T N -> 1 C T Nself.register_buffer('pe', pe)def forward(self, x):  # nctv # BCTNx = self.pe[:, :, :x.size(2)]return xif __name__ == "__main__":B = 2C = 4T = 120N = 25x = torch.rand((B, C, T, N))Pos_embed_1 = Pos_Embed(C, T, N)PE = Pos_embed_1(x)# print(PE.shape) # 1 C T Nx = x + PEprint("All Done !")

2--源码分析与理解

原理理解：Positional Encoding（位置编码）

代码解释：

①代码 div_term = torch.exp(torch.arange(0, channels, 2).float() * -(math.log(10000.0) / channels))：

令：channels = C, torch.arange(0, channels, 2).float() = k（则k = 0, 2, ..., C-2）；

-(math.log(10000.0) / channels)  ；

则：torch.arange(0, channels, 2).float() * -(math.log(10000.0) / channels)

torch.exp(torch.arange(0, channels, 2).float() * -(math.log(10000.0) / channels));

②代码：pe[:, 0::2] = torch.sin(position * div_term) 和 pe[:, 1::2] = torch.cos(position * div_term)：

令：position = p，则position * div_term;

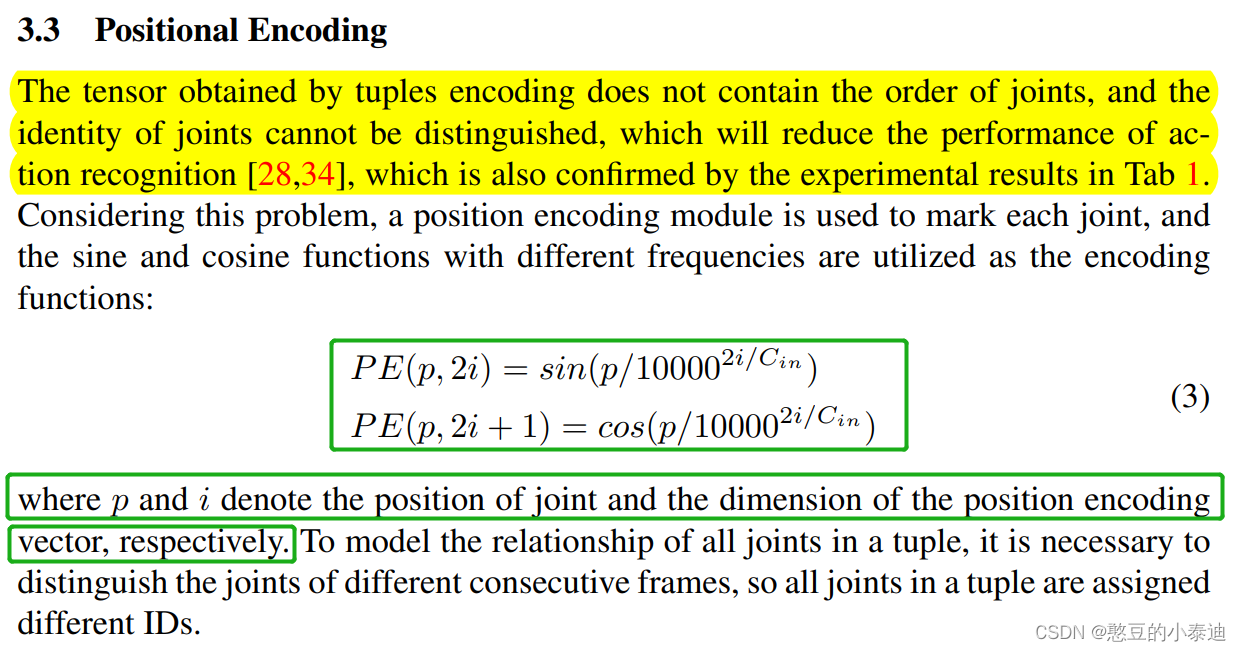

将k等价为2i，pe[:, 0::2]和pe[:, 1::2]分别取行数列和奇数列，就可以得到上图绿框所示的公式。
