1 Background and Motivation

数据增广方法可以有效的缓解模型的过拟合

现有的数据增广方法可以大致分成如下3类

• spatial transformation（random scale, crop, flip and random rotation）
• color distortion（ brightness, hue）

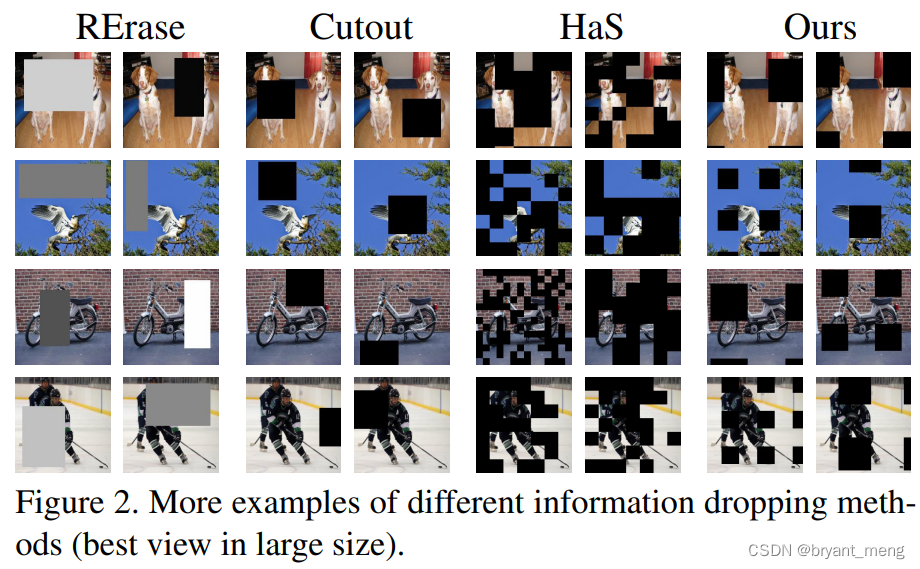

• information dropping（random erasing， cutout，HaS）

好的 information dropping 数据增广方法要 achieve reasonable balance between deletion and reserving of regional information on the images

删太多，把数据变成了噪声

删太少，目标没啥变化，失去了增广的意义

本文，作者提出GridMask，deletes uniformly distributed areas and finally forms a grid shape，在多个任务的公开数据集上效果均有提升

2 Related Work

• spatial transformation（random scale, crop, flip and random rotation）
• color distortion（ brightness, hue）
• information dropping（random erasing， cutout，HaS）

3 Advantages / Contributions

提出 GridMask structured data augmentation 方法，在公开的分类、目标检测、分割的benchmark 上比 baseline 好

4 GridMask

作用形式
x~=x×M\widetilde{x}= x \times Mx=x×M

其中 x∈RH×W×Cx \in \mathbb{R}^{H \times W \times C}x∈RH×W×C 为 输入图像，x~∈RH×W×C\widetilde{x} \in \mathbb{R}^{H \times W \times C}x∈RH×W×C 为增广后的图像，M∈{0,1}H×WM \in \{0,1\}^{H \times W}M∈{0,1}H×W 为 binary mask that stores pixels to be removed，0 的话表示挡住，1 的话表示保留

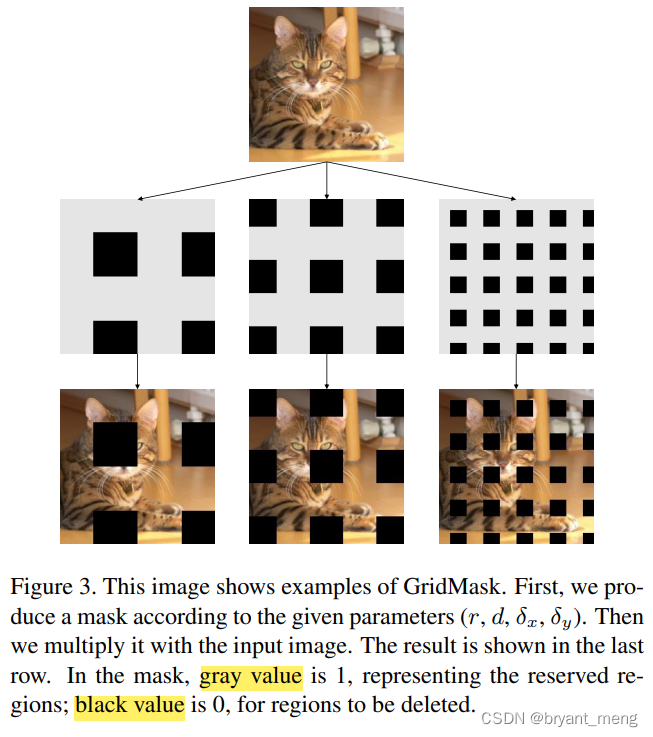

形成 MMM 的话有 4 个超参数 (r,d,δx,δy)(r, d, \delta_x, \delta_y)(r,d,δx​,δy​)

1）Choice of rrr

rrr is the ratio of the shorter gray edge in a unit，determines the keep ratio of an input image，值介于 0~1 之间

the keep ratio kkk of a given mask MMM as

k=sum(M)H×Wk = \frac{sum(M)}{H \times W}k=H×Wsum(M)​

rrr 和 kkk 的关系是

k=1−(1−r)2=2r−r2k = 1-(1-r)^2 = 2r-r^2k=1−(1−r)2=2r−r2

rrr 的值小于1，rrr 和 kkk 正相关

kkk 越大，灰色区域越多，遮挡越少
kkk 越小，黑色区域越多，遮挡越多

2）Choice of ddd

ddd is the length of one unit

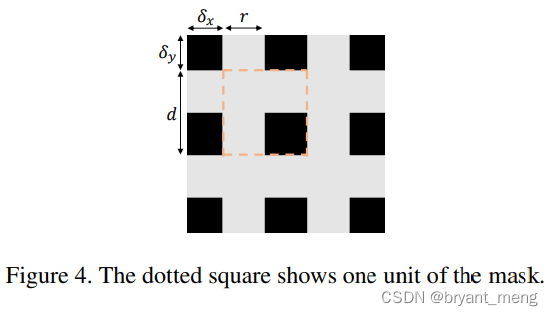

一个 unit 内（橙色虚线框），灰色区域的长度为 l=r×dl = r \times dl=r×d

d=random(dmin,dmax)d = random(d_{min}, d_{max})d=random(dmin​,dmax​)

这么画歧义更合适

3）Choice of δx\delta_xδx​ and δy\delta_yδy​

δx\delta_xδx​ and δy\delta_yδy​ are the distances between the first intact unit and boundary of the image. can shift the mask

δx(δy)=random(0,d−1)\delta_x(\delta_y) = random(0, d-1)δx​(δy​)=random(0,d−1)

4）Statistics of Unsuccessful Cases

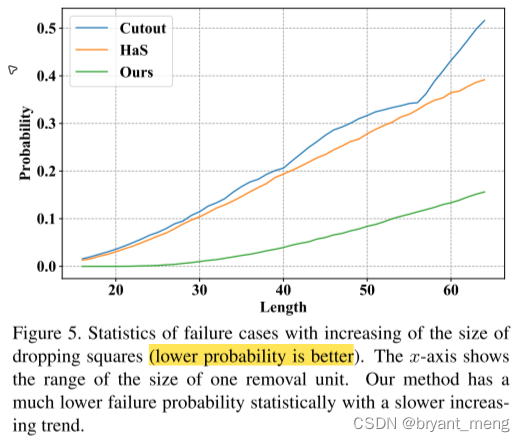

99 percent of an object is removed or reserved, we call it a failure case

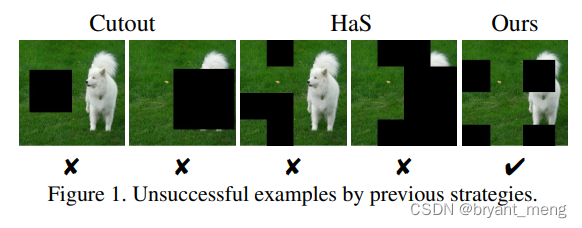

GridMask has lower chance to yield failure cases than Cutout and HaS

5）The Scheme to Use GridMask

increase the probability of GridMask linearly with the training epochs until an upper bound P is achieved.

中间的概率用 ppp 表示，后续实验中有涉及到

5 Experiments

Datasets

• ImageNet
• COCO
• Cityscapes

5.1 Image Classification

1）ImageNet

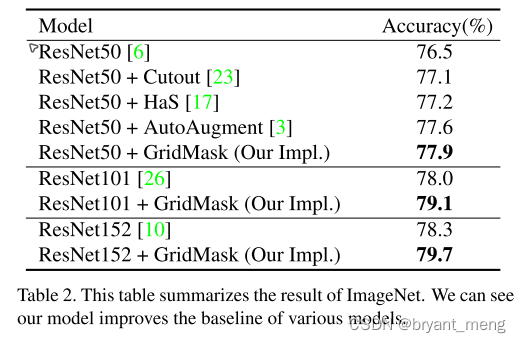

比 Cutout 和 HaS 更好，It is because we handle the aforementioned failure cases better

Benefit to CNN

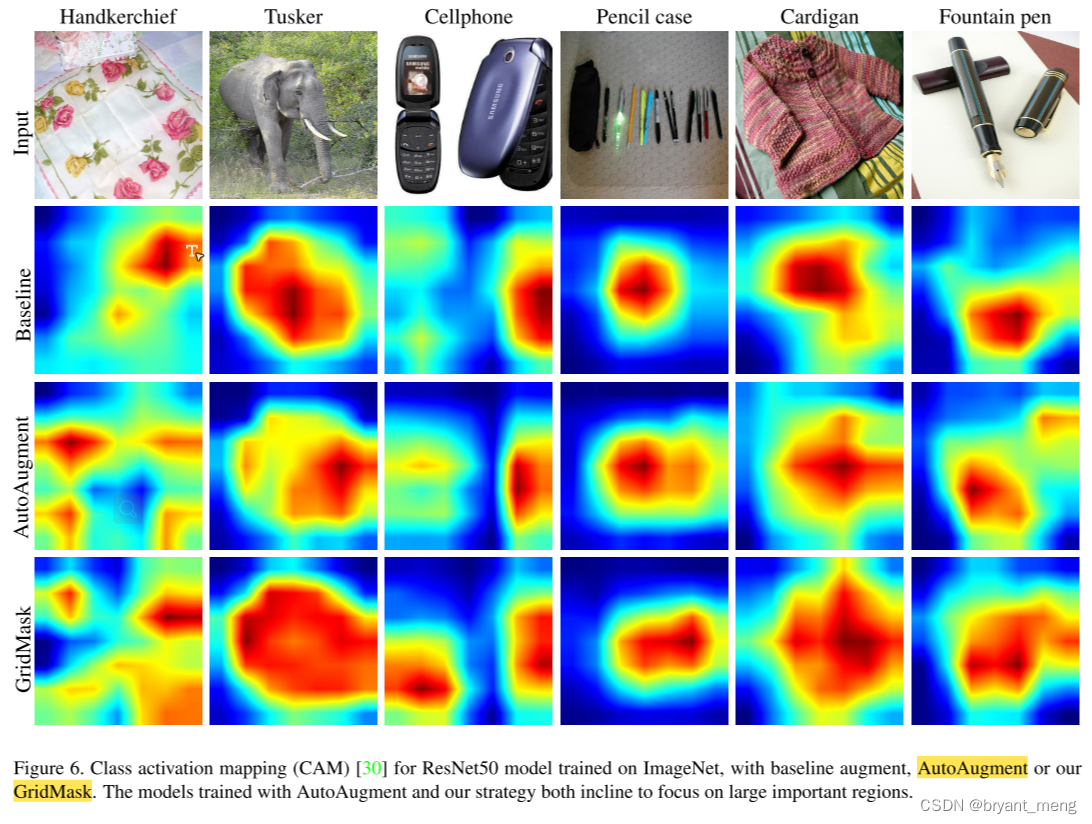

focus on large important regions

2）CIFAR10

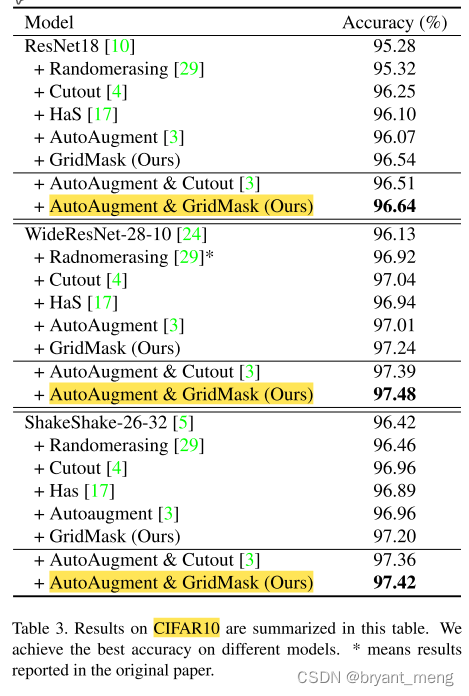

Combined with AutoAugment, we achieve SOTA result on these models.

3）Ablation Study

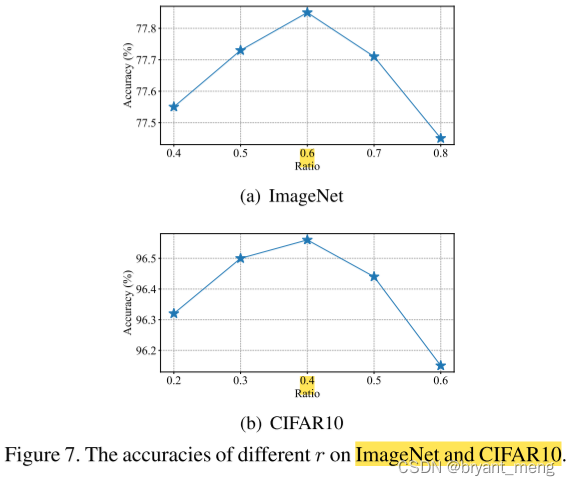

（1）Hyperparameter rrr

r 越大，mask 1 越多，遮挡的越少，说明数据比较复杂

r 越小，mask 1 越少，遮挡的越多，说明数据比较简单

we should keep more information on complex datasets to avoid under-fitting, and delete more on simple datasets to reduce over-fitting

（2）Hyperparameter ddd

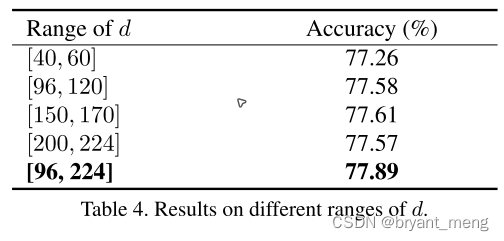

the diversity of d can increase robustness of the network

（3）Variations of GridMask

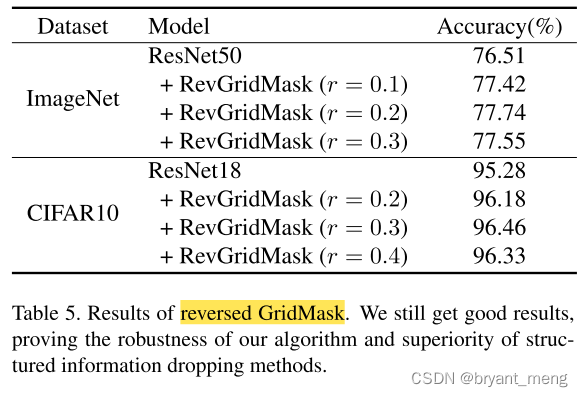

reversed GridMask：keep what we drop in GridMask, and drop what we keep in GridMask

效果不错，也印证了 GridMask 有很好的 balance between deletion and reserving

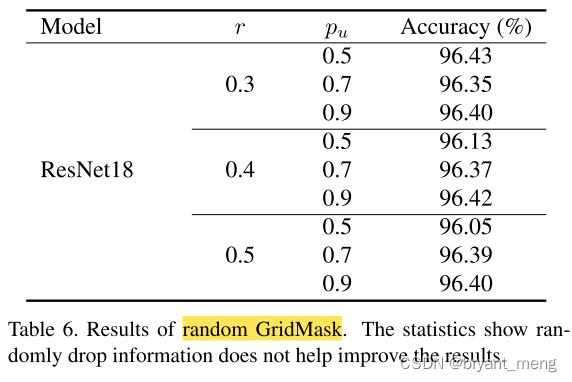

random GridMask：drop a block in every unit with a certain probability of pup_upu​.

pup_upu​ 越大，越贴近原始 GridMask

效果不行

5.2 Object Detection on COCO Dataset

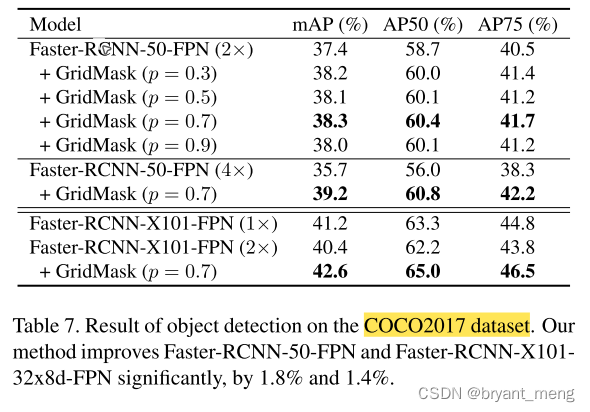

不加 GridMask，training epochs 越多，过拟合越严重，加了以后，训练久一点， 精度还有上升空间

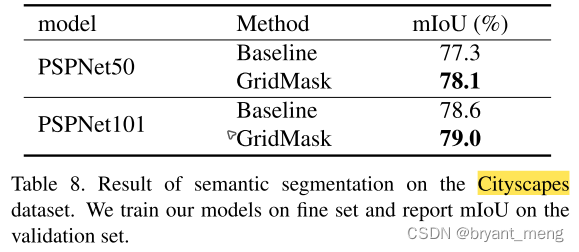

5.3 Semantic Segmentation on Cityscapes

5.4 Expand Grid as Regularization

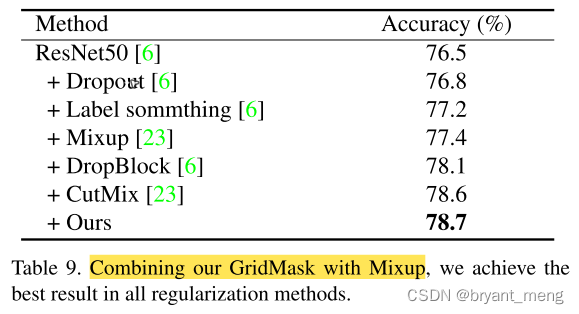

联合 GridMask 和 Mixup，ImageNet 上 SOTA

6 Conclusion（own）

GridMask Data Augmentation

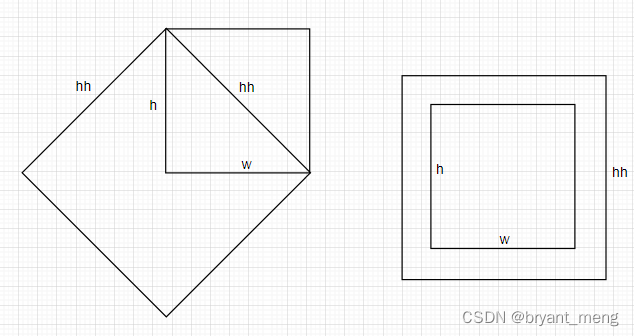

代码实现，考虑了旋转增广，所以 mask 生成的时候是在以原图对角线为边长的情况下生成的，最后取原图区域
https://github.com/dvlab-research/GridMask/blob/master/imagenet_grid/utils/grid.py

import torch
import numpy as np
import math
import PIL.Image as Image
import torchvision.transforms as T
import matplotlib.pyplot as pltclass Grid(object):def __init__(self, d1=96, d2=224, rotate=1, ratio=0.5, mode=1, prob=1.):self.d1 = d1self.d2 = d2self.rotate = rotateself.ratio = ratio # rself.mode = mode # reversed？self.st_prob = self.prob = prob # pdef set_prob(self, epoch, max_epoch):self.prob = self.st_prob * min(1, epoch / max_epoch)def forward(self, img):if np.random.rand() > self.prob:return imgh = img.size(1)w = img.size(2)# 1.5 * h, 1.5 * w works fine with the squared images# But with rectangular input, the mask might not be able to recover back to the input image shape# A square mask with edge length equal to the diagnoal of the input image # will be able to cover all the image spot after the rotation. This is also the minimum square.hh = math.ceil((math.sqrt(h * h + w * w)))d = np.random.randint(self.d1, self.d2)# d = self.d# maybe use ceil? but i guess no big differenceself.l = math.ceil(d * self.ratio)mask = np.ones((hh, hh), np.float32)st_h = np.random.randint(d)  # delta yst_w = np.random.randint(d)  # delta xfor i in range(-1, hh // d + 1):s = d * i + st_ht = s + self.ls = max(min(s, hh), 0)t = max(min(t, hh), 0)mask[s:t, :] *= 0for i in range(-1, hh // d + 1):s = d * i + st_wt = s + self.ls = max(min(s, hh), 0)t = max(min(t, hh), 0)mask[:, s:t] *= 0r = np.random.randint(self.rotate)mask = Image.fromarray(np.uint8(mask))mask = mask.rotate(r)mask = np.asarray(mask)mask = mask[(hh - h) // 2:(hh - h) // 2 + h, (hh - w) // 2:(hh - w) // 2 + w] # 这里结合原理图方便看懂一些mask = torch.from_numpy(mask).float().cuda()if self.mode == 1:mask = 1 - maskmask = mask.expand_as(img)img = img.cuda() * maskreturn imgif __name__ == "__main__":image = Image.open("2.jpg").convert("RGB")tr = T.Compose([T.Resize((224,224)),T.ToTensor()])x = tr(image)gridmask_image = Grid(d1=64, d2=96).forward(x)print(gridmask_image.shape)# print(gridmask_image.shape())fig, axs = plt.subplots(1,2)to_plot = lambda x: x.permute(1,2,0).cpu().numpy()axs[0].imshow(to_plot(x))axs[1].imshow(to_plot(gridmask_image))plt.show()
