上一章我们先用SPI读取到了LCD的ID，这一章则是使用PWM调光点亮屏幕，因为测试这块屏幕时，发现直接设置背光引脚为高好像无法点亮，好像必须使用PWM调光，不过反正后面调节亮度还是需要PWM，索性先打通PWM。但这其中官方留的坑还是挺多的，简单的一个PWM因为需要契合内核驱动框架调了半天。

一如之前配置SPI的时候先配置RT-Thread Settings：

如果图形界面没有PWM，随便右键一个图标，点击配置项。

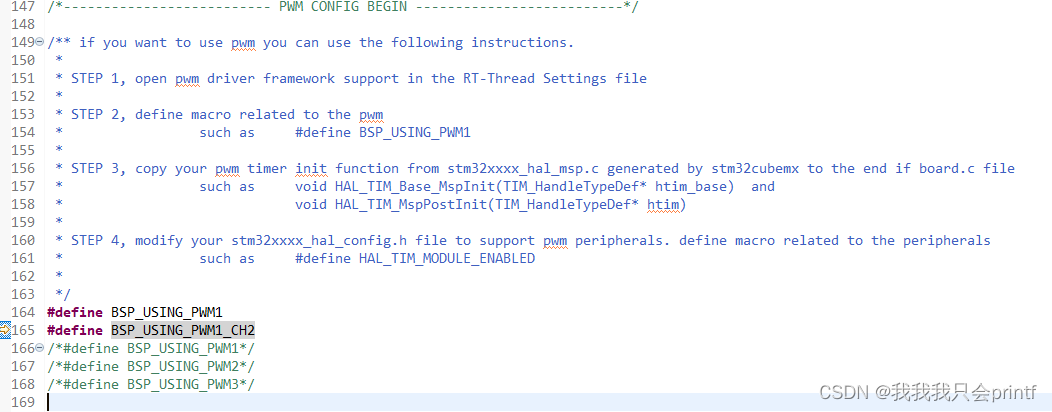

然后还是到board.h中定义相关的宏定义：

看一下介绍，结合上一章所讲，大致调用流程也很清晰。如果你在CubeMX中配置了相关PWM，就会生成这两个函数：

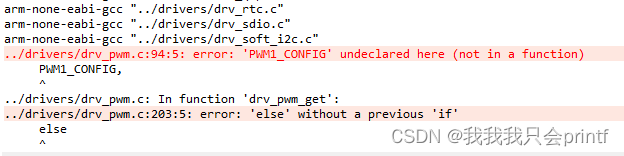

此时编译后会发现存在问题：

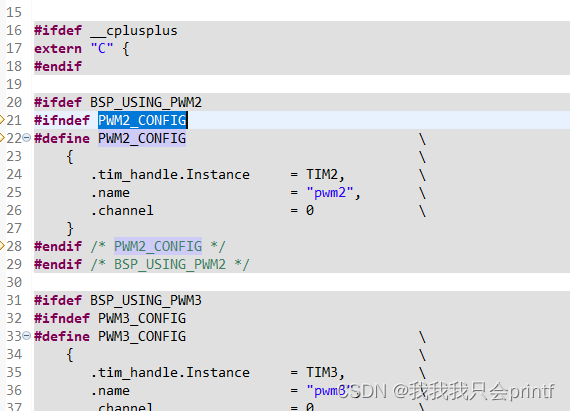

打开pwm_config.h中可以看到PWM_CONFIG是从PWM2开始配置的：

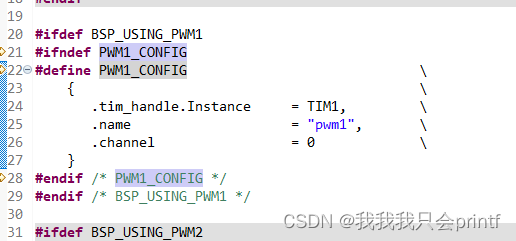

如果使用的PWM1则需要仿照现有的添加一个PWM1的：

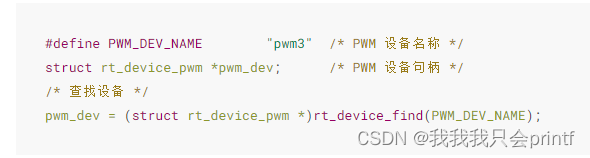

 这里 tim_handle.Instance 也就是我们的PWM1对应的定时器是TIM1，名字是"pwm1"，这个名字和我们之前用SPI4注册"spi40"设备时用的总线名字一样，我们到时候会通过一个函数搜索到它，如官方给的例子：

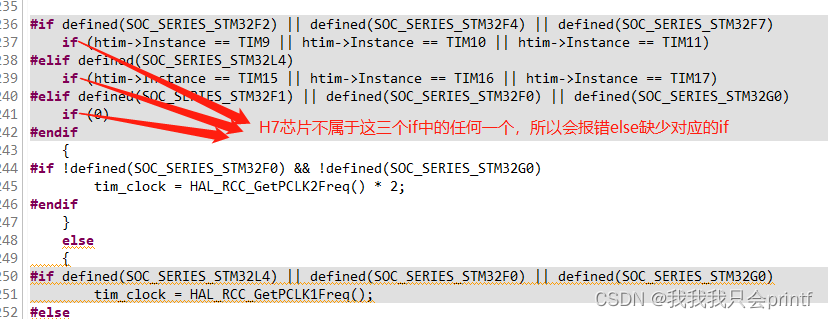

再次编译发现还回有问题，问题出在drv_pwm_set和drv_pwm_get这两个函数中，这是因为内核没有把H7系列的芯片包含进去：

可以看到这里的内核驱动代码还不完善，其实这里主要是为了获取 tim_clock 这个变量，也就是定时器时钟，但是对于H7来说，确定用的哪个定时器很重要。详细可以参考：

H7定时器

这个应该是硬汉出的教程，别人转载的。这里我讲一下我是用的TIM1是怎么配置的，你可以根据需要配置你自己的定时器。这里讲解一下怎么由时钟树理解时钟走向。

首先我们进到 HAL_RCC_GetPCLK2Freq 这个函数中，如果你定时器挂载在APB1上，则应该使用的是 HAL_RCC_GetPCLK1Freq 这个函数获取PCLK1的频率。为什么需要用这个函数？我们从时钟树上理一下，这部分时钟树如下：

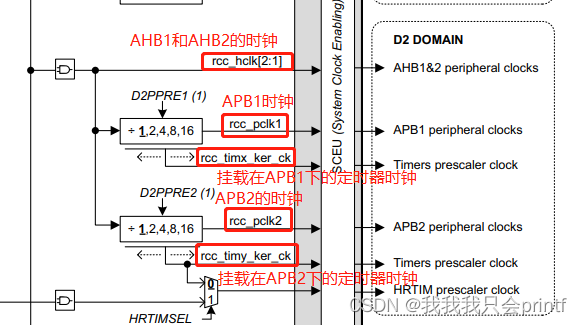

TIM1挂载在APB2下，时钟源是 rcc_timy_ker_ck ，我们需要先确定 rcc_pclk2的频率，也就是APB2总线的频率，它又来自于 rcc_hclk ，也就是AHB1/2的时钟，所以我们进入函数HAL_RCC_GetPCLK2Freq 可以看到：

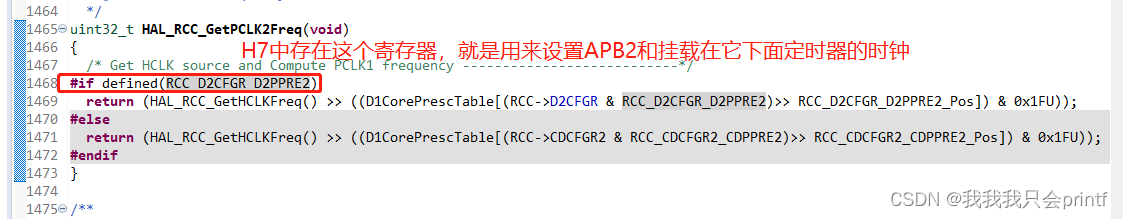

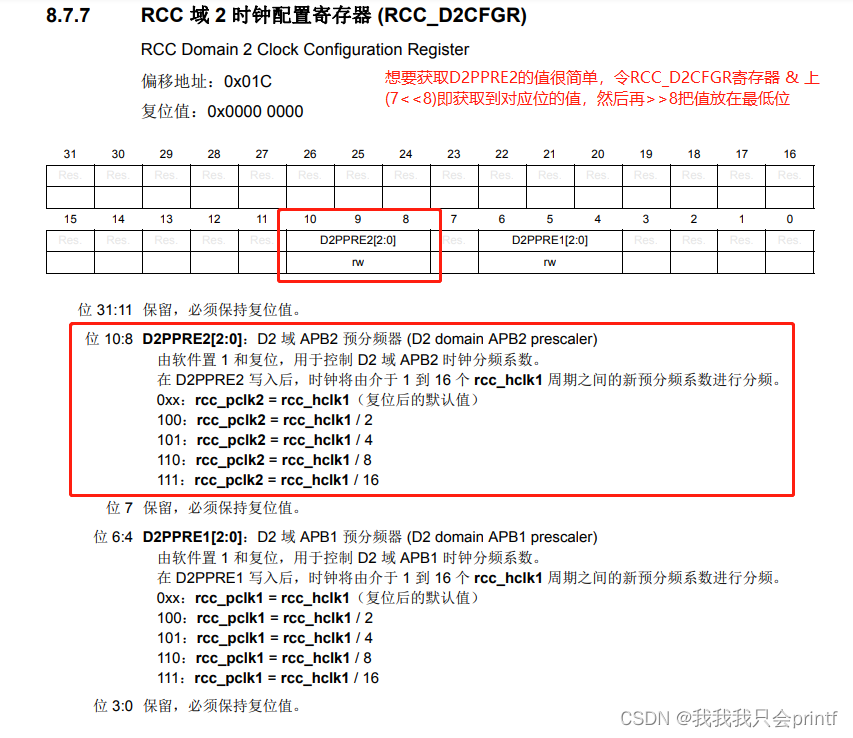

首先我们通过HAL_RCC_GetHCLKFreq()这个函数获取到HCLK的时钟频率，然后拆分后面的部分，(RCC->D2CFGR & RCC_D2CFGR_D2PPRE2)>> RCC_D2CFGR_D2PPRE2_Pos 是为了获取 RCC_D2CFGR_D2PPRE2 寄存器的值，原理如下：

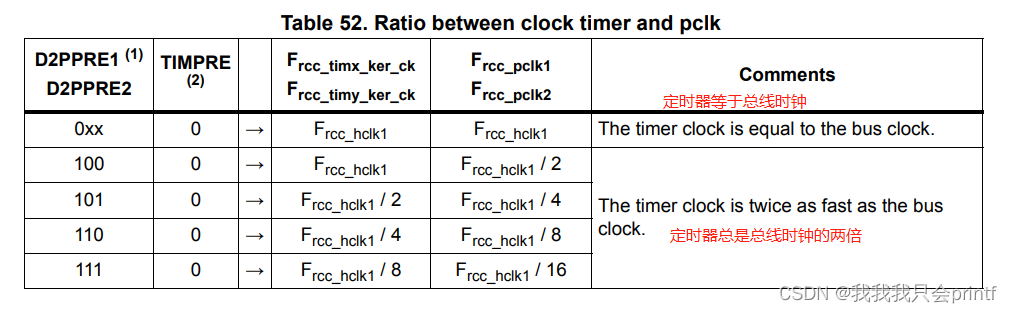

获取到 RCC_D2CFGR_D2PPRE2 寄存器的值后，查表：

比如这个寄存器的值是 110，即6，D1CorePrescTable[6] = 3，HCLK的时钟右移3，相当于除以8，正好和上图中计算110：rcc_pclk2的情况相同。然后根据这个时钟去计算定时器时钟，这又分为两个情况：

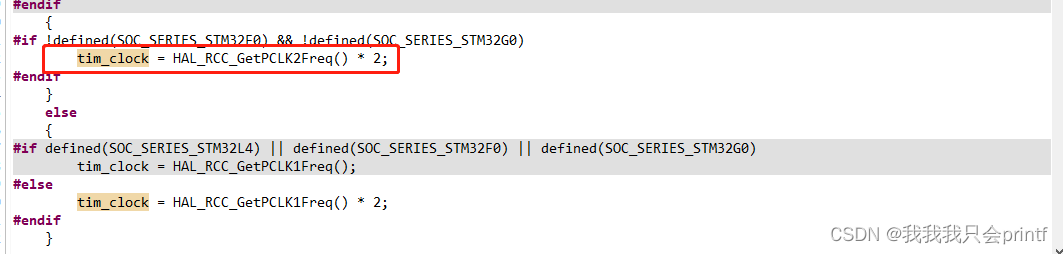

源码中我们可以看到在使用 HAL_RCC_GetPCLK2Freq 获取定时器时钟的情况中只有乘2这一种情况：

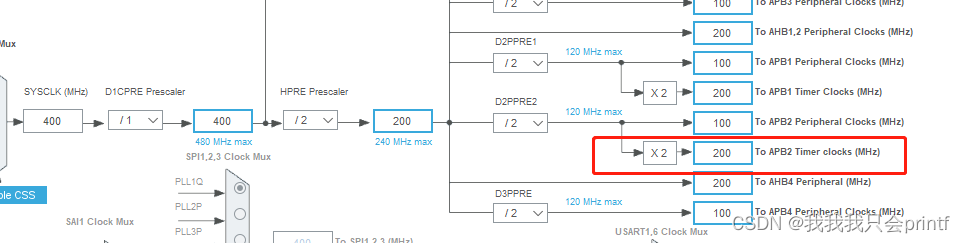

但其实应该是两种情况，我这里在CubeMX中 D2PPRE2 寄存器选择的是除以2，所以这里乘2是没有关系的：

如果在CubeMX中D2PPRE2选择1，你会发现定时器那里会自动选为除以1，但是选1的话可以看到会有如下提示：

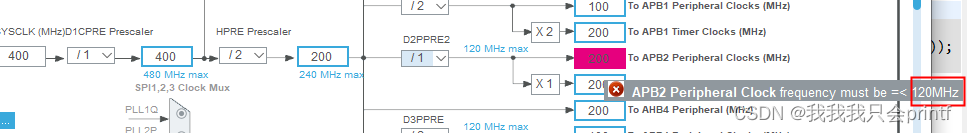

APB2最大只能120MHz，选1则系统主频最高只能240MHz了。

修改完这里，编译即可正常通过。然后我们就可以开始调用官方给的接口函数控制PWM了：

#include
#include
#include "mpwm.h"
#include
struct rt_device_pwm *pwm_lcd;static uint32_t mpulse = 0;void mpwm_set(uint32_t pulse)
{mpulse = pulse;rt_pwm_set(pwm_lcd,2,1000,pulse);}uint32_t mpwm_get(void)
{return mpulse;
}void mpwm_init(void)
{pwm_lcd = (struct rt_device_pwm *)rt_device_find("pwm1");if(!pwm_lcd){rt_kprintf("pwm1 can't find\n");}rt_pwm_enable(pwm_lcd,2);rt_pwm_set(pwm_lcd,2,1000,0);
}

这里简单写了几个接口函数，实际直接使用，发现并没有输出，主要的坑已经全踩过了！懒得给官方提PR了，留给后人完善吧。

STM32的PWM所使用定时的初始化在内核驱动 drv_pwm.c 文件中的 stm32_pwm_init的 stm32_hw_pwm_init 函数里：

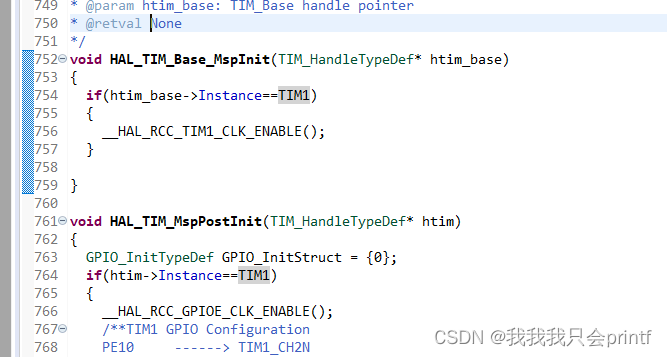

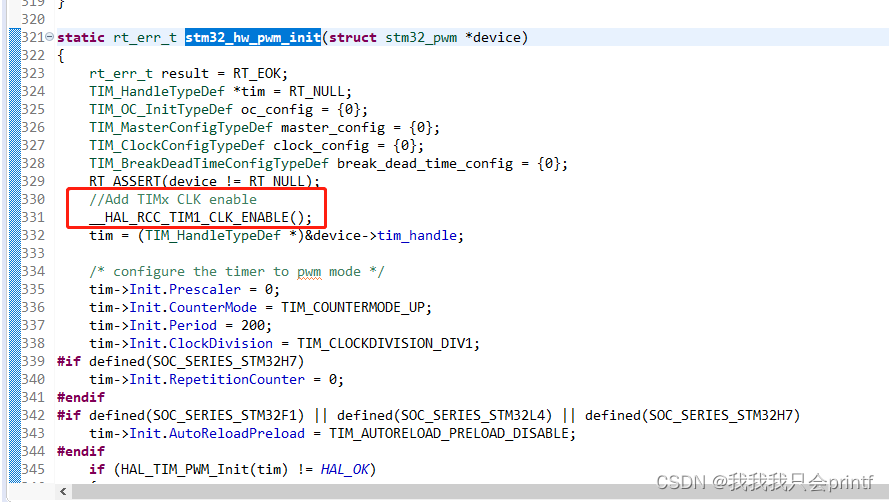

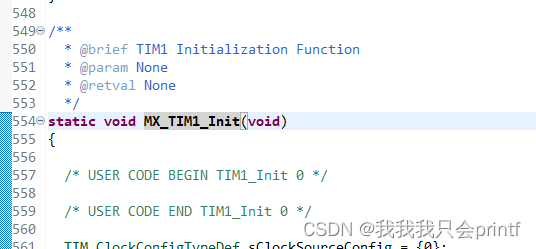

注意上图红色方框，你使用哪个定时器就需要添加哪个定时器的时钟使能。其次高级定时器一些额外的设置也需要添加，你如果不知道你用的定时器需不需要添加这些，请参照你使用CubeMX生成的定时器配置，我这里是在main.c中：

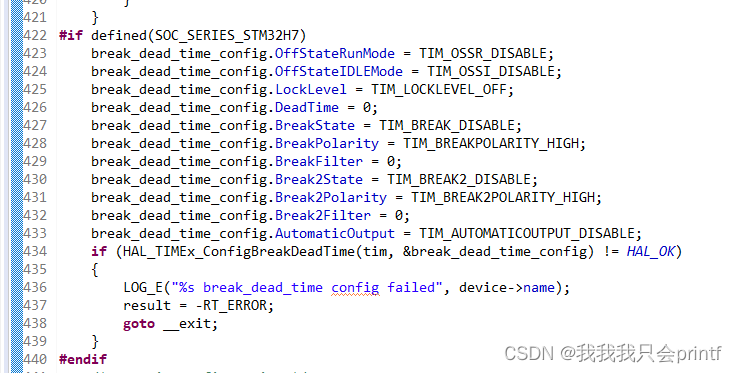

根据上面函数的配置，添加到这个函数里：

我这里使用的TIM1需要配置刹车和死区配置。添加完这些，你会发现还是无法使用PWM输出，这是因为是使能函数有问题：

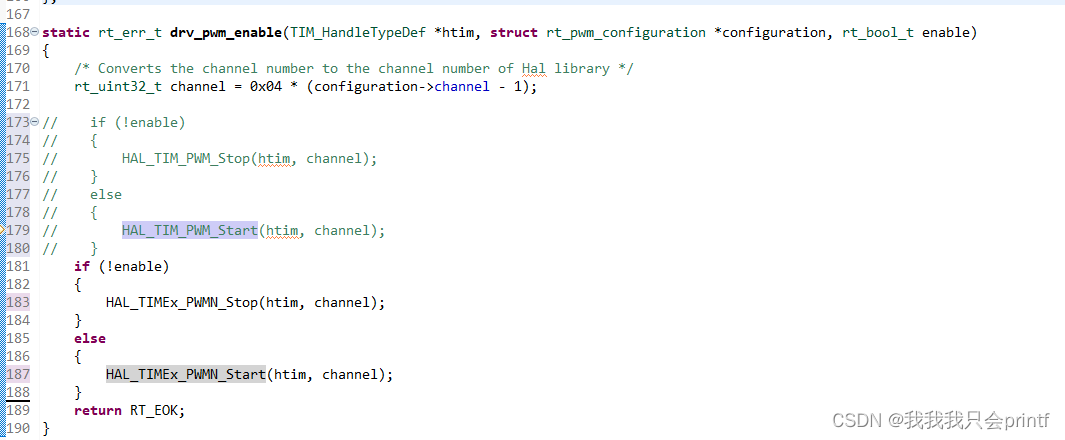

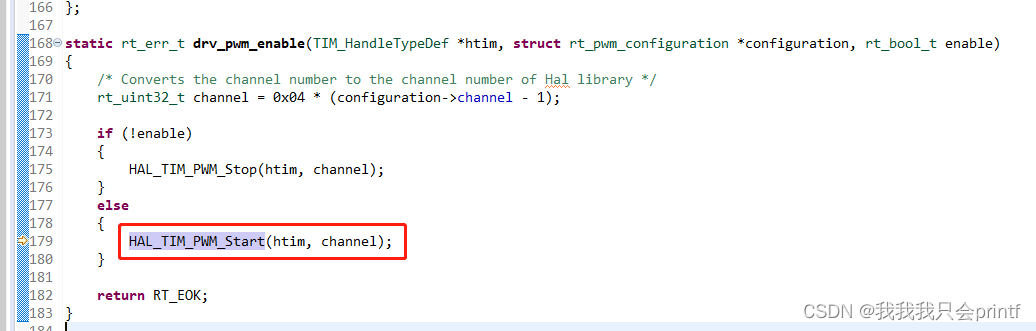

在同个文件中还有pwm使能函数，这个函数中所使用的 HAL_TIM_PWM_Start 函数只对普通定时器有效，TIM1是高级定时器，所以应该使用的函数是：HAL_TIMEx_PWMN_Start 。我这里不考虑其他情况，只针对我自己的工程做以下修改：

此时再使用PWM即可正常使用。

给出drv_pwm.c以供参考：
