MybatisPlus数据安全

概述

​ 存在数据库中的数据对于普通用户而言是不可见的，好像是藏起来了一样，但对于开发者，只要知道数据库的连接地址、用户名、密码，则数据不再安全；这也意味着，一旦连接数据库的配置文件暴露出去，则数据不再安全。

应用场景

开发中的数据库配置文件或配置中心中的配置信息

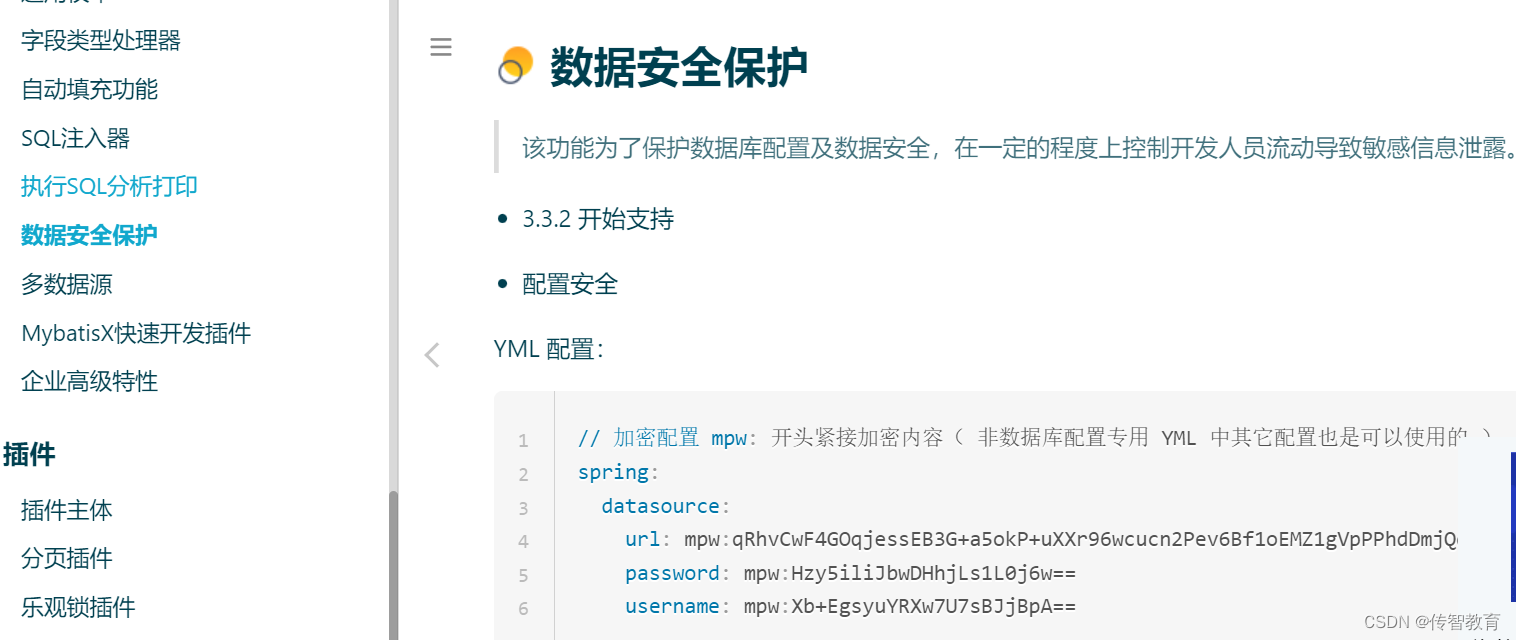

API介绍

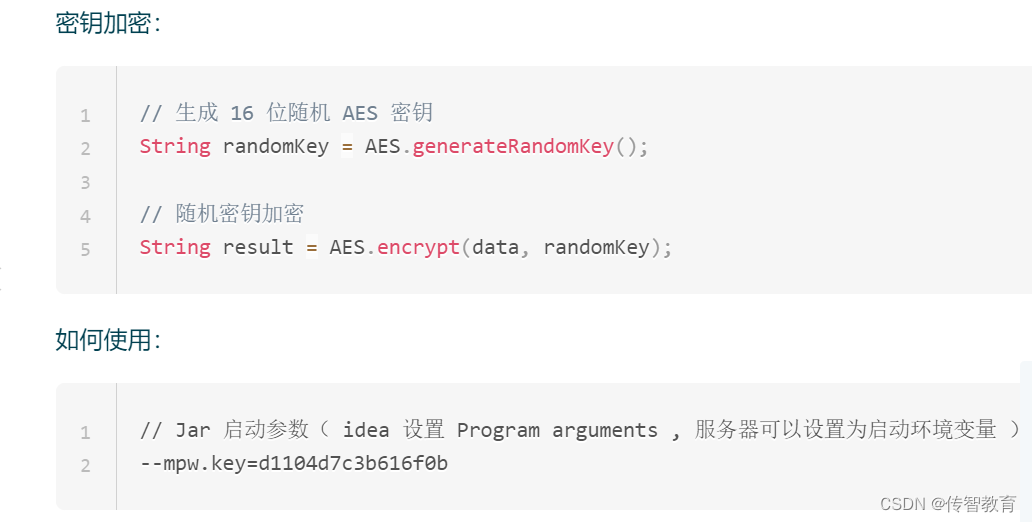

MybatisPlus中有个针对配置项加密处理的

代码实现

1 创建mp工程

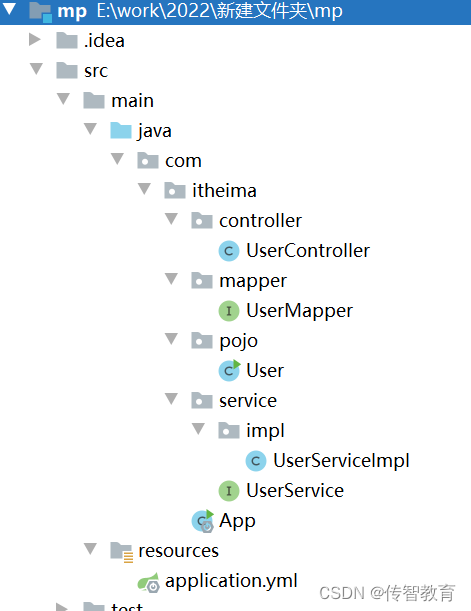

创建maven工程，结构如下：

2 代码编写

pom.xml

    org.springframework.bootspring-boot-starter-webcom.baomidoumybatis-plus-boot-starter3.4.1mysqlmysql-connector-javaorg.projectlomboklombokprovided

application.yml

spring:datasource:url: jdbc:mysql://localhost:3306/springboot?useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghaidriver-class-name: com.mysql.cj.jdbc.Driverusername: rootpassword: root
mybatis-plus:type-aliases-package: com.itheima.pojo

启动类

package com.itheima;import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;/*** @version 1.0* @description 说明* @package com.itheima*/
@SpringBootApplication
@MapperScan(basePackages = "com.itheima.mapper")
public class App {public static void main(String[] args) {SpringApplication.run(App.class,args);}
}

pojo

package com.itheima.pojo;import com.baomidou.mybatisplus.annotation.TableField;
import lombok.Data;/*** @version 1.0* @description 说明* @package com.itheima.pojo*/
@Data
public class User {private Integer id;private String username;@TableField(select = false)private String password;private String salt;}

mapper

package com.itheima.mapper;import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.itheima.pojo.User;
import org.springframework.stereotype.Repository;/*** @version 1.0* @description 说明* @package com.itheima.mapper*/
@Repository
public interface UserMapper extends BaseMapper {
}

service接口与实现类

package com.itheima.service;import com.baomidou.mybatisplus.extension.service.IService;
import com.itheima.pojo.User;/*** @version 1.0* @description 说明* @package com.itheima.service*/
public interface UserService extends IService {
}

package com.itheima.service.impl;import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.itheima.mapper.UserMapper;
import com.itheima.pojo.User;
import com.itheima.service.UserService;
import org.springframework.stereotype.Service;/*** @version 1.0* @description 说明* @package com.itheima.service.impl*/
@Service
public class UserServiceImpl extends ServiceImpl implements UserService {
}

controller

package com.itheima.controller;import com.itheima.pojo.User;
import com.itheima.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.List;/*** @version 1.0* @description 说明* @package com.itheima.controller*/
@RestController
@RequestMapping("user")
public class UserController {@Autowiredprivate UserService userService;@GetMappingpublic List listAll(){return userService.list();}}

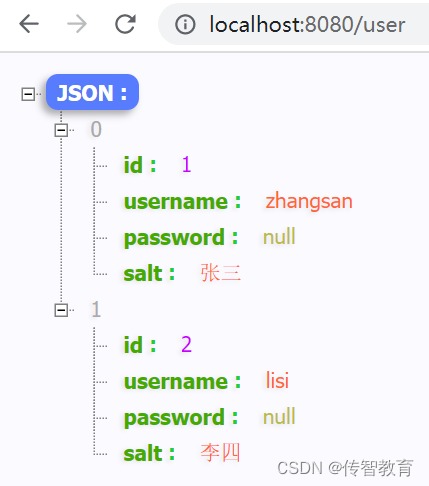

启动测试

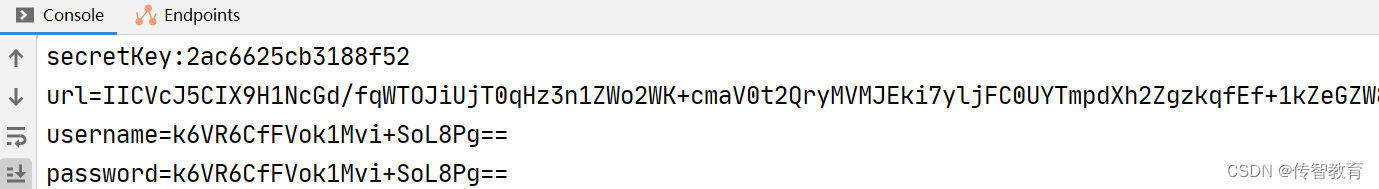

生成加密后的内容

package com.itheima;import com.baomidou.mybatisplus.core.toolkit.AES;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;/*** @version 1.0* @description 说明* @package com.itheima*/
@SpringBootApplication
@MapperScan(basePackages = "com.itheima.mapper")
public class App {public static void main(String[] args) {String secretKey = AES.generateRandomKey();System.out.println("secretKey:" + secretKey);String url = AES.encrypt("jdbc:mysql://localhost:3306/springboot?useSSL=false&characterEncoding=utf8&serverTimezone=Asia/Shanghai", secretKey);String username = AES.encrypt("username", secretKey);String password = AES.encrypt("password", secretKey);System.out.println("url=" +url );System.out.println("username=" +username );System.out.println("password=" +password );SpringApplication.run(App.class,args);}
}

替换配置文件

spring:datasource:url: mpw:wT9PqZ9Hf4VWgXDuZ/Z1JKfdDyS0sSu3+O2qDkJ/Ulnabpq3z1lZbiThWseQ4DQSx3+SWpufsTysjdYhn6Scsa77AzIIaUgv8DZ17gPxAq88AISmxd9OjxidmY50uBVMkGhP9qAted45zuHBzVrw6Q==driver-class-name: com.mysql.cj.jdbc.Driverusername: mpw:Pnh++mI45YrC4s6JveJYaA==password: mpw:Pnh++mI45YrC4s6JveJYaA==
mybatis-plus:type-aliases-package: com.itheima.pojo

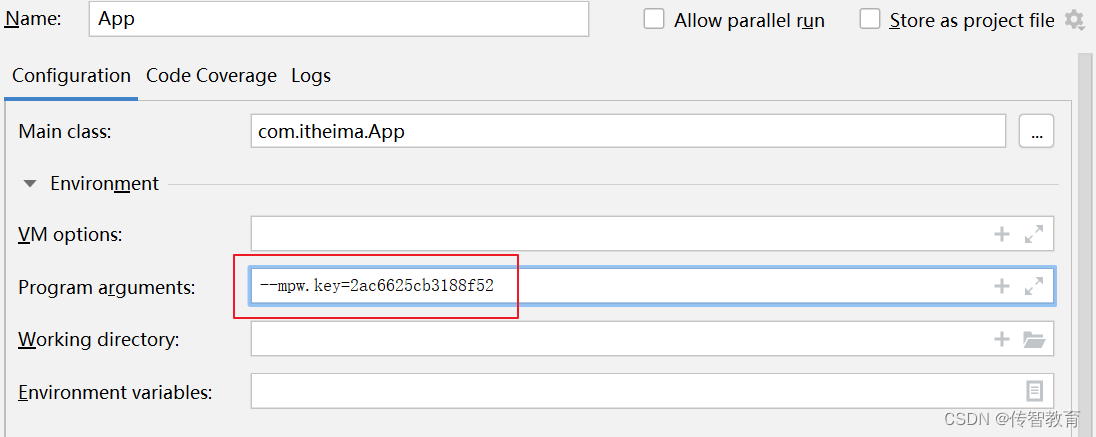

添加启动参数

运行效果

3 优化

目的

启动时，需要指定密钥 才能使用，如果我们把它封装到一个jar里，让它启动时自动去加载密钥，且密钥可配置，那这样就更灵活了。

分析

通过查看MybatisPlus加载的源码，其做解密处理的类如下：

/** Copyright (c) 2011-2020, baomidou (jobob@qq.com).*
* Licensed under the Apache License, Version 2.0 (the "License"); you may not* use this file except in compliance with the License. You may obtain a copy of* the License at*
* https://www.apache.org/licenses/LICENSE-2.0*
* Unless required by applicable law or agreed to in writing, software* distributed under the License is distributed on an "AS IS" BASIS, WITHOUT* WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the* License for the specific language governing permissions and limitations under* the License.*/
package com.baomidou.mybatisplus.autoconfigure;import com.baomidou.mybatisplus.core.toolkit.AES;
import com.baomidou.mybatisplus.core.toolkit.CollectionUtils;
import com.baomidou.mybatisplus.core.toolkit.StringUtils;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.env.EnvironmentPostProcessor;
import org.springframework.boot.env.OriginTrackedMapPropertySource;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.core.env.MapPropertySource;
import org.springframework.core.env.PropertySource;
import org.springframework.core.env.SimpleCommandLinePropertySource;import java.util.HashMap;/*** 安全加密处理器** @author hubin* @since 2020-05-23*/
public class SafetyEncryptProcessor implements EnvironmentPostProcessor {@Overridepublic void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application) {/*** 命令行中获取密钥*/String mpwKey = null;for (PropertySource ps : environment.getPropertySources()) {if (ps instanceof SimpleCommandLinePropertySource) {SimpleCommandLinePropertySource source = (SimpleCommandLinePropertySource) ps;mpwKey = source.getProperty("mpw.key");break;}}/*** 处理加密内容*/if (StringUtils.isNotBlank(mpwKey)) {HashMap map = new HashMap<>();for (PropertySource ps : environment.getPropertySources()) {if (ps instanceof OriginTrackedMapPropertySource) {OriginTrackedMapPropertySource source = (OriginTrackedMapPropertySource) ps;for (String name : source.getPropertyNames()) {Object value = source.getProperty(name);if (value instanceof String) {String str = (String) value;if (str.startsWith("mpw:")) {map.put(name, AES.decrypt(str.substring(4), mpwKey));}}}}}// 将解密的数据放入环境变量，并处于第一优先级上if (CollectionUtils.isNotEmpty(map)) {environment.getPropertySources().addFirst(new MapPropertySource("custom-encrypt", map));}}}
}

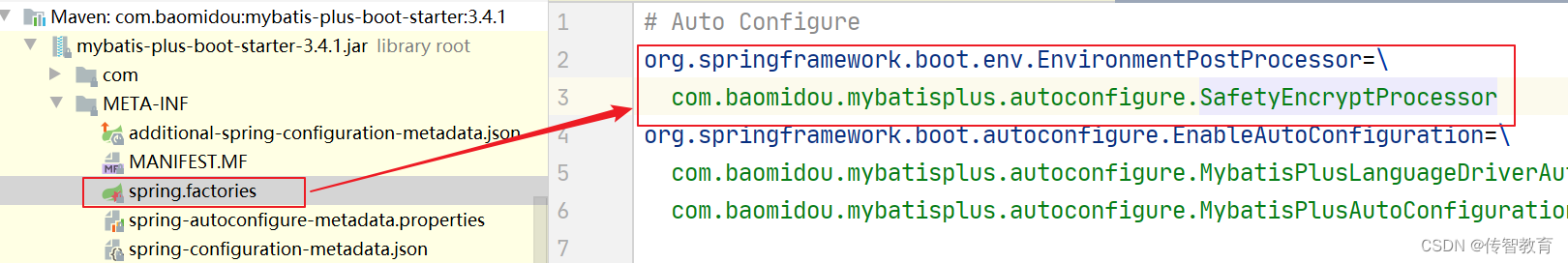

其使用了SPI原理，在类所在的jar下的META-INF/spring.factories中配置了这个SafetyEncryptProcessor。那我们能否也来定义一个这样的配置处理器，判断环境配置中是否配置了–mpw.key，如果没有配置，则给它配置上，这样就不用在启动时添加参数来运行了。

实现

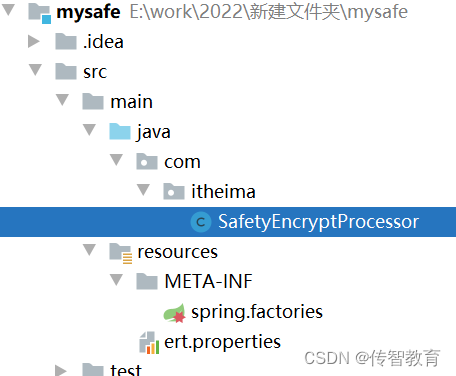

创建配置工程mysafe

代码清单

pom.xml

spring-boot-starter-parentorg.springframework.boot2.3.8.RELEASE

org.springframework.bootspring-boot-starter

SafetyEncryptProcessor

package com.itheima;import org.springframework.boot.SpringApplication;
import org.springframework.boot.env.EnvironmentPostProcessor;
import org.springframework.core.Ordered;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.core.env.PropertySource;
import org.springframework.core.env.SimpleCommandLinePropertySource;
import org.springframework.core.io.ClassPathResource;
import org.springframework.util.StringUtils;import java.io.IOException;
import java.util.Properties;/*** @version 1.0* @description 说明* @package com.itheima*/
public class SafetyEncryptProcessor implements EnvironmentPostProcessor, Ordered {@Overridepublic void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application) {Properties pro = new Properties();try {pro.load(new ClassPathResource("ert.properties").getInputStream());} catch (IOException e) {e.printStackTrace();}/*** 命令行中获取密钥*/String mpwKey = null;for (PropertySource ps : environment.getPropertySources()) {if (ps instanceof SimpleCommandLinePropertySource) {SimpleCommandLinePropertySource source = (SimpleCommandLinePropertySource) ps;mpwKey = source.getProperty("mpw.key");break;}}if(StringUtils.isEmpty(mpwKey)){environment.getPropertySources().addFirst(new SimpleCommandLinePropertySource("mySpringApplicationCommandLineArgs", "--mpw.key=" + pro.getProperty("ert.version")));}}@Overridepublic int getOrder() {return 0;}
}

spring.factories

ert.version=b440fe7fd55dbe26
org.springframework.boot.env.EnvironmentPostProcessor=\
com.itheima.SafetyEncryptProcessor

ert.properties

ert.version=2ac6625cb3188f52

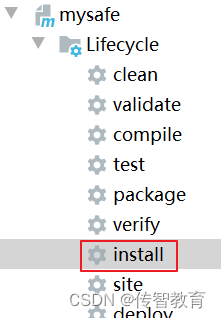

安装到本地仓库

修改mp工程添加依赖

修改pom.xml，添加mysafe的依赖

com.itheimamysafe1.0-SNAPSHOT

4 测试结果

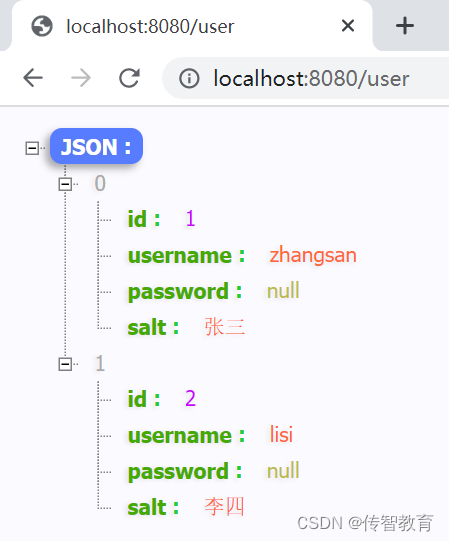

去除启动时的参数设置。再启动后访问页面、效果如下：

总结

1. MybatisPlus利用了springboot的配置信息增强器与SPI机制来实现对配置文件中敏感数据的解密处理。

2. mysafe工程打成的jar包，将来就上传到企业的内部服务器上，当密钥变更时，重新打包即可。

3. 而我们将来布署项目到服务器上时，也肯定存在配置文件，一旦配置信息暴露，则数据库就危险了。通过加密手段能够让破解者增加破解阻碍。

4. 此次练习仅做抛砖引玉作用，关于加密与解密是没有做到那么严谨的，需要结合自己公司实际情况去调整。
