一、实验目的

使用51单片机作为主控芯片，制作可调万年历

二、实验仪器

主控芯片 STC89C52
时钟芯片 DS1302
温度传感器 DS18B20
1602液晶 LCD12864
任意红外遥控器
晶振 11.0952M x1，32.768K x1
电阻、电容若干（详见实验原理图）

三、实验效果预览

1.显示效果

1602液晶屏显示：

年/月/日 星期
时:分:秒 AM/PM 温度

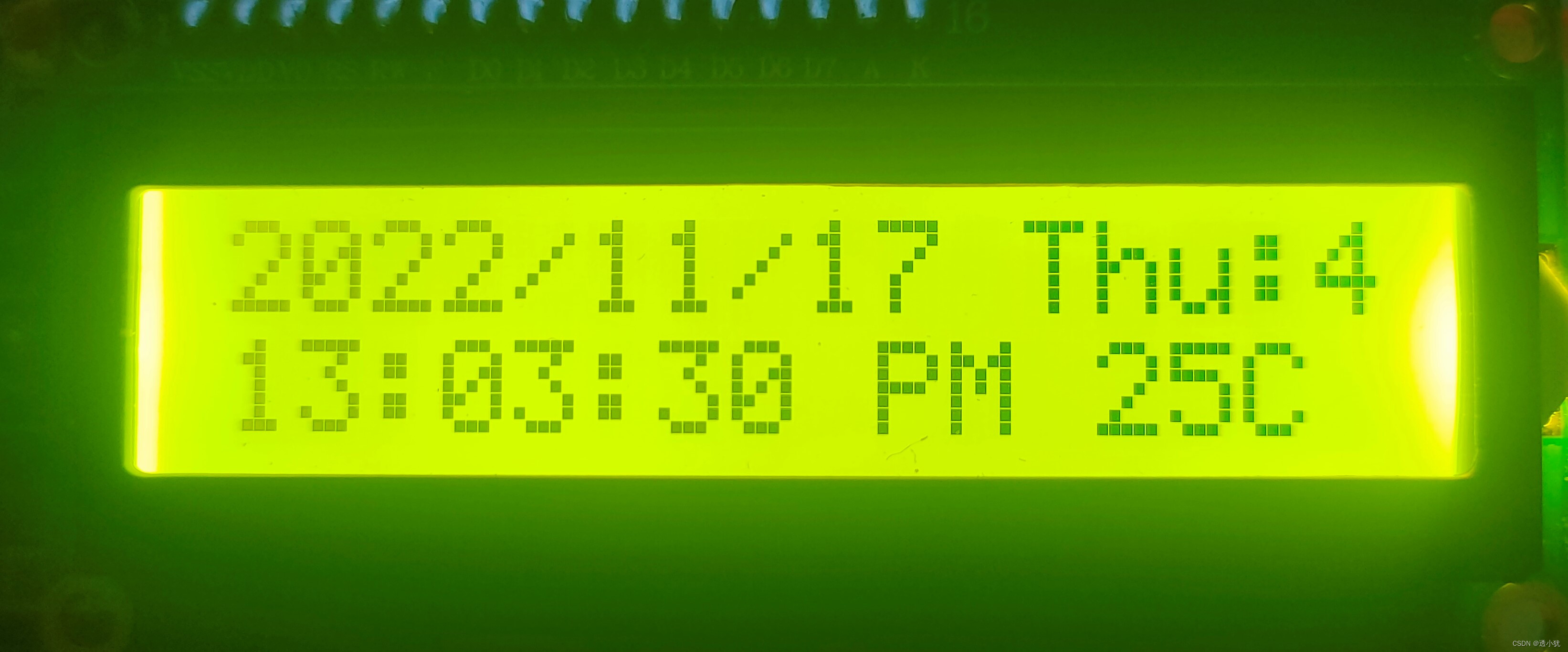

图1 1602液晶屏显示效果

2.调节效果

红外遥控器任意按键进入调节模式

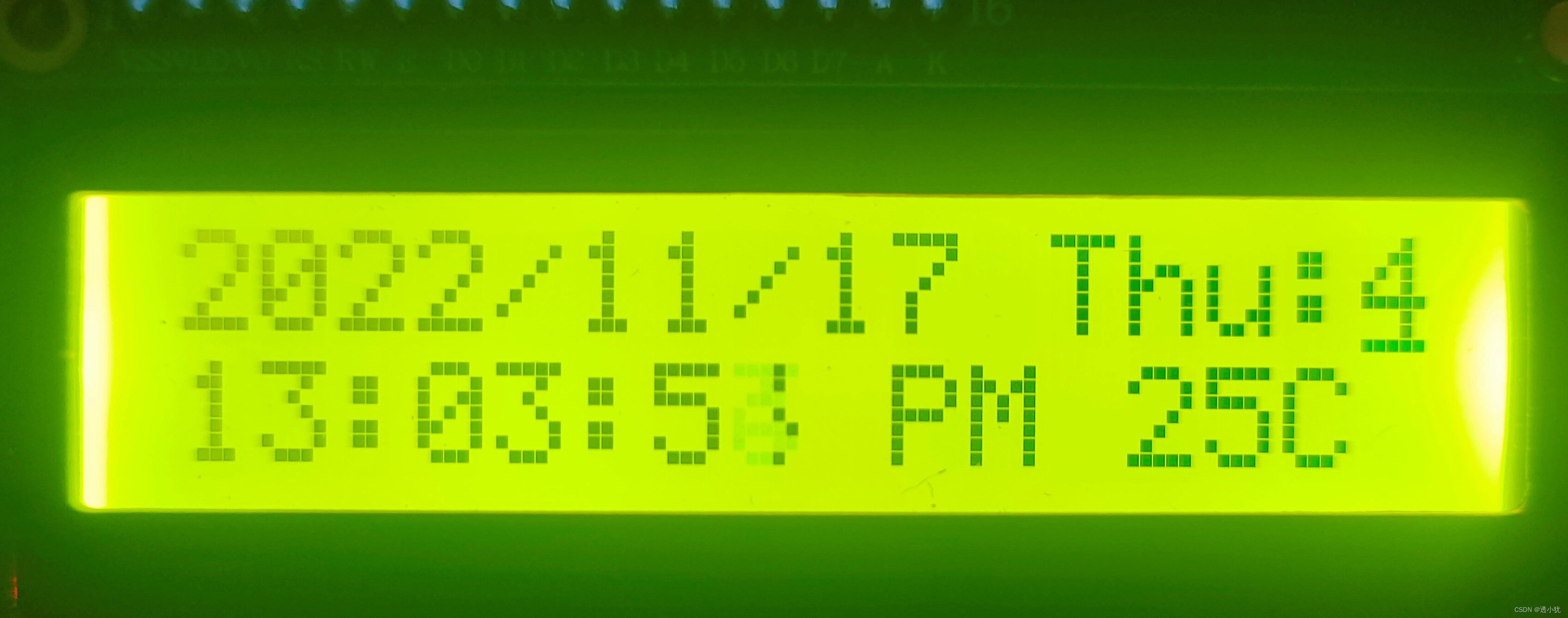

图2 调节模式显示效果

调节模式被选中的数值下方出现光标，按 < 键和 > 键移动光标，按 + 键和 - 键改变光标选中数值，按 = 键退出调节模式（键值需要自行设置）。

图3 调节模式中将星期四改变为星期五

四、实验原理

LCD12864液晶屏VO端接电位器R21，调节R21，使液晶对比度最佳。

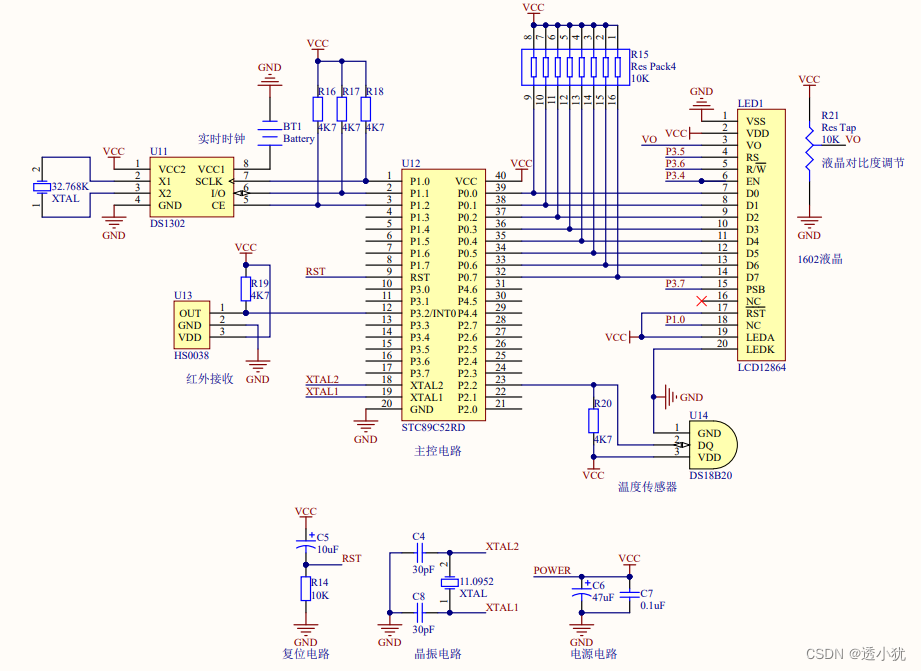

图4 可调万年历实验原理图

五、单片机代码

1.头文件包含

#include
#include

2.类型定义

定义字节型变量BYTE和字变量WORD

typedef unsigned char BYTE;
typedef unsigned short WORD;

3.时钟模块

sbit TSCLK = P1 ^ 0;	// 时钟线
sbit TIO = P1 ^ 1;		// 数据线
sbit TEN = P1 ^ 2;		// 使能端
// 读一字节
BYTE DS1302_read_byte(BYTE _Cmd)
{BYTE i;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Cmd & 0x01;TSCLK = 1;_Cmd >>= 1;}for (i = 0; i < 8; i++) {TSCLK = 0;_Cmd >>= 1;if (TIO)_Cmd |= 0x80;TSCLK = 1;}return _Cmd;
}
// 写一字节
void DS1302_write_byte(BYTE _Cmd, BYTE _Dat)
{BYTE i;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Cmd & 0x01;TSCLK = 1;_Cmd >>= 1;}for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Dat & 0x01;TSCLK = 1;_Dat >>= 1;}
}
// 时钟突发突发模式读
void clock_brust_read(BYTE *_Buf)
{BYTE i, j = 0xbf;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = j & 0x01;TSCLK = 1;j >>= 1;}for (i = 0; i < 7; i++)for (j = 0; j < 8; j++) {TSCLK = 0;_Buf[i] >>= 1;if (TIO)_Buf[i] |= 0x80;TSCLK = 1;}
}
// 时钟突发突发模式写
void clock_brust_write(const BYTE *_Buf)
{BYTE i, j = 0xbe, k;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = j & 0x01;TSCLK = 1;j >>= 1;}for (i = 0; i < 7; i++) {k = _Buf[i];for (j = 0; j < 8; j++) {TSCLK = 0;TIO = k & 0x01;TSCLK = 1;k >>= 1;}}
}

4. 液晶显示模块

#define LCD_DATA P0		// 液晶数据线
sbit LCD_RS = P3 ^ 5; 	// 数据/命令选择端
sbit LCD_WR = P3 ^ 6; 	// 读/写选择端
sbit LCD_EN = P3 ^ 4; 	// 使能端
// 读状态
BYTE LCD_read_state()
{BYTE state;LCD_RS = 0;LCD_WR = 1;LCD_EN = 1;state = LCD_DATA;LCD_EN = 0;return state;
}
// 写指令
void LCD_write_cmd(BYTE _Cmd)
{LCD_EN = 0;LCD_EN = 1;LCD_RS = 0;LCD_WR = 0;LCD_DATA = _Cmd;LCD_EN = 0;
}
// 读数据
BYTE LCD_read_data()
{BYTE i;LCD_RS = 1;LCD_WR = 1;LCD_EN = 1;i = LCD_DATA;LCD_EN = 0;return i;
}
// 写数据
void LCD_write_data(BYTE _Dat)
{LCD_EN = 0;LCD_EN = 1;LCD_RS = 1;LCD_WR = 0;LCD_DATA = _Dat;LCD_EN = 0;
}
// 等待写指令
void LCD_wait_cmd(BYTE _Cmd)
{while (LCD_read_state() & 0x80);LCD_write_cmd(_Cmd);
}
// 等待写数据
void LCD_wait_write_data(BYTE _Dat)
{while (LCD_read_state() & 0x80);LCD_write_data(_Dat);
}
// 等待读数据
BYTE LCD_wait_read_data()
{while (LCD_read_state() & 0x80);return LCD_read_data();
}
// 写入字符串
void LCD_write_string(const char *_Str)
{BYTE i = 0;while (_Str[i])LCD_wait_write_data(_Str[i++]);
}
#define _LCD_CLS 0x01 // 显示清屏

5.温度传感器模块

sbit DS18B20 = P2 ^ 2;	// 温度传感器1-wire线
// 1-wire初始化时序
void init_DS18B20()
{do {DS18B20 = 1;_nop_();DS18B20 = 0;timer0_delay(65074); // delay 499.45 usDS18B20 = 1;timer0_delay(65500); // delay 37.95 us} while (DS18B20);timer0_delay(65404); // delay 141.95 usDS18B20 = 1;_nop_();
}
// 1-wire写时序
void write_byte_1wire(BYTE _Dat)
{BYTE i;for (i = 0; i < 8; i++) {DS18B20 = 0;_nop_();DS18B20 = _Dat & 0x01 ? 1 : 0;timer0_delay(65464); // delay 76.95 usDS18B20 = 1;_nop_();_Dat >>= 1;}
}
// 1-wire读时序
BYTE read_byte_1wire()
{BYTE dat = 0, i;for (i = 0; i < 8; i++) {dat >>= 1;DS18B20 = 0;_nop_(); // 产生读时序DS18B20 = 1;_nop_(); // 释放总线if (DS18B20)dat |= 0x80;timer0_delay(65464); // delay 76.95 us}return dat;
}
// ROM指令
#define _SEARCH_ROM 0xf0 // 搜索 ROM 指令
#define _READ_ROM   0x33 // 读取 ROM 指令
#define _MATH_ROM   0x55 // 匹配 ROM 指令
#define _SIKP_ROM   0xcc // 忽略 ROM 指令
#define _ALARM_ROM  0xec // 报警搜索指令
// DS18B20功能指令
#define _CONVERT_T         0x44 // 温度转换指令
#define _WRITE_SCRATCHPAD  0x4e // 写暂存器指令
#define _READ_SCRATCHPAD   0xbe // 读暂存器指令
#define _COPY_SCRATCHPAD   0x48 // 拷贝暂存器指令
#define _RECALL_E2         0xb8 // 召回 EEPROM 指令
#define _READ_POWER_SUPPLY 0xb4 // 读电源模式指令

6. 红外通讯模块

BYTE IRtime;    // 红外高低电平持续时间
BYTE IRcord[2]; // 8位地址+8位数据
bit IRdone = 0; // 数据接收完成标志位
// 定时器1中断 - 每中断一次需要256个机器周期
void timer1() interrupt 3
{IRtime++; // _MACHINE_CYCLE*256=277.76 μs
}
// 外部中断0
void int0() interrupt 0
{static BYTE i;            // 32次数据计数static bit startflag = 0; // 开始储存脉宽标志位static BYTE IRdata[4];    // 数据接收缓冲区BYTE j;if (startflag) {if (IRtime >= 32 && IRtime < 53) { // 起始码判定 8.8ms~14msi = 0;IRtime = 0;return;}j = (i++) >> 3;IRdata[j] >>= 1;if (IRtime > 5) // 数据0=高电平560μs+低电平560μs=1120μsIRdata[j] |= 0x80;IRtime = 0;    // 计数清零if (i == 32) { // 如果已经存入了32次脉宽i = 0;     // 数据计数清零准备下次存入if (IRdata[0] == ~IRdata[1] && IRdata[2] == ~IRdata[3]) {IRdone = 1; // 32位数据接收完成IRcord[0] = IRdata[0];IRcord[1] = IRdata[2];}}} else {IRtime = 0;startflag = 1;}
}

7.开机初始化

/* 开机初始化 */
void init()
{// 初始化时钟模块DS1302_write_byte(0x8e, 0x80); // 开写保护// 初始化LCD1802液晶delay_ms(15);LCD_write_cmd(0x38);delay_ms(5);LCD_write_cmd(0x38);delay_ms(5);LCD_write_cmd(0x38);LCD_wait_cmd(0x38);     // 显示模式设置LCD_wait_cmd(0x0c);     // 开显示 不显示光标 光标不闪烁LCD_wait_cmd(_LCD_CLS); // 显示清屏/* 红外通讯初始化 - 使用定时器1 */TMOD = (TMOD & 0x0f) | 0x20;TH1 = 0;TL1 = 0;TR1 = 1;EA = 1;  // 开总中断ET1 = 1; // 开定时器1中断EX0 = 1; // 开外部中断0IT0 = 1; // 设置外部中断0边沿触发TR1 = 1; // 启动定时器0
}

8.特殊功能函数

/* 转换函数 */
// 组合BCD码转换函数
BYTE to_BCD(BYTE _Dat)
{return ((_Dat / 10) << 4) | _Dat % 10;
}
// 非组合BCD码 ---> 可显示字符ASCII
BYTE to_hex(BYTE _Dat)
{_Dat += _Dat < 10 ? '0' : '7';return _Dat;
}// 返回是否是闰年
bit is_leap(WORD _Year)
{return _Year % 4 == 0 && _Year % 100 != 0 || _Year % 400 == 0;
}/* 延时函数 */
// 低精度毫秒级延时
void delay_ms(WORD _Ms)
{BYTE x;while (_Ms--)for (x = 144; x > 0; x--);
}
// 定时器0延时
void timer0_delay(WORD _Th)
{TMOD = (TMOD & 0xf0) | 0x01;TH0 = _Th >> 8;TL0 = _Th & 0xff;TR0 = 1;while (TF0 == 0);TF0 = 0;
}

9.代码段常量

// 星期的英文缩写
char code weekday[7][3] = {"Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"};
// 一个月有几天（平年）
BYTE code monthday[12] = {31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};

10.完整代码

#include
#include /* typedef */
typedef unsigned char BYTE;
typedef unsigned short WORD;/* cast */
BYTE to_BCD(BYTE _Dat)
{return ((_Dat / 10) << 4) | _Dat % 10;
}
BYTE to_hex(BYTE _Dat)
{_Dat += _Dat < 10 ? '0' : '7';return _Dat;
}char code weekday[7][3] = {"Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"};
BYTE code monthday[12] = {31, 28, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31};bit is_leap(WORD _Year)
{return _Year % 4 == 0 && _Year % 100 != 0 || _Year % 400 == 0;
}/* 时钟模块 */
sbit TSCLK = P1 ^ 0;
sbit TIO = P1 ^ 1;
sbit TEN = P1 ^ 2;
// 读一字节
BYTE DS1302_read_byte(BYTE _Cmd)
{BYTE i;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Cmd & 0x01;TSCLK = 1;_Cmd >>= 1;}for (i = 0; i < 8; i++) {TSCLK = 0;_Cmd >>= 1;if (TIO)_Cmd |= 0x80;TSCLK = 1;}return _Cmd;
}
// 写一字节
void DS1302_write_byte(BYTE _Cmd, BYTE _Dat)
{BYTE i;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Cmd & 0x01;TSCLK = 1;_Cmd >>= 1;}for (i = 0; i < 8; i++) {TSCLK = 0;TIO = _Dat & 0x01;TSCLK = 1;_Dat >>= 1;}
}
// 时钟突发突发模式读
void clock_brust_read(BYTE *_Buf)
{BYTE i, j = 0xbf;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = j & 0x01;TSCLK = 1;j >>= 1;}for (i = 0; i < 7; i++)for (j = 0; j < 8; j++) {TSCLK = 0;_Buf[i] >>= 1;if (TIO)_Buf[i] |= 0x80;TSCLK = 1;}
}
// 时钟突发突发模式写
void clock_brust_write(const BYTE *_Buf)
{BYTE i, j = 0xbe, k;TEN = 0;TSCLK = 0;TEN = 1;for (i = 0; i < 8; i++) {TSCLK = 0;TIO = j & 0x01;TSCLK = 1;j >>= 1;}for (i = 0; i < 7; i++) {k = _Buf[i];for (j = 0; j < 8; j++) {TSCLK = 0;TIO = k & 0x01;TSCLK = 1;k >>= 1;}}
}/* 延时 */
// 低精度毫秒级延时
void delay_ms(WORD _Ms)
{BYTE x;while (_Ms--)for (x = 144; x > 0; x--);
}
// 定时器0延时
void timer0_delay(WORD _Th)
{TMOD = (TMOD & 0xf0) | 0x01;TH0 = _Th >> 8;TL0 = _Th & 0xff;TR0 = 1;while (TF0 == 0);TF0 = 0;
}/* LCD1802液晶 */
#define LCD_DATA P0
sbit LCD_RS = P3 ^ 5; // 数据/命令选择端
sbit LCD_WR = P3 ^ 6; // 读/写选择端
sbit LCD_EN = P3 ^ 4; // 使能端
// 读状态
BYTE LCD_read_state()
{BYTE state;LCD_RS = 0;LCD_WR = 1;LCD_EN = 1;state = LCD_DATA;LCD_EN = 0;return state;
}
// 写指令
void LCD_write_cmd(BYTE _Cmd)
{LCD_EN = 0;LCD_EN = 1;LCD_RS = 0;LCD_WR = 0;LCD_DATA = _Cmd;LCD_EN = 0;
}
// 读数据
BYTE LCD_read_data()
{BYTE i;LCD_RS = 1;LCD_WR = 1;LCD_EN = 1;i = LCD_DATA;LCD_EN = 0;return i;
}
// 写数据
void LCD_write_data(BYTE _Dat)
{LCD_EN = 0;LCD_EN = 1;LCD_RS = 1;LCD_WR = 0;LCD_DATA = _Dat;LCD_EN = 0;
}
// 等待写指令
void LCD_wait_cmd(BYTE _Cmd)
{while (LCD_read_state() & 0x80);LCD_write_cmd(_Cmd);
}
// 等待写数据
void LCD_wait_write_data(BYTE _Dat)
{while (LCD_read_state() & 0x80);LCD_write_data(_Dat);
}
// 等待读数据
BYTE LCD_wait_read_data()
{while (LCD_read_state() & 0x80);return LCD_read_data();
}
// 写入字符串
void LCD_write_string(const char *_Str)
{BYTE i = 0;while (_Str[i])LCD_wait_write_data(_Str[i++]);
}
#define _LCD_CLS 0x01 // 显示清屏/* 1-wire总线 */
sbit DS18B20 = P2 ^ 2;
// 1-wire初始化时序
void init_DS18B20()
{do {DS18B20 = 1;_nop_();DS18B20 = 0;timer0_delay(65074); // delay 499.45 usDS18B20 = 1;timer0_delay(65500); // delay 37.95 us} while (DS18B20);timer0_delay(65404); // delay 141.95 usDS18B20 = 1;_nop_();
}
// 1-wire写时序
void write_byte_1wire(BYTE _Dat)
{BYTE i;for (i = 0; i < 8; i++) {DS18B20 = 0;_nop_();DS18B20 = _Dat & 0x01 ? 1 : 0;timer0_delay(65464); // delay 76.95 usDS18B20 = 1;_nop_();_Dat >>= 1;}
}
// 1-wire读时序
BYTE read_byte_1wire()
{BYTE dat = 0, i;for (i = 0; i < 8; i++) {dat >>= 1;DS18B20 = 0;_nop_(); // 产生读时序DS18B20 = 1;_nop_(); // 释放总线if (DS18B20)dat |= 0x80;timer0_delay(65464); // delay 76.95 us}return dat;
}
// ROM指令
#define _SEARCH_ROM 0xf0 // 搜索 ROM 指令
#define _READ_ROM   0x33 // 读取 ROM 指令
#define _MATH_ROM   0x55 // 匹配 ROM 指令
#define _SIKP_ROM   0xcc // 忽略 ROM 指令
#define _ALARM_ROM  0xec // 报警搜索指令
// DS18B20功能指令
#define _CONVERT_T         0x44 // 温度转换指令
#define _WRITE_SCRATCHPAD  0x4e // 写暂存器指令
#define _READ_SCRATCHPAD   0xbe // 读暂存器指令
#define _COPY_SCRATCHPAD   0x48 // 拷贝暂存器指令
#define _RECALL_E2         0xb8 // 召回 EEPROM 指令
#define _READ_POWER_SUPPLY 0xb4 // 读电源模式指令/* 红外通讯 */
BYTE IRtime;    // 红外高低电平持续时间
BYTE IRcord[2]; // 8位地址+8位数据
bit IRdone = 0; // 数据接收完成标志位
// 定时器1中断 - 每中断一次需要256个机器周期
void timer1() interrupt 3
{IRtime++; // _MACHINE_CYCLE*256=277.76 μs
}
// 外部中断0
void int0() interrupt 0
{static BYTE i;            // 32次数据计数static bit startflag = 0; // 开始储存脉宽标志位static BYTE IRdata[4];    // 数据接收缓冲区BYTE j;if (startflag) {if (IRtime >= 32 && IRtime < 53) { // 起始码判定 8.8ms~14msi = 0;IRtime = 0;return;}j = (i++) >> 3;IRdata[j] >>= 1;if (IRtime > 5) // 数据0=高电平560μs+低电平560μs=1120μsIRdata[j] |= 0x80;IRtime = 0;    // 计数清零if (i == 32) { // 如果已经存入了32次脉宽i = 0;     // 数据计数清零准备下次存入if (IRdata[0] == ~IRdata[1] && IRdata[2] == ~IRdata[3]) {IRdone = 1; // 32位数据接收完成IRcord[0] = IRdata[0];IRcord[1] = IRdata[2];}}} else {IRtime = 0;startflag = 1;}
}/* 开机初始化 */
void init()
{/* 初始化数码管 */NIXIE_TUBE = 0x00;DU = 1;DU = 0;WE = 0;// 初始化时钟模块DS1302_write_byte(0x8e, 0x80); // 开写保护// 初始化LCD1802液晶delay_ms(15);LCD_write_cmd(0x38);delay_ms(5);LCD_write_cmd(0x38);delay_ms(5);LCD_write_cmd(0x38);LCD_wait_cmd(0x38);     // 显示模式设置LCD_wait_cmd(0x0c);     // 开显示 不显示光标 光标不闪烁LCD_wait_cmd(_LCD_CLS); // 显示清屏/* 红外通讯初始化 - 使用定时器1 */TMOD = (TMOD & 0x0f) | 0x20;TH1 = 0;TL1 = 0;TR1 = 1;EA = 1;  // 开总中断ET1 = 1; // 开定时器1中断EX0 = 1; // 开外部中断0IT0 = 1; // 设置外部中断0边沿触发TR1 = 1; // 启动定时器0
}void main()
