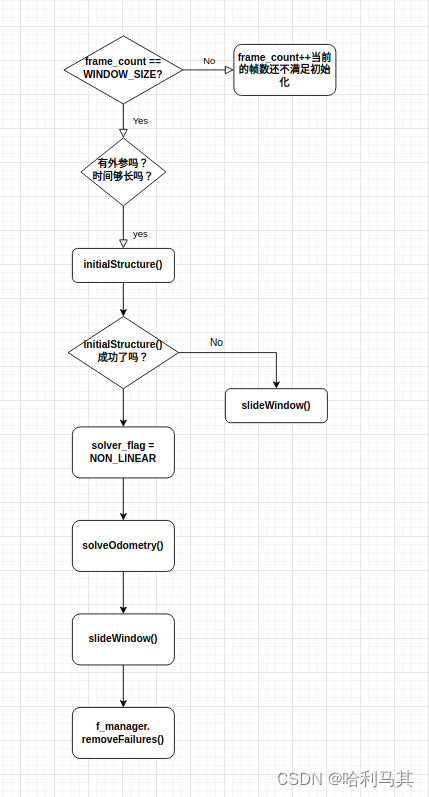

大体流程

初始化主要分成2部分，第一部分是纯视觉SfM优化滑窗内的位姿，然后在融合IMU信息。
这部分代码在estimator::processImage()最后面。

主函数入口：

void Estimator::processImage(const map>>> &image, const std_msgs::Header &header)

相机和imu旋转外参数的估计，分两步走：

1. 获取最新两帧之间匹配的特征点对

vector> FeatureManager::getCorresponding(int frame_count_l, int frame_count_r)

2. 计算相机-IMU之间的旋转

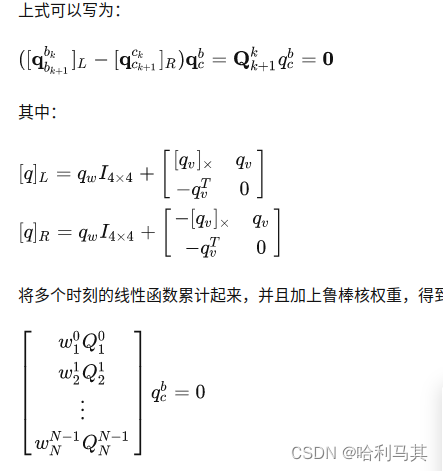

   利用旋转约束去估计
   qbkbk+1⊗qbc=qbc⊗qckck+1q_{b_kb_{k+1}} \otimes q_{bc} = q_{bc} \otimes q_{c_kc_{k+1}} qbk​bk+1​​⊗qbc​=qbc​⊗qck​ck+1​​


bool CalibrationExRotation(vector> corres, Quaterniond delta_q_imu, Matrix3d &calib_ric_result)
{//! Step1: 滑窗內幀數加1frame_count++;//! Step2: 计算两帧之间的旋转矩阵// 利用帧可视化的3D点求解相邻两帧之间的旋转矩阵R_{ck, ck+1}Rc.push_back(solveRelativeR(corres)); //两帧图像之间的旋转通过solveRelativeR计算出本质矩阵E，再对矩阵进行分解得到图像帧之间的旋转R。//delta_q_imu为IMU预积分得到的旋转四元数，转换成矩阵形式存入Rimu当中。则Rimu中存放的是imu预积分得到的旋转矩阵Rimu.push_back(delta_q_imu.toRotationMatrix());//每帧IMU相对于起始帧IMU的R,ric初始化值为单位矩阵，则Rc_g中存入的第一个旋转向量为IMU的旋转矩阵Rc_g.push_back(ric.inverse() * delta_q_imu * ric);Eigen::MatrixXd A(frame_count * 4, 4);A.setZero();int sum_ok = 0;//遍历滑动窗口中的每一帧for (int i = 1; i <= frame_count; i++){Quaterniond r1(Rc[i]);Quaterniond r2(Rc_g[i]);//！Step3:求取估计出的相机与IMU之间旋转的残差 公式(9)double angular_distance = 180 / M_PI * r1.angularDistance(r2);ROS_DEBUG("%d %f", i, angular_distance);//! Step4:计算外点剔除的权重 Huber函数 公式(8) double huber = angular_distance > 5.0 ? 5.0 / angular_distance : 1.0;++sum_ok;Matrix4d L, R;//! Step5：求取系数矩阵        //! 得到相机对极关系得到的旋转q的左乘//四元数由q和w构成，q是一个三维向量，w为一个数值double w = Quaterniond(Rc[i]).w();Vector3d q = Quaterniond(Rc[i]).vec();//L为相机旋转四元数的左乘矩阵，Utility::skewSymmetric(q)计算的是q的反对称矩阵L.block<3, 3>(0, 0) = w * Matrix3d::Identity() + Utility::skewSymmetric(q);L.block<3, 1>(0, 3) = q;L.block<1, 3>(3, 0) = -q.transpose();L(3, 3) = w;//! 得到由IMU预积分得到的旋转q的右乘Quaterniond R_ij(Rimu[i]);w = R_ij.w();q = R_ij.vec();R.block<3, 3>(0, 0) = w * Matrix3d::Identity() - Utility::skewSymmetric(q);R.block<3, 1>(0, 3) = q;R.block<1, 3>(3, 0) = -q.transpose();R(3, 3) = w;A.block<4, 4>((i - 1) * 4, 0) = huber * (L - R);}//！Step6：通过SVD分解，求取相机与IMU的相对旋转    //！解为系数矩阵A的右奇异向量V中最小奇异值对应的特征向量JacobiSVD svd(A, ComputeFullU | ComputeFullV);Matrix x = svd.matrixV().col(3);Quaterniond estimated_R(x);ric = estimated_R.toRotationMatrix().inverse();//cout << svd.singularValues().transpose() << endl;//cout << ric << endl;//！Step7：判断对于相机与IMU的相对旋转是否满足终止条件    //！1.用来求解相对旋转的IMU-Camera的测量对数是否大于滑窗大小。    //！2.A矩阵第二小的奇异值是否大于某个阈值，使A得零空间的秩为1Vector3d ric_cov;ric_cov = svd.singularValues().tail<3>();if (frame_count >= WINDOW_SIZE && ric_cov(1) > 0.25){calib_ric_result = ric;return true;}elsereturn false;
}

计算出qbcq_{bc}qbc​后，对bgbgbg, [v0,v1,...,vn,g,s{v_0, v_1, ...,v_n, g, s}v0​,v1​,...,vn​,g,s]进行初始化

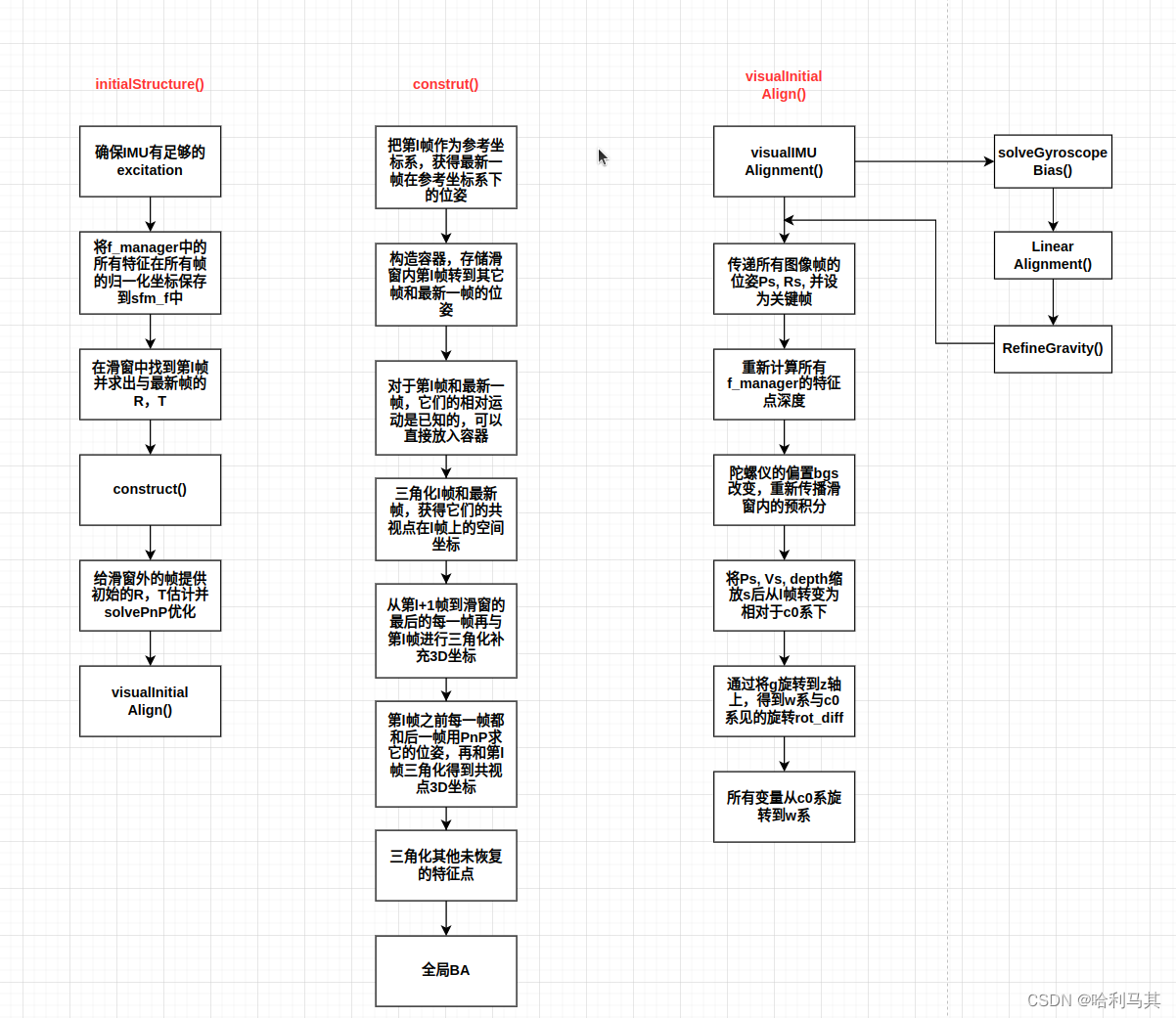

bool Estimator::initialStructure()

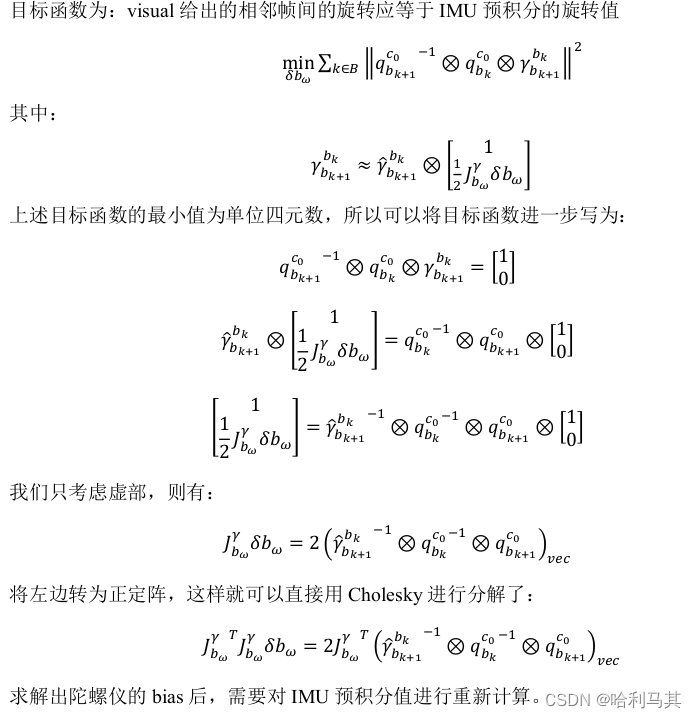

IMU陀螺仪bias初始化：

void solveGyroscopeBias(map &all_image_frame, Vector3d* Bgs)
{Matrix3d A;Vector3d b;Vector3d delta_bg;A.setZero();b.setZero();map::iterator frame_i;map::iterator frame_j;for (frame_i = all_image_frame.begin(); next(frame_i) != all_image_frame.end(); frame_i++){frame_j = next(frame_i);MatrixXd tmp_A(3, 3);tmp_A.setZero();VectorXd tmp_b(3);tmp_b.setZero();Eigen::Quaterniond q_ij(frame_i->second.R.transpose() * frame_j->second.R);tmp_A = frame_j->second.pre_integration->jacobian.template block<3, 3>(O_R, O_BG);tmp_b = 2 * (frame_j->second.pre_integration->delta_q.inverse() * q_ij).vec();A += tmp_A.transpose() * tmp_A;b += tmp_A.transpose() * tmp_b;}delta_bg = A.ldlt().solve(b);ROS_WARN_STREAM("gyroscope bias initial calibration " << delta_bg.transpose());for (int i = 0; i <= WINDOW_SIZE; i++)Bgs[i] += delta_bg;for (frame_i = all_image_frame.begin(); next(frame_i) != all_image_frame.end( ); frame_i++){frame_j = next(frame_i);frame_j->second.pre_integration->repropagate(Vector3d::Zero(), Bgs[0]);}
}

[v0,v1,...,vn,gc0,s{v_0, v_1, ...,v_n, g^{c0}, s}v0​,v1​,...,vn​,gc0,s]初始化:
αbk+1bk=Rwbk(Pbk+1w−Pbkw−vbkwΔt+12gwΔt2)\alpha_{b_{k+1}}^{b_k} = R_{w}^{b_k}(P_{b_{k+1}}^w - P_{b_{k}}^w - v_{b_k}^w \Delta t + \frac{1}{2}g^w \Delta t^2 ) \\ αbk+1​bk​​=Rwbk​​(Pbk+1​w​−Pbk​w​−vbk​w​Δt+21​gwΔt2)
βbk+1bk=Rwbk(vbk+1w−vbkw+gwΔt)\beta_{b_{k+1}}^{b_k} = R_{w}^{b_k}(v_{b_{k+1}}^w - v_{b_k}^w + g^w \Delta t) βbk+1​bk​​=Rwbk​​(vbk+1​w​−vbk​w​+gwΔt)

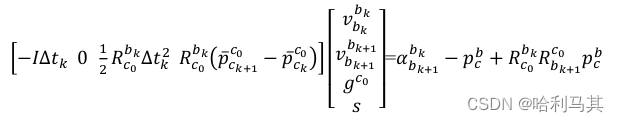

通过平移约束spbkc0=spckc0−Rbc0pcbsp_{b_k}^{c_0} = sp_{c_k}^{c_0} - R_b^{c_0}p_c^bspbk​c0​​=spck​c0​​−Rbc0​​pcb​带入上式可得：
αbk+1bk=Rc0bk(s(Pbk+1c0−Pbkc0)−Rbkc0vbkbkΔt+12gc0Δt2)\alpha_{b_{k+1}}^{b_k} = R_{c_0}^{b_k}(s(P_{b_{k+1}}^{c_0} - P_{b_{k}}^{c_0}) - R_{b_k}^{c_0}v_{b_k}^{b_k} \Delta t + \frac{1}{2}g^{c_0} \Delta t^2 ) \\ αbk+1​bk​​=Rc0​bk​​(s(Pbk+1​c0​​−Pbk​c0​​)−Rbk​c0​​vbk​bk​​Δt+21​gc0​Δt2)

βbk+1bk=Rc0bk(Rbk+1c0vbk+1bk+1−Rbkc0vbkbk+gc0Δt)\beta_{b_{k+1}}^{b_k} = R_{c_0}^{b_k}(R_{b_{k+1}}^{c_0}v_{b_{k+1}}^{b_{k+1}} - R_{b_k}^{c_0}v_{b_k}^{b_k} + g^{c_0} \Delta t) βbk+1​bk​​=Rc0​bk​​(Rbk+1​c0​​vbk+1​bk+1​​−Rbk​c0​​vbk​bk​​+gc0​Δt)

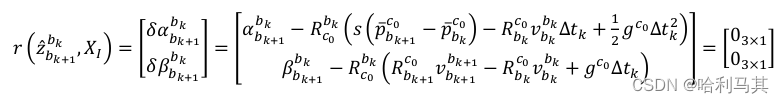

同样将δβbk+1bk转为矩阵形式\delta \beta_{b_{k+1}}^{b_k}转为矩阵形式δβbk+1​bk​​转为矩阵形式

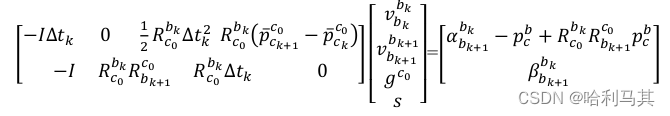

即：H6×10XI10×1=b6×1H^{6 \times 10}X_{I}^{10 \times 1} = b^{6 \times 1}H6×10XI10×1​=b6×1
这样，可以通过Cholosky分解下面方程求解XIX_{I}XI​:
HTHXI10×1=HTbH_{T}HX_{I}^{10 \times 1} = H^{T}b HT​HXI10×1​=HTb

bool LinearAlignment(map &all_image_frame, Vector3d &g, VectorXd &x)
{int all_frame_count = all_image_frame.size();// 速度维度:all_frame_count * 3; 重力维度：3; scale维度:1;int n_state = all_frame_count * 3 + 3 + 1;// 构建 Ax = b 方程求解MatrixXd A{n_state, n_state};A.setZero();VectorXd b{n_state};b.setZero();map::iterator frame_i;map::iterator frame_j;int i = 0;for (frame_i = all_image_frame.begin(); next(frame_i) != all_image_frame.end(); frame_i++, i++){frame_j = next(frame_i);MatrixXd tmp_A(6, 10);tmp_A.setZero();VectorXd tmp_b(6);tmp_b.setZero();double dt = frame_j->second.pre_integration->sum_dt;tmp_A.block<3, 3>(0, 0) = -dt * Matrix3d::Identity();tmp_A.block<3, 3>(0, 6) = frame_i->second.R.transpose() * dt * dt / 2 * Matrix3d::Identity();tmp_A.block<3, 1>(0, 9) = frame_i->second.R.transpose() * (frame_j->second.T - frame_i->second.T) / 100.0;     tmp_b.block<3, 1>(0, 0) = frame_j->second.pre_integration->delta_p + frame_i->second.R.transpose() * frame_j->second.R * TIC[0] - TIC[0];//cout << "delta_p   " << frame_j->second.pre_integration->delta_p.transpose() << endl;tmp_A.block<3, 3>(3, 0) = -Matrix3d::Identity();tmp_A.block<3, 3>(3, 3) = frame_i->second.R.transpose() * frame_j->second.R;tmp_A.block<3, 3>(3, 6) = frame_i->second.R.transpose() * dt * Matrix3d::Identity();tmp_b.block<3, 1>(3, 0) = frame_j->second.pre_integration->delta_v;//cout << "delta_v   " << frame_j->second.pre_integration->delta_v.transpose() << endl;Matrix cov_inv = Matrix::Zero();//cov.block<6, 6>(0, 0) = IMU_cov[i + 1];//MatrixXd cov_inv = cov.inverse();cov_inv.setIdentity();MatrixXd r_A = tmp_A.transpose() * cov_inv * tmp_A;VectorXd r_b = tmp_A.transpose() * cov_inv * tmp_b;A.block<6, 6>(i * 3, i * 3) += r_A.topLeftCorner<6, 6>();b.segment<6>(i * 3) += r_b.head<6>();A.bottomRightCorner<4, 4>() += r_A.bottomRightCorner<4, 4>();b.tail<4>() += r_b.tail<4>();A.block<6, 4>(i * 3, n_state - 4) += r_A.topRightCorner<6, 4>();A.block<4, 6>(n_state - 4, i * 3) += r_A.bottomLeftCorner<4, 6>();}A = A * 1000.0;b = b * 1000.0;x = A.ldlt().solve(b);double s = x(n_state - 1) / 100.0;ROS_DEBUG("estimated scale: %f", s);g = x.segment<3>(n_state - 4);ROS_DEBUG_STREAM(" result g     " << g.norm() << " " << g.transpose());if(fabs(g.norm() - G.norm()) > 1.0 || s < 0){return false;}RefineGravity(all_image_frame, g, x);s = (x.tail<1>())(0) / 100.0;(x.tail<1>())(0) = s;ROS_DEBUG_STREAM(" refine     " << g.norm() << " " << g.transpose());if(s < 0.0 )return false;   elsereturn true;
}
