源码仓库：https://gitee.com/haijun1998/seata.git 分支source-read-1.5.0

1. GlobalTransactional

@GlobalTransactional 注解，提供给客户端来创建一个全局事务，@GlobalTransactional 注解由 GlobalTransactionScanner 进行扫描， 通过 GlobalTransactionalInterceptor 对其进行拦截增强

@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD,ElementType.TYPE})
@Inherited
public @interface GlobalTransactional {/*** 全局事务超时时间，如果配置了 client.tm.default-global-transaction-timeout，将会替换默认值* 默认时间：60000毫秒*/int timeoutMills() default DefaultValues.DEFAULT_GLOBAL_TRANSACTION_TIMEOUT;/*** 设置全局事务的名称*/String name() default "";/*** 指定回滚的的异常类*/Class[] rollbackFor() default {};/*** 指定事务回滚的class名称*/String[] rollbackForClassName() default {};/*** 指定不需要回滚的异常*/Class[] noRollbackFor() default {};/*** 指定不需要回滚的异常名称*/String[] noRollbackForClassName() default {};/*** 事务的传播机制*/Propagation propagation() default Propagation.REQUIRED;/*** 全局锁的重试间隔时间，默认0的话使用全局配置*/int lockRetryInterval() default 0;/*** customized global lock retry interval(unit: ms)* you may use this to override global config of "client.rm.lock.retryInterval"* note: 0 or negative number will take no effect(which mean fall back to global config)** @return int*/@Deprecated@AliasFor("lockRetryInterval")int lockRetryInternal() default 0;/*** 全局锁获取的重试次数，0或者-1不生效，使用默认全局配置*/int lockRetryTimes() default -1;
}

2. GlobalTransactionScanner

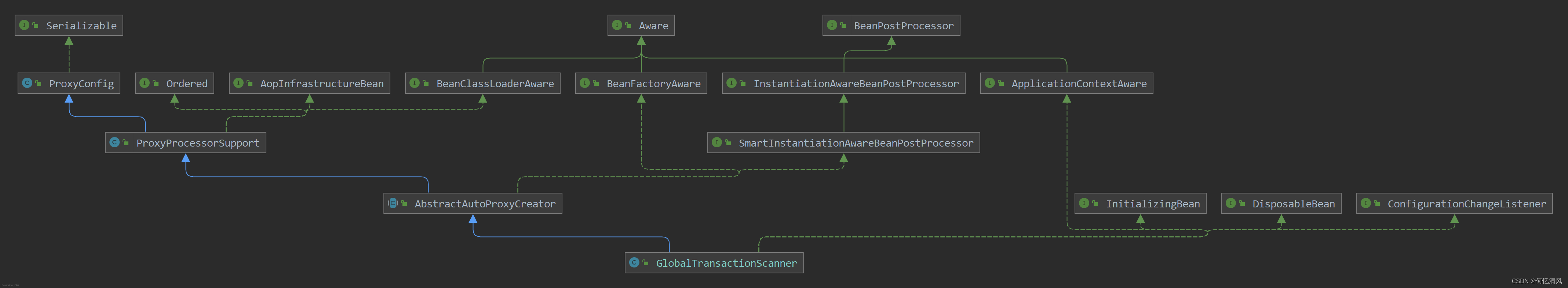

全局事务注解扫描器，继承了 AbstractAutoProxyCreator 用于在 bean 对象在创建时，对打了 @GlobalTransactional 注解的类添加 Aop 支持；

其中 GlobalTransactionScanner 实现了 wrapIfNecessary() 方法；这个方法是在 spring 初始化完毕之后通过 postProcessAfterInitialization() 中进行调用，在 spring aop 进行增强时所用到的两个接口：

这里会在 bean 初始化之后调用 wrapIfNecessary() 方法对 bean 添加 aop 切面进行增强

public interface BeanPostProcessor {//在spring调用 InitializingBean接口、自定义初始化方法之前执行default Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {return bean;}//在spring调用 InitializingBean接口、自定义初始化方法之后执行@Nullabledefault Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {return bean;}
}

public interface InstantiationAwareBeanPostProcessor extends BeanPostProcessor {//在执行创建bean之前执行@Nullabledefault Object postProcessBeforeInstantiation(Class beanClass, String beanName) throws BeansException {return null;}//在执行 postProcessBeforeInstantiation() 方法如果返回值为null时执行default boolean postProcessAfterInstantiation(Object bean, String beanName) throws BeansException {return true;}//处理 PropertyValues，对bean通过 PropertyValues 类型进行处理，通过属性注入进行实现default PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName) throws BeansException {return null;}
}

wrapIfNecessary()

其中会判断当前采用的事务模式，目前就是 TCC、AT

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {// 检查当前bean是否是 FactoryBean类型，是否已经被代理过了，是否是需要剔除的beanif (!doCheckers(bean, beanName)) {return bean;}try {//加锁防止多线程问题synchronized (PROXYED_SET) {//如果存在代理类中直接返回if (PROXYED_SET.contains(beanName)) {return bean;}interceptor = null;/*** 根据4个类来进行解析 TCC 的调用方式* io.seata.rm.tcc.remoting.parser.DubboRemotingParser：是否是dubbo调用远程的方法* io.seata.rm.tcc.remoting.parser.LocalTCCRemotingParser：是否具有 @LocalTCC 注解* io.seata.rm.tcc.remoting.parser.SofaRpcRemotingParser* io.seata.rm.tcc.remoting.parser.HSFRemotingParser* 根据 @TwoPhaseBusinessAction 注解注册对应的方式到资源管理器中 （DefaultResourceManager）*/if (TCCBeanParserUtils.isTccAutoProxy(bean, beanName, applicationContext)) {// init tcc fence clean task if enable useTccFenceTCCBeanParserUtils.initTccFenceCleanTask(TCCBeanParserUtils.getRemotingDesc(beanName), applicationContext);interceptor = new TccActionInterceptor(TCCBeanParserUtils.getRemotingDesc(beanName));ConfigurationCache.addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION,(ConfigurationChangeListener)interceptor);} else {//获取到当前bean的class类，如果是代理对象需要获取到目标类型Class serviceInterface = SpringProxyUtils.findTargetClass(bean);//获取到接口Class[] interfacesIfJdk = SpringProxyUtils.findInterfaces(bean);//判断当前bean或者父类接口中是否有 @GlobalTransactional、@GlobalLock 注解if (!existsAnnotation(new Class[]{serviceInterface})&& !existsAnnotation(interfacesIfJdk)) {return bean;}if (globalTransactionalInterceptor == null) {//创建一个全局的事务增强器globalTransactionalInterceptor = new GlobalTransactionalInterceptor(failureHandlerHook);ConfigurationCache.addConfigListener(ConfigurationKeys.DISABLE_GLOBAL_TRANSACTION,(ConfigurationChangeListener)globalTransactionalInterceptor);}interceptor = globalTransactionalInterceptor;}bean.getClass().getName(), beanName, interceptor.getClass().getName());//判断当前bean是否是代理对象，如果不是代理类就去调用 AbstractAutoProxyCreator.wrapIfNecessary() 对bean进行代理if (!AopUtils.isAopProxy(bean)) {//其中又调用了 getAdvicesAndAdvisorsForBean() 方法，在当前类进行了覆写，其中直接返回了 interceptor 切面bean = super.wrapIfNecessary(bean, beanName, cacheKey);} else {//当前bean已经是代理类，通过反射获取到两种不同代理类的其中的属性值 AdvisedSupport （spring在对其bean代理时创建的代理会有一个属性 advised属性，这个字段里面存储了切面等数据；例如：JdkDynamicAopProxy）AdvisedSupport advised = SpringProxyUtils.getAdvisedSupport(bean);//将获取出来的 Advisor 进行包装Advisor[] advisor = buildAdvisors(beanName, getAdvicesAndAdvisorsForBean(null, null, null));int pos;for (Advisor avr : advisor) {pos = findAddSeataAdvisorPosition(advised, avr);advised.addAdvisor(pos, avr);}}//将bean设置到代理对象集当中，表明当前对象已经被代理了PROXYED_SET.add(beanName);return bean;}} catch (Exception exx) {throw new RuntimeException(exx);}}

getAdvicesAndAdvisorsForBean()

覆写的父类方法，在 AbstractAutoProxyCreator.wrapIfNecessary() 中创建代理对象时进行调用，这里直接返回了 interceptor 类型，目前这里返回以下两种：

• GlobalTransactionalInterceptor：全局的事务增强器
• TccActionInterceptor：TCC模式的增强器

protected Object[] getAdvicesAndAdvisorsForBean(Class beanClass, String beanName, TargetSource customTargetSource)throws BeansException {return new Object[]{interceptor};
}

initClient()

初始化了以下两个远程调用客户端，用于发起请求和监听结果

• TmNettyRemotingClient：事务管理器客户端
• RmNettyRemotingClient：资源管理器客户端

private void initClient() {if (StringUtils.isNullOrEmpty(applicationId) || StringUtils.isNullOrEmpty(txServiceGroup)) {throw new IllegalArgumentException(String.format("applicationId: %s, txServiceGroup: %s", applicationId, txServiceGroup));}//初始化TM客户端TMClient.init(applicationId, txServiceGroup, accessKey, secretKey);//初始化RM客户端RMClient.init(applicationId, txServiceGroup);if (LOGGER.isInfoEnabled()) {LOGGER.info("Resource Manager is initialized. applicationId[{}] txServiceGroup[{}]", applicationId, txServiceGroup);}//注册spring容器中的钩子函数registerSpringShutdownHook();}

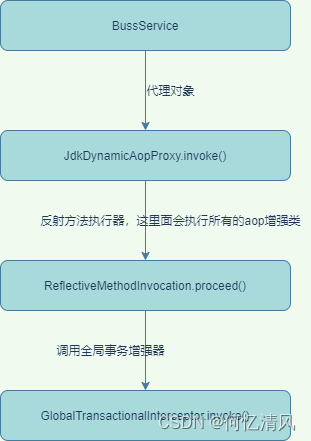

3. GlobalTransactionalInterceptor

invoke()

public Object invoke(final MethodInvocation methodInvocation) throws Throwable {//目标源类的class对象Class targetClass =methodInvocation.getThis() != null ? AopUtils.getTargetClass(methodInvocation.getThis()) : null;//当前执行的方法Method specificMethod = ClassUtils.getMostSpecificMethod(methodInvocation.getMethod(), targetClass);if (specificMethod != null && !specificMethod.getDeclaringClass().equals(Object.class)) {final Method method = BridgeMethodResolver.findBridgedMethod(specificMethod);//获取到当前执行方法的 @GlobalTransactional 注解final GlobalTransactional globalTransactionalAnnotation =getAnnotation(method, targetClass, GlobalTransactional.class);//获取到当前执行方法的 @GlobalLock 注解final GlobalLock globalLockAnnotation = getAnnotation(method, targetClass, GlobalLock.class);//判断是否关闭事务或者降低检查等级boolean localDisable = disable || (degradeCheck && degradeNum >= degradeCheckAllowTimes);if (!localDisable) {if (globalTransactionalAnnotation != null || this.aspectTransactional != null) {AspectTransactional transactional;//获取到注解中的数据转换成 AspectTransactional 对象if (globalTransactionalAnnotation != null) {transactional = new AspectTransactional(globalTransactionalAnnotation.timeoutMills(),globalTransactionalAnnotation.name(), globalTransactionalAnnotation.rollbackFor(),globalTransactionalAnnotation.noRollbackForClassName(),globalTransactionalAnnotation.noRollbackFor(),globalTransactionalAnnotation.noRollbackForClassName(),globalTransactionalAnnotation.propagation(),globalTransactionalAnnotation.lockRetryInterval(),globalTransactionalAnnotation.lockRetryTimes());} else {transactional = this.aspectTransactional;}//处理全局事务return handleGlobalTransaction(methodInvocation, transactional);} else if (globalLockAnnotation != null) {//处理全局锁注解，会设置 KEY_GLOBAL_LOCK_FLAG 标识在 RootContext当中return handleGlobalLock(methodInvocation, globalLockAnnotation);}}}//执行本体方法return methodInvocation.proceed();}

handleGlobalTransaction()

当前方法中，通过 transactionalTemplate.execute() 执行事务，其中创建了一个 TransactionalExecutor 来进行处理之后的回调，在 catch 方法块中对异常进行捕获，对对应的异常code进行判断然后执行对应的操作

Object handleGlobalTransaction(final MethodInvocation methodInvocation,final AspectTransactional aspectTransactional) throws Throwable {boolean succeed = true;try {//通过事务执行器，等待前置任务执行完成之后在执行回调函数中的方法return transactionalTemplate.execute(new TransactionalExecutor() {/*** 直接执行本地方法*/@Overridepublic Object execute() throws Throwable {return methodInvocation.proceed();}/*** 获取事务的名称*/public String name() {String name = aspectTransactional.getName();if (!StringUtils.isNullOrEmpty(name)) {return name;}return formatMethod(methodInvocation.getMethod());}/*** 获取到事务的信息*/@Overridepublic TransactionInfo getTransactionInfo() {// reset the value of timeoutint timeout = aspectTransactional.getTimeoutMills();if (timeout <= 0 || timeout == DEFAULT_GLOBAL_TRANSACTION_TIMEOUT) {timeout = defaultGlobalTransactionTimeout;}TransactionInfo transactionInfo = new TransactionInfo();transactionInfo.setTimeOut(timeout);transactionInfo.setName(name());transactionInfo.setPropagation(aspectTransactional.getPropagation());transactionInfo.setLockRetryInterval(aspectTransactional.getLockRetryInterval());transactionInfo.setLockRetryTimes(aspectTransactional.getLockRetryTimes());Set rollbackRules = new LinkedHashSet<>();for (Class rbRule : aspectTransactional.getRollbackFor()) {rollbackRules.add(new RollbackRule(rbRule));}for (String rbRule : aspectTransactional.getRollbackForClassName()) {rollbackRules.add(new RollbackRule(rbRule));}for (Class rbRule : aspectTransactional.getNoRollbackFor()) {rollbackRules.add(new NoRollbackRule(rbRule));}for (String rbRule : aspectTransactional.getNoRollbackForClassName()) {rollbackRules.add(new NoRollbackRule(rbRule));}transactionInfo.setRollbackRules(rollbackRules);return transactionInfo;}});} catch (TransactionalExecutor.ExecutionException e) {//根据对应的失败码，执行对应的操作TransactionalExecutor.Code code = e.getCode();switch (code) {case RollbackDone:throw e.getOriginalException();case BeginFailure:succeed = false;failureHandler.onBeginFailure(e.getTransaction(), e.getCause());throw e.getCause();case CommitFailure:succeed = false;failureHandler.onCommitFailure(e.getTransaction(), e.getCause());throw e.getCause();case RollbackFailure:failureHandler.onRollbackFailure(e.getTransaction(), e.getOriginalException());throw e.getOriginalException();case RollbackRetrying:failureHandler.onRollbackRetrying(e.getTransaction(), e.getOriginalException());throw e.getOriginalException();default:throw new ShouldNeverHappenException(String.format("Unknown TransactionalExecutor.Code: %s", code));}} finally {if (degradeCheck) {//发布一个时间消息EVENT_BUS.post(new DegradeCheckEvent(succeed));}}}

4. TransactionalTemplate

execute()

根据设置定的事务传播机制来选择是否需要创建事务等操作，然后在执行本地业务方法前开启一个事务，事务的传播类型：

• NOT_SUPPORTED：不支持事务
• REQUIRES_NEW：存在事务，将原来的事务暂停，然后创建一个新的事务
• SUPPORTS：支持事务，不存在事务就直接执行
• REQUIRED：如果存在事务就以当前事务执行，不存在创建一个新的
• NEVER：不支持事务
• MANDATORY：如果不存在事务抛出异常，如果存在继续执行

public Object execute(TransactionalExecutor business) throws Throwable {TransactionInfo txInfo = business.getTransactionInfo();if (txInfo == null) {throw new ShouldNeverHappenException("transactionInfo does not exist");}//获取到全局事务信息，RootContext.getXID() 全局事务id，如果不为空，创建一个 DefaultGlobalTransaction类型，角色是事务的参与者GlobalTransaction tx = GlobalTransactionContext.getCurrent();//事务的传播机制Propagation propagation = txInfo.getPropagation();SuspendedResourcesHolder suspendedResourcesHolder = null;try {//判断事务的传播类型switch (propagation) {case NOT_SUPPORTED://如果存在事务，需要将当前事务停止if (existingTransaction(tx)) {//解绑xidsuspendedResourcesHolder = tx.suspend();}//执行方法return business.execute();case REQUIRES_NEW:// 如果存在事务，将原来的事务暂停，然后创建一个新的事务if (existingTransaction(tx)) {suspendedResourcesHolder = tx.suspend();//创建一个事务的发起者tx = GlobalTransactionContext.createNew();}break;case SUPPORTS:// 支持事务，如果不存在事务，直接执行方法；如果存在继续执行后续的方法if (notExistingTransaction(tx)) {return business.execute();}// Continue and execute with new transactionbreak;case REQUIRED:// 如果当前事务存在继续执行，如果不存在，下面会创建一个新的事务break;case NEVER:// 如果存在事务抛出异常if (existingTransaction(tx)) {throw new TransactionException(String.format("Existing transaction found for transaction marked with propagation 'never', xid = %s", tx.getXid()));} else {// 不存在事务直接执行return business.execute();}case MANDATORY:// 如果事务不存在直接抛出异常if (notExistingTransaction(tx)) {throw new TransactionException("No existing transaction found for transaction marked with propagation 'mandatory'");}// 继续执行当前事务break;default:throw new TransactionException("Not Supported Propagation:" + propagation);}// 如果不存在事务，那么就创建一个事务发起者的新事务if (tx == null) {tx = GlobalTransactionContext.createNew();}// 创建一个全局锁的配置信息，这里返回的是被配置信息替换之前的信息GlobalLockConfig previousConfig = replaceGlobalLockConfig(txInfo);try {//开启一个事务，发送事务的请求到 TC（事务协调者，也就是Server端）beginTransaction(txInfo, tx);Object rs;try {// 执行方法，在方法执行时，通过获取到数据源的代理类 DataSourceProxy，执行后续的sql解析创建前后镜像的逻辑rs = business.execute();} catch (Throwable ex) {//抛出异常之后需要进行操作completeTransactionAfterThrowing(txInfo, tx, ex);throw ex;}//没有异常就提交事务commitTransaction(tx);return rs;} finally {//最后清除全局锁的配置信息resumeGlobalLockConfig(previousConfig);//触发完成之后的钩子函数triggerAfterCompletion();//清除钩子函数cleanUp();}} finally {// 如果事务是暂停的状态，需要恢复它if (suspendedResourcesHolder != null) {tx.resume(suspendedResourcesHolder);}}}

beginTransaction()

private void beginTransaction(TransactionInfo txInfo, GlobalTransaction tx) throws TransactionalExecutor.ExecutionException {try {//触发开启事务之前的钩子函数triggerBeforeBegin();//开启事务，通过 TM 申请一个全局XIDtx.begin(txInfo.getTimeOut(), txInfo.getName());//事务开启之后的钩子函数triggerAfterBegin();} catch (TransactionException txe) {//抛出一个 开始事务失败的异常信息，方便外层获取到了之后进行对应的操作throw new TransactionalExecutor.ExecutionException(tx, txe,TransactionalExecutor.Code.BeginFailure);}
}

5. GlobalTransaction

全局事务接口，用于定义一些标准方法，通过子类 DefaultGlobalTransaction 实现，上面会调用 begin() 方法

public interface GlobalTransaction {/*** 开启全局事务*/void begin() throws TransactionException;void begin(int timeout) throws TransactionException;void begin(int timeout, String name) throws TransactionException;/*** 提交事务*/void commit() throws TransactionException;/*** 回滚全局事务*/void rollback() throws TransactionException;/*** 暂停全局事务*/SuspendedResourcesHolder suspend() throws TransactionException;/*** 回复一个全局事务*/void resume(SuspendedResourcesHolder suspendedResourcesHolder) throws TransactionException;/*** 查询当前事务的状态*/GlobalStatus getStatus() throws TransactionException;/*** 获取XID*/String getXid();/*** 上报全局事务的状态信息*/void globalReport(GlobalStatus globalStatus) throws TransactionException;/*** 获取本地事务状态*/GlobalStatus getLocalStatus();/*** 获取当前全局事务的角色，是事务参与者还是事务发起者*/GlobalTransactionRole getGlobalTransactionRole();}

begin()

开启一个全局事务，会对当前事务的角色进行判断，是否应该存在 XID

public void begin(int timeout, String name) throws TransactionException {//如果角色不为事务发起者的话，判断XID是否为nullif (role != GlobalTransactionRole.Launcher) {assertXIDNotNull();if (LOGGER.isDebugEnabled()) {LOGGER.debug("Ignore Begin(): just involved in global transaction [{}]", xid);}return;}//如果角色为事务的发起者，那么XID需要为空assertXIDNull();String currentXid = RootContext.getXID();if (currentXid != null) {throw new IllegalStateException("Global transaction already exists," +" can't begin a new global transaction, currentXid = " + currentXid);}//通过TM 发起rpc请求获取到全局的XIDxid = transactionManager.begin(null, null, name, timeout);//事务状态为开启status = GlobalStatus.Begin;RootContext.bind(xid);if (LOGGER.isInfoEnabled()) {LOGGER.info("Begin new global transaction [{}]", xid);}}
