1 基于Seesion实现短信登录

1.1 发送短信验证码

 1.2 登录功能

2 使用Redis进行短信验证码校验登录

2.1 Seesion方法存在的问题

2.2 发送短信验证码

2.3  验证码校验及登录功能

 3.拦截器优化

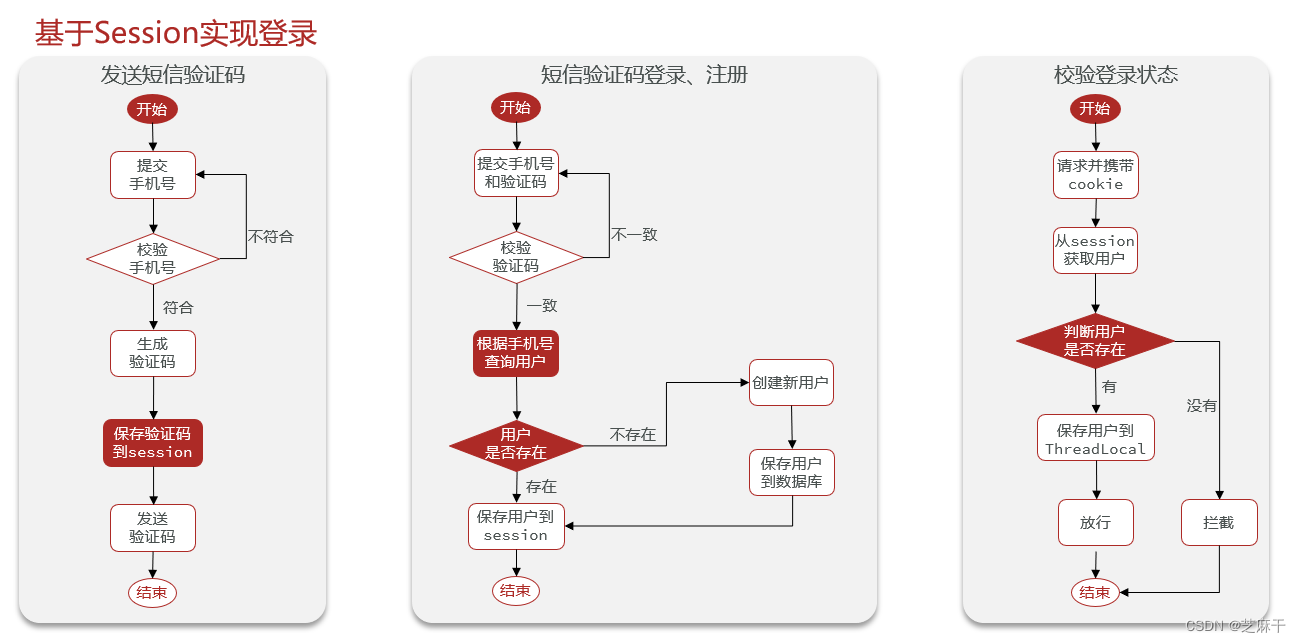

1 基于Seesion实现短信登录

1.1 发送短信验证码

发送验证码请求路径 /user/code

Controller层

/*** 发送手机验证码*/@PostMapping("code")public Result sendCode(@RequestParam("phone") String phone, HttpSession session) {// TODO 发送短信验证码并保存验证码return userService.sendCode(phone,session);}

Service层及Service实现

public interface IUserService extends IService {Result sendCode(String phone, HttpSession session);}

package com.hmdp.service.impl;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.util.RandomUtil;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.hmdp.dto.LoginFormDTO;
import com.hmdp.dto.Result;
import com.hmdp.dto.UserDTO;
import com.hmdp.entity.User;
import com.hmdp.mapper.UserMapper;
import com.hmdp.service.IUserService;
import com.hmdp.utils.RegexPatterns;
import com.hmdp.utils.RegexUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.catalina.manager.util.SessionUtils;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import javax.servlet.http.HttpSession;import static com.hmdp.utils.SystemConstants.USER_NICK_NAME_PREFIX;/***
* 服务实现类*
** @author 虎哥* @since 2021-12-22*/
@Slf4j
@Service
public class UserServiceImpl extends ServiceImpl implements IUserService {@Overridepublic Result sendCode(String phone, HttpSession session) {//1.校验手机号if (RegexUtils.isPhoneInvalid(phone)){//2.如果错误，返回错误信息return Result.fail("手机号码格式错误!");}//3.生成验证码String code = RandomUtil.randomNumbers(6);//4.保存验证码到session中去session.setAttribute("code",code);//5.发送验证码log.debug("手机验证码为：{}",code);return Result.ok();}}

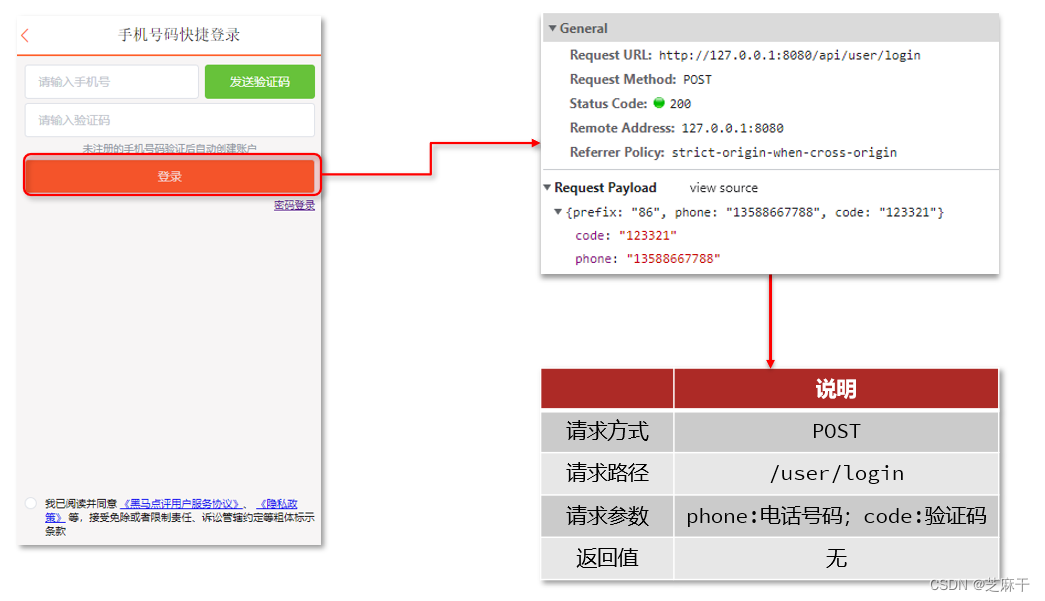

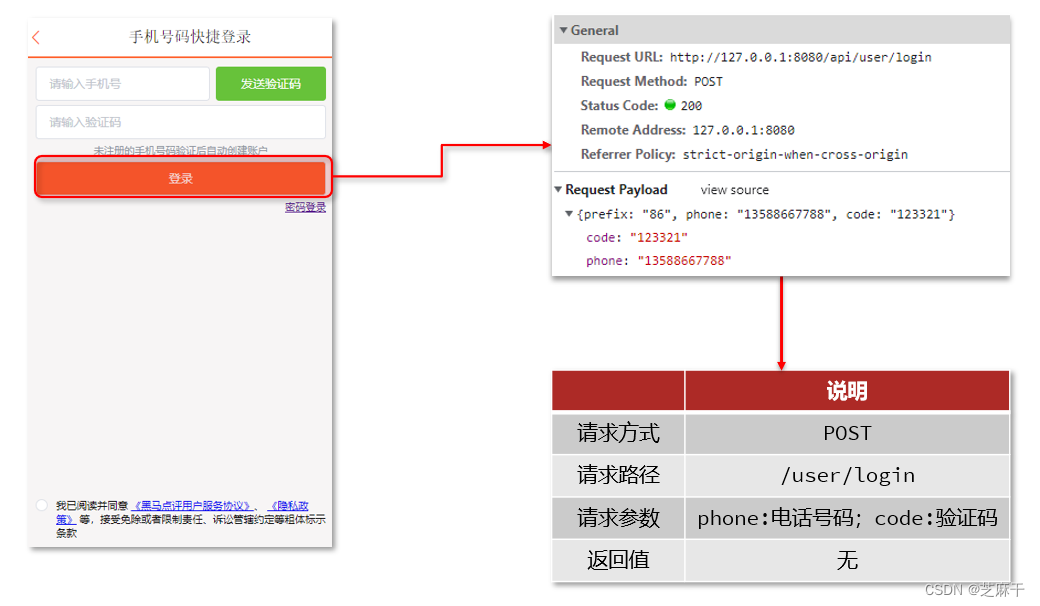

 1.2 登录功能

请求路径：user/login

Controller层

/*** 登录功能* @param loginForm 登录参数，包含手机号、验证码；或者手机号、密码*/@PostMapping("/login")public Result login(@RequestBody LoginFormDTO loginForm, HttpSession session){// TODO 实现登录功能return userService.login(loginForm,session);}

 Service层及Service实现

public interface IUserService extends IService {Result login(LoginFormDTO loginForm, HttpSession session);}

package com.hmdp.service.impl;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.util.RandomUtil;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.hmdp.dto.LoginFormDTO;
import com.hmdp.dto.Result;
import com.hmdp.dto.UserDTO;
import com.hmdp.entity.User;
import com.hmdp.mapper.UserMapper;
import com.hmdp.service.IUserService;
import com.hmdp.utils.RegexPatterns;
import com.hmdp.utils.RegexUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.catalina.manager.util.SessionUtils;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import javax.servlet.http.HttpSession;import static com.hmdp.utils.SystemConstants.USER_NICK_NAME_PREFIX;/***
* 服务实现类*
** @author 虎哥* @since 2021-12-22*/
@Slf4j
@Service
public class UserServiceImpl extends ServiceImpl implements IUserService {@Overridepublic Result login(LoginFormDTO loginForm, HttpSession session) {String phone = loginForm.getPhone();//1.校验手机号if (RegexUtils.isPhoneInvalid(phone)){//2.如果错误，返回错误信息return Result.fail("手机号码格式错误!");}//2.校验验证码String code = loginForm.getCode();String sendCode = (String) session.getAttribute("code");if (code != null || !code.equals(sendCode)){//验证码不一致Result.fail("验证码错误!");}//验证码相同，查询手机号User user = query().eq("phone", loginForm.getPhone()).one();if (user == null) {//用户不存在，创建一个新用户并且保存到数据库中user = createNewUser(phone);}//用户存在，存入Sessionsession.setAttribute("user", BeanUtil.copyProperties(user,UserDTO.class));return Result.ok();}private User createNewUser(String phone) {//1.创建用户User user = new User();user.setPhone(phone);user.setNickName(USER_NICK_NAME_PREFIX+RandomUtil.randomString(10));//2.保存用户save(user);return user;}
}

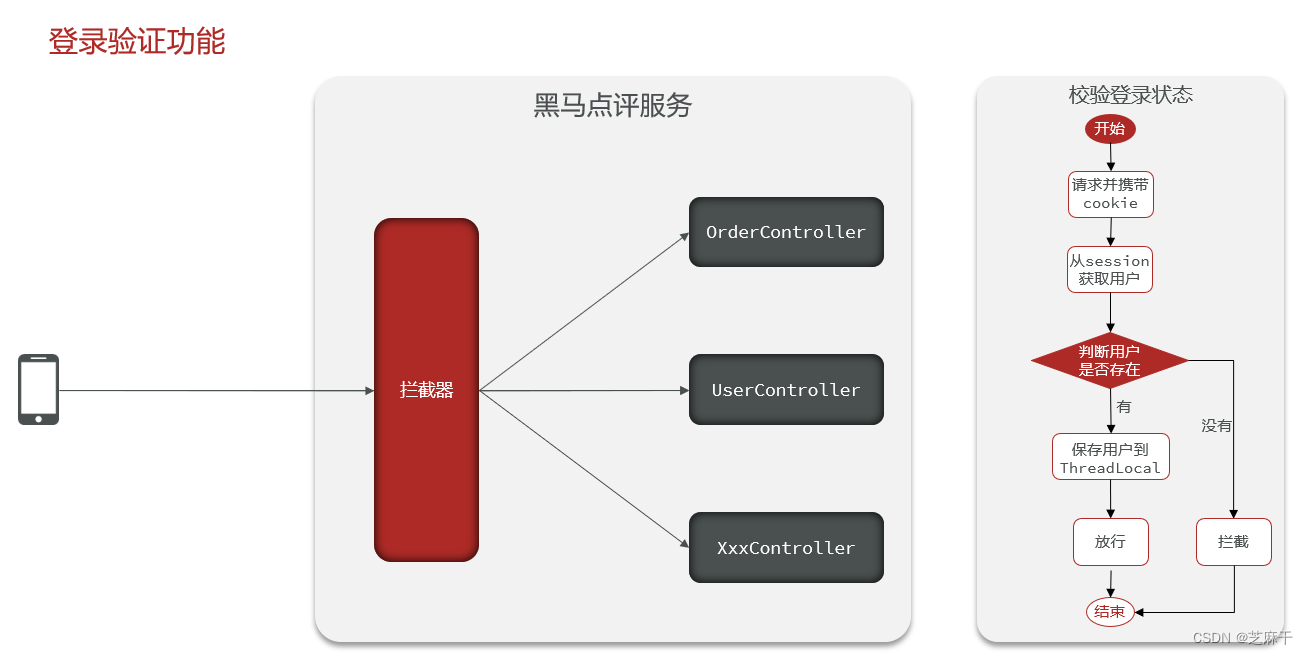

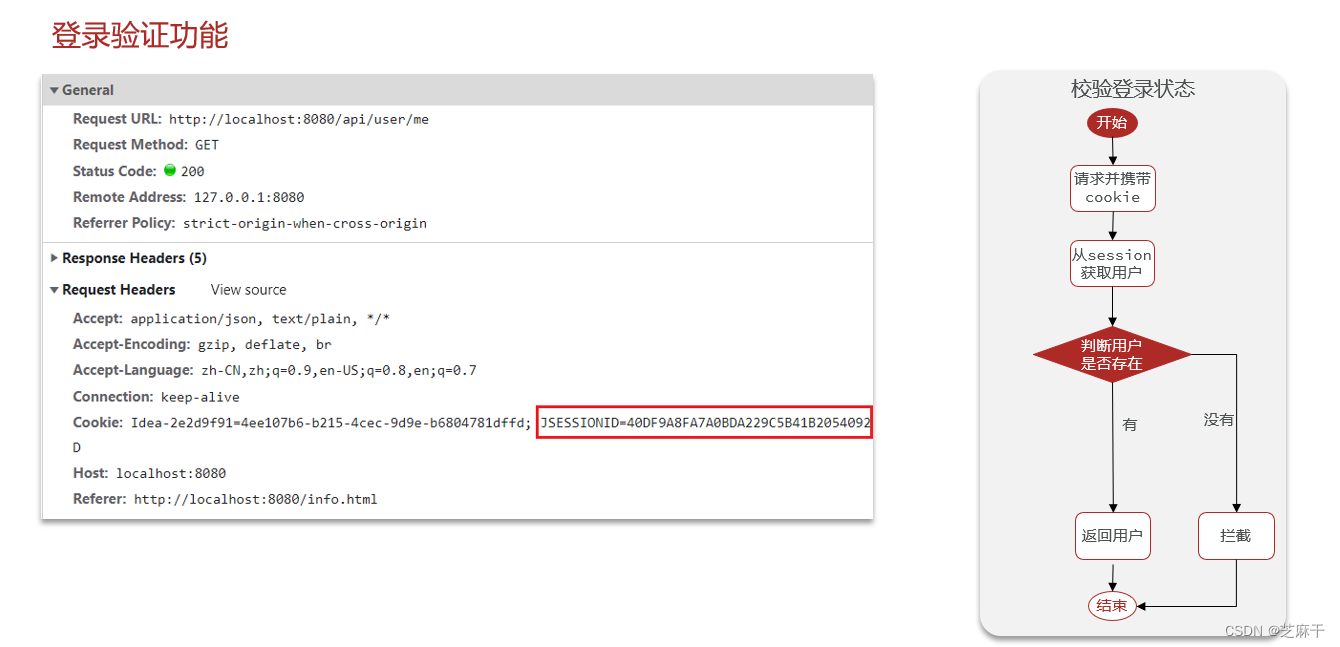

1.3 登录校验功能（配置拦截器）

编写拦截器类：

package com.hmdp.utils;import com.hmdp.dto.UserDTO;
import org.springframework.web.servlet.HandlerInterceptor;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;/*** @Author 华子* @Date 2022/11/20 17:30* @Version 1.0*/
public class LoginInterceptor implements HandlerInterceptor {@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {//1.获sessionHttpSession session = request.getSession();//2.获取用户信息Object user = session.getAttribute("user");//3.判断用户信息是否存在if (user == null){//4.不存在，拦截response.setStatus(401);return false;}//5.存在，保存用户信息到ThreadLocalUserHolder.saveUser((UserDTO) user);//6.放行return true;}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {//移除用户UserHolder.removeUser();}
}

配置添加拦截器到SpringMvc中（配置拦截路径）

package com.hmdp.config;import com.hmdp.utils.LoginInterceptor;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;/*** @Author 华子* @Date 2022/11/20 17:38* @Version 1.0*/
@Configuration
public class MvcConfig implements WebMvcConfigurer {@Overridepublic void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(new LoginInterceptor()).excludePathPatterns("/shop/**","/voucher/**","/shop-type/**","/upload/**","/blog/hot","/user/code","/user/login");}
}

最后Controller层返回用户信息

@GetMapping("/me")public Result me(){// TODO 获取当前登录的用户并返回UserDTO user = UserHolder.getUser();return Result.ok(user);}

2 使用Redis进行短信验证码校验登录

2.1 Seesion方法存在的问题

session共享问题：

多台Tomcat并不共享session存储空间，当请求切换到不同tomcat服务时导致数据丢失的问题。

session的替代方案应该满足：

数据共享

内存存储

key、value结构

无可厚非，就说我们的Reids啦~

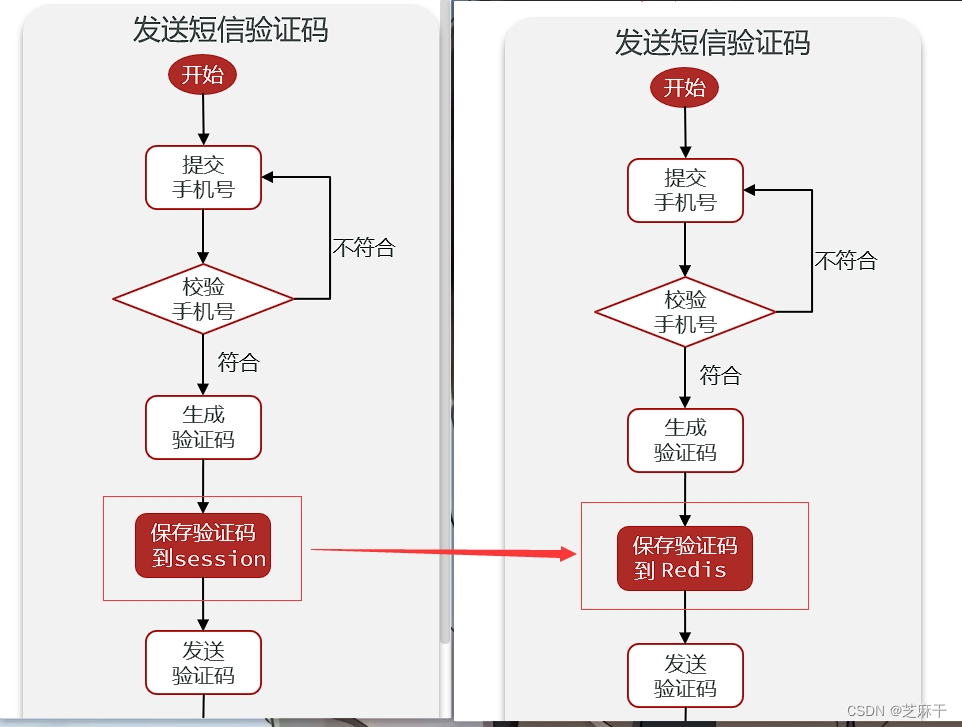

2.2 发送短信验证码

这步操作和之前的Session很相同，只是我们这次把验证码保存到Redis当中

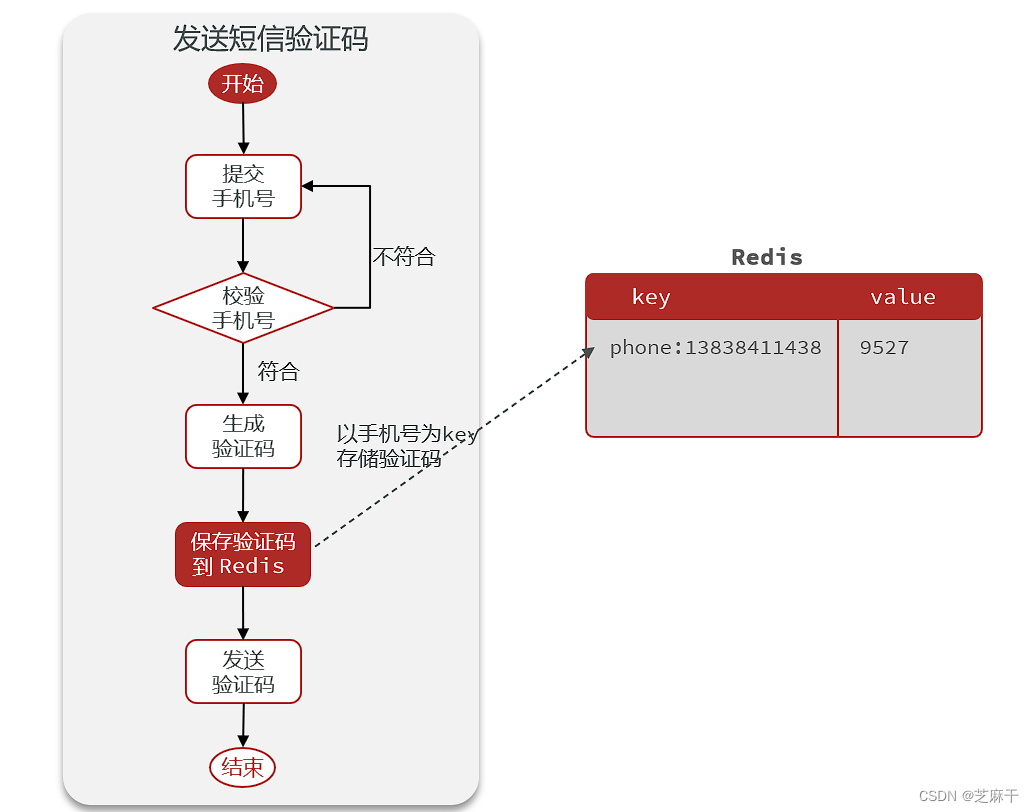

对于验证码的保存，我们选择String类型操作，key用手机号（唯一性）value就是验证码

代码：（其余操作一样，就是验证码本来是存到Session中，改为存到Reids）

package com.hmdp.service.impl;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.bean.copier.CopyOptions;
import cn.hutool.core.lang.UUID;
import cn.hutool.core.util.RandomUtil;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.hmdp.dto.LoginFormDTO;
import com.hmdp.dto.Result;
import com.hmdp.dto.UserDTO;
import com.hmdp.entity.User;
import com.hmdp.mapper.UserMapper;
import com.hmdp.service.IUserService;
import com.hmdp.utils.RegexPatterns;
import com.hmdp.utils.RegexUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.catalina.manager.util.SessionUtils;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Service;import javax.annotation.Resource;
import javax.servlet.http.HttpSession;import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeUnit;import static com.hmdp.utils.RedisConstants.*;
import static com.hmdp.utils.SystemConstants.USER_NICK_NAME_PREFIX;/***
* 服务实现类*
** @author 虎哥* @since 2021-12-22*/
@Slf4j
@Service
public class UserServiceImpl extends ServiceImpl implements IUserService {@Resourceprivate StringRedisTemplate stringRedisTemplate;@Overridepublic Result sendCode(String phone, HttpSession session) {//1.校验手机号if (RegexUtils.isPhoneInvalid(phone)){//2.如果错误，返回错误信息return Result.fail("手机号码格式错误!");}//3.生成验证码String code = RandomUtil.randomNumbers(6);//4.保存验证码到session中去
//        session.setAttribute("code",code);//4.保存验证码到redis中去stringRedisTemplate.opsForValue().set(LOGIN_CODE_KEY+phone,code,LOGIN_CODE_TTL, TimeUnit.MINUTES);//5.发送验证码log.debug("手机验证码为：{}",code);return Result.ok();}}

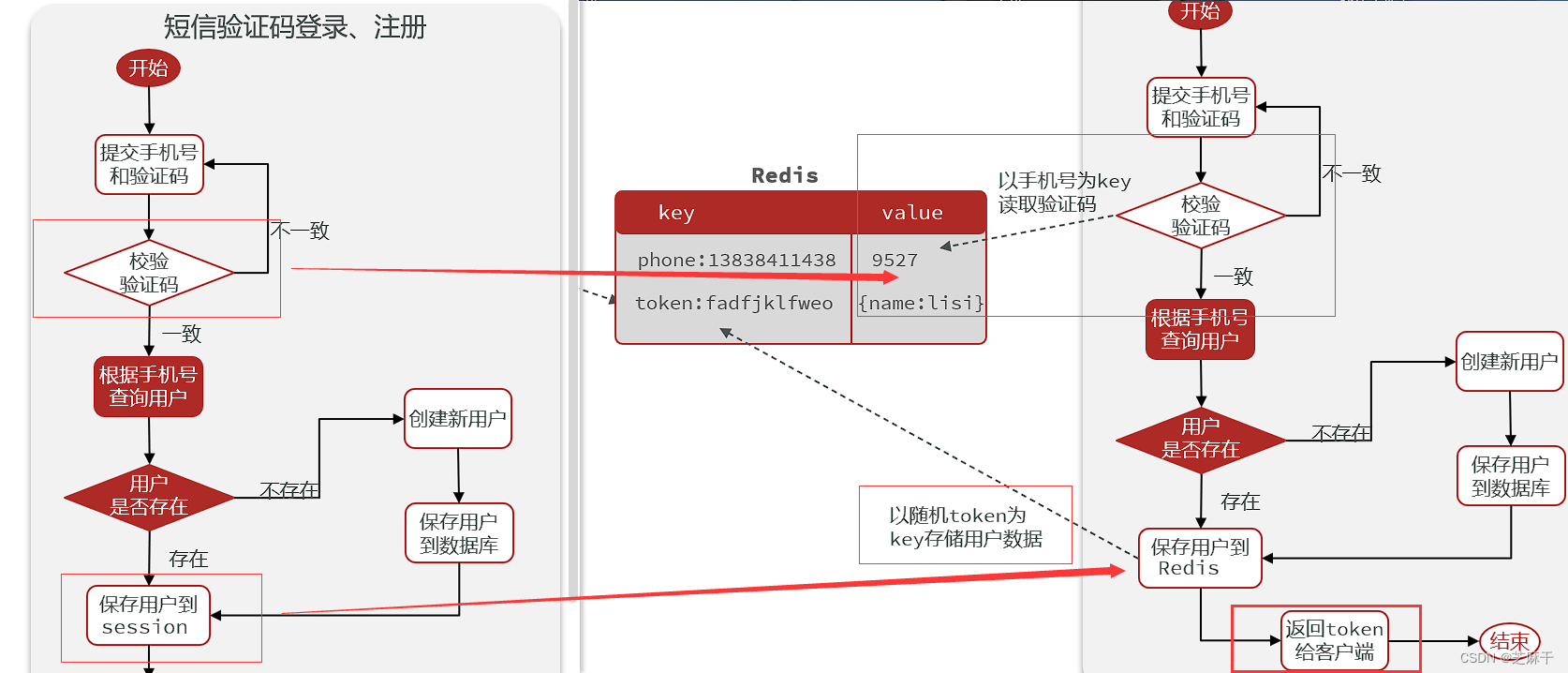

2.3  验证码校验及登录功能

这一步明显要比上一步复杂的多了，我们一步一步来

首先，就是用户每次访问的时候，每次的路径都是不一样的，而Seesion是从Cookie中获取唯一的SessionId来确保唯一性，以此取得用户值，而对于Redis，我们及需要一个唯一的标识符，就是我们的Token（使用UUID生成的随机字符串）。

和之前的Session操作不同的地方在于

1. 使用手机号为key去Redis中获取验证码

2. 使用随机生成的字符串Token保存用户数据

3.返回Token数据给前端，由前端保存到请求头的“Authorization”中

温馨小提示：这里我们使用Map操作来保存用户数据~

具体实现代码如下：

package com.hmdp.service.impl;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.bean.copier.CopyOptions;
import cn.hutool.core.lang.UUID;
import cn.hutool.core.util.RandomUtil;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.hmdp.dto.LoginFormDTO;
import com.hmdp.dto.Result;
import com.hmdp.dto.UserDTO;
import com.hmdp.entity.User;
import com.hmdp.mapper.UserMapper;
import com.hmdp.service.IUserService;
import com.hmdp.utils.RegexPatterns;
import com.hmdp.utils.RegexUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.catalina.manager.util.SessionUtils;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.stereotype.Service;import javax.annotation.Resource;
import javax.servlet.http.HttpSession;import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeUnit;import static com.hmdp.utils.RedisConstants.*;
import static com.hmdp.utils.SystemConstants.USER_NICK_NAME_PREFIX;/***
* 服务实现类*
** @author 虎哥* @since 2021-12-22*/
@Slf4j
@Service
public class UserServiceImpl extends ServiceImpl implements IUserService {@Resourceprivate StringRedisTemplate stringRedisTemplate;@Overridepublic Result login(LoginFormDTO loginForm, HttpSession session) {String phone = loginForm.getPhone();//1.校验手机号if (RegexUtils.isPhoneInvalid(phone)){//2.如果错误，返回错误信息return Result.fail("手机号码格式错误!");}//2.校验验证码//2.1 从redis中获取验证码String sendCode = stringRedisTemplate.opsForValue().get(LOGIN_CODE_KEY + phone);String code = loginForm.getCode();
//        String sendCode = (String) session.getAttribute("code");if (code != null || !code.equals(sendCode)){//验证码不一致Result.fail("验证码错误!");}//验证码相同，查询手机号User user = query().eq("phone", loginForm.getPhone()).one();if (user == null) {//用户不存在，创建一个新用户并且保存到数据库中user = createNewUser(phone);}// 用户存在，将用户数据存入Redis//随机生成一个tokenString token = UUID.randomUUID().toString(true);//获取用户数据并转成Map集合UserDTO userDTO = BeanUtil.copyProperties(user, UserDTO.class);Map userMap = BeanUtil.beanToMap(userDTO,new HashMap<>(),CopyOptions.create().setIgnoreNullValue(true).setFieldValueEditor((fieldName,fieldValue)->fieldValue.toString()));//将用户数据存入redis当中String tokenKey = LOGIN_USER_KEY+token;stringRedisTemplate.opsForHash().putAll(tokenKey,userMap);//设置有效期，防止用户过多，导致内存不足stringRedisTemplate.expire(tokenKey,LOGIN_USER_TTL,TimeUnit.MINUTES);//        session.setAttribute("user", BeanUtil.copyProperties(user,UserDTO.class));return Result.ok(token);}private User createNewUser(String phone) {//1.创建用户User user = new User();user.setPhone(phone);user.setNickName(USER_NICK_NAME_PREFIX+RandomUtil.randomString(10));//2.保存用户save(user);return user;}
}

还没完，Session操作中，我们用户每次请求，都会重新设置存活时间，以确保用户可以持续，而我们使用Redis时，可以在拦截器中设置每次拦截到，重新设置Redis字段的存活时间 。

和Session使用的拦截器不同点在于

1.我们要先获取请求头中的token，用来获取用户数据

2.保存完用户数据后，我们需要重新设置Redis中key的存活时间

具体代码如下：

package com.hmdp.utils;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.util.StrUtil;
import com.hmdp.dto.UserDTO;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.servlet.HandlerInterceptor;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Map;
import java.util.concurrent.TimeUnit;/*** @Author 华子* @Date 2022/11/20 17:30* @Version 1.0*/
public class RefreshTokenInterceptor implements HandlerInterceptor {private StringRedisTemplate stringRedisTemplate;public RefreshTokenInterceptor(StringRedisTemplate stringRedisTemplate) {this.stringRedisTemplate = stringRedisTemplate;}@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {//1.获取请求头中的tokenString token = request.getHeader("authorization");if (StrUtil.isBlank(token)) {return true;}//2.获取用户信息String key = RedisConstants.LOGIN_USER_KEY + token;Map userMap = stringRedisTemplate.opsForHash().entries(key);//3.判断用户信息是否存在if (userMap.isEmpty()){return true;}//5.存在，保存用户信息到ThreadLocal//将从redis中获取到的userMap转成UserDtoUserDTO userDTO = BeanUtil.fillBeanWithMap(userMap, new UserDTO(), false);UserHolder.saveUser(userDTO);//6.刷新存活时间stringRedisTemplate.expire(key,RedisConstants.LOGIN_USER_TTL, TimeUnit.MINUTES);//7.放行return true;}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {//移除用户UserHolder.removeUser();}
}

Mvc配置类（MvcConfig）：

package com.hmdp.config;import com.hmdp.utils.LoginInterceptor;
import com.hmdp.utils.RefreshTokenInterceptor;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;import javax.annotation.Resource;/*** @Author 华子* @Date 2022/11/20 17:38* @Version 1.0*/
@Configuration
public class MvcConfig implements WebMvcConfigurer {@Resourceprivate StringRedisTemplate stringRedisTemplate;@Overridepublic void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(new LoginInterceptor()).excludePathPatterns("/shop/**","/voucher/**","/shop-type/**","/upload/**","/blog/hot","/user/code","/user/login");}
}

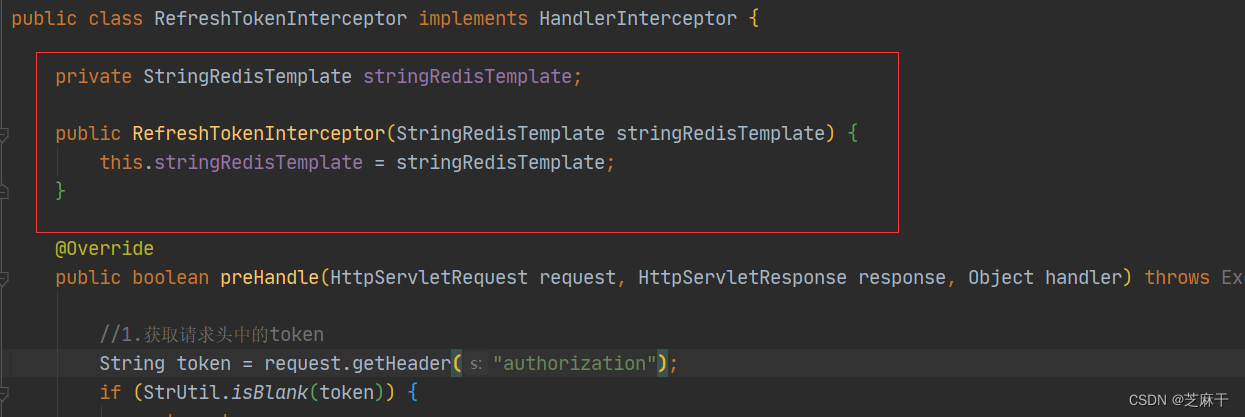

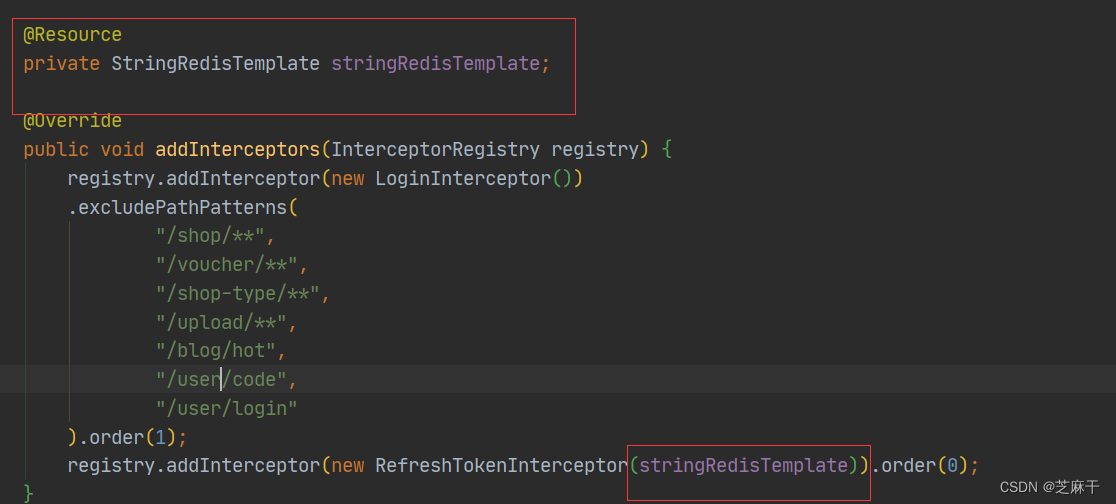

这里有个小知识点，我们自己创造的类，Spring无法帮我们自动注入，所以我们在Mvc配置类中进行注入

这样就可以成功的注入StringRedisTemplate了~

 3.拦截器优化

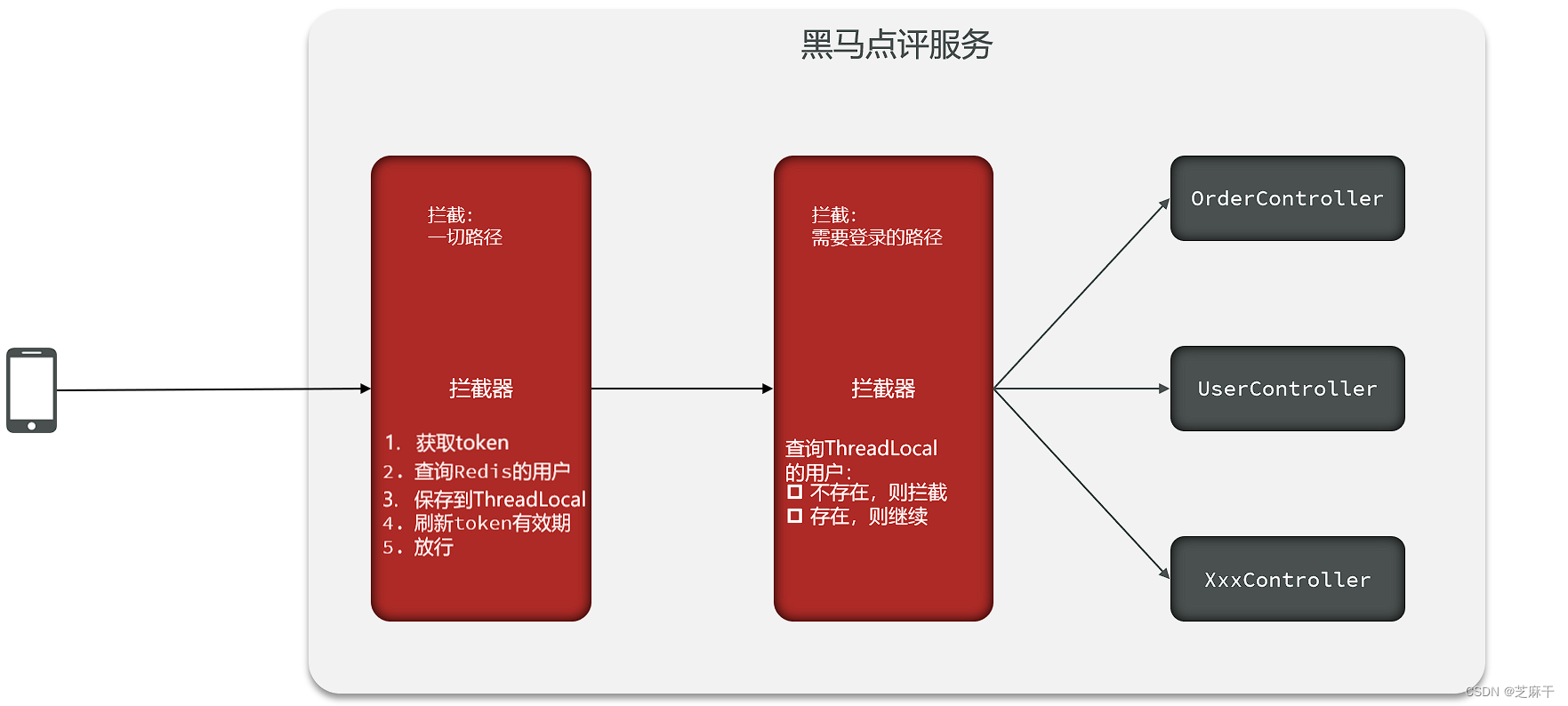

因为我们上述的拦截器只拦截了部分请求，还没做到百分百刷新用户的存活时间，所以我们可以这样做：

在最外层在加上一个拦截器，拦截所有用户，用于专门刷新存活时间且放行，而第二个拦截器用于判断ThreadLocal中是否含有用户信息，没有就拦截。

具体实现代码：

最外层拦截器：（只做刷新）

package com.hmdp.utils;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.util.StrUtil;
import com.hmdp.dto.UserDTO;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.servlet.HandlerInterceptor;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.util.Map;
import java.util.concurrent.TimeUnit;/*** @Author 华子* @Date 2022/11/20 17:30* @Version 1.0*/
public class RefreshTokenInterceptor implements HandlerInterceptor {private StringRedisTemplate stringRedisTemplate;public RefreshTokenInterceptor(StringRedisTemplate stringRedisTemplate) {this.stringRedisTemplate = stringRedisTemplate;}@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {//1.获取请求头中的tokenString token = request.getHeader("authorization");if (StrUtil.isBlank(token)) {return true;}//2.获取用户信息String key = RedisConstants.LOGIN_USER_KEY + token;Map userMap = stringRedisTemplate.opsForHash().entries(key);//3.判断用户信息是否存在if (userMap.isEmpty()){return true;}//5.存在，保存用户信息到ThreadLocal//将从redis中获取到的userMap转成UserDtoUserDTO userDTO = BeanUtil.fillBeanWithMap(userMap, new UserDTO(), false);UserHolder.saveUser(userDTO);//6.刷新存活时间stringRedisTemplate.expire(key,RedisConstants.LOGIN_USER_TTL, TimeUnit.MINUTES);//7.放行return true;}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {//移除用户UserHolder.removeUser();}
}

第二次拦截器：（只做拦截）

package com.hmdp.utils;import cn.hutool.core.bean.BeanUtil;
import cn.hutool.core.util.StrUtil;
import com.hmdp.dto.UserDTO;
import io.netty.util.internal.StringUtil;
import org.springframework.beans.BeanUtils;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.util.StringUtils;
import org.springframework.web.servlet.HandlerInterceptor;import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;
import java.util.Map;
import java.util.concurrent.TimeUnit;/*** @Author 华子* @Date 2022/11/20 17:30* @Version 1.0*/
public class LoginInterceptor implements HandlerInterceptor {@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {//1.判断ThreadLocal中是否存在用户信息if (UserHolder.getUser() == null){//没有，拦截response.setStatus(401);return false;}//2. 有，放行return true;}}

Mvc配置类：

这里面主要设置了添加拦截器，设置第二个拦截器需要拦截的路径 和两个拦截器的优先级。

package com.hmdp.config;import com.hmdp.utils.LoginInterceptor;
import com.hmdp.utils.RefreshTokenInterceptor;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;import javax.annotation.Resource;/*** @Author 华子* @Date 2022/11/20 17:38* @Version 1.0*/
@Configuration
public class MvcConfig implements WebMvcConfigurer {@Resourceprivate StringRedisTemplate stringRedisTemplate;@Overridepublic void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(new LoginInterceptor()).excludePathPatterns("/shop/**","/voucher/**","/shop-type/**","/upload/**","/blog/hot","/user/code","/user/login").order(1);registry.addInterceptor(new RefreshTokenInterceptor(stringRedisTemplate)).order(0);}
}
