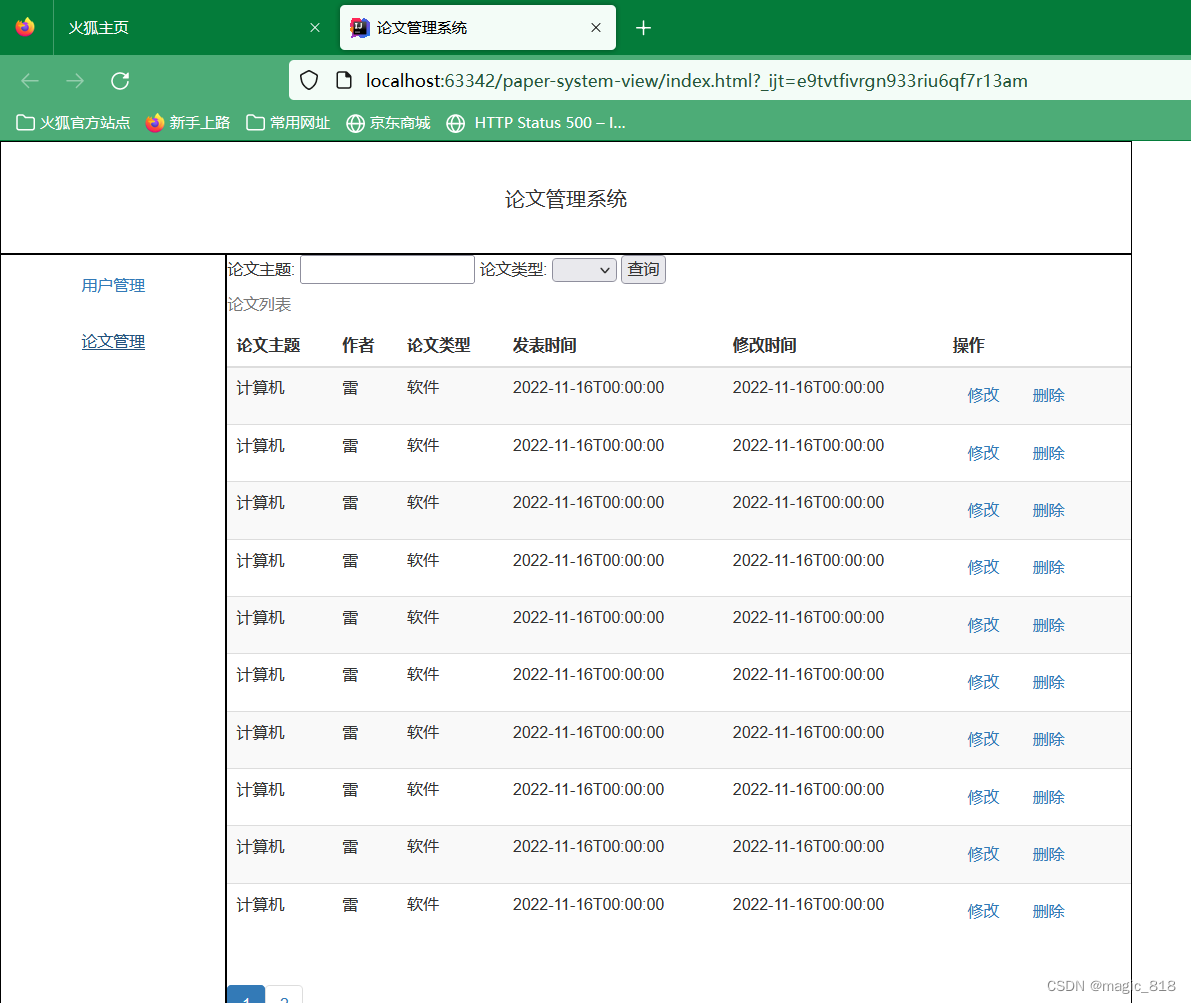

上次我们已经实现了论文管理系登录功能,这次我们要实现登录之后的跳转到首页,并且让首页列表显示出数据库的信息并在Mapper中写入模糊查询功能语句,这次我们不使用MybatisPlus写这个功能,这次使用Mybatis来写,区别就是Plus是继承于Mapper,而Mybatis则是我们通过读取Mapper.xml文件中的sql语句,实现效果如下图所示,:

一、后端部分

1.1 实体类

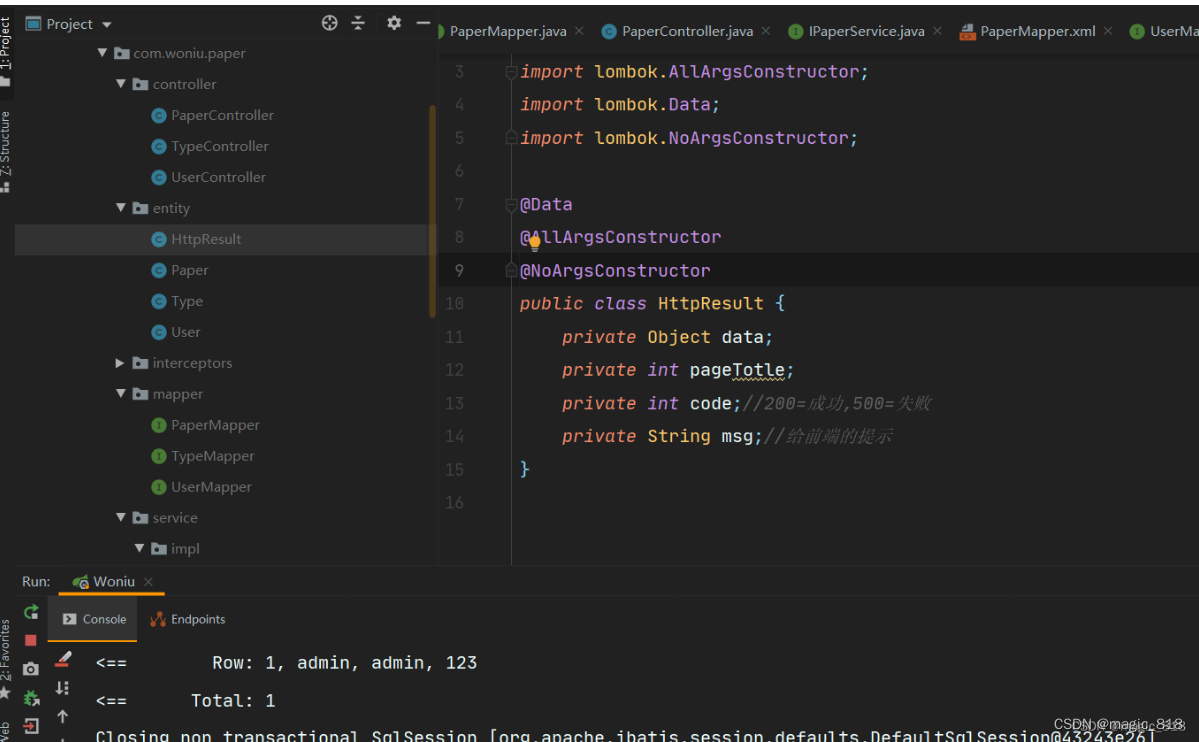

再次强调我们每次传递数据是通过HttpResult 实体类来响应前端的数据

package com.woniu.paper.entity;import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;@Data
@AllArgsConstructor
@NoArgsConstructor
public class HttpResult {private Object data;private int pageTotle;private int code;//200=成功,500=失败private String msg;//给前端的提示
}

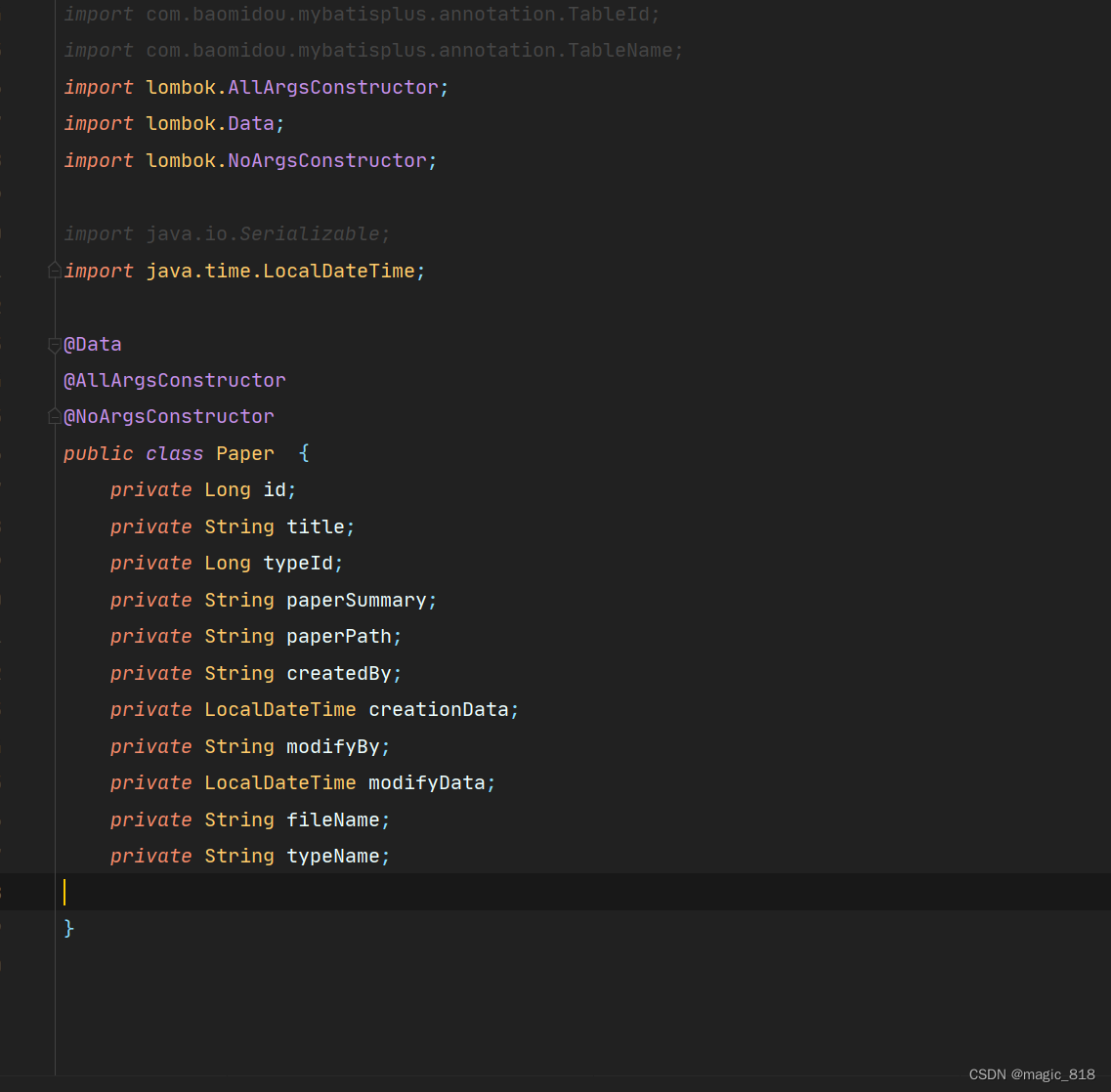

 实体类paper

package com.woniu.paper.entity;import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import com.baomidou.mybatisplus.annotation.TableName;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;import java.io.Serializable;
import java.time.LocalDateTime;@Data
@AllArgsConstructor
@NoArgsConstructor
public class Paper  {private Long id;private String title;private Long typeId;private String paperSummary;private String paperPath;private String createdBy;private LocalDateTime creationData;private String modifyBy;private LocalDateTime modifyData;private String fileName;private String typeName;}

 这里大家发现实体类里面多了一个属性typeName,这是方便我们后面模糊查询,因为paper数据表中的的论文类型是id,不是文本形式,没有办法进行模糊查询,所以我们需要在里面自己加入typeName这个变量

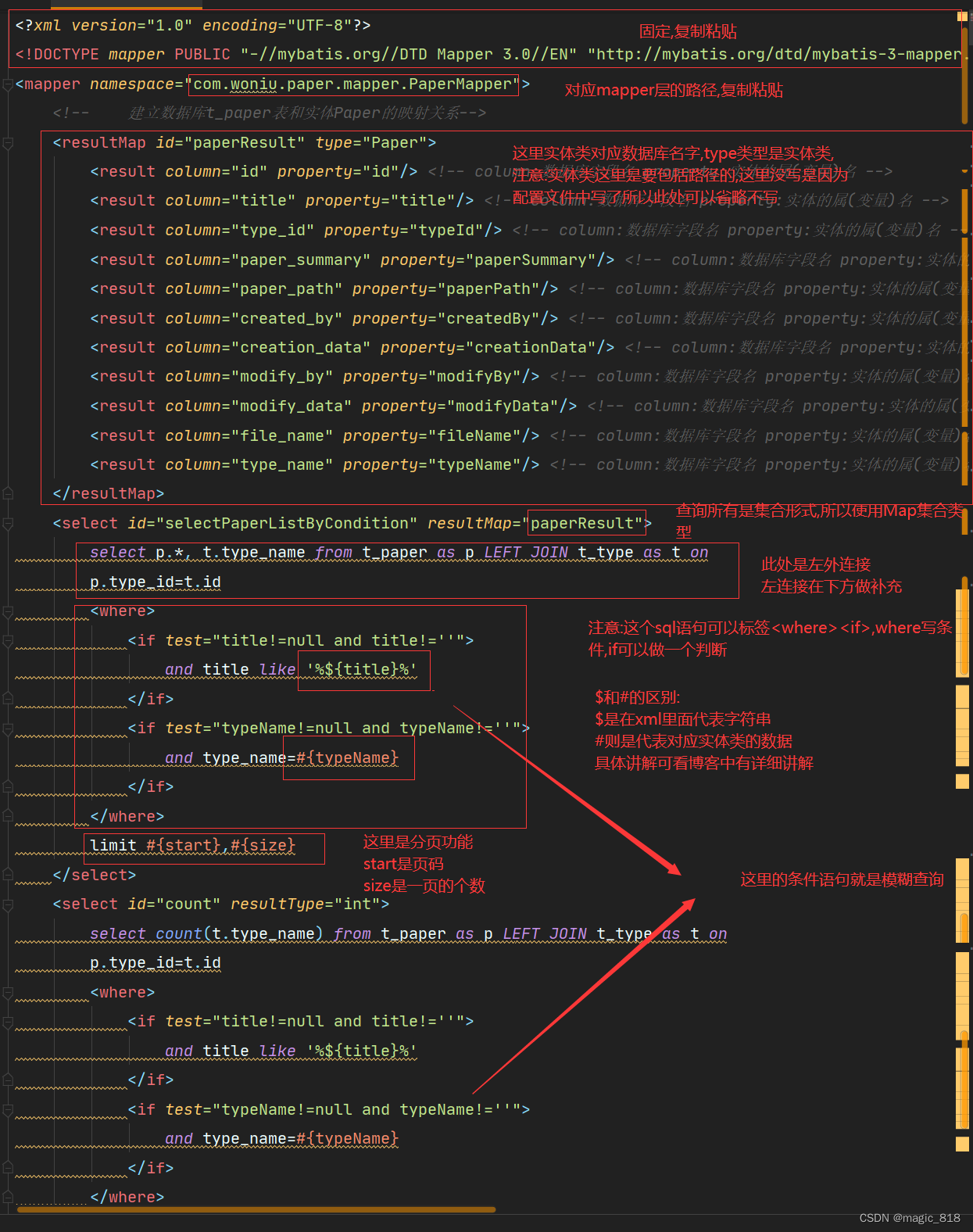

1.2 paperMapper.xml

           select p.*, t.type_name from t_paper as p LEFT JOIN t_type as t onp.type_id=t.idand title like '%${title}%'and type_name=#{typeName}limit #{start},#{size}select count(t.type_name) from t_paper as p LEFT JOIN t_type as t onp.type_id=t.idand title like '%${title}%'and type_name=#{typeName}insert into t_paper (title,type_id,paper_summary,paper_path,created_by,modify_by,file_name) values (#{title},#{typeId},#{paperSummary},#{paperPath},#{createdBy},#{modifyBy},#{fileName})

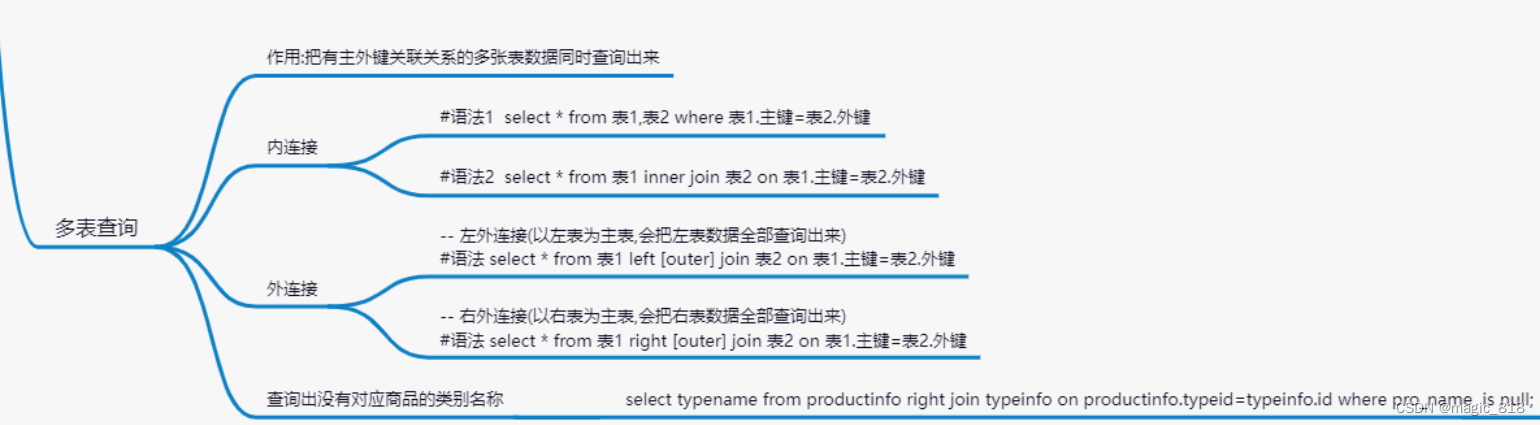

数据库内外链接补充

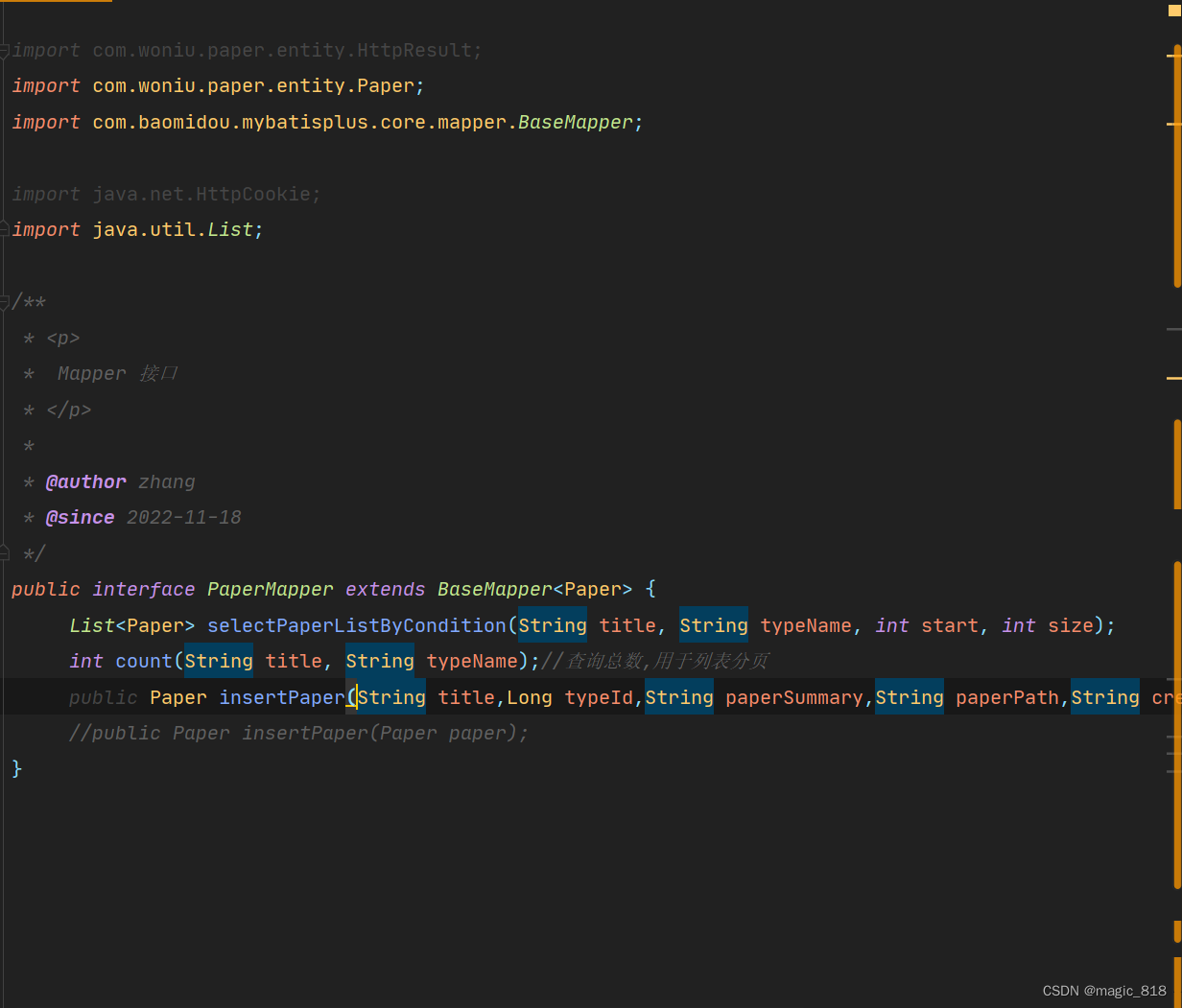

 1.3 PaperMapper类

public interface PaperMapper extends BaseMapper {List selectPaperListByCondition(String title, String typeName, int start, int size);int count(String title, String typeName);//查询总数,用于列表分页
}

 1.4Service层

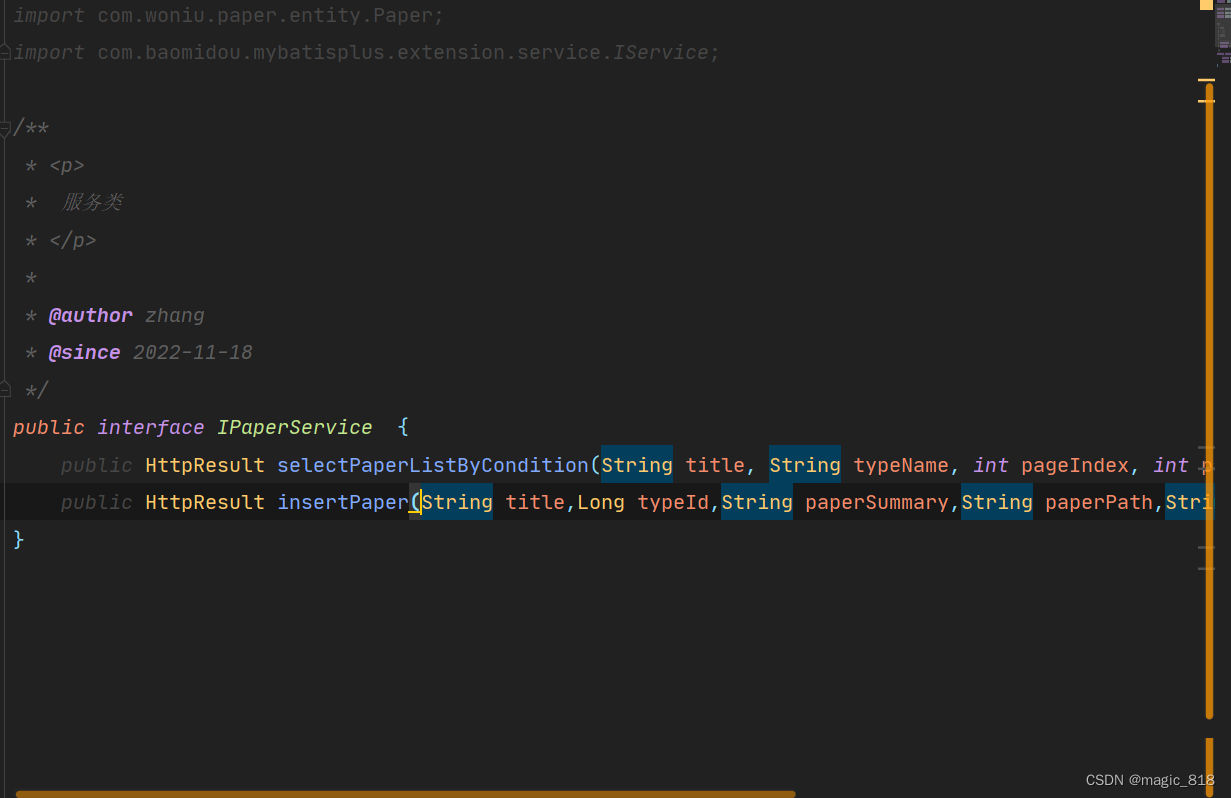

接口

package com.woniu.paper.service;import com.woniu.paper.entity.HttpResult;
import com.woniu.paper.entity.Paper;
import com.baomidou.mybatisplus.extension.service.IService;/***
*  服务类*
** @author zhang* @since 2022-11-18*/
public interface IPaperService  {public HttpResult selectPaperListByCondition(String title, String typeName, int pageIndex, int pageSize);public HttpResult insertPaper(String title,Long typeId,String paperSummary,String paperPath,String createdBy,String modifyBy,String fileName);
}

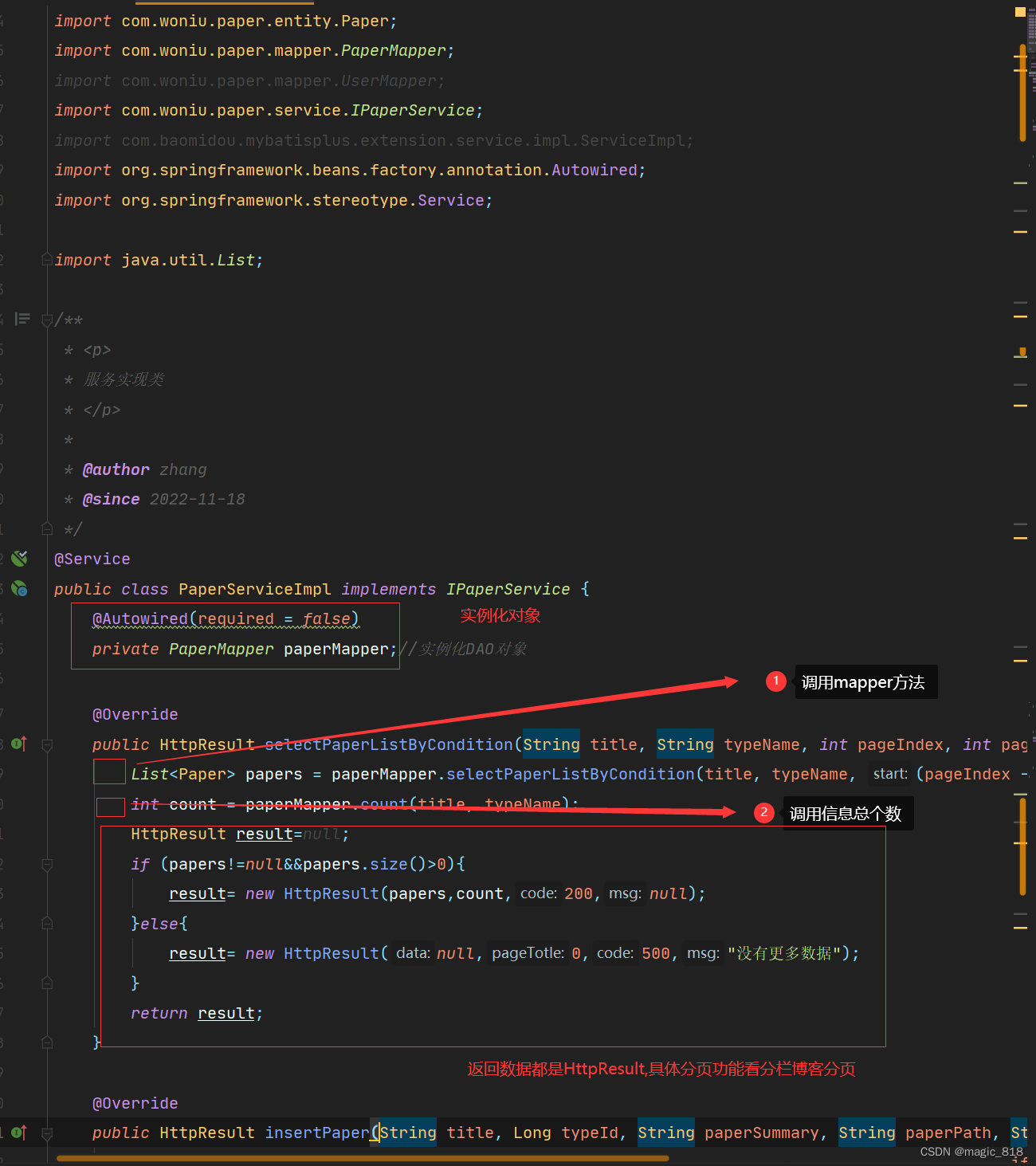

实现类

package com.woniu.paper.service.impl;import com.woniu.paper.entity.HttpResult;
import com.woniu.paper.entity.Paper;
import com.woniu.paper.mapper.PaperMapper;
import com.woniu.paper.mapper.UserMapper;
import com.woniu.paper.service.IPaperService;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import java.util.List;/***
* 服务实现类*
** @author zhang* @since 2022-11-18*/
@Service
public class PaperServiceImpl implements IPaperService {@Autowired(required = false)private PaperMapper paperMapper;//实例化DAO对象@Overridepublic HttpResult selectPaperListByCondition(String title, String typeName, int pageIndex, int pageSize) {List papers = paperMapper.selectPaperListByCondition(title, typeName, (pageIndex - 1) * pageSize, pageSize);int count = paperMapper.count(title, typeName);HttpResult result=null;if (papers!=null&&papers.size()>0){result= new HttpResult(papers,count,200,null);}else{result= new HttpResult(null,0,500,"没有更多数据");}return result;}}

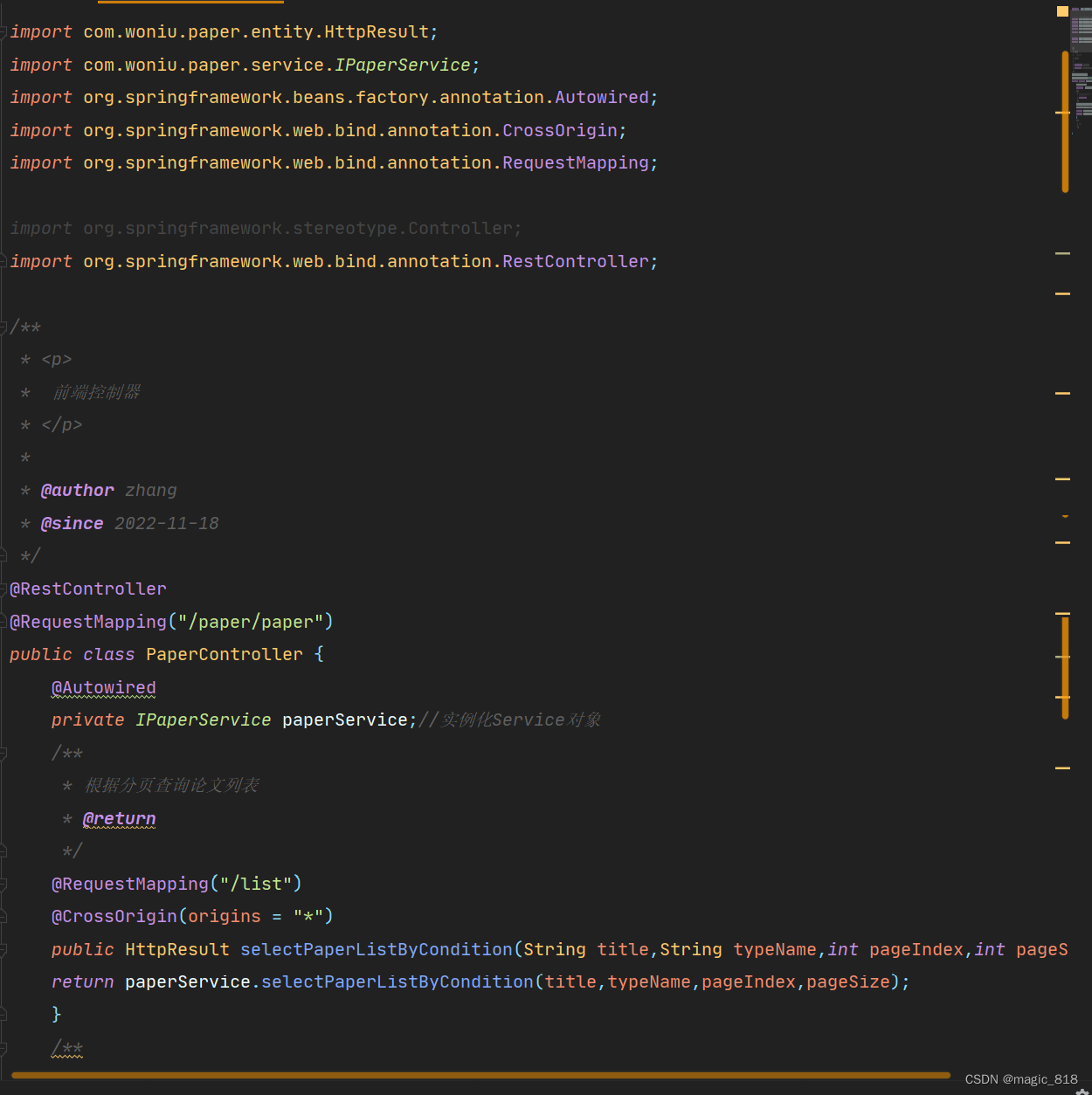

 1.5 Controller层

package com.woniu.paper.controller;import com.woniu.paper.entity.HttpResult;
import com.woniu.paper.service.IPaperService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RestController;/***
*  前端控制器*
** @author zhang* @since 2022-11-18*/
@RestController
@RequestMapping("/paper/paper")
public class PaperController {@Autowiredprivate IPaperService paperService;//实例化Service对象/*** 根据分页查询论文列表* @return*/@RequestMapping("/list")@CrossOrigin(origins = "*")public HttpResult selectPaperListByCondition(String title,String typeName,int pageIndex,int pageSize) {return paperService.selectPaperListByCondition(title,typeName,pageIndex,pageSize);}/*** 新增*/}

 二、前端部分

效果图

源码如下 :

论文管理系统
用户管理
论文管理
论文主题:论文类型:软件财务查询
论文列表
论文主题
作者
论文类型
发表时间
修改时间
操作
{{p.title}}
{{p.createdBy}}
{{p.typeName}}
{{p.creationData}}
{{p.modifyData}}
修改删除
{{p}}
{{p}}

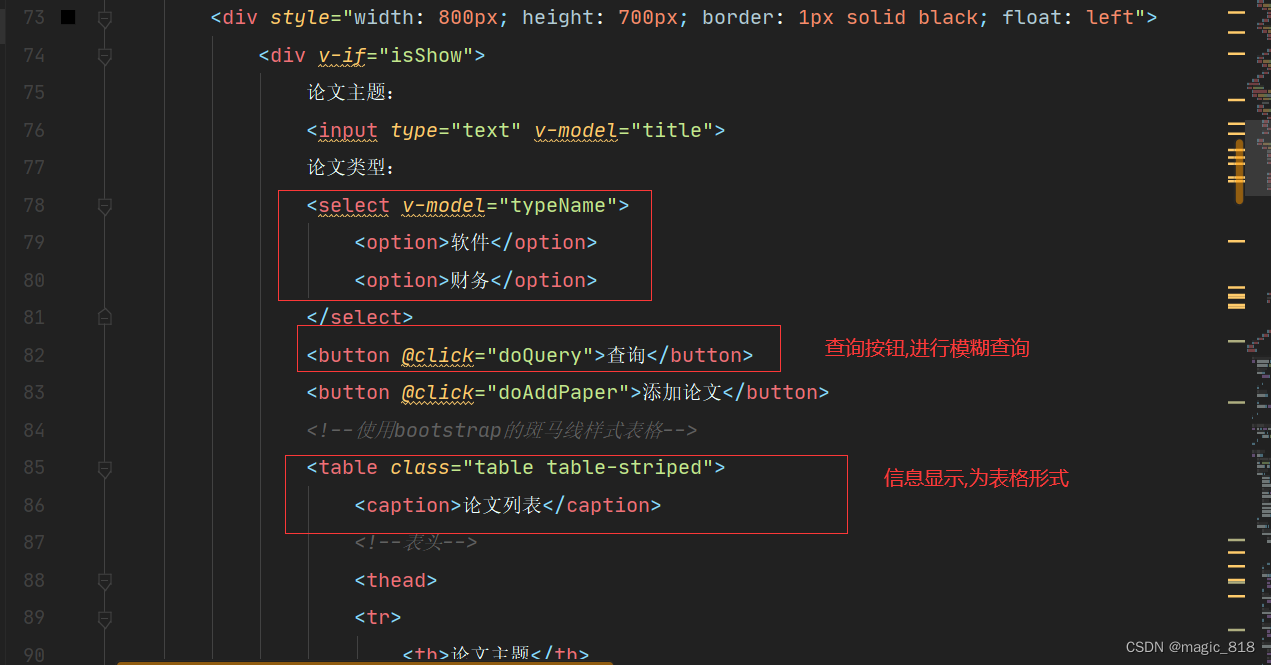

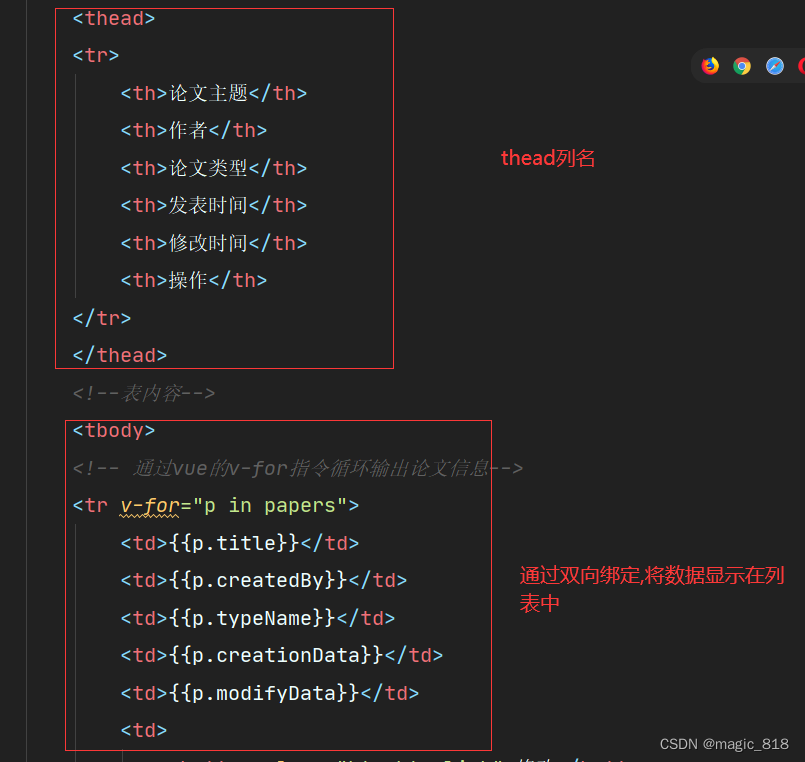

 代码讲解

整体思路,我们要先保证能显示列表信息,之后进行跳转和模糊查询等等其他功能

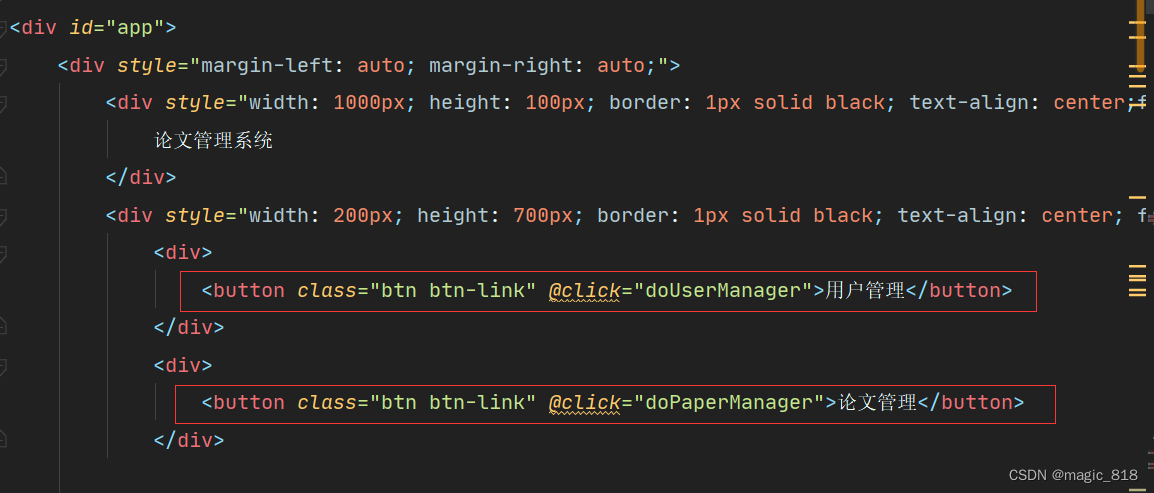

这两个按钮是页面左边的菜单栏的选项

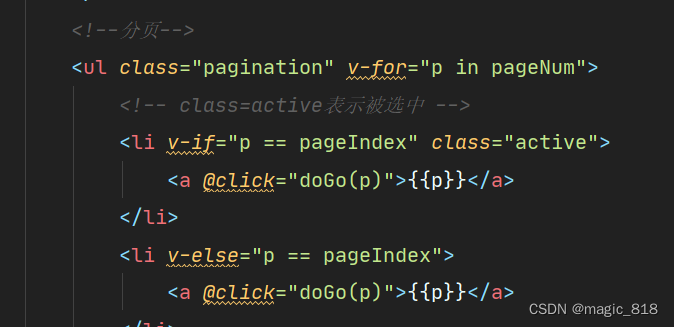

 分页功能

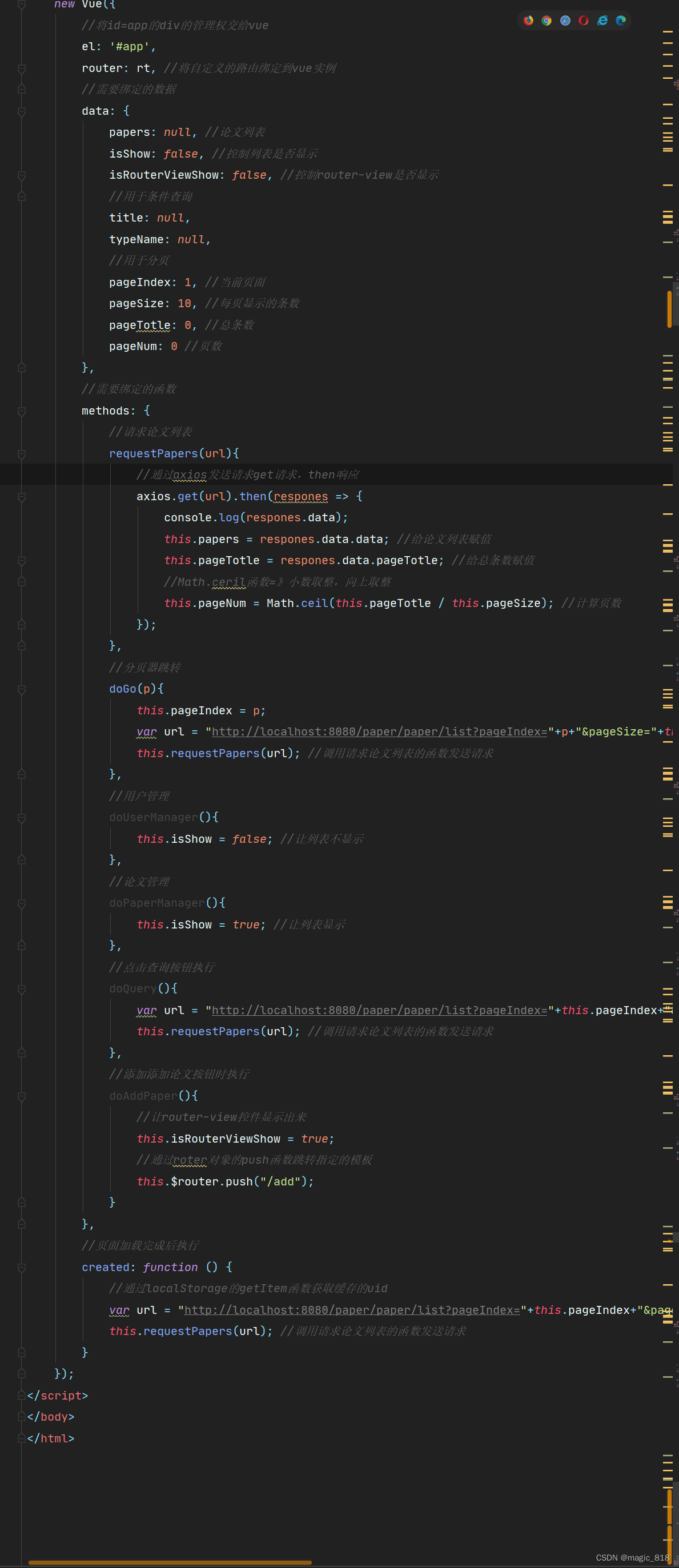

 JS部分都有具体注释,分页功能可参考往期博客

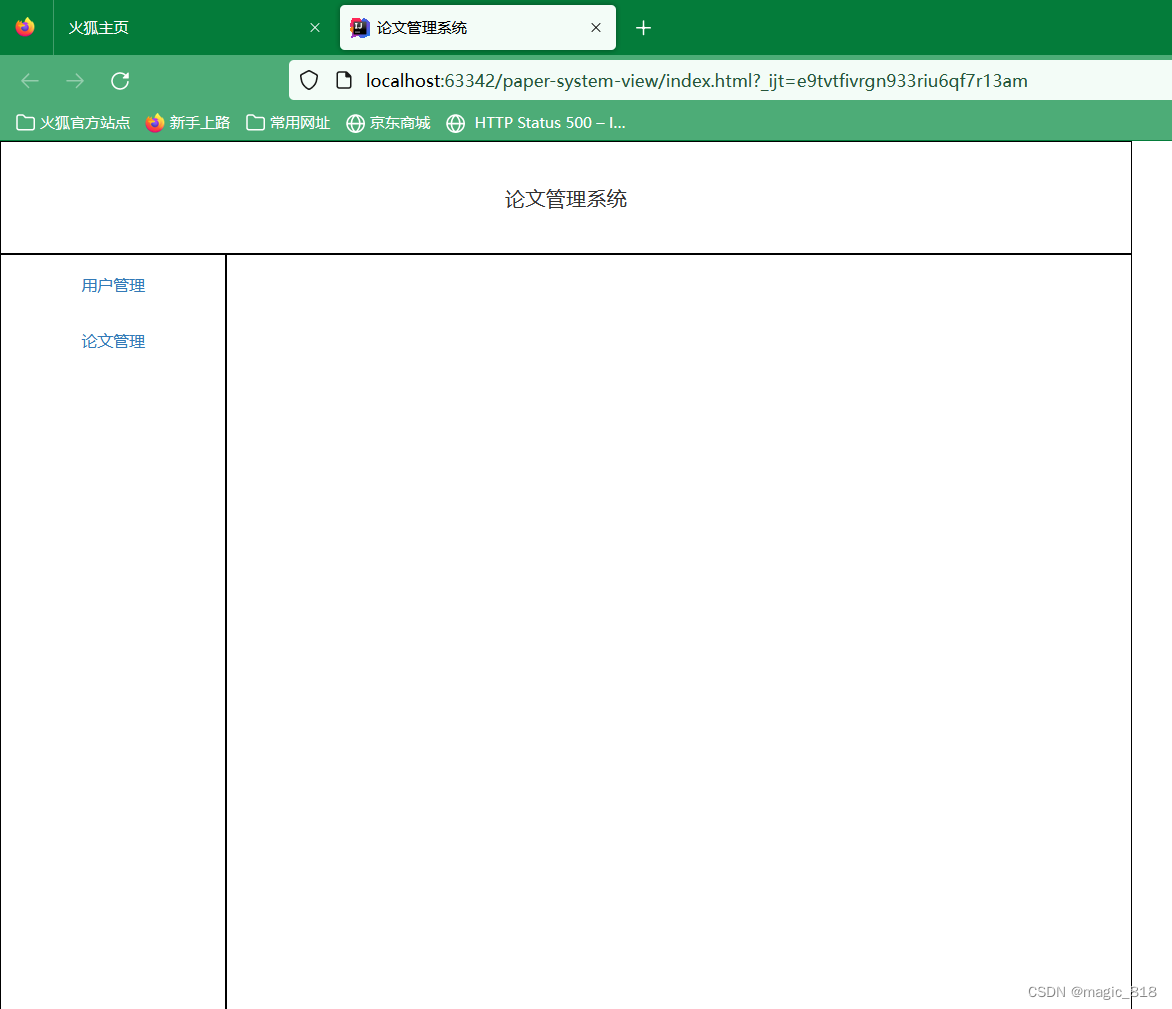

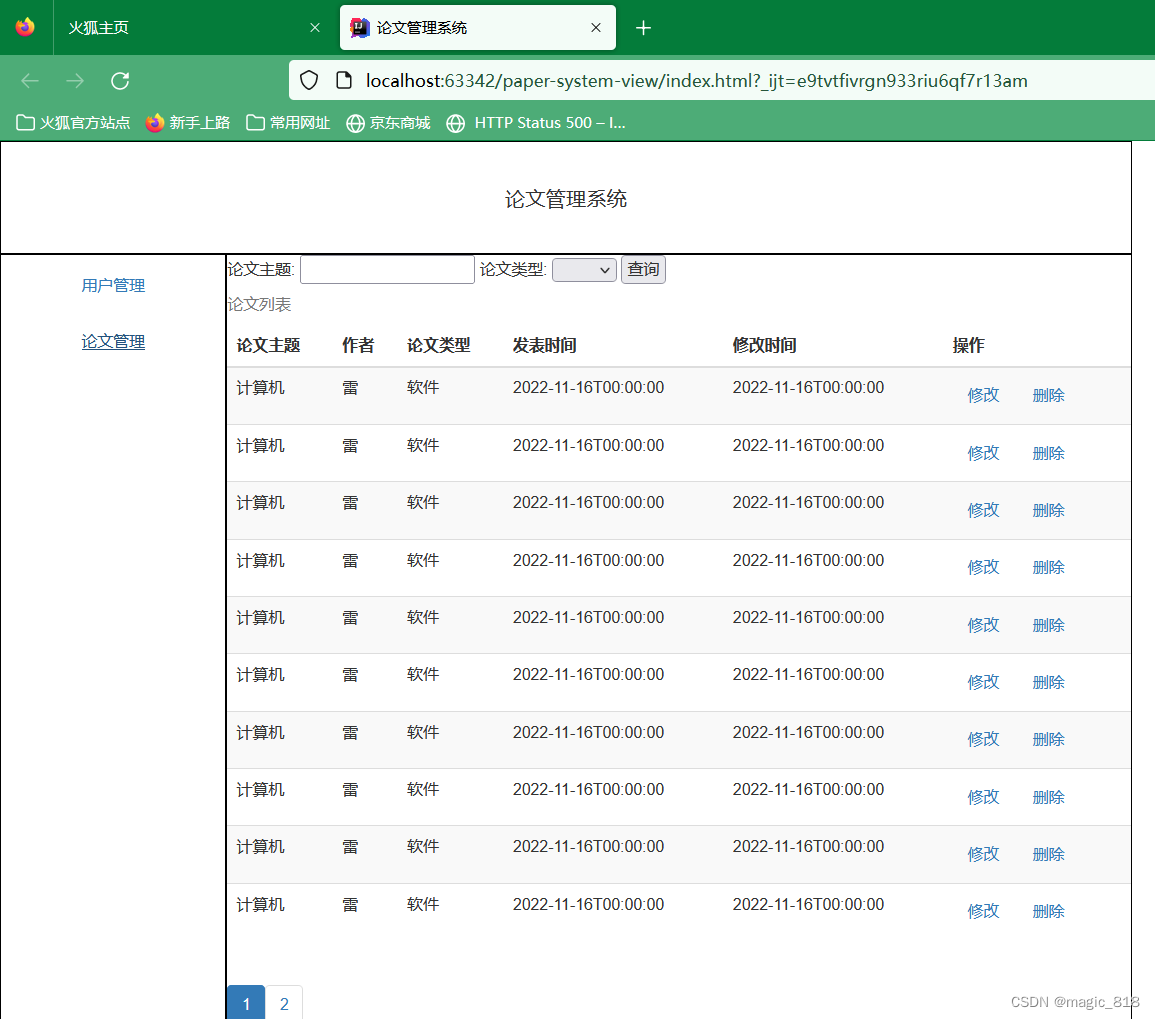

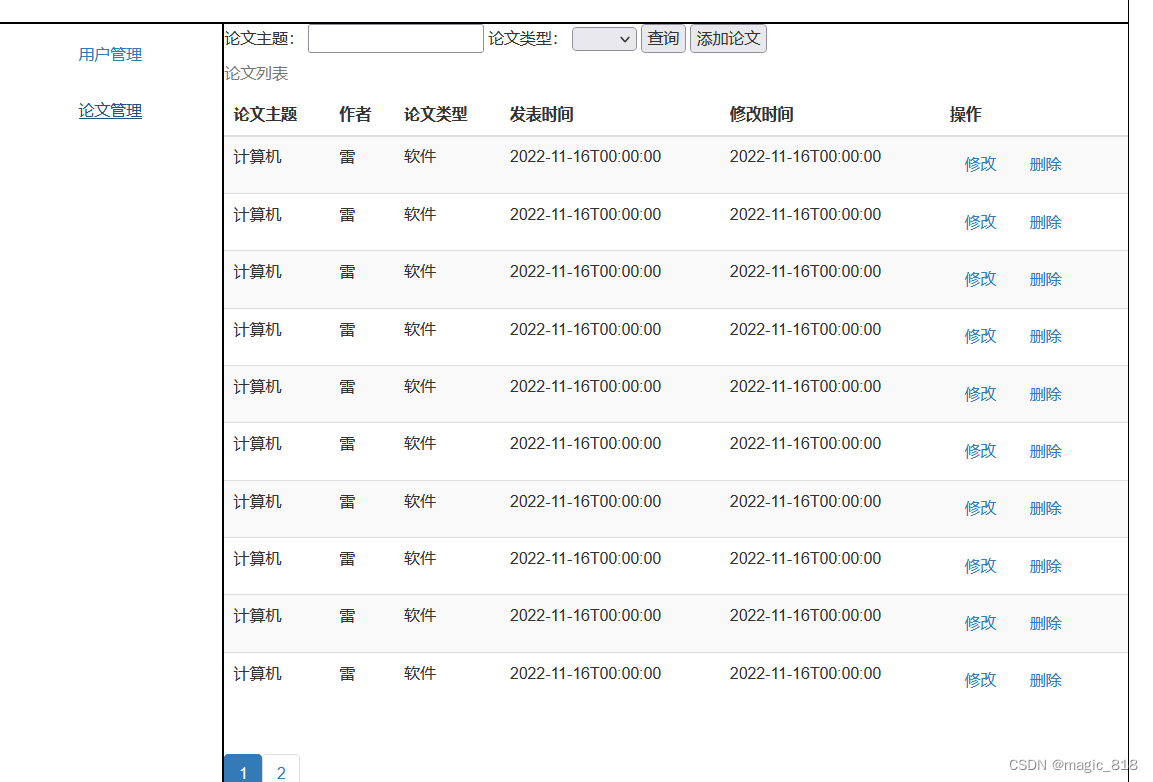

主页面图

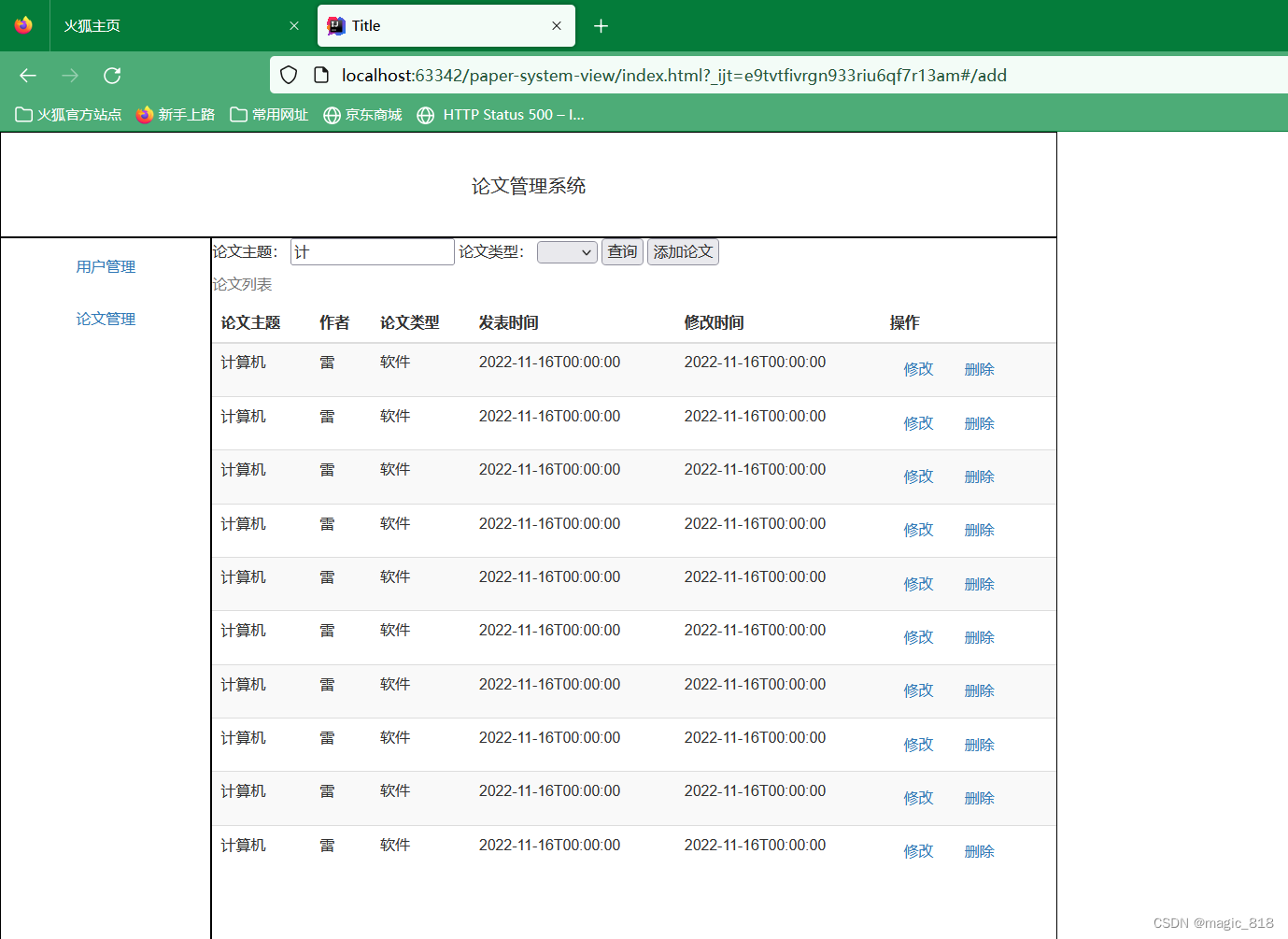

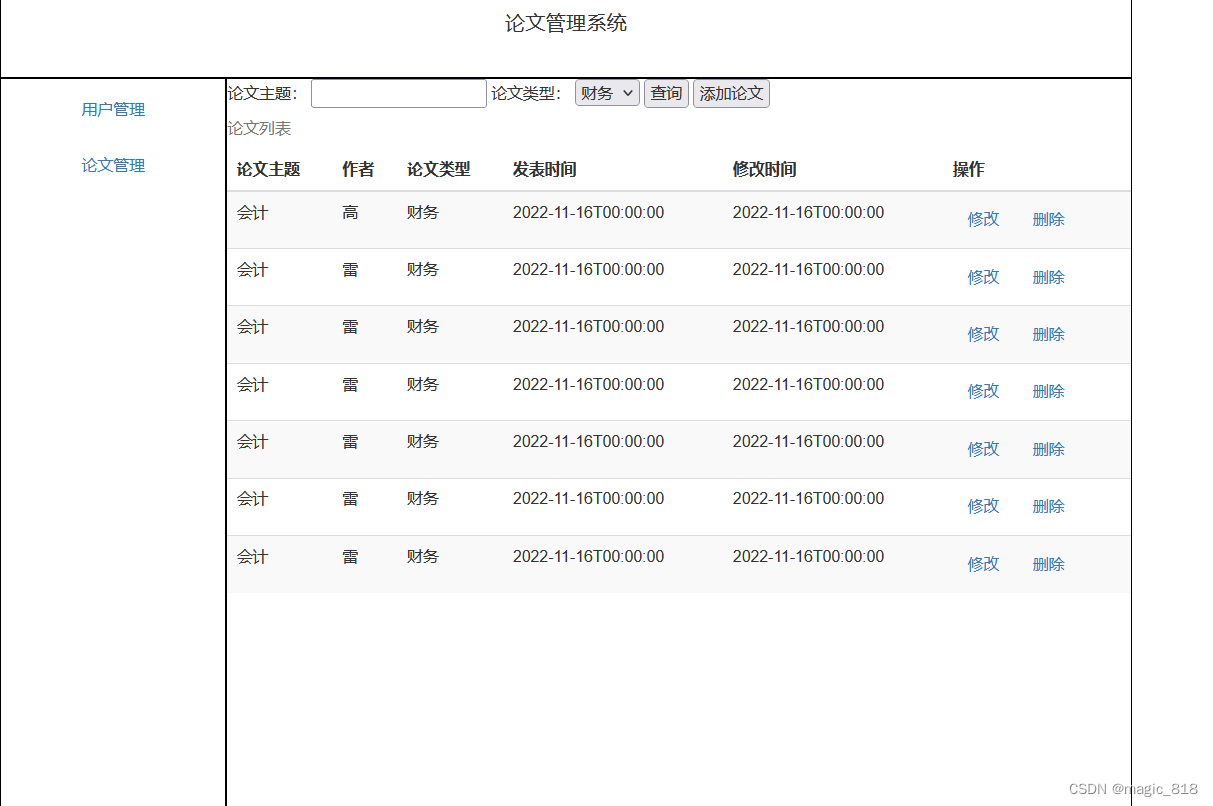

 模糊查询效果图
