目录

吴恩达-机器学习2022版 k-means聚类算法实现整理

1.核心函数四个：

1.find_closest_centroids    ：寻找最近的质心

2.compute_centroids    ：迭代重新计算质心

3.kMeans_init_centroids    ：随机初始化质心

4.run_kMeans   ：执行k-means算法

2.实例：使用k-means算法对图片像素进行压缩 255色压缩到1色

1.代码

2.运行结果

吴恩达-机器学习2022版 k-means聚类算法实现整理

1.核心函数四个：

import numpy as np
import matplotlib.pyplot as plt

1.find_closest_centroids    ：寻找最近的质心

#寻找最近的质心
def find_closest_centroids(X, centroids):K = centroids.shape[0]idx = np.zeros(X.shape[0], dtype=int)for i in range(X.shape[0]):distance = []        for j in range(K):         norm_ij = np.linalg.norm(X[i] - centroids[j])distance.append(norm_ij)           idx[i] = np.argmin(distance)return idx

2.compute_centroids    ：迭代重新计算质心

def compute_centroids(X, idx, K):m, n = X.shapecentroids = np.zeros((K, n))   for k in range(K):points = X[idx == k] centroids[k] = np.mean(points, axis = 0)return centroids

3.kMeans_init_centroids    ：随机初始化质心

def kMeans_init_centroids(X, K):randidx = np.random.permutation(X.shape[0])centroids = X[randidx[:K]]return centroids

4.run_kMeans   ：执行k-means算法

def run_kMeans(X, initial_centroids, max_iters=10, plot_progress=False):m, n = X.shapeK = initial_centroids.shape[0]centroids = initial_centroidsprevious_centroids = centroids    idx = np.zeros(m)for i in range(max_iters):     print("K-Means iteration %d/%d" % (i, max_iters-1))       idx = find_closest_centroids(X, centroids)      if plot_progress:plot_progress_kMeans(X, centroids, previous_centroids, idx, K, i)previous_centroids = centroidscentroids = compute_centroids(X, idx, K)plt.show() return centroids, idx

2.实例：使用k-means算法对图片像素进行压缩 255色压缩到1色

1.代码

#进行图片压缩
#读取图片
original_img = plt.imread('bird_small.png')
#数据标准化 使像素值全部落在0-1之间
original_img = original_img / 255X_img = np.reshape(original_img, (original_img.shape[0] * original_img.shape[1], 3))
K = 16
max_iters = 10               initial_centroids = kMeans_init_centroids(X_img, K)
centroids, idx = run_kMeans(X_img, initial_centroids, max_iters)
X_recovered = centroids[idx, :]
X_recovered = np.reshape(X_recovered, original_img.shape) fig, ax = plt.subplots(1,2, figsize=(8,8))
plt.axis('off')#展示原图片
ax[0].imshow(original_img*255)
ax[0].set_title('Original')
ax[0].set_axis_off()#展示压缩后图片
ax[1].imshow(X_recovered*255)
ax[1].set_title('Compressed with %d colours'%K)
ax[1].set_axis_off()

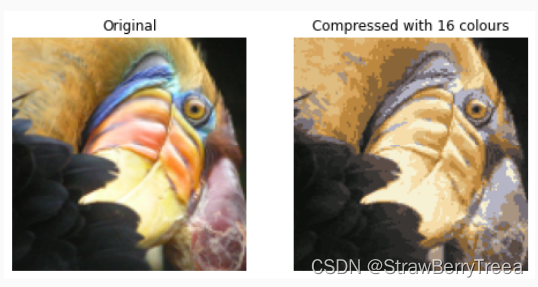

2.运行结果
