最近在忙我的省创，是有关于知识图谱的，其中有一个内容是使用rgcn的链接预测方法跑自己的数据集，我是用的dgl库中给出的在pytorch环境下实现rgcn的链接预测的代码，相关链接贴在这里：

dgl库中关于rgcn的介绍文档

dgl库中在pytorch环境下实现rgcn的链接预测的代码

这个代码给的示例就是使用FB15k237数据集，调用方法是这样的：

from dgl.data.knowledge_graph import FB15k237Dataset
data = FB15k237Dataset(reverse=False)
graph = data[0]
print("graph",graph)

这里就调用了FB15k237数据集，返回的的data[0]就是使用dgl库使用该数据集构建的图g。

我一开始想用自己的数据构图，然后使用rgcn的代码跑我自己的数据集，但是我不知道它的构图是如何实现的，于是我修改了rgcn的代码，实现了自己的构图方式如下，就是使用入结点出节点和边的编号列表构图：

g = dgl.graph((src, dst), num_nodes=num_nodes)
g.edata[dgl.ETYPE] = rel

鉴于rgcn示例里使用的FB15k237数据集的图的属性有'train_mask'和'test_mask'等属性，我就把rgcn代码里有关构图的部分全改成我自己的了，修改过后的完整可运行rgcn代码如下。

这个代码需要自己提供entity.txt，relation.txt，train.txt，valid.txt，test.txt五个文件，entity.txt和relation.txt分别代表实体编号到实体描述的映射，关系编号到关系描述的映射，类似这样：

train.txt，valid.txt，test.txt这三个文件就代表训练集，验证集和测试集的已经被映射为编号的(h,r,t)格式的三元组，类似这样：

在代码中写入对应的自己的数据集已经处理好的这五个文件的地址，运行下面的文件就可以运行完整的rgcn代码了：

import numpy as np
import torch
import torch.nn as nn
import scipy as sp
import torch.nn.functional as F
import dgl
from dgl.data.knowledge_graph import FB15k237Dataset
from dgl.data.knowledge_graph import FB15kDataset
from dgl.dataloading import GraphDataLoader
from dgl.nn.pytorch import RelGraphConv
import tqdm# for building training/testing graphs
def get_subset_g(g, mask, num_rels, bidirected=False):src, dst = g.edges()sub_src = src[mask]sub_dst = dst[mask]sub_rel = g.edata['etype'][mask]if bidirected:sub_src, sub_dst = torch.cat([sub_src, sub_dst]), torch.cat([sub_dst, sub_src])sub_rel = torch.cat([sub_rel, sub_rel + num_rels])sub_g = dgl.graph((sub_src, sub_dst), num_nodes=g.num_nodes())sub_g.edata[dgl.ETYPE] = sub_relreturn sub_gclass GlobalUniform:def __init__(self, g, sample_size):self.sample_size = sample_sizeself.eids = np.arange(g.num_edges(),dtype='int64')def sample(self):return torch.from_numpy(np.random.choice(self.eids, self.sample_size))class NegativeSampler:def __init__(self, k=10): # negative sampling rate = 10self.k = kdef sample(self, pos_samples, num_nodes):batch_size = len(pos_samples)neg_batch_size = batch_size * self.kneg_samples = np.tile(pos_samples, (self.k, 1))values = np.random.randint(num_nodes, size=neg_batch_size)choices = np.random.uniform(size=neg_batch_size)subj = choices > 0.5obj = choices <= 0.5neg_samples[subj, 0] = values[subj]neg_samples[obj, 2] = values[obj]samples = np.concatenate((pos_samples, neg_samples))# binary labels indicating positive and negative sampleslabels = np.zeros(batch_size * (self.k + 1), dtype=np.float32)labels[:batch_size] = 1return torch.from_numpy(samples), torch.from_numpy(labels)class SubgraphIterator:def __init__(self, g, num_rels, sample_size=30000, num_epochs=6000):self.g = gself.num_rels = num_relsself.sample_size = sample_sizeself.num_epochs = num_epochsself.pos_sampler = GlobalUniform(g, sample_size)self.neg_sampler = NegativeSampler()def __len__(self):return self.num_epochsdef __getitem__(self, i):eids = self.pos_sampler.sample()src, dst = self.g.find_edges(eids)src, dst = src.numpy(), dst.numpy()rel = self.g.edata[dgl.ETYPE][eids].numpy()# relabel nodes to have consecutive node IDsuniq_v, edges = np.unique((src, dst), return_inverse=True)num_nodes = len(uniq_v)# edges is the concatenation of src, dst with relabeled IDsrc, dst = np.reshape(edges, (2, -1))relabeled_data = np.stack((src, rel, dst)).transpose()samples, labels = self.neg_sampler.sample(relabeled_data, num_nodes)# use only half of the positive edgeschosen_ids = np.random.choice(np.arange(self.sample_size),size=int(self.sample_size / 2),replace=False)src = src[chosen_ids]dst = dst[chosen_ids]rel = rel[chosen_ids]src, dst = np.concatenate((src, dst)), np.concatenate((dst, src))rel = np.concatenate((rel, rel + self.num_rels))sub_g = dgl.graph((src, dst), num_nodes=num_nodes)sub_g.edata[dgl.ETYPE] = torch.from_numpy(rel)sub_g.edata['norm'] = dgl.norm_by_dst(sub_g).unsqueeze(-1)uniq_v = torch.from_numpy(uniq_v).view(-1).long()return sub_g, uniq_v, samples, labelsclass RGCN(nn.Module):def __init__(self, num_nodes, h_dim, num_rels):super().__init__()# two-layer RGCNself.emb = nn.Embedding(num_nodes, h_dim)self.conv1 = RelGraphConv(h_dim, h_dim, num_rels, regularizer='bdd',num_bases=100, self_loop=True)self.conv2 = RelGraphConv(h_dim, h_dim, num_rels, regularizer='bdd',num_bases=100, self_loop=True)self.dropout = nn.Dropout(0.2)def forward(self, g, nids):x = self.emb(nids)h = F.relu(self.conv1(g, x, g.edata[dgl.ETYPE], g.edata['norm']))h = self.dropout(h)h = self.conv2(g, h, g.edata[dgl.ETYPE], g.edata['norm'])return self.dropout(h)class LinkPredict(nn.Module):def __init__(self, num_nodes, num_rels, h_dim = 500, reg_param=0.01):super().__init__()self.rgcn = RGCN(num_nodes, h_dim, num_rels * 2)self.reg_param = reg_paramself.w_relation = nn.Parameter(torch.Tensor(num_rels, h_dim))nn.init.xavier_uniform_(self.w_relation,gain=nn.init.calculate_gain('relu'))def calc_score(self, embedding, triplets):s = embedding[triplets[:,0]]r = self.w_relation[triplets[:,1]]o = embedding[triplets[:,2]]score = torch.sum(s * r * o, dim=1)return scoredef forward(self, g, nids):return self.rgcn(g, nids)def regularization_loss(self, embedding):return torch.mean(embedding.pow(2)) + torch.mean(self.w_relation.pow(2))def get_loss(self, embed, triplets, labels):# each row in the triplets is a 3-tuple of (source, relation, destination)score = self.calc_score(embed, triplets)predict_loss = F.binary_cross_entropy_with_logits(score, labels)reg_loss = self.regularization_loss(embed)return predict_loss + self.reg_param * reg_lossdef filter(triplets_to_filter, target_s, target_r, target_o, num_nodes, filter_o=True):"""Get candidate heads or tails to score"""target_s, target_r, target_o = int(target_s), int(target_r), int(target_o)# Add the ground truth node firstif filter_o:candidate_nodes = [target_o]else:candidate_nodes = [target_s]for e in range(num_nodes):triplet = (target_s, target_r, e) if filter_o else (e, target_r, target_o)# Do not consider a node if it leads to a real tripletif triplet not in triplets_to_filter:candidate_nodes.append(e)return torch.LongTensor(candidate_nodes)def perturb_and_get_filtered_rank(emb, w, s, r, o, test_size, triplets_to_filter, filter_o=True):"""Perturb subject or object in the triplets"""num_nodes = emb.shape[0]ranks = []for idx in tqdm.tqdm(range(test_size), desc="Evaluate"):target_s = s[idx]target_r = r[idx]target_o = o[idx]candidate_nodes = filter(triplets_to_filter, target_s, target_r,target_o, num_nodes, filter_o=filter_o)if filter_o:emb_s = emb[target_s]emb_o = emb[candidate_nodes]else:emb_s = emb[candidate_nodes]emb_o = emb[target_o]target_idx = 0emb_r = w[target_r]emb_triplet = emb_s * emb_r * emb_oscores = torch.sigmoid(torch.sum(emb_triplet, dim=1))_, indices = torch.sort(scores, descending=True)rank = int((indices == target_idx).nonzero())ranks.append(rank)return torch.LongTensor(ranks)def calc_mrr(emb, w,  triplets_to_filter, batch_size=100, filter=True):with torch.no_grad():test_triplets = triplets_to_filters, r, o = test_triplets[:,0], test_triplets[:,1], test_triplets[:,2]test_size = len(s)triplets_to_filter = {tuple(triplet) for triplet in triplets_to_filter.tolist()}ranks_s = perturb_and_get_filtered_rank(emb, w, s, r, o, test_size,triplets_to_filter, filter_o=False)ranks_o = perturb_and_get_filtered_rank(emb, w, s, r, o,test_size, triplets_to_filter)ranks = torch.cat([ranks_s, ranks_o])ranks += 1 # change to 1-indexedmrr = torch.mean(1.0 / ranks.float()).item()mr = torch.mean(ranks.float()).item()print("MRR (filtered): {:.6f}".format(mrr))print("MR (filtered): {:.6f}".format(mr))hits=[1,3,10]for hit in hits:avg_count = torch.mean((ranks <= hit).float())print("Hits (filtered) @ {}: {:.6f}".format(hit, avg_count.item()))return mrrdef train(dataloader, test_g, test_nids, triplets, device, model_state_file, model):optimizer = torch.optim.Adam(model.parameters(), lr=1e-2)best_mrr = 0for epoch, batch_data in enumerate(dataloader): # single graph batchmodel.train()g, train_nids, edges, labels = batch_datag = g.to(device)train_nids = train_nids.to(device)edges = edges.to(device)labels = labels.to(device)embed = model(g, train_nids)loss = model.get_loss(embed, edges, labels)optimizer.zero_grad()loss.backward()nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0) # clip gradientsoptimizer.step()print("Epoch {:04d} | Loss {:.4f} | Best MRR {:.4f}".format(epoch, loss.item(), best_mrr))if (epoch + 1) % 500 == 0:# perform validation on CPU because full graph is too largemodel = model.cpu()model.eval()embed = model(test_g, test_nids)mrr = calc_mrr(embed, model.w_relation,  triplets,batch_size=500)# save best modelif best_mrr < mrr:best_mrr = mrrtorch.save({'state_dict': model.state_dict(), 'epoch': epoch}, model_state_file)model = model.to(device)if __name__ == '__main__':device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')print(f'Training with DGL built-in RGCN module')# load and preprocess dataset# data = FB15k237Dataset(reverse=False)# data = FB15kDataset(reverse=False)entityfile=r'data/entity.txt'relationfile=r'data/relation.txt'f1 = open(entityfile, 'r')f2 = open(relationfile, 'r')entity=[]relation=[]for line in f1:l=line.strip().split("\t")entity.append(int(l[0]))for line in f2:l=line.strip().split("\t")relation.append(int(l[0]))num_nodes=len(entity)num_rels=len(relation)n_entities=num_nodesprint("# entities:",num_nodes)print("# relations:",num_rels)trainfile=r'data/train.txt'f3 = open(trainfile, 'r')src_train=[]rel_train=[]dst_train=[]for line in f3:l=line.strip().split("\t")h=int(l[0])r=int(l[1])t=int(l[2])src_train.append(h)rel_train.append(r)dst_train.append(t)print("# training edges: ",len(src_train))src_train=torch.LongTensor(src_train)rel_train=torch.LongTensor(rel_train)dst_train=torch.LongTensor(dst_train)train_g = dgl.graph((src_train, dst_train), num_nodes=num_nodes)train_g.edata[dgl.ETYPE] = rel_trainsrc_test, dst_test = torch.cat([src_train, dst_train]), torch.cat([dst_train,src_train])rel_test = torch.cat([rel_train, rel_train + num_rels])test_g = dgl.graph((src_test, dst_test), num_nodes=num_nodes)test_g.edata[dgl.ETYPE] = rel_testtest_g.edata['norm'] = dgl.norm_by_dst(test_g).unsqueeze(-1)test_nids = torch.arange(0, num_nodes)subg_iter = SubgraphIterator(train_g, num_rels) # uniform edge samplingdataloader = GraphDataLoader(subg_iter, batch_size=1, collate_fn=lambda x: x[0])validfile=r'data/valid.txt'f4 = open(validfile, 'r')num_valid=0for line in f4:num_valid+=1print("# validation edges: ",num_valid)# Prepare data for metric computationtestfile=r'data/test.txt'f5 = open(testfile, 'r')src=[]rel=[]dst=[]for line in f5:l=line.strip().split("\t")h=int(l[0])r=int(l[1])t=int(l[2])src.append(h)rel.append(r)dst.append(t)print("# testing edges: ",len(src))src=torch.LongTensor(src)rel=torch.LongTensor(rel)dst=torch.LongTensor(dst)triplets_test = torch.stack([src,rel, dst], dim=1)# create RGCN modelmodel = LinkPredict(num_nodes, num_rels).to(device)# trainmodel_state_file = 'model_state.pth'train(dataloader, test_g, test_nids, triplets_test, device, model_state_file, model)# testingprint("Testing...")checkpoint = torch.load(model_state_file)model = model.cpu() # test on CPUmodel.eval()model.load_state_dict(checkpoint['state_dict'])embed = model(test_g, test_nids)best_mrr = calc_mrr(embed, model.w_relation,triplets_test,batch_size=500)print("Best MRR {:.4f} achieved using the epoch {:04d}".format(best_mrr, checkpoint['epoch']))

但是,这个代码的效果并不太好，贴在这里只是做个过程记录，同样的数据集，为什么这样简单的构图效果就没有dgl库里自己构图的效果好呢？说实话我也不知道(°ー°〃)我也看了dgl库里处理数据然后构图的代码，确实要精细很多，我就认为是预处理数据的方式不一样导致效果的差别吧。因此下面要说的就是如何在如何在DGL库的链接预测数据集模块定义自己的数据集类，将自己的数据集输入，使用dgl库中处理数据的方法处理我们的数据，再像刚刚调用FB15k237数据集那样调用自己的数据集。

- step 1 ：

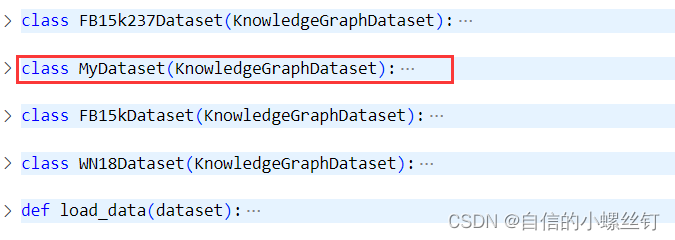

找到你的dgl.data.knowledge_graph.py文件，（我这里使用的版本是dgl 0.9.0），在这个文件中，定义了FB15k237Dataset，FB15Dataset和WN18Dataset三个常用的知识图谱数据集类，我们添加一个自己的数据集类MyDataset（其实就是copy了一下别的类(°ー°〃)）

把name改成mydata:

class MyDataset(KnowledgeGraphDataset):def __init__(self, reverse=True, raw_dir=None, force_reload=False,verbose=True, transform=None):name = 'mydata'super(MyDataset, self).__init__(name, reverse, raw_dir,force_reload, verbose, transform)def __getitem__(self, idx):r"""Gets the graph object """return super(MyDataset, self).__getitem__(idx)def __len__(self):r"""The number of graphs in the dataset."""return super(MyDataset, self).__len__()

- step 2：

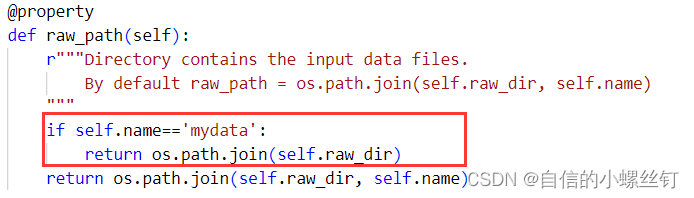

找到你的dgl.data.dgl_dataset.py文件，找到下图对应的代码位置，加入框框内的代码：
（至于为什么要这样呢，，，，自己看代码吧，虽然我也很想做记录，方便自己下次看懂，但是感觉要讲的话将不太清楚，打半天字解释不如自己看看代码咋写的 ┭┮﹏┭┮）

if self.name=='mydata':return os.path.join(self.raw_dir)

- step 3：

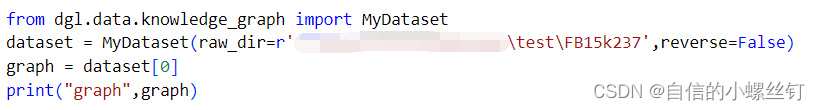

在rgcn的链接预测代码里调用一下自己的数据就好啦，下面是一个简单的demo，这样就可以调用自己的数据集类了。

from dgl.data.knowledge_graph import MyDataset
dataset = MyDataset(raw_dir=r'你自己装数据集的文件夹位置',reverse=False)

- step 4：

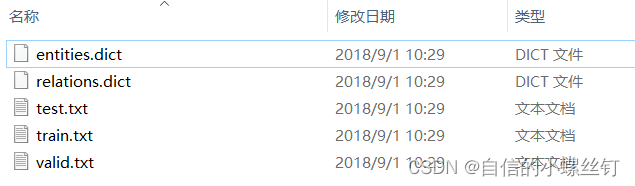

还有十分重要的一点就是，数据集的格式，我是把自己的数据集都设成了和它调用的FB15k237数据集一样的格式，因为step 3中要写入的文件夹地址内要包含的文件有5个：entities.dict，relations.dict，train.txt，valid.txt，test.txt。

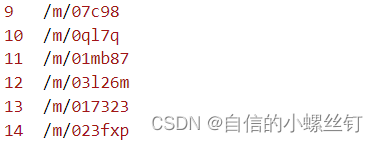

entities.dict和relations.dict分别代表实体编号到实体描述的映射，关系编号到关系描述的映射，类似这样：

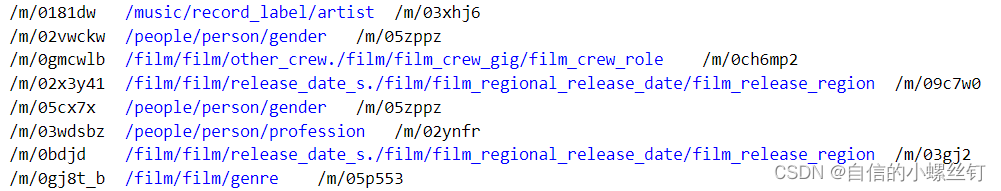

train.txt，valid.txt，test.txt这三个文件代表训练集，验证集和测试集的还没有被映射为编号的(h,r,t)格式的三元组，类似这样：（它们中间的间隔均是'\t')

把我改过的最终的rgcn代码贴在下面，做个记录，其中我对calc_mrr函数做了修改的，它原本的代码里只有mrr一个评估指标，我增加了mr，hist@1，hist@3，hist@10这几个指标，在代码里看吧：

import numpy as np
import torch
import torch.nn as nn
import torch.nn.functional as F
import dgl
from dgl.data.knowledge_graph import FB15k237Dataset
from dgl.data.knowledge_graph import FB15kDataset
from dgl.data.knowledge_graph import MyDataset
from dgl.dataloading import GraphDataLoader
from dgl.nn.pytorch import RelGraphConv
import tqdm# for building training/testing graphs
def get_subset_g(g, mask, num_rels, bidirected=False):src, dst = g.edges()sub_src = src[mask]sub_dst = dst[mask]sub_rel = g.edata['etype'][mask]if bidirected:sub_src, sub_dst = torch.cat([sub_src, sub_dst]), torch.cat([sub_dst, sub_src])sub_rel = torch.cat([sub_rel, sub_rel + num_rels])sub_g = dgl.graph((sub_src, sub_dst), num_nodes=g.num_nodes())sub_g.edata[dgl.ETYPE] = sub_relreturn sub_gclass GlobalUniform:def __init__(self, g, sample_size):self.sample_size = sample_sizeself.eids = np.arange(g.num_edges())def sample(self):return torch.from_numpy(np.random.choice(self.eids, self.sample_size))class NegativeSampler:def __init__(self, k=10): # negative sampling rate = 10self.k = kdef sample(self, pos_samples, num_nodes):batch_size = len(pos_samples)neg_batch_size = batch_size * self.kneg_samples = np.tile(pos_samples, (self.k, 1))values = np.random.randint(num_nodes, size=neg_batch_size)choices = np.random.uniform(size=neg_batch_size)subj = choices > 0.5obj = choices <= 0.5neg_samples[subj, 0] = values[subj]neg_samples[obj, 2] = values[obj]samples = np.concatenate((pos_samples, neg_samples))# binary labels indicating positive and negative sampleslabels = np.zeros(batch_size * (self.k + 1), dtype=np.float32)labels[:batch_size] = 1return torch.from_numpy(samples), torch.from_numpy(labels)class SubgraphIterator:def __init__(self, g, num_rels, sample_size=30000, num_epochs=6000):self.g = gself.num_rels = num_relsself.sample_size = sample_sizeself.num_epochs = num_epochsself.pos_sampler = GlobalUniform(g, sample_size)self.neg_sampler = NegativeSampler()def __len__(self):return self.num_epochsdef __getitem__(self, i):eids = self.pos_sampler.sample()src, dst = self.g.find_edges(eids)src, dst = src.numpy(), dst.numpy()rel = self.g.edata[dgl.ETYPE][eids].numpy()# relabel nodes to have consecutive node IDsuniq_v, edges = np.unique((src, dst), return_inverse=True)num_nodes = len(uniq_v)# edges is the concatenation of src, dst with relabeled IDsrc, dst = np.reshape(edges, (2, -1))relabeled_data = np.stack((src, rel, dst)).transpose()samples, labels = self.neg_sampler.sample(relabeled_data, num_nodes)# use only half of the positive edgeschosen_ids = np.random.choice(np.arange(self.sample_size),size=int(self.sample_size / 2),replace=False)src = src[chosen_ids]dst = dst[chosen_ids]rel = rel[chosen_ids]src, dst = np.concatenate((src, dst)), np.concatenate((dst, src))rel = np.concatenate((rel, rel + self.num_rels))sub_g = dgl.graph((src, dst), num_nodes=num_nodes)sub_g.edata[dgl.ETYPE] = torch.from_numpy(rel)sub_g.edata['norm'] = dgl.norm_by_dst(sub_g).unsqueeze(-1)uniq_v = torch.from_numpy(uniq_v).view(-1).long()return sub_g, uniq_v, samples, labelsclass RGCN(nn.Module):def __init__(self, num_nodes, h_dim, num_rels):super().__init__()# two-layer RGCNself.emb = nn.Embedding(num_nodes, h_dim)self.conv1 = RelGraphConv(h_dim, h_dim, num_rels, regularizer='bdd',num_bases=100, self_loop=True)self.conv2 = RelGraphConv(h_dim, h_dim, num_rels, regularizer='bdd',num_bases=100, self_loop=True)self.dropout = nn.Dropout(0.2)def forward(self, g, nids):x = self.emb(nids)h = F.relu(self.conv1(g, x, g.edata[dgl.ETYPE], g.edata['norm']))h = self.dropout(h)h = self.conv2(g, h, g.edata[dgl.ETYPE], g.edata['norm'])return self.dropout(h)class LinkPredict(nn.Module):def __init__(self, num_nodes, num_rels, h_dim = 500, reg_param=0.01):super().__init__()self.rgcn = RGCN(num_nodes, h_dim, num_rels * 2)self.reg_param = reg_paramself.w_relation = nn.Parameter(torch.Tensor(num_rels, h_dim))nn.init.xavier_uniform_(self.w_relation,gain=nn.init.calculate_gain('relu'))def calc_score(self, embedding, triplets):s = embedding[triplets[:,0]]r = self.w_relation[triplets[:,1]]o = embedding[triplets[:,2]]score = torch.sum(s * r * o, dim=1)return scoredef forward(self, g, nids):return self.rgcn(g, nids)def regularization_loss(self, embedding):return torch.mean(embedding.pow(2)) + torch.mean(self.w_relation.pow(2))def get_loss(self, embed, triplets, labels):# each row in the triplets is a 3-tuple of (source, relation, destination)score = self.calc_score(embed, triplets)predict_loss = F.binary_cross_entropy_with_logits(score, labels)reg_loss = self.regularization_loss(embed)return predict_loss + self.reg_param * reg_lossdef filter(triplets_to_filter, target_s, target_r, target_o, num_nodes, filter_o=True):"""Get candidate heads or tails to score"""target_s, target_r, target_o = int(target_s), int(target_r), int(target_o)# Add the ground truth node firstif filter_o:candidate_nodes = [target_o]else:candidate_nodes = [target_s]for e in range(num_nodes):triplet = (target_s, target_r, e) if filter_o else (e, target_r, target_o)# Do not consider a node if it leads to a real tripletif triplet not in triplets_to_filter:candidate_nodes.append(e)return torch.LongTensor(candidate_nodes)def perturb_and_get_filtered_rank(emb, w, s, r, o, test_size, triplets_to_filter, filter_o=True):"""Perturb subject or object in the triplets"""num_nodes = emb.shape[0]ranks = []for idx in tqdm.tqdm(range(test_size), desc="Evaluate"):target_s = s[idx]target_r = r[idx]target_o = o[idx]candidate_nodes = filter(triplets_to_filter, target_s, target_r,target_o, num_nodes, filter_o=filter_o)if filter_o:emb_s = emb[target_s]emb_o = emb[candidate_nodes]else:emb_s = emb[candidate_nodes]emb_o = emb[target_o]target_idx = 0emb_r = w[target_r]emb_triplet = emb_s * emb_r * emb_oscores = torch.sigmoid(torch.sum(emb_triplet, dim=1))_, indices = torch.sort(scores, descending=True)rank = int((indices == target_idx).nonzero())ranks.append(rank)return torch.LongTensor(ranks)def calc_mrr(emb, w, test_mask, triplets_to_filter, batch_size=100, filter=True):with torch.no_grad():test_triplets = triplets_to_filter[test_mask]s, r, o = test_triplets[:,0], test_triplets[:,1], test_triplets[:,2]test_size = len(s)triplets_to_filter = {tuple(triplet) for triplet in triplets_to_filter.tolist()}ranks_s = perturb_and_get_filtered_rank(emb, w, s, r, o, test_size,triplets_to_filter, filter_o=False)ranks_o = perturb_and_get_filtered_rank(emb, w, s, r, o,test_size, triplets_to_filter)ranks = torch.cat([ranks_s, ranks_o])ranks += 1 # change to 1-indexedmrr = torch.mean(1.0 / ranks.float()).item()mr = torch.mean(ranks.float()).item()print("MRR (filtered): {:.6f}".format(mrr))print("MR (filtered): {:.6f}".format(mr))hits=[1,3,10]for hit in hits:avg_count = torch.mean((ranks <= hit).float())print("Hits (filtered) @ {}: {:.6f}".format(hit, avg_count.item()))return mrrdef train(dataloader, test_g, test_nids, test_mask, triplets, device, model_state_file, model):optimizer = torch.optim.Adam(model.parameters(), lr=1e-2)best_mrr = 0for epoch, batch_data in enumerate(dataloader): # single graph batchmodel.train()g, train_nids, edges, labels = batch_datag = g.to(device)train_nids = train_nids.to(device)edges = edges.to(device)labels = labels.to(device)embed = model(g, train_nids)loss = model.get_loss(embed, edges, labels)optimizer.zero_grad()loss.backward()nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0) # clip gradientsoptimizer.step()print("Epoch {:04d} | Loss {:.4f} | Best MRR {:.4f}".format(epoch, loss.item(), best_mrr))if (epoch + 1) % 500 == 0:# perform validation on CPU because full graph is too largemodel = model.cpu()model.eval()embed = model(test_g, test_nids)mrr = calc_mrr(embed, model.w_relation, test_mask, triplets,batch_size=500)# save best modelif best_mrr < mrr:best_mrr = mrrtorch.save({'state_dict': model.state_dict(), 'epoch': epoch}, model_state_file)model = model.to(device)if __name__ == '__main__':device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')print(f'Training with DGL built-in RGCN module')# load and preprocess dataset# data = FB15k237Dataset(reverse=False)data = MyDataset(raw_dir=r'data/FB15k237',reverse=False)g = data[0]num_nodes = g.num_nodes()num_rels = data.num_relstrain_g = get_subset_g(g, g.edata['train_mask'], num_rels)test_g = get_subset_g(g, g.edata['train_mask'], num_rels, bidirected=True)test_g.edata['norm'] = dgl.norm_by_dst(test_g).unsqueeze(-1)test_nids = torch.arange(0, num_nodes)test_mask = g.edata['test_mask']subg_iter = SubgraphIterator(train_g, num_rels) # uniform edge samplingdataloader = GraphDataLoader(subg_iter, batch_size=1, collate_fn=lambda x: x[0])# Prepare data for metric computationsrc, dst = g.edges()triplets = torch.stack([src, g.edata['etype'], dst], dim=1)# create RGCN modelmodel = LinkPredict(num_nodes, num_rels).to(device)# trainmodel_state_file = 'model_state.pth'train(dataloader, test_g, test_nids, test_mask, triplets, device, model_state_file, model)# testingprint("Testing...")checkpoint = torch.load(model_state_file)model = model.cpu() # test on CPUmodel.eval()model.load_state_dict(checkpoint['state_dict'])embed = model(test_g, test_nids)best_mrr = calc_mrr(embed, model.w_relation, test_mask, triplets,batch_size=500)print("Best MRR {:.4f} achieved using the epoch {:04d}".format(best_mrr, checkpoint['epoch']))

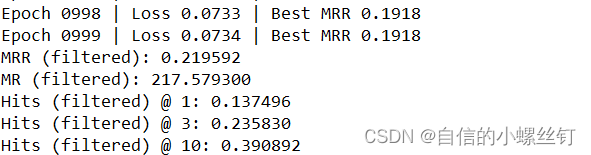

跑代码的输出图如下：

🆗，over！
