一：源码打包
这里为什么是kettle 9.2，因为kettle 9.3+需要jdk11
这里直接去下载kettle的源码，tag=9.2.0.4-R。这里需要自己搭建一个nexus仓库，因为有些包从kettle的仓库里面下载不下来。

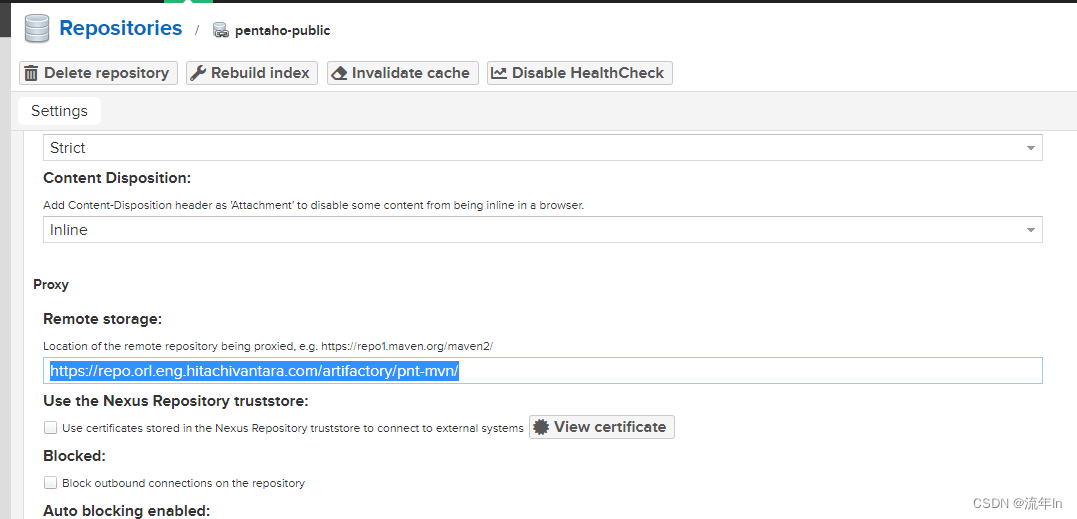

nexus新建仓库代理, 记得加到public里面去

https://repo.orl.eng.hitachivantara.com/artifactory/pnt-mvn/

完整的settings.xml

D:/tools/maven/apache-maven-3.6.3/conf/repositoryorg.pentaho.maven.pluginscom.pentaho.maven.pluginscom.github.spotbugspentaho-publicdevreaduser{zIMyJWfHKfoHiBJAVsAgW4E5BcJzR+nhTtgPy0J+/rs=}mirrorId*maven-publichttp://172.16.30.203:8081/repository/maven-public/nexusnexus-snapshotshttp://172.16.30.203:8081/repository/maven-snapshots/falsetruealwaysnexus-releaseshttp://172.16.30.203:8081/repository/maven-releases/truefalsesnapshotshttp://172.16.30.203:8081/repository/maven-snapshots/falsetruealwaysnexus-releaseshttp://172.16.30.203:8081/repository/maven-releases/truefalsenexus

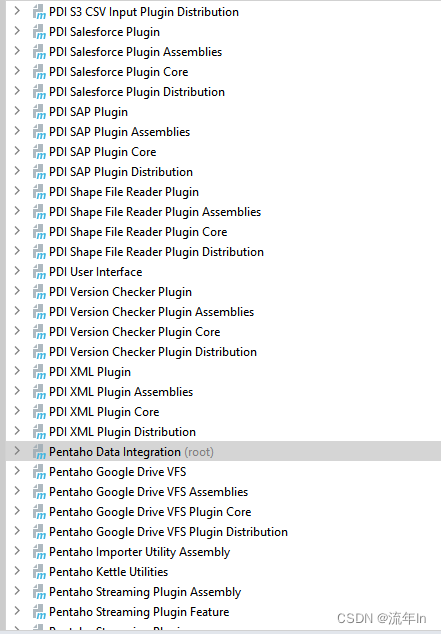

idea导入kettle，等待下载maven依赖，慢慢等，需要很长的时间。

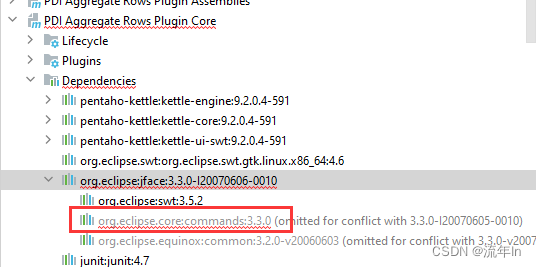

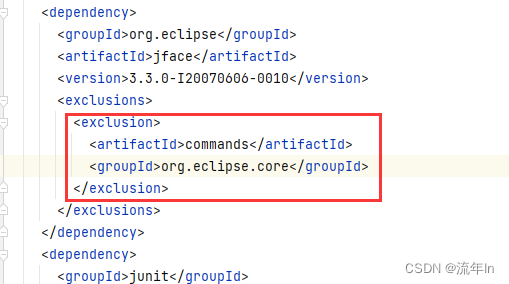

这个包在kettle的远程仓库也没有，可以直接去掉

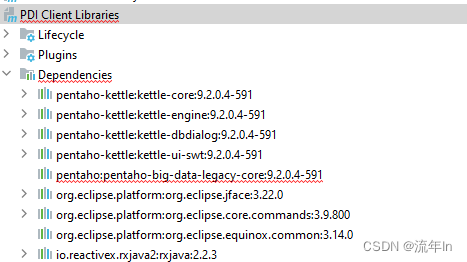

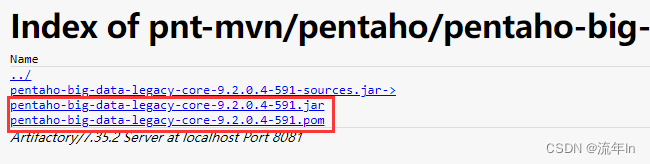

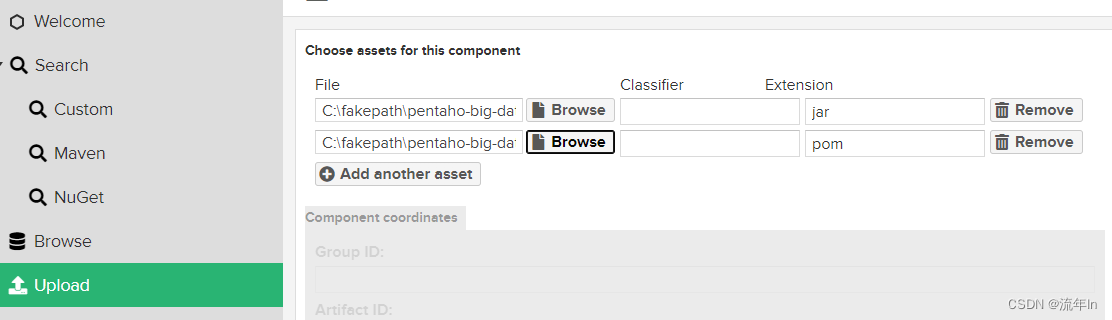

有些包在kettle的远程仓库有，但是下载不下来，解决方案是手动下载，然后上传到自己的maven仓库


这里需要删除本地的文件，上传再重新下载

maven依赖下载成功了，idea上maven依赖还是红色的，这是idea的bug，解决方案为pom.xml去掉依赖，maven刷新，再加上依赖，maven刷新。

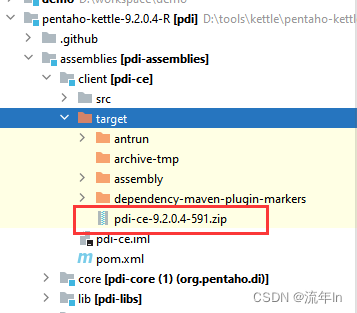

maven依赖下载成功，打包一般没问题


解压，双击Spoob.bat即可使用

二：idea开发环境启动

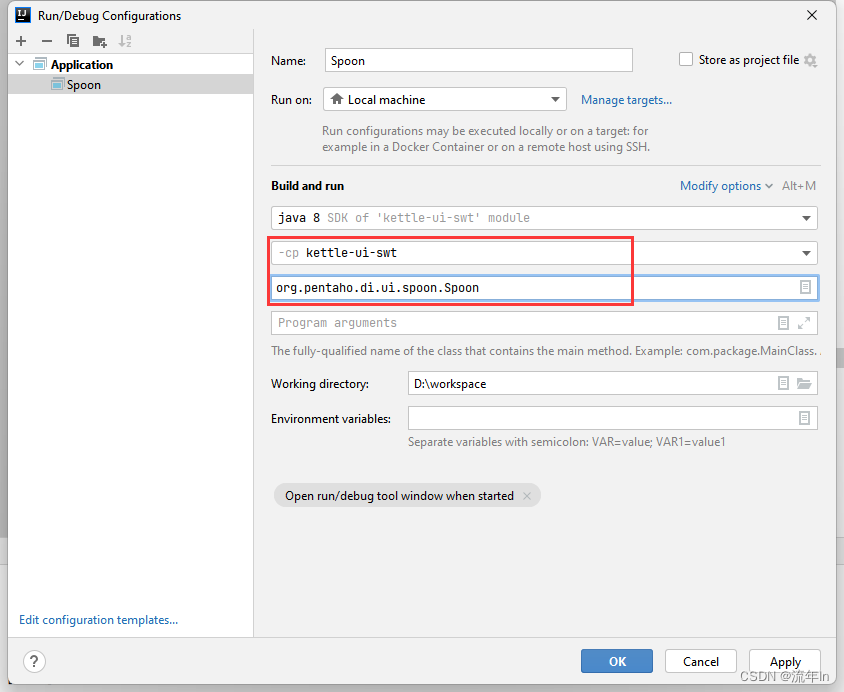

新建application

• 错误一

java.lang.UnsatisfiedLinkError: Could not load SWT library. Reasons: no swt-gtk-4623 in java.library.pathno swt-gtk in java.library.pathCan't load library: C:\Users\Administrator\.swt\lib\win32\x86_64\swt-gtk-4623.dllCan't load library: C:\Users\Administrator\.swt\lib\win32\x86_64\swt-gtk.dll

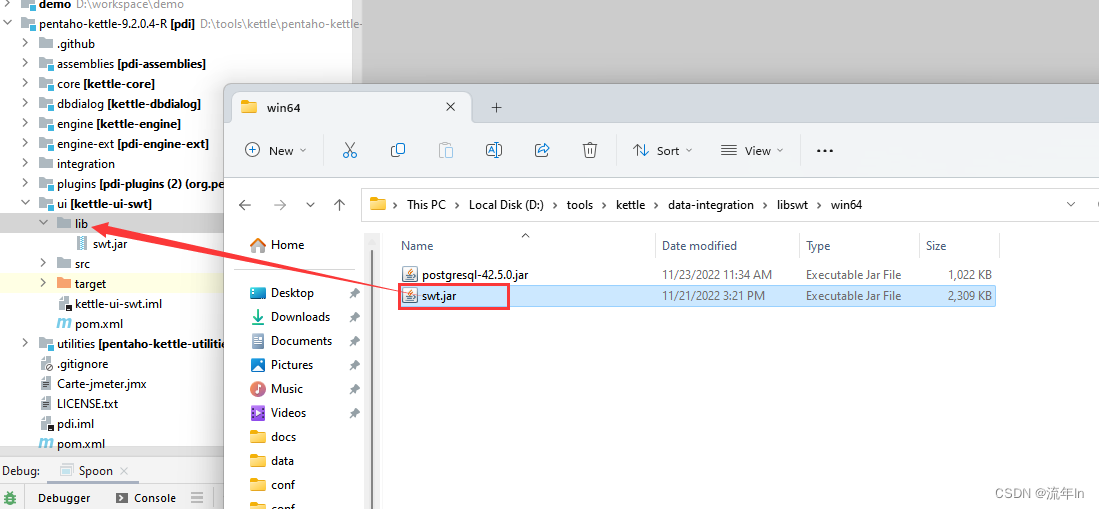

解决办法：

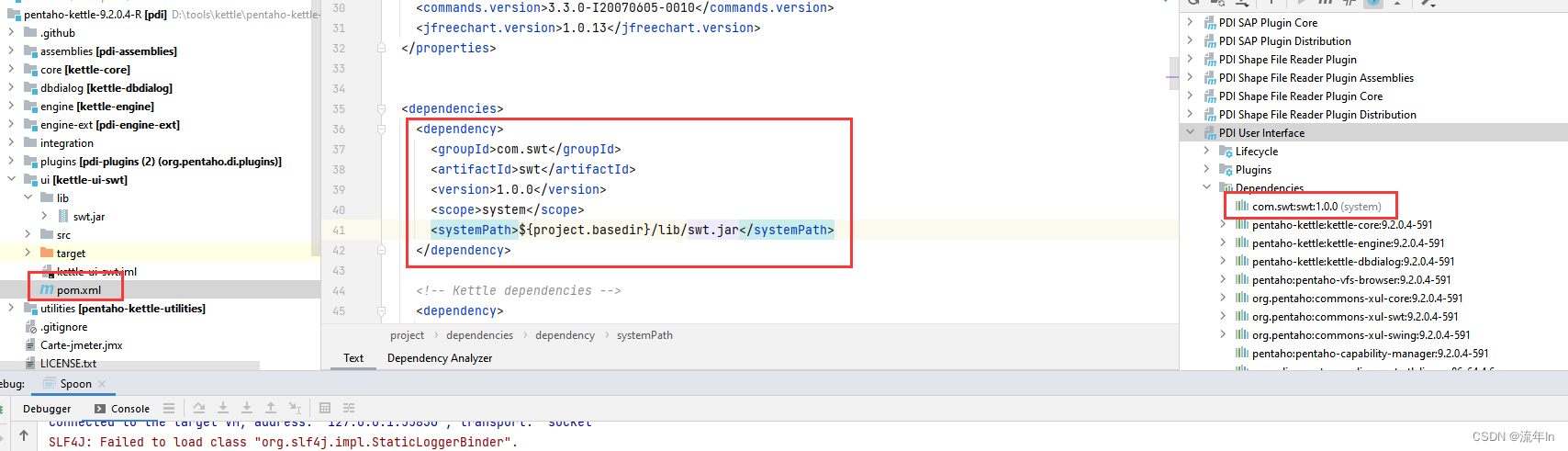

然后在ui的pom.xml添加依赖

com.swtswt1.0.0system${project.basedir}/lib/swt.jar

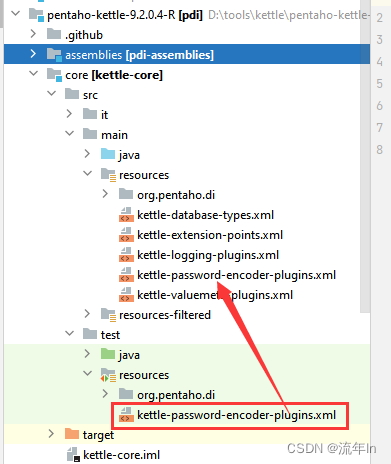

• 错误二：

org.pentaho.di.core.exception.KettleException:
Unable to find plugin with ID 'Kettle'.  If this is a test, make sure kettle-core tests jar is a dependency.  If this is live make sure a kettle-password-encoder-plugins.xml exits in the classpathat org.pentaho.di.core.encryption.Encr.init(Encr.java:61)at org.pentaho.di.core.KettleClientEnvironment.init(KettleClientEnvironment.java:124)at org.pentaho.di.core.KettleClientEnvironment.init(KettleClientEnvironment.java:80)at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:134)at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:101)at org.pentaho.di.core.KettleEnvironment.init(KettleEnvironment.java:82)at org.pentaho.di.ui.spoon.Spoon$1.call(Spoon.java:643)

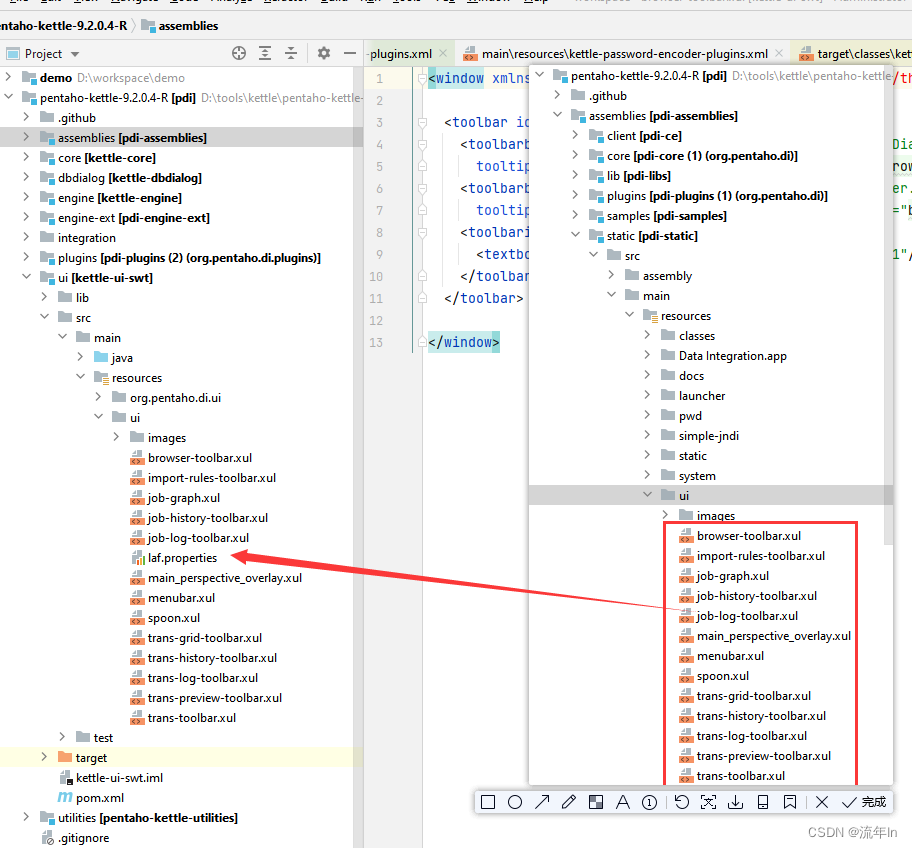

• 错误三：

2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : Error initializing transformation
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : org.pentaho.ui.xul.XulException: Can not locate Xul document [ui/spoon.xul]
2022/11/23 18:23:44 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.findDocument(AbstractXulLoader.java:512)
2022/11/23 18:23:44 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:229)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:870)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : Error starting Spoon shell
2022/11/23 18:23:44 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:23:42.892 by Administrator) : java.lang.NullPointerException
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:923)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:23:44 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:23:44 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)

• 错误四

2022/11/23 18:27:07 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:27:05.372 by Administrator) : Error starting Spoon shell
2022/11/23 18:27:07 - General - ERROR (version Unknown, build 0 from 2022/11/23 18:27:05.372 by Administrator) : java.lang.NoClassDefFoundError: org/jaxen/JaxenException
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.preProcess(AbstractXulLoader.java:357)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:113)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:128)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.swt.SwtXulLoader.loadXul(SwtXulLoader.java:122)
2022/11/23 18:27:07 - General - 	at org.pentaho.ui.xul.impl.AbstractXulLoader.loadXul(AbstractXulLoader.java:239)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.init(Spoon.java:870)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.createContents(Spoon.java:9352)
2022/11/23 18:27:07 - General - 	at org.eclipse.jface.window.Window.create(Window.java:431)
2022/11/23 18:27:07 - General - 	at org.eclipse.jface.window.Window.open(Window.java:788)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.start(Spoon.java:9383)
2022/11/23 18:27:07 - General - 	at org.pentaho.di.ui.spoon.Spoon.main(Spoon.java:711)
2022/11/23 18:27:07 - General - Caused by: java.lang.ClassNotFoundException: org.jaxen.JaxenException
2022/11/23 18:27:07 - General - 	at java.net.URLClassLoader.findClass(URLClassLoader.java:382)
2022/11/23 18:27:07 - General - 	at java.lang.ClassLoader.loadClass(ClassLoader.java:418)
2022/11/23 18:27:07 - General - 	at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:355)
2022/11/23 18:27:07 - General - 	at java.lang.ClassLoader.loadClass(ClassLoader.java:351)

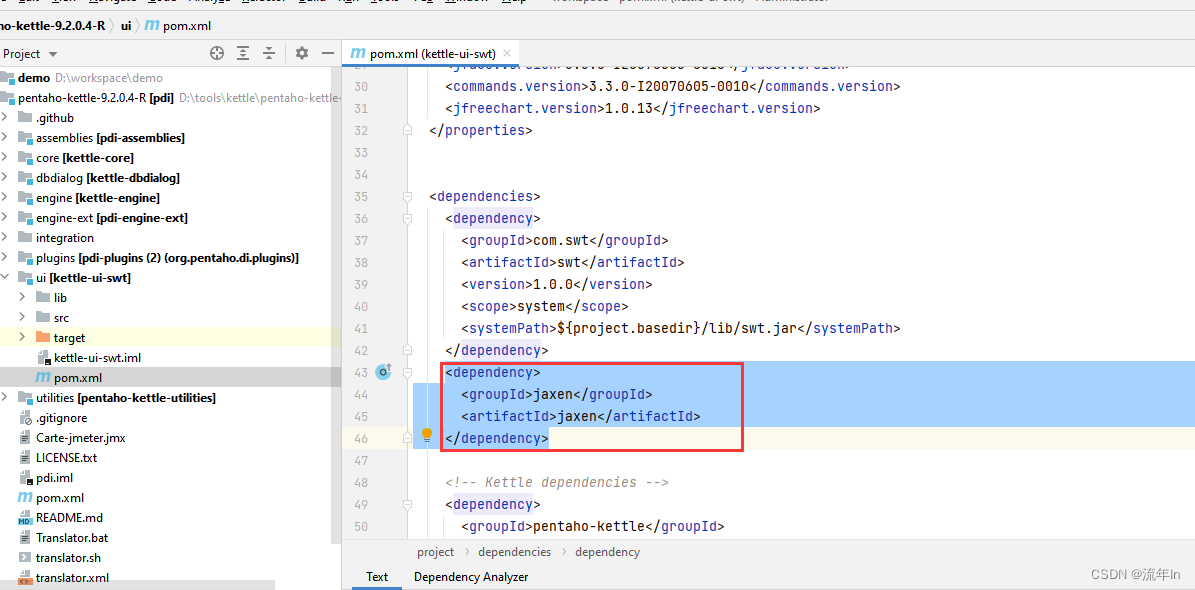

ui添加依赖

jaxenjaxen

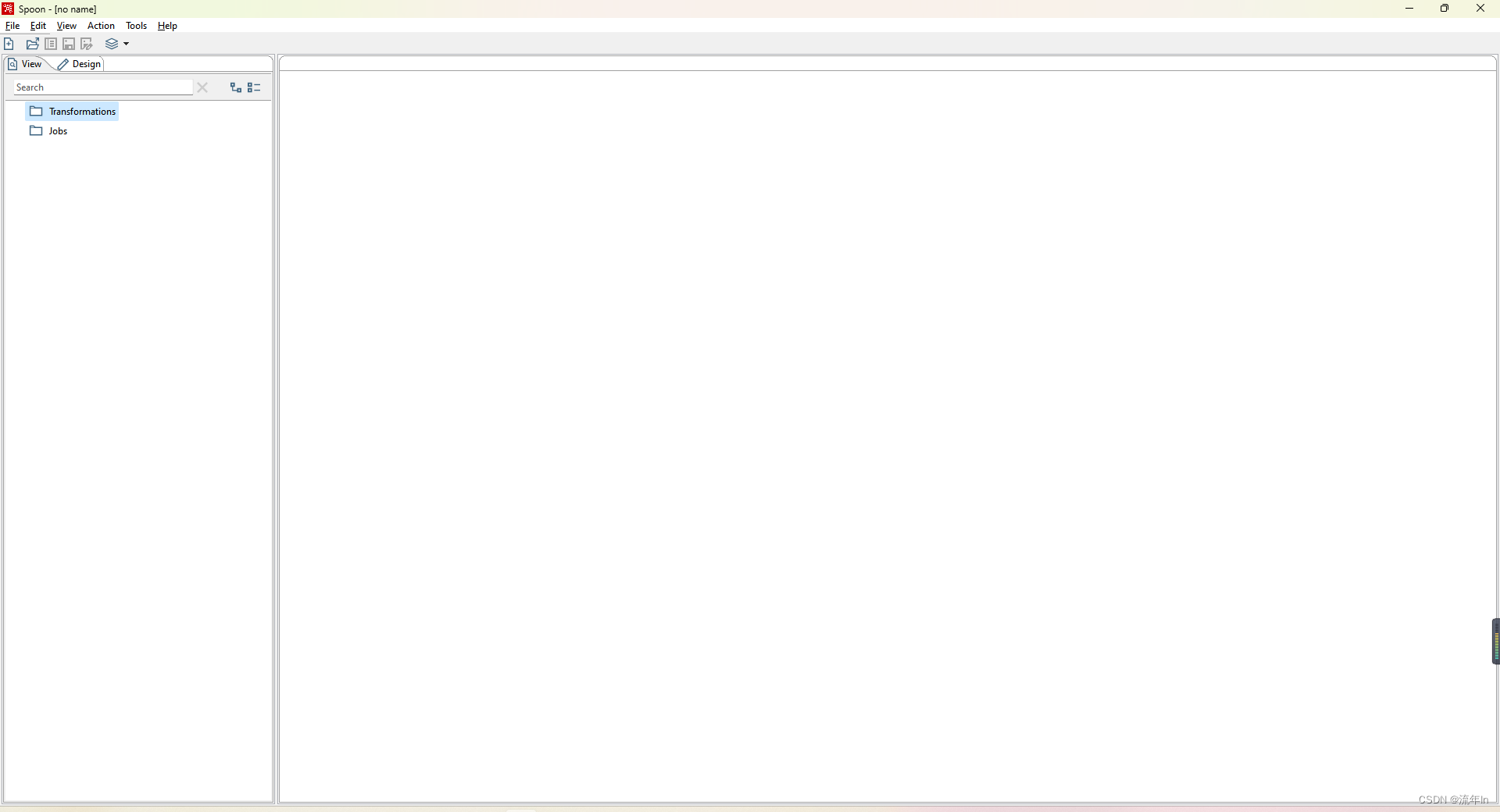

启动成功
