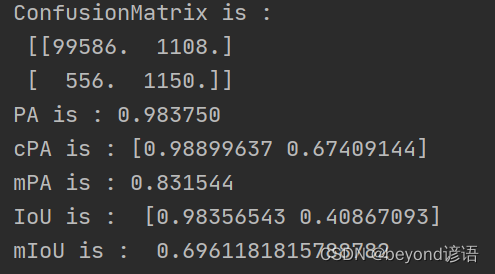

当训练好模型之后，检测模型训练效果如何，评价指标有哪些？通过查阅相关资料，我将以这五个指标来对所训练的模型进行评估，下图是评价指标运行结果图。

一、混淆矩阵（Confusion Matrix）

解释：也就是个n维矩阵，n表示分类的类别数。
具体的表示如下(这里以二分类任务为例)：也就是图中的二维矩阵

上述的所有指标都是建立在混淆矩阵的基础上进行计算的
我这里以织物毛球和纹理进行识别，毛球为Positive，纹理为Negative
这个二维矩阵有四个参数：

这些值对测试图像中所有像素点进行分类统计

代码实现：

修改：SegmentationMetric(2)改成实际训练模型的分类数，我这个模型训练的是二分类任务
imgPredict和imgLabel 改成自己模型预测的图像和标签图像的路径
实际上，imgLabel为正确答案，依次遍历imgPredict中像素点，与正确答案进行对比，统计上述参数的个数，最后绘制成混淆矩阵。

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel): mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrix# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")= cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)print('ConfusionMatrix is :\n', ConfusionMatrix)

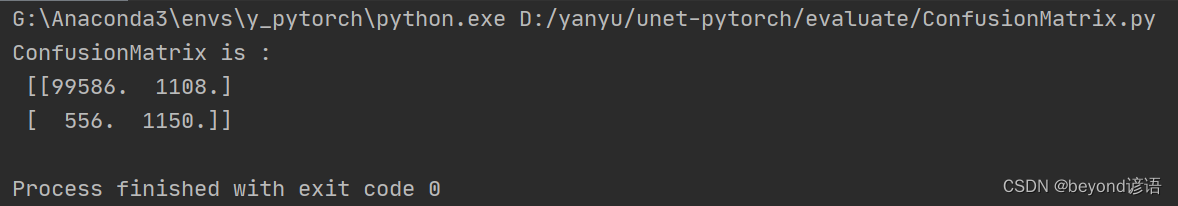

运行结果如下：

二、像素准确率PA（Pixel Accuracy）

PA最后的输出是一个数值，因为是，无论多少类别的分类，都是跟标准标签进行对比，一致就是True，不一致就是False

PA，别的论文也称为准确率、Acc等，都指的是像素准确率
Accuracy = (TP + TN) / (TP + TN + FP + FN)，也就是对角线元素之和/总的元素之和
（99586+1150）/（99586+1108+556+1150）= 0.983750，这也对应了第一张图的显示结果

代码实现：

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel):mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrixdef pixelAccuracy(self):acc = np.diag(self.confusionMatrix).sum() / self.confusionMatrix.sum()return acc# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)PixelAccuracy = metric.pixelAccuracy()print('PixelAccuracy is :\n', PixelAccuracy)

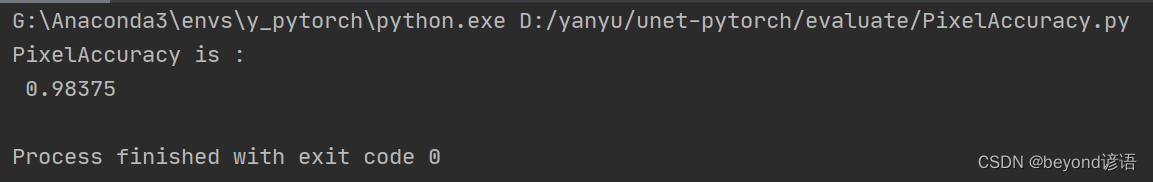

运行结果如下：

三、类别像素准确率CPA（Class Pixel Accuracy）

CPA与PA不同，PA是将整体区分True和False最后结果是一个数值
CPA则先将不同的类别进行划分，每个类别再分别与标签给定的正确答案进行对比统计，最后的个数是类别个数，有几个类别就是几个数值。

代码实现：

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel):mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrixdef classPixelAccuracy(self):classAcc = np.diag(self.confusionMatrix) / self.confusionMatrix.sum(axis=1)return classAcc  # 返回的是一个列表值，如：[0.90, 0.80, 0.96]，表示类别1 2 3各类别的预测准确率# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)cpa = metric.classPixelAccuracy()print('classPixelAccuracy is :\n', cpa)

因为是二分类任务，故分别显示这两个类别的PA值

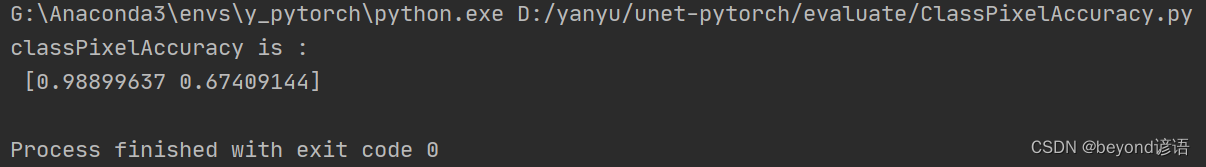

运行效果如下：

四、类别平均像素准确率MPA（Mean class Pixel Accuracy）

也就是将所有的CPA加一块，求个平均值

代码实现：

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel):mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrixdef classPixelAccuracy(self):classAcc = np.diag(self.confusionMatrix) / self.confusionMatrix.sum(axis=1)return classAcc  # 返回的是一个列表值，如：[0.90, 0.80, 0.96]，表示类别1 2 3各类别的预测准确率def meanPixelAccuracy(self):classAcc = self.classPixelAccuracy()meanAcc = np.nanmean(classAcc)  # np.nanmean 求平均值，nan表示遇到Nan类型，其值取为0return meanAcc  # 返回单个值，如：np.nanmean([0.90, 0.80, 0.96, nan, nan]) = (0.90 + 0.80 + 0.96） / 3 =  0.89# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)mpa = metric.meanPixelAccuracy()print('meanPixelAccuracy is :\n', mpa)

（0.98899637+0.67409144）/ 2 = 0.831543905

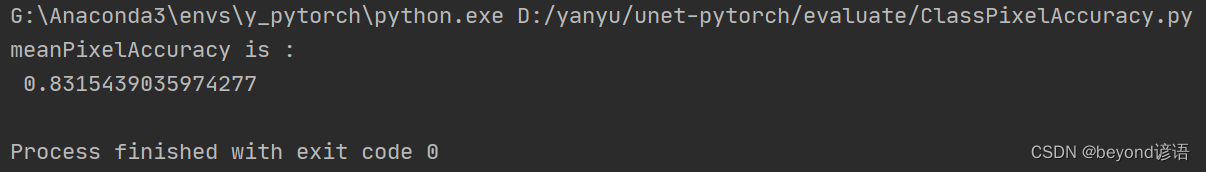

运行结果如下：

五、交并比IoU（Intersection Over Union）

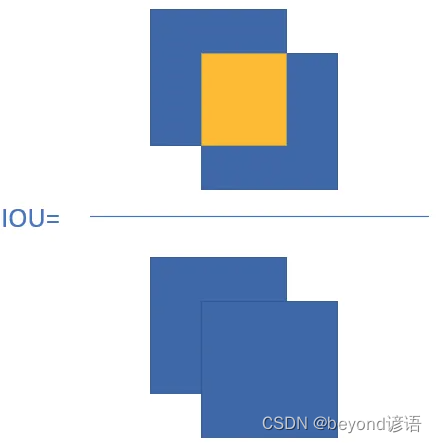

通俗来说：将标签图像和模型预测出的图像重叠一下，分别取交集和并集，这里的交集和并集取得是统计像素点的个数
IoU是按不同类别分别进行求解的，几个类别就有几个IoU
IoU = 交集 / 并集

代码实现：

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel):mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrixdef pixelAccuracy(self):acc = np.diag(self.confusionMatrix).sum() / self.confusionMatrix.sum()return accdef IntersectionOverUnion(self):# Intersection = TP Union = TP + FP + FN# IoU = TP / (TP + FP + FN)intersection = np.diag(self.confusionMatrix)  # 取对角元素的值，返回列表union = np.sum(self.confusionMatrix, axis=1) + np.sum(self.confusionMatrix, axis=0) - np.diag(self.confusionMatrix)  # axis = 1表示混淆矩阵行的值，返回列表； axis = 0表示取混淆矩阵列的值，返回列表IoU = intersection / union  # 返回列表，其值为各个类别的IoUreturn IoU
# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)IoU = metric.IntersectionOverUnion()print('IntersectionOverUnion is :\n', IoU)

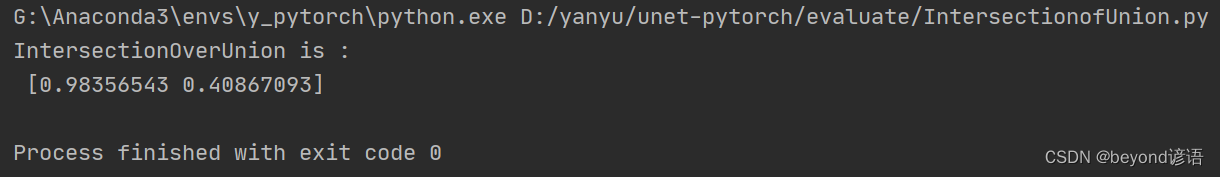

效果图如下：

六、平均交并比MIoU（Mean Intersection Over Union）

将不同类别的IoU求个平均数

代码实现：

import numpy as np
import cv2class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef genConfusionMatrix(self, imgPredict, imgLabel):mask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)return confusionMatrixdef pixelAccuracy(self):acc = np.diag(self.confusionMatrix).sum() / self.confusionMatrix.sum()return accdef IntersectionOverUnion(self):# Intersection = TP Union = TP + FP + FN# IoU = TP / (TP + FP + FN)intersection = np.diag(self.confusionMatrix)  # 取对角元素的值，返回列表union = np.sum(self.confusionMatrix, axis=1) + np.sum(self.confusionMatrix, axis=0) - np.diag(self.confusionMatrix)  # axis = 1表示混淆矩阵行的值，返回列表； axis = 0表示取混淆矩阵列的值，返回列表IoU = intersection / union  # 返回列表，其值为各个类别的IoUreturn IoUdef meanIntersectionOverUnion(self):mIoU = np.nanmean(self.IntersectionOverUnion())  # 求各类别IoU的平均return mIoU
# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)metric = SegmentationMetric(2)  # 2表示有2个分类ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)mIoU = metric.meanIntersectionOverUnion()print('meanIntersectionOverUnion is :\n', mIoU)

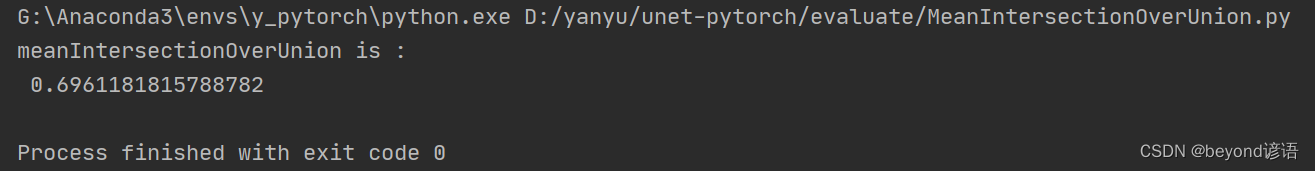

运行结果如下：

七、完整代码

import numpy as np
import cv2__all__ = ['SegmentationMetric']"""
confusionMetric  # 注意：此处横着代表预测值，竖着代表真实值
P\L     P    N
P      TP    FP
N      FN    TN
"""class SegmentationMetric(object):def __init__(self, numClass):self.numClass = numClassself.confusionMatrix = np.zeros((self.numClass,) * 2)  # 混淆矩阵（空）def pixelAccuracy(self):# return all class overall pixel accuracy 正确的像素占总像素的比例#  PA = acc = (TP + TN) / (TP + TN + FP + TN)acc = np.diag(self.confusionMatrix).sum() / self.confusionMatrix.sum()return accdef classPixelAccuracy(self):# return each category pixel accuracy(A more accurate way to call it precision)# acc = (TP) / TP + FPclassAcc = np.diag(self.confusionMatrix) / self.confusionMatrix.sum(axis=1)return classAcc  # 返回的是一个列表值，如：[0.90, 0.80, 0.96]，表示类别1 2 3各类别的预测准确率def meanPixelAccuracy(self):"""Mean Pixel Accuracy(MPA，均像素精度)：是PA的一种简单提升，计算每个类内被正确分类像素数的比例，之后求所有类的平均。:return:"""classAcc = self.classPixelAccuracy()meanAcc = np.nanmean(classAcc)  # np.nanmean 求平均值，nan表示遇到Nan类型，其值取为0return meanAcc  # 返回单个值，如：np.nanmean([0.90, 0.80, 0.96, nan, nan]) = (0.90 + 0.80 + 0.96） / 3 =  0.89def IntersectionOverUnion(self):# Intersection = TP Union = TP + FP + FN# IoU = TP / (TP + FP + FN)intersection = np.diag(self.confusionMatrix)  # 取对角元素的值，返回列表union = np.sum(self.confusionMatrix, axis=1) + np.sum(self.confusionMatrix, axis=0) - np.diag(self.confusionMatrix)  # axis = 1表示混淆矩阵行的值，返回列表； axis = 0表示取混淆矩阵列的值，返回列表IoU = intersection / union  # 返回列表，其值为各个类别的IoUreturn IoUdef meanIntersectionOverUnion(self):mIoU = np.nanmean(self.IntersectionOverUnion())  # 求各类别IoU的平均return mIoUdef genConfusionMatrix(self, imgPredict, imgLabel):  #"""同FCN中score.py的fast_hist()函数,计算混淆矩阵:param imgPredict::param imgLabel::return: 混淆矩阵"""# remove classes from unlabeled pixels in gt image and predictmask = (imgLabel >= 0) & (imgLabel < self.numClass)label = self.numClass * imgLabel[mask] + imgPredict[mask]count = np.bincount(label, minlength=self.numClass ** 2)confusionMatrix = count.reshape(self.numClass, self.numClass)# print(confusionMatrix)return confusionMatrixdef Frequency_Weighted_Intersection_over_Union(self):"""FWIoU，频权交并比:为MIoU的一种提升，这种方法根据每个类出现的频率为其设置权重。FWIOU =     [(TP+FN)/(TP+FP+TN+FN)] *[TP / (TP + FP + FN)]"""freq = np.sum(self.confusion_matrix, axis=1) / np.sum(self.confusion_matrix)iu = np.diag(self.confusion_matrix) / (np.sum(self.confusion_matrix, axis=1) + np.sum(self.confusion_matrix, axis=0) -np.diag(self.confusion_matrix))FWIoU = (freq[freq > 0] * iu[freq > 0]).sum()return FWIoUdef addBatch(self, imgPredict, imgLabel):assert imgPredict.shape == imgLabel.shapeself.confusionMatrix += self.genConfusionMatrix(imgPredict, imgLabel)  # 得到混淆矩阵return self.confusionMatrixdef reset(self):self.confusionMatrix = np.zeros((self.numClass, self.numClass))# 测试内容
if __name__ == '__main__':imgPredict = cv2.imread("../result/qqq.png")imgLabel = cv2.imread("../result/img.jpg")#"../result/standard/mask/SM50GRADE1PLAIN(1).jpg"#"../result/predict/image/SM50GRADE1BLANKET(1).jpg"imgPredict = np.array(cv2.cvtColor(imgPredict, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)imgLabel = np.array(cv2.cvtColor(imgLabel, cv2.COLOR_BGR2GRAY) / 255., dtype=np.uint8)# imgPredict = np.array([0, 0, 1, 1, 2, 2])  # 可直接换成预测图片# imgLabel = np.array([0, 0, 1, 1, 2, 2])  # 可直接换成标注图片metric = SegmentationMetric(2)  # 2表示有2个分类，有几个分类就填几ConfusionMatrix = metric.addBatch(imgPredict, imgLabel)pa = metric.pixelAccuracy()cpa = metric.classPixelAccuracy()mpa = metric.meanPixelAccuracy()IoU = metric.IntersectionOverUnion()mIoU = metric.meanIntersectionOverUnion()print('ConfusionMatrix is :\n', ConfusionMatrix)print('PA is : %f' % pa)print('cPA is :', cpa)print('mPA is : %f' % mpa)print('IoU is : ', IoU)print('mIoU is : ', mIoU)

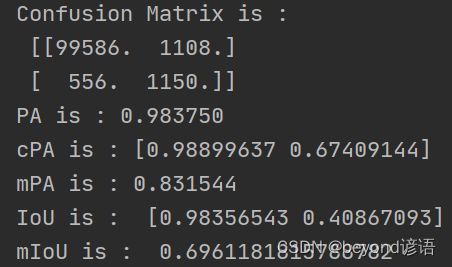

效果图如下：
