概述

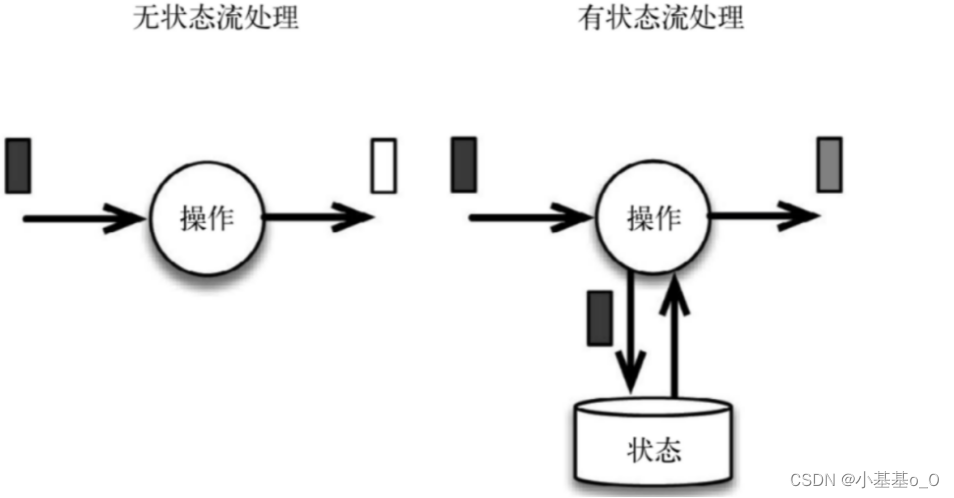

流式计算 分为 无状态计算 和 有状态计算

流处理的状态功能：去重、监控……

Managed State

RawState是在已有算子和ManagedState不够用时才使用
一般来说，ManagedState已经够用，下面重点学习

本文开发环境是WIN10+IDEA；Flink版本是1.14

881.14.62.122.0.32.17.22.0.191.18.24


org.apache.flinkflink-java${flink.version}org.apache.flinkflink-streaming-java_${scala.binary.version}${flink.version}org.apache.flinkflink-clients_${scala.binary.version}${flink.version}org.apache.flinkflink-runtime-web_${scala.binary.version}${flink.version}org.slf4jslf4j-api${slf4j.version}org.slf4jslf4j-log4j12${slf4j.version}org.apache.logging.log4jlog4j-to-slf4j${log4j.version}

Operator State

• 算子状态可用在所有算子上，每个算子子任务（SubTask）共享一个状态
  算子子任务之间的状态不能互相访问
• 下面以列表状态和广播状态为例

ListState

列表状态 可与 检查点 合用，来 定期保存和清空状态

import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.state.ListState;
import org.apache.flink.api.common.state.ListStateDescriptor;
import org.apache.flink.runtime.state.FunctionInitializationContext;
import org.apache.flink.runtime.state.FunctionSnapshotContext;
import org.apache.flink.streaming.api.checkpoint.CheckpointedFunction;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;public class Hello {public static void main(String[] args) throws Exception {StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//每3秒1次Checkpointingenv.enableCheckpointing(3000L);//创建数据源，每秒1个数据DataStreamSource dss = env.addSource(new MySource());//测试状态和检查点dss.map(new MyMapFunction()).print();//流环境执行env.execute();}private static class MyMapFunction implements MapFunction, CheckpointedFunction {private ListState state;@Overridepublic String map(Integer value) throws Exception {state.add(value);return state.get().toString();}@Overridepublic void snapshotState(FunctionSnapshotContext context) {System.out.println("Checkpoint时调用snapshotState，清空状态");state.clear();}@Overridepublic void initializeState(FunctionInitializationContext context) throws Exception {System.out.println("创建状态");state = context.getOperatorStateStore().getListState(new ListStateDescriptor<>("", Integer.class));}}public static class MySource implements SourceFunction {public MySource() {}@Overridepublic void run(SourceContext sc) throws InterruptedException {for (int i = 0; i < 99; i++) {sc.collect(i);Thread.sleep(1000L);}}@Overridepublic void cancel() {}}
}

测试结果

创建状态
[0]
[0, 1]
Checkpoint时调用snapshotState，清空状态
[2]
[2, 3]
[2, 3, 4]
Checkpoint时调用snapshotState，清空状态
[5]
[5, 6]
[5, 6, 7]
Checkpoint时调用snapshotState，清空状态
[8]
……

BroadcastState

import org.apache.flink.api.common.state.BroadcastState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.common.state.ReadOnlyBroadcastState;
import org.apache.flink.streaming.api.datastream.BroadcastConnectedStream;
import org.apache.flink.streaming.api.datastream.BroadcastStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.co.BroadcastProcessFunction;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import org.apache.flink.util.Collector;import java.util.Scanner;public class Hello {final static String STATE_KEY = "";public static void main(String[] args) throws Exception {StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(3);//1、主数据流DataStreamSource mainStream = env.addSource(new AutomatedSource());//1、控制主数据的辅助流DataStreamSource branchStream = env.addSource(new ManualSource());//2、创建状态描述符MapStateDescriptor stateDescriptor = new MapStateDescriptor<>("", String.class, Long.class);//2、创建广播流BroadcastStream broadcastStream = branchStream.broadcast(stateDescriptor);//3、主数据流 连接 广播流BroadcastConnectedStream b = mainStream.connect(broadcastStream);//BroadcastProcessFunctionb.process(new BroadcastProcessFunction() {//processBroadcastElement(final IN2 value, final Context ctx, final Collector out)@Overridepublic void processBroadcastElement(String value, Context ctx, Collector out) throws Exception {//4、获取广播状态BroadcastState state = ctx.getBroadcastState(stateDescriptor);//4、修改广播状态state.put(STATE_KEY, Long.valueOf(value));}//processElement(final IN1 value, final ReadOnlyContext ctx, final Collector out)@Overridepublic void processElement(Integer value, ReadOnlyContext ctx, Collector out) throws Exception {//5、获取只读广播状态ReadOnlyBroadcastState state = ctx.getBroadcastState(stateDescriptor);//5、从广播状态中取值Long stateValue = state.get(STATE_KEY);//6、输出if (stateValue != null) {out.collect("有请" + value + "号佳丽进入" + stateValue + "号舞台");}}}).print();//流环境执行env.execute();}/** 手动输入的数据源 */public static class ManualSource implements SourceFunction {public ManualSource() {}@Overridepublic void run(SourceFunction.SourceContext sc) {Scanner scanner = new Scanner(System.in);while (true) {String str = scanner.nextLine().trim();if (str.equals("STOP")) {break;}if (!str.equals("")) {sc.collect(str);}}scanner.close();}@Overridepublic void cancel() {}}/** 自动输入的数据源 */public static class AutomatedSource implements SourceFunction {public AutomatedSource() {}@Overridepublic void run(SourceFunction.SourceContext sc) throws InterruptedException {for (int i = 0; i < 999; i++) {Thread.sleep(2000);sc.collect(i);}}@Overridepublic void cancel() {}}
}

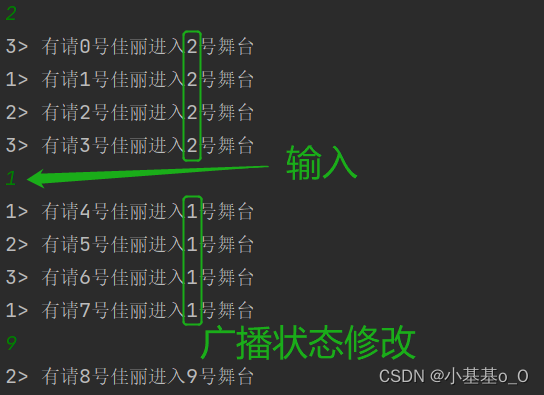

测试结果截图

Keyed State

• ValueState
  存储单个值
• ListState
  存储元素列表
• MapState
  存储键值对
• ReducingState
  存储单个值；当使用add时，ReducingState会使用指定的ReduceFunction进行聚合
• AggregatingState
  类似ReducingState，区别是：AggregatingState的 聚合结果OUT 与 输入IN 可以不同

ValueState

import org.apache.flink.api.common.state.ValueState;
import org.apache.flink.api.common.state.ValueStateDescriptor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;public class Hello {public static void main(String[] args) throws Exception {//创建流执行环境，并行度=1StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建数据源DataStreamSource dss = env.fromElements(9, 5, 2, 7);dss.keyBy(i -> true).process(new KeyedProcessFunction() {//1、声明状态变量private ValueState state;@Overridepublic void open(Configuration parameters) {//2、key范围内，实例化状态变量，状态变量是单例的state = getRuntimeContext().getState(new ValueStateDescriptor<>("", Integer.class));}@Overridepublic void processElement(Integer i, Context context, Collector out) throws Exception {//3、获取上一次状态的值Integer lastStateValue = state.value();if (lastStateValue != null) {//输出out.collect("当前输入：" + i + "；上次状态值：" + lastStateValue);}//4、更新状态的值state.update(i);}}).print();env.execute();}
}

print

当前输入：5；上次状态值：9
当前输入：2；上次状态值：5
当前输入：7；上次状态值：2

ListState

import org.apache.flink.api.common.state.ListState;
import org.apache.flink.api.common.state.ListStateDescriptor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;public class Hello {public static void main(String[] args) throws Exception {//创建流执行环境，并行度=1StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建数据源DataStreamSource dss = env.fromElements(9, 5, 2, 7);dss.keyBy(i -> true).process(new KeyedProcessFunction() {//1、声明状态列表private ListState state;@Overridepublic void open(Configuration parameters) {//2、实例化状态列表（key范围内单例）state = getRuntimeContext().getListState(new ListStateDescriptor<>("", Integer.class));}@Overridepublic void processElement(Integer i, Context context, Collector out) throws Exception {//3、添加状态值state.add(i);//4、获取并收集状态列表out.collect(state.get().toString());}}).print();env.execute();}
}

print

[9]
[9, 5]
[9, 5, 2]
[9, 5, 2, 7]

MapState

import org.apache.flink.api.common.state.MapState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;public class Hello {public static void main(String[] args) throws Exception {//创建流执行环境，并行度=1StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建数据源DataStreamSource dss = env.fromElements(9, 5, 2, 7);dss.keyBy(i -> true).process(new KeyedProcessFunction() {//1、声明状态映射private MapState state;@Overridepublic void open(Configuration parameters) {//2、实例化状态映射（分区范围内单例）state = getRuntimeContext().getMapState(new MapStateDescriptor<>("", String.class, Integer.class));}@Overridepublic void processElement(Integer i, Context context, Collector out) throws Exception {//3、添加键值对put(key,value)state.put(i.toString(), i);//4、并收集状态out.collect("keys：" + state.keys().toString());out.collect("values：" + state.values().toString());}}).print();env.execute();}
}

print

keys：[9]
values：[9]
keys：[5, 9]
values：[5, 9]
keys：[2, 5, 9]
values：[2, 5, 9]
keys：[2, 5, 7, 9]
values：[2, 5, 7, 9]

ReducingState

import org.apache.flink.api.common.state.ReducingState;
import org.apache.flink.api.common.state.ReducingStateDescriptor;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;public class Hello {public static void main(String[] args) throws Exception {//创建流执行环境，并行度=1StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建数据源DataStreamSource dss = env.fromElements(9, 5, 2, 7);dss.keyBy(i -> true).process(new KeyedProcessFunction() {//1、声明状态private ReducingState state;@Overridepublic void open(Configuration parameters) {//2、实例化状态列表（key范围内单例）state = getRuntimeContext().getReducingState(new ReducingStateDescriptor<>("", Integer::sum, Integer.class));}@Overridepublic void processElement(Integer i, Context context, Collector out) throws Exception {//3、添加状态值state.add(i);//4、获取并收集状态结果out.collect("归约值：" + state.get());}}).print();env.execute();}
}

print

归约值：9
归约值：14
归约值：16
归约值：23

AggregatingState

import org.apache.flink.api.common.functions.AggregateFunction;
import org.apache.flink.api.common.state.AggregatingState;
import org.apache.flink.api.common.state.AggregatingStateDescriptor;
import org.apache.flink.api.common.typeinfo.Types;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.util.Collector;public class Hello {public static void main(String[] args) throws Exception {//创建流执行环境，并行度=1StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建数据源DataStreamSource dss = env.fromElements(9L, 5L, 2L, 7L);dss.keyBy(i -> true)//KeyedProcessFunction.process(new KeyedProcessFunction() {//1、声明状态AggregatingStateprivate AggregatingState state;@Overridepublic void open(Configuration parameters) {//2、创建状态描述器；AggregatingStateDescriptorAggregatingStateDescriptor stateDescriptor =//AggregatingStateDescriptor(String name,aggFunction,TypeInformation stateType)new AggregatingStateDescriptor<>("",//aggFunction：AggregateFunctionnew AggregateFunction() {@Overridepublic String createAccumulator() {return "";}@Overridepublic String add(Long value, String accumulator) {return accumulator + value;}@Overridepublic Integer getResult(String accumulator) {return Integer.valueOf(accumulator);}@Overridepublic String merge(String a1, String a2) {return a1 + a2; //合并两个累加器}}, Types.STRING);//3、分区范围内创建状态单例对象state = getRuntimeContext().getAggregatingState(stateDescriptor);}@Overridepublic void processElement(Long value, Context ctx, Collector out) throws Exception {//5、添加到状态state.add(value);//6、获取并收集状态列表out.collect(state.get());}}).print();env.execute();}
}

print

9
95
952
9527

状态后端

• 状态后端（state backend）
  一个可插入的组件，用来 存储、访问以及维护 状态
• 作用：
  本地的状态管理（本地状态存储在TaskManager的内存中）
  将checkpoint状态写入文件系统（如HDFS)

然而发现Flink1.14.6弃用了MemoryStateBackend和FsStateBackend的写法

env.setStateBackend(new MemoryStateBackend());
env.setStateBackend(new FsStateBackend(String checkpointDataUri));
//URI (e.g., 'file://', 'hdfs://', or 'S3://')

于是改用下面

//允许Checkpointing，每3秒1次
env.enableCheckpointing(3000L);
//设置状态后端
env.setStateBackend(new HashMapStateBackend());
//获取Checkpointing配置
CheckpointConfig config = env.getCheckpointConfig();
//检查点状态 存储到 JobManager的内存
config.setCheckpointStorage(new JobManagerCheckpointStorage());
//检查点状态 存储到 文件系统
config.setCheckpointStorage(new FileSystemCheckpointStorage(String checkpointDirectory));
