一 I420转NV12

1.I420格式

（1）I420是每四个Y共用一组UV，如果一帧I420图像宽带是width，高度是height，1个像素占1个字节，那么共有width✖height个Y，U和V都是width✖height / 4个，因此一帧I420图像占用字节数是width✖height✖3/2。

（2）I420是先存完所有Y后，在接着存完U，最后存V。

2.NV12格式

（1）NV12是每四个Y共用一组UV，如果一帧NV12图像宽带是width，高度是height，1个像素占1个字节，那么共有width✖height个Y，U和V都是width✖height / 4个，因此一帧I420图像占用字节数是width✖height✖3/2。

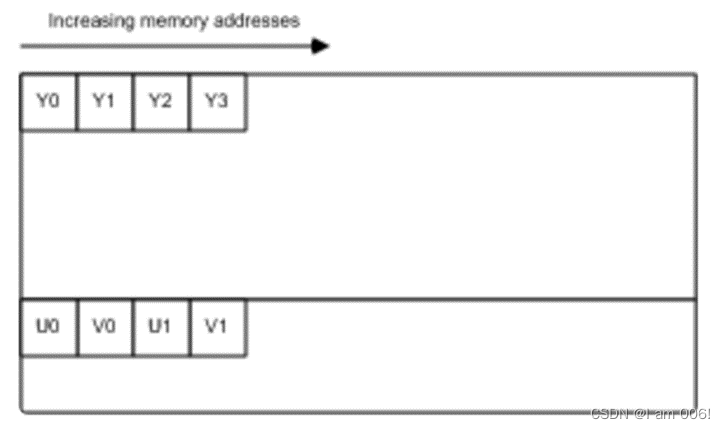

（2）NV12是先存完所有Y后，随后U、V交替存储。

3.转换方法

（1）将一帧I420图像中所有Y拷贝到NV12数据区，将一帧I420图像中所有U和V交替拷贝到NV12数据区。

（2）代码：

bool convert_i420_nv12(const char *i420_file_path, size_t width, size_t height, const char *nv12_file_path) {if (!i420_file_path || !nv12_file_path) {return false;}FILE *fp = fopen(i420_file_path, "rb");if (!fp) {return false;}fseek(fp, 0, SEEK_END);size_t file_size = ftell(fp);fseek(fp, 0, SEEK_SET);size_t y_size = width * height;size_t uv_size = y_size / 4;if (file_size != (y_size + uv_size * 2)) {fclose(fp);return false;}char *i420_content = (char *)malloc(sizeof(char) * file_size);if (!i420_content) {fclose(fp);return false;}if (file_size != fread(i420_content, 1, file_size, fp)) {free(i420_content);fclose(fp);return false;}fclose(fp);// convert i420 to nv12char *nv12_content = (char *)malloc(sizeof(char) * file_size);if (!nv12_content) {free(i420_content);return false;}// copy y channelmemcpy(nv12_content, i420_content, y_size);// copy uv channelchar *i420_u_base = i420_content + y_size;char *i420_v_base = i420_u_base + uv_size;char *nv12_uv_base = nv12_content + y_size;int i = 0, j = 0;for (;i < uv_size;i++) {nv12_uv_base[j] = i420_u_base[i];nv12_uv_base[j + 1] = i420_v_base[i];j += 2;}free(i420_content);fp = fopen(nv12_file_path, "wb");if (!fp) {free(nv12_content);return false;}if (file_size != fwrite(nv12_content, 1, file_size, fp)) {free(nv12_content);fclose(fp);return false;}free(nv12_content);fclose(fp);return true;
}

二 I420转NV21

1.NV21格式

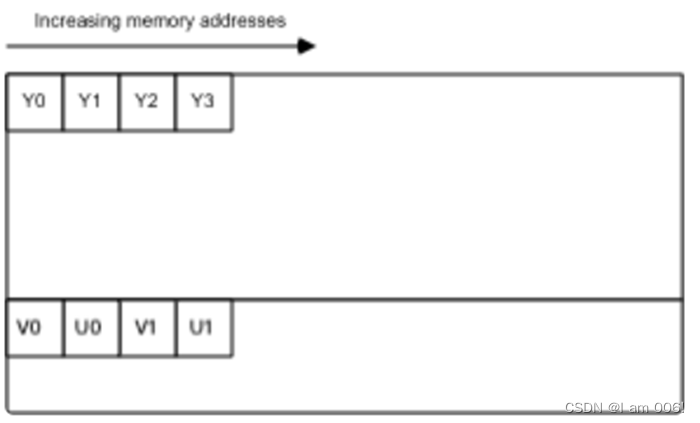

NV21内存布局基本与NV12类似，只是将NV12中U和V次序互换，如下所示：

2.转换代码

bool convert_i420_nv21(const char *i420_file_path, size_t width, size_t height, const char *nv21_file_path) {if (!i420_file_path || !nv21_file_path) {return false;}FILE *fp = fopen(i420_file_path, "rb");if (!fp) {return false;}fseek(fp, 0, SEEK_END);size_t file_size = ftell(fp);fseek(fp, 0, SEEK_SET);size_t y_size = width * height;size_t uv_size = y_size / 4;if (file_size != (y_size + uv_size * 2)) {fclose(fp);return false;}char *i420_content = (char *)malloc(sizeof(char) * file_size);if (!i420_content) {fclose(fp);return false;}if (file_size != fread(i420_content, 1, file_size, fp)) {free(i420_content);fclose(fp);return false;}fclose(fp);// convert i420 to nv21char *nv21_content = (char *)malloc(sizeof(char) * file_size);if (!nv21_content) {free(i420_content);return false;}// copy y channelmemcpy(nv21_content, i420_content, y_size);// copy uv channelchar *i420_u_base = i420_content + y_size;char *i420_v_base = i420_u_base + uv_size;char *nv21_uv_base = nv21_content + y_size;int i = 0, j = 0;for (;i < uv_size;i++) {nv21_uv_base[j] = i420_v_base[i];nv21_uv_base[j + 1] = i420_u_base[i];j += 2;}free(i420_content);fp = fopen(nv21_file_path, "wb");if (!fp) {free(nv21_content);return false;}if (file_size != fwrite(nv21_content, 1, file_size, fp)) {free(nv21_content);fclose(fp);return false;}free(nv21_content);fclose(fp);return true;
}

三 UYVY转NV12

1.UYVY格式

（1）UYVY是每两个Y共用一组UV，如果一帧UYVY图像宽带是width，高度是height，1个像素占1个字节，那么共有width✖height个Y，U和V都是width✖height / 2个，因此一帧I420图像占用字节数是width✖height✖2。

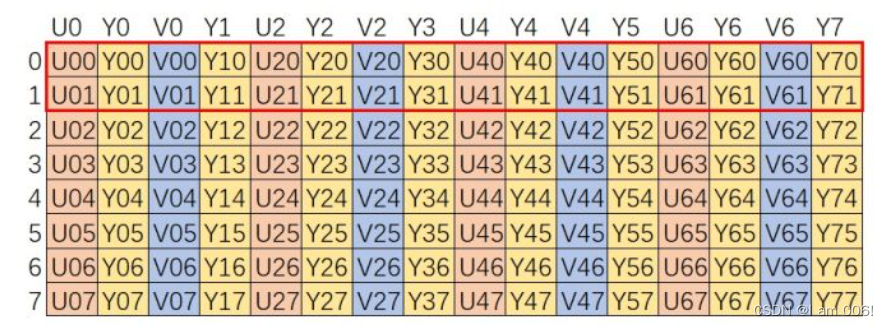

（2）UYVY是每4个像素中，2个Y共用一组UV，一行像素数是width * 2，如下所示：

2.转换方法

（1）将一帧UYVY图像中所有Y存入NV12图像的缓存区，隔行存入相应的U和V，如下所示：

（2）转换代码：

bool convert_uyvy_nv12(const char *uyvy_file_path, size_t width, size_t height, const char *nv12_file_path) {if (!uyvy_file_path || !nv12_file_path) {return false;}FILE *fp = fopen(uyvy_file_path, "rb");if (!fp) {return false;}fseek(fp, 0, SEEK_END);size_t file_size = ftell(fp);fseek(fp, 0, SEEK_SET);size_t frame_size = width * height * 2;if (file_size != frame_size) {fclose(fp);return false;}char *uyvy_content = (char *)malloc(sizeof(char) * file_size);if (!uyvy_content) {fclose(fp);return false;}if (file_size != fread(uyvy_content, 1, file_size, fp)) {free(uyvy_content);fclose(fp);return false;}fclose(fp);// convert uyvy to nv12frame_size = width * height * 3 / 2;char *nv12_content = (char *)malloc(sizeof(char) * frame_size);if (!nv12_content) {free(uyvy_content);return false;}size_t y_size = width * height;size_t pixels_in_a_row = width * 2;char *nv12_y_ptr = nv12_content;char *nv12_uv_ptr = nv12_content + y_size;int lines = 0;for (int i = 0;i < file_size;i += 4) {// copy y channel*nv12_y_ptr++ = uyvy_content[i + 1];*nv12_y_ptr++ = uyvy_content[i + 3];if (0 == i % pixels_in_a_row) {++lines;}if (lines % 2) {       // extract the UV value of odd rows// copy uv channel*nv12_uv_ptr++ = uyvy_content[i];*nv12_uv_ptr++ = uyvy_content[i + 2];}}free(uyvy_content);fp = fopen(nv12_file_path, "wb");if (!fp) {free(nv12_content);return false;}if (frame_size != fwrite(nv12_content, 1, frame_size, fp)) {free(nv12_content);fclose(fp);return false;}free(nv12_content);fclose(fp);return true;
}

四 UYVY转NV21

方法与转NV12类似，代码如下：

bool convert_uyvy_nv21(const char *uyvy_file_path, size_t width, size_t height, const char *nv21_file_path) {if (!uyvy_file_path || !nv21_file_path) {return false;}FILE *fp = fopen(uyvy_file_path, "rb");if (!fp) {return false;}fseek(fp, 0, SEEK_END);size_t file_size = ftell(fp);fseek(fp, 0, SEEK_SET);size_t frame_size = width * height * 2;if (file_size != frame_size) {fclose(fp);return false;}char *uyvy_content = (char *)malloc(sizeof(char) * file_size);if (!uyvy_content) {fclose(fp);return false;}if (file_size != fread(uyvy_content, 1, file_size, fp)) {free(uyvy_content);fclose(fp);return false;}fclose(fp);// convert uyvy to nv12frame_size = width * height * 3 / 2;char *nv21_content = (char *)malloc(sizeof(char) * frame_size);if (!nv21_content) {free(uyvy_content);return false;}size_t y_size = width * height;size_t pixels_in_a_row = width * 2;char *nv21_y_ptr = nv21_content;char *nv21_uv_ptr = nv21_content + y_size;int lines = 0;for (int i = 0;i < file_size;i += 4) {// copy y channel*nv21_y_ptr++ = uyvy_content[i + 1];*nv21_y_ptr++ = uyvy_content[i + 3];if (0 == i % pixels_in_a_row) {++lines;}if (lines % 2) {       // extract the UV value of odd rows// copy uv channel*nv21_uv_ptr++ = uyvy_content[i + 2];*nv21_uv_ptr++ = uyvy_content[i];}}free(uyvy_content);fp = fopen(nv21_file_path, "wb");if (!fp) {free(nv21_content);return false;}if (frame_size != fwrite(nv21_content, 1, frame_size, fp)) {free(nv21_content);fclose(fp);return false;}free(nv21_content);fclose(fp);return true;
}

五 编译及测试

1.编译：使用g++编译

2.github:GitHub - wangzhicheng2013/common_utility
