1、背景

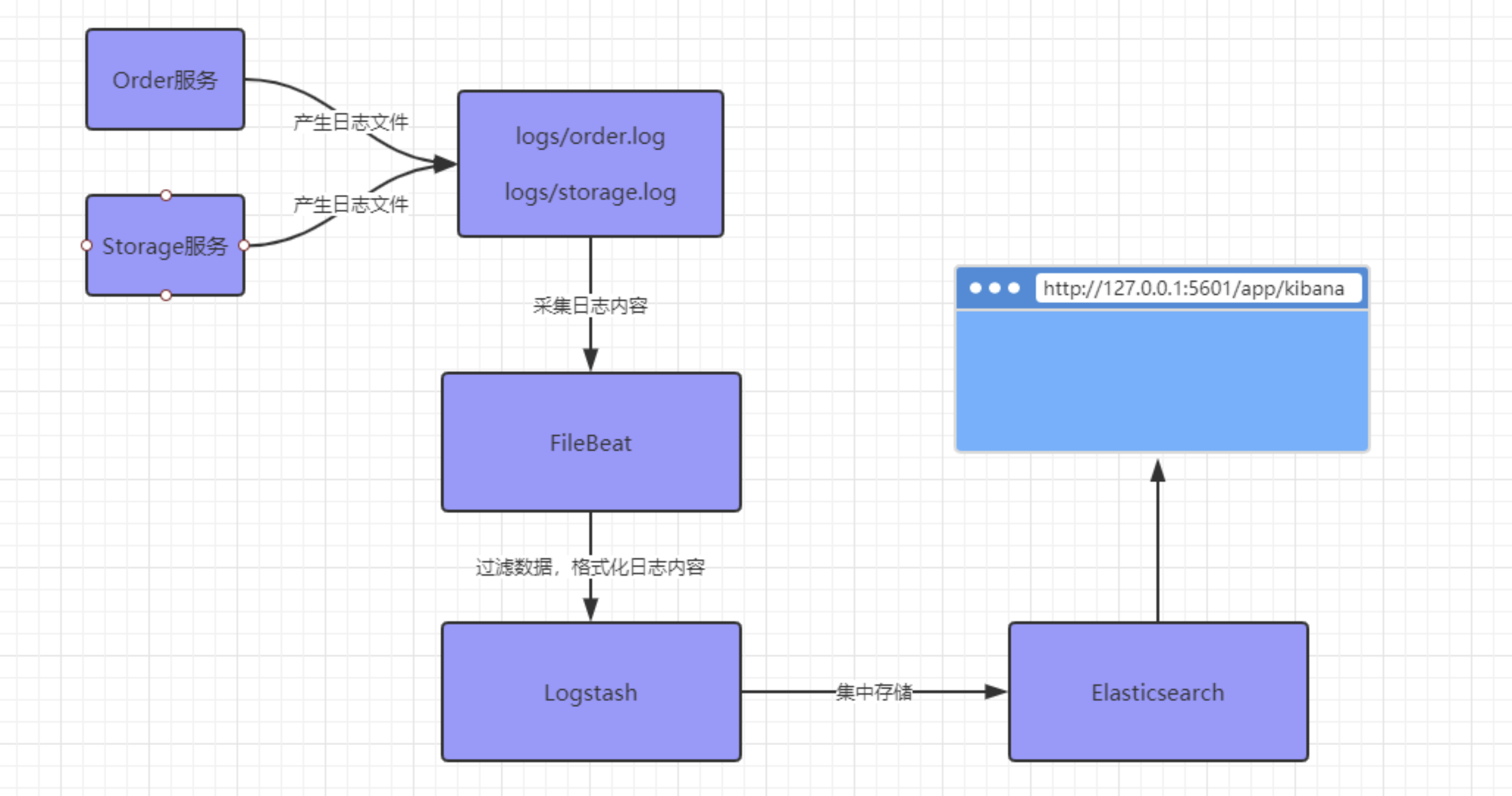

鉴于现在项目中的日志比较乱，所以建议使用现在较为流行的elk收集日志并展示；

2、下载、配置与启动

在下载 Elastic 产品 | Elastic 官网下载filebeat、logstash、elasticSearch、kibana 版本要一致 本人测试用的7.14 mac版本 实际生产使用7.14 linux版本

2.1、Filebeat:

tar -zxvf filebeat-7.14.0-darwin-x86_64.tar.gz

Cd filebeat-7.14.0-darwin-x86_64

配置：filebeat.yml

- type: logenabled: truepaths:- /Users/admin/IdeaProjects/maijia-tebu/log/info/*.log- /Users/admin/IdeaProjects/taosj-aliexpress-data/log/*/*.logmultiline.pattern: '^[0-9][0-9][0-9][0-9]'multiline.negate: truemultiline.match: after
output.logstash:hosts: ["localhost:5044”]

sudo chown root:root /Users/admin/IdeaProjects/maijia-tebu/log/info root：为执行用户

sudo chown root filebeat.yml

测试配置 ./filebeat test config -e

sudo ./filebeat -e

配置说明：

Paths：后面可以配置多个目录，配置的目录不会去递归，只会在最后的子目录里面寻找.log的文件；

multiline：以 '^[0-9][0-9][0-9][0-9]' 格式后面的识别为一行，这样报错等信息就在一行了；

output.logstash：logstash的地址；

sudo chown admin:admin /Users/admin/IdeaProjects/maijia-tebu/log/info admin：为执行用户 给log目录设置权限

sudo chown root filebeat.yml 给配置文件权限

./filebeat test config -e 测试配置

sudo ./filebeat -e 启动

2.2、Logstash:

tar -zxvf logstash-7.14.0-darwin-x86_64.tar.gz

Cd logstash-7.14.0

配置：

Vi ./config/logstash-test.conf

input {beats {port => 5044  }
}
filter{dissect {mapping => {"message" => "%{log_time}|%{ip}|%{serverName}|%{profile}|%{level}|%{logger}|%{thread}|%{traceId}|%{msg}" //与项目中的日志输出格式相对应}}date{match => ["log_time", "yyyy-MM-dd HH:mm:ss.SSS"]target => "@timestamp"}
}
output {elasticsearch {hosts => ["localhost:9200"]index => "logs-%{+YYYY.MM.dd}"  //创建索引的格式}
}

sudo ./bin/logstash -f config/logstash-test.conf

2.3、elaticSearch:

tar -zxvf elasticsearch-7.14.0-darwin-x86_64.tar.gz

Cd elasticsearch-7.14.0

Sodu ./bin/elasticSearch

检查服务：curl http://127.0.0.1:9200

2.4、kibana：

tar -zxvf kibana-7.14.0-darwin-x86_64.tar.gz

Cd kibana-7.14.0-darwin-x86_64

配置：如果es与kibana不在同一台服务器，在config/kibana.yml，添加 elasticsearch.url: "http://ip:port"

Sudo ./bin/kibana

检查：浏览器打开http://127.0.0.1:5601

3、新建jar包

新建jar包  写一些工具类

3.1Snowflake

import com.baomidou.mybatisplus.core.toolkit.ArrayUtils;
import com.baomidou.mybatisplus.core.toolkit.SystemClock;import java.io.Serializable;
import java.util.Date;
public class Snowflake implements Serializable {private static final long serialVersionUID = 1L;private final long twepoch;private final long workerIdBits = 5L;private final long dataCenterIdBits = 5L;// 最大支持数据中心节点数0~31，一共32个@SuppressWarnings({"PointlessBitwiseExpression", "FieldCanBeLocal"})private final long maxWorkerId = -1L ^ (-1L << workerIdBits);@SuppressWarnings({"PointlessBitwiseExpression", "FieldCanBeLocal"})private final long maxDataCenterId = -1L ^ (-1L << dataCenterIdBits);// 序列号12位private final long sequenceBits = 12L;// 机器节点左移12位private final long workerIdShift = sequenceBits;// 数据中心节点左移17位private final long dataCenterIdShift = sequenceBits + workerIdBits;// 时间毫秒数左移22位private final long timestampLeftShift = sequenceBits + workerIdBits + dataCenterIdBits;@SuppressWarnings({"PointlessBitwiseExpression", "FieldCanBeLocal"})private final long sequenceMask = -1L ^ (-1L << sequenceBits);// 4095private final long workerId;private final long dataCenterId;private final boolean useSystemClock;private long sequence = 0L;private long lastTimestamp = -1L;/*** 构造** @param workerId     终端ID* @param dataCenterId 数据中心ID*/public Snowflake(long workerId, long dataCenterId) {this(workerId, dataCenterId, false);}/*** 构造** @param workerId         终端ID* @param dataCenterId     数据中心ID* @param isUseSystemClock 是否使用{@link SystemClock} 获取当前时间戳*/public Snowflake(long workerId, long dataCenterId, boolean isUseSystemClock) {this(null, workerId, dataCenterId, isUseSystemClock);}/*** @param epochDate        初始化时间起点(null表示默认起始日期),后期修改会导致id重复,如果要修改连workerId dataCenterId，慎用* @param workerId         工作机器节点id* @param dataCenterId     数据中心id* @param isUseSystemClock 是否使用{@link SystemClock} 获取当前时间戳* @since 5.1.3*/public Snowflake(Date epochDate, long workerId, long dataCenterId, boolean isUseSystemClock) {if (null != epochDate) {this.twepoch = epochDate.getTime();} else {
// Thu, 04 Nov 2010 01:42:54 GMTthis.twepoch = 1288834974657L;}if (workerId > maxWorkerId || workerId < 0) {throw new IllegalArgumentException(format("worker Id can't be greater than {} or less than 0", maxWorkerId));}if (dataCenterId > maxDataCenterId || dataCenterId < 0) {throw new IllegalArgumentException(format("datacenter Id can't be greater than {} or less than 0", maxDataCenterId));}this.workerId = workerId;this.dataCenterId = dataCenterId;this.useSystemClock = isUseSystemClock;}/*** 根据Snowflake的ID，获取机器id** @param id snowflake算法生成的id* @return 所属机器的id*/public long getWorkerId(long id) {return id >> workerIdShift & ~(-1L << workerIdBits);}/*** 根据Snowflake的ID，获取数据中心id** @param id snowflake算法生成的id* @return 所属数据中心*/public long getDataCenterId(long id) {return id >> dataCenterIdShift & ~(-1L << dataCenterIdBits);}/*** 根据Snowflake的ID，获取生成时间** @param id snowflake算法生成的id* @return 生成的时间*/public long getGenerateDateTime(long id) {return (id >> timestampLeftShift & ~(-1L << 41L)) + twepoch;}/*** 下一个ID** @return ID*/public synchronized long nextId() {long timestamp = genTime();if (timestamp < lastTimestamp) {if (lastTimestamp - timestamp < 2000) {
// 容忍2秒内的回拨，避免NTP校时造成的异常timestamp = lastTimestamp;} else {
// 如果服务器时间有问题(时钟后退) 报错。throw new IllegalStateException(format("Clock moved backwards. Refusing to generate id for {}ms", lastTimestamp - timestamp));}}if (timestamp == lastTimestamp) {sequence = (sequence + 1) & sequenceMask;if (sequence == 0) {timestamp = tilNextMillis(lastTimestamp);}} else {sequence = 0L;}lastTimestamp = timestamp;return ((timestamp - twepoch) << timestampLeftShift) | (dataCenterId << dataCenterIdShift) | (workerId << workerIdShift) | sequence;}/*** 下一个ID(字符串形式)** @return ID 字符串形式*/public String nextIdStr() {return Long.toString(nextId());}// ------------------------------------------------------------------------------------------------------------------------------------ Private method start/*** 循环等待下一个时间** @param lastTimestamp 上次记录的时间* @return 下一个时间*/private long tilNextMillis(long lastTimestamp) {long timestamp = genTime();// 循环直到操作系统时间戳变化while (timestamp == lastTimestamp) {timestamp = genTime();}if (timestamp < lastTimestamp) {
// 如果发现新的时间戳比上次记录的时间戳数值小，说明操作系统时间发生了倒退，报错throw new IllegalStateException(format("Clock moved backwards. Refusing to generate id for {}ms", lastTimestamp - timestamp));}return timestamp;}/*** 生成时间戳** @return 时间戳*/private long genTime() {return this.useSystemClock ? SystemClock.now() : System.currentTimeMillis();}public  String format(String target, Object... params) {return target.contains("%s") && ArrayUtils.isNotEmpty(params) ? String.format(target, params) : target;}
}

3.2 TraceIdAdvice

import com.alibaba.dubbo.rpc.RpcContext;
import org.aopalliance.intercept.MethodInterceptor;
import org.aopalliance.intercept.MethodInvocation;
import org.slf4j.MDC;/**  * 类 描 述：traceId切面
*/
public class TraceIdAdvice implements MethodInterceptor {@Overridepublic Object invoke(MethodInvocation invocation) throws Throwable {String tid = MDC.get("traceId");String rpcTid = RpcContext.getContext().getAttachment("traceId");if (tid != null) {RpcContext.getContext().setAttachment("traceId", tid);} else {if (rpcTid != null) {MDC.put("traceId",rpcTid);}}Object result = invocation.proceed();return result;}
}

3.3 TraceIdAdviceConfig

import org.springframework.aop.aspectj.AspectJExpressionPointcutAdvisor;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;/** * 类 描 述：traceId切面动态配置
*/
@Configuration
public class TraceIdAdviceConfig {@Value("${traceId.pointcut.property}")private String pointcut;@Beanpublic AspectJExpressionPointcutAdvisor configurabledvisor() {AspectJExpressionPointcutAdvisor advisor = new AspectJExpressionPointcutAdvisor();advisor.setExpression(pointcut);advisor.setAdvice(new TraceIdAdvice());return advisor;}
}

3.4 IPConverterConfig

import ch.qos.logback.classic.pattern.ClassicConverter;
import ch.qos.logback.classic.spi.ILoggingEvent;import java.net.InetAddress;
import java.net.NetworkInterface;
import java.net.UnknownHostException;
import java.util.Enumeration;/*** 类 描 述：log打出ip*/
public class IPConverterConfig extends ClassicConverter {private String url;@Overridepublic String convert(ILoggingEvent iLoggingEvent) {try {if (url == null){String hostAddress = getLocalHostLANAddress().getHostAddress();url = hostAddress;}return url;} catch (UnknownHostException e) {e.printStackTrace();}return null;}// 正确的IP拿法，即优先拿site-local地址private static InetAddress getLocalHostLANAddress() throws UnknownHostException{try {InetAddress candidateAddress = null;// 遍历所有的网络接口for (Enumeration ifaces = NetworkInterface.getNetworkInterfaces(); ifaces.hasMoreElements();) {NetworkInterface iface = (NetworkInterface) ifaces.nextElement();//服务器上eth0才是正确的ipif (!"eth0".equals(iface.getName())){continue;}// 在所有的接口下再遍历IPfor (Enumeration inetAddrs = iface.getInetAddresses(); inetAddrs.hasMoreElements();) {InetAddress inetAddr = (InetAddress) inetAddrs.nextElement();if (!inetAddr.isLoopbackAddress()) {// 排除loopback类型地址if (inetAddr.isSiteLocalAddress()) {// 如果是site-local地址，就是它了return inetAddr;} else if (candidateAddress == null) {// site-local类型的地址未被发现，先记录候选地址candidateAddress = inetAddr;}}}}if (candidateAddress != null) {return candidateAddress;}// 如果没有发现 non-loopback地址.只能用最次选的方案InetAddress jdkSuppliedAddress = InetAddress.getLocalHost();if (jdkSuppliedAddress == null) {throw new UnknownHostException("The JDK InetAddress.getLocalHost() method unexpectedly returned null.");}return jdkSuppliedAddress;} catch (Exception e) {e.printStackTrace();}return null;}}

3.5 TraceIdInterceptor

/*** 类 描 述：traceId 用于追踪链路*/
@Slf4j
@Component
public class TraceIdInterceptor implements HandlerInterceptor {/*@AutowiredRedisHelper redisHelper;*/Snowflake snowflake = new Snowflake(1,0);@Overridepublic boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler){String tid = snowflake.nextIdStr();MDC.put("traceId",tid);RpcContext.getContext().setAttachment("traceId", tid);return true;}@Overridepublic void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView){MDC.remove("traceId");}@Overridepublic void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex){}//生成导入批次号/*public  String getTraceId() {String dateString = DateUtils.formatYYYYMMDD(new Date());Long incr = redisHelper.incr("taosj-common-traceId" + dateString, 24);if (incr == 0) {incr = redisHelper.incr("taosj-common-traceId" + dateString, 24);}DecimalFormat df = new DecimalFormat("000000");return dateString + df.format(incr);}*/
}

3.6 WebAppConfigurer

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.InterceptorRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;/*** 类 描 述：TODO*/
@Configuration
public class WebAppConfigurer implements WebMvcConfigurer {@Autowiredprivate TraceIdInterceptor traceIdInterceptor;/*** 注册拦截器*/@Overridepublic void addInterceptors(InterceptorRegistry registry) {registry.addInterceptor(traceIdInterceptor).addPathPatterns("/**");//.excludePathPatterns("/admin/login")//.excludePathPatterns("/admin/getLogin");//  - /**： 匹配所有路径//  - /admin/**：匹配 /admin/ 下的所有路径//  - /admin/*：只匹配 /admin/login，不匹配 /secure/login/tologin ("/*"只匹配一级子目录，"/**"匹配所有子目录)}}

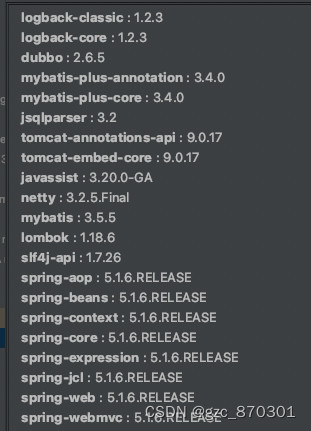

3.7 jar pom

org.springframeworkspring-contextorg.springframeworkspring-webmvccom.alibabadubboorg.slf4jslf4j-apicom.baomidoumybatis-plus-corech.qos.logbacklogback-classicorg.apache.tomcat.embedtomcat-embed-core

 4、jar包的使用

1、pom文件：

添加自己的jar包

2、启动类增加类扫描：步骤3的包名

3、配置文件增加切面pointcut配置：例如：traceId.pointcut.property=execution(public * com.taosj.tebu.service..*.*(..)) 自己项目的包名

4、logback-spring文件修改：ip 日志输出格式

应该是把现在正在运行的日志拿过来，所以要把之前的日志删除掉，以及把形成的日志名改掉：

比如${dir}/info/info.%d{yyyy-MM-dd}.%i.log 改成

${dir}/info/info.log.%d{yyyy-MM-dd}.%i

5、springboot项目logback-spring.xml例子

​
${dir}/info/info.log${dir}/info/info.log.%d{yyyy-MM-dd}.%i100MB105GB${pattern_log}UTF-8${dir}/debug/debug.log${dir}/debug/debug.%i.log.%d{yyyy-MM-dd}.%i100MB105GB${pattern_log}UTF-8${dir}/error/error.log${dir}/error/error.log.%d{yyyy-MM-dd}.%i100MB105GB${pattern_log}UTF-8${dir}/biz/biz.log${dir}/biz/biz.log.%d{yyyy-MM-dd}.%i100MB105GB${pattern_log}UTF-8${pattern}​

7、部署时候的小tip：

7.1：filebeat启动时

nohup ./filebeat & 这样shell关闭了还是会停

nohup ./filebeat & disown 要这样启动

7.2: filebeat推送logstash的地址：

116.62.126.104 35044 可以查看filebeat.yml配置文件

7.4:ip

ip获取的是eth0网卡的ip

7.4:小问题

springmvc项目使用log4j不能一开始就注入servername、ip、profile等信息 所以启动等信息没有这些字段，调用接口等是有这些信息的；springboot项目使用logback没有这个问题
