nmap之nse脚本简单学习

环境：centos8

nmap安装

yum -y install nmap

-- 版本
[root@qingchen /]# nmap -version
Nmap version 7.70 ( https://nmap.org )

脚本入门学习

cd /usr/share/nmap

[root@qingchen nmap]# ls
nmap.dtd  nmap-mac-prefixes  nmap-os-db  nmap-payloads  nmap-protocols  nmap-rpc  nmap-service-probes  nmap-services  nmap.xsl  nselib  nse_main.lua  scripts-- nselib scripts是脚本库和脚本都是lua语言编写的

cd /usr/share/nmap/scripts

nmap的脚本存放路径，自己写的脚本放进去就可以使用了，脚本语言是 lua

lua学习参考菜鸟或者https://blog.csdn.net/qq_40893942/article/details/127986572

NSE脚本基本格式

一个完整的NSE脚本通常都有这么几个部分的代码字段：

• description 字段：本脚本的说明介绍。

• categories 字段：本脚本的分类。Nmap执行脚本除了指定单个脚本外，还可以指定某一类脚本，比如default类，我们没有使用–script参数时，默认会加载这一类的脚本。

• rule 字段：本脚本的执行规则，也即触发脚本执行的条件会在rule字段定义。一般执行规则是一个lua函数，返回值只有true和false两种。

• action字段：脚本执行的具体内容。rule字段返回true时会执行action字段定义的函数。

local shortport = require "shortport"
description = [[demo]]
author = "qingchen"
license = "Same as Nmap--See http://nmap.org/book/man-legal.html"
categories = {"default"}portrule = function( host, port )return true
endaction = function(host, port)end

Demo中rule字段是portrule，NSE脚本的执行规则是和nmap的扫描相结合的，两者执行的先后顺序目前有如下4种。

1. prerule()：规则早于nmap的扫描，执行的顺序是先执行脚本，后nmap扫描。
2. hostrule()：nmap完成了主机发现之后运行脚本。
3. portrule()：nmap执行了端口扫描后运行脚本。
4. postrule()：nmap完成所有的扫描后才执行脚本。

编写脚本

在前面脚本demo代码的基础上，只需修改portrule函数的代码和让action函数来输出。

栗子：

编写文件名为qingchen-simple-test.nse的脚本放在/usr/share/nmap/scripts，判断80端口是不是tcp协议。内容如下：

-- 引用shortport脚本库
local shortport = require "shortport"
-- 描述
description = [[qingchen port simple test]]
-- 作者
author = "qingchen"
-- license
license = "Same as Nmap--See http://nmap.org/book/man-legal.html"
-- 类别
categories = {"default"}portrule = function(host,port)return port.protocol == "tcp" and port.number == 80
endaction = function(host, port)
print(host.ip)
return "qingchen-script-test"
end

nmap --script-updatedb命令用来更新脚本库（貌似不更新也是可以直接在scripts文件夹下识别到自定义脚本的）

nmap -p 80 127.0.0.1 --script qingchen-simple-test.nse 运行脚本

[root@qingchen scripts]# vim qingchen-simple-test.nse
[root@qingchen scripts]# nmap --script-updatedb
[root@qingchen scripts]# nmap -p 80 127.0.0.1 --script qingchen-simple-test.nse
Starting Nmap 7.70 ( https://nmap.org ) at 2022-11-24 13:41 CST
127.0.0.1
Nmap scan report for VM-4-3-centos (127.0.0.1)
Host is up (0.000052s latency).PORT   STATE SERVICE
80/tcp open  http
|_qingchen-simple-test: qingchen-script-testNmap done: 1 IP address (1 host up) scanned in 0.45-- 换8080试试[root@qingchen scripts]# nmap -p 8080 127.0.0.1 --script qingchen-simple-test.nse
Starting Nmap 7.70 ( https://nmap.org ) at 2022-11-24 13:44 CST
Nmap scan report for VM-4-3-centos (127.0.0.1)
Host is up (0.000046s latency).PORT     STATE  SERVICE
8080/tcp closed http-proxyNmap done: 1 IP address (1 host up) scanned in 0.44 seconds

编写脚本库文件

在/nselib/文件夹下新建一个名为qingchenlib.lua的文件，填入如下内容：

function Porttest(port)return string.format("The port '%s' is open",port)
end

作用是查看哪些端口是开放的

使用脚本库

编写脚本 qingchen-lib-test.nse

local shortport = require "shortport"
local qingchenlib = require "qingchenlib"description = [[引用库文件测试]]author = "qingchen"
license = "Same as Nmap--See http://nmap.org/book/man-legal.html"
categories = {"default"}portrule = function( host, port )return true
endaction = function(host,port)return Porttest(port.number)
end

引用库文件使用local，格式一般为： local 库文件名 = require “库文件名”，引用后可直接使用库里面的方法和属性值

Nmap 命令：nmap -Pn 127.0.0.1 --script qingchen-lib-test.nse（可以不带后缀）

[root@qingchen nselib]# nmap -Pn 127.0.0.1 --script qingchen-lib-test
Starting Nmap 7.70 ( https://nmap.org ) at 2022-11-24 13:58 CST
Nmap scan report for VM-4-3-centos (127.0.0.1)
Host is up (0.0000050s latency).
Not shown: 996 closed ports
PORT     STATE SERVICE
22/tcp   open  ssh
|_qingchen-lib-test: The port '22' is open
80/tcp   open  http
|_qingchen-lib-test: The port '80' is open
3306/tcp open  mysql
|_qingchen-lib-test: The port '3306' is open
9000/tcp open  cslistener
|_qingchen-lib-test: The port '9000' is openNmap done: 1 IP address (1 host up) scanned in 1.80 seconds

自定义脚本对mysql数据库操作

涉及库文件

• mysql：用来进行数据库操作。
• nmap：通过nmap建立socket连接mysql。
• shortport：基本的port规则库。

创建数据库和存放结果的表

在你的MySql中建一个名为nmap的数据库，然后建立表和字段：

CREATE TABLE IF NOT EXISTS nmap.scanData (date varchar(40),hostos varchar(256),hostname varchar(100), ip varchar(16), port integer(5), protocol varchar(3), state varchar(20), service varchar(256), version varchar(256)
);

脚本

mysql-test.nse

local mysql = require "mysql"
local nmap = require "nmap"
local shortport = require "shortport"-- 登陆mysql
local function mysqlLogin(socket, username, password)local status, response = mysql.receiveGreeting( socket )if ( not(status) ) thenreturn responseendreturn mysql.loginRequest( socket, { authversion = "post41", charset = response.charset }, username, password, response.salt )
enddescription = [[mysql test]]
author = "qingchen"
license = "Same as Nmap--See http://nmap.org/book/man-legal.html"
categories = {"default"}
portrule = function () return true endfunction portaction (host,port)local host_local="127.0.0.1"local port_local="3306"local username="root"local password="1234"local hostos_str= host.oslocal version = port.versionif (port.version.product~=nil) thenversion = port.version.productendif (port.version.version~=nil) thenversion = version .. port.version.versionendlocal date=os.date("%Y-%m-%d %H:%M:%S")local sql = string.format("INSERT INTO nmap.scanData (date,hostos,hostname,ip, port,protocol,state,service,version) VALUES ('%s','%s','%s', '%s', %d, '%s', '%s', '%s', '%s');select 1",date,hostos_str,host.name,host.ip, port.number,port.protocol,port.state,port.service,version)local socket = nmap.new_socket()if ( not(socket:connect(host_local, port_local)) ) thenreturn fail("Failed to connect to server")endlocal status, response = mysqlLogin(socket, username, password)if ( status ) thenlocal status, rs = mysql.sqlQuery( socket, sql )socket:close()elsesocket:close()end
end
local ActionsTable = {portrule = portaction
}
-- execute the action function corresponding to the current rule
action = function(...) return ActionsTable[SCRIPT_TYPE](...) end

执行 nmap -O 127.0.0.1 --script mysql-test

[root@qingchen nselib]# nmap -O 127.0.0.1 --script mysql-test
Starting Nmap 7.70 ( https://nmap.org ) at 2022-11-24 14:08 CST
Nmap scan report for VM-4-3-centos (127.0.0.1)
Host is up (0.0000050s latency).
Not shown: 996 closed ports
PORT     STATE SERVICE
22/tcp   open  ssh
80/tcp   open  http
3306/tcp open  mysql
9000/tcp open  cslistener
Device type: general purpose
Running: Linux 3.X
OS CPE: cpe:/o:linux:linux_kernel:3
OS details: Linux 3.7 - 3.10
Network Distance: 0 hopsOS detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 4.11 seconds

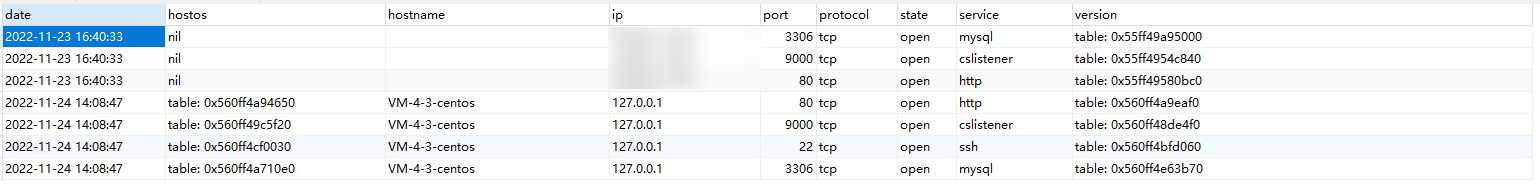

查看数据库已经写入数据了

但是其中hostos和version是lua中table格式的数据这里没有转成string所以看不到具体数据

可以写一个lua库文件作用是：把table转成string

table2string.lua

放入nselib库中

function ToStringEx(value)if type(value)=='table' thenreturn TableToStr(value)elseif type(value)=='string' thenreturn "\\'"..value.."\\'"elsereturn tostring(value)end
endfunction TableToStr(t)if t == nil then return "" endlocal retstr= "{"local i = 1for key,value in pairs(t) dolocal signal = ","if i==1 thensignal = ""endif key == i thenretstr = retstr..signal..ToStringEx(value)elseif type(key)=='number' or type(key) == 'string' thenretstr = retstr..signal..'['..ToStringEx(key).."]="..ToStringEx(value)elseif type(key)=='userdata' thenretstr = retstr..signal.."*s"..TableToStr(getmetatable(key)).."*e".."="..ToStringEx(value)elseretstr = retstr..signal..key.."="..ToStringEx(value)endendendi = i+1endretstr = retstr.."}"return retstr
end

注意return "\\'"..value.."\\'"这里要加两个转义字符不然就会报错 like this

connect sucess
INSERT INTO nmap.scanData (date,hostos,hostname,ip, port,protocol,state,service,version) VALUES ('2022-11-24 14:51:45','nil','VM-4-3-centos', '127.0.0.1', 9000, 'tcp', 'open', 'cslistener', '{['cpe']={},['service_tunnel']='none',['service_dtype']='table',['name']='cslistener',['name_confidence']=3.0}');
false
You have an error in your SQL syntax; check the manual that corresponds to your MySQL server version for the right syntax to use near 'cpe']={},['service_tunnel']='none',['service_dtype']='table',['name']='http',['n' at line 1
false
-- 插入数据库时也需要对单引号转义否则插入失败

写完库文件后，我们只需要引用一下我们写的库调用一下table2string

完整代码如下：

local mysql = require "mysql"
local nmap = require "nmap"
local shortport = require "shortport"
local table2string = require "table2string"local function mysqlLogin(socket, username, password)local status, response = mysql.receiveGreeting( socket )if ( not(status) ) thenreturn responseendreturn mysql.loginRequest( socket, { authversion = "post41", charset = response.charset }, username, password, response.salt )
end
description = [[mysql save test]]
author = "qingchen"
license = "Same as Nmap--See http://nmap.org/book/man-legal.html"
categories = {"default"}
portrule = function () return true end
function portaction (host,port)local host_local="127.0.0.1"local port_local="3306"local username="root"local password="1234"local hostos_str = ToStringEx(host.os)local version = ToStringEx(port.version)if (port.version.product~=nil) thenversion = port.version.productendif (port.version.version~=nil) thenversion = version .. port.version.versionendlocal date=os.date("%Y-%m-%d %H:%M:%S")local sql = string.format("INSERT INTO nmap.scanData (date,hostos,hostname,ip, port,protocol,state,service,version) VALUES ('%s','%s','%s', '%s', %d, '%s', '%s', '%s', '%s');",date,hostos_str,host.name,host.ip, port.number,port.protocol,port.state,port.service,version)local socket = nmap.new_socket()if ( not(socket:connect(host_local, port_local)) ) thenreturn fail("Failed to connect to server")endlocal status, response = mysqlLogin(socket, username, password)-- 这里我打印了连接状态和sql语句，方便查看定位错误if ( status ) thenprint("connect sucess")print(sql)local status, rs = mysql.sqlQuery( socket, sql )print(status)print(rs)socket:close()elsesocket:close()end
end
local ActionsTable = {portrule = portaction
}
-- execute the action function corresponding to the current rule
action = function(...) return ActionsTable[SCRIPT_TYPE](...) end

执行命令：nmap -O 127.0.0.1 --script mysql-save-test

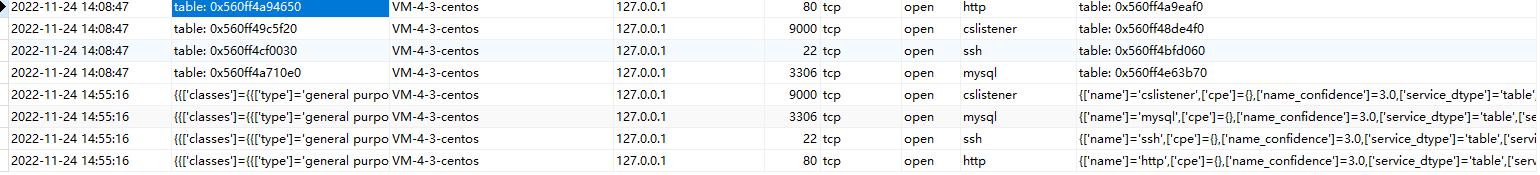

可以看到打印出数据了

end

到此就是完成对nmap脚本nse的简单学习了
