引言

本篇继续学习 DC的基本使用。本篇主要学习 DC 综合之后的效果分析，多同步时钟设计以及 DC 综合完成之后的各种输出文件。

前文链接：

Design Compiler工具学习笔记（1）

Design Compiler工具学习笔记（2）

Design Compiler工具学习笔记（3）

Design Compiler工具学习笔记（4）

Design Compiler工具学习笔记（5）

Design Compiler工具学习笔记（6）

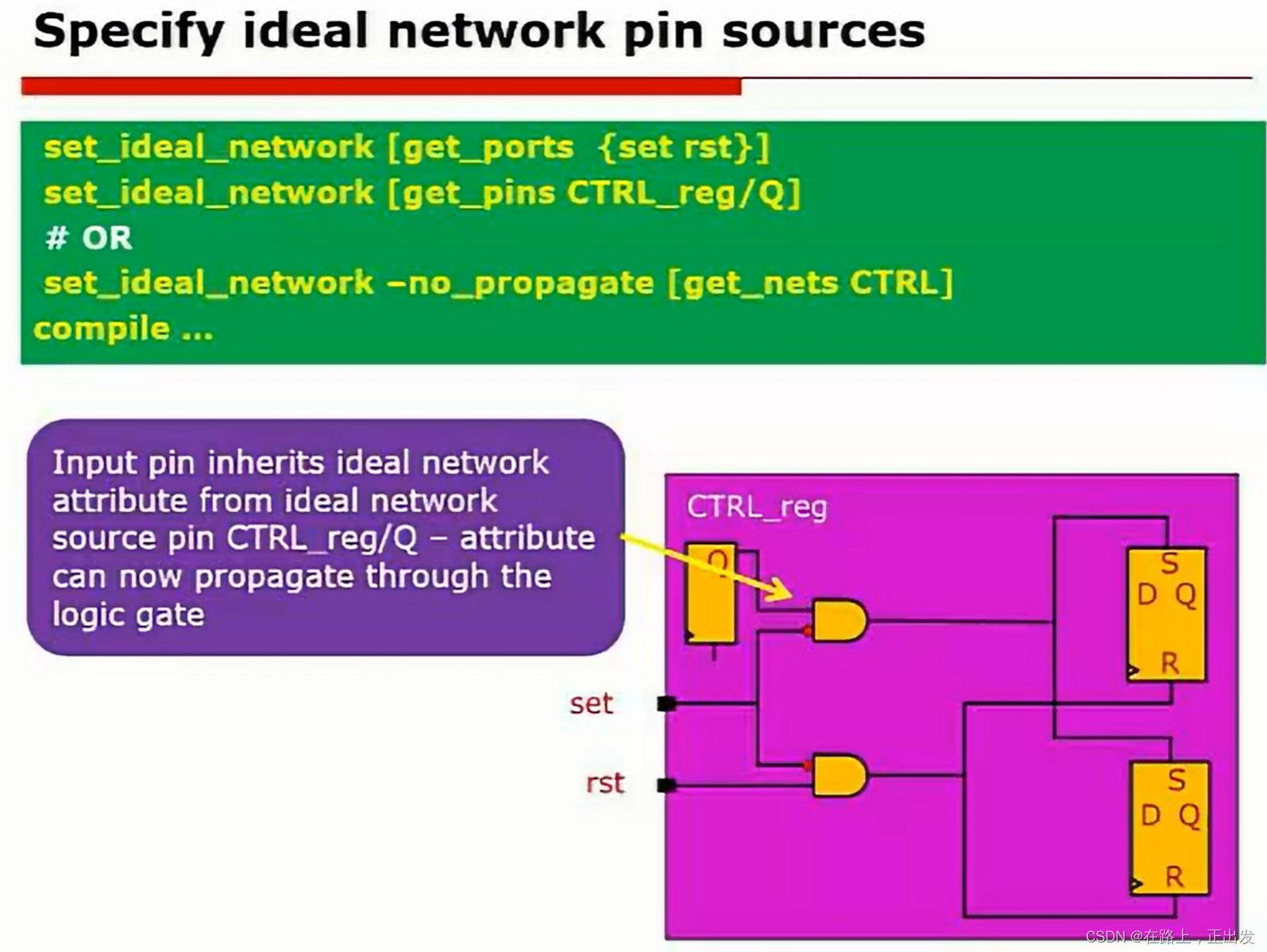

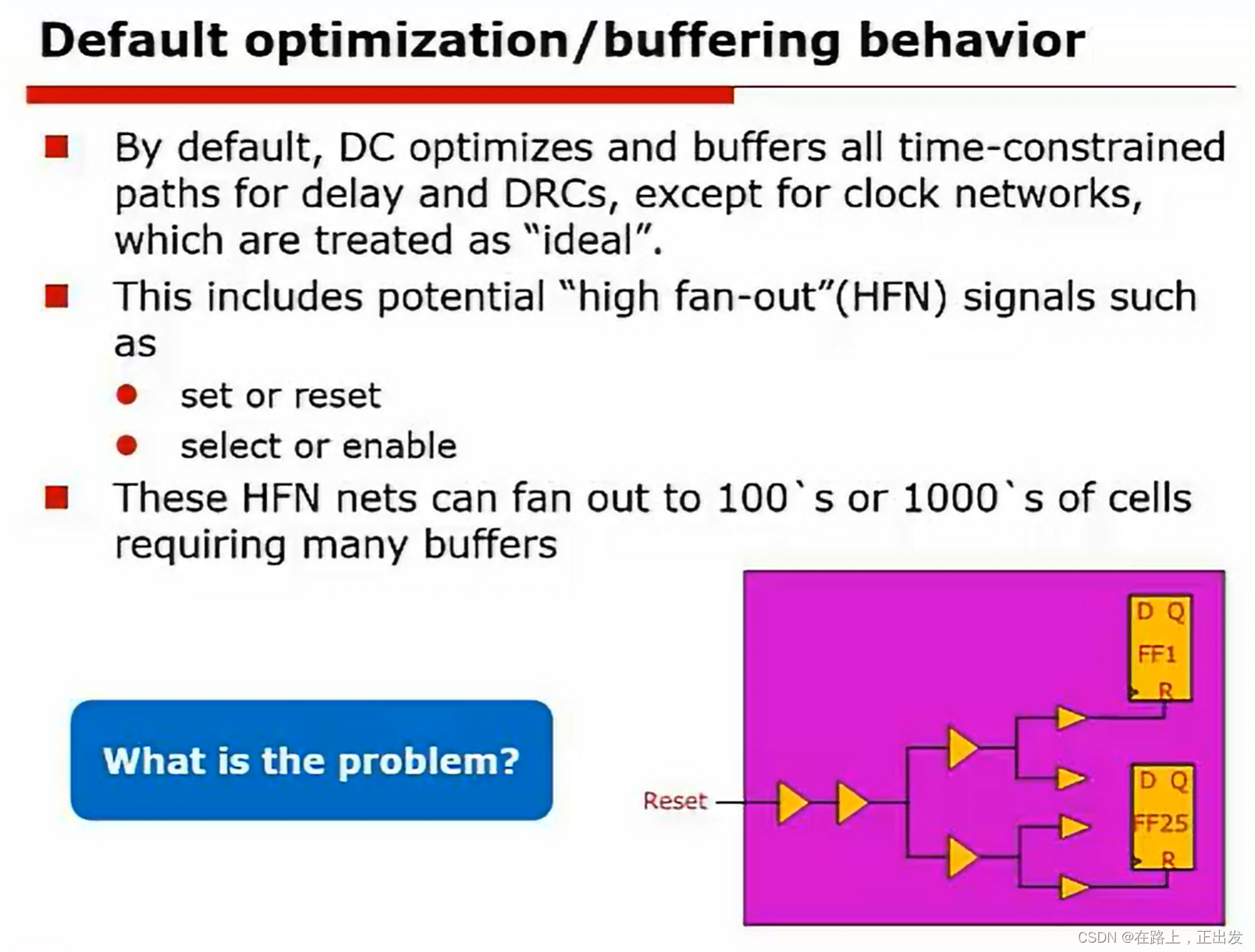

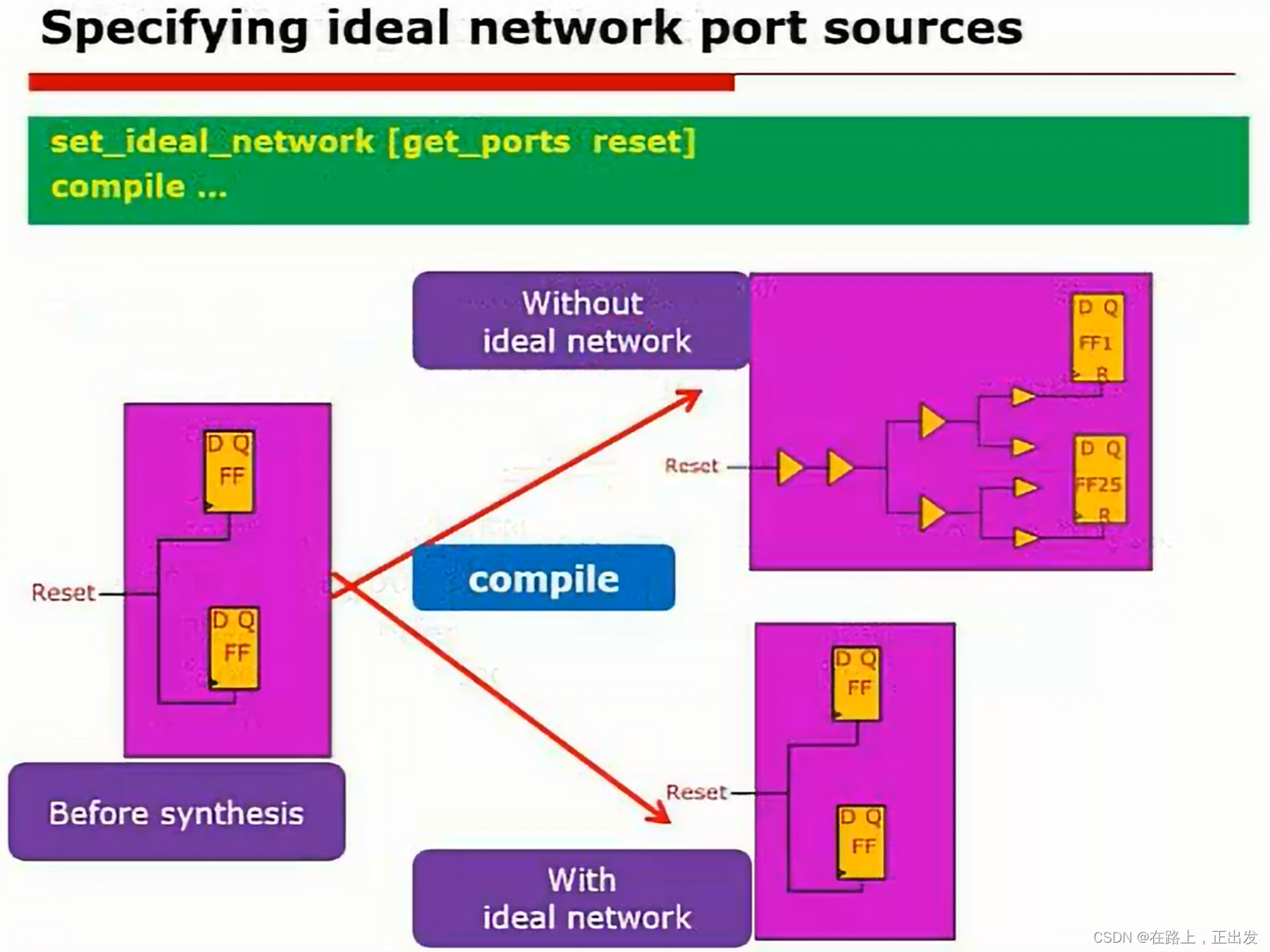

背景知识

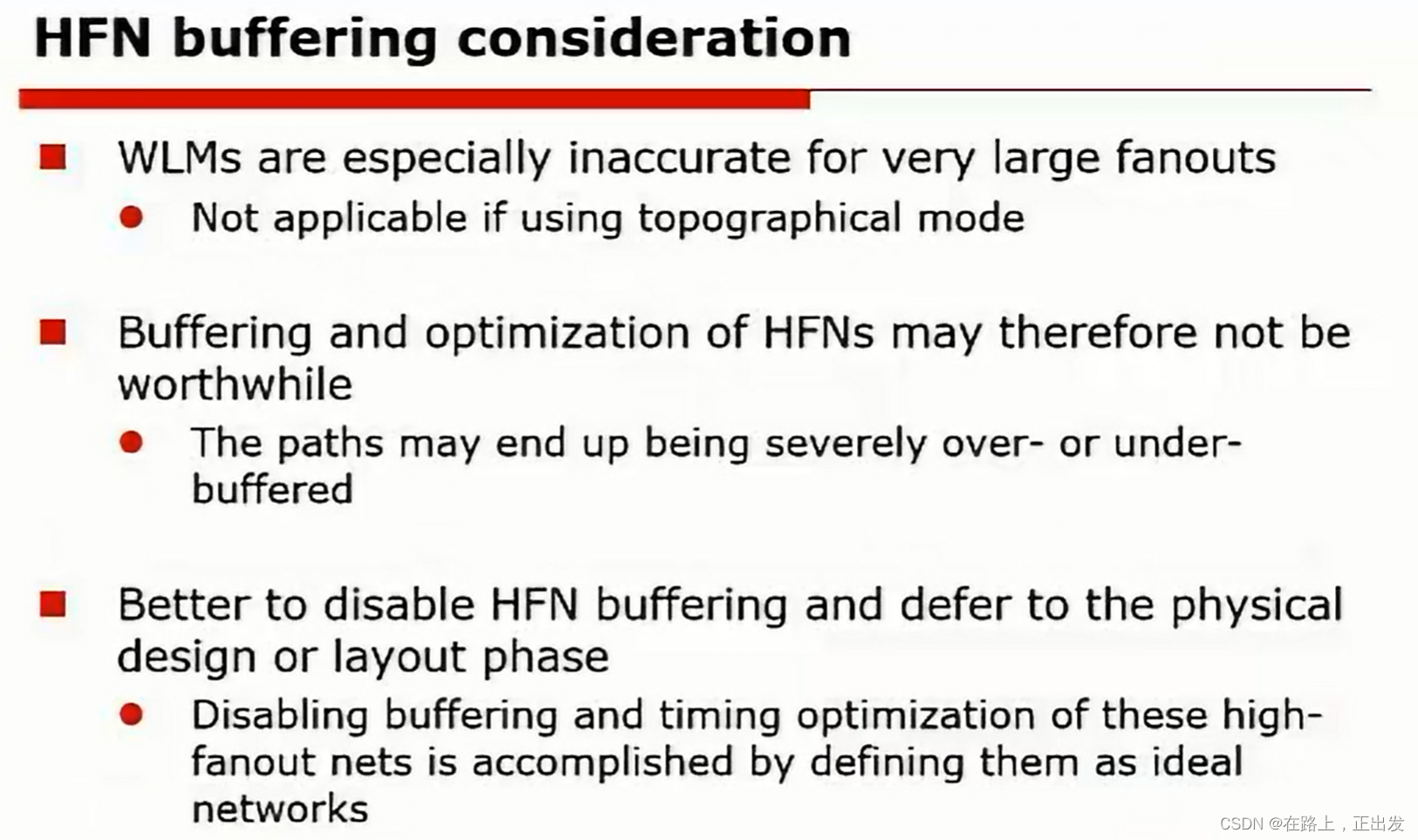

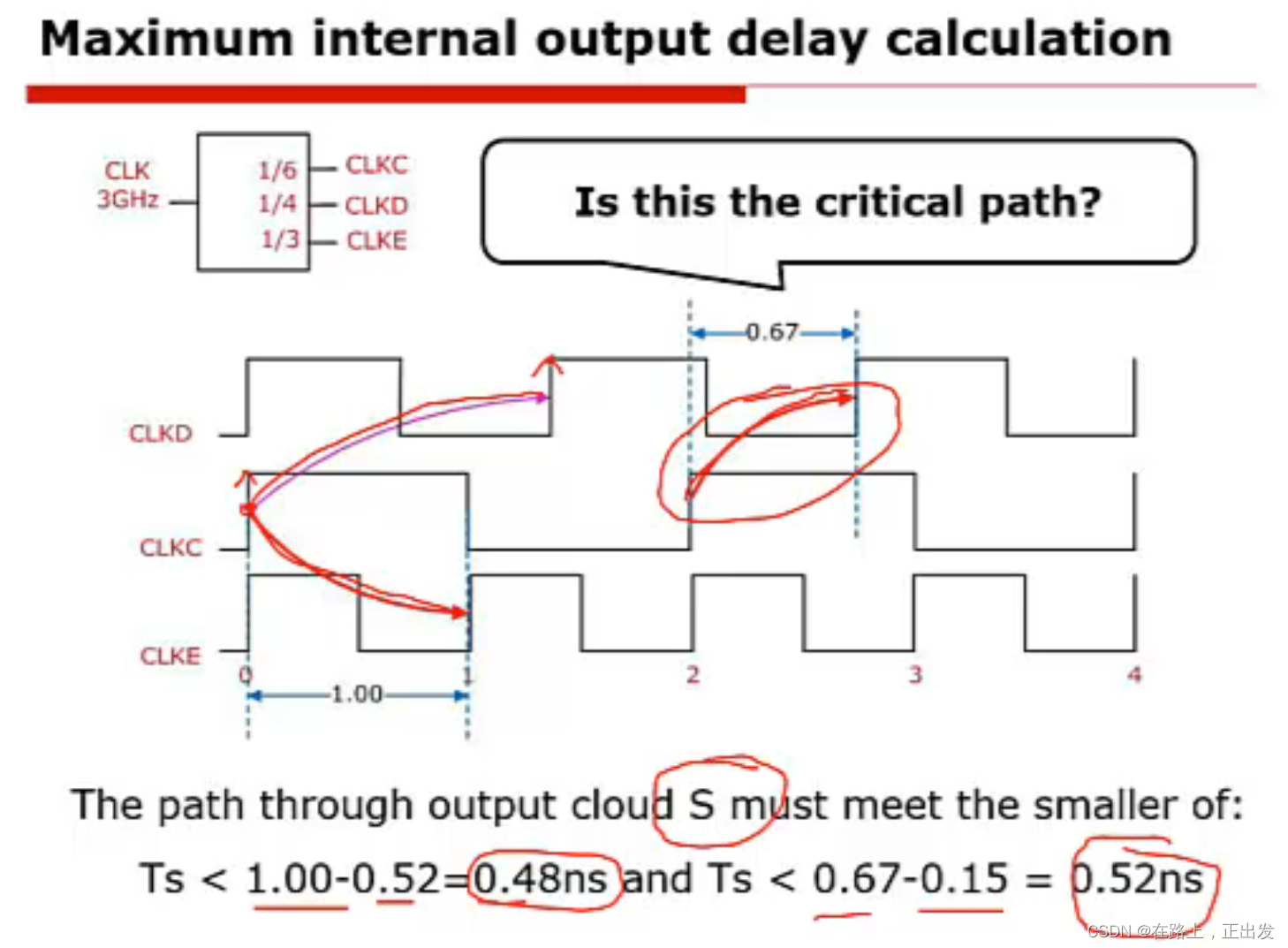

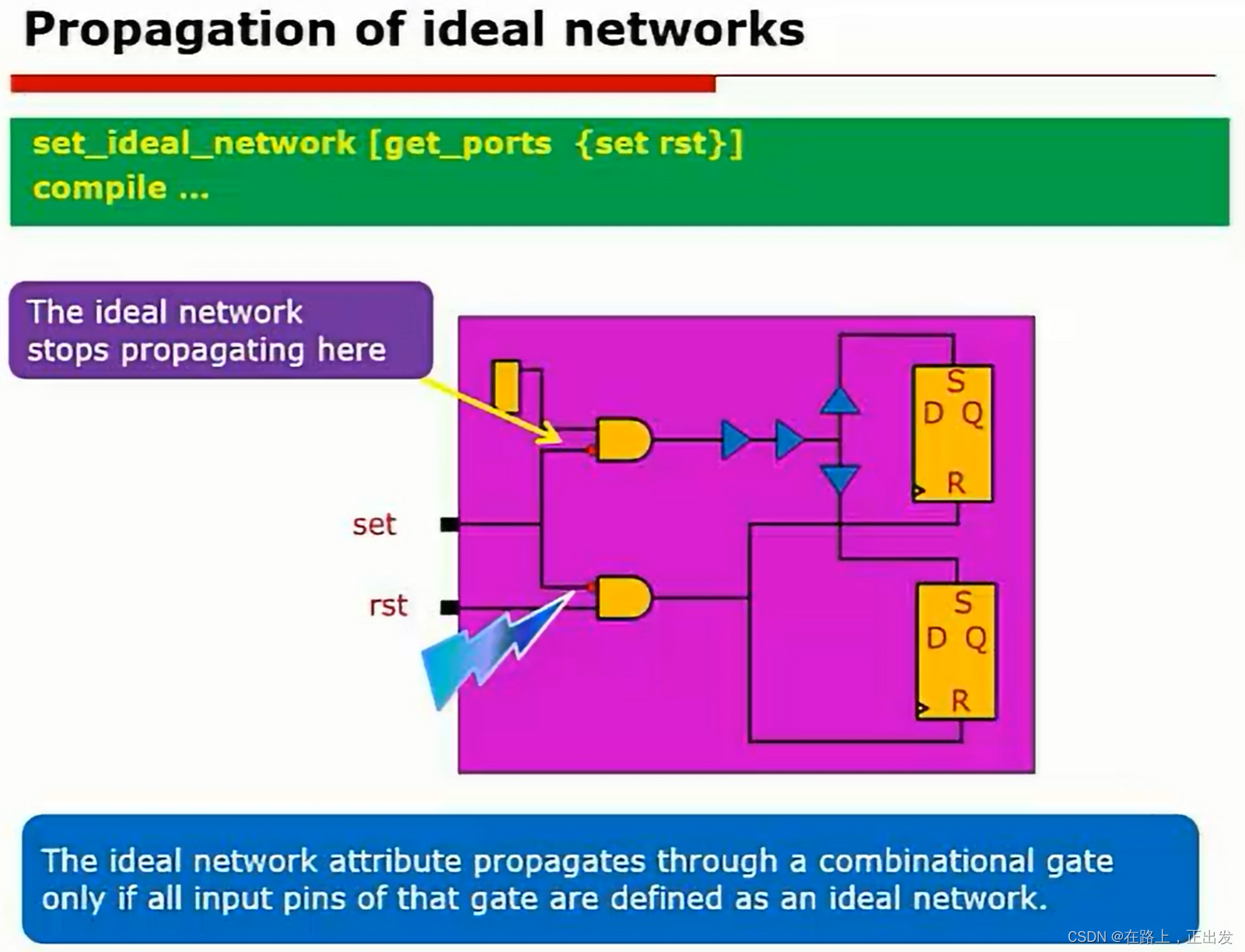

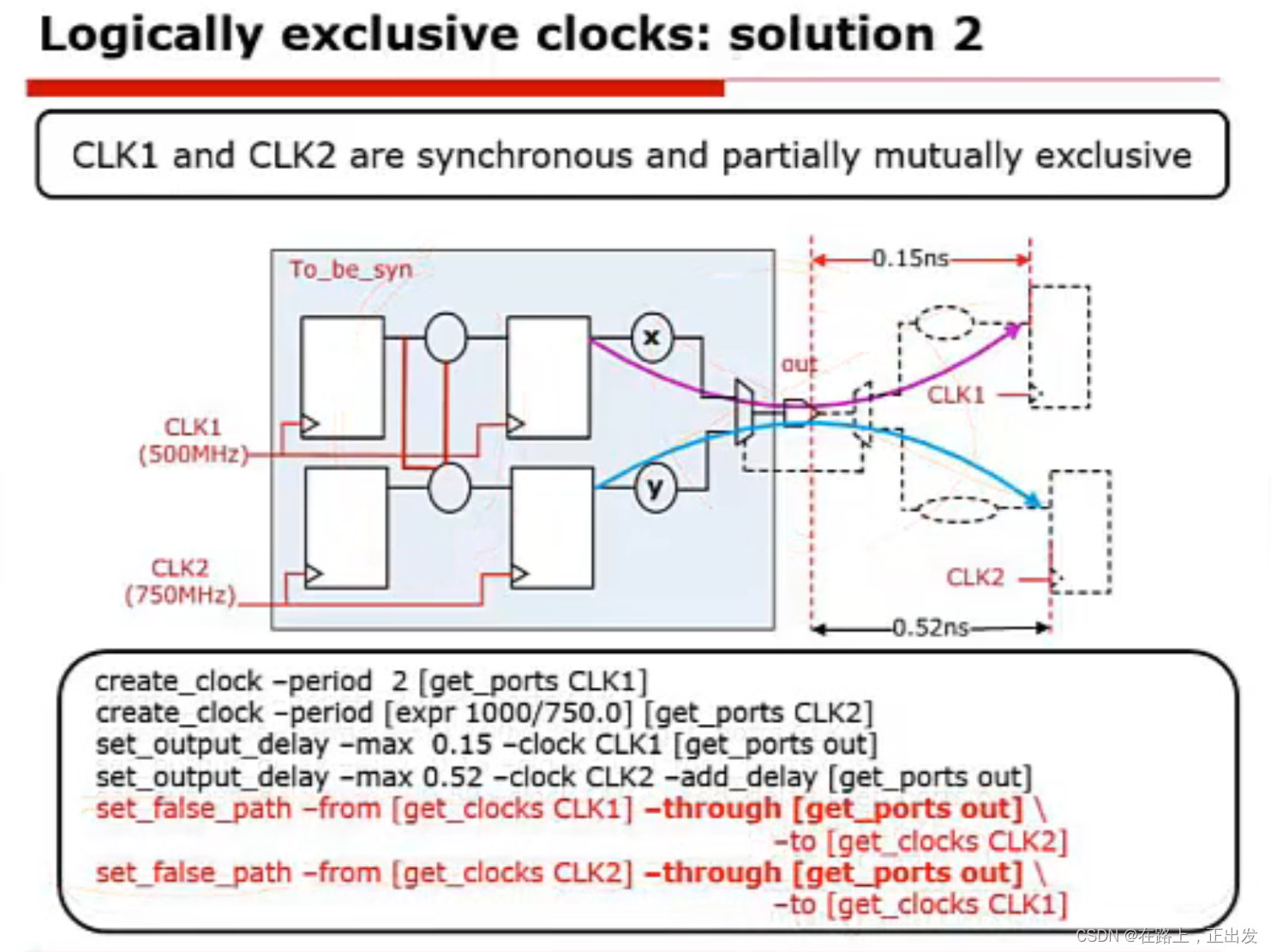

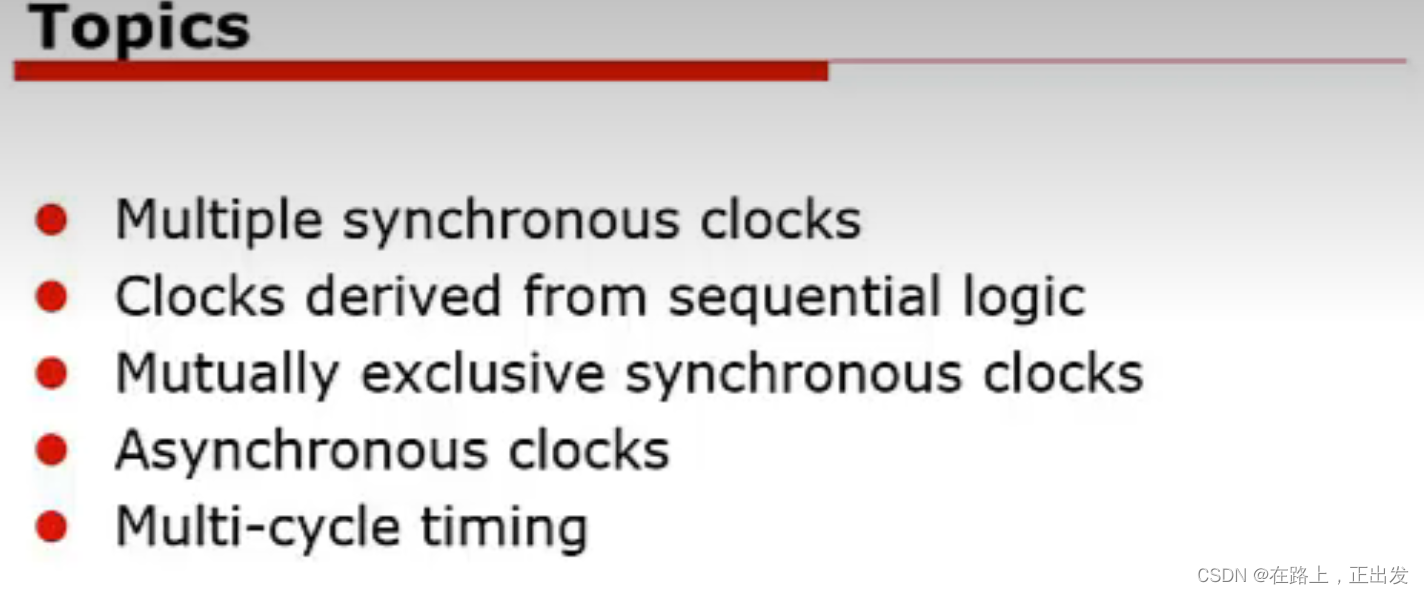

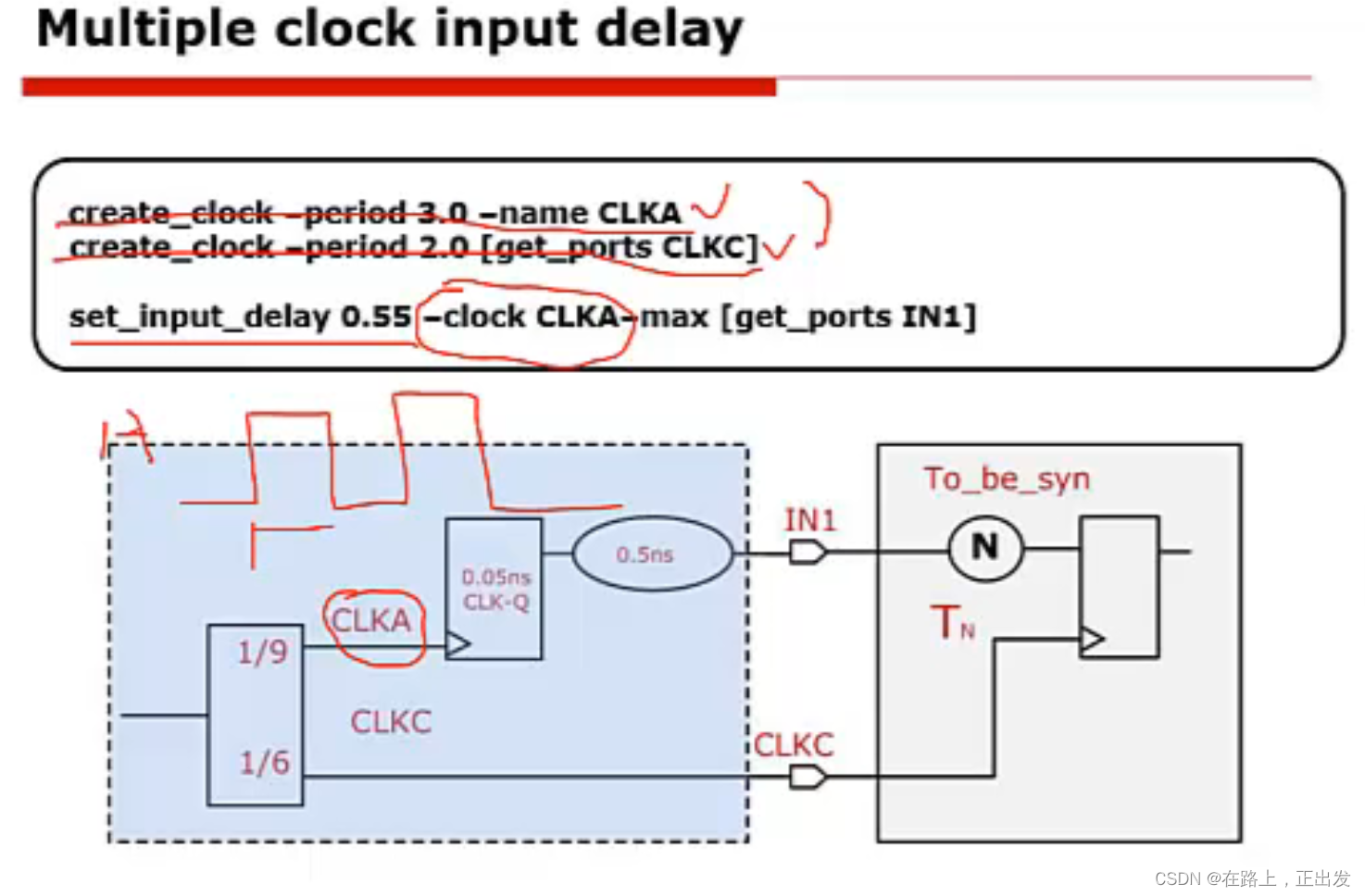

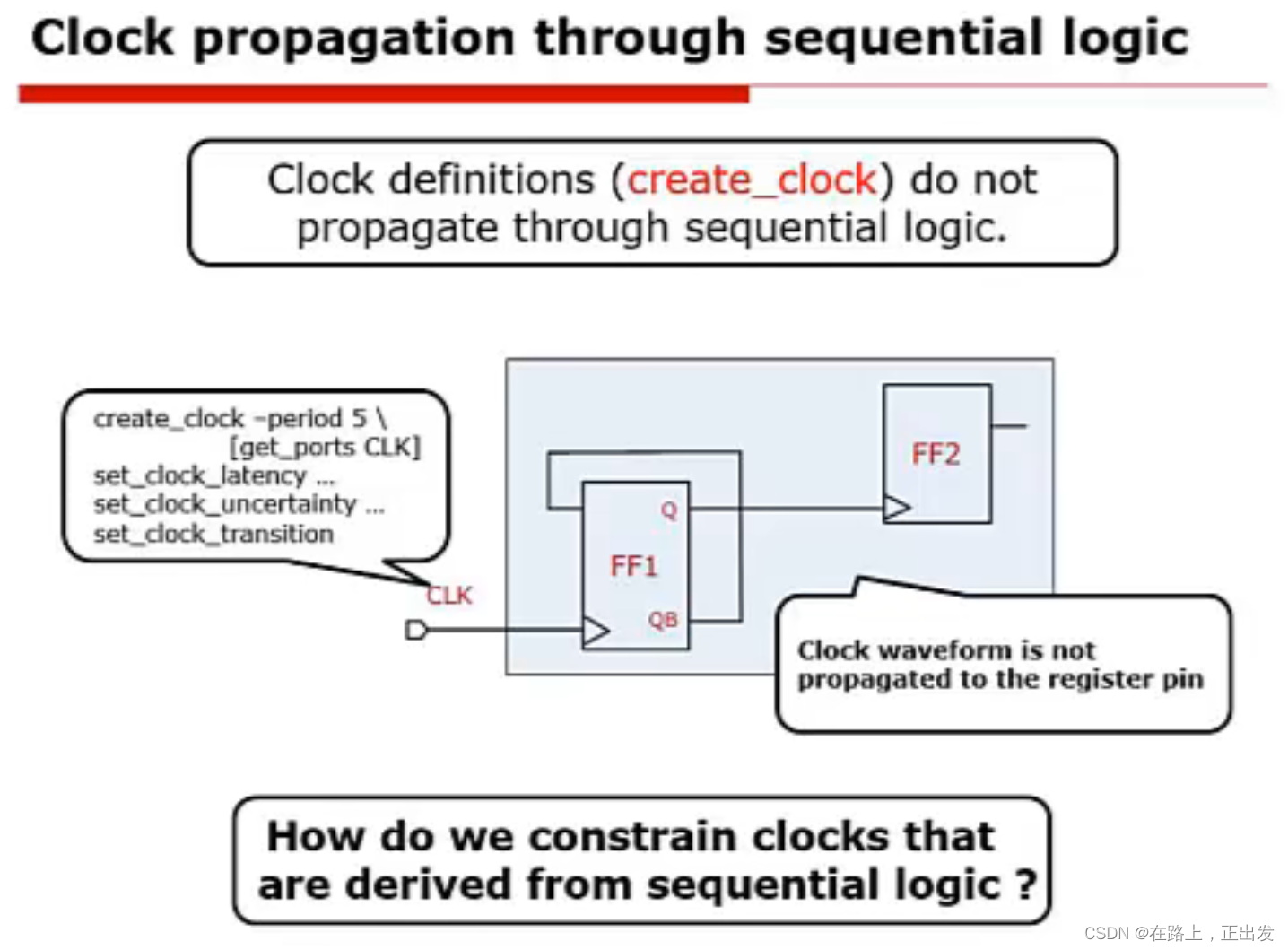

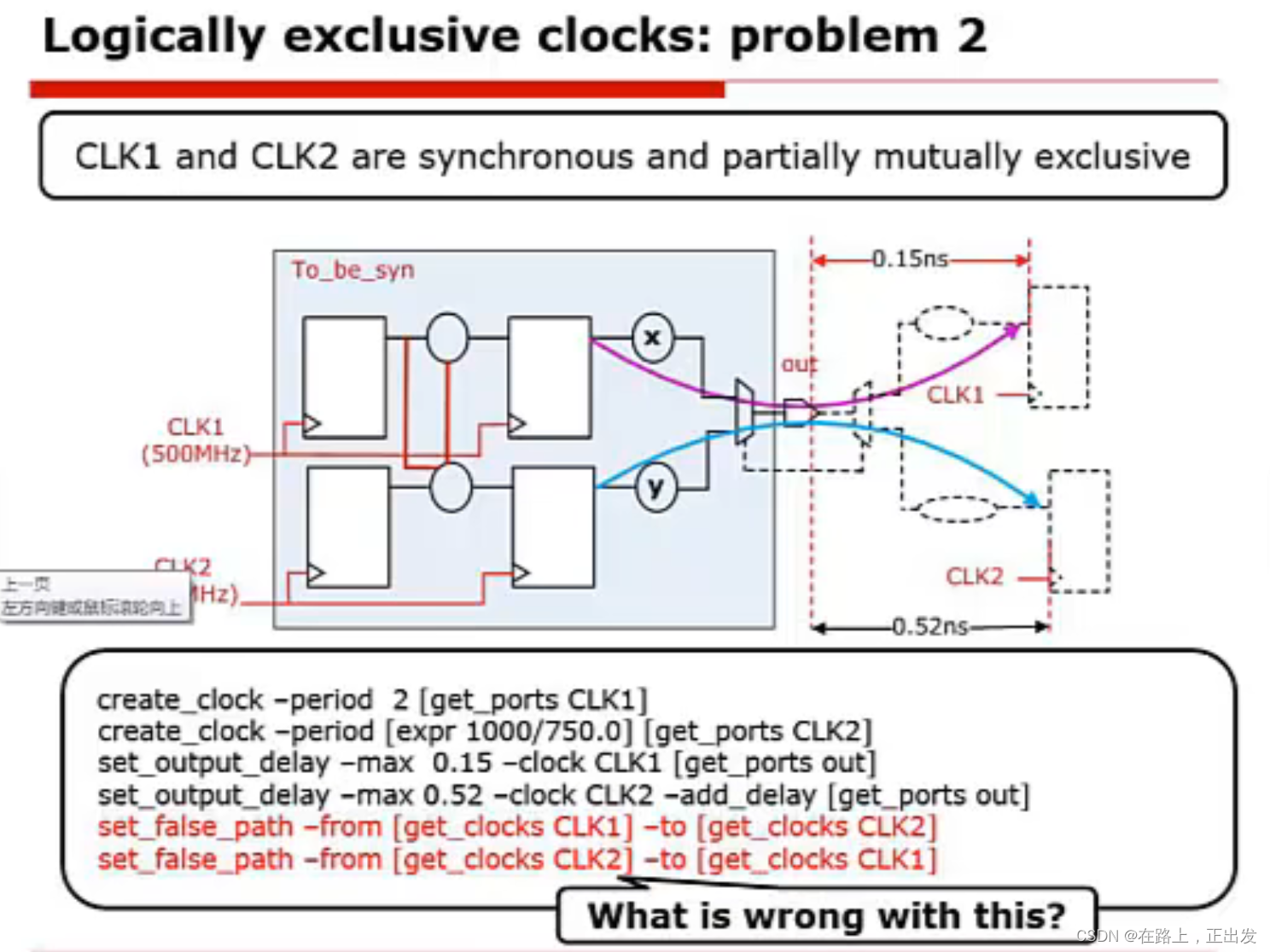

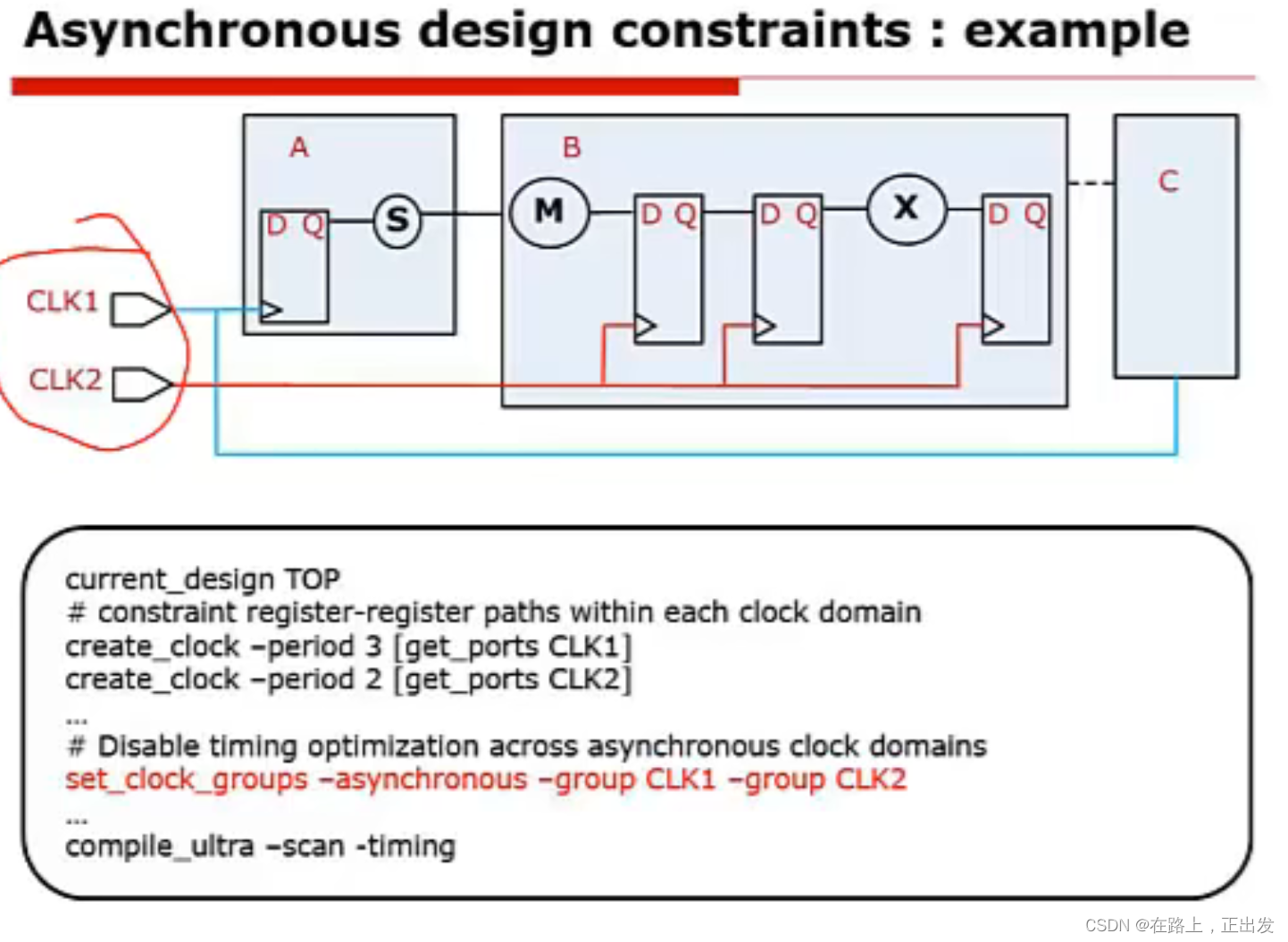

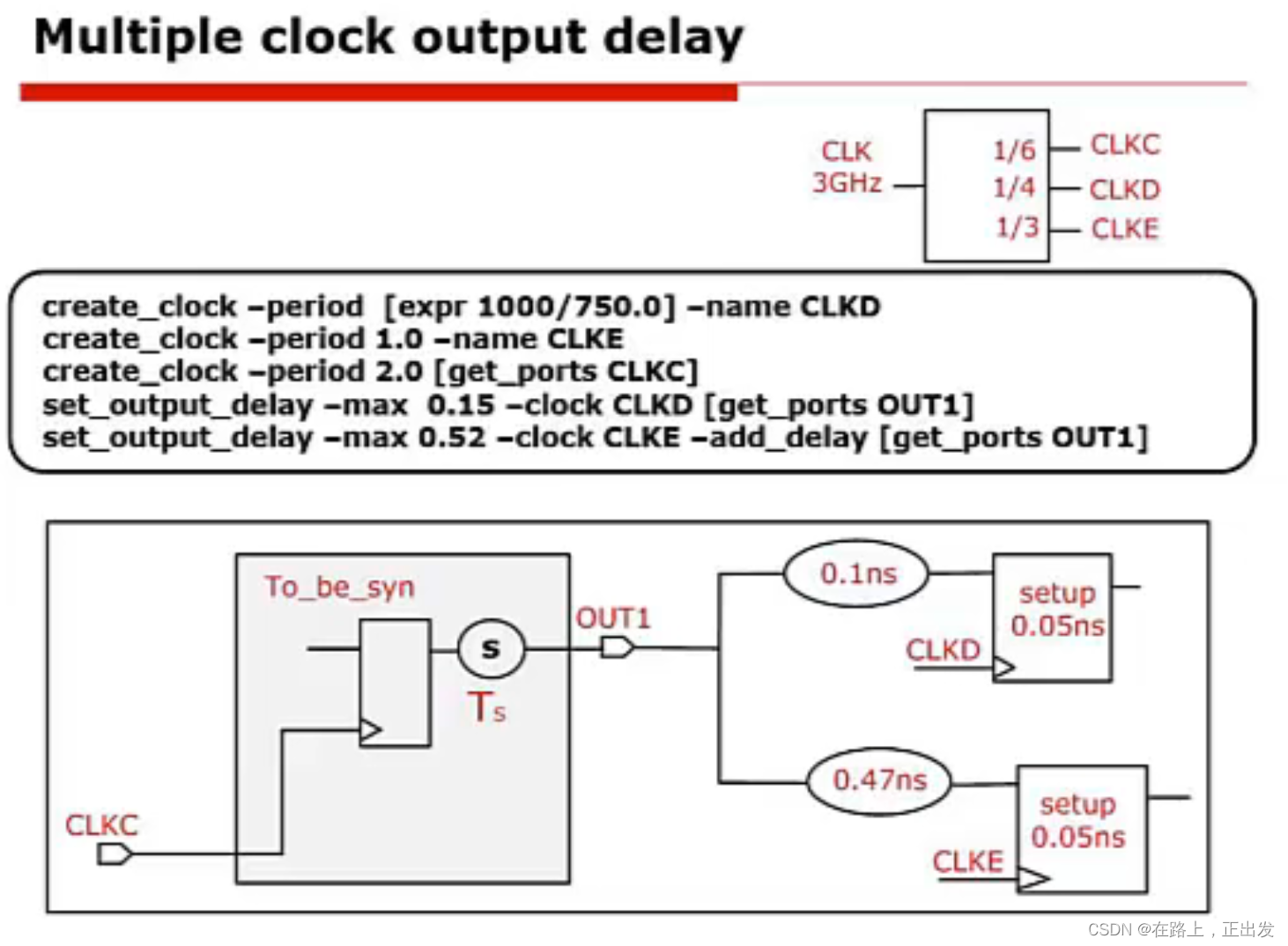

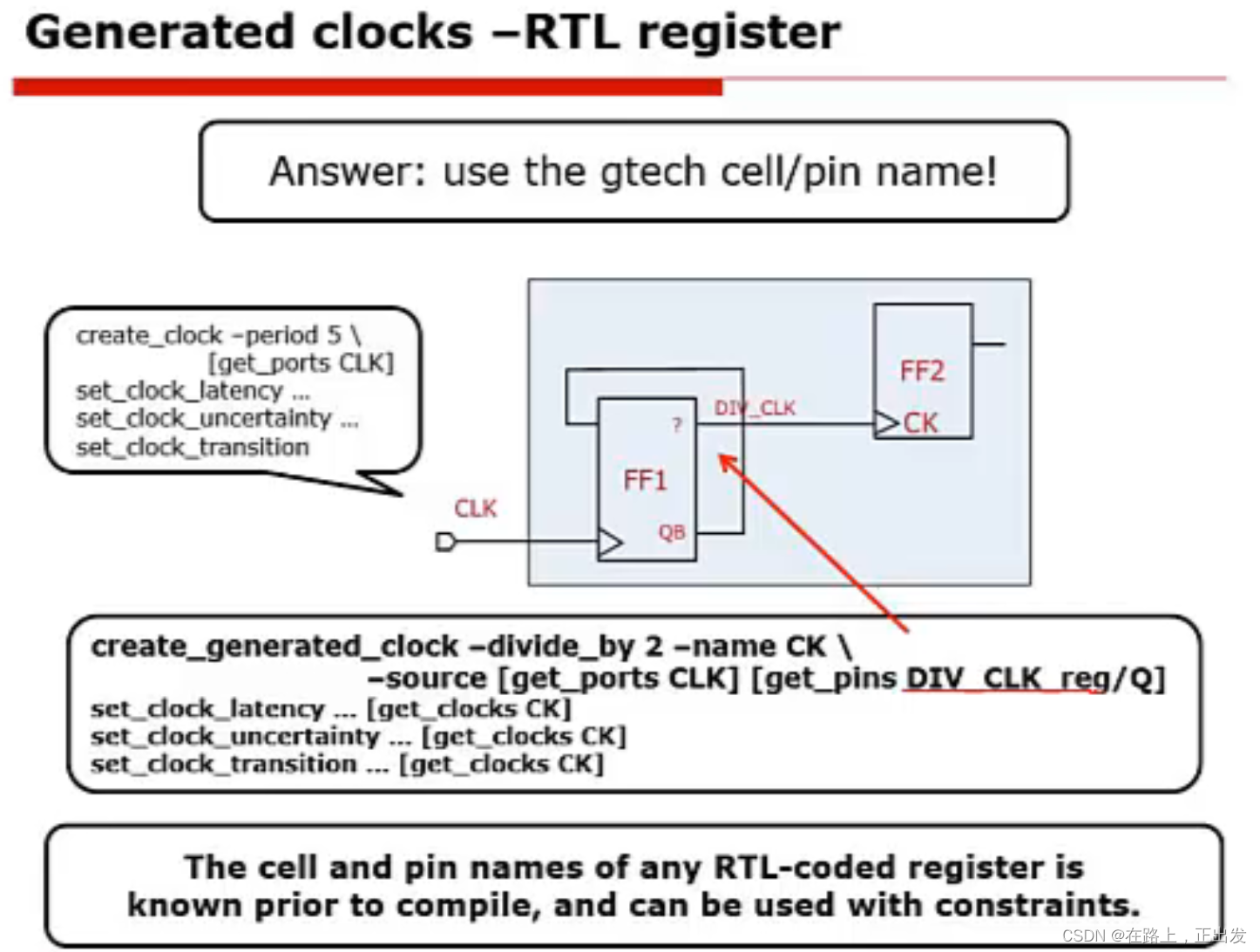

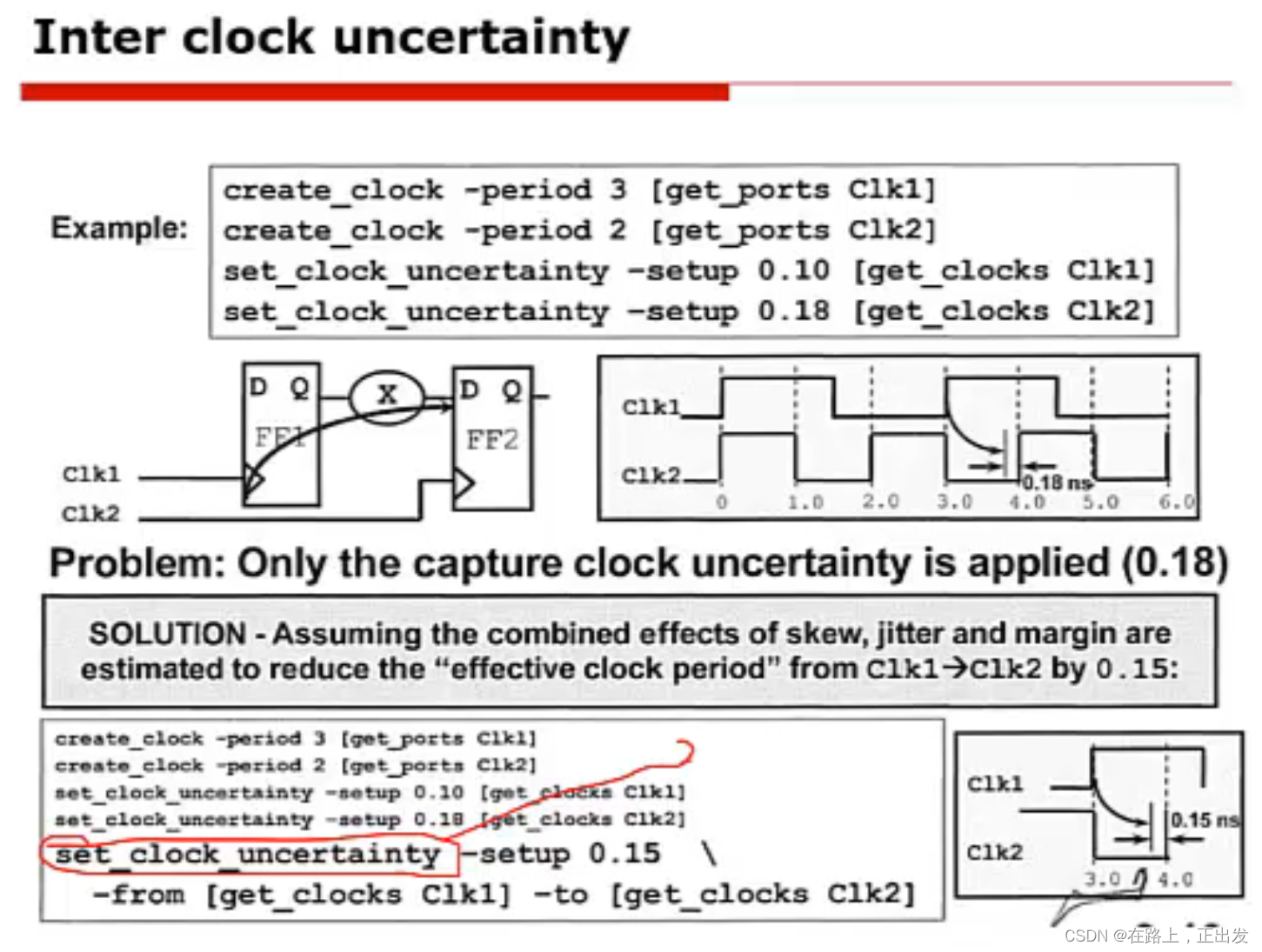

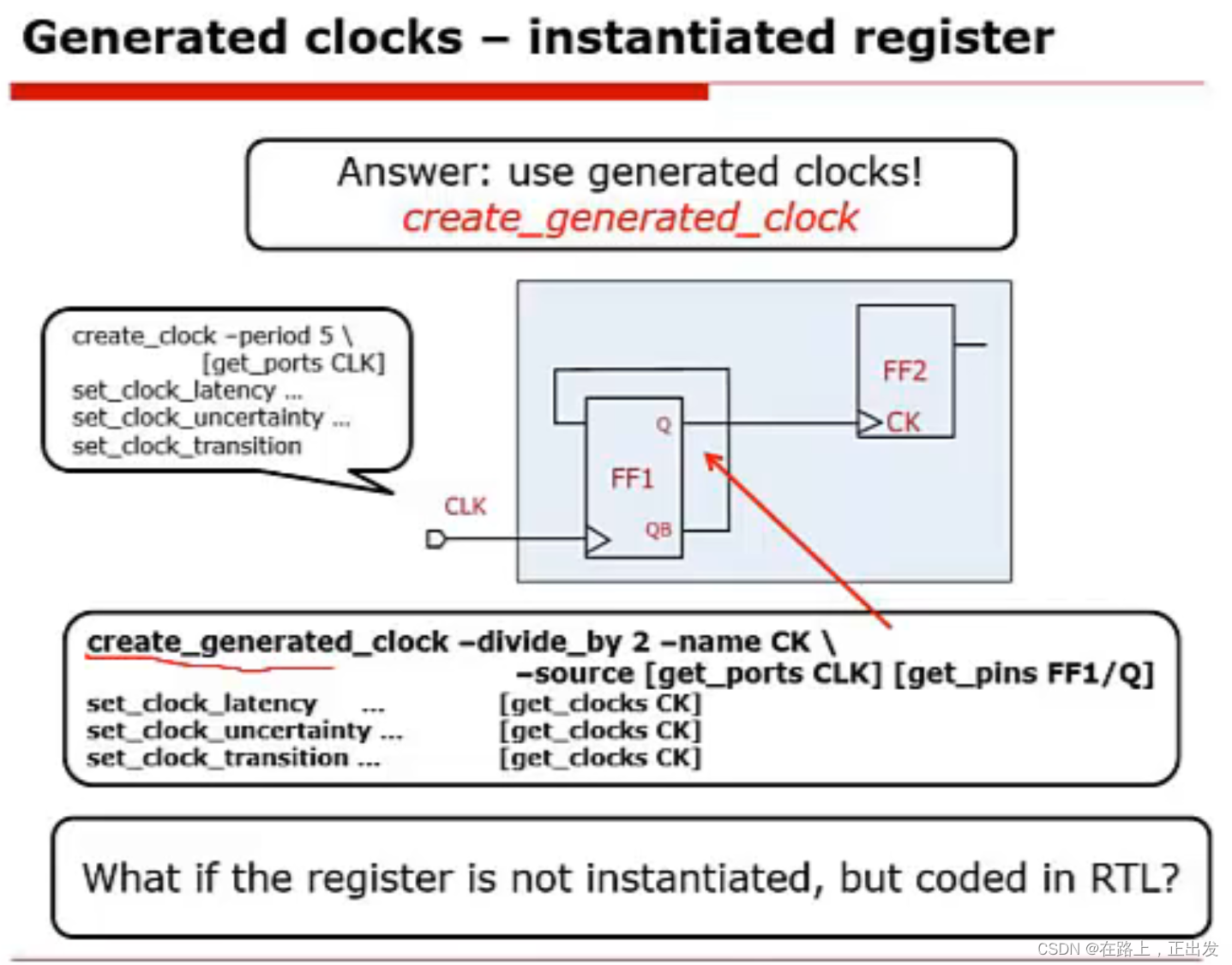

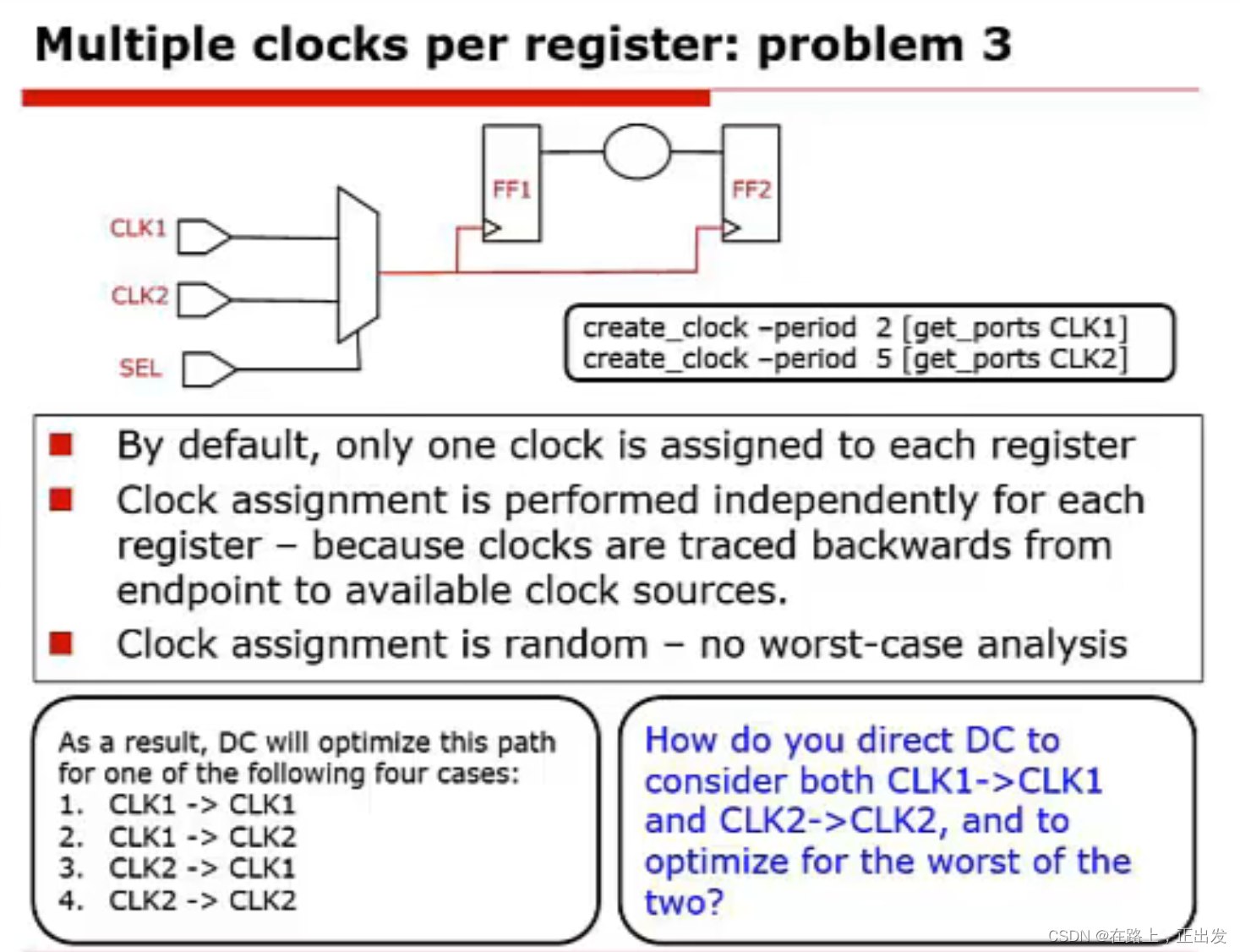

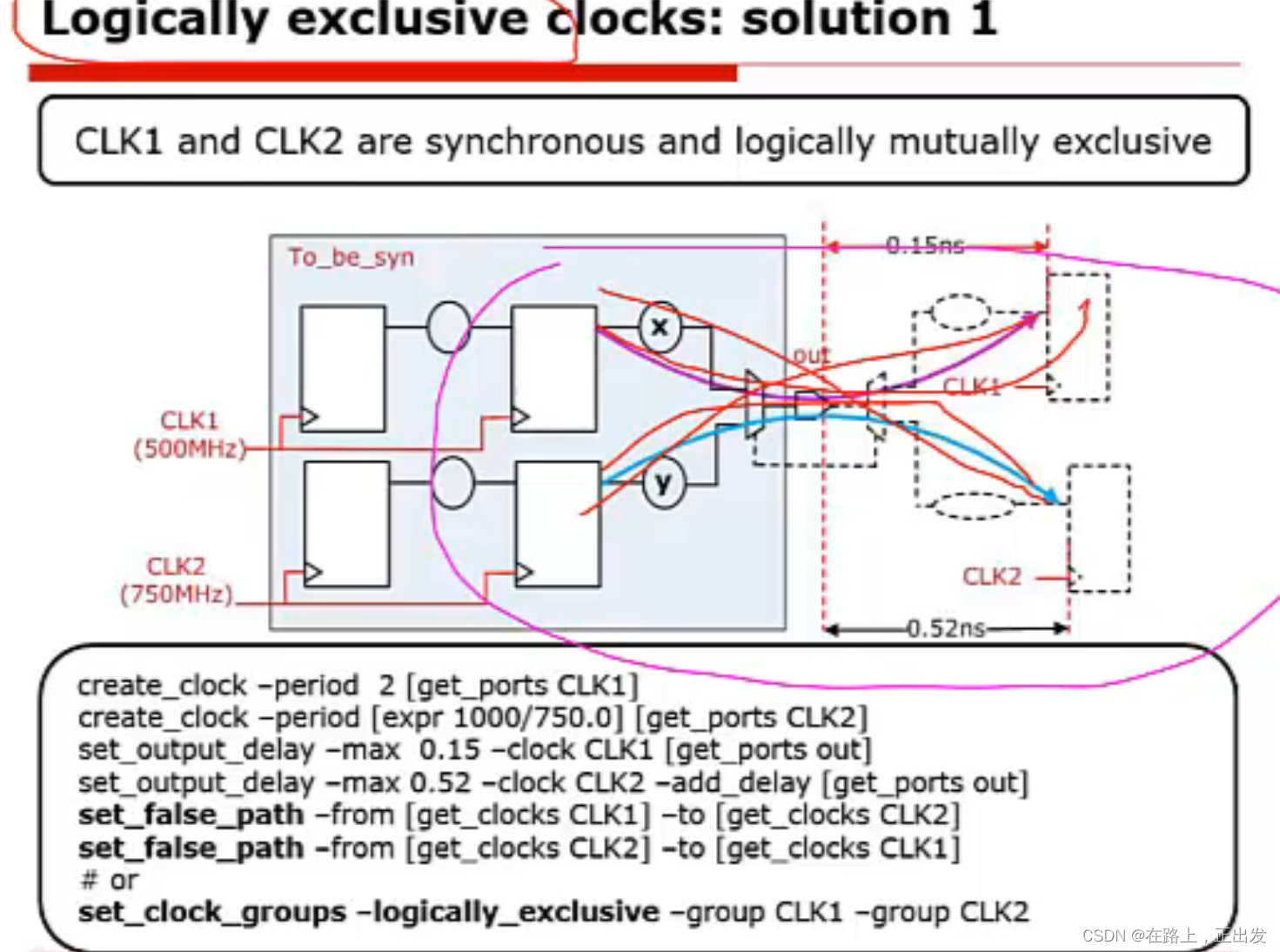

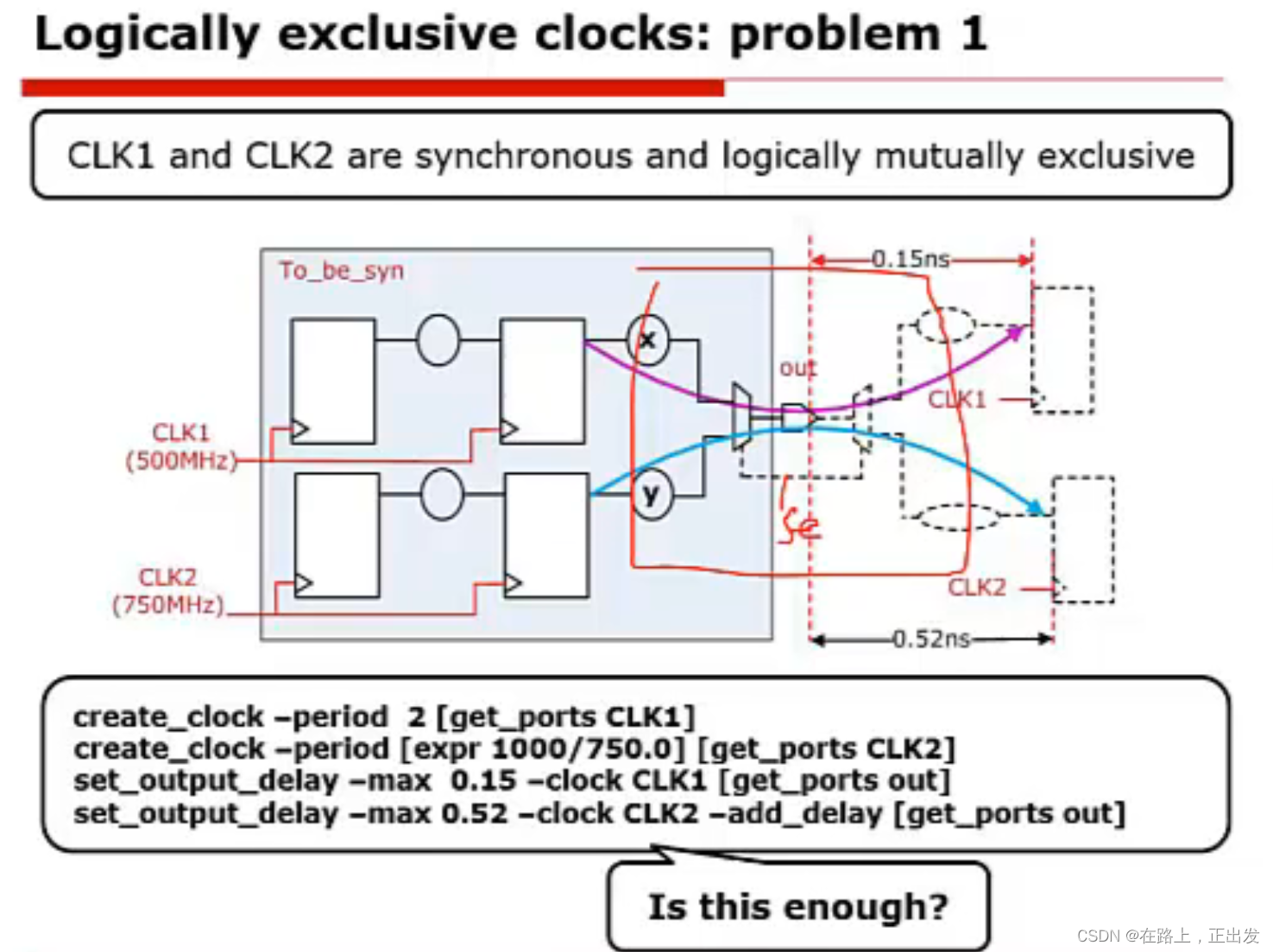

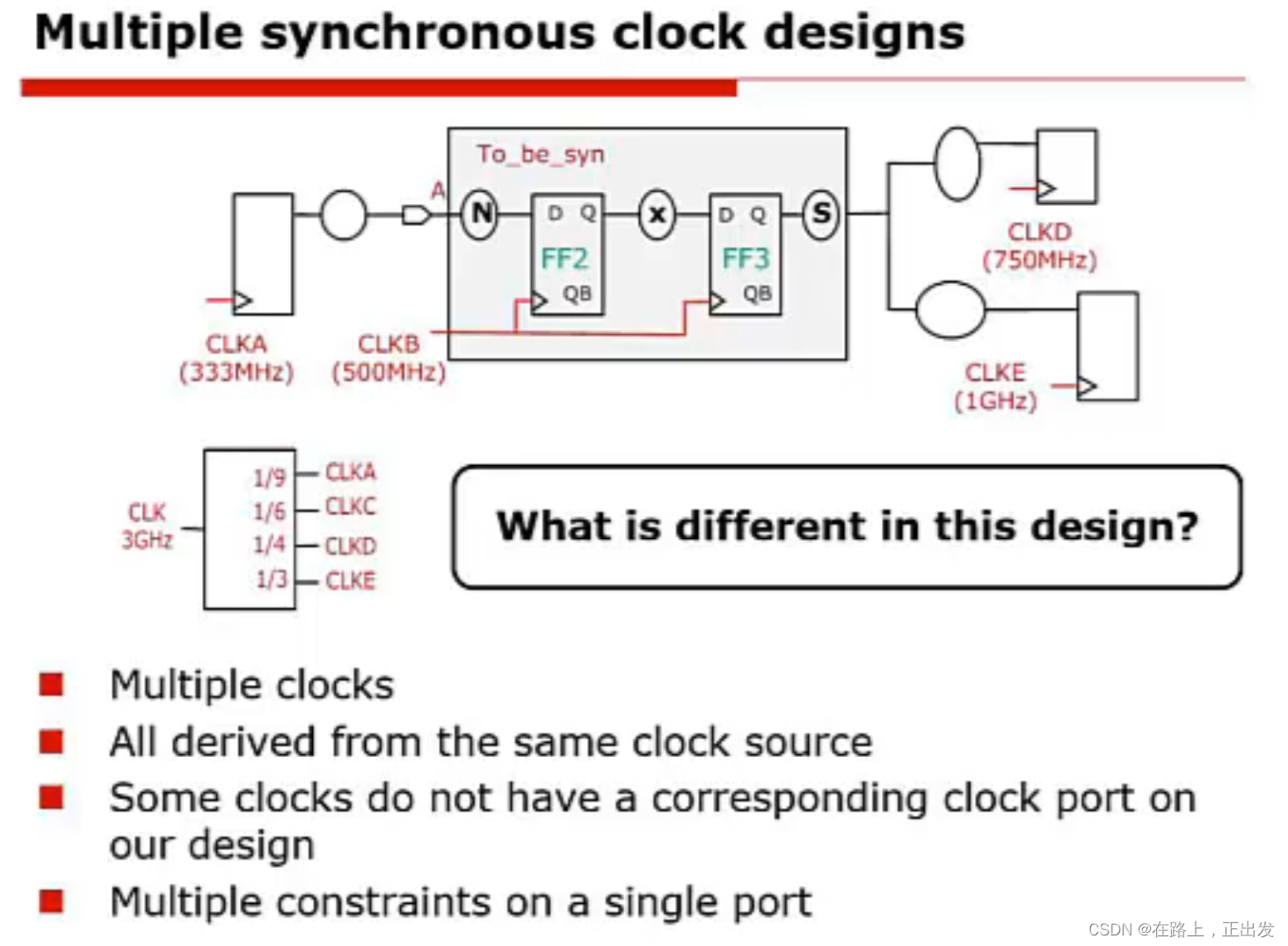

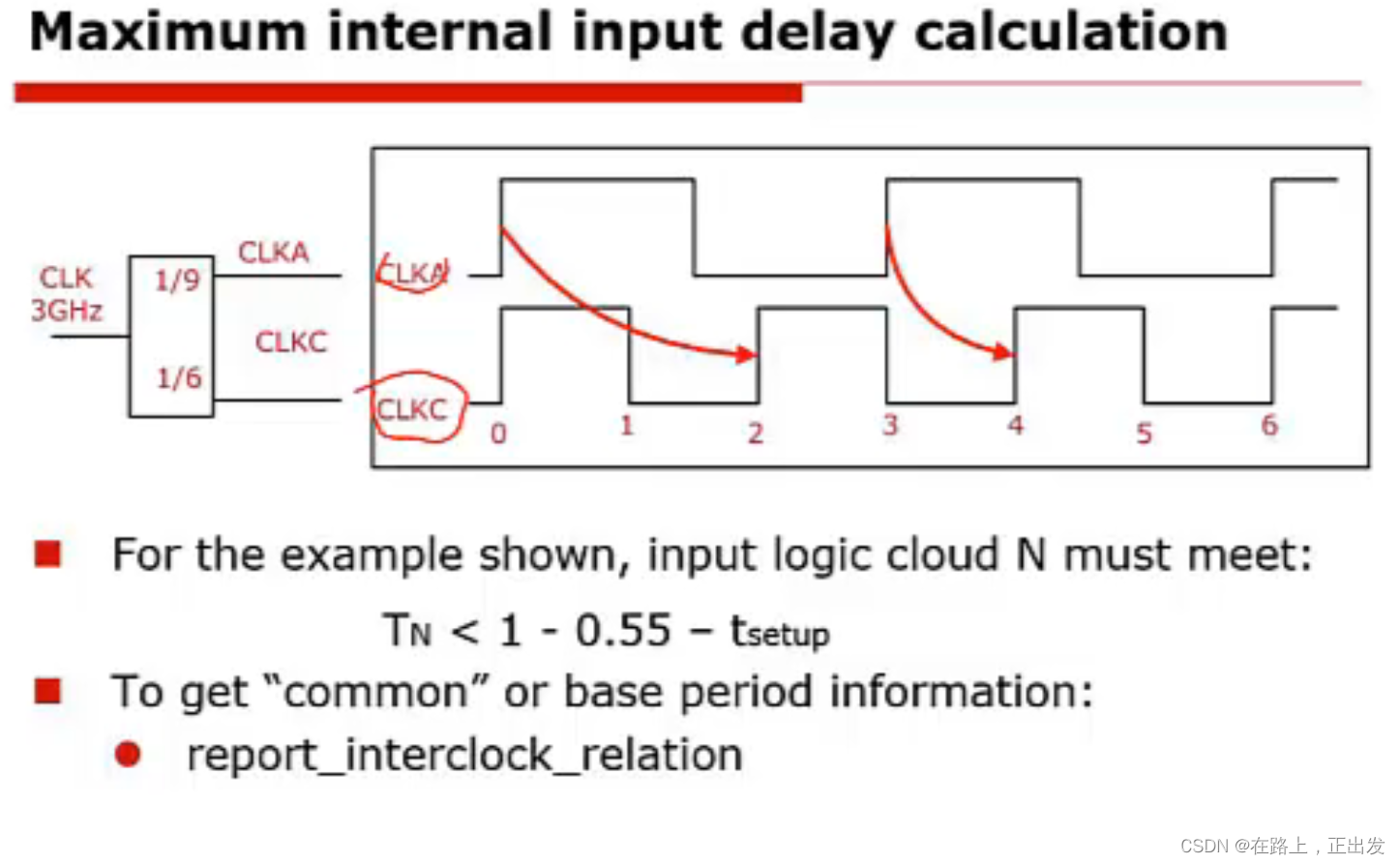

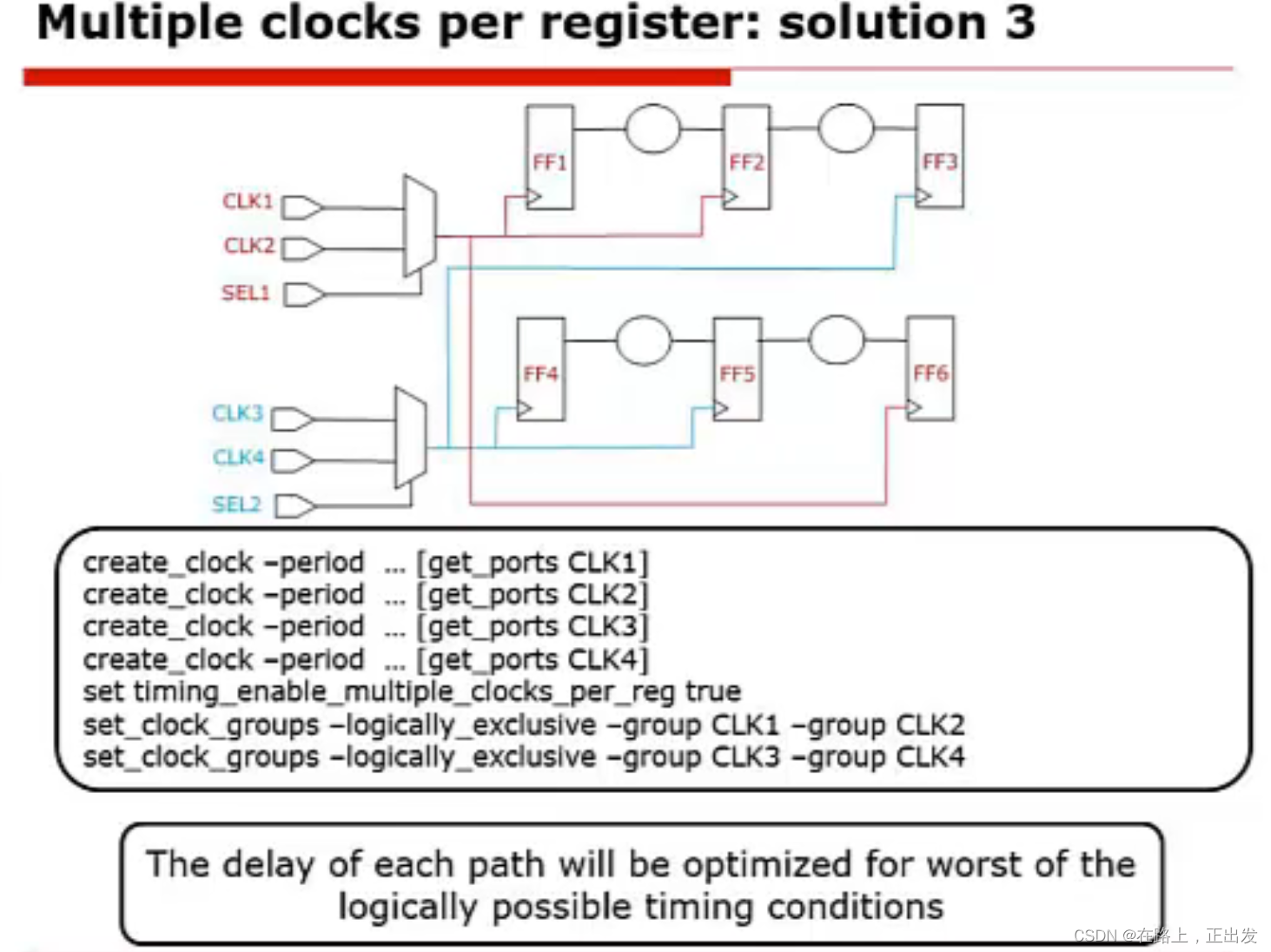

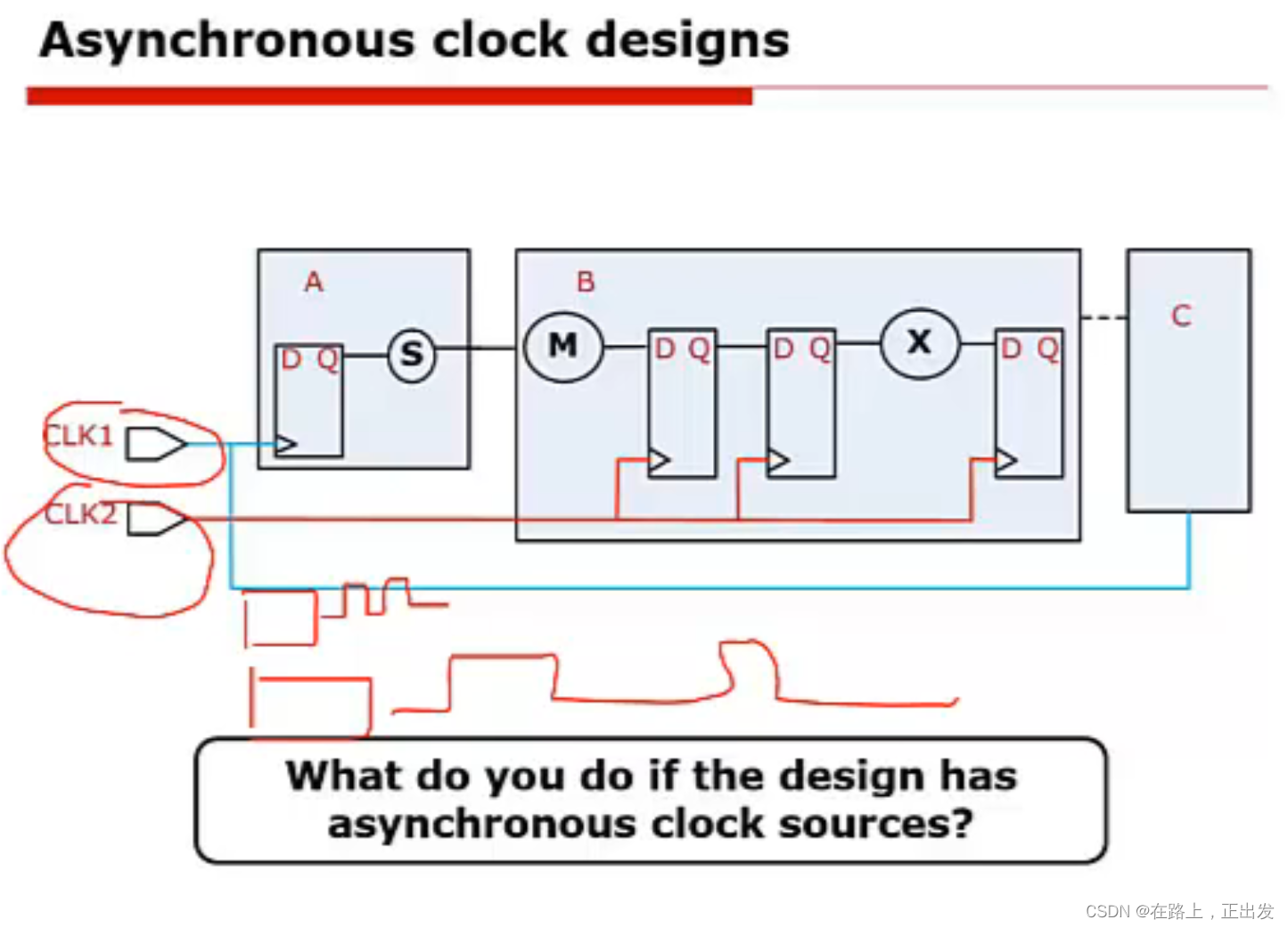

多时钟设计

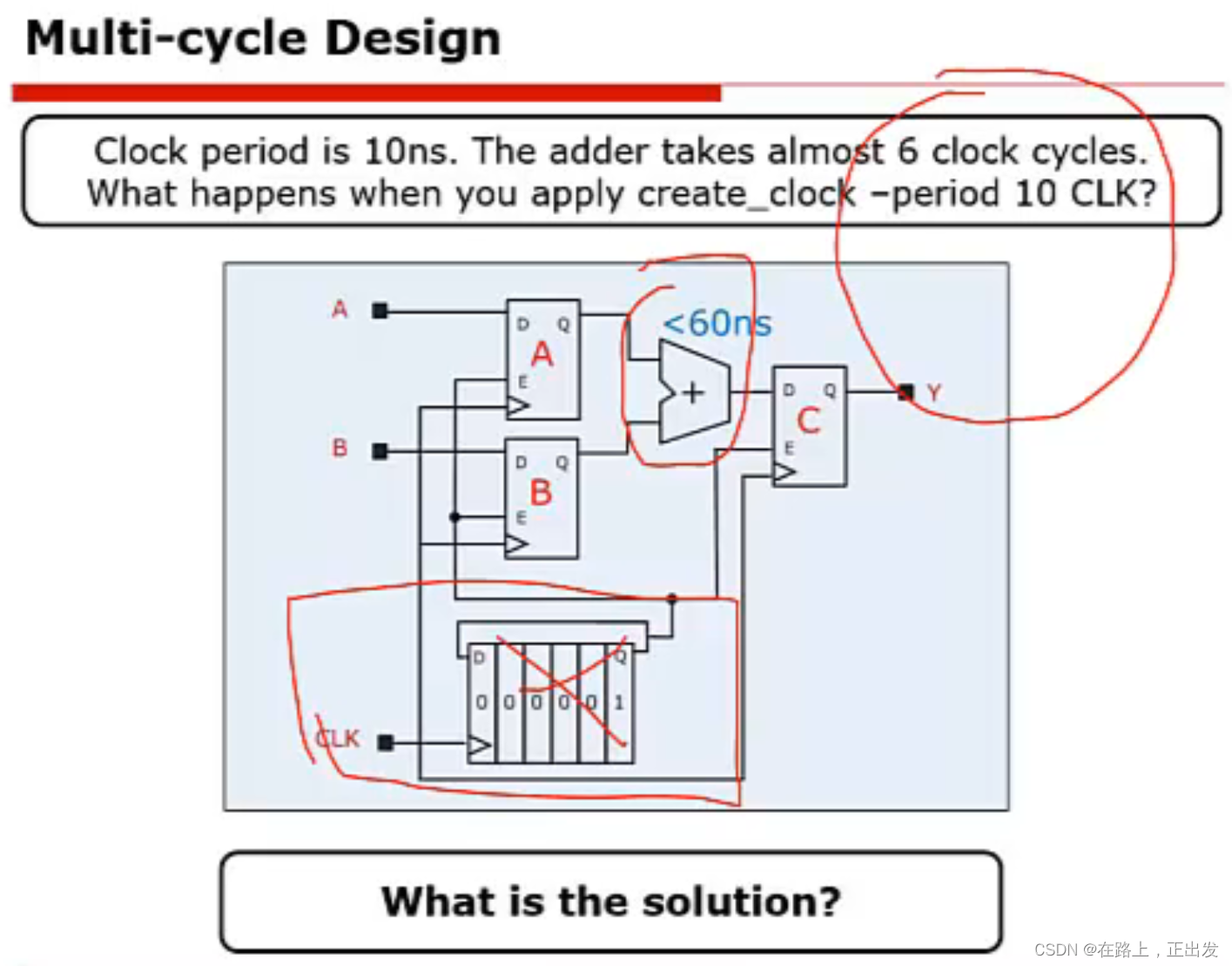

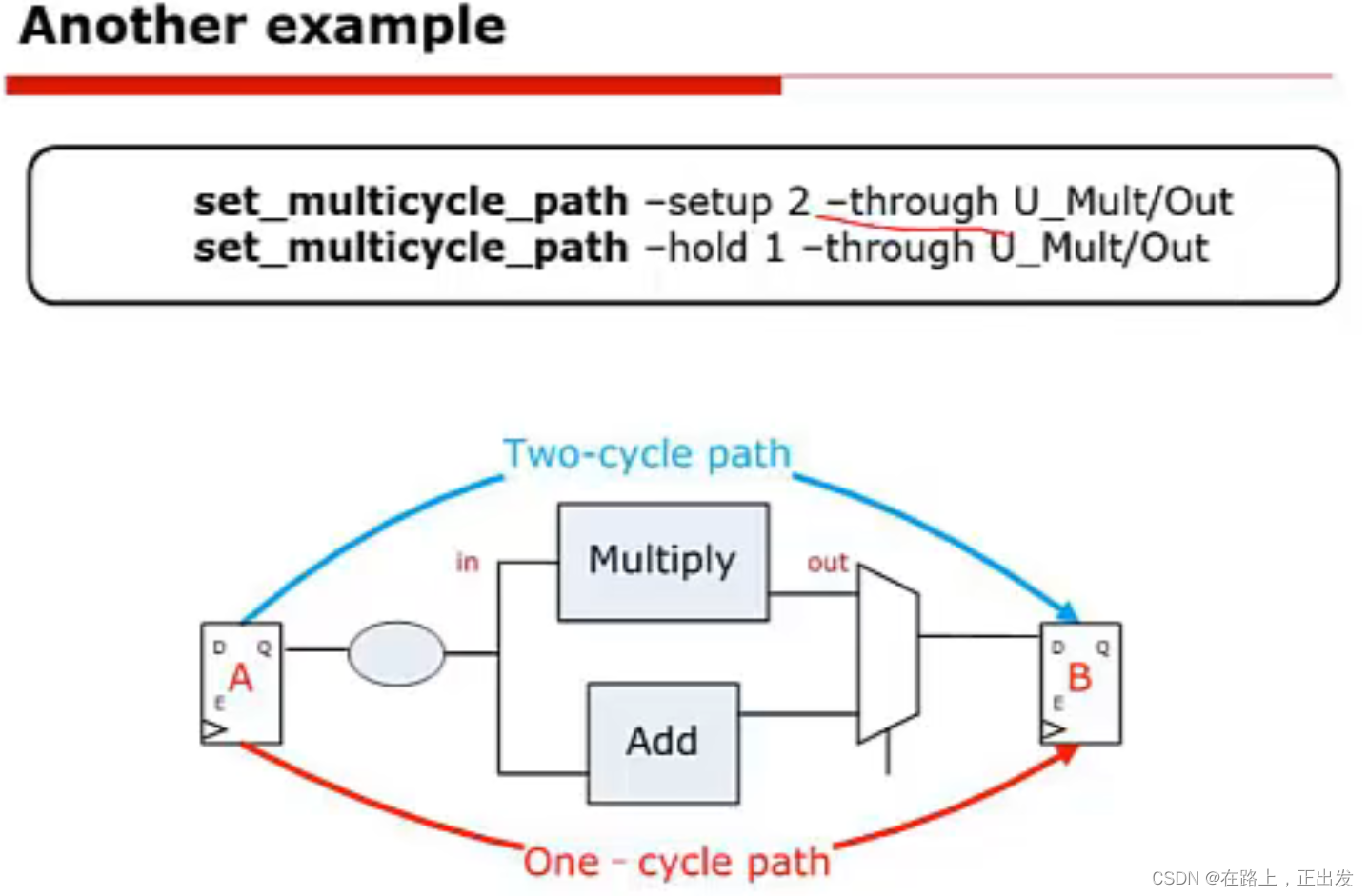

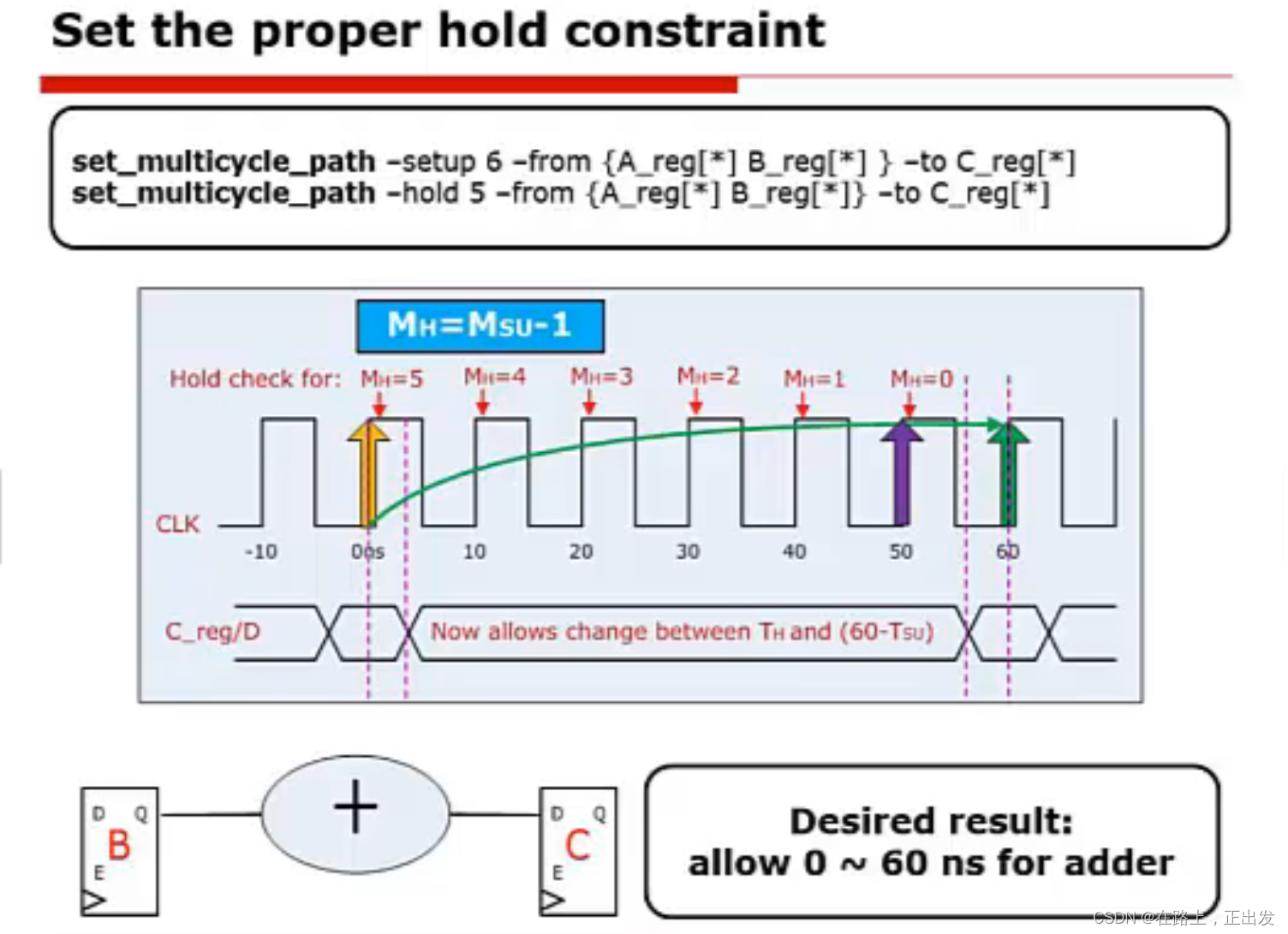

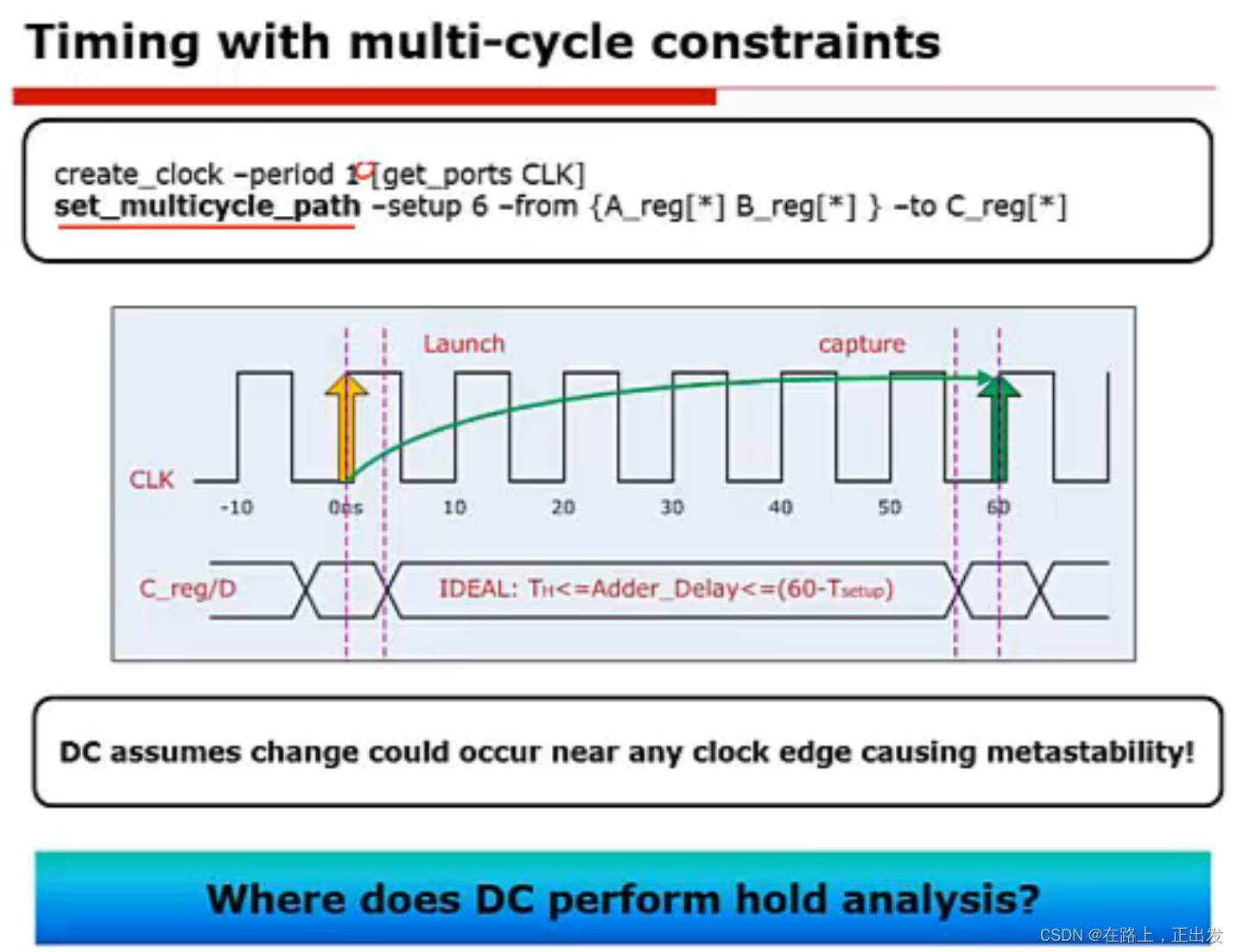

多周期约束时，对应的设计代码也需要修改。比如使能信号、数据有效信号需要延迟相应的时间。

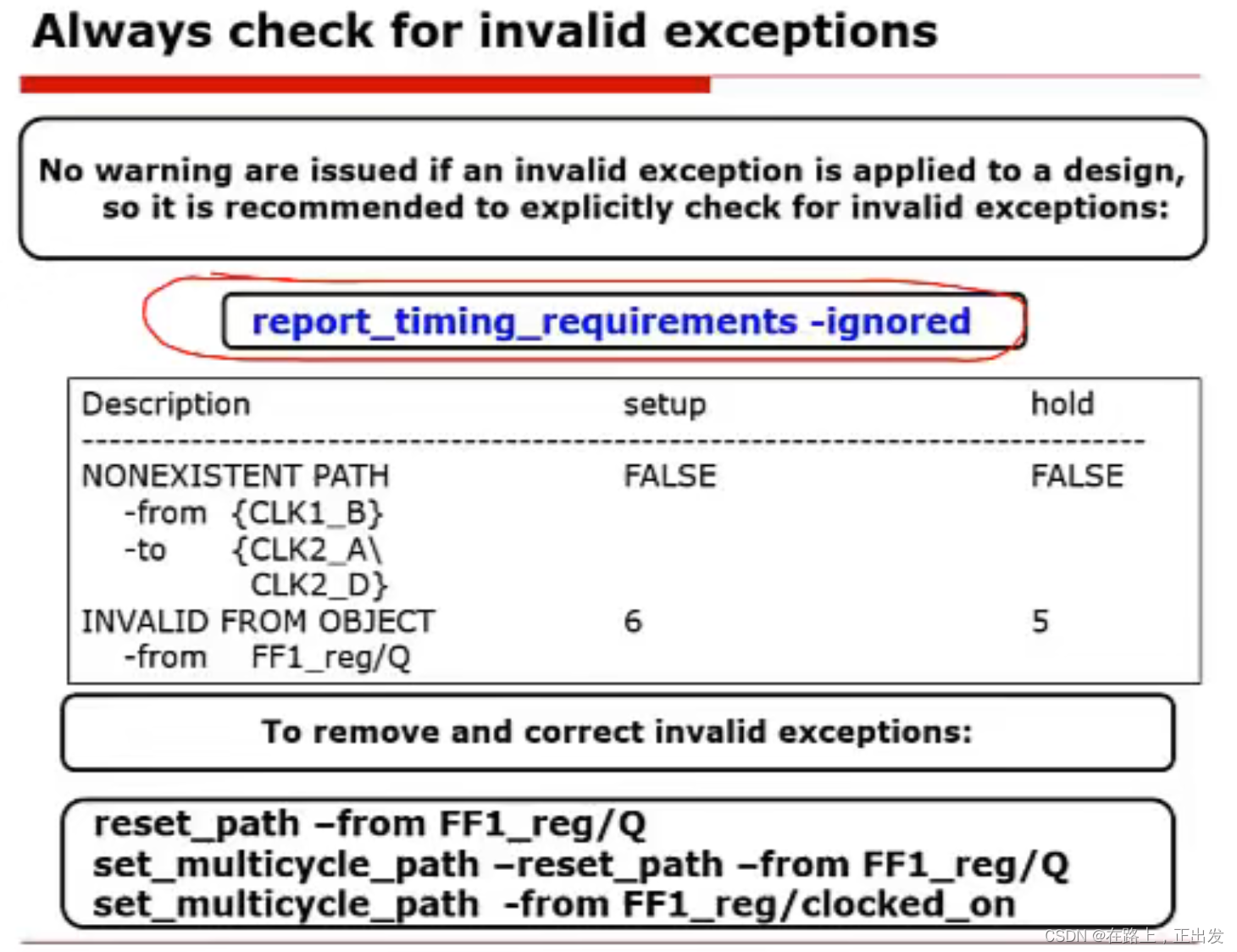

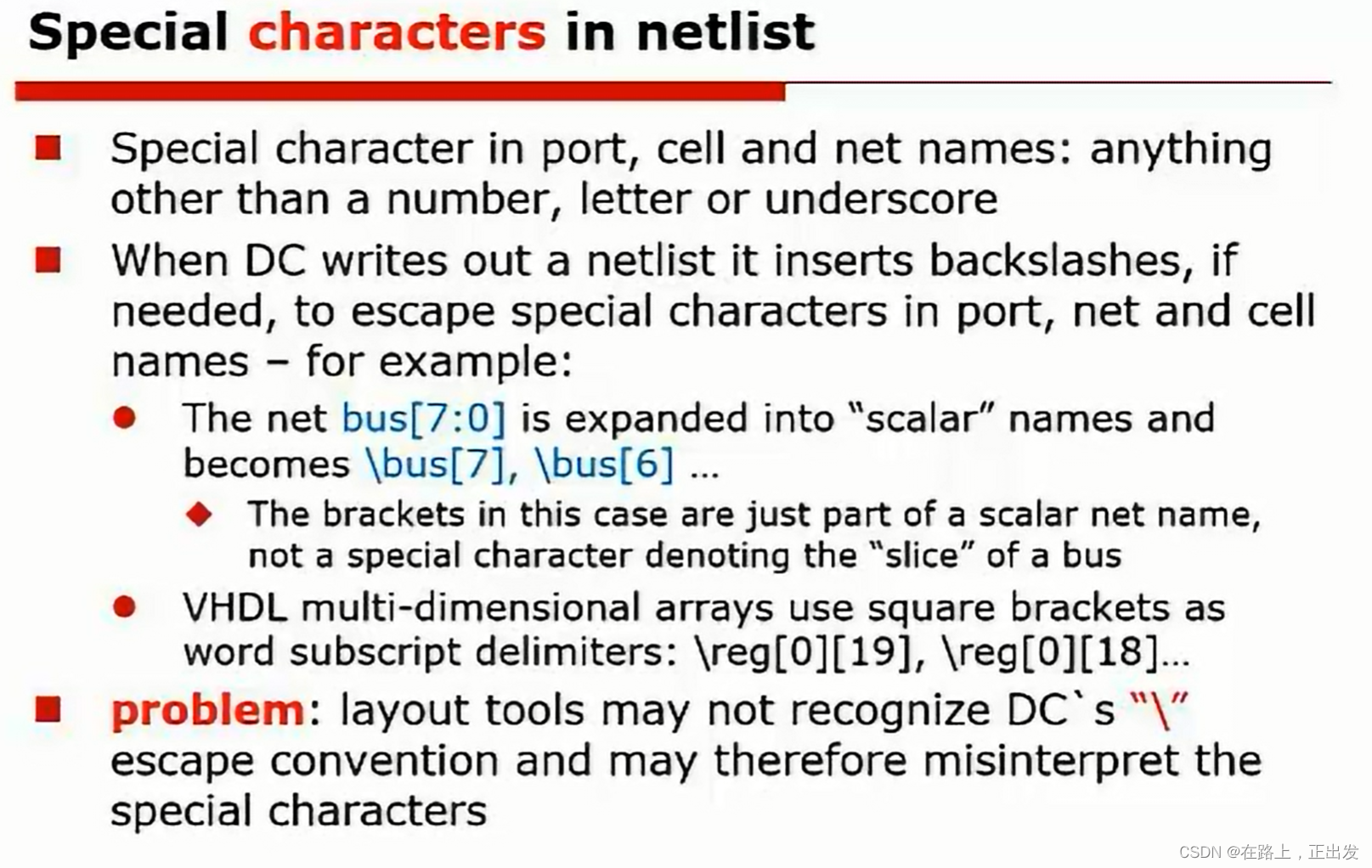

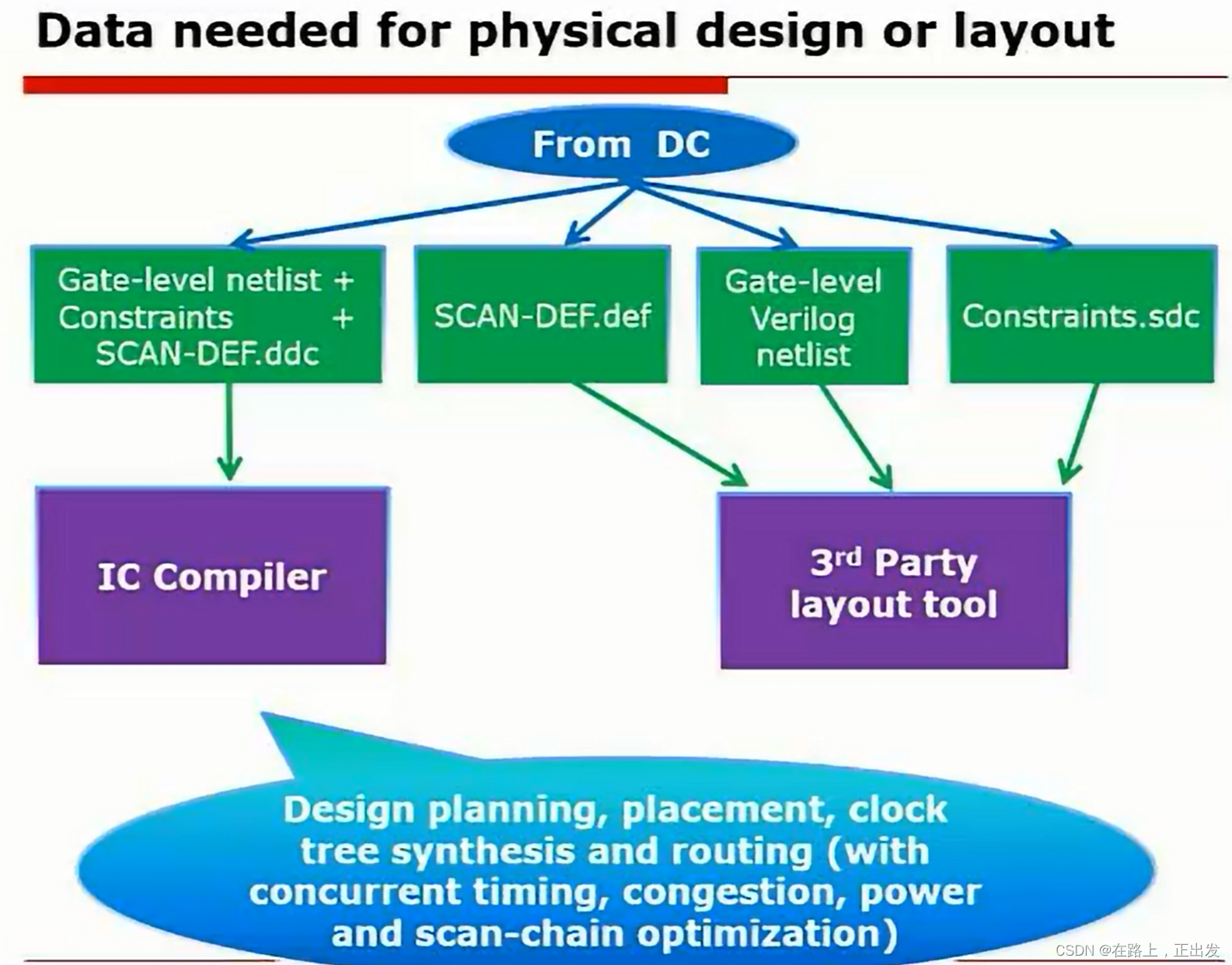

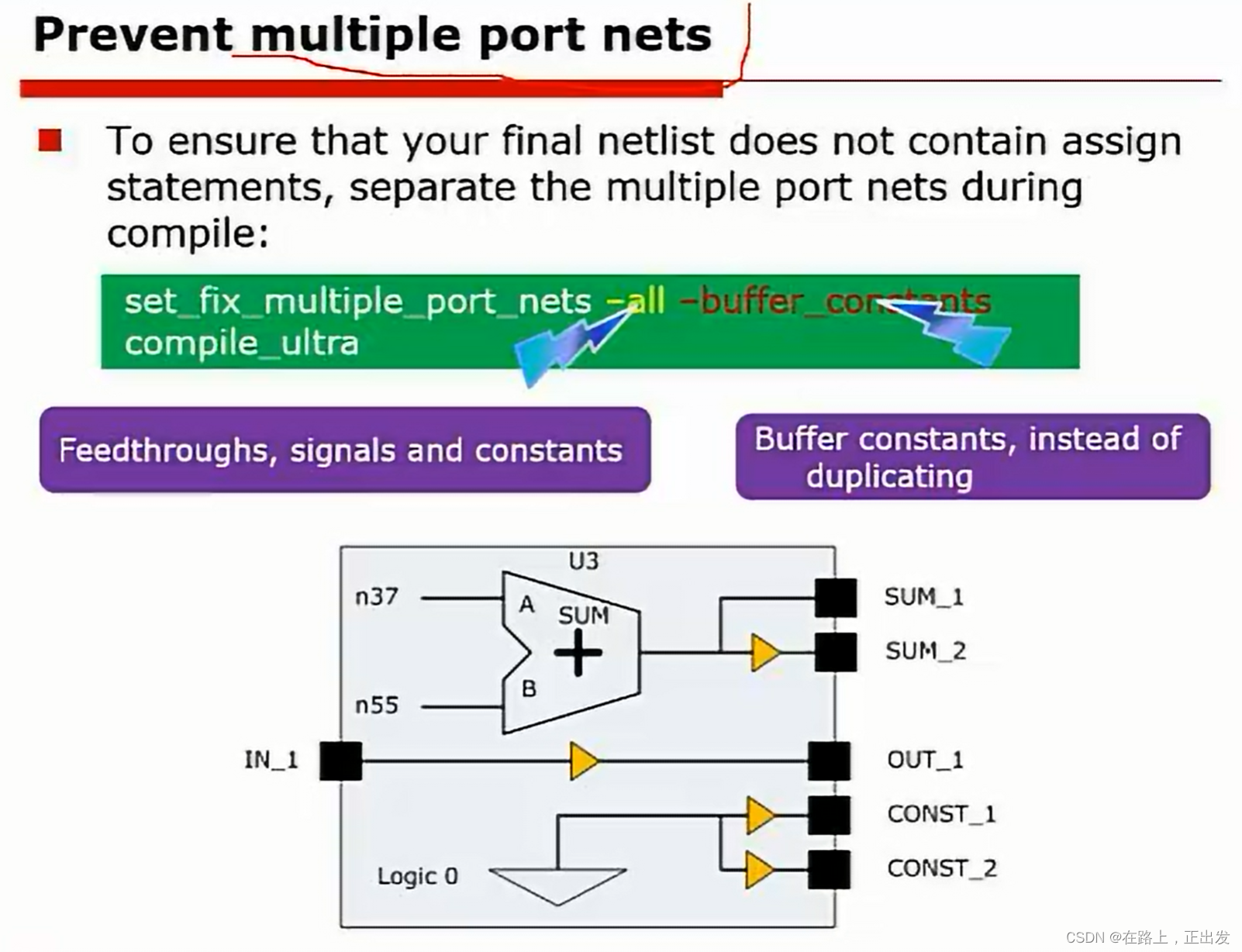

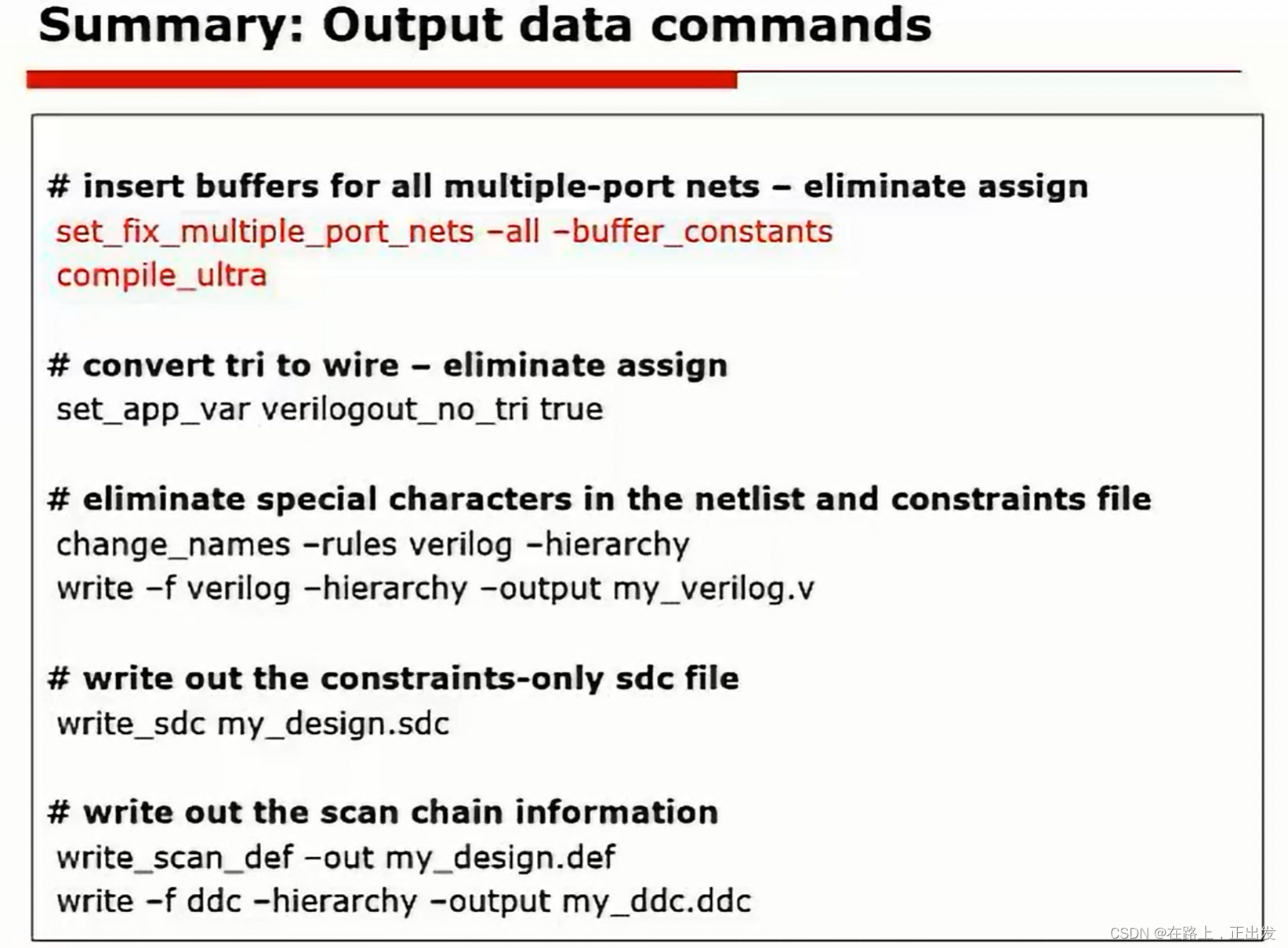

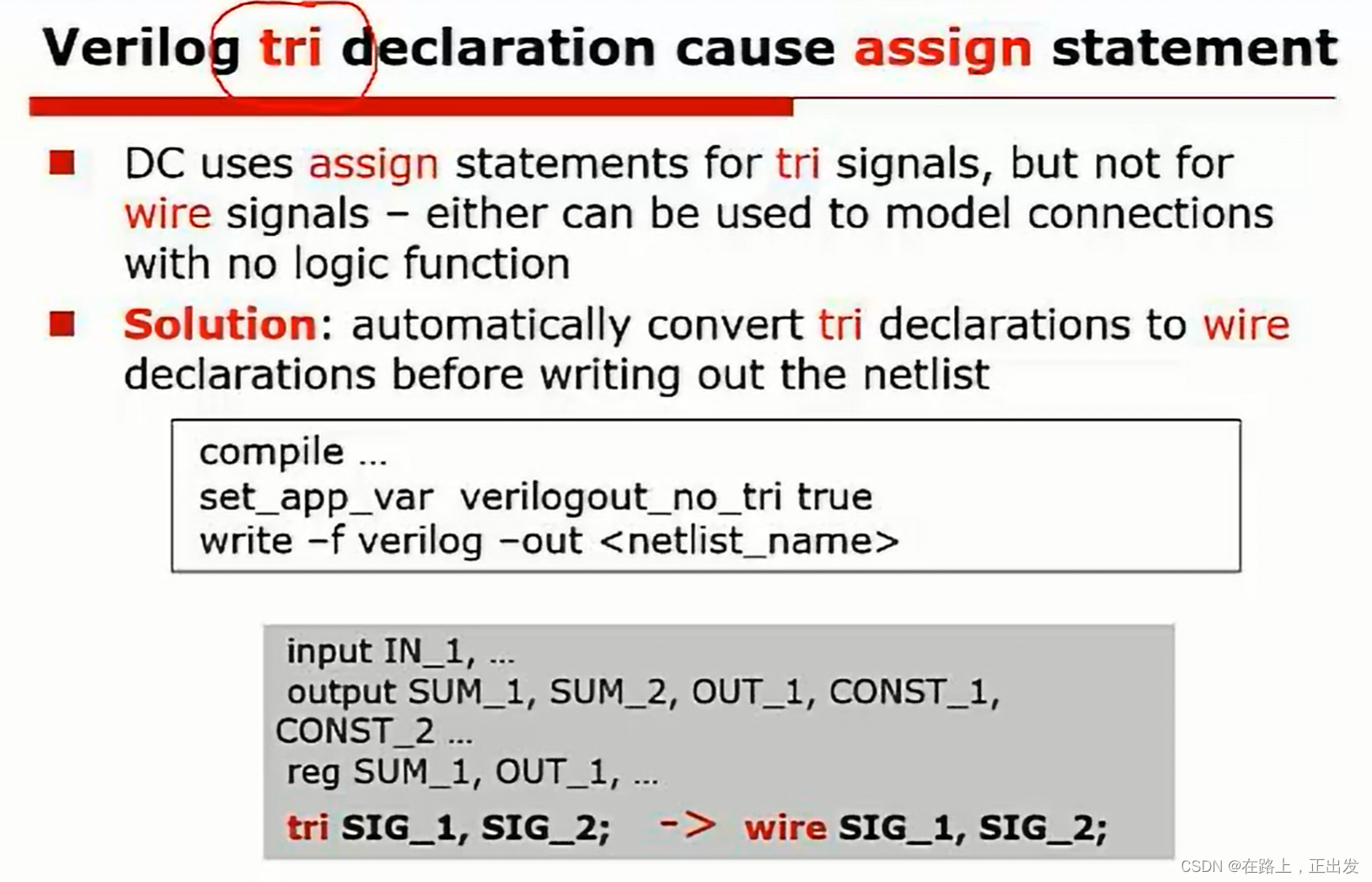

DC 输出文件分析

实际操作

设计源码

简单的设计文件：做一个9级延迟的寄存器链。源代码：

module MY_DESIGN
(input I_CLK_100M,input I_RSTN_100M,input I_DATA,input I_VAL,output O_DATA);reg [9:0] R_I_DATA;
genvar GV_I;
generatefor(GV_I = 0;GV_I < 10;GV_I = GV_I + 1)beginalways @ (posedge I_CLK_100M)beginif(~I_RSTN_100M)beginR_I_DATA[GV_I] <= 0;endelse if(GV_I == 0)beginR_I_DATA[GV_I] <= I_DATA & I_VAL;endelsebeginR_I_DATA[GV_I] <= R_I_DATA[GV_I-1];endendend
endgenerateassign O_DATA = R_I_DATA[9];endmodule

综合脚本

# |===========================================================
# | Author 		: Xu Y. B.
# | Date   		: 2022-11-21
# | Description : tcl script for top design
# |===========================================================# |===========================================================
# |STEP 1: Read & elaborate the RTL design file list & check
# |===========================================================
set TOP_MODULE MY_DESIGN
analyze        -format verilog [list MY_DESIGN.v]
elaborate      $TOP_MODULE     -architecture verilog
current_design $TOP_MODULEif {[link] == 0} {echo "Your Link has errors !";exit;
}if {[check_design] == 0} {echo "Your check design has errors !";exit;
}# |===========================================================
# |STEP 2: reset design
# |===========================================================
reset_design# |===========================================================
# |STEP 3: Write unmapped ddc file
# |===========================================================
uniquify
set uniquify_naming_style "%s_%d"
write -f ddc -hierarchy -output ${UNMAPPED_PATH}/${TOP_MODULE}.ddc# |===========================================================
# |STEP 4: define clocks
# |===========================================================
# -------------------------- CLK 100MHz ----------------------
set       CLK_NAME          	I_CLK_100M
set       CLK_PERIOD        	10
set       CLK_SKEW	        	[expr {$CLK_PERIOD*0.05}]
set       CLK_TRANS         	[expr {$CLK_PERIOD*0.01}]
set       CLK_SRC_LATENCY   	[expr {$CLK_PERIOD*0.1 }]
set       CLK_LATENCY       	[expr {$CLK_PERIOD*0.1 }]						create_clock 			-period 	$CLK_PERIOD  	  [get_ports $CLK_NAME]
set_ideal_network 						 			  [get_ports $CLK_NAME]
set_dont_touch_network 					 			  [get_ports $CLK_NAME]
set_drive 				0 							  [get_ports $CLK_NAME]set_clock_uncertainty   -setup       $CLK_SKEW        [get_clocks $CLK_NAME]
set_clock_transition    -max         $CLK_TRANS       [get_clocks $CLK_NAME]
set_clock_latency       -source -max $CLK_SRC_LATENCY [get_clocks $CLK_NAME]
set_clock_latency       -max         $CLK_LATENCY     [get_clocks $CLK_NAME]# --------------------------- CLK 50MHz ----------------------
# set       CLK_NAME_2          	I_CLK_50M
# set       CLK_PERIOD_2        	20
# set       CLK_SKEW_2	        [expr {$CLK_PERIOD_2*0.05}]
# set       CLK_TRANS_2         	[expr {$CLK_PERIOD_2*0.01}]
# set       CLK_SRC_LATENCY_2   	[expr {$CLK_PERIOD_2*0.1 }]
# set       CLK_LATENCY_2       	[expr {$CLK_PERIOD_2*0.1 }]						# create_clock 			-period 	$CLK_PERIOD_2  	  [get_ports $CLK_NAME_2]
# set_ideal_network 						 			  [get_ports $CLK_NAME_2]
# set_dont_touch_network 					 			  [get_ports $CLK_NAME_2]
# set_drive 				0 							  [get_ports $CLK_NAME_2]# set_clock_uncertainty   -setup       $CLK_SKEW_2        [get_clocks $CLK_NAME_2]
# set_clock_transition    -max         $CLK_TRANS_2       [get_clocks $CLK_NAME_2]
# set_clock_latency       -source -max $CLK_SRC_LATENCY_2 [get_clocks $CLK_NAME_2]
# set_clock_latency       -max         $CLK_LATENCY_2     [get_clocks $CLK_NAME_2]# |===========================================================
# |STEP 5: define reset
# |===========================================================
# ------------------------- RST 1 ----------------------------
set RST_NAME 					I_RSTN_100M

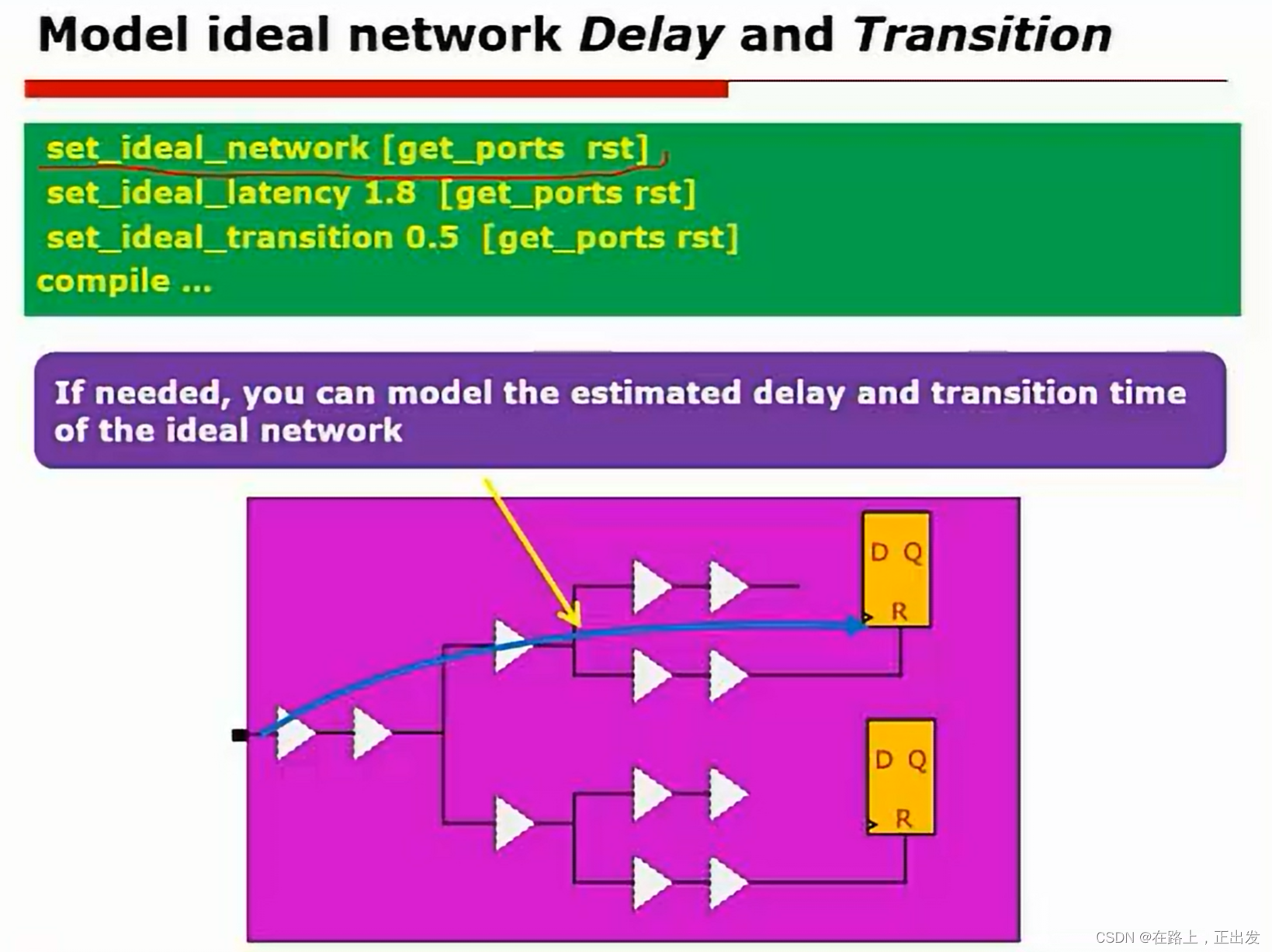

set_ideal_network 				[get_ports $RST_NAME]
set_dont_touch_network          [get_ports $RST_NAME]
set_drive             0         [get_ports $RST_NAME]# # ------------------------- RST 2 ----------------------------
# set RST_NAME_2 					I_RSTN_50M
# set_ideal_network 				[get_ports $RST_NAME_2]
# set_dont_touch_network          [get_ports $RST_NAME_2]
# set_drive             0         [get_ports $RST_NAME_2]# |===========================================================
# |STEP 6: set input delay using timing budget
# |Assume a weak cell to drive the input pins
# |===========================================================
set 		LIB_NAME 			typical
set 		WIRE_LOAD_MODEL 	smic18_wl10set 		DRIVE_PIN 			Y
set 		OPERATE_CONDITION   typicalset 		ALL_INPUT_EXCEPT_CLK [remove_from_collection [all_inputs] [get_ports "$CLK_NAME"]]
set         INPUT_DELAY 		 [expr {$CLK_PERIOD*0.6}]set_input_delay  $INPUT_DELAY -clock         $CLK_NAME         $ALL_INPUT_EXCEPT_CLK
set_driving_cell -lib_cell    ${DRIVE_CELL}  -pin ${DRIVE_PIN} $ALL_INPUT_EXCEPT_CLK# |===========================================================
# |STEP 7: set output delay
# |===========================================================
set OUTPUT_DELAY  [expr {$CLK_PERIOD*0.6}]
set MAX_LOAD      [expr {[load_of $LIB_NAME/INVX4/A] * 10}]set_output_delay  $OUTPUT_DELAY -clock $CLK_NAME 	 [all_outputs]
set_load 		  [expr {$MAX_LOAD * 3}] 			 [all_outputs]
set_isolate_ports -type buffer 					 	 [all_outputs]# |===========================================================
# |STEP 8: set max delay for comb logic
# |===========================================================
# set_input_delay  [expr $CLK_PERIOD * 0.1] -clock $CLK_NAME -add_delay [get_ports I_1]
# set_output_delay [expr $CLK_PERIOD * 0.1] -clock $CLK_NAME -add_delay [get_ports O_1]# |===========================================================
# |STEP 9: set operating condition & wire load model
# |===========================================================
set_operating_conditions -max 			$OPERATE_CONDITION \-max_library 	$LIB_NAMEset 					 auto_wire_load_selection false
set_wire_load_mode  	 top
set_wire_load_model		 -name    $WIRE_LOAD_MODEL \-library $LIB_NAME# |===========================================================
# |STEP 10: set area constraint (Let DC try its best)
# |===========================================================
set_max_area			 1000# |===========================================================
# |STEP 11: set DRC constraint
# |===========================================================
# set MAX_CAPACITANCE [expr {[load_of $LIB_NAME/NAND4X2/Y] * 5}]
# set_max_capacitance $MAX_CAPACITANCE $ALL_INPUT_EXCEPT_CLK# |===========================================================
# |STEP 12: set group path
# |Avoid getting stack on one path
# |===========================================================
group_path -name $CLK_NAME -weight 5 				\-critical_range  [expr {$CLK_PERIOD * 0.1}] group_path -name INPUTS    -from [all_inputs] 		\-critical_range  [expr {$CLK_PERIOD * 0.1}] group_path -name OUTPUTS   -to [all_outputs] 		\-critical_range  [expr {$CLK_PERIOD * 0.1}] group_path -name COMBS     -from [all_inputs] 		\-to [all_outputs] 		\-critical_range  [expr {$CLK_PERIOD * 0.1}]
report_path_group# |===========================================================

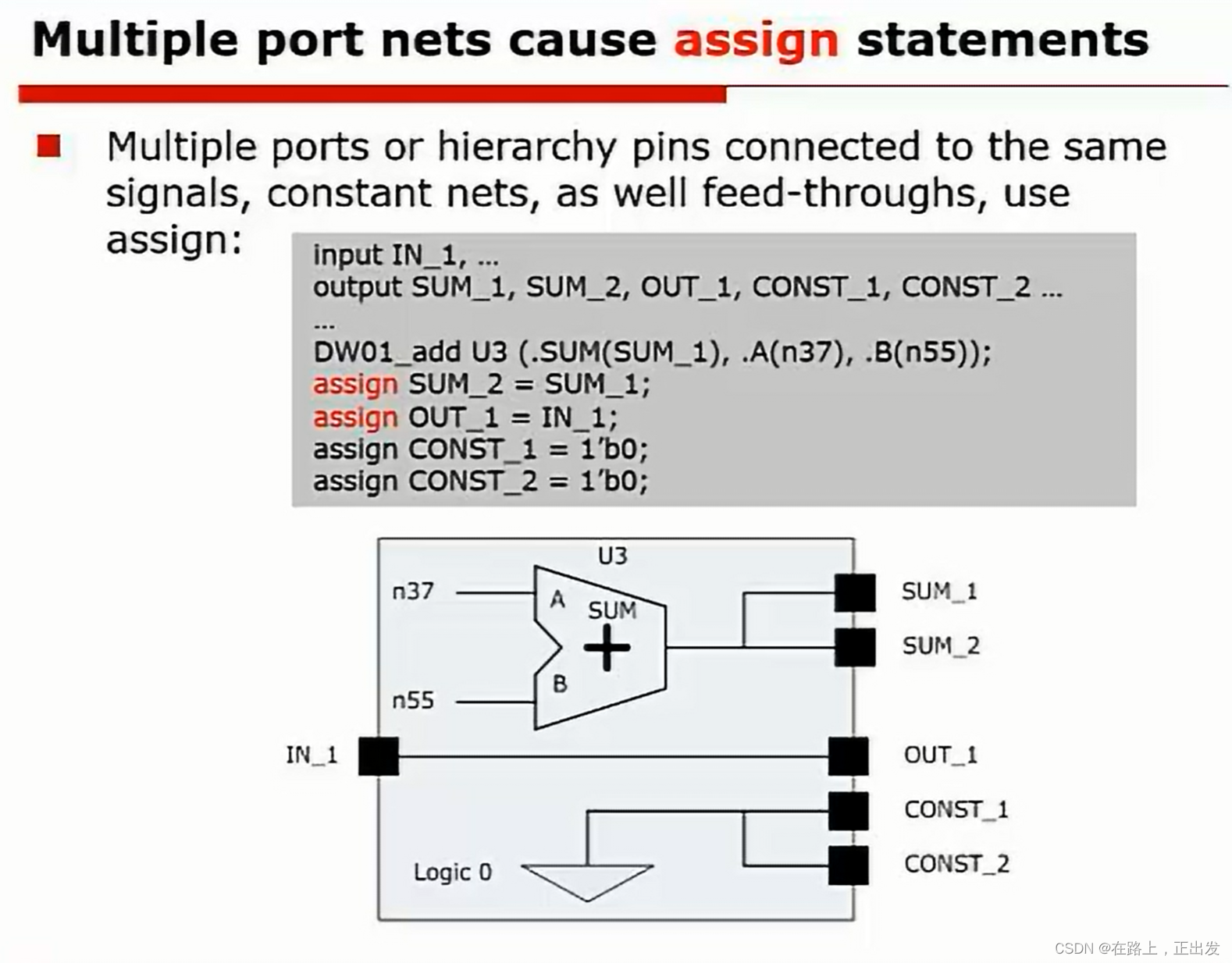

# |STEP 13: Elimate the multiple-port inter-connect &
# |			define name style
# |===========================================================

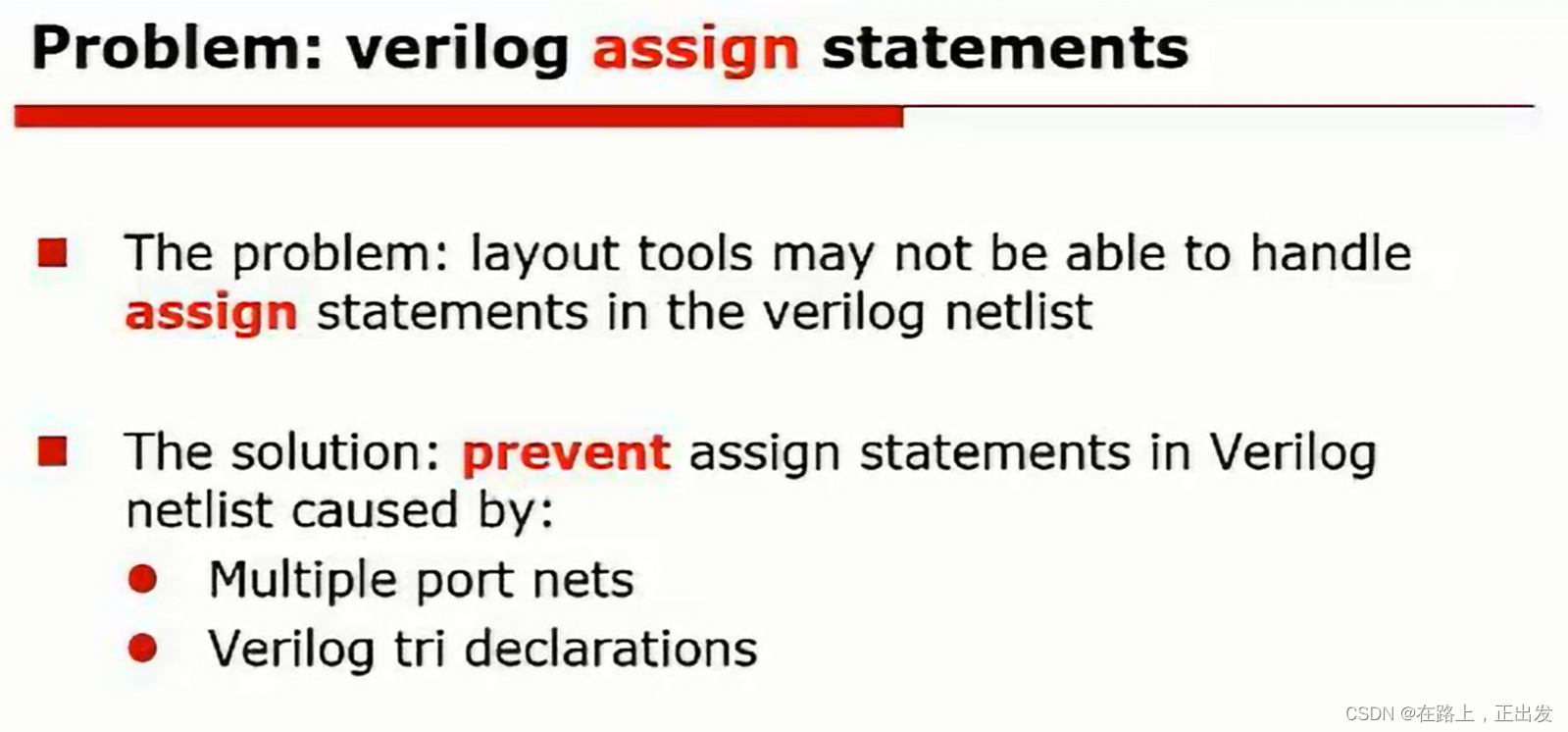

# set_app_var 						verilogout_no_tri 					true
# set_app_var						verilogout_show_unconnected_pins 	true
# set_app_var						bus_naming_style					{%s[%d]}
# simplify_constants 				-boundary_optimization
# set_boundary_optimization 		[current_design] 					true
# set_fix_multiple_port_nets 		-all 								-buffer_constants# |===========================================================
# |STEP 14: timing exception define
# |===========================================================
# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]
# set ALL_CLKS [all_clocks]
# foreach_in_collection CUR_CLK $ALL_CLKS
# {
# 	set OTHER_CLKS [remove_from_collection [all_clocks] $CUR_CLK]
# 	set_false_path -from $CUR_CLK $OTHER_CLKS
# }# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]
# set_false_path -from [get_clocks I_CLK_100M] -to [get_clocks I_CLK_100M]# set_disable_timing TOP/U1 -from a -to y
# set_case_analysis 0 [get_ports sel_i]# set_multicycle_path -setup 6 -from FFA/CP -through ADD/out -to FFB/D
# set_multicycle_path -hold 5 -from FFA/CP -through ADD/out -to FFB/D
# set_multicycle_path -setup 2 -to FFB/D
# set_multicycle_path -hold 1 -to FFB/D# |===========================================================
# |STEP 15: compile flow
# |===========================================================
# ungroup -flatten -all# 1st-pass compile
# compile -map_effort high -area_effort high
# compile -map_effort high -area_effort high -boundary_optimization
compile -map_effort high  -area_effort high# simplify_constants -boundary_optimization
# set_fix_multiple_port_nets -all -buffer_constants# compile -map_effort high -area_effort high -incremental_mapping -scan# 2nd-pass compile
# compile -map_effort high -area_effort high -incremental_mapping -boundary_optimization
# compile_ultra -incr# |===========================================================
# |STEP 16: write post-process files
# |===========================================================

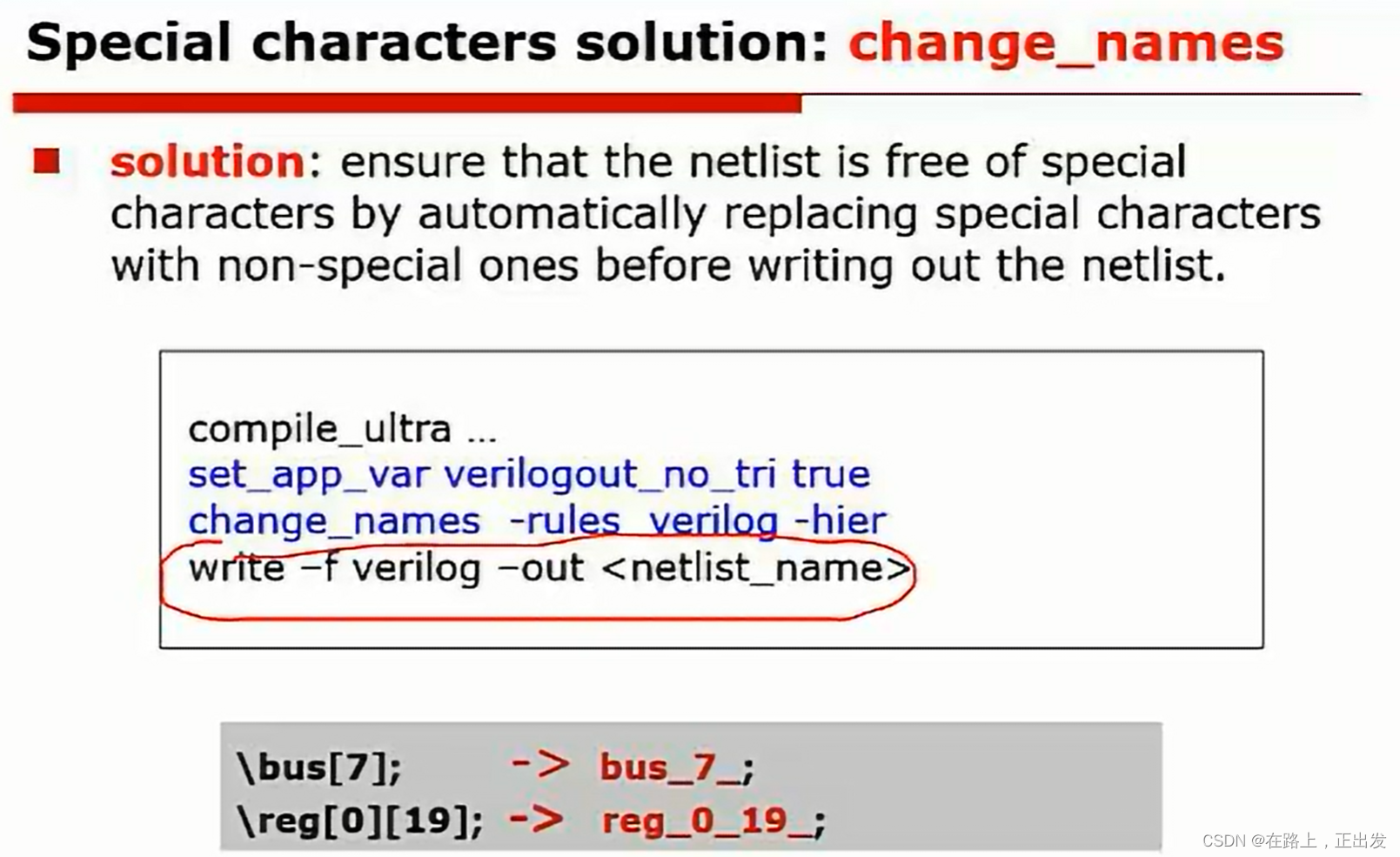

change_names -rules verilog -hierarchy
remove-unconnected_ports [get_cells -hier *] -blast_buses
# Write the mapped files
write -f ddc -output $MAPPED_PATH/${TOP_MODULE}.ddc
write 	-f verilog 	-hierarchy -output 	$MAPPED_PATH/${TOP_MODULE}.v
write_sdc -version 	1.7 				$MAPPED_PATH/${TOP_MODULE}.sdc
write_sdf -version 	2.1 				$MAPPED_PATH/${TOP_MODULE}.sdf# |===========================================================
# |STEP 17: generate report files
# |===========================================================
# Get report file
redirect   -tee     -file     ${REPORT_PATH}/check_design.txt 			{check_design}
redirect   -tee     -file     ${REPORT_PATH}/check_timing.txt 			{check_timing}
redirect   -tee     -file     ${REPORT_PATH}/report_constraint.txt 		{report_constraint -all_violators}
redirect   -tee     -file     ${REPORT_PATH}/check_setup.txt 			{report_timing -delay_type max}
redirect   -tee     -file     ${REPORT_PATH}/check_hold.txt 			{report_timing -delay_type min}
redirect   -tee     -file     ${REPORT_PATH}/report_area.txt 			{report_area}

综合网表

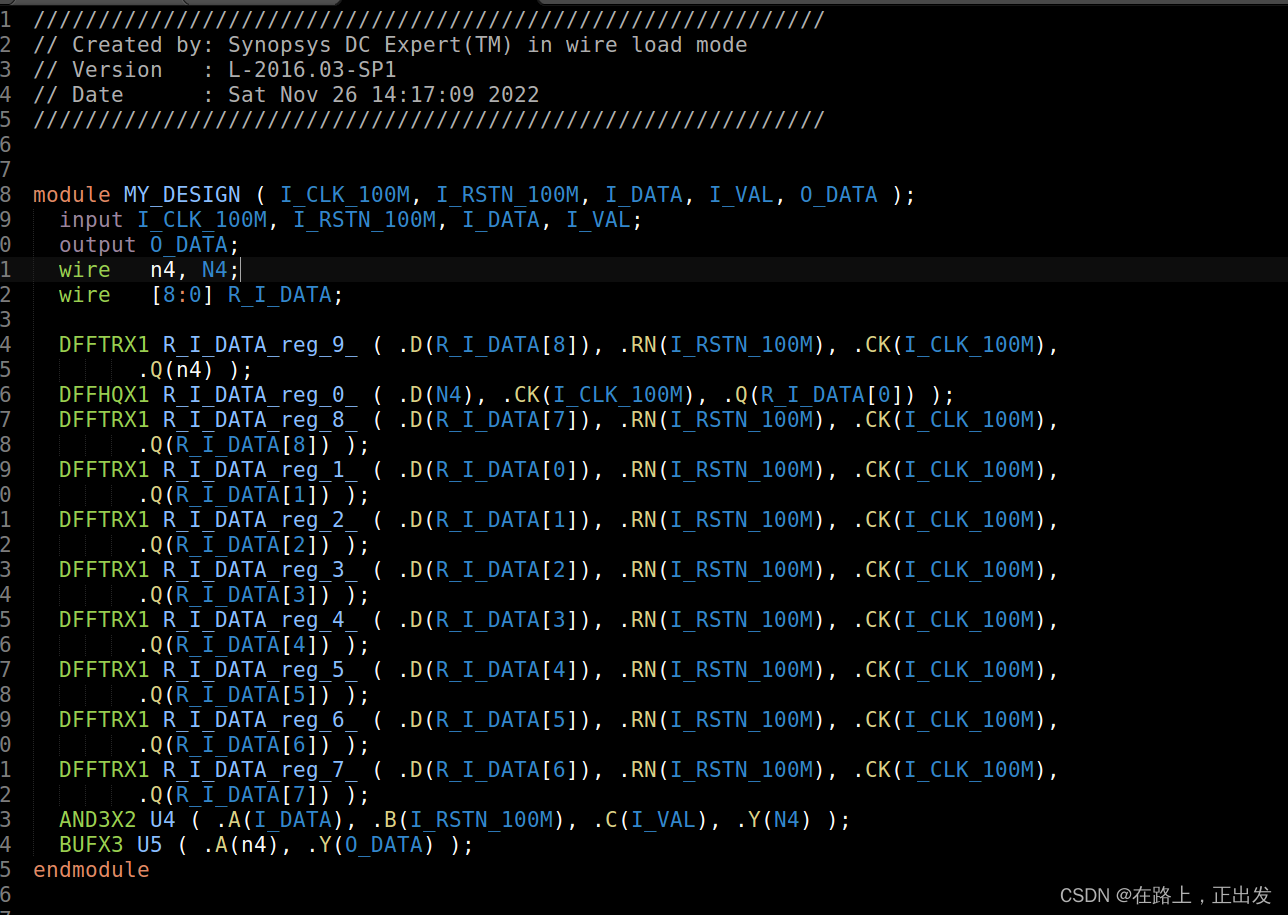

打开映射后的 .v 文件：

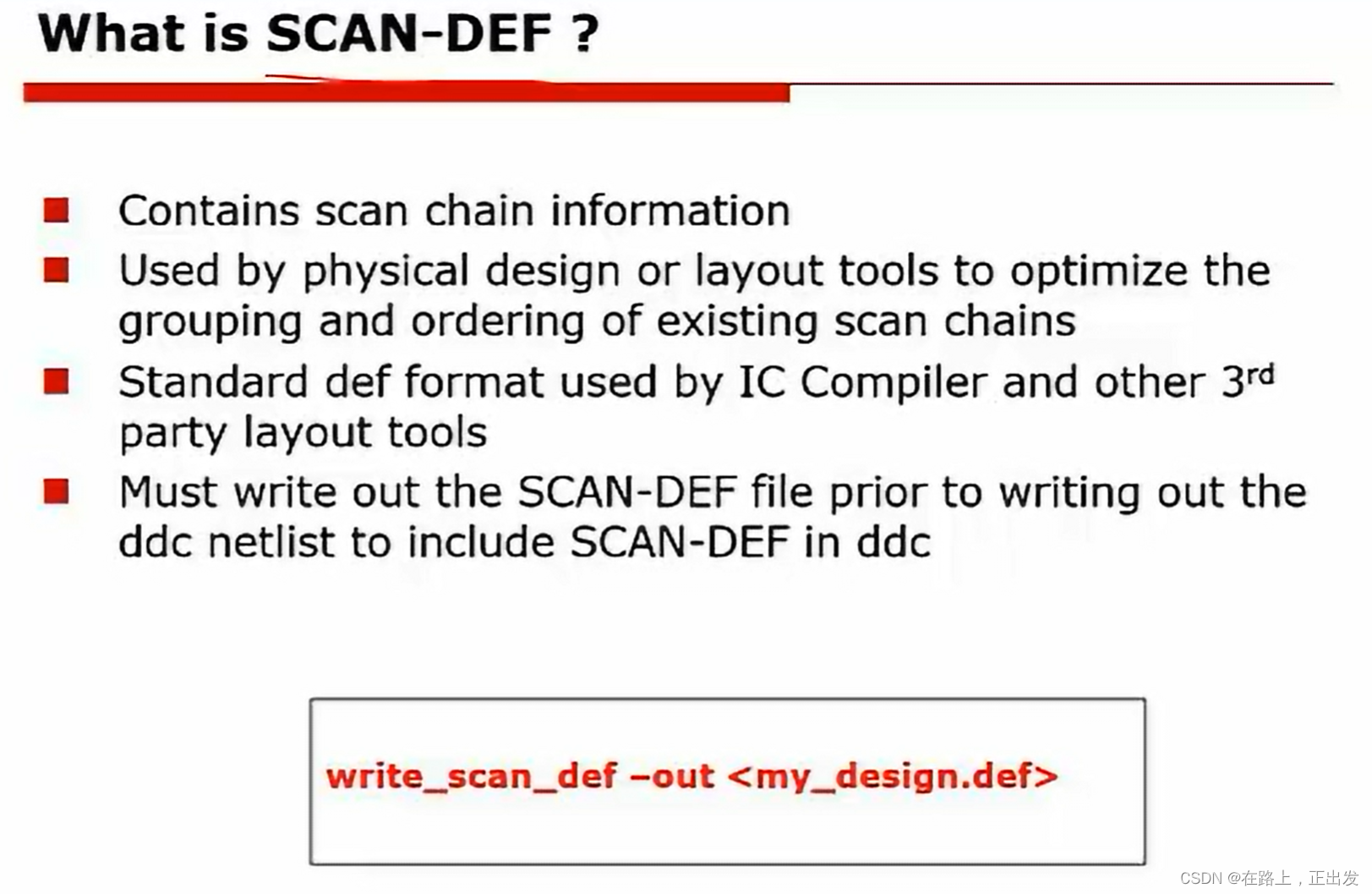

编译时可以加上 -scan 选项，观察寄存器映射的差别：

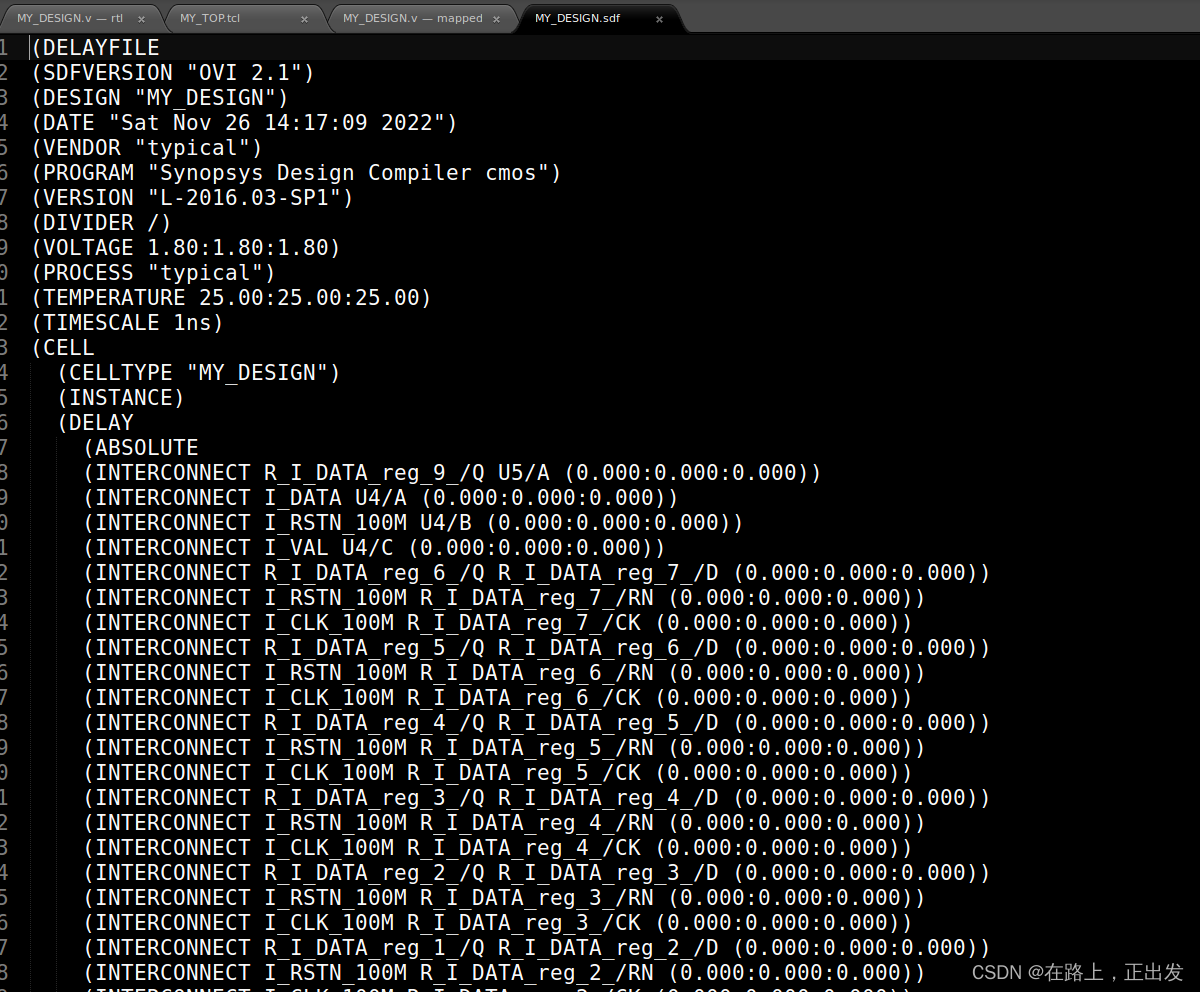

SDF文件

里面包含了单元的延迟信息。

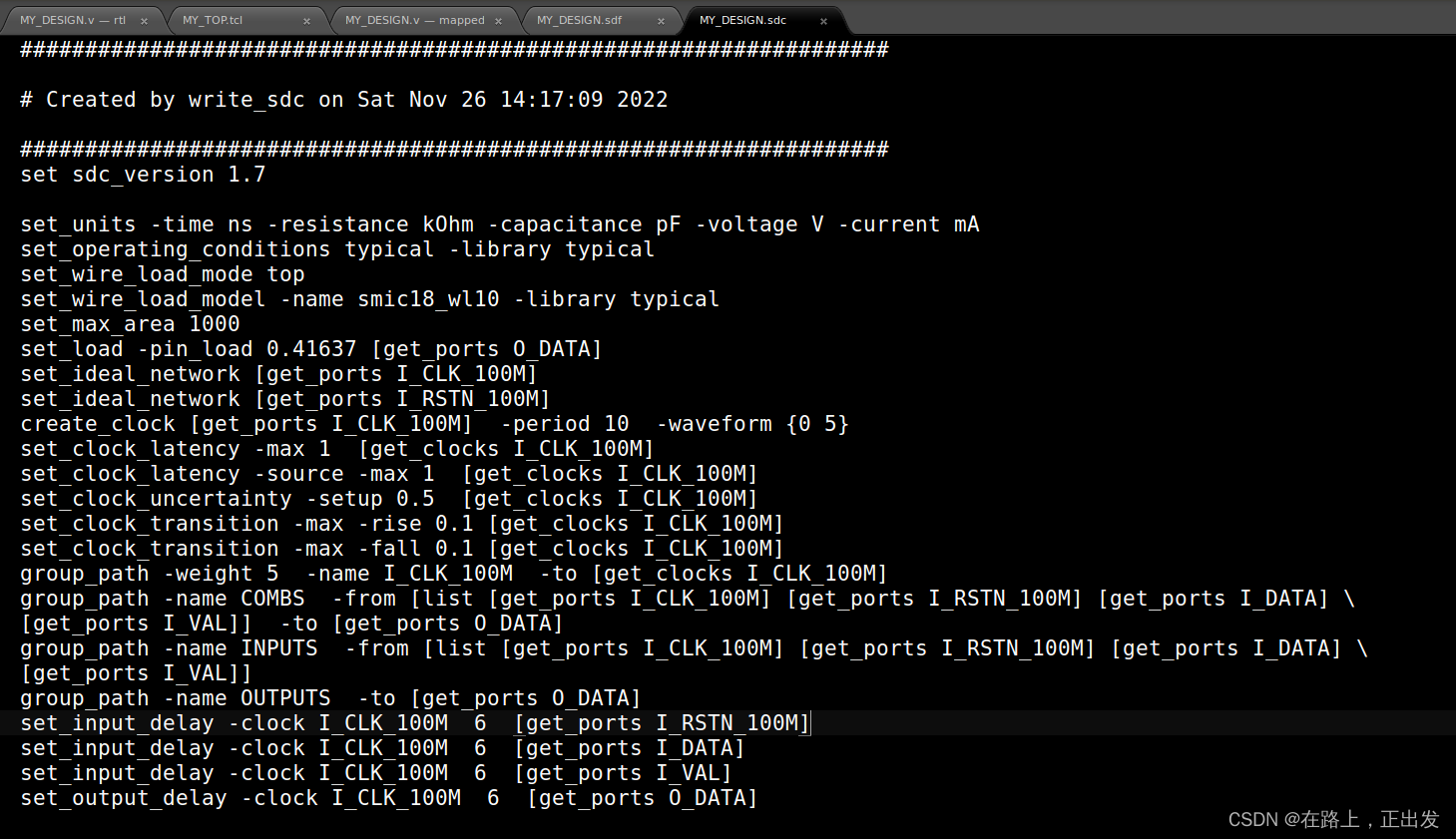

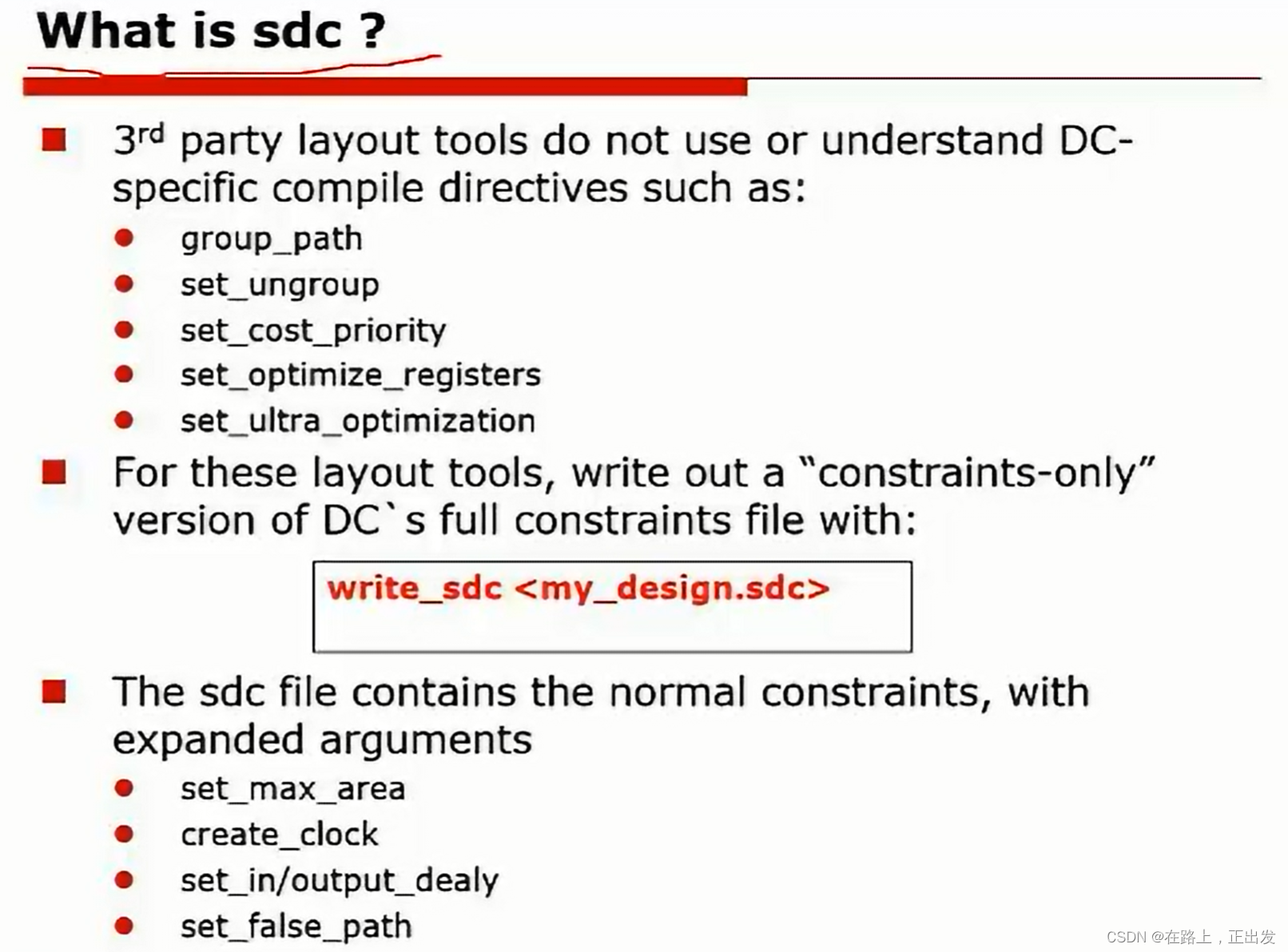

SDC文件

里面包含了该设计的所有约束

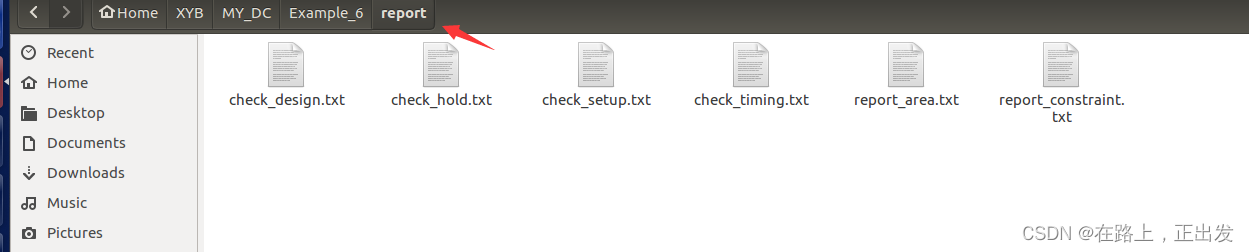

REPORT文件

可以分别打开进行分析，包括时间、面积等。此处就不一一展开。

至此 DC 的视频学习告一段落，了解了基本的使用技巧。但是功夫还需要磨练，多结合工程进行实践是必不可缺的环节。继续加油~~
