记录：337

场景：在CentOS 7.9操作系统上，在ceph集群中，使用ceph命令查看ceph集群信息，以及mon、mgr、mds、osd、rgw等组件信息。

版本：

操作系统：CentOS 7.9

ceph版本：ceph-13.2.10

名词：

ceph：ceph集群的工具命令。

1.基础环境

在规划集群主机上需安装ceph-deploy、ceph、ceph-radosgw软件。

(1)集群主节点安装软件

安装命令：yum install -y ceph-deploy ceph-13.2.10

安装命令：yum install -y ceph-radosgw-13.2.10

解析：集群中主节点安装ceph-deploy、ceph、ceph-radosgw软件。

(2)集群从节点安装软件

安装命令：yum install -y ceph-13.2.10

安装命令：yum install -y ceph-radosgw-13.2.10

解析：集群中从节点安装ceph、ceph-radosgw软件。

2.命令应用

ceph命令，在集群主节点的/etc/ceph目录下使用。

(1)查看ceph版本

命令：ceph --version

解析：查的当前主机安装ceph的版本。

(2)查看集群状态

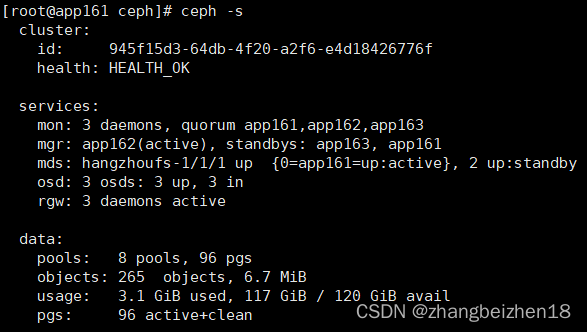

命令：ceph -s

解析：查看集群状态，使用频率高。

(3)查看集群实时状态

命令：ceph -w

解析：查看集群实时状态，使用命令时，控制台实时监控集群变化。

(4)查看mgr服务

命令：ceph mgr services

解析：命令会打印出："dashboard": "https://app162:18443/"；使用浏览器就能登录dashboard。

(5)查看mon 状态汇总信息

命令：ceph mon stat

解析：汇总mon状态。

(6)查看mds状态汇总信息

命令：ceph mds stat

解析：汇总mds状态。

(7)查看osd状态汇总信息

命令：ceph osd stat

解析：汇总osd状态。

(8)创建pool

命令：ceph osd pool create hz_data 16

解析：创建一个存储池，名称hz_data，分配16个pg。

(9)查看存储池

命令：ceph osd pool ls

解析：能看到存储列表。

(10)查看pool的pg数量

命令：ceph osd pool get hz_data pg_num

解析：查看pool的pg_num数量。

(11)设置pool的pg数量

命令：ceph osd pool set hz_data pg_num 18

解析：设置pool的pg_num数量。

(12)删除pool

命令：ceph osd pool delete hz_data hz_data --yes-i-really-really-mean-it

解析：删除pool时，pool的名称需要传两次。

(13)创建ceph文件系统

命令：ceph fs new hangzhoufs xihu_metadata xihu_data

解析：使用ceph fs new创建ceph文件系统；文件系统名称：hangzhoufs；存储池xihu_data和xihu_metadata。

(14)查ceph文件系统

命令：ceph fs ls

解析：查看ceph文件系统，打印文件系统名称和存储池。

(15)查ceph文件系统状态

命令：ceph fs status

解析：查ceph文件系统状态，打印文件系统的Pool的信息、类型等。

(16)删除ceph文件系统

命令：ceph fs rm hangzhoufs --yes-i-really-mean-it

解析：hangzhoufs是已创建的ceph文件系统名称。

(17)查看服务状态

命令：ceph service status

解析：查看服务状态，查看服务最后一次反应时间。

(18)查看节点quorum状态

命令：ceph quorum_status

解析：查看节点quorum状态。

(19)查看pg状态

命令：ceph pg stat

解析：查看pg状态；pg，placement group。

(20)查看pg清单

命令：ceph pg ls

解析：列出所有pg。

(21)查看osd磁盘信息

命令：ceph osd df

解析：打印osd磁盘信息，包括容量，可用空间，已经使用空间等。

3.命令帮助手册

(1)ceph帮助命令

命令：ceph --help

解析：查看ceph支持全部命令和选项，在实际工作中，查看这个手册应该是必备之选。

 General usage: ==============
usage: ceph [-h] [-c CEPHCONF] [-i INPUT_FILE] [-o OUTPUT_FILE][--setuser SETUSER] [--setgroup SETGROUP] [--id CLIENT_ID][--name CLIENT_NAME] [--cluster CLUSTER][--admin-daemon ADMIN_SOCKET] [-s] [-w] [--watch-debug][--watch-info] [--watch-sec] [--watch-warn] [--watch-error][--watch-channel {cluster,audit,*}] [--version] [--verbose][--concise] [-f {json,json-pretty,xml,xml-pretty,plain}][--connect-timeout CLUSTER_TIMEOUT] [--block] [--period PERIOD]Ceph administration tooloptional arguments:-h, --help            request mon help-c CEPHCONF, --conf CEPHCONFceph configuration file-i INPUT_FILE, --in-file INPUT_FILEinput file, or "-" for stdin-o OUTPUT_FILE, --out-file OUTPUT_FILEoutput file, or "-" for stdout--setuser SETUSER     set user file permission--setgroup SETGROUP   set group file permission--id CLIENT_ID, --user CLIENT_IDclient id for authentication--name CLIENT_NAME, -n CLIENT_NAMEclient name for authentication--cluster CLUSTER     cluster name--admin-daemon ADMIN_SOCKETsubmit admin-socket commands ("help" for help-s, --status          show cluster status-w, --watch           watch live cluster changes--watch-debug         watch debug events--watch-info          watch info events--watch-sec           watch security events--watch-warn          watch warn events--watch-error         watch error events--watch-channel {cluster,audit,*}which log channel to follow when using -w/--watch. Oneof ['cluster', 'audit', '*']--version, -v         display version--verbose             make verbose--concise             make less verbose-f {json,json-pretty,xml,xml-pretty,plain}, --format {json,json-pretty,xml,xml-pretty,plain}--connect-timeout CLUSTER_TIMEOUTset a timeout for connecting to the cluster--block               block until completion (scrub and deep-scrub only)--period PERIOD, -p PERIODpolling period, default 1.0 second (for pollingcommands only)Local commands: ===============ping            Send simple presence/life test to a mon may be 'mon.*' for all mons
daemon {type.id|path} Same as --admin-daemon, but auto-find admin socket
daemonperf {type.id | path} [stat-pats] [priority] [] []
daemonperf {type.id | path} list|ls [stat-pats] [priority]Get selected perf stats from daemon/admin socketOptional shell-glob comma-delim match string stat-patsOptional selection priority (can abbreviate name):critical, interesting, useful, noninteresting, debugList shows a table of all available statsRun  times (default forever),once per  seconds (default 1)Monitor commands: =================
auth add  { [...]}                      add auth info for  from input file, or random key if no input is given, and/or any caps specified in the command
auth caps   [...]                       update caps for  from caps specified in the command
auth export {}                                      write keyring for requested entity, or master keyring if none given
auth get                                            write keyring file with requested key
auth get-key                                        display requested key
auth get-or-create  { [...]}            add auth info for  from input file, or random key if no input given, and/or any caps specified in the command
auth get-or-create-key  { [...]}        get, or add, key for  from system/caps pairs specified in the command.  If key already exists, any given caps must match the existing caps for that key.
auth import                                                 auth import: read keyring file from -i
auth ls                                                     list authentication state
auth print-key                                      display requested key
auth print_key                                      display requested key
auth rm                                             remove all caps for
balancer dump                                         Show an optimization plan
balancer eval {}                                    Evaluate data distribution for the current cluster or specific pool or specific plan
balancer eval-verbose {}                            Evaluate data distribution for the current cluster or specific pool or specific plan (verbosely)
balancer execute                                      Execute an optimization plan
balancer ls                                                 List all plans
balancer mode none|crush-compat|upmap                       Set balancer mode
balancer off                                                Disable automatic balancing
balancer on                                                 Enable automatic balancing
balancer optimize  { [...]}             Run optimizer to create a new plan
balancer reset                                              Discard all optimization plans
balancer rm                                           Discard an optimization plan
balancer show                                         Show details of an optimization plan
balancer sleep                                        Set balancer sleep interval
balancer status                                             Show balancer status
config assimilate-conf                                      Assimilate options from a conf, and return a new, minimal conf file
config dump                                                 Show all configuration option(s)
config get  {}                                    Show configuration option(s) for an entity
config help                                            Describe a configuration option
config log {}                                          Show recent history of config changes
config reset                                           Revert configuration to previous state
config rm                                        Clear a configuration option for one or more entities
config set                                Set a configuration option for one or more entities
config show  {}                                   Show running configuration
config show-with-defaults                              Show running configuration (including compiled-in defaults)
config-key dump {}                                     dump keys and values (with optional prefix)
config-key exists                                      check for 's existence
config-key get                                         get
config-key ls                                               list keys
config-key rm                                          rm
config-key set  {}                                set  to value
crash info                                              show crash dump metadata
crash json_report                                    Crashes in the last  hours
crash ls                                                    Show saved crash dumps
crash post                                                  Add a crash dump (use -i )
crash prune                                           Remove crashes older than  days
crash rm                                                Remove a saved crash
crash self-test                                             Run a self test of the crash module
crash stat                                                  Summarize recorded crashes
dashboard create-self-signed-cert                           Create self signed certificate
dashboard get-enable-browsable-api                          Get the ENABLE_BROWSABLE_API option value
dashboard get-rest-requests-timeout                         Get the REST_REQUESTS_TIMEOUT option value
dashboard get-rgw-api-access-key                            Get the RGW_API_ACCESS_KEY option value
dashboard get-rgw-api-admin-resource                        Get the RGW_API_ADMIN_RESOURCE option value
dashboard get-rgw-api-host                                  Get the RGW_API_HOST option value
dashboard get-rgw-api-port                                  Get the RGW_API_PORT option value
dashboard get-rgw-api-scheme                                Get the RGW_API_SCHEME option value
dashboard get-rgw-api-secret-key                            Get the RGW_API_SECRET_KEY option value
dashboard get-rgw-api-ssl-verify                            Get the RGW_API_SSL_VERIFY option value
dashboard get-rgw-api-user-id                               Get the RGW_API_USER_ID option value
dashboard set-enable-browsable-api                   Set the ENABLE_BROWSABLE_API option value
dashboard set-login-credentials         Set the login credentials
dashboard set-rest-requests-timeout                    Set the REST_REQUESTS_TIMEOUT option value
dashboard set-rgw-api-access-key                     Set the RGW_API_ACCESS_KEY option value
dashboard set-rgw-api-admin-resource                 Set the RGW_API_ADMIN_RESOURCE option value
dashboard set-rgw-api-host                           Set the RGW_API_HOST option value
dashboard set-rgw-api-port                             Set the RGW_API_PORT option value
dashboard set-rgw-api-scheme                         Set the RGW_API_SCHEME option value
dashboard set-rgw-api-secret-key                     Set the RGW_API_SECRET_KEY option value
dashboard set-rgw-api-ssl-verify                     Set the RGW_API_SSL_VERIFY option value
dashboard set-rgw-api-user-id                        Set the RGW_API_USER_ID option value
dashboard set-session-expire                           Set the session expire timeout
df {detail}                                                 show cluster free space stats
features                                                    report of connected features
fs add_data_pool                             add data pool
fs authorize    [...]       add auth for  to access file system  based on following directory and permissions pairs
fs dump {}                                         dump all CephFS status, optionally from epoch
fs flag set enable_multiple  {--yes-i-really-mean-it}  Set a global CephFS flag
fs get                                             get info about one filesystem
fs ls                                                       list filesystems
fs new    {--force} {--allow-      make new filesystem using named pools  and dangerous-metadata-overlay}
fs reset  {--yes-i-really-mean-it}                 disaster recovery only: reset to a single-MDS map
fs rm  {--yes-i-really-mean-it}                    disable the named filesystem
fs rm_data_pool                              remove data pool
fs set  max_mds|max_file_size|allow_new_snaps|     set fs parameter  to inline_data|cluster_down|allow_dirfrags|balancer|standby_  count_wanted|session_timeout|session_autoclose|down|       joinable|min_compat_client  {}
fs set-default                                     set the default to the named filesystem
fs status {}                                            Show the status of a CephFS filesystem
fsid                                                        show cluster FSID/UUID
health {detail}                                             show cluster health
heap dump|start_profiler|stop_profiler|release|stats        show heap usage info (available only if compiled with tcmalloc)
hello {}                                       Prints hello world to mgr.x.log
influx config-set                               Set a configuration value
influx config-show                                          Show current configuration
influx self-test                                            debug the module
influx send                                                 Force sending data to Influx
injectargs  [...]             inject config arguments into monitor
iostat                                                      Get IO rates
iostat self-test                                            Run a self test the iostat module
log  [...]                                log supplied text to the monitor log
log last {} {debug|info|sec|warn|error} {*|        print last few lines of the cluster logcluster|audit}
mds compat rm_compat                               remove compatible feature
mds compat rm_incompat                             remove incompatible feature
mds compat show                                             show mds compatibility settings
mds count-metadata                                count MDSs by metadata field property
mds fail                                       Mark MDS failed: trigger a failover if a standby is available
mds metadata {}                                        fetch metadata for mds
mds repaired                                          mark a damaged MDS rank as no longer damaged
mds rm                                             remove nonactive mds
mds rmfailed  {}                             remove failed mds
mds set_state                           set mds state of  to
mds stat                                                    show MDS status
mds versions                                                check running versions of MDSs
mgr count-metadata                                count ceph-mgr daemons by metadata field property
mgr dump {}                                        dump the latest MgrMap
mgr fail                                               treat the named manager daemon as failed
mgr metadata {}                                        dump metadata for all daemons or a specific daemon
mgr module disable                                  disable mgr module
mgr module enable  {--force}                        enable mgr module
mgr module ls                                               list active mgr modules
mgr self-test background start                    Activate a background workload (one of command_spam, throw_exception)
mgr self-test background stop                               Stop background workload if any is running
mgr self-test config get                               Peek at a configuration value
mgr self-test config get_localized                     Peek at a configuration value (localized variant)
mgr self-test remote                                        Test inter-module calls
mgr self-test run                                           Run mgr python interface tests
mgr services                                                list service endpoints provided by mgr modules
mgr versions                                                check running versions of ceph-mgr daemons
mon add                                add new monitor named  at
mon compact                                                 cause compaction of monitor's leveldb/rocksdb storage
mon count-metadata                                count mons by metadata field property
mon dump {}                                        dump formatted monmap (optionally from epoch)
mon feature ls {--with-value}                               list available mon map features to be set/unset
mon feature set  {--yes-i-really-mean-it}     set provided feature on mon map
mon getmap {}                                      get monmap
mon metadata {}                                         fetch metadata for mon
mon rm                                                remove monitor named
mon scrub                                                   scrub the monitor stores
mon stat                                                    summarize monitor status
mon sync force {--yes-i-really-mean-it} {--i-know-what-i-   force sync of and clear monitor stoream-doing}
mon versions                                                check running versions of monitors
mon_status                                                  report status of monitors
node ls {all|osd|mon|mds|mgr}                               list all nodes in cluster [type]
osd add-nodown  [...]                             mark osd(s)  [...] as nodown, or use  to mark all osds as nodown
osd add-noin  [...]                               mark osd(s)  [...] as noin, or use  to mark all osds as noin
osd add-noout  [...]                              mark osd(s)  [...] as noout, or use  to mark all osds as noout
osd add-noup  [...]                               mark osd(s)  [...] as noup, or use  to mark all osds as noup
osd blacklist add|rm  {}           add (optionally until  seconds from now) or remove  from blacklist
osd blacklist clear                                         clear all blacklisted clients
osd blacklist ls                                            show blacklisted clients
osd blocked-by                                              print histogram of which OSDs are blocking their peers
osd count-metadata                                count OSDs by metadata field property
osd crush add       add or update crushmap position and weight for  with [...]                                                  and location
osd crush add-bucket   { [...]}     add no-parent (probably root) crush bucket  of type  to location
osd crush class ls                                          list all crush device classes
osd crush class ls-osd                               list all osds belonging to the specific
osd crush class rename                    rename crush device class  to
osd crush create-or-move    at/]>  [...]                                       to location
osd crush dump                                              dump crush map
osd crush get-tunable straw_calc_version                    get crush tunable
osd crush link   [...]                    link existing entry for  under location
osd crush ls                                          list items beneath a node in the CRUSH tree
osd crush move   [...]                    move existing entry for  to location
osd crush rename-bucket                   rename bucket  to
osd crush reweight                       change 's weight to  in crush map
osd crush reweight-all                                      recalculate the weights for the tree to ensure they sum correctly
osd crush reweight-subtree               change all leaf items beneath  to  in crush map
osd crush rm  {}                            remove  from crush map (everywhere, or just at )
osd crush rm-device-class  [...]                  remove class of the osd(s)  [...],or use  to remove all.
osd crush rule create-erasure  {}            create crush rule  for erasure coded pool created with  (default default)
osd crush rule create-replicated          create crush rule  for replicated pool to start from {}                                                   , replicate across buckets of type , using a choose mode of  (default firstn; indep best for erasure pools)
osd crush rule create-simple    {firstn|  create crush rule  to start from , replicate indep}                                                      across buckets of type , using a choose mode of  (default firstn; indep best for erasure pools)
osd crush rule dump {}                                dump crush rule  (default all)
osd crush rule ls                                           list crush rules
osd crush rule ls-by-class                           list all crush rules that reference the same
osd crush rule rename                     rename crush rule  to
osd crush rule rm                                     remove crush rule
osd crush set       update crushmap position and weight for  to  [...]                                                 with location
osd crush set {}                                       set crush map from input file
osd crush set-all-straw-buckets-to-straw2                   convert all CRUSH current straw buckets to use the straw2 algorithm
osd crush set-device-class   [...]         set the  of the osd(s)  [...],or use  to set all.
osd crush set-tunable straw_calc_version               set crush tunable  to
osd crush show-tunables                                     show current crush tunables
osd crush swap-bucket   {--yes-i-really-mean- swap existing bucket contents from (orphan) bucket  it}                                                         and
osd crush tree {--show-shadow}                              dump crush buckets and items in a tree view
osd crush tunables legacy|argonaut|bobtail|firefly|hammer|  set crush tunables values to jewel|optimal|default
osd crush unlink  {}                        unlink  from crush map (everywhere, or just at )
osd crush weight-set create  flat|positional      create a weight-set for a given pool
osd crush weight-set create-compat                          create a default backward-compatible weight-set
osd crush weight-set dump                                   dump crush weight sets
osd crush weight-set ls                                     list crush weight sets
osd crush weight-set reweight    [...]                                       set
osd crush weight-set reweight-compat     set weight for an item (bucket or osd) in the backward-[...]                                          compatible weight-set
osd crush weight-set rm                           remove the weight-set for a given pool
osd crush weight-set rm-compat                              remove the backward-compatible weight-set
osd deep-scrub                                         initiate deep scrub on osd , or use  to deep scrub all
osd destroy  {--yes-i-really-mean-it}  mark osd as being destroyed. Keeps the ID intact (allowing reuse), but removes cephx keys, config-key data and lockbox keys, rendering data permanently unreadable.
osd df {plain|tree}                                         show OSD utilization
osd down  [...]                                   set osd(s)  [...] down, or use  to set all osds down
osd dump {}                                        print summary of OSD map
osd erasure-code-profile get                          get erasure code profile
osd erasure-code-profile ls                                 list all erasure code profiles
osd erasure-code-profile rm                           remove erasure code profile
osd erasure-code-profile set  { [.. create erasure code profile  with [ ...] .]}                                                         pairs. Add a --force at the end to override an existing profile (VERY DANGEROUS)
osd find                               find osd  in the CRUSH map and show its location
osd force-create-pg  {--yes-i-really-mean-it}         force creation of pg
osd get-require-min-compat-client                           get the minimum client version we will maintain compatibility with
osd getcrushmap {}                                 get CRUSH map
osd getmap {}                                      get OSD map
osd getmaxosd                                               show largest OSD id
osd in  [...]                                     set osd(s)  [...] in, can use  to automatically set all previously out osds in
osd last-stat-seq                      get the last pg stats sequence number reported for this osd
osd lost  {--yes-i-really-mean-it}     mark osd as permanently lost. THIS DESTROYS DATA IF NO MORE REPLICAS EXIST, BE CAREFUL
osd ls {}                                          show all OSD ids
osd ls-tree {}                               show OSD ids under bucket  in the CRUSH map
osd lspools {}                                         list pools
osd map   {}                  find pg for
