上一篇文章《SpringBoot实现多数据源（三）【AOP + 自定义注解】》

四、集成多个 Mybatis 框架

实现步骤

1. 创建一个 dynamic_mybatis 的springboot项目，导入依赖
   • pom.xml

org.springframework.bootspring-boot-starter-jdbcorg.springframework.bootspring-boot-starter-weborg.springframework.bootspring-boot-starter-aoporg.mybatis.spring.bootmybatis-spring-boot-starter2.1.4com.alibabadruid-spring-boot-starter1.2.8mysqlmysql-connector-java8.0.28org.projectlomboklombok1.18.24

2. 配置文件
   • application.yml

spring:application:name: dynamic_datasource# 数据源datasource:type: com.alibaba.druid.pool.DruidDataSource# 读数据源read:driver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/read?useSSL=true&useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghaiusername: rootpassword: 123456# 写数据源write:type: com.alibaba.druid.pool.DruidDataSourcedriver-class-name: com.mysql.cj.jdbc.Driverurl: jdbc:mysql://localhost:3306/write?useSSL=true&useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghaiusername: rootpassword: 123456
# 端口号
server:port: 3355

3. 实体类（这里省略增删查改的数据库操作）
   • People

package com.vinjcent.pojo;import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;@AllArgsConstructor
@NoArgsConstructor
@Data
public class People {private String name;}

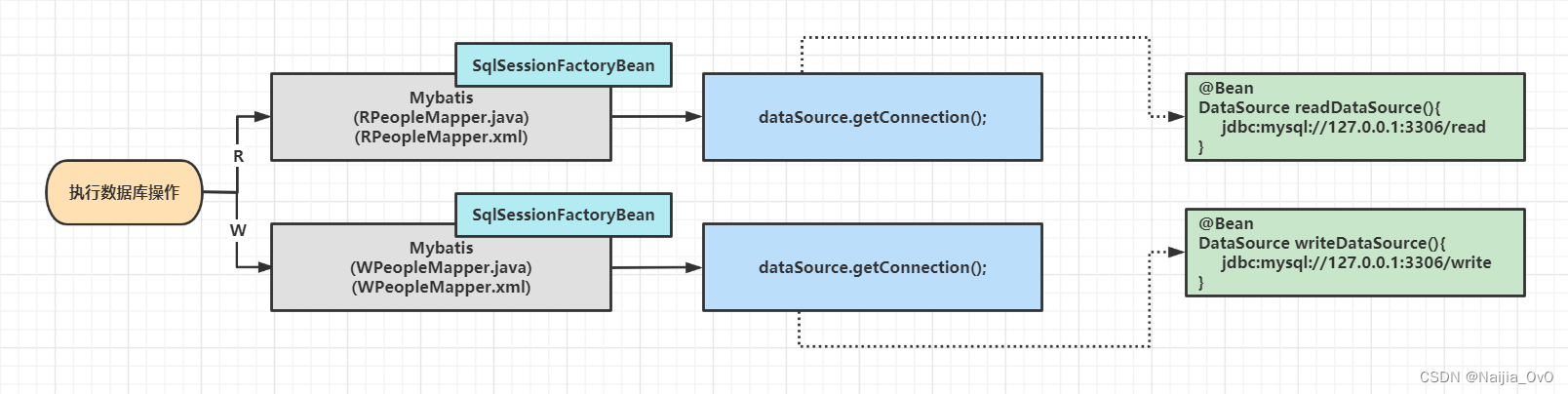

4. 配置读写分离的的MybatisConfiguration配置

• RMybatisConfiguration（读数据源）

package com.vinjcent.config.mybatis;import com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceBuilder;
import org.apache.ibatis.logging.stdout.StdOutImpl;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;import javax.sql.DataSource;/*** 读数据源配置* 1. 指定扫描mapper接口包* 2. 指定使用wSqlSessionFactory是哪个*/
@Configuration
@MapperScan(basePackages = "com.vinjcent.mapper.read", sqlSessionFactoryRef = "rSqlSessionFactory")
public class RMybatisConfiguration {@Bean(name = "readDatasource")@ConfigurationProperties(prefix = "spring.datasource.read")public DataSource readDatasource() {// 底层会自动拿到spring.datasource中的配置,创建一个DruidDataSourcereturn DruidDataSourceBuilder.create().build();}@Bean@Primarypublic SqlSessionFactory rSqlSessionFactory(@Qualifier("readDatasource") DataSource dataSource) throws Exception {final SqlSessionFactoryBean sqlSessionFactory = new SqlSessionFactoryBean();sqlSessionFactory.setDataSource(dataSource);sqlSessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:com/vinjcent/mapper/read/*.xml"));/* 主库设置sql控制台打印 */org.apache.ibatis.session.Configuration configuration = new org.apache.ibatis.session.Configuration();configuration.setLogImpl(StdOutImpl.class);sqlSessionFactory.setConfiguration(configuration);sqlSessionFactory.setTypeAliasesPackage("com.vinjcent.pojo");return sqlSessionFactory.getObject();}
}

• WMybatisConfiguration（写数据源）

package com.vinjcent.config.mybatis;import com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceBuilder;
import org.apache.ibatis.logging.stdout.StdOutImpl;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;import javax.sql.DataSource;/*** 写数据源配置* 1. 指定扫描mapper接口包* 2. 指定使用wSqlSessionFactory是哪个*/
@Configuration
@MapperScan(basePackages = "com.vinjcent.mapper.write", sqlSessionFactoryRef = "wSqlSessionFactory")
public class WMybatisConfiguration {@Bean(name = "writeDatasource")@ConfigurationProperties(prefix = "spring.datasource.write")public DataSource writeDatasource() {// 底层会自动拿到spring.datasource中的配置,创建一个DruidDataSourcereturn DruidDataSourceBuilder.create().build();}@Bean@Primarypublic SqlSessionFactory wSqlSessionFactory(@Qualifier("writeDatasource") DataSource dataSource) throws Exception {final SqlSessionFactoryBean sqlSessionFactory = new SqlSessionFactoryBean();sqlSessionFactory.setDataSource(dataSource);sqlSessionFactory.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath:com/vinjcent/mapper/write/*.xml"));/* 主库设置sql控制台打印 */org.apache.ibatis.session.Configuration configuration = new org.apache.ibatis.session.Configuration();configuration.setLogImpl(StdOutImpl.class);sqlSessionFactory.setConfiguration(configuration);sqlSessionFactory.setTypeAliasesPackage("com.vinjcent.pojo");return sqlSessionFactory.getObject();}
}

5. 读写mapper接口以及对应映射文件.xml

• RPeopleMapper

package com.vinjcent.mapper.read;import com.vinjcent.pojo.People;
import org.apache.ibatis.annotations.Mapper;import java.util.List;@Mapper
public interface RPeopleMapper {List list();}

select * from `people`

• WPeopleMapper

package com.vinjcent.mapper.write;import com.vinjcent.pojo.People;
import org.apache.ibatis.annotations.Mapper;import java.util.List;@Mapper
public interface WPeopleMapper {boolean save(People people);}

insert into `people`(name)values (#{name});

5. Service层
   • PeopleServiceImpl

package com.vinjcent.service.impl;import com.vinjcent.mapper.read.RPeopleMapper;
import com.vinjcent.mapper.write.WPeopleMapper;
import com.vinjcent.pojo.People;
import com.vinjcent.service.PeopleService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;import java.util.List;@Service
public class PeopleServiceImpl implements PeopleService {private final PeopleService peopleService;@Autowiredpublic PeopleController(PeopleService peopleService) {this.peopleService = peopleService;}// 读@GetMapping("/list")public List getAllPeople() {return peopleService.list();}// 写@GetMapping("/insert")public String addPeople() {peopleService.save(new People("vinjcent"));return "添加成功";}
}

6. 测试接口

• PeopleController

package com.vinjcent.controller;import com.vinjcent.mapper.read.RPeopleMapper;
import com.vinjcent.mapper.write.WPeopleMapper;
import com.vinjcent.pojo.People;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.List;@RestController
@RequestMapping("people")
public class PeopleController {private final WPeopleMapper wPeopleMapper;private final RPeopleMapper rPeopleMapper;@Autowiredpublic PeopleController(WPeopleMapper wPeopleMapper, RPeopleMapper rPeopleMapper) {this.wPeopleMapper = wPeopleMapper;this.rPeopleMapper = rPeopleMapper;}@GetMapping("/list")public List getAllPeople() {return rPeopleMapper.list();}@GetMapping("/insert")public String addPeople() {wPeopleMapper.save(new People("vinjcent"));return "添加成功";}}

7. 运行并测试接口

下一篇文章《SpringBoot实现多数据源（五）【多数据源事务控制】》
