08.OpenWrt-连接wifi网络

8.1 连接其他wifi热点上网

root@OpenWrt:/# cat /etc/config/wireless

config wifi-device ‘radio0’
option type ‘mac80211’
option path ‘platform/10300000.wmac’
option channel ‘1’
option band ‘2g’
option htmode ‘HT20’
option cell_density ‘0’
option disabled ‘1’

config wifi-iface ‘default_radio0’
option device ‘radio0’
option network ‘lan’
option mode ‘ap’
option ssid ‘OpenWrt’
option encryption ‘none’
option disabled ‘1’

root@OpenWrt:/# cat /etc/config/wirelessconfig wifi-device 'radio0'option type 'mac80211'option path 'platform/10300000.wmac'option channel '1'option band '2g'option htmode 'HT20'option cell_density '0'config wifi-iface 'default_radio0'option device 'radio0'option network 'lan'option mode 'ap'option ssid 'OpenWrt'option encryption 'none'option disabled '1'config wifi-iface 'wifinet1'option device 'radio0'option mode 'sta'option network 'wwan'option ssid 'CHINE_PDCN'option encryption 'psk2'option key 'xlmqwa1006'

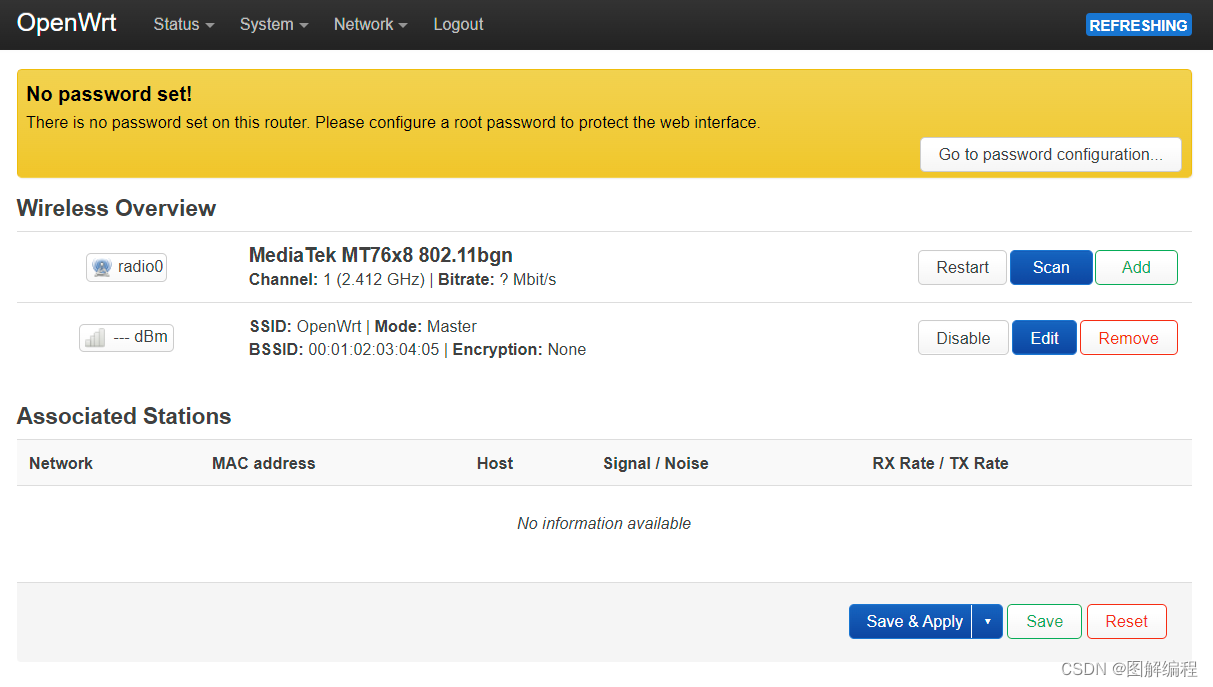

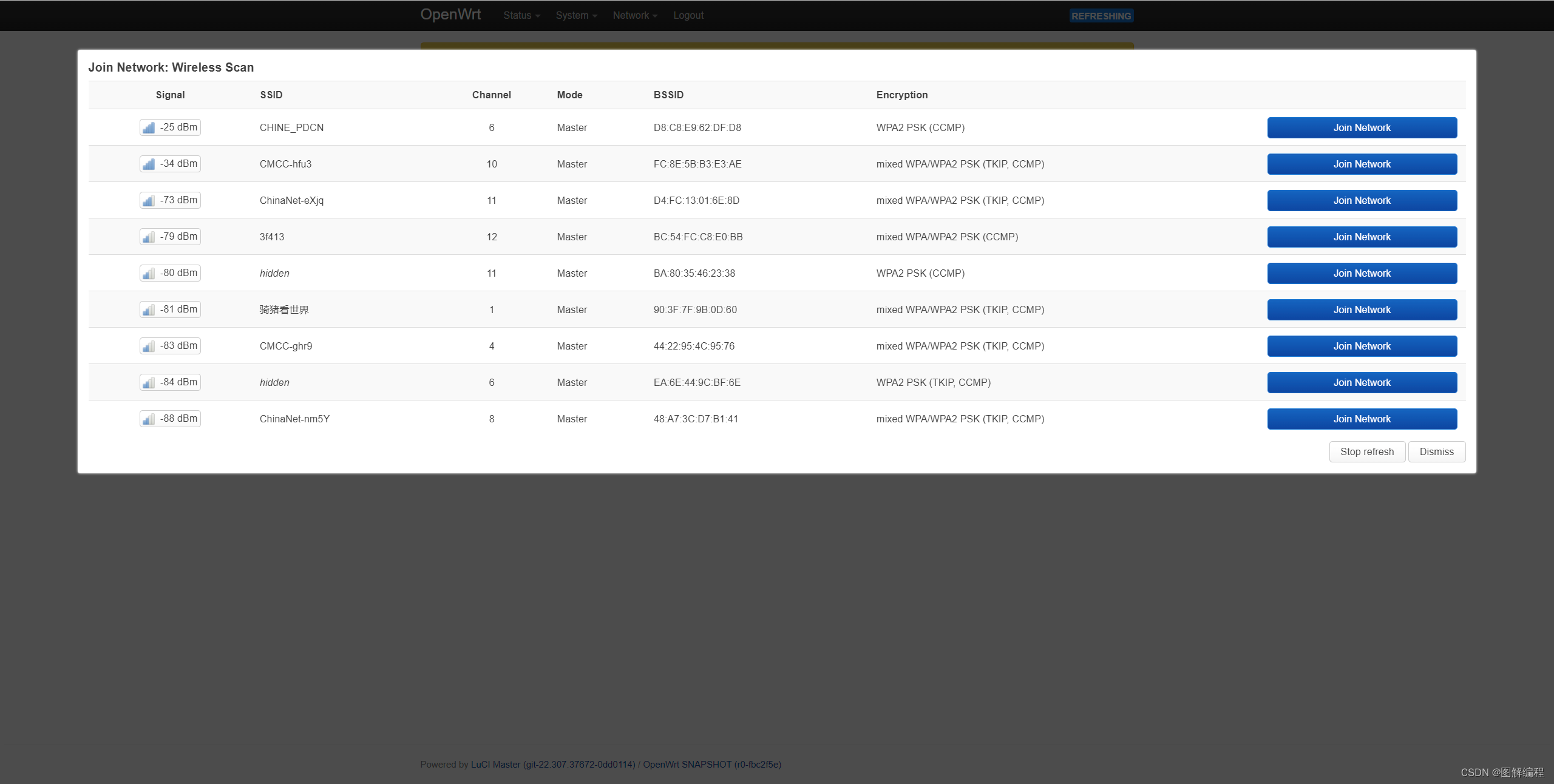

如上是在界面设置连接其他wifi热点,也可以通过修改如下文件手动修改.然后重启网络.

config wifi-device 'radio0'option type 'mac80211'option path 'platform/10300000.wmac'option channel '1'option band '2g'option htmode 'HT20'option cell_density '0'option disabled '1'

config wifi-iface 'wifinet1'option device 'radio0'option mode 'sta'option network 'wwan'option ssid 'CHINE_PDCN'option encryption 'psk2'option key 'xlmqwa1006'

  /etc/init.d/wireless restart

8.2 打开wifi热点供其他设备上网

root@OpenWrt:/# cat /etc/config/wirelessconfig wifi-device 'radio0'option type 'mac80211'option path 'platform/10300000.wmac'option channel '1'option band '2g'option htmode 'HT20'option cell_density '0'config wifi-iface 'default_radio0'option device 'radio0'option network 'lan'option mode 'ap'option ssid 'OpenWrt'option encryption 'none'option disabled '1'

root@OpenWrt:/# cat /etc/config/wirelessconfig wifi-device 'radio0'option type 'mac80211'option path 'platform/10300000.wmac'option channel '1'option band '2g'option htmode 'HT20'option cell_density '0'config wifi-iface 'default_radio0'option device 'radio0'option network 'lan'option mode 'ap'option ssid 'OpenWrt'option encryption 'none'

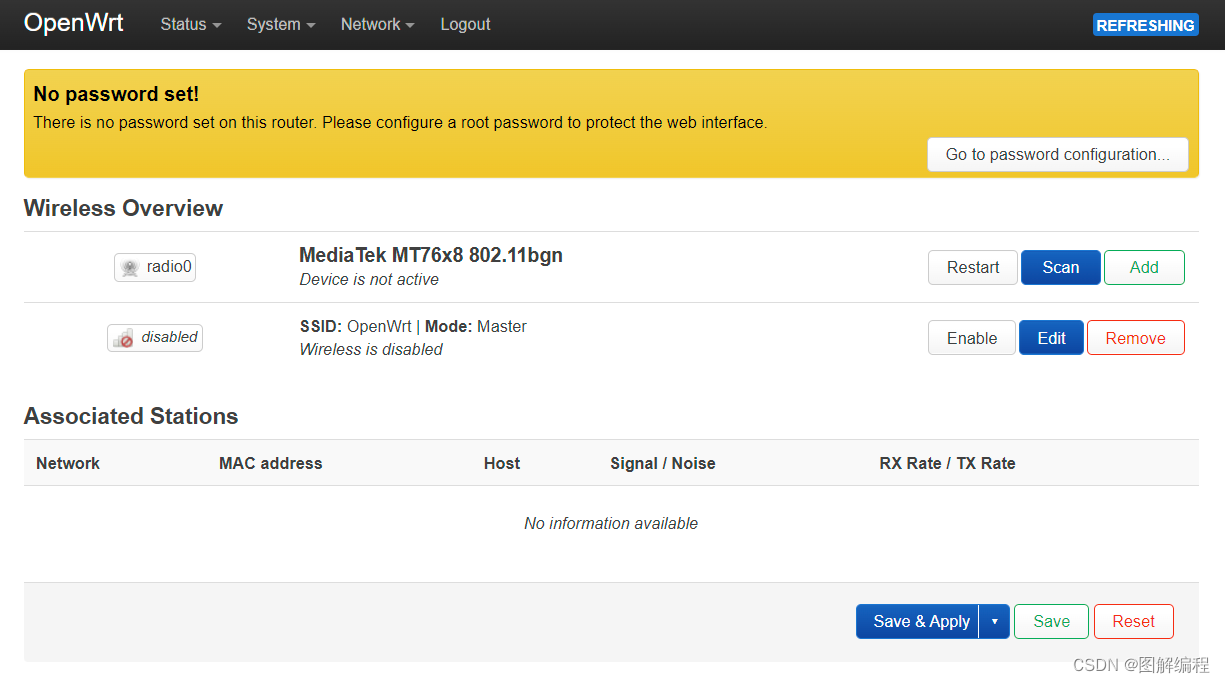

如上是在界面中开或关wifi热点后 /etc/config/wireless 后配置文件的变化,所以可直接修改此文件达到开关wifi热点的功能.修改完成后执行如下命令完成配置.

/etc/init.d/wireless restart
