Prometheus采集主机监控参考部署下载，图形生成

系统	安装	Grafana	download
Windows	参考	图形生成参考	win_exporter
Linux	参考		node_exporter
Mysql	参考		Mysql_exporter
SQL Server	参考		SQL exporter
Redis	参考		Redis_exporter
cadvisor	参考		cadvisor
rabbitmq	参考	参考	rabbitmq
snmp_exporter	参考	图形展示在测试中	snmp_exporter

download rabbitmq_exporter

rabbitmq 数据采集器

rabbitmq_exporter 一键监控安装脚本

采集端口默认端口9419

16-41 行说明

Environment	variable	default description
RABBIT_URL	http://127.0.0.1:15672	url to rabbitMQ management plugin (must start with http(s)😕/)
RABBIT_USER	guest	username for rabbitMQ management plugin. User needs monitoring tag!
RABBIT_PASSWORD	guest	password for rabbitMQ management plugin
RABBIT_USER_FILE		location of file with username (useful for docker secrets)
RABBIT_PASSWORD_FILE		location of file with password (useful for docker secrets)
PUBLISH_PORT	9419	Listening port for the exporter
PUBLISH_ADDR	“”	Listening host/IP for the exporter
OUTPUT_FORMAT	TTY	Log ouput format. TTY and JSON are suported
LOG_LEVEL	info	log level. possible values: “debug”, “info”, “warning”, “error”, “fatal”, or “panic”
CAFILE	ca.pem	path to root certificate for access management plugin. Just needed if self signed certificate is used. Will be ignored if the file does not exist
CERTFILE	client-cert.pem	path to client certificate used to verify the exporter’s authenticity. Will be ignored if the file does not exist
KEYFILE	client-key.pem	path to private key used with certificate to verify the exporter’s authenticity. Will be ignored if the file does not exist
SKIPVERIFY	false	true/0 will ignore certificate errors of the management plugin
SKIP_VHOST	^$	regex, matching vhost names are not exported. First performs INCLUDE_VHOST, then SKIP_VHOST
INCLUDE_VHOST	.*	regex vhost filter. Only queues in matching vhosts are exported
INCLUDE_QUEUES	.*	regex queue filter. Just matching names are exported
SKIP_QUEUES	^$	regex, matching queue names are not exported (useful for short-lived rpc queues). First performed INCLUDE, after SKIP
RABBIT_CAPABILITIES	bert,no_sort	comma-separated list of extended scraping capabilities supported by the target RabbitMQ server
RABBIT_EXPORTERS	exchange,node,queue	List of enabled modules. Possible modules: connections,shovel,federation,exchange,node,queue,memory
RABBIT_TIMEOUT	30	timeout in seconds for retrieving data from management plugin.
MAX_QUEUES	0	max number of queues before we drop metrics (disabled if set to 0)
EXCLUDE_METRICS		Metric names to exclude from export. comma-seperated. e.g. “recv_oct, recv_cnt”. See exporter_*.go for names

vim /rabbitmq_exporter.sh

#!/bin/sh
# -*- coding: utf-8 -*-
# Date: 2022/11/29echo "download rabbitmq_exporter"
sleep 2
wget -N -P /root/ https://github.com/kbudde/rabbitmq_exporter/releases/download/v1.0.0-RC19/rabbitmq_exporter_1.0.0-RC19_linux_amd64.tar.gzecho "Unzip rabbitmq_exporter"
sleep 2
mkdir -p /usr/local/rabbitmq_exporter
tar -zxf /root/rabbitmq_exporter_1.0.0-RC19_linux_amd64.tar.gz -C /usr/local/rabbitmq_exporterecho "add config.json"
sleep 2
cat >>/usr/local/rabbitmq_exporter/config.json << EOF
{"rabbit_url": "http://127.0.0.1:15672","rabbit_user": "admin","rabbit_pass": "admin@123","publish_port": "9419","publish_addr": "","output_format": "TTY","ca_file": "ca.pem","cert_file": "client-cert.pem","key_file": "client-key.pem","insecure_skip_verify": false,"exlude_metrics": [],"include_queues": ".*","skip_queues": "^$","skip_vhost": "^$","include_vhost": ".*","rabbit_capabilities": "no_sort,bert","enabled_exporters": ["exchange","node","overview","queue"],"timeout": 30,"max_queues": 0
}
EOFecho "rabbitmq_exporter Creating a Service Script"
sleep 2
cat >>/usr/lib/systemd/system/rabbitmq_exporter.service<< EOF
[Unit]
Description=rabbitmq_exporter
Documentation=https://github.com/kbudde/rabbitmq_exporter/releases
After=network.target[Service]
Type=simple
User=root
Group=rootExecStart=/usr/local/rabbitmq_exporter/rabbitmq_exporter \
-config-file=/usr/local/rabbitmq_exporter/config.json
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/bin/kill -s QUIT $MAINPID
Restart=on-failure[Install]
WantedBy=multi-user.target
EOFecho "rabbitmq_exporter Example Set the automatic startup service"
sleep 2
systemctl daemon-reload && systemctl enable --now rabbitmq_exporter
rm -rf /root/rabbitmq_exporter_1.0.0-RC19_linux_amd64.tar.gz

执行安装

sh /rabbitmq_exporter.sh

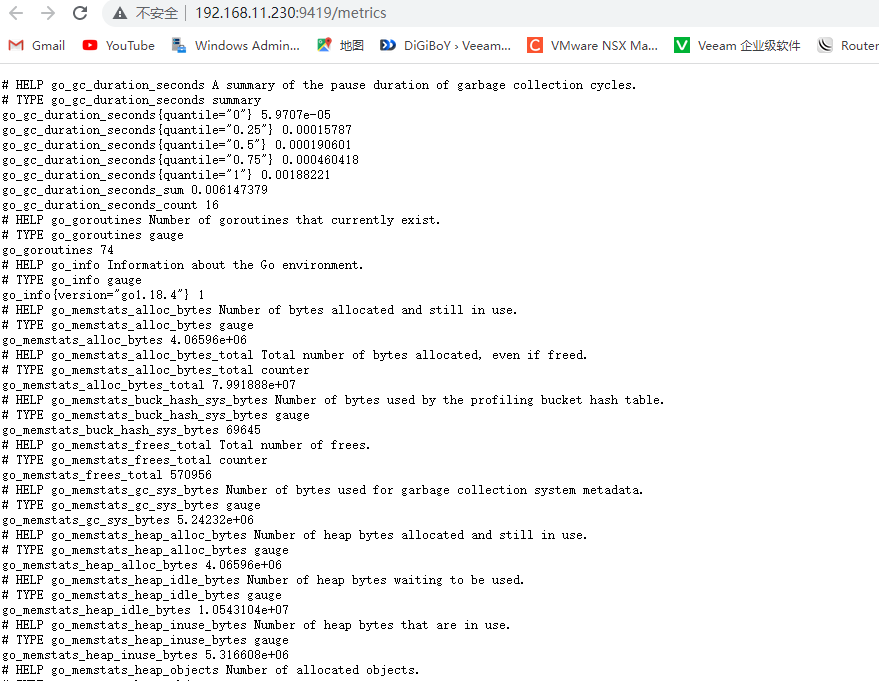

数据采集结果

Prometheus代码设置

  - job_name: 'Rabbitmq'scrape_interval: 5sstatic_configs:- targets:- 192.168.11.230:9419labels:instance: RabbitMQ-192.168.11.230

Grafana 图形展示

模板号集群10991，14798，11340(以下三项都是用于集群)
RabbitMQ-Overview
RabbitMQ-Quorum-Queues-Raft
RabbitMQ-Stream

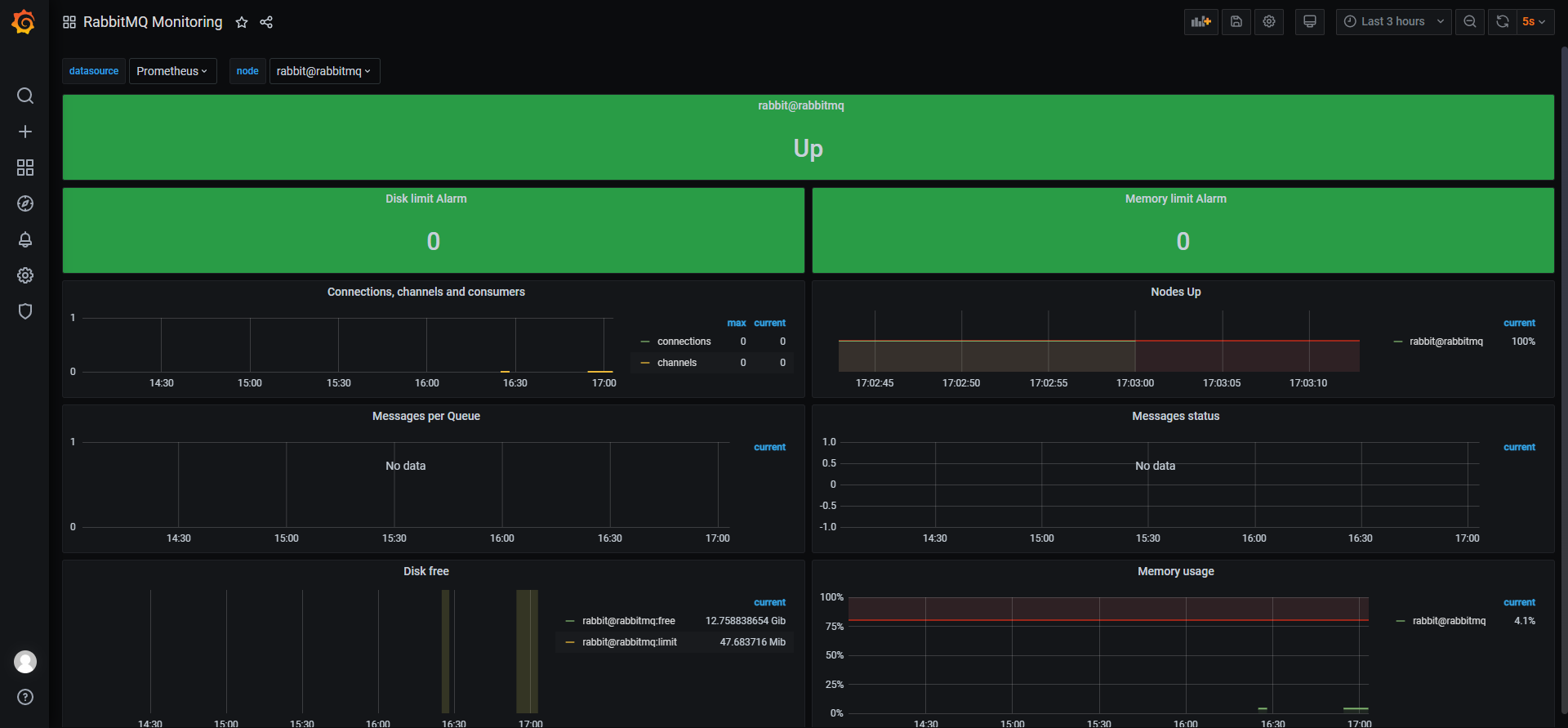

单机图形展示

4279 模板号单机 RabbitMQ Monitoring
