前言

不久前整理资料，看到了自己大二刚学完Java为了写的课设项目敲的一个课设雏形（后来课设没有用这个），因为是个半成品一共就一个界面而且很烂，但不舍得删，发出来留作纪念吧。

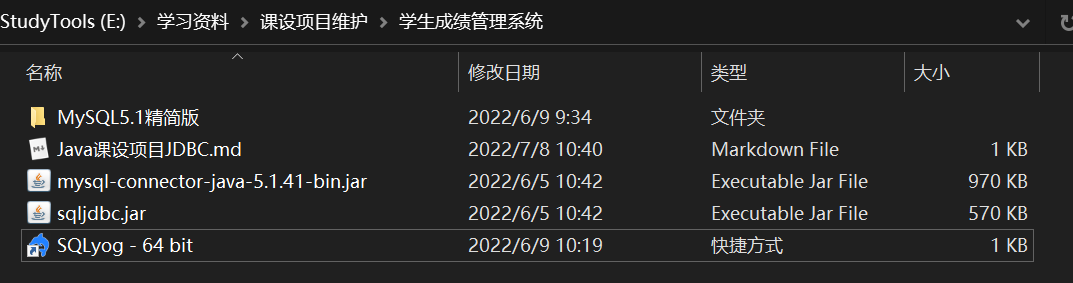

1.开发工具

Eclipse

Java JDK1.8

MySQL精简版

SQLyog

mysql-connector-java-5.1.41 MySQL :: Download Connector/J

sqljdbc

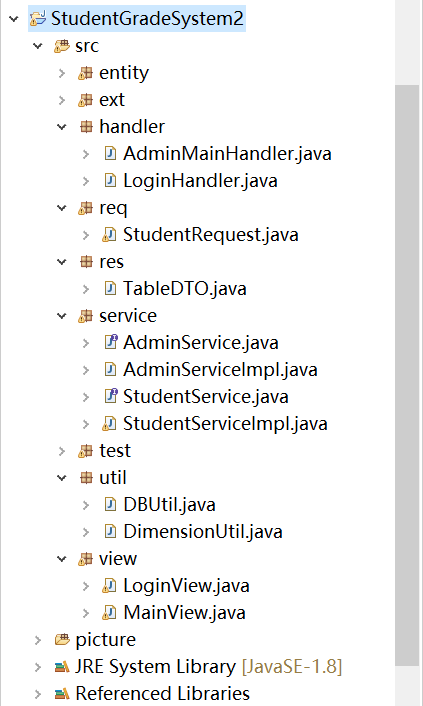

2.项目包结构

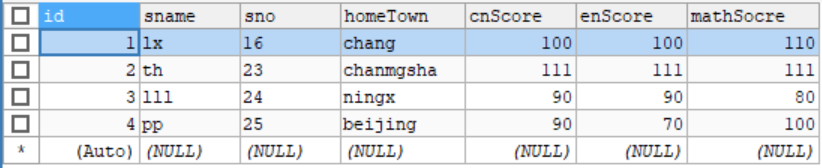

3.数据库表

数据库名：studentgrade

数据库表：manager、student

4.JDBC数据库连接类

连接mysql和sqlserver的方法有一点点不一样，这里笔者的机器没有sqlserver就不维护sqlserver的了，读者有需要可自行解决

//连接mysql5.7private static final String USER = "***";//数据库用户名，一般是rootprivate static final String PWD = "******";//数据库密码
//	private static final String URL="jdbc:mysql://localhost:3306/studentgrade";
//	private static final String DRIVER="com.mysql.jdbc.Driver"; //mysql5.7//如果用的是mysql8.0,private static final String DRIVER="com.mysql.cj.jdbc.Driver";private static final String URL= "jdbc:mysql://localhost:3306/studentgrade?serverTimezone=UTC&useUnicode=true&characterEncoding=utf-8&useSSL=false&allowPublicKeyRetrieval=true";

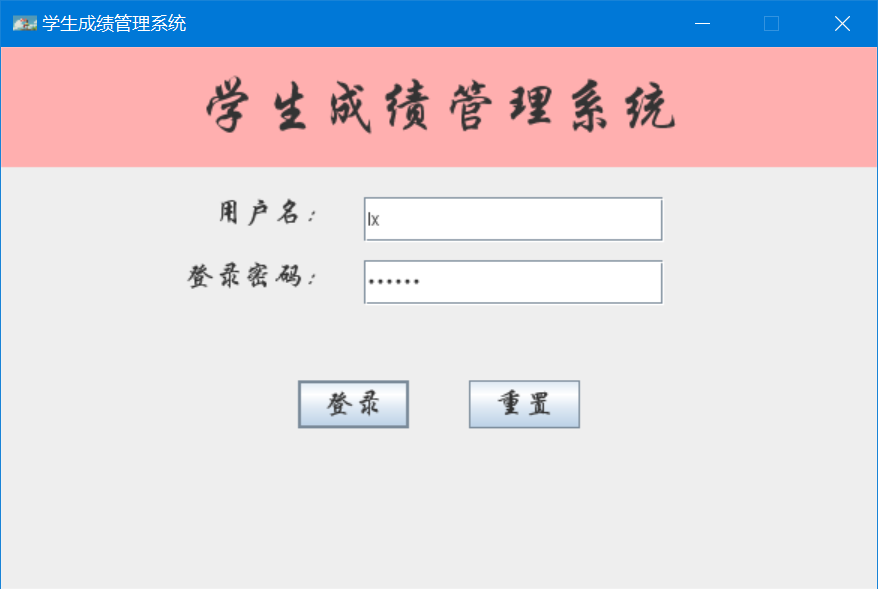

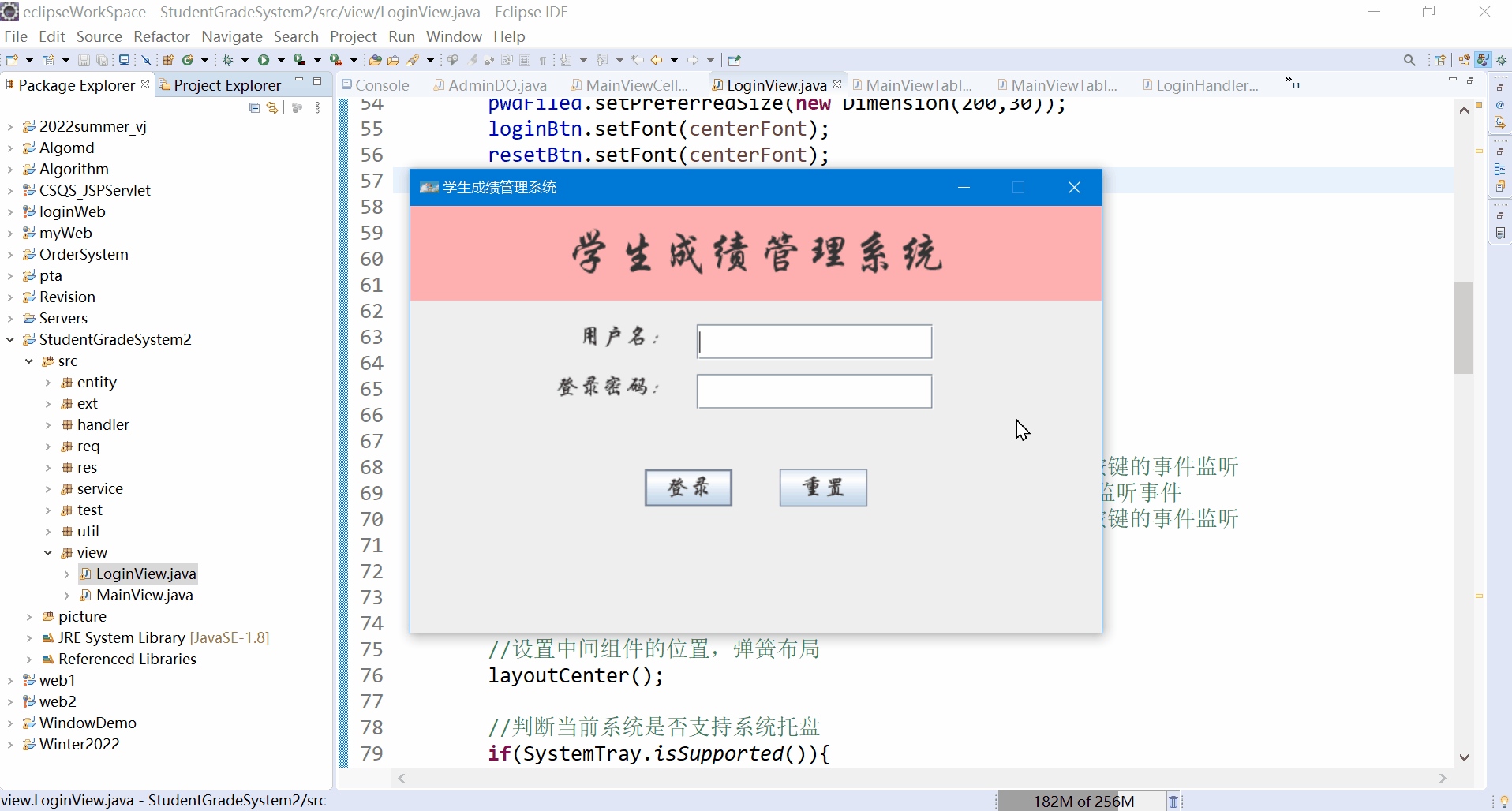

5.管理员登录界面(部分)

package view;import handler.LoginHandler;import javax.swing.*;
import java.awt.*;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.net.URL;
/*** 管理员登录界面* 也是项目运行的起始界面* @author starry* 测试用户名：lx* 密码：lx0411*/
public class LoginView extends JFrame {JLabel titleNameLabel=new JLabel("学生成绩管理系统",JLabel.CENTER);SpringLayout spLayout=new SpringLayout();JPanel centerPanel=new JPanel(spLayout);JLabel userNameLabel=new JLabel("用户名：");JLabel userPwdLabel=new JLabel("登录密码：");JTextField nameTxd=new JTextField();JPasswordField pwdFiled=new  JPasswordField();JButton loginBtn=new JButton("登录");JButton resetBtn=new JButton("重置");//声明桌面系统托盘SystemTraySystemTray systemTray;TrayIcon trayIcon;LoginHandler loginHandler;public LoginView(){super("学生成绩管理系统");loginHandler=new LoginHandler(this);//获取内容面板Container contentPane =getContentPane();//设置标题的字体，格式，大小titleNameLabel.setFont(new Font("华文行楷",Font.PLAIN,40));titleNameLabel.setPreferredSize(new Dimension(0,80));//设置中间各个组件的字体，大小，格式Font centerFont=new Font("华文行楷",Font.PLAIN,20);userNameLabel.setFont(centerFont);nameTxd.setPreferredSize(new Dimension(200,30));userPwdLabel.setFont(centerFont);pwdFiled.setPreferredSize(new Dimension(200,30));loginBtn.setFont(centerFont);resetBtn.setFont(centerFont);contentPane.setBackground(Color.pink);//把组件加入到面板上centerPanel.add(userNameLabel);centerPanel.add(userPwdLabel);centerPanel.add(nameTxd);centerPanel.add(pwdFiled);centerPanel.add(loginBtn);centerPanel.add(resetBtn);loginBtn.addActionListener(loginHandler);//增加登录按键的事件监听loginBtn.addKeyListener(loginHandler);//增加键盘按键监听事件resetBtn.addActionListener(loginHandler);//增加重置按键的事件监听contentPane.add(titleNameLabel,BorderLayout.NORTH);contentPane.add(centerPanel,BorderLayout.CENTER);//设置中间组件的位置，弹簧布局layoutCenter();//判断当前系统是否支持系统托盘if(SystemTray.isSupported()){systemTray=SystemTray.getSystemTray();//初始化系统托盘URL imgUrl = LoginView.class.getClassLoader().getResource("LoginView.jpg");trayIcon=new TrayIcon(new ImageIcon(imgUrl).getImage());//初始化托盘图标trayIcon.setImageAutoSize(true);//托盘图标可以自动缩放大小try {systemTray.add(trayIcon);//将托盘图标加入到系统托盘组件中，并抛出异常} catch (AWTException e) {e.printStackTrace();}//创建一个事件响应，最小化时销毁资源this.addWindowListener(new WindowAdapter() {@Overridepublic void windowIconified(WindowEvent e) {LoginView.this.dispose();}});//托盘事件监听(鼠标单击一次托盘，窗口将会正常显示)trayIcon.addMouseListener(new MouseAdapter() {@Overridepublic void mouseClicked(MouseEvent e) {int clickCont=e.getClickCount();if(clickCont==1){LoginView.this.setExtendedState(JFrame.NORMAL);}LoginView.this.setVisible(true);}});}//设置loginBtn为默认按钮,按下回车键时默认响应loginBtn的键盘响应getRootPane().setDefaultButton(loginBtn);//设置窗口图片URL imgUrl=LoginView.class.getClassLoader().getResource("LoginView.jpg");setIconImage(new ImageIcon(imgUrl).getImage());//设置窗口基本参数setSize(600,400);setDefaultCloseOperation(EXIT_ON_CLOSE);setLocationRelativeTo(null);setResizable(false);setVisible(true);}private void layoutCenter() {//获取组件的宽度Spring.width(组件名)用户名和用户名文本框组件Spring titleLabelWidth=Spring.width(userNameLabel);Spring titleTextWidth=Spring.width(nameTxd);Spring spaceWidth=Spring.constant(20);//userNameLabel和nameTxd的间距Spring totalWidth=Spring.sum(Spring.sum(titleLabelWidth,titleTextWidth),spaceWidth);int offSetX=totalWidth.getValue()/2;/*SpringLayout:布局管理器SpringLayout.Constraints:使用弹簧布局的容器里面的组件的布局约束，每个组件对应一个Spring:能够进行四则运算的整数*//*窗口相当于一个左顶角为原点的第四象限的坐标轴*///1.设置好用户名标签的位置（约束）SpringLayout.Constraints titleLabelCon=spLayout.getConstraints(userNameLabel);//用户名标签userNameLabel的西边参考centerPanel组件水平中心点方向左偏移offSetX的距离spLayout.putConstraint(SpringLayout.WEST,userNameLabel,-offSetX,SpringLayout.HORIZONTAL_CENTER,centerPanel);//设置用户名标签的垂直标签spLayout.putConstraint(SpringLayout.NORTH,userNameLabel,20,SpringLayout.NORTH,centerPanel);//or使用setY()设置垂直偏移量// titleLabelCon.setY(Spring.constant(50));//垂直偏移量//2.设置用户名文本框nameTxd的位置（约束）spLayout.putConstraint(SpringLayout.WEST,nameTxd,20,SpringLayout.EAST,userNameLabel);spLayout.putConstraint(SpringLayout.NORTH,nameTxd,0,SpringLayout.NORTH,userNameLabel);//3.设置密码标签userPwdLabel的位置spLayout.putConstraint(SpringLayout.NORTH,userPwdLabel,20,SpringLayout.SOUTH,userNameLabel);spLayout.putConstraint(SpringLayout.EAST,userPwdLabel,0,SpringLayout.EAST,userNameLabel);//4.设置密码文本框pwdFiled的位置（约束）spLayout.putConstraint(SpringLayout.WEST,pwdFiled,20,SpringLayout.EAST,userPwdLabel);spLayout.putConstraint(SpringLayout.NORTH,pwdFiled,0,SpringLayout.NORTH,userPwdLabel);//5.设置登录按钮loginBtn的位置spLayout.putConstraint(SpringLayout.EAST,loginBtn,-20,SpringLayout.HORIZONTAL_CENTER,centerPanel);spLayout.putConstraint(SpringLayout.NORTH,loginBtn,50,SpringLayout.SOUTH,pwdFiled);//6.设置重置按钮resetBtn的位置spLayout.putConstraint(SpringLayout.WEST,resetBtn,20,SpringLayout.HORIZONTAL_CENTER,centerPanel);spLayout.putConstraint(SpringLayout.NORTH,resetBtn,50,SpringLayout.SOUTH,pwdFiled);}public static void main(String[] args){new LoginView();}public JTextField getNameTxd() {return nameTxd;}public JPasswordField getPwdFiled() {return pwdFiled;}
}

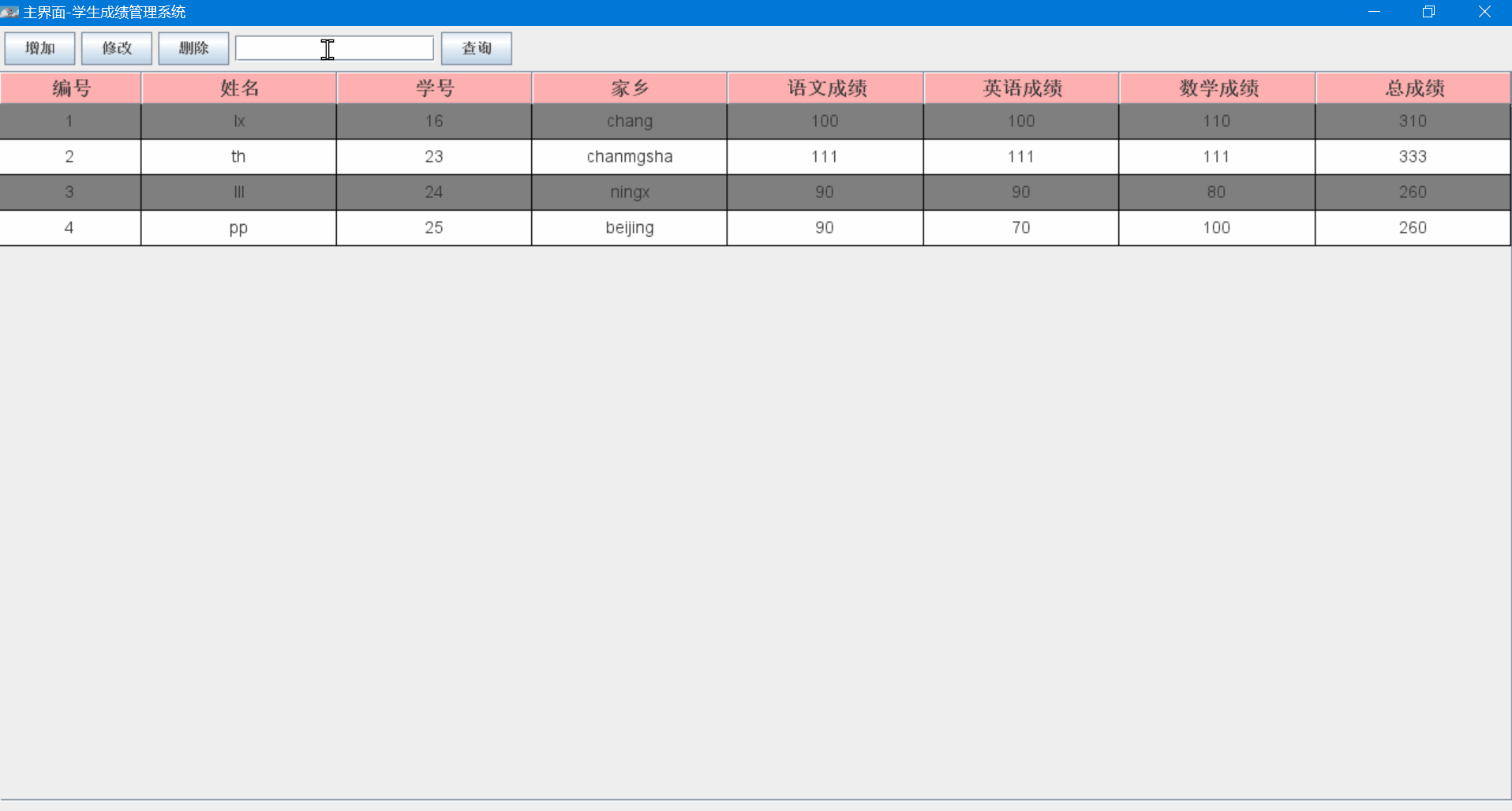

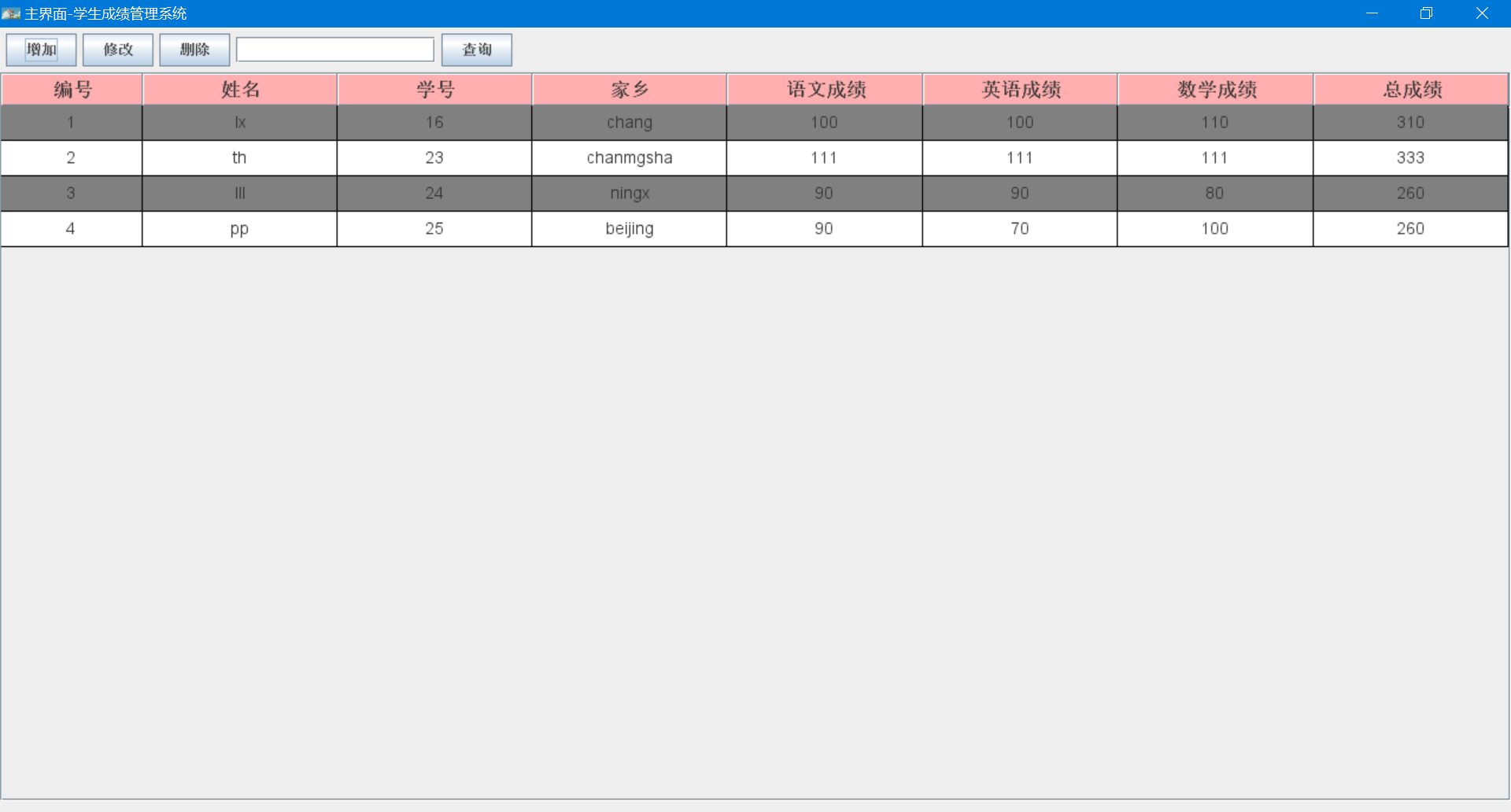

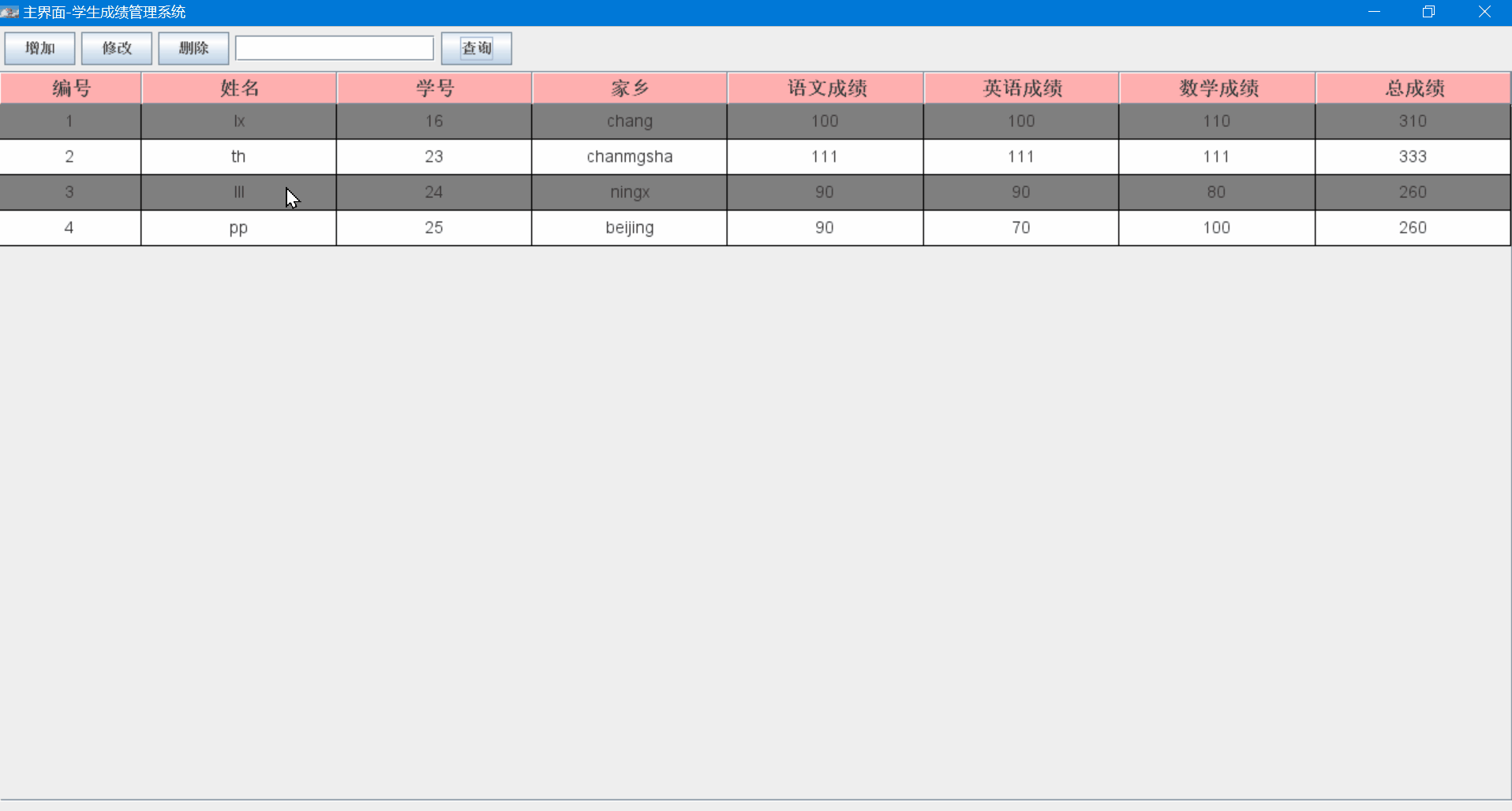

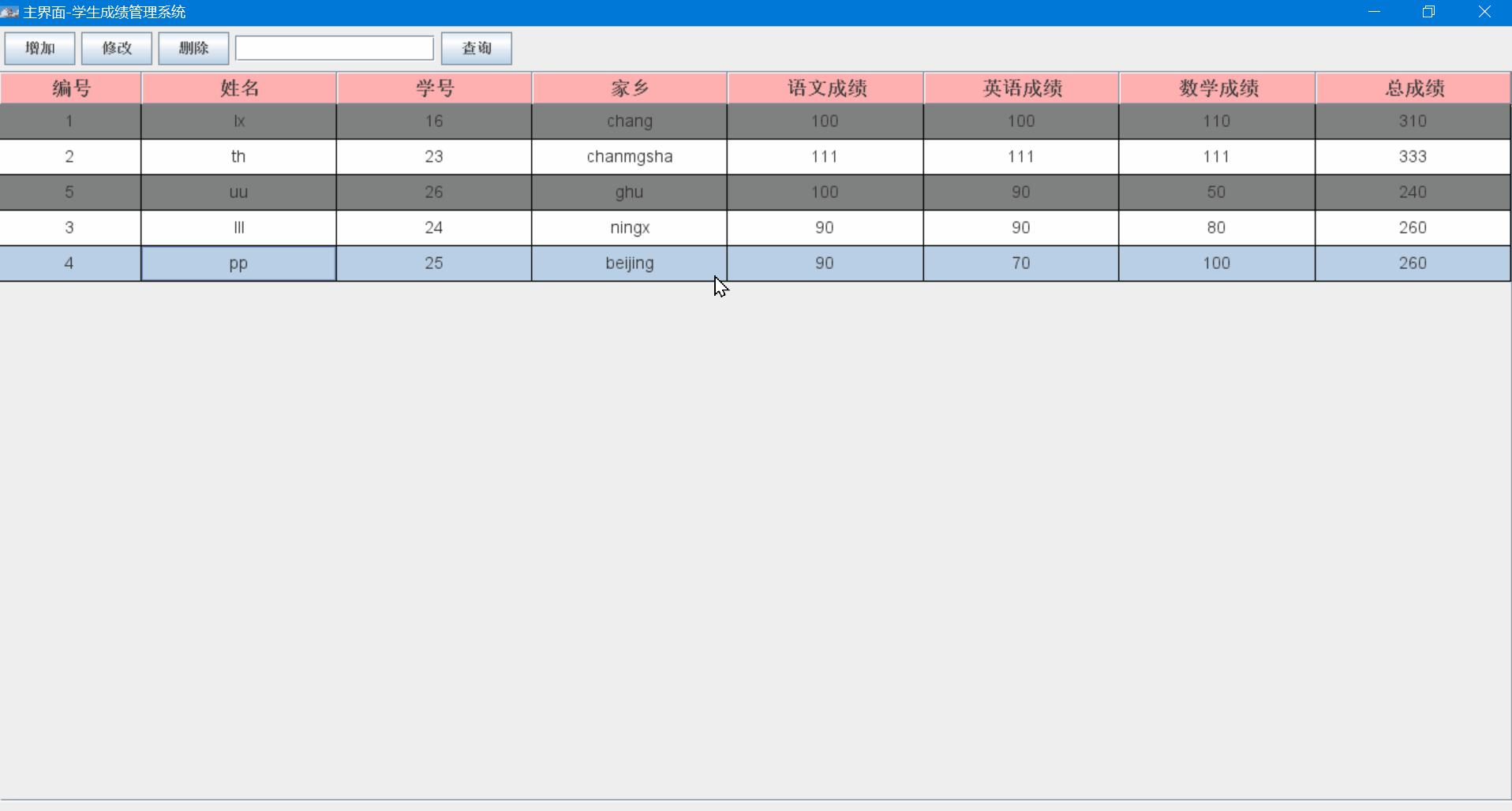

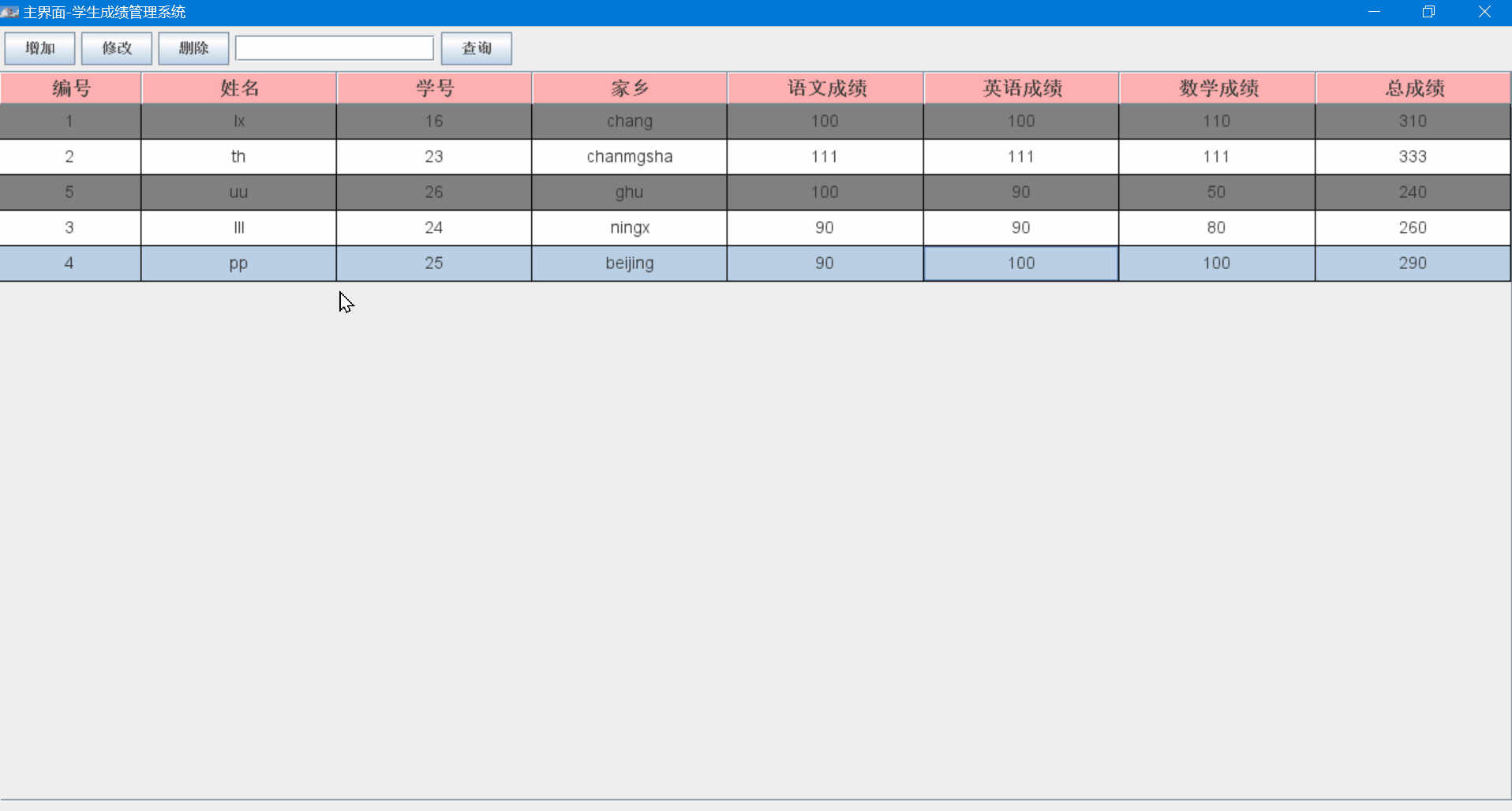

6.管理员增删改查页面（部分）

package view;import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.FlowLayout;
import java.net.URL;
import java.util.Vector;import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTextField;import ext.MainViewTable;
import ext.MainViewTableModel;
import handler.AdminMainHandler;
import req.StudentRequest;
import res.TableDTO;
import service.StudentService;
import service.StudentServiceImpl;
import util.DimensionUtil;
/*** 管理员管理学生的主界面* 可在此实现增删改查* @author starry**/
public class MainView extends JFrame{public String lastPressKey;JPanel northPanel=new JPanel(new FlowLayout(FlowLayout.LEFT));//JPanel默认流布局,组件居左public JButton btnAdd=new JButton("增加");public JButton updataBtn=new JButton("修改");public JButton delBtn=new JButton("删除");public JButton btnSave = new JButton("保存");JTextField searchTxt=new JTextField(15);JButton searchBtn=new JButton("查询");//搜索框与搜索按钮public JTextField searchField = new JTextField();JPanel southPanel=new JPanel(new FlowLayout(FlowLayout.RIGHT));//组件居右JButton preBtn=new JButton("上一页");JButton nextBtn =new JButton("下一页");//创建一个MainViewTable对象public MainViewTable mianViewTable=new MainViewTable();public MainViewTableModel mainViewTableModel;//声明一个MainHandler对象AdminMainHandler adminMainHandler;//private int pageNow=1;//默认显示第一页private int pageSize=10;//默认每页显示十条记录//构造方法public MainView() {super("主界面-学生成绩管理系统");Container contentPane=getContentPane();//创建一个MainHandler对象adminMainHandler = new AdminMainHandler(this);//放置北边的组件layoutNorth(contentPane);//放置中间的组件layoutCenter(contentPane);//放置南边的组件layoutSouth(contentPane);//基础设置init();}private void layoutCenter(Container contentPane) {//调用数据库数据，创建一个StudentService和StudentRequest实例//获取从数据库中查询到的data与totalCountStudentService studentService=new StudentServiceImpl();StudentRequest request=new StudentRequest();request.setPageNow(pageNow);request.setPageSize(pageSize);request.setSearchKey(searchTxt.getText().trim());TableDTO tableDTO = studentService.retrieveStudents(request);Vector> data = tableDTO.getData();showPreNext(tableDTO.getTotalCount());//自定义的MainViewTableModelmainViewTableModel=MainViewTableModel.assembleModel(data);//将Table与TableModel关联mianViewTable.setModel(mainViewTableModel);//设置渲染方式mianViewTable.renderRule();JScrollPane jScrollPane = new JScrollPane(mianViewTable);contentPane.add(jScrollPane,BorderLayout.CENTER);}private void layoutSouth(Container contentPane) {//增加按钮事件监听preBtn.addActionListener(adminMainHandler);nextBtn.addActionListener(adminMainHandler);southPanel.add(preBtn);southPanel.add(nextBtn);contentPane.add(southPanel,BorderLayout.SOUTH);}/** 设置上一页与下一页按钮是否可见*/private void showPreNext(int totalCount) {if(pageNow==1) {preBtn.setVisible(false);}else {preBtn.setVisible(true);}//总共的页数int pageCount=0;if(totalCount%pageSize==0) {pageCount=totalCount/pageSize;}else {pageCount=totalCount/pageSize+1;}if(pageCount==pageNow) {nextBtn.setVisible(false);}else {nextBtn.setVisible(true);}}private void layoutNorth(Container contentPane) {//增加按钮事件监听btnAdd.addActionListener(adminMainHandler);btnSave.addActionListener(adminMainHandler);updataBtn.addActionListener(adminMainHandler);delBtn.addActionListener(adminMainHandler);searchBtn.addActionListener(adminMainHandler);northPanel.add(btnAdd);northPanel.add(btnSave);northPanel.add(updataBtn);northPanel.add(delBtn);northPanel.add(searchTxt);northPanel.add(searchBtn);btnAdd.setVisible(true);btnSave.setVisible(false);contentPane.add(northPanel,BorderLayout.NORTH);}private void init() {//设置窗口图片URL imgUrl=LoginView.class.getClassLoader().getResource("LoginView.jpg");setIconImage(new ImageIcon(imgUrl).getImage());//设置窗口基本参数setBounds(DimensionUtil.getBounds());//设置窗体完全充满整个屏幕setExtendedState(JFrame.MAXIMIZED_BOTH);setDefaultCloseOperation(EXIT_ON_CLOSE);setLocationRelativeTo(null);setResizable(true);setVisible(true);}public static void main(String[] args) {// TODO Auto-generated method stub}public void setPageNow(int pageNow) {this.pageNow = pageNow;}public int getPageSize() {return pageSize;}public void setPageSize(int pageSize) {this.pageSize = pageSize;}public int getPageNow() {return pageNow;}public void reloadTable() {/**调用数据库数据，创建一个StudentService和StudentRequest实例*获取从数据库中查询到的data与totalCount*查询完后要更新Model的数据*/StudentService studentService=new StudentServiceImpl();StudentRequest request=new StudentRequest();request.setPageNow(pageNow);request.setPageSize(pageSize);request.setSearchKey(searchTxt.getText().trim());TableDTO tableDTO = studentService.retrieveStudents(request);Vector> data = tableDTO.getData();// 更新调用updataModel实现更新ModelMainViewTableModel.uptadaModel(data);// 设置渲染方式mianViewTable.renderRule();// 调用上一页与下一页按钮是否可见showPreNext(tableDTO.getTotalCount());}}
