1.工程文件

工程文件中添加serilport

QT += serialport

2.主程序

主程序文件main.cpp

#include "mainwindow.h"

#include

int main(int argc, char *argv[])

{

    QApplication a(argc, argv);

    MainWindow w;

    w.show();

    return a.exec();

}

3.文本控制台类

控制台类头文件console.h

#ifndef CONSOLE_H

#define CONSOLE_H

#include

class Console : public QPlainTextEdit

{

    Q_OBJECT

signals:

    void getData(const QByteArray &data);

public:

    explicit Console(QWidget *parent = nullptr);

    void putData(const QByteArray &data);

    void setLocalEchoEnabled(bool set);

protected:

    void keyPressEvent(QKeyEvent *e) override;

    void mousePressEvent(QMouseEvent *e) override;

    void mouseDoubleClickEvent(QMouseEvent *e) override;

    void contextMenuEvent(QContextMenuEvent *e) override;

private:

    bool m_localEchoEnabled = false;

};

#endif // CONSOLE_H

控制台实现文件console.cpp

#include "console.h"

#include

Console::Console(QWidget *parent) :

    QPlainTextEdit(parent)

{

    document()->setMaximumBlockCount(100);

    QPalette p = palette();

    p.setColor(QPalette::Base, Qt::black);

    p.setColor(QPalette::Text, Qt::green);

    setPalette(p);

}

void Console::putData(const QByteArray &data)

{

    insertPlainText(data);

    QScrollBar *bar = verticalScrollBar();

    bar->setValue(bar->maximum());

}

void Console::setLocalEchoEnabled(bool set)

{

    m_localEchoEnabled = set;

}

void Console::keyPressEvent(QKeyEvent *e)

{

    switch (e->key()) {

    case Qt::Key_Backspace:

    case Qt::Key_Left:

    case Qt::Key_Right:

    case Qt::Key_Up:

    case Qt::Key_Down:

        break;

    default:

        if (m_localEchoEnabled)

            QPlainTextEdit::keyPressEvent(e);

        emit getData(e->text().toLocal8Bit());

    }

}

void Console::mousePressEvent(QMouseEvent *e)

{

    Q_UNUSED(e)

    setFocus();

}

void Console::mouseDoubleClickEvent(QMouseEvent *e)

{

    Q_UNUSED(e)

}

void Console::contextMenuEvent(QContextMenuEvent *e)

{

    Q_UNUSED(e)

}

4. 串口设置类

串口设置类头文件settingdialog.h

串口设置类实现文件settingdialog.cpp

5. 主窗口类

主窗口类头文件mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H#include
#include QT_BEGIN_NAMESPACEclass QLabel;namespace Ui {
class MainWindow;
}QT_END_NAMESPACEclass Console;
class SettingsDialog;class MainWindow : public QMainWindow
{Q_OBJECTpublic:explicit MainWindow(QWidget *parent = nullptr);~MainWindow();private slots:void openSerialPort();void closeSerialPort();void about();void writeData(const QByteArray &data);void readData();void handleError(QSerialPort::SerialPortError error);private:void initActionsConnections();private:void showStatusMessage(const QString &message);Ui::MainWindow *m_ui = nullptr;QLabel *m_status = nullptr;Console *m_console = nullptr;SettingsDialog *m_settings = nullptr;QSerialPort *m_serial = nullptr;
};#endif // MAINWINDOW_H

主窗口实现文件mainwindow.cpp

#include "mainwindow.h"
#include "ui_mainwindow.h"
#include "console.h"
#include "settingsdialog.h"#include
#include MainWindow::MainWindow(QWidget *parent) :QMainWindow(parent),m_ui(new Ui::MainWindow),m_status(new QLabel),m_console(new Console),m_settings(new SettingsDialog),m_serial(new QSerialPort(this))
{m_ui->setupUi(this);setWindowTitle(tr("Serial Servo"));m_console->setEnabled(false);setCentralWidget(m_console);m_ui->actionConnect->setEnabled(true);m_ui->actionDisconnect->setEnabled(false);m_ui->actionQuit->setEnabled(true);m_ui->statusBar->addWidget(m_status);initActionsConnections();connect(m_serial, &QSerialPort::errorOccurred, this, &MainWindow::handleError);connect(m_serial, &QSerialPort::readyRead, this, &MainWindow::readData);connect(m_console, &Console::getData, this, &MainWindow::writeData);
}MainWindow::~MainWindow()
{delete m_ui;delete m_settings;
}void MainWindow::openSerialPort()
{const SettingsDialog::Settings p = m_settings->settings();m_serial->setPortName(p.name);m_serial->setBaudRate(p.baudRate);m_serial->setDataBits(p.dataBits);m_serial->setParity(p.parity);m_serial->setStopBits(p.stopBits);m_serial->setFlowControl(p.flowControl);if(m_serial->open(QIODevice::ReadWrite)){m_console->setEnabled(true);m_console->setLocalEchoEnabled(p.localEchoEnabled);m_ui->actionConnect->setEnabled(false);m_ui->actionDisconnect->setEnabled(true);m_ui->actionConfigure->setEnabled(false);showStatusMessage(tr("Connect to %1 :%2, %3, %4, %5, %6").arg(p.name).arg(p.stringBaudRate).arg(p.stringDataBits).arg(p.stringParity).arg(p.stringStopBits).arg(p.stringFlowControl));} else {QMessageBox::critical(this, tr("Error"), m_serial->errorString());showStatusMessage(tr("Open error"));}
}void MainWindow::closeSerialPort()
{if(m_serial->isOpen()){m_serial->close();}m_console->setEnabled(false);m_ui->actionConnect->setEnabled(true);m_ui->actionDisconnect->setEnabled(false);m_ui->actionConfigure->setEnabled(true);showStatusMessage(tr("Disconnected"));
}void MainWindow::about()
{QMessageBox::about(this, "About Serial Servo",tr("Serial Servo Demo"));
}void MainWindow::writeData(const QByteArray &data)
{m_serial->write(data);
}void MainWindow::readData()
{const QByteArray data = m_serial->readAll();m_console->putData(data);
}void MainWindow::handleError(QSerialPort::SerialPortError error)
{if(error == QSerialPort::ResourceError){QMessageBox::critical(this, tr("Critical Error"), m_serial->errorString());closeSerialPort();}
}void MainWindow::initActionsConnections()
{connect(m_ui->actionConnect, &QAction::triggered, this, &MainWindow::openSerialPort);connect(m_ui->actionDisconnect, &QAction::triggered, this, &MainWindow::closeSerialPort);connect(m_ui->actionQuit, &QAction::triggered, this, &MainWindow::close);connect(m_ui->actionConfigure, &QAction::triggered, m_settings, &SettingsDialog::show);connect(m_ui->actionClear, &QAction::triggered, m_console, &Console::clear);connect(m_ui->actionAbout, &QAction::triggered, this, &MainWindow::about);
}void MainWindow::showStatusMessage(const QString &message)
{m_status->setText(message);
}

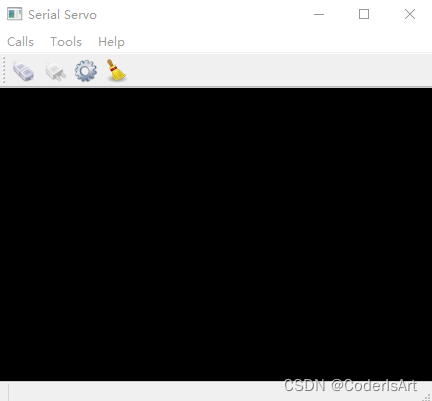

6. 运行结果
