前提要求

• 安装docker，docker-compose

创建vmware_exporter目录

mkdir -p /vmware_exporter

 创建基于docker部署vmware_exporter脚本

•  VSPHERE_HOST: "vCenter 管理地址"
•  VSPHERE_IGNORE_SSL: "True"
•  VSPHERE_USER: "administrator@vsphere.local"
•  VSPHERE_PASSWORD: "密码"

vim /vmware_exporter/docker-compose.yml

version: '3'
services:vmware-exporter:image: pryorda/vmware_exporter:v0.11.1container_name: vmware-exporterhostname: vmware-exporterrestart: alwaysports:- '9272:9272'expose:- 9272environment:VSPHERE_HOST: "You_vCenter"VSPHERE_IGNORE_SSL: "True"VSPHERE_USER: "administrator@vsphere.local"VSPHERE_PASSWORD: "YOU_password"labels:org.label-schema.group: "monitoring"

 运行vmware_exporter容器

docker-compose up -d

vmware_exporter采集结果查看，部分展示

• http://YOU_IP:9272/metrics

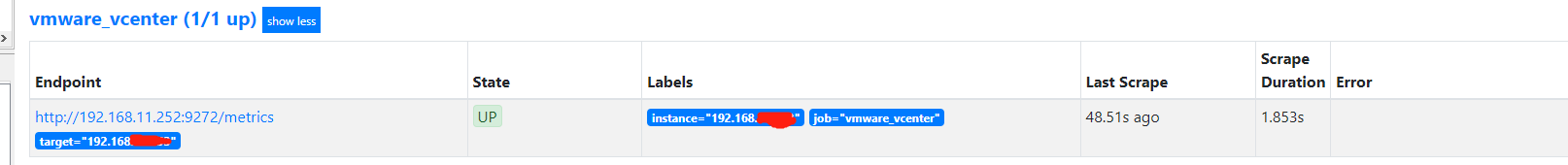

Prometheus 配置

• static_configs 此处vCenter 管理地址
• replacement此处是vmware_exporter采集数据地址

scrape_configs:- job_name: 'web' scrape_interval: 5sstatic_configs: - targets: - localhost:9090- job_name: 'vmware_vcenter'metrics_path: '/metrics'static_configs:- targets:- YOU_vCenter_IPrelabel_configs:- source_labels: [__address__]target_label: __param_target- source_labels: [__param_target]target_label: instance- target_label: __address__replacement: YOU_vmware_vcenter_IP:9272

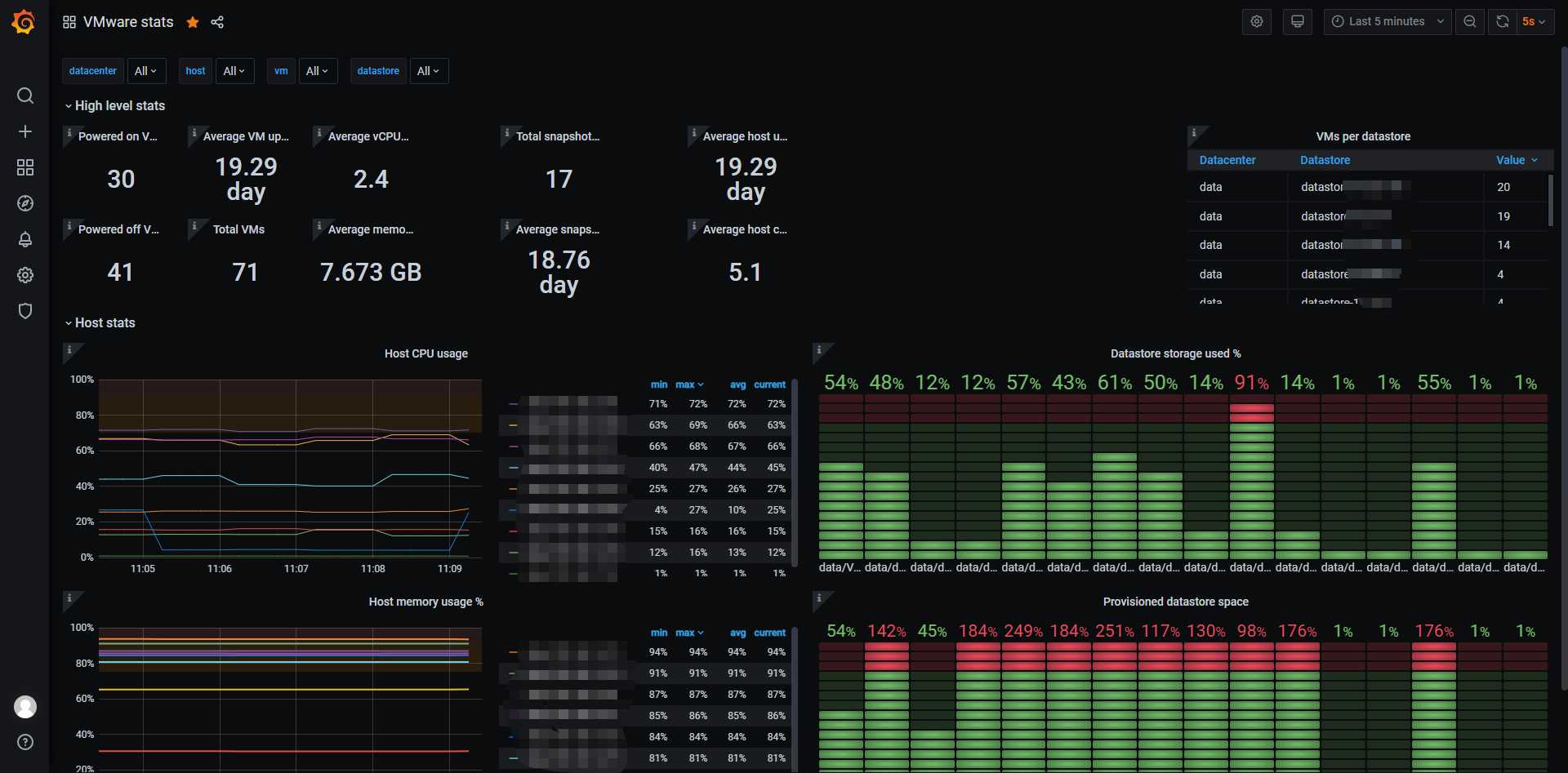

Grafana 图形展示

• 11243 模板号 VMware stats
