文章目录

• 1、环境
• 2、Temporal Joins
• • 2.1、基于处理时间（重点）
  • • 2.1.1、设置状态保留时间
  • 2.2、基于事件时间
• 3、Lookup Join（重点）
• 4、Interval Joins（基于间隔JOIN）

重点是Lookup Join和Processing Time Temporal Join，其它随意

1、环境

WIN10+IDEA2021+JDK1.8+本地MySQL8

881.13.62.122.0.32.17.22.0.191.18.24


org.apache.flinkflink-java${flink.version}org.apache.flinkflink-streaming-java_${scala.binary.version}${flink.version}org.apache.flinkflink-clients_${scala.binary.version}${flink.version}org.apache.flinkflink-runtime-web_${scala.binary.version}${flink.version}org.apache.flinkflink-table-planner-blink_${scala.binary.version}${flink.version}org.apache.flinkflink-streaming-scala_${scala.binary.version}${flink.version}org.apache.flinkflink-csv${flink.version}org.apache.flinkflink-json${flink.version}org.slf4jslf4j-api${slf4j.version}org.slf4jslf4j-log4j12${slf4j.version}org.apache.logging.log4jlog4j-to-slf4j${log4j.version}com.alibabafastjson${fastjson.version}org.projectlomboklombok${lombok.version}

2、Temporal Joins

2.1、基于处理时间（重点）

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;public class Hi {public static void main(String[] args) {//创建流执行环境StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建流式表执行环境StreamTableEnvironment tbEnv = StreamTableEnvironment.create(env);//双流DataStreamSource> d1 = env.fromElements(Tuple2.of("a", 2),Tuple2.of("b", 3));DataStreamSource
 d2 = env.fromElements(new P("a", 4000L),new P("b", 5000L));//创建临时视图tbEnv.createTemporaryView("v1", d1);tbEnv.createTemporaryView("v2", d2);//双流JOINtbEnv.sqlQuery("SELECT * FROM v1 LEFT JOIN v2 ON v1.f0=v2.pid").execute().print();}@Data@NoArgsConstructor@AllArgsConstructorpublic static class P {private String pid;private Long timestamp;}
}

结果

+----+-------+-------+-------------+-------------+
| op |    f0 |    f1 |         pid |   timestamp |
+----+-------+-------+-------------+-------------+
| +I |     a |     2 |      (NULL) |      (NULL) |
| -D |     a |     2 |      (NULL) |      (NULL) |
| +I |     a |     2 |           a |        4000 |
| +I |     b |     3 |      (NULL) |      (NULL) |
| -D |     b |     3 |      (NULL) |      (NULL) |
| +I |     b |     3 |           b |        5000 |
+----+-------+-------+-------------+-------------+

2.1.1、设置状态保留时间

import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;import java.time.Duration;
import java.util.Scanner;public class Hi {public static void main(String[] args) {//创建流执行环境StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);//创建流式表执行环境StreamTableEnvironment tbEnv = StreamTableEnvironment.create(env);//设置状态保留时间tbEnv.getConfig().setIdleStateRetention(Duration.ofSeconds(5L));//双流DataStreamSource> d1 = env.addSource(new AutomatedSource());DataStreamSource d2 = env.addSource(new ManualSource());//创建临时视图tbEnv.createTemporaryView("v1", d1);tbEnv.createTemporaryView("v2", d2);//双流JOINtbEnv.sqlQuery("SELECT * FROM v1 INNER JOIN v2 ON v1.f0=v2.f0").execute().print();}/** 手动输入的数据源（请输入a或b进行测试） */public static class ManualSource implements SourceFunction {public ManualSource() {}@Overridepublic void run(SourceFunction.SourceContext sc) {Scanner scanner = new Scanner(System.in);while (true) {String str = scanner.nextLine().trim();if (str.equals("STOP")) {break;}if (!str.equals("")) {sc.collect(str);}}scanner.close();}@Overridepublic void cancel() {}}/** 自动输入的数据源 */public static class AutomatedSource implements SourceFunction> {public AutomatedSource() {}@Overridepublic void run(SourceFunction.SourceContext> sc) throws InterruptedException {for (long i = 0L; i < 999L; i++) {Thread.sleep(1000L);sc.collect(Tuple2.of("a", i));sc.collect(Tuple2.of("b", i));}}@Overridepublic void cancel() {}}
}

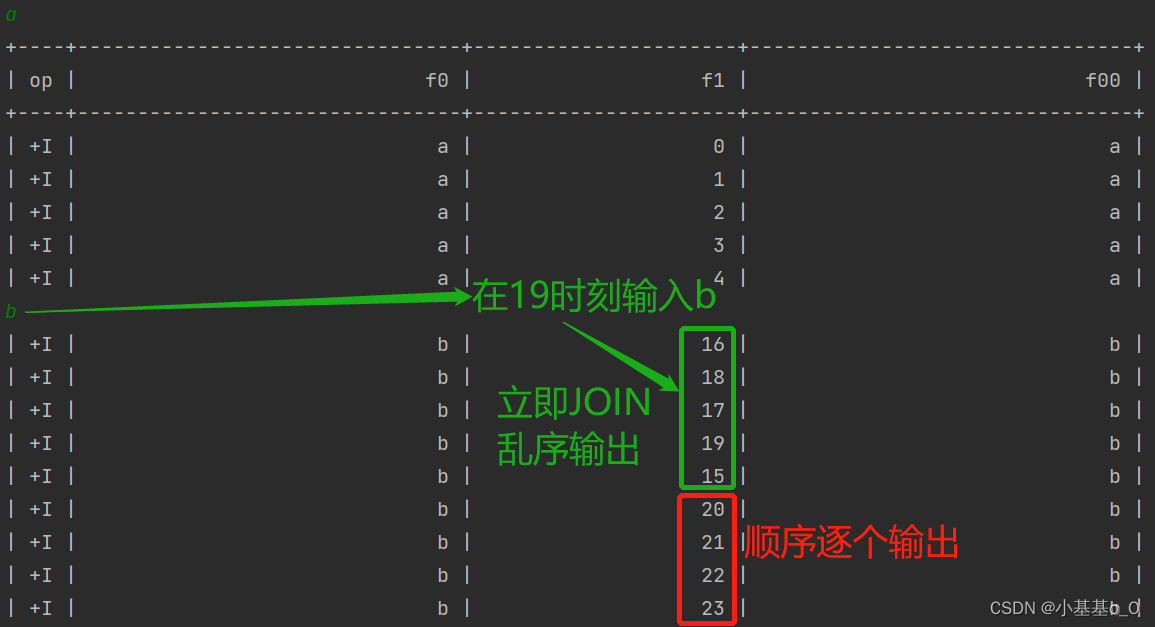

测试结果

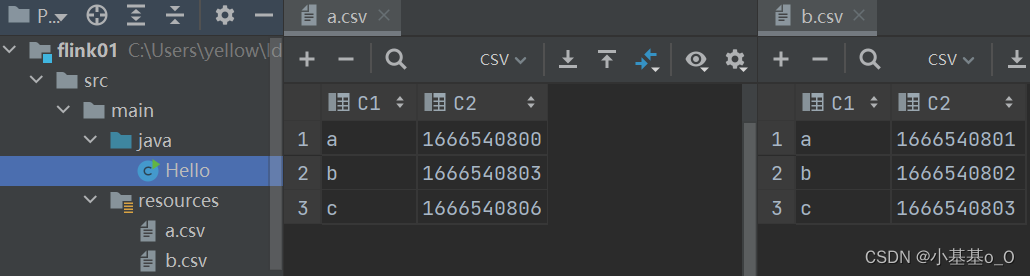

2.2、基于事件时间

import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;public class Hello {public static void main(String[] args) {//创建流和表的执行环境StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);StreamTableEnvironment tbEnv = StreamTableEnvironment.create(env);//创建数据流，设定水位线tbEnv.executeSql("CREATE TABLE v1 (" +"  x STRING PRIMARY KEY," +"  y BIGINT," +"  ts AS to_timestamp(from_unixtime(y,'yyyy-MM-dd HH:mm:ss'))," +"  watermark FOR ts AS ts - INTERVAL '2' SECOND" +") WITH (" +"  'connector'='filesystem'," +"  'path'='src/main/resources/a.csv'," +"  'format'='csv'" +")");tbEnv.executeSql("CREATE TABLE v2 (" +"  x STRING PRIMARY KEY," +"  y BIGINT," +"  ts AS to_timestamp(from_unixtime(y,'yyyy-MM-dd HH:mm:ss'))," +"  watermark FOR ts AS ts - INTERVAL '2' SECOND" +") WITH (" +"  'connector'='filesystem'," +"  'path'='src/main/resources/b.csv'," +"  'format'='csv'" +")");//执行查询tbEnv.sqlQuery("SELECT * " +"FROM v1 " +"LEFT JOIN v2 FOR SYSTEM_TIME AS OF v1.ts " +"ON v1.x = v2.x").execute().print();}
}

打印结果

+----+---+------------+-------------------------+--------+------------+-------------------------+
| op | x |          y |                      ts |     x0 |         y0 |                     ts0 |
+----+---+------------+-------------------------+--------+------------+-------------------------+
| +I | a | 1666540800 | 2022-10-24 00:00:00.000 | (NULL) |     (NULL) |                  (NULL) |
| +I | b | 1666540803 | 2022-10-24 00:00:03.000 |      b | 1666540802 | 2022-10-24 00:00:02.000 |
| +I | c | 1666540806 | 2022-10-24 00:00:06.000 |      c | 1666540803 | 2022-10-24 00:00:03.000 |
+----+---+------------+-------------------------+--------+------------+-------------------------+

3、Lookup Join（重点）

Lookup Join是基于Processing Time Temporal Join的

详细链接：https://yellow520.blog.csdn.net/article/details/128070761

4、Interval Joins（基于间隔JOIN）

SQL

SELECT * FROM v1
LEFT JOIN v2 ON v1.x=v2.x AND
v1.y BETWEEN (v2.y - INTERVAL '2' SECOND) AND (v2.y + INTERVAL '1' SECOND)

Java

import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;import java.util.Scanner;import static org.apache.flink.table.api.Expressions.$;public class Hi {public static void main(String[] args) {//创建流和表的执行环境StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment().setParallelism(1);StreamTableEnvironment tbEnv = StreamTableEnvironment.create(env);//创建数据流DataStreamSource d1 = env.addSource(new ManualSource());DataStreamSource d2 = env.addSource(new AutomatedSource());//创建动态表，并声明一个额外的字段来作为处理时间字段Table t1 = tbEnv.fromDataStream(d1, $("x"), $("y").proctime());Table t2 = tbEnv.fromDataStream(d2, $("x"), $("y").proctime());//创建临时视图tbEnv.createTemporaryView("v1", t1);tbEnv.createTemporaryView("v2", t2);//执行查询tbEnv.sqlQuery("SELECT * FROM v1 LEFT JOIN v2 ON v1.x=v2.x AND " +"v1.y BETWEEN (v2.y - INTERVAL '2' SECOND) AND (v2.y + INTERVAL '1' SECOND)").execute().print();}/** 手动输入的数据源 */public static class ManualSource implements SourceFunction {public ManualSource() {}@Overridepublic void run(SourceFunction.SourceContext sc) {Scanner scanner = new Scanner(System.in);while (true) {String str = scanner.nextLine().trim();if (str.equals("STOP")) {break;}if (!str.equals("")) {sc.collect(str);}}scanner.close();}@Overridepublic void cancel() {}}/** 自动输入的数据源 */public static class AutomatedSource implements SourceFunction {public AutomatedSource() {}@Overridepublic void run(SourceFunction.SourceContext sc) throws InterruptedException {for (int i = 0; i < 999; i++) {Thread.sleep(801);sc.collect("a");sc.collect("b");}}@Overridepublic void cancel() {}}
}

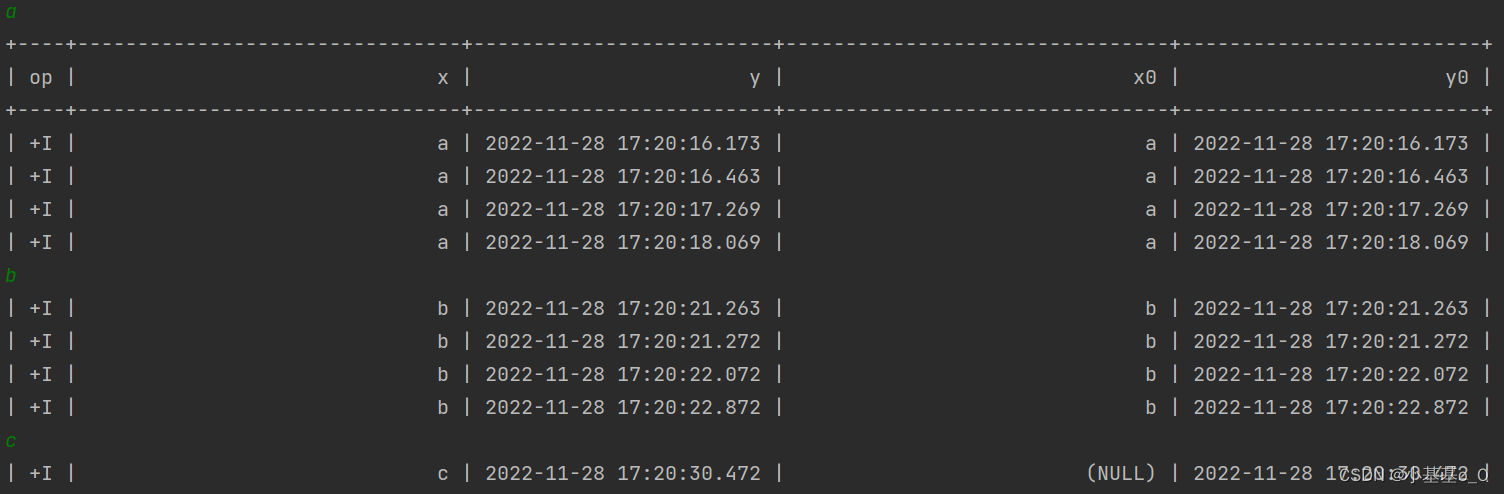

测试结果
