目录

1.创建项目

2.配置

3.发布

4.测试页面

1.创建项目

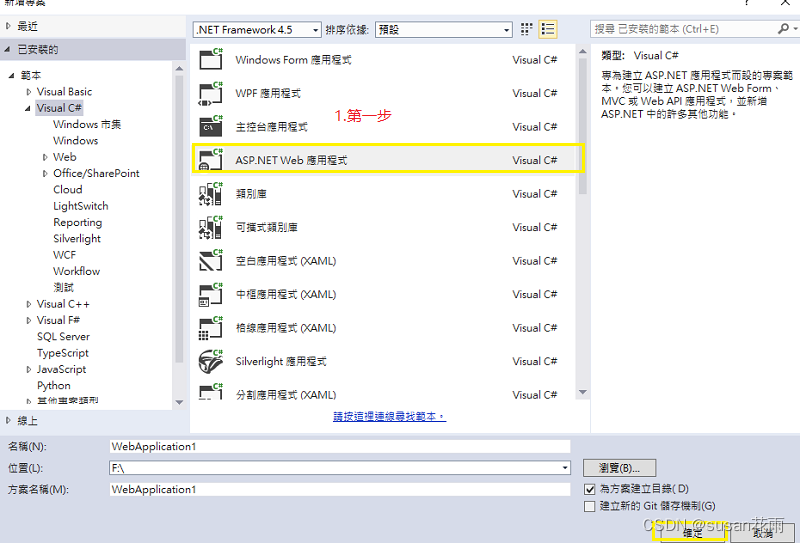

（1）创建ASP.NET Web应用程式，如下图：

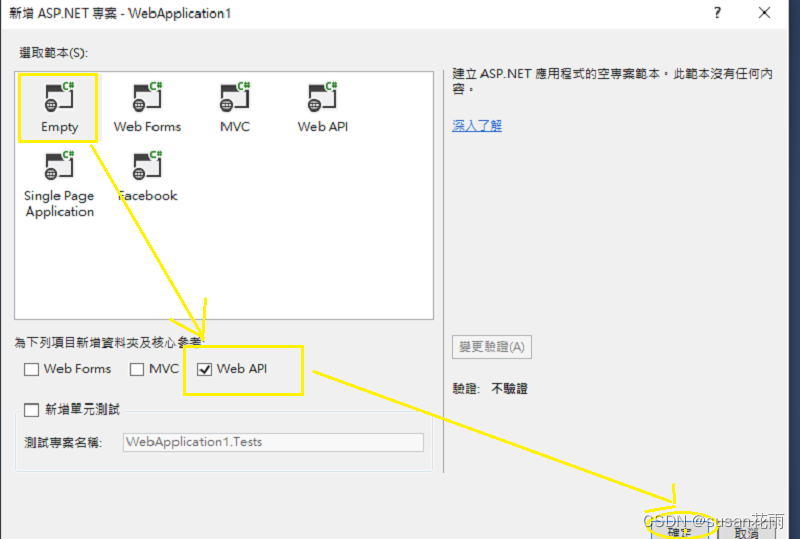

（2）选择Empty,勾选Web API，点击确定创建，如下图：

（3）创建完成，如下图：

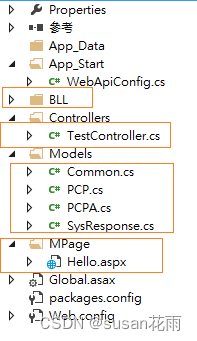

（4）添加文件夹及类，如下图：

 说明：BLL（存放数据库相关的类），TestController（接口类），Models（存放Models类），MPage（存放啟動頁面，沒有任何功能）

2.配置

（1）Web.config配置文件，配置数据库连接及跨域，代码如下：

 （2）在Global.asax文件中添加，下面代码：

  protected void Application_BeginRequest(object sender, EventArgs e){var res = HttpContext.Current.Response;var req = HttpContext.Current.Request;//自定义header时进行处理if (req.HttpMethod == "OPTIONS"){res.AppendHeader("Access-Control-Allow-Headers", "Content-Type, X-CSRF-Token, X-Requested-With, Accept, Accept-Version, Content-Length, Content-MD5, Date, X-Api-Version, X-File-Name,Token,Cookie");res.AppendHeader("Access-Control-Allow-Methods", "POST,GET,PUT,PATCH,DELETE,OPTIONS");res.StatusCode = 200;res.End();}}

（3）啟動頁面：Hello.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Hello.aspx.cs" Inherits="WebAPI.MPage.Hello" %>



這個界面只是一個啟動頁面，沒有任何功能

（4）webapi设置默认返回json格式 ，WebApiConfig文件下Register方法下，添加代码：

   GlobalConfiguration.Configuration.Formatters.XmlFormatter.SupportedMediaTypes.Clear();//默认返回 json  GlobalConfiguration.Configuration.Formatters.JsonFormatter.MediaTypeMappings.Add(new QueryStringMapping("datatype", "json", "application/json"));// 解决json序列化时的循环引用问题config.Formatters.JsonFormatter.SerializerSettings.ReferenceLoopHandling = Newtonsoft.Json.ReferenceLoopHandling.Ignore;

（5）BLL文件夹下创建一个SQLHelper类，用于连接数据库，代码：

using Oracle.ManagedDataAccess.Client;
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Text;
using System.Web;namespace WebAPI.BLL
{///
/// 鏈接類別///
public enum DBConnList{DBConnStr1 = 0,DBConnStr2 = 1,QracleConnS = 2,}public static class SQLHelper{//数据库1public static string DBConnectionString1 = ConfigurationManager.AppSettings["DBConnectionString1"];//数据库2public static string DBConnectionString2 = ConfigurationManager.AppSettings["DBConnectionString2"];//Qracle数据库操作public static string QracleSring = ConfigurationManager.AppSettings["OraConn"];///
/// 獲得數據庫鏈接語句///
/// 請求數據庫類別/// public static string GetConnectStr(DBConnList DBConnIndex){var connstr = "";if (DBConnIndex == DBConnList.DBConnStr1){connstr = DBConnectionString1;}else if (DBConnIndex == DBConnList.DBConnStr2){connstr = DBConnectionString2;}else if (DBConnIndex == DBConnList.QracleConnS){connstr = QracleSring;}return connstr;}//SQL 数据库操作#region///
/// 增刪改查，不涉及事物///
/// /// 請求數據庫類別/// public static int ExecuteSQL(string sql, DBConnList DBConnIndex){var connstr = GetConnectStr(DBConnIndex);SqlConnection conn = new SqlConnection(connstr);SqlCommand cmd = new SqlCommand(sql, conn);conn.Open();int result = cmd.ExecuteNonQuery();conn.Close();return result;}///
/// 执行带SqlParameter的SQL语句///
/// /// 請求數據庫類別/// 參數/// public static int ExecuteSQLAndSP(string sql, DBConnList DBConnIndex, List sp){var connstr = GetConnectStr(DBConnIndex);SqlConnection connection = new SqlConnection(connstr);try{connection.Open();SqlCommand cmd = new SqlCommand(sql, connection);foreach (SqlParameter cur_sp in sp){if (cur_sp.Value != null){cmd.Parameters.Add(cur_sp);}}return cmd.ExecuteNonQuery();}finally{connection.Close();}}///
/// 執行多條SQL語句，實現數據庫事物///
/// 多條SQL語句/// 請求數據庫類別 /// 1 表示執行成功；2 表示出現錯誤了。public static void ExecuteSQLTran(List SQLStringList, DBConnList DBConnIndex, ref int result){var connstr = GetConnectStr(DBConnIndex);using (SqlConnection conn = new SqlConnection(connstr)){conn.Open();SqlCommand cmd = new SqlCommand();cmd.Connection = conn;SqlTransaction tx = conn.BeginTransaction();cmd.Transaction = tx;int curIndex = 0;try{for (int n = 0; n < SQLStringList.Count; n++){string strsql = SQLStringList[n].ToString();if (strsql.Trim().Length > 1){cmd.CommandText = strsql;cmd.ExecuteNonQuery();curIndex = curIndex + 1;}}tx.Commit();result = 1;}catch (SqlException ex){result = 2;Add_Log("ExecuteSqlTran:" + SQLStringList[curIndex] + " \r\n Error:" + ex.Message);tx.Rollback();//throw new Exception(E.Message);}}}///
/// 查詢///
/// 需要執行的SQL語句/// 請求數據庫類別/// public static DataTable SearchSQL(string sql, DBConnList DBConnIndex){var connstr = GetConnectStr(DBConnIndex);DataSet ds = new DataSet();SqlDataAdapter sda = new SqlDataAdapter(sql, connstr);sda.Fill(ds);return ds.Tables[0];}public static DataTable Only_Table1(string exec, DBConnList DBConnIndex){var connstr = GetConnectStr(DBConnIndex);System.Data.DataTable dt_jdl = new DataTable();try{using (SqlConnection con = new SqlConnection(connstr)){if (con.State == ConnectionState.Closed){con.Open();} if (con.State == ConnectionState.Open || con.State == ConnectionState.Connecting){SqlDataAdapter sda2 = new SqlDataAdapter(exec, con);//全部通過寫存儲過程即可DataSet ds2 = new DataSet();sda2.Fill(ds2, "cxq");dt_jdl = ds2.Tables["cxq"];sda2.Dispose();ds2.Dispose();}con.Close();}return dt_jdl;}catch (Exception EX){return null;}}///
/// 增加日志///
/// public static void Add_Log(string msg){//msg = msg.Replace("'", "");//StringBuilder sb = new StringBuilder();//sb.AppendLine("Insert into SimpHomeDB.dbo.SYS_LOG (msg)");//sb.AppendLine("Values(N'[SimploScreenAPI]" + msg + "')");//ExecuteSQL(sb.ToString(), DBConnList.DBConnStrTE);}#endregion//Qracle数据库操作#region///
///  执行SQL语句,返回DataTable;只用来执行查询结果比较少的情况///
/// /// /// /// public static DataTable QracleExecuteDataTableSQL(string sql, DBConnList DBConnIndex,params OracleParameter[] parameters){var connStr = GetConnectStr(DBConnIndex);using (OracleConnection conn = new OracleConnection(connStr)){conn.Open();using (OracleCommand cmd = conn.CreateCommand()){cmd.CommandText = sql;cmd.Parameters.AddRange(parameters);OracleDataAdapter adapter = new OracleDataAdapter(cmd);DataTable datatable = new DataTable();adapter.Fill(datatable);return datatable;}}}///
/// 执行SQl语句（增、删、改）///
/// 要执行的SQl语句/// public static bool Qracle_EXCUTE(string sql, DBConnList DBConnIndex){var connStr = GetConnectStr(DBConnIndex);try{OracleConnection connect = new OracleConnection(connStr);OracleCommand cmd = new OracleCommand();cmd.Connection = connect;cmd.CommandText = sql;connect.Open();cmd.ExecuteNonQuery();connect.Close();return true;}catch (Exception ex){throw new Exception(ex.Message);}}#endregion}
}

（6）Models文件下的类，例SysResponse类：

 ///
/// 返回信息///
public class SysResponse{///
/// 状态码///
public string Code { get; set; }///
/// 描述信息///
public string Message { get; set; }///
/// 数据///
public object Data { get; set; }}

Common类

 public class Common{///
/// 轉化成Json///
/// 待轉換對象/// 轉換結果/returns>public static HttpResponseMessage ToJson(Object obj){String str;if (obj is String || obj is Char){str = obj.ToString();}else{JavaScriptSerializer serializer = new JavaScriptSerializer();str = serializer.Serialize(obj);}HttpResponseMessage result = new HttpResponseMessage { Content = new StringContent(str, Encoding.GetEncoding("UTF-8"), "application/json") };return result;}      }

（7）接口类TestController

 public class TestController : ApiController{     [HttpGet]public HttpResponseMessage HelloOne(string Line){SysResponse res = new SysResponse();try{//sql数据库var emp_dt = SQLHelper.SearchSQL("select * from pcp where Line = '" + Line + "'", DBConnList.DBConnStr1);//Qracle数据库//var emp_dt = SQLHelper.QracleExecuteDataTableSQL("select * from (select * from scqhp.cell_sort_info_by_customer) where ROWNUM<=10 ORDER BY ROWNUM asc", DBConnList.QracleConnS);//var GoodsNo = emp_dt.Rows[0]["CELL_SN"].ToString();var GoodsNo = emp_dt.Rows[0]["P_N"].ToString();res.Code = "01";res.Message = GoodsNo;res.Data = "001";}catch (Exception ex){res.Code = "02";res.Message = "調用失敗Hello，Exception:" + ex.Message + Line;res.Data = "002";}return Common.ToJson(res);}}

说明：其中  [HttpGet]可以按照需求更改为  [HttpPost]  [HttpPut]  [HttpDelete]

3.发布

写好的接口需要发布到服务器或者本机的IIS进行测试，发布与发布网页一样

4.测试页面




查询物料
Line：
 料号：


说明：其中http://10.20.32.73:8000为发布webAPI的网址

总结：本文主要讲述了WebAPI项目的搭建及其配置，然后到发布及其测试整个过程。记录方便查阅。
