1、主要参考

（1）官网的地址

Global registration — Open3D 0.16.0 documentation

2、作用和原理

2.1个人理解

PS理解：（1）ICP的作用是，2个点云数据在初步转换关系（已知不精确）的情况下进行精细调整。（2）Global registration是不知道2个点云数据的初始关系，直接来一波计算，得到初步转换关系，接下来给ICP计算用。

 2.2 介绍

ICP配准和彩色点云配准都被称为本地配准方法，因为它们依赖于粗略对齐作为初始化。本教程展示了另一类注册方法，称为全局注册。这一系列算法不需要对初始化进行对齐。它们通常产生不太紧密的对齐结果，并被用作局部方法的初始化。

2.3 例子中封装的可视化函数

下面的辅助函数将转换后的源点云与目标点云一起可视化:

def draw_registration_result(source, target, transformation):source_temp = copy.deepcopy(source)target_temp = copy.deepcopy(target)source_temp.paint_uniform_color([1, 0.706, 0])target_temp.paint_uniform_color([0, 0.651, 0.929])source_temp.transform(transformation)o3d.visualization.draw_geometries([source_temp, target_temp],zoom=0.4559,front=[0.6452, -0.3036, -0.7011],lookat=[1.9892, 2.0208, 1.8945],up=[-0.2779, -0.9482, 0.1556])

2.4 提取几何特征

我们对点云进行下采样，估计法线，然后为每个点计算一个FPFH特征。FPFH特征是描述点的局部几何性质的33维向量。在33维空间中的最近邻查询可以返回具有相似局部几何结构的点。详见[Rasu2009]。

def preprocess_point_cloud(pcd, voxel_size):print(":: Downsample with a voxel size %.3f." % voxel_size)pcd_down = pcd.voxel_down_sample(voxel_size)radius_normal = voxel_size * 2print(":: Estimate normal with search radius %.3f." % radius_normal)pcd_down.estimate_normals(o3d.geometry.KDTreeSearchParamHybrid(radius=radius_normal, max_nn=30))radius_feature = voxel_size * 5print(":: Compute FPFH feature with search radius %.3f." % radius_feature)pcd_fpfh = o3d.pipelines.registration.compute_fpfh_feature(pcd_down,o3d.geometry.KDTreeSearchParamHybrid(radius=radius_feature, max_nn=100))return pcd_down, pcd_fpfh

 3、测试的例子

3.1 读取输入的两个点云文件

下面的代码从两个文件读取一个源点云和一个目标点云。它们与单位矩阵的变换不对齐。

（1）注意：下面代码中的np.identity(4)，相当于没有进行平移和旋转

import open3d as o3d
import numpy as np
from copy import deepcopydef draw_registration_result(source, target, transformation):# source_temp = copy.deepcopy(source)# target_temp = copy.deepcopy(target)source_temp = deepcopy(source)target_temp = deepcopy(target)source_temp.paint_uniform_color([1, 0.706, 0])target_temp.paint_uniform_color([0, 0.651, 0.929])source_temp.transform(transformation)o3d.visualization.draw_geometries([source_temp, target_temp],zoom=0.4559,front=[0.6452, -0.3036, -0.7011],lookat=[1.9892, 2.0208, 1.8945],up=[-0.2779, -0.9482, 0.1556])def preprocess_point_cloud(pcd, voxel_size):print(":: Downsample with a voxel size %.3f." % voxel_size)pcd_down = pcd.voxel_down_sample(voxel_size)radius_normal = voxel_size * 2print(":: Estimate normal with search radius %.3f." % radius_normal)pcd_down.estimate_normals(o3d.geometry.KDTreeSearchParamHybrid(radius=radius_normal, max_nn=30))radius_feature = voxel_size * 5print(":: Compute FPFH feature with search radius %.3f." % radius_feature)pcd_fpfh = o3d.pipelines.registration.compute_fpfh_feature(pcd_down,o3d.geometry.KDTreeSearchParamHybrid(radius=radius_feature, max_nn=100))return pcd_down, pcd_fpfhdef prepare_dataset(voxel_size):print(":: Load two point clouds and disturb initial pose.")demo_icp_pcds = o3d.data.DemoICPPointClouds()source = o3d.io.read_point_cloud(demo_icp_pcds.paths[0])target = o3d.io.read_point_cloud(demo_icp_pcds.paths[1])trans_init = np.asarray([[0.0, 0.0, 1.0, 0.0], [1.0, 0.0, 0.0, 0.0],[0.0, 1.0, 0.0, 0.0], [0.0, 0.0, 0.0, 1.0]])source.transform(trans_init)draw_registration_result(source, target, np.identity(4))source_down, source_fpfh = preprocess_point_cloud(source, voxel_size)target_down, target_fpfh = preprocess_point_cloud(target, voxel_size)return source, target, source_down, target_down, source_fpfh, target_fpfhif __name__ == "__main__":voxel_size = 0.05  # means 5cm for this datasetsource, target, source_down, target_down, source_fpfh, target_fpfh = prepare_dataset(voxel_size)

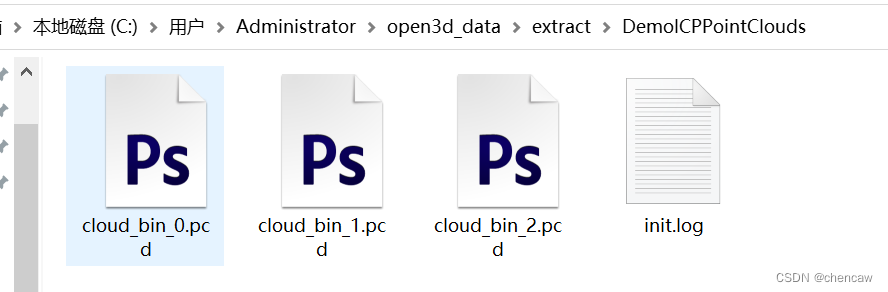

（2）下载后应该用了下面的这个文件

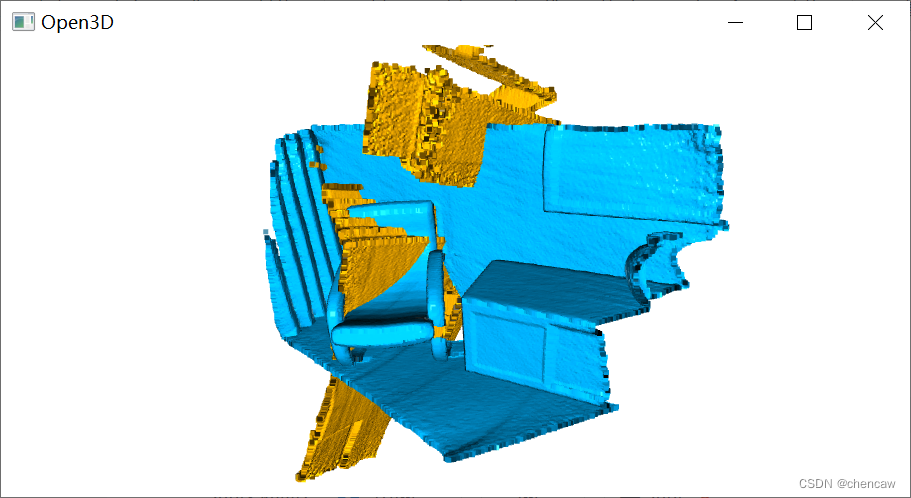

 （3）显示的两个点云初始关系如下

 （4）操作流程

 3.2 RANSAC算法和测试

3.2.1原理

      我们使用RANSAC进行全局注册。在每次RANSAC迭代中，从源点云中选取ransac_n个随机点。通过在33维FPFH特征空间中查询最近的邻居来检测它们在目标点云中的对应点。修剪步骤需要快速的修剪算法来快速地在早期拒绝错误匹配。

Open3D提供以下剪枝算法:

• CorrespondenceCheckerBasedOnDistance 检查对齐点云是否接近(小于指定的阈值)。
• CorrespondenceCheckerBasedOnEdgeLength检查从源和目标匹配分别绘制的任意两条边(由两个顶点组成的线)的长度是否相似。本教程检查||edgesource||>0.9带||edgetarget||和||edgetarget||>0.9带||edgesource||是否为真。

• CorrespondenceCheckerBasedOnNormal考虑任何匹配的顶点法线亲和。它计算两个法向量的点积。它取一个弧度值作为阈值。

      只有通过修剪步骤的匹配才被用于计算转换，并在整个点云上进行验证。核心函数是registration_ransac_based_on_feature_matching。该函数最重要的超参数是RANSACConvergenceCriteria。它定义了RANSAC迭代的最大次数和置信概率。这两个数字越大，结果越准确，但算法花费的时间也越多。

     我们根据[[Choi2015]](../reference.html# Choi2015)提供的经验值设置RANSAC参数。

 3.2.2测试代码

（1）代码

import open3d as o3d
import numpy as np
from copy import deepcopydef draw_registration_result(source, target, transformation):# source_temp = copy.deepcopy(source)# target_temp = copy.deepcopy(target)source_temp = deepcopy(source)target_temp = deepcopy(target)source_temp.paint_uniform_color([1, 0.706, 0])target_temp.paint_uniform_color([0, 0.651, 0.929])source_temp.transform(transformation)o3d.visualization.draw_geometries([source_temp, target_temp],zoom=0.4559,front=[0.6452, -0.3036, -0.7011],lookat=[1.9892, 2.0208, 1.8945],up=[-0.2779, -0.9482, 0.1556])def preprocess_point_cloud(pcd, voxel_size):print(":: Downsample with a voxel size %.3f." % voxel_size)pcd_down = pcd.voxel_down_sample(voxel_size)radius_normal = voxel_size * 2print(":: Estimate normal with search radius %.3f." % radius_normal)pcd_down.estimate_normals(o3d.geometry.KDTreeSearchParamHybrid(radius=radius_normal, max_nn=30))radius_feature = voxel_size * 5print(":: Compute FPFH feature with search radius %.3f." % radius_feature)pcd_fpfh = o3d.pipelines.registration.compute_fpfh_feature(pcd_down,o3d.geometry.KDTreeSearchParamHybrid(radius=radius_feature, max_nn=100))return pcd_down, pcd_fpfhdef prepare_dataset(voxel_size):print(":: Load two point clouds and disturb initial pose.")demo_icp_pcds = o3d.data.DemoICPPointClouds()source = o3d.io.read_point_cloud(demo_icp_pcds.paths[0])target = o3d.io.read_point_cloud(demo_icp_pcds.paths[1])trans_init = np.asarray([[0.0, 0.0, 1.0, 0.0], [1.0, 0.0, 0.0, 0.0],[0.0, 1.0, 0.0, 0.0], [0.0, 0.0, 0.0, 1.0]])source.transform(trans_init)draw_registration_result(source, target, np.identity(4))source_down, source_fpfh = preprocess_point_cloud(source, voxel_size)target_down, target_fpfh = preprocess_point_cloud(target, voxel_size)return source, target, source_down, target_down, source_fpfh, target_fpfhdef execute_global_registration(source_down, target_down, source_fpfh,target_fpfh, voxel_size):distance_threshold = voxel_size * 1.5print(":: RANSAC registration on downsampled point clouds.")print("   Since the downsampling voxel size is %.3f," % voxel_size)print("   we use a liberal distance threshold %.3f." % distance_threshold)result = o3d.pipelines.registration.registration_ransac_based_on_feature_matching(source_down, target_down, source_fpfh, target_fpfh, True,distance_threshold,o3d.pipelines.registration.TransformationEstimationPointToPoint(False),3, [o3d.pipelines.registration.CorrespondenceCheckerBasedOnEdgeLength(0.9),o3d.pipelines.registration.CorrespondenceCheckerBasedOnDistance(distance_threshold)], o3d.pipelines.registration.RANSACConvergenceCriteria(100000, 0.999))return resultif __name__ == "__main__":#（1）原始，下采样，查看voxel_size = 0.05  # means 5cm for this datasetsource, target, source_down, target_down, source_fpfh, target_fpfh = prepare_dataset(voxel_size)#（2）ransac全局注册result_ransac = execute_global_registration(source_down, target_down,source_fpfh, target_fpfh,voxel_size)print(result_ransac)draw_registration_result(source_down, target_down, result_ransac.transformation)

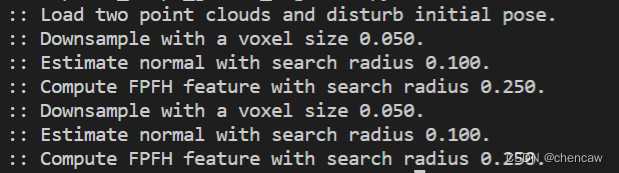

（2）结果

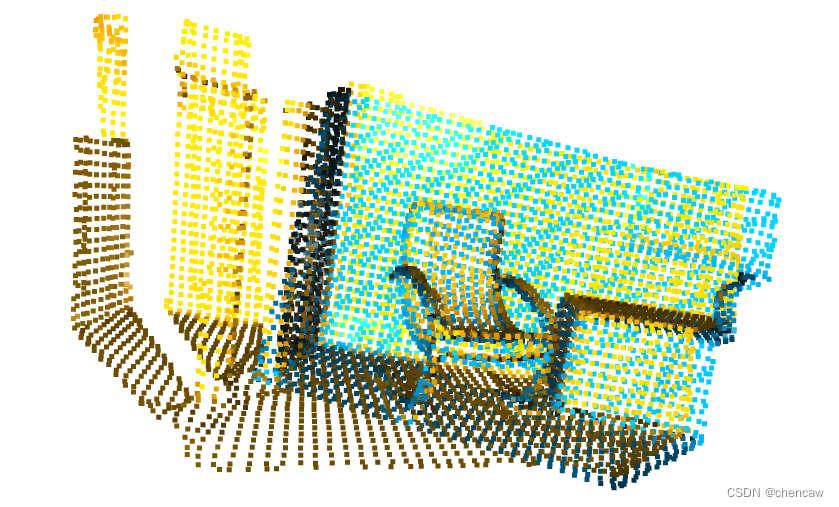

（3）发现结果还真不错，看看上一个教程icp中提到的两个指标fitness=6.745798e-01, inlier_rmse=3.051079e-02

注意：Open3D为全局注册提供了更快的实现。请参考快速全球注册。

4、局部细化（Local refinement）

（1）原理

出于性能的考虑，全局配准只在低采样的点云上执行。结果也不紧绷。我们使用点对面ICP来进一步细化对准。

（2）注意：下面的方法中使用了上一个教程中的点对面的配准方法

import open3d as o3d
import numpy as np
from copy import deepcopydef draw_registration_result(source, target, transformation):# source_temp = copy.deepcopy(source)# target_temp = copy.deepcopy(target)source_temp = deepcopy(source)target_temp = deepcopy(target)source_temp.paint_uniform_color([1, 0.706, 0])target_temp.paint_uniform_color([0, 0.651, 0.929])source_temp.transform(transformation)o3d.visualization.draw_geometries([source_temp, target_temp],zoom=0.4559,front=[0.6452, -0.3036, -0.7011],lookat=[1.9892, 2.0208, 1.8945],up=[-0.2779, -0.9482, 0.1556])def preprocess_point_cloud(pcd, voxel_size):print(":: Downsample with a voxel size %.3f." % voxel_size)pcd_down = pcd.voxel_down_sample(voxel_size)radius_normal = voxel_size * 2print(":: Estimate normal with search radius %.3f." % radius_normal)pcd_down.estimate_normals(o3d.geometry.KDTreeSearchParamHybrid(radius=radius_normal, max_nn=30))radius_feature = voxel_size * 5print(":: Compute FPFH feature with search radius %.3f." % radius_feature)pcd_fpfh = o3d.pipelines.registration.compute_fpfh_feature(pcd_down,o3d.geometry.KDTreeSearchParamHybrid(radius=radius_feature, max_nn=100))return pcd_down, pcd_fpfhdef prepare_dataset(voxel_size):print(":: Load two point clouds and disturb initial pose.")demo_icp_pcds = o3d.data.DemoICPPointClouds()source = o3d.io.read_point_cloud(demo_icp_pcds.paths[0])target = o3d.io.read_point_cloud(demo_icp_pcds.paths[1])trans_init = np.asarray([[0.0, 0.0, 1.0, 0.0], [1.0, 0.0, 0.0, 0.0],[0.0, 1.0, 0.0, 0.0], [0.0, 0.0, 0.0, 1.0]])source.transform(trans_init)draw_registration_result(source, target, np.identity(4))source_down, source_fpfh = preprocess_point_cloud(source, voxel_size)target_down, target_fpfh = preprocess_point_cloud(target, voxel_size)return source, target, source_down, target_down, source_fpfh, target_fpfhdef execute_global_registration(source_down, target_down, source_fpfh,target_fpfh, voxel_size):distance_threshold = voxel_size * 1.5print(":: RANSAC registration on downsampled point clouds.")print("   Since the downsampling voxel size is %.3f," % voxel_size)print("   we use a liberal distance threshold %.3f." % distance_threshold)result = o3d.pipelines.registration.registration_ransac_based_on_feature_matching(source_down, target_down, source_fpfh, target_fpfh, True,distance_threshold,o3d.pipelines.registration.TransformationEstimationPointToPoint(False),3, [o3d.pipelines.registration.CorrespondenceCheckerBasedOnEdgeLength(0.9),o3d.pipelines.registration.CorrespondenceCheckerBasedOnDistance(distance_threshold)], o3d.pipelines.registration.RANSACConvergenceCriteria(100000, 0.999))return resultdef refine_registration(source, target, source_fpfh, target_fpfh, voxel_size):distance_threshold = voxel_size * 0.4print(":: Point-to-plane ICP registration is applied on original point")print("   clouds to refine the alignment. This time we use a strict")print("   distance threshold %.3f." % distance_threshold)result = o3d.pipelines.registration.registration_icp(source, target, distance_threshold, result_ransac.transformation,o3d.pipelines.registration.TransformationEstimationPointToPlane())return resultif __name__ == "__main__":#（1）原始，下采样，查看voxel_size = 0.05  # means 5cm for this datasetsource, target, source_down, target_down, source_fpfh, target_fpfh = prepare_dataset(voxel_size)#（2）ransac全局注册result_ransac = execute_global_registration(source_down, target_down,source_fpfh, target_fpfh,voxel_size)print(result_ransac)draw_registration_result(source_down, target_down, result_ransac.transformation)#（3）点对面细调整result_icp = refine_registration(source, target, source_fpfh, target_fpfh,voxel_size)print(result_icp)draw_registration_result(source, target, result_icp.transformation)

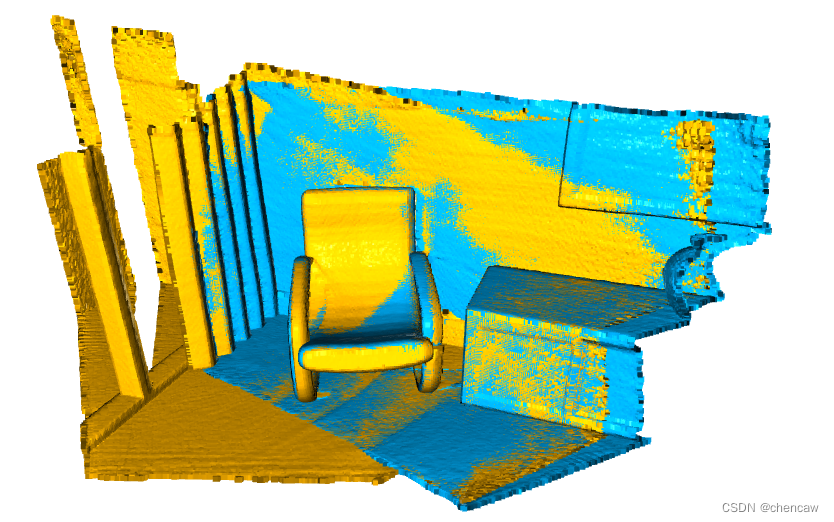

（3）测试结果

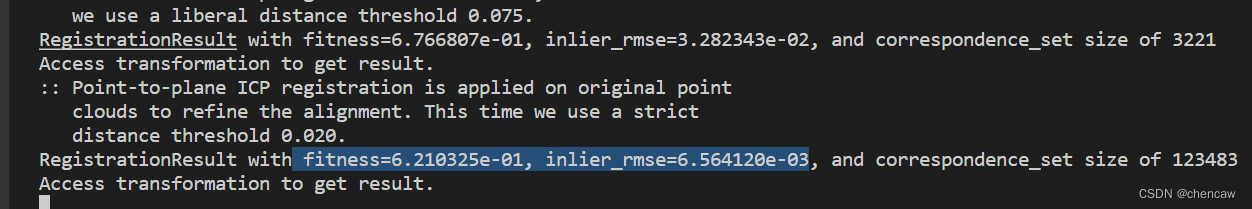

 （4）匹配的参数真漂亮，参数为 fitness=6.210325e-01, inlier_rmse=6.564120e-03

 5、快速全局注册（Fast global registration）

5.1原理

（1）描述

基于RANSAC的全局注册解决方案可能需要很长时间，因为有无数的模型建议和评估。[Zhou2016]提出了一种更快的方法，可以快速优化对应次数较少的线处理过程。由于每次迭代都不涉及模型提出和评估，[Zhou2016]提出的方法可以节省大量的计算时间。

（2）用到的函数

o3d.pipelines.registration.registration_fgr_based_on_correspondence(
        source_down, target_down, correspondence_set,
        o3d.pipelines.registration.FastGlobalRegistrationOption())

本教程将基于RANSAC的全局注册的运行时间与[Zhou2016]的实现进行比较。

 5.2 测试代码

import open3d as o3d
import numpy as np
from copy import deepcopy
import timedef draw_registration_result(source, target, transformation):# source_temp = copy.deepcopy(source)# target_temp = copy.deepcopy(target)source_temp = deepcopy(source)target_temp = deepcopy(target)source_temp.paint_uniform_color([1, 0.706, 0])target_temp.paint_uniform_color([0, 0.651, 0.929])source_temp.transform(transformation)o3d.visualization.draw_geometries([source_temp, target_temp],zoom=0.4559,front=[0.6452, -0.3036, -0.7011],lookat=[1.9892, 2.0208, 1.8945],up=[-0.2779, -0.9482, 0.1556])def preprocess_point_cloud(pcd, voxel_size):print(":: Downsample with a voxel size %.3f." % voxel_size)pcd_down = pcd.voxel_down_sample(voxel_size)radius_normal = voxel_size * 2print(":: Estimate normal with search radius %.3f." % radius_normal)pcd_down.estimate_normals(o3d.geometry.KDTreeSearchParamHybrid(radius=radius_normal, max_nn=30))radius_feature = voxel_size * 5print(":: Compute FPFH feature with search radius %.3f." % radius_feature)pcd_fpfh = o3d.pipelines.registration.compute_fpfh_feature(pcd_down,o3d.geometry.KDTreeSearchParamHybrid(radius=radius_feature, max_nn=100))return pcd_down, pcd_fpfhdef prepare_dataset(voxel_size):print(":: Load two point clouds and disturb initial pose.")demo_icp_pcds = o3d.data.DemoICPPointClouds()source = o3d.io.read_point_cloud(demo_icp_pcds.paths[0])target = o3d.io.read_point_cloud(demo_icp_pcds.paths[1])trans_init = np.asarray([[0.0, 0.0, 1.0, 0.0], [1.0, 0.0, 0.0, 0.0],[0.0, 1.0, 0.0, 0.0], [0.0, 0.0, 0.0, 1.0]])source.transform(trans_init)draw_registration_result(source, target, np.identity(4))source_down, source_fpfh = preprocess_point_cloud(source, voxel_size)target_down, target_fpfh = preprocess_point_cloud(target, voxel_size)return source, target, source_down, target_down, source_fpfh, target_fpfhdef execute_global_registration(source_down, target_down, source_fpfh,target_fpfh, voxel_size):distance_threshold = voxel_size * 1.5print(":: RANSAC registration on downsampled point clouds.")print("   Since the downsampling voxel size is %.3f," % voxel_size)print("   we use a liberal distance threshold %.3f." % distance_threshold)result = o3d.pipelines.registration.registration_ransac_based_on_feature_matching(source_down, target_down, source_fpfh, target_fpfh, True,distance_threshold,o3d.pipelines.registration.TransformationEstimationPointToPoint(False),3, [o3d.pipelines.registration.CorrespondenceCheckerBasedOnEdgeLength(0.9),o3d.pipelines.registration.CorrespondenceCheckerBasedOnDistance(distance_threshold)], o3d.pipelines.registration.RANSACConvergenceCriteria(100000, 0.999))return resultdef refine_registration(source, target, source_fpfh, target_fpfh, voxel_size):distance_threshold = voxel_size * 0.4print(":: Point-to-plane ICP registration is applied on original point")print("   clouds to refine the alignment. This time we use a strict")print("   distance threshold %.3f." % distance_threshold)result = o3d.pipelines.registration.registration_icp(source, target, distance_threshold, result_ransac.transformation,o3d.pipelines.registration.TransformationEstimationPointToPlane())return resultdef execute_fast_global_registration(source_down, target_down, source_fpfh,target_fpfh, voxel_size):distance_threshold = voxel_size * 0.5print(":: Apply fast global registration with distance threshold %.3f" \% distance_threshold)result = o3d.pipelines.registration.registration_fgr_based_on_feature_matching(source_down, target_down, source_fpfh, target_fpfh,o3d.pipelines.registration.FastGlobalRegistrationOption(maximum_correspondence_distance=distance_threshold))return resultif __name__ == "__main__":#（1）原始，下采样，查看voxel_size = 0.05  # means 5cm for this datasetsource, target, source_down, target_down, source_fpfh, target_fpfh = prepare_dataset(voxel_size)#（2）ransac全局注册，计算时间start = time.time()result_ransac = execute_global_registration(source_down, target_down,source_fpfh, target_fpfh,voxel_size)print("Global registration took %.3f sec.\n" % (time.time() - start))print(result_ransac)draw_registration_result(source_down, target_down, result_ransac.transformation)# #（3）点对面细调整# result_icp = refine_registration(source, target, source_fpfh, target_fpfh,#                                 voxel_size)# print(result_icp)# draw_registration_result(source, target, result_icp.transformation)# （4）快速全局注册，计算时间start = time.time()result_fast = execute_fast_global_registration(source_down, target_down,source_fpfh, target_fpfh,voxel_size)print("Fast global registration took %.3f sec.\n" % (time.time() - start))print(result_fast)draw_registration_result(source_down, target_down, result_fast.transformation)

5.3 结论

PS：没仔细看，感觉和官网给的数据结果一样，速度没有快起来啊。大家有空仔细研究一下。

通过适当的配置，快速全局注册的精度甚至可以与ICP媲美。更多实验结果见[Zhou2016]。

除了基于fpfh特征的FGR，全局注册还可以通过registration_fgr_based_on_correspondence使用基于通信的FGR执行。如果您的通信前端不同于FPFH，但您仍然希望在给定一组假定通信时使用FGR，则此方法是有用的。调用方法如下：

注意，该方法和上面的测试方法不同。

 o3d.pipelines.registration.registration_fgr_based_on_correspondence(
        source_down, target_down, correspondence_set,
        o3d.pipelines.registration.FastGlobalRegistrationOption())
