本文笔记整理来自尚硅谷视频https://www.bilibili.com/video/BV1py4y1E7oA/?p=91，相关资料可在视频评论区进行获取。
1.粘包与半包
1.1.粘包现象
服务端代码
package cn.itcast.netty.c6;import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;public class HelloWorldServer {static final Logger log = LoggerFactory.getLogger(HelloWorldServer.class);void start() {NioEventLoopGroup boss = new NioEventLoopGroup();NioEventLoopGroup worker = new NioEventLoopGroup();try {ServerBootstrap serverBootstrap = new ServerBootstrap();serverBootstrap.channel(NioServerSocketChannel.class);serverBootstrap.group(boss, worker);serverBootstrap.childHandler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {ch.pipeline().addLast(new LoggingHandler(LogLevel.DEBUG));}});ChannelFuture channelFuture = serverBootstrap.bind(8080).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("server error", e);} finally {boss.shutdownGracefully();worker.shutdownGracefully();log.debug("stopped");}}public static void main(String[] args) {new HelloWorldServer().start();}
}
客户端代码
package cn.itcast.netty.c6;import io.netty.bootstrap.Bootstrap;
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;public class HelloWorldClient {static final Logger log = LoggerFactory.getLogger(HelloWorldClient.class);public static void main(String[] args) {NioEventLoopGroup worker = new NioEventLoopGroup();try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(worker);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {log.debug("connected...");ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {log.debug("sending...");for (int i = 0; i < 10; i++) {ByteBuf buffer = ctx.alloc().buffer();buffer.writeBytes(new byte[]{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15});ctx.writeAndFlush(buffer);}}});}});ChannelFuture channelFuture = bootstrap.connect("localhost", 8080).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("client error", e);} finally {worker.shutdownGracefully();}}
}
客户端代码希望发送 10 个消息，每个消息是 16 字节。
服务器端的某次输出，可以看到一次就接收了 160 个字节，而非分 10 次接收。
09:57:22 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x4a255176, L:/127.0.0.1:8080 - R:/127.0.0.1:57554] REGISTERED
09:57:22 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x4a255176, L:/127.0.0.1:8080 - R:/127.0.0.1:57554] ACTIVE
09:57:22 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x4a255176, L:/127.0.0.1:8080 - R:/127.0.0.1:57554] READ: 160B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000010| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000020| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000030| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000040| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000050| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000060| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000070| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000080| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000090| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
+--------+-------------------------------------------------+----------------+
09:57:22 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x4a255176, L:/127.0.0.1:8080 - R:/127.0.0.1:57554] READ COMPLETE
1.2.半包现象
（1）客户端代码希望发送 1 个消息，这个消息是 160 字节。
（2）为现象明显，服务端修改一下接收缓冲区，其它代码不变。
serverBootstrap.option(ChannelOption.SO_RCVBUF, 10);
（3）服务器端的某次输出，可以看到接收的消息被分为 5 节。
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] REGISTERED
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] ACTIVE
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ: 36B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000010| 00 01 02 03 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f |................|
|00000020| 00 01 02 03 |.... |
+--------+-------------------------------------------------+----------------+
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ COMPLETE
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ: 40B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 00 01 02 03 |................|
|00000010| 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 00 01 02 03 |................|
|00000020| 04 05 06 07 08 09 0a 0b |........ |
+--------+-------------------------------------------------+----------------+
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ COMPLETE
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ: 40B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 0c 0d 0e 0f 00 01 02 03 04 05 06 07 08 09 0a 0b |................|
|00000010| 0c 0d 0e 0f 00 01 02 03 04 05 06 07 08 09 0a 0b |................|
|00000020| 0c 0d 0e 0f 00 01 02 03 |........ |
+--------+-------------------------------------------------+----------------+
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ COMPLETE
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ: 40B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 00 01 02 03 |................|
|00000010| 04 05 06 07 08 09 0a 0b 0c 0d 0e 0f 00 01 02 03 |................|
|00000020| 04 05 06 07 08 09 0a 0b |........ |
+--------+-------------------------------------------------+----------------+
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ COMPLETE
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ: 4B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 0c 0d 0e 0f |.... |
+--------+-------------------------------------------------+----------------+
10:02:17 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0x6a59a227, L:/127.0.0.1:8080 - R:/127.0.0.1:51403] READ COMPLETE
注意：serverBootstrap.option(ChannelOption.SO_RCVBUF, 10) 影响的底层接收缓冲区（即滑动窗口）大小，仅决定了 netty 读取的最小单位，netty 实际每次读取的一般是它的整数倍。
1.3.现象分析
（1）粘包现象
- 现象，发送 abc def，接收 abcdef
- 原因：
- 应用层：接收方 ByteBuf 设置太大（Netty 默认 1024）；
- 滑动窗口：假设发送方 256 bytes 表示一个完整报文，但由于接收方处理不及时且窗口大小足够大，这 256 bytes 字节就会缓冲在接收方的滑动窗口中，当滑动窗口中缓冲了多个报文就会粘包；
- Nagle 算法：会造成粘包，一次性尽可能多地发送数据；
（2）半包现象
- 现象，发送 abcdef，接收 abc def
- 原因：
- 应用层：接收方 ByteBuf 小于实际发送数据量；
- 滑动窗口：假设接收方的窗口只剩了 128 bytes，发送方的报文大小是 256 bytes，这时放不下了，只能先发送前 128 bytes，等待 ack 后才能发送剩余部分，这就造成了半包；
- MSS 限制：当发送的数据超过 MSS 限制后，会将数据切分发送，就会造成半包；
（3）本质是因为 TCP 是流式协议，消息无边界。

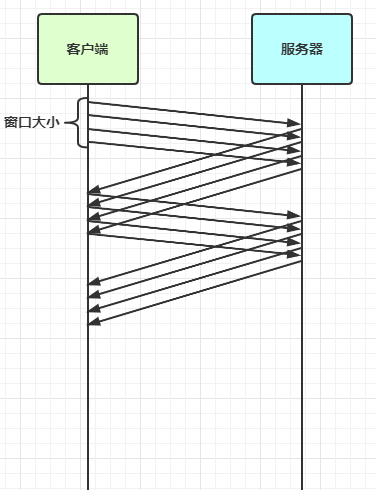

滑动窗口

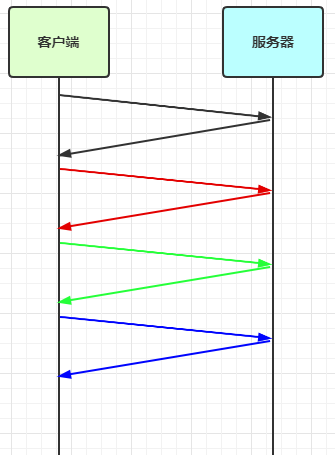

- TCP 以一个段（segment）为单位，每发送一个段就需要进行一次确认应答（ack）处理，但如果这么做，缺点是包的往返时间越长性能就越差。
- 为了解决此问题，引入了窗口概念，窗口大小即决定了无需等待应答而可以继续发送的数据最大值。
- 窗口实际就起到一个缓冲区的作用，同时也能起到流量控制的作用。
- 图中深色的部分即要发送的数据，高亮的部分即窗口；
- 窗口内的数据才允许被发送，当应答未到达前，窗口必须停止滑动；
- 如果 1001~2000 这个段的数据 ack 回来了，窗口就可以向前滑动；
- 接收方也会维护一个窗口，只有落在窗口内的数据才能允许接收；
MSS 限制
链路层对一次能够发送的最大数据有限制，这个限制称之为 MTU (maximum transmission unit)，不同的链路设备的 MTU 值也有所不同，例如：
以太网的 MTU 是 1500；
FDDI（光纤分布式数据接口）的 MTU 是 4352；
本地回环地址的 MTU 是 65535 - 本地测试不走网卡；
MSS 是最大段长度（maximum segment size），它是 MTU 刨去 tcp 头和 ip 头后剩余能够作为数据传输的字节数；
ipv4 tcp 头占用 20 bytes，ip 头占用 20 bytes，因此以太网 MSS 的值为 1500 - 40 = 1460；
TCP 在传递大量数据时，会按照 MSS 大小将数据进行分割发送；
MSS 的值在三次握手时通知对方自己 MSS 的值，然后在两者之间选择一个小值作为 MSS；
Nagle 算法
- 即使发送一个字节，也需要加入 tcp 头和 ip 头，也就是总字节数会使用 41 bytes，非常不经济。因此为了提高网络利用率，tcp 希望尽可能发送足够大的数据，这就是 Nagle 算法产生的缘由；
- 该算法是指发送端即使还有应该发送的数据，但如果这部分数据很少的话，则进行延迟发送；
- 如果 SO_SNDBUF 的数据达到 MSS，则需要发送；
- 如果 SO_SNDBUF 中含有 FIN（表示需要连接关闭）这时将剩余数据发送，再关闭；
- 如果 TCP_NODELAY = true，则需要发送；
- 已发送的数据都收到 ack 时，则需要发送；
- 上述条件不满足，但发生超时（一般为 200ms）则需要发送；
- 除上述情况，延迟发送；
1.4 解决方案
（1）短链接，发一个包建立一次连接，这样连接建立到连接断开之间就是消息的边界，缺点效率太低；
（2）每一条消息采用固定长度，缺点浪费空间；
（3）每一条消息采用分隔符，例如 \n，缺点需要转义；
（4）每一条消息分为 head 和 body，head 中包含 body 的长度；
1.4.1.短链接
（1）以解决粘包为例，客户端代码如下：
public class HelloWorldClient {static final Logger log = LoggerFactory.getLogger(HelloWorldClient.class);public static void main(String[] args) {for (int i = 0; i < 10; i++) {send();}System.out.println("finish...");}private static void send() {NioEventLoopGroup worker = new NioEventLoopGroup();try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(worker);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) {log.debug("connected...");ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {@Overridepublic void channelActive(ChannelHandlerContext ctx){log.debug("sending...");for (int i = 0; i < 10; i++) {ByteBuf buffer = ctx.alloc().buffer();buffer.writeBytes(new byte[]{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15});ctx.writeAndFlush(buffer);ctx.channel().close();}}});}});ChannelFuture channelFuture = bootstrap.connect("localhost", 8080).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("client error", e);} finally {worker.shutdownGracefully();}}
}

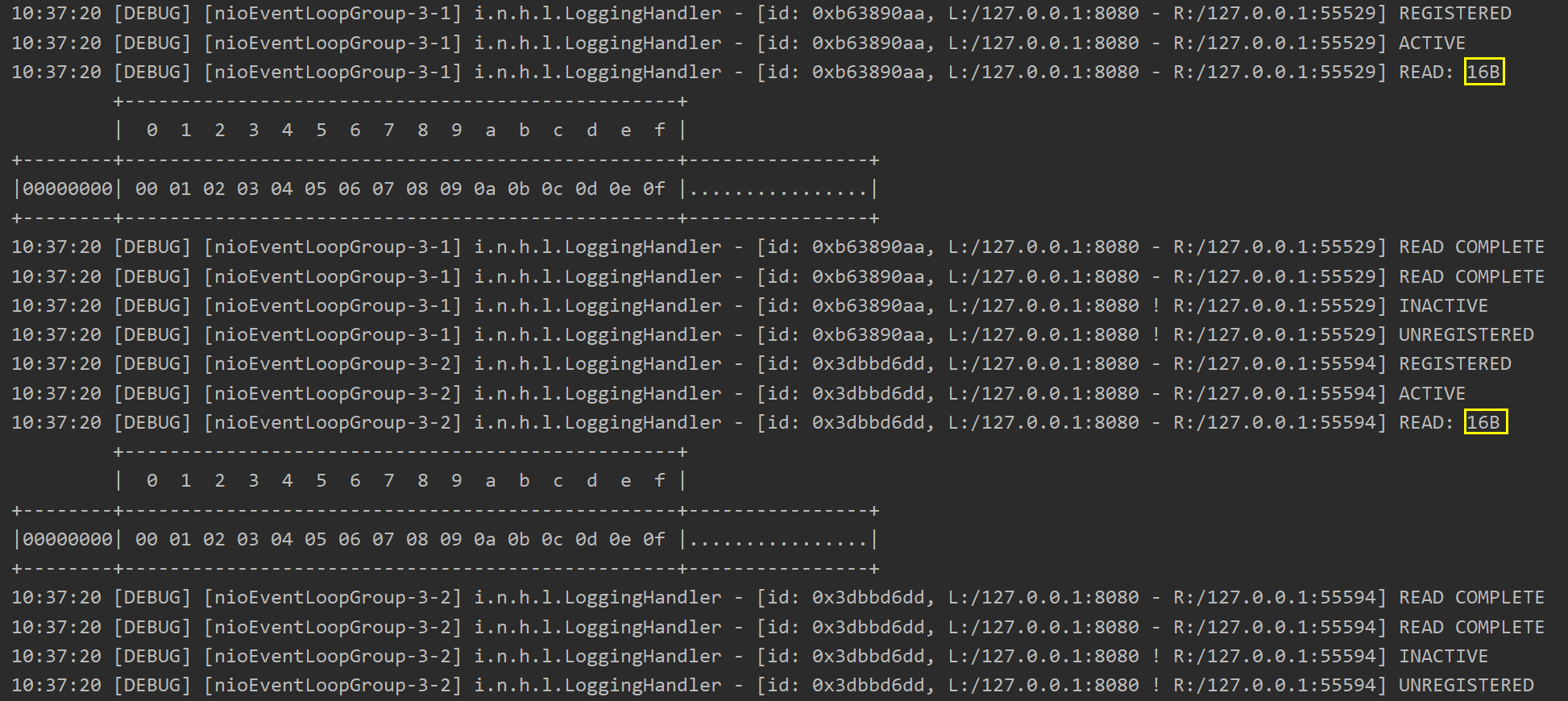

服务器端代码注释掉 serverBootstrap.option(ChannelOption.SO_RCVBUF, 10); 这行语句。输出如下：
（2）用这种办法还是不能解决半包问题，因为接收方的缓冲区大小是有限的。
//对于服务器端，调整 netty 的接收缓冲区 (byteBuf)
serverBootstrap.childOption(ChannelOption.RCVBUF_ALLOCATOR, new AdaptiveRecvByteBufAllocator(16, 16, 16));
//对于客户端，一次发送 18 个字节的数据（超出了 netty 的接收缓冲区的 16 字节大小）
for (int i = 0; i < 10; i++) {ByteBuf buffer = ctx.alloc().buffer();buffer.writeBytes(new byte[]{0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17});ctx.writeAndFlush(buffer);ctx.channel().close();
}
此时在进行测试便会发生半包现象。
1.4.2.固定长度
让所有数据包长度固定（假设长度为 8 字节），服务器端加入：
ch.pipeline().addLast(new FixedLengthFrameDecoder(8));
客户端测试代码，注意, 采用这种方法后，客户端什么时候 flush 都可以。
public class HelloWorldClient {static final Logger log = LoggerFactory.getLogger(HelloWorldClient.class);public static void main(String[] args) {NioEventLoopGroup worker = new NioEventLoopGroup();try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(worker);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {log.debug("connetted...");ch.pipeline().addLast(new LoggingHandler(LogLevel.DEBUG));ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {log.debug("sending...");// 发送内容随机的数据包Random r = new Random();char c = 'a';ByteBuf buffer = ctx.alloc().buffer();for (int i = 0; i < 10; i++) {byte[] bytes = new byte[8];for (int j = 0; j < r.nextInt(8); j++) {bytes[j] = (byte) c;}c++;buffer.writeBytes(bytes);}ctx.writeAndFlush(buffer);}});}});ChannelFuture channelFuture = bootstrap.connect("192.168.0.103", 9090).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("client error", e);} finally {worker.shutdownGracefully();}}
}
客户端输出如下：
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] c.i.n.HelloWorldClient - connetted...
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x3c2ef3c2] REGISTERED
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x3c2ef3c2] CONNECT: /192.168.0.103:9090
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x3c2ef3c2, L:/192.168.0.103:53155 - R:/192.168.0.103:9090] ACTIVE
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] c.i.n.HelloWorldClient - sending...
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x3c2ef3c2, L:/192.168.0.103:53155 - R:/192.168.0.103:9090] WRITE: 80B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 61 61 61 61 00 00 00 00 62 00 00 00 00 00 00 00 |aaaa....b.......|
|00000010| 63 63 00 00 00 00 00 00 64 00 00 00 00 00 00 00 |cc......d.......|
|00000020| 00 00 00 00 00 00 00 00 66 66 66 66 00 00 00 00 |........ffff....|
|00000030| 67 67 67 00 00 00 00 00 68 00 00 00 00 00 00 00 |ggg.....h.......|
|00000040| 69 69 69 69 69 00 00 00 6a 6a 6a 6a 00 00 00 00 |iiiii...jjjj....|
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x3c2ef3c2, L:/192.168.0.103:53155 - R:/192.168.0.103:9090] FLUSH
服务器端输出如下：
12:06:51 [DEBUG] [main] c.i.n.HelloWorldServer - [id: 0xe3d9713f] binding...
12:06:51 [DEBUG] [main] c.i.n.HelloWorldServer - [id: 0xe3d9713f, L:/192.168.0.103:9090] bound...
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] REGISTERED
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] ACTIVE
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] c.i.n.HelloWorldServer - connected [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155]
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 61 61 61 61 00 00 00 00 |aaaa.... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 62 00 00 00 00 00 00 00 |b....... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 63 63 00 00 00 00 00 00 |cc...... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 64 00 00 00 00 00 00 00 |d....... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 00 00 00 00 00 00 00 00 |........ |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 66 66 66 66 00 00 00 00 |ffff.... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 67 67 67 00 00 00 00 00 |ggg..... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 68 00 00 00 00 00 00 00 |h....... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 69 69 69 69 69 00 00 00 |iiiii... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ: 8B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 6a 6a 6a 6a 00 00 00 00 |jjjj.... |
+--------+-------------------------------------------------+----------------+
12:07:00 [DEBUG] [nioEventLoopGroup-3-1] i.n.h.l.LoggingHandler - [id: 0xd739f137, L:/192.168.0.103:9090 - R:/192.168.0.103:53155] READ COMPLETE
该方法的缺点是数据包的大小不好把握：
- 长度定的太大，浪费；
- 长度定的太小，对某些数据包又显得不够；
1.4.3.固定分隔符
服务端加入，默认以 \n 或 \r\n 作为分隔符，如果超出指定长度仍未出现分隔符，则抛出异常。
ch.pipeline().addLast(new LineBasedFrameDecoder(1024));
客户端在每条消息之后，加入 \n 分隔符。
public class HelloWorldClient {static final Logger log = LoggerFactory.getLogger(HelloWorldClient.class);public static void main(String[] args) {NioEventLoopGroup worker = new NioEventLoopGroup();try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(worker);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {log.debug("connetted...");ch.pipeline().addLast(new LoggingHandler(LogLevel.DEBUG));ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {log.debug("sending...");Random r = new Random();char c = 'a';ByteBuf buffer = ctx.alloc().buffer();for (int i = 0; i < 10; i++) {for (int j = 1; j <= r.nextInt(16) + 1; j++) {buffer.writeByte((byte) c);}//换行符的 ASCII 值就是 10buffer.writeByte(10);c++;}ctx.writeAndFlush(buffer);}});}});ChannelFuture channelFuture = bootstrap.connect("localhost", 8080).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("client error", e);} finally {worker.shutdownGracefully();}}
}
客户端输出如下：
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] c.i.n.HelloWorldClient - connetted...
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x1282d755] REGISTERED
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x1282d755] CONNECT: /192.168.0.103:9090
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x1282d755, L:/192.168.0.103:63641 - R:/192.168.0.103:9090] ACTIVE
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] c.i.n.HelloWorldClient - sending...
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x1282d755, L:/192.168.0.103:63641 - R:/192.168.0.103:9090] WRITE: 60B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 61 0a 62 62 62 0a 63 63 63 0a 64 64 0a 65 65 65 |a.bbb.ccc.dd.eee|
|00000010| 65 65 65 65 65 65 65 0a 66 66 0a 67 67 67 67 67 |eeeeeee.ff.ggggg|
|00000020| 67 67 0a 68 68 68 68 0a 69 69 69 69 69 69 69 0a |gg.hhhh.iiiiiii.|
|00000030| 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 0a |jjjjjjjjjjj. |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0x1282d755, L:/192.168.0.103:63641 - R:/192.168.0.103:9090] FLUSH
服务端输出如下：
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] c.i.n.HelloWorldServer - connected [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641]
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 1B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 61 |a |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 3B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 62 62 62 |bbb |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 3B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 63 63 63 |ccc |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 2B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 64 64 |dd |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 10B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 65 65 65 65 65 65 65 65 65 65 |eeeeeeeeee |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 2B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 66 66 |ff |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 7B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 67 67 67 67 67 67 67 |ggggggg |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 4B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 68 68 68 68 |hhhh |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 7B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 69 69 69 69 69 69 69 |iiiiiii |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ: 11B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a 6a |jjjjjjjjjjj |
+--------+-------------------------------------------------+----------------+
14:08:18 [DEBUG] [nioEventLoopGroup-3-5] i.n.h.l.LoggingHandler - [id: 0xa4b3be43, L:/192.168.0.103:9090 - R:/192.168.0.103:63641] READ COMPLETE
缺点，处理字符数据比较合适，但如果内容本身包含了分隔符（字节数据常常会有此情况），那么就会解析错误。
1.4.4.预设长度
在发送消息前，先约定用定长字节表示接下来数据的长度。
/** lengthFieldOffset = 1 (= the length of HDR1) : 长度偏移量是 1 个字节，即跳过开始的 HDR1 * lengthFieldLength = 2 : 长度表示占 2 个字节，即下面的 0x000C* lengthAdjustment = 1 (= the length of HDR2) : 调整一个字节，即从 Length 开始跳过一个字节才开始读取真正的消息* initialBytesToStrip = 3 (= the length of HDR1 + LEN) : 剥离 3 个字节，即去掉 HDR1 + Length ** BEFORE DECODE (16 bytes) AFTER DECODE (13 bytes)* +------+--------+------+----------------+ +------+----------------+* | HDR1 | Length | HDR2 | Actual Content |----->| HDR2 | Actual Content |* | 0xCA | 0x000C | 0xFE | "HELLO, WORLD" | | 0xFE | "HELLO, WORLD" |* +------+--------+------+----------------+ +------+----------------+*
*/// 最大长度，长度偏移，长度占用字节，长度调整，剥离字节数
ch.pipeline().addLast(new LengthFieldBasedFrameDecoder(1024, 0, 1, 0, 1));
使用 EmbeddedChannel 进行测试。
public class TestLengthFieldDecoder {public static void main(String[] args) {EmbeddedChannel channel = new EmbeddedChannel(new LengthFieldBasedFrameDecoder(1024, 0, 4, 1, 5),new LoggingHandler(LogLevel.DEBUG));// 4 个字节的长度内容 + 1 个字节的版本号 + 实际内容ByteBuf buffer = ByteBufAllocator.DEFAULT.buffer();send(buffer, "Hello, world");send(buffer, "Hi");channel.writeInbound(buffer);}private static void send(ByteBuf buffer, String content) {//实际要发送的内容byte[] bytes = content.getBytes();//实际内容长度int length = bytes.length;buffer.writeInt(length);buffer.writeByte(1); //额外加入版本号buffer.writeBytes(bytes);}
}
输出结果如下：
10:37:40 [DEBUG] [main] i.n.h.l.LoggingHandler - [id: 0xembedded, L:embedded - R:embedded] REGISTERED
10:37:40 [DEBUG] [main] i.n.h.l.LoggingHandler - [id: 0xembedded, L:embedded - R:embedded] ACTIVE
10:37:40 [DEBUG] [main] i.n.h.l.LoggingHandler - [id: 0xembedded, L:embedded - R:embedded] READ: 12B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 48 65 6c 6c 6f 2c 20 77 6f 72 6c 64 |Hello, world |
+--------+-------------------------------------------------+----------------+
10:37:40 [DEBUG] [main] i.n.h.l.LoggingHandler - [id: 0xembedded, L:embedded - R:embedded] READ: 2B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 48 69 |Hi |
+--------+-------------------------------------------------+----------------+
10:37:40 [DEBUG] [main] i.n.h.l.LoggingHandler - [id: 0xembedded, L:embedded - R:embedded] READ COMPLETEProcess finished with exit code 0
2.协议设计与解析
2.1.为什么需要协议？
（1）TCP/IP 中消息传输基于流的方式，没有边界。协议的目的就是划定消息的边界，制定通信双方要共同遵守的通信规则。
（2）例如：在网络上传输
下雨天留客天留我不留
这是中文一句著名的无标点符号句子，在没有标点符号情况下，这句话有数种拆解方式，而意思却是完全不同，所以常被用作讲述标点符号的重要性。
① 一种解读：
下雨天留客，天留，我不留
② 另一种解读：
下雨天，留客天，留我不？留
（3）如何设计协议呢？其实就是给网络传输的信息加上“标点符号”。但通过分隔符来断句不是很好，因为分隔符本身如果用于传输，那么必须加以区分。因此，下面一种协议较为常用：
定长字节表示内容长度 + 实际内容
例如，假设一个中文字符长度为 3，按照上述协议的规则，发送信息方式如下，就不会被接收方弄错意思了。
0f下雨天留客06天留09我不留
小故事
很久很久以前，一位私塾先生到一家任教。双方签订了一纸协议：“无鸡鸭亦可无鱼肉亦可白菜豆腐不可少不得束修金”。此后，私塾先生虽然认真教课，但主人家则总是给私塾先生以白菜豆腐为菜，丝毫未见鸡鸭鱼肉的款待。私塾先生先是很不解，可是后来也就想通了：主人把鸡鸭鱼肉的钱都会换为束修金的，也罢。至此双方相安无事。
年关将至，一个学年段亦告结束。私塾先生临行时，也不见主人家为他交付束修金，遂与主家理论。然主家亦振振有词：“有协议为证——无鸡鸭亦可，无鱼肉亦可，白菜豆腐不可少，不得束修金。这白纸黑字明摆着的，你有什么要说的呢？”
私塾先生据理力争：“协议是这样的——无鸡，鸭亦可；无鱼，肉亦可；白菜豆腐不可，少不得束修金。”
双方唇枪舌战，你来我往，真个是不亦乐乎！
这里的束修金，也作“束脩”，应当是泛指教师应当得到的报酬。
2.2.redis 协议举例
NioEventLoopGroup worker = new NioEventLoopGroup();
byte[] LINE = {13, 10};
try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(worker);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) {ch.pipeline().addLast(new LoggingHandler());ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {// 会在连接 channel 建立成功后，会触发 active 事件@Overridepublic void channelActive(ChannelHandlerContext ctx) {set(ctx);get(ctx);}private void get(ChannelHandlerContext ctx) {ByteBuf buf = ctx.alloc().buffer();buf.writeBytes("*2".getBytes());buf.writeBytes(LINE);buf.writeBytes("$3".getBytes());buf.writeBytes(LINE);buf.writeBytes("get".getBytes());buf.writeBytes(LINE);buf.writeBytes("$3".getBytes());buf.writeBytes(LINE);buf.writeBytes("aaa".getBytes());buf.writeBytes(LINE);ctx.writeAndFlush(buf);}private void set(ChannelHandlerContext ctx) {ByteBuf buf = ctx.alloc().buffer();buf.writeBytes("*3".getBytes());buf.writeBytes(LINE);buf.writeBytes("$3".getBytes());buf.writeBytes(LINE);buf.writeBytes("set".getBytes());buf.writeBytes(LINE);buf.writeBytes("$3".getBytes());buf.writeBytes(LINE);buf.writeBytes("aaa".getBytes());buf.writeBytes(LINE);buf.writeBytes("$3".getBytes());buf.writeBytes(LINE);buf.writeBytes("bbb".getBytes());buf.writeBytes(LINE);ctx.writeAndFlush(buf);}@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {ByteBuf buf = (ByteBuf) msg;System.out.println("读取 redis 返回的消息：");System.out.println(buf.toString(Charset.defaultCharset()));}});}});//连接 redisChannelFuture channelFuture = bootstrap.connect("192.168.88.100", 6379).sync();channelFuture.channel().closeFuture().sync();
} catch (InterruptedException e) {log.error("client error", e);
} finally {worker.shutdownGracefully();
}
结果如下：
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd] REGISTERED
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd] CONNECT: /192.168.88.100:6379
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] ACTIVE
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] WRITE: 37B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 2a 33 0d 0a 24 33 0d 0a 73 65 74 0d 0a 24 34 0d |*3..$3..set..$4.|
|00000010| 0a 6e 61 6d 65 0d 0a 24 38 0d 0a 7a 68 61 6e 67 |.name..$8..zhang|
|00000020| 73 61 6e 0d 0a |san.. |
+--------+-------------------------------------------------+----------------+
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] FLUSH
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] WRITE: 23B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 2a 32 0d 0a 24 33 0d 0a 67 65 74 0d 0a 24 34 0d |*2..$3..get..$4.|
|00000010| 0a 6e 61 6d 65 0d 0a |.name.. |
+--------+-------------------------------------------------+----------------+
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] FLUSH
10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] READ: 19B+-------------------------------------------------+| 0 1 2 3 4 5 6 7 8 9 a b c d e f |
+--------+-------------------------------------------------+----------------+
|00000000| 2b 4f 4b 0d 0a 24 38 0d 0a 7a 68 61 6e 67 73 61 |+OK..$8..zhangsa|
|00000010| 6e 0d 0a |n.. |
+--------+-------------------------------------------------+----------------+
读取 redis 返回的消息：
+OK
$8
zhangsan10:11:49 [DEBUG] [nioEventLoopGroup-2-1] i.n.h.l.LoggingHandler - [id: 0xc75993bd, L:/192.168.88.1:53631 - R:/192.168.88.100:6379] READ COMPLETE

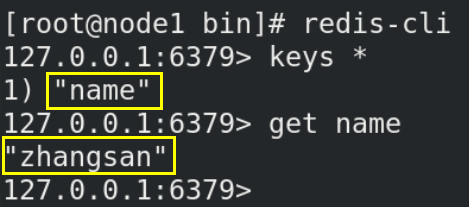

此时 Redis 中的数据如下：
有关 Redis 的相关知识，可以查看Redis6——入门介绍这篇文章。
2.3.http 协议举例
@Slf4j
public class TestHttp {public static void main(String[] args) {NioEventLoopGroup boss = new NioEventLoopGroup();NioEventLoopGroup worker = new NioEventLoopGroup();try {ServerBootstrap serverBootstrap = new ServerBootstrap();serverBootstrap.channel(NioServerSocketChannel.class);serverBootstrap.group(boss, worker);serverBootstrap.childHandler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {ch.pipeline().addLast(new LoggingHandler(LogLevel.DEBUG));//配置 http 编解码器ch.pipeline().addLast(new HttpServerCodec());//对上面的编解码器的结果进行处理ch.pipeline().addLast(new SimpleChannelInboundHandler() {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, HttpRequest msg) throws Exception {log.debug("{}", msg.getClass());//获取请求log.debug("{}", msg.uri());QueryStringDecoder decoder = new QueryStringDecoder(msg.uri());List name = decoder.parameters().get("name");//相应对象DefaultFullHttpResponse response = new DefaultFullHttpResponse(msg.protocolVersion(), HttpResponseStatus.OK);byte[] bytes = ("hello, world!
").getBytes();response.headers().setInt(HttpHeaderNames.CONTENT_LENGTH, bytes.length);response.content().writeBytes(bytes);//写回相应ctx.writeAndFlush(response);}});/*ch.pipeline().addLast(new ChannelInboundHandlerAdapter() {@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {log.debug("{}", msg.getClass());if (msg instanceof HttpRequest) {} else if (msg instanceof HttpContent) {}}});*/}});ChannelFuture channelFuture = serverBootstrap.bind(8080).sync();channelFuture.channel().closeFuture().sync();} catch (InterruptedException e) {log.error("server error", e);} finally {boss.shutdownGracefully();worker.shutdownGracefully();}}
}
在浏览器地址栏中输入以下内容，然后页面会显示服务器端相应的内容，即代码中的"hello, world!"
http://localhost:8080/index.html

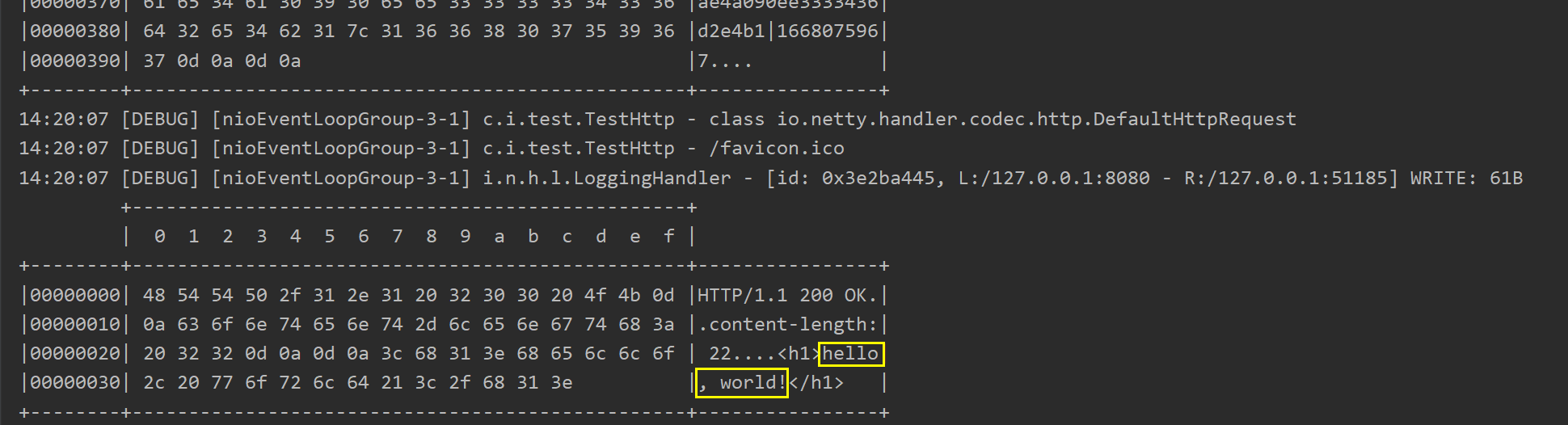

此时服务器端的部分输出如下：
2.4.自定义协议要素
- 魔数，用来在第一时间判定是否是无效数据包；
- 版本号，可以支持协议的升级；
- 序列化算法，消息正文到底采用哪种序列化反序列化方式，可以由此扩展，例如：json、protobuf、hessian、jdk；
- 指令类型，是登录、注册、单聊、群聊… 跟业务相关；
- 请求序号，为了双工通信，提供异步能力；
- 正文长度；
- 消息正文；
2.5.编解码器
根据上面的要素，设计一个登录请求消息和登录响应消息，并使用 Netty 完成收发。
package cn.itcast.message;import lombok.Data;import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;@Data
public abstract class Message implements Serializable {/*** 根据消息类型字节，获得对应的消息 class* @param messageType 消息类型字节* @return 消息 class*/public static Class getMessageClass(int messageType) {return messageClasses.get(messageType);}private int sequenceId;private int messageType;public abstract int getMessageType();public static final int LoginRequestMessage = 0;public static final int LoginResponseMessage = 1;public static final int ChatRequestMessage = 2;public static final int ChatResponseMessage = 3;public static final int GroupCreateRequestMessage = 4;public static final int GroupCreateResponseMessage = 5;public static final int GroupJoinRequestMessage = 6;public static final int GroupJoinResponseMessage = 7;public static final int GroupQuitRequestMessage = 8;public static final int GroupQuitResponseMessage = 9;public static final int GroupChatRequestMessage = 10;public static final int GroupChatResponseMessage = 11;public static final int GroupMembersRequestMessage = 12;public static final int GroupMembersResponseMessage = 13;public static final int PingMessage = 14;public static final int PongMessage = 15;/*** 请求类型 byte 值*/public static final int RPC_MESSAGE_TYPE_REQUEST = 101;/*** 响应类型 byte 值*/public static final int RPC_MESSAGE_TYPE_RESPONSE = 102;private static final Map> messageClasses = new HashMap<>();static {messageClasses.put(LoginRequestMessage, LoginRequestMessage.class);messageClasses.put(LoginResponseMessage, LoginResponseMessage.class);messageClasses.put(ChatRequestMessage, ChatRequestMessage.class);messageClasses.put(ChatResponseMessage, ChatResponseMessage.class);messageClasses.put(GroupCreateRequestMessage, GroupCreateRequestMessage.class);messageClasses.put(GroupCreateResponseMessage, GroupCreateResponseMessage.class);messageClasses.put(GroupJoinRequestMessage, GroupJoinRequestMessage.class);messageClasses.put(GroupJoinResponseMessage, GroupJoinResponseMessage.class);messageClasses.put(GroupQuitRequestMessage, GroupQuitRequestMessage.class);messageClasses.put(GroupQuitResponseMessage, GroupQuitResponseMessage.class);messageClasses.put(GroupChatRequestMessage, GroupChatRequestMessage.class);messageClasses.put(GroupChatResponseMessage, GroupChatResponseMessage.class);messageClasses.put(GroupMembersRequestMessage, GroupMembersRequestMessage.class);messageClasses.put(GroupMembersResponseMessage, GroupMembersResponseMessage.class);messageClasses.put(RPC_MESSAGE_TYPE_REQUEST, RpcRequestMessage.class);messageClasses.put(RPC_MESSAGE_TYPE_RESPONSE, RpcResponseMessage.class);}
}
package cn.itcast.message;import lombok.Data;
import lombok.ToString;@Data
@ToString(callSuper = true)
public class LoginRequestMessage extends Message {private String username;private String password;private String nickname;public LoginRequestMessage() {}public LoginRequestMessage(String username, String password, String nickname) {this.username = username;this.password = password;this.nickname = nickname;}public LoginRequestMessage(String username, String password) {this.username = username;this.password = password;}@Overridepublic int getMessageType() {return LoginRequestMessage;}
}
@Slf4j
public class MessageCodec extends ByteToMessageCodec {@Overrideprotected void encode(ChannelHandlerContext ctx, Message msg, ByteBuf out) throws Exception {// 1. 4 字节的魔数out.writeBytes(new byte[]{1, 2, 3, 4});// 2. 1 字节的版本,out.writeByte(1);// 3. 1 字节的序列化方式 jdk 0 , json 1out.writeByte(0);// 4. 1 字节的指令类型out.writeByte(msg.getMessageType());// 5. 4 个字节out.writeInt(msg.getSequenceId());// 无意义，对齐填充out.writeByte(0xff);// 6. 获取内容的字节数组ByteArrayOutputStream bos = new ByteArrayOutputStream();ObjectOutputStream oos = new ObjectOutputStream(bos);oos.writeObject(msg);byte[] bytes = bos.toByteArray();// 7. 长度out.writeInt(bytes.length);// 8. 写入内容out.writeBytes(bytes);}@Overrideprotected void decode(ChannelHandlerContext ctx, ByteBuf in, List 测试如下：
package cn.itcast.protocol;import cn.itcast.message.LoginRequestMessage;import io.netty.buffer.ByteBuf;
import io.netty.buffer.ByteBufAllocator;
import io.netty.channel.embedded.EmbeddedChannel;
import io.netty.handler.codec.LengthFieldBasedFrameDecoder;
import io.netty.handler.logging.LoggingHandler;public class TestMessageCodec {public static void main(String[] args) throws Exception {EmbeddedChannel channel = new EmbeddedChannel(//帧解码器new LengthFieldBasedFrameDecoder(1024, 12, 4, 0, 0),new LoggingHandler(),new MessageCodec());// encodeLoginRequestMessage message = new LoginRequestMessage("zhangsan", "123", "张三");channel.writeOutbound(message);// decodeByteBuf buf = ByteBufAllocator.DEFAULT.buffer();new MessageCodec().encode(null, message, buf);//入站//channel.writeInbound(buf);//测试 LengthFieldBasedFrameDecoderByteBuf buf1 = buf.slice(0, 100);ByteBuf buf2 = buf.slice(100, buf.readableBytes() - 100);channel.writeInbound(buf1); // release 0buf1.retain(); //引用计数 + 1channel.writeInbound(buf2);}
}
解读：
💡 什么时候可以加 @Sharable？
- 当 handler 不保存状态时，就可以安全地在多线程下被共享；
- 但要注意对于编解码器类，不能继承 ByteToMessageCodec 或 CombinedChannelDuplexHandler 父类，它们的构造方法对 @Sharable 有限制； 如果能确保编解码器不会保存状态，可以继承 MessageToMessageCodec 父类；
@Slf4j
@ChannelHandler.Sharable
/*** 必须和 LengthFieldBasedFrameDecoder 一起使用，确保接到的 ByteBuf 消息是完整的*/
public class MessageCodecSharable extends MessageToMessageCodec {@Overrideprotected void encode(ChannelHandlerContext ctx, Message msg, List 3.聊天室案例
3.1.聊天室业务-介绍
（1）用户管理接口
/*** 用户管理接口*/
public interface UserService {/*** 登录* @param username 用户名* @param password 密码* @return 登录成功返回 true, 否则返回 false*/boolean login(String username, String password);
}
（2）会话管理接口
/*** 会话管理接口*/
public interface Session {/*** 绑定会话* @param channel 哪个 channel 要绑定会话* @param username 会话绑定用户*/void bind(Channel channel, String username);/*** 解绑会话* @param channel 哪个 channel 要解绑会话*/void unbind(Channel channel);/*** 获取属性* @param channel 哪个 channel* @param name 属性名* @return 属性值*/Object getAttribute(Channel channel, String name);/*** 设置属性* @param channel 哪个 channel* @param name 属性名* @param value 属性值*/void setAttribute(Channel channel, String name, Object value);/*** 根据用户名获取 channel* @param username 用户名* @return channel*/Channel getChannel(String username);
}
（3）聊天组会话管理接口
/*** 聊天组会话管理接口*/
public interface GroupSession {/*** 创建一个聊天组, 如果不存在才能创建成功, 否则返回 null* @param name 组名* @param members 成员* @return 成功时返回组对象, 失败返回 null*/Group createGroup(String name, Set members);/*** 加入聊天组* @param name 组名* @param member 成员名* @return 如果组不存在返回 null, 否则返回组对象*/Group joinMember(String name, String member);/*** 移除组成员* @param name 组名* @param member 成员名* @return 如果组不存在返回 null, 否则返回组对象*/Group removeMember(String name, String member);/*** 移除聊天组* @param name 组名* @return 如果组不存在返回 null, 否则返回组对象*/Group removeGroup(String name);/*** 获取组成员* @param name 组名* @return 成员集合, 没有成员会返回 empty set*/Set getMembers(String name);/*** 获取组成员的 channel 集合, 只有在线的 channel 才会返回* @param name 组名* @return 成员 channel 集合*/List getMembersChannel(String name);
}
3.2.聊天室业务-登录
@Slf4j
public class ChatServer {public static void main(String[] args) {NioEventLoopGroup boss = new NioEventLoopGroup();NioEventLoopGroup worker = new NioEventLoopGroup();LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG);MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable();try {ServerBootstrap serverBootstrap = new ServerBootstrap();serverBootstrap.channel(NioServerSocketChannel.class);serverBootstrap.group(boss, worker);serverBootstrap.childHandler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {ch.pipeline().addLast(new ProcotolFrameDecoder());ch.pipeline().addLast(LOGGING_HANDLER);ch.pipeline().addLast(MESSAGE_CODEC);ch.pipeline().addLast(new SimpleChannelInboundHandler() {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, LoginRequestMessage msg) throws Exception {String username = msg.getUsername();String password = msg.getPassword();boolean login = UserServiceFactory.getUserService().login(username, password);LoginResponseMessage message;if(login) {message = new LoginResponseMessage(true, "登录成功");} else {message = new LoginResponseMessage(false, "用户名或密码不正确");}ctx.writeAndFlush(message);}});}});Channel channel = serverBootstrap.bind(8080).sync().channel();channel.closeFuture().sync();} catch (InterruptedException e) {log.error("server error", e);} finally {boss.shutdownGracefully();worker.shutdownGracefully();}}
}
@Slf4j
public class ChatClient {public static void main(String[] args) {NioEventLoopGroup group = new NioEventLoopGroup();LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG);MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable();CountDownLatch WAIT_FOR_LOGIN = new CountDownLatch(1);AtomicBoolean LOGIN = new AtomicBoolean(false);try {Bootstrap bootstrap = new Bootstrap();bootstrap.channel(NioSocketChannel.class);bootstrap.group(group);bootstrap.handler(new ChannelInitializer() {@Overrideprotected void initChannel(SocketChannel ch) throws Exception {ch.pipeline().addLast(new ProcotolFrameDecoder());
// ch.pipeline().addLast(LOGGING_HANDLER);ch.pipeline().addLast(MESSAGE_CODEC);ch.pipeline().addLast("client handler", new ChannelInboundHandlerAdapter() {// 接收响应消息@Overridepublic void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {log.debug("msg: {}", msg);if ((msg instanceof LoginResponseMessage)) {LoginResponseMessage response = (LoginResponseMessage) msg;if (response.isSuccess()) {// 如果登录成功LOGIN.set(true);}// 唤醒 system in 线程WAIT_FOR_LOGIN.countDown();}}// 在连接建立后触发 active 事件@Overridepublic void channelActive(ChannelHandlerContext ctx) throws Exception {// 负责接收用户在控制台的输入，负责向服务器发送各种消息new Thread(() -> {Scanner scanner = new Scanner(System.in);System.out.println("请输入用户名:");String username = scanner.nextLine();System.out.println("请输入密码:");String password = scanner.nextLine();// 构造消息对象LoginRequestMessage message = new LoginRequestMessage(username, password);// 发送消息ctx.writeAndFlush(message);System.out.println("等待后续操作...");try {WAIT_FOR_LOGIN.await();} catch (InterruptedException e) {e.printStackTrace();}// 如果登录失败if (!LOGIN.get()) {ctx.channel().close();return;}while (true) {System.out.println("==================================");System.out.println("send [username] [content]");System.out.println("gsend [group name] [content]");System.out.println("gcreate [group name] [m1,m2,m3...]");System.out.println("gmembers [group name]");System.out.println("gjoin [group name]");System.out.println("gquit [group name]");System.out.println("quit");System.out.println("==================================");String command = scanner.nextLine();String[] s = command.split(" ");switch (s[0]){case "send":ctx.writeAndFlush(new ChatRequestMessage(username, s[1], s[2]));break;case "gsend":ctx.writeAndFlush(new GroupChatRequestMessage(username, s[1], s[2]));break;case "gcreate":Set set = new HashSet<>(Arrays.asList(s[2].split(",")));set.add(username); // 加入自己ctx.writeAndFlush(new GroupCreateRequestMessage(s[1], set));break;case "gmembers":ctx.writeAndFlush(new GroupMembersRequestMessage(s[1]));break;case "gjoin":ctx.writeAndFlush(new GroupJoinRequestMessage(username, s[1]));break;case "gquit":ctx.writeAndFlush(new GroupQuitRequestMessage(username, s[1]));break;case "quit":ctx.channel().close();return;}}}, "system in").start();}});}});Channel channel = bootstrap.connect("localhost", 8080).sync().channel();channel.closeFuture().sync();} catch (Exception e) {log.error("client error", e);} finally {group.shutdownGracefully();}}
}
3.3.聊天室业务-单聊
服务器端将 handler 独立出来
登录 handler
@ChannelHandler.Sharable
public class LoginRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, LoginRequestMessage msg) throws Exception {String username = msg.getUsername();String password = msg.getPassword();boolean login = UserServiceFactory.getUserService().login(username, password);LoginResponseMessage message;if(login) {SessionFactory.getSession().bind(ctx.channel(), username);message = new LoginResponseMessage(true, "登录成功");} else {message = new LoginResponseMessage(false, "用户名或密码不正确");}ctx.writeAndFlush(message);}
}
单聊 handler
@ChannelHandler.Sharable
public class ChatRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, ChatRequestMessage msg) throws Exception {String to = msg.getTo();Channel channel = SessionFactory.getSession().getChannel(to);// 在线if(channel != null) {channel.writeAndFlush(new ChatResponseMessage(msg.getFrom(), msg.getContent()));}// 不在线else {ctx.writeAndFlush(new ChatResponseMessage(false, "对方用户不存在或者不在线"));}}
}
3.4.聊天室业务-群聊
创建群聊
@ChannelHandler.Sharable
public class GroupCreateRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, GroupCreateRequestMessage msg) throws Exception {String groupName = msg.getGroupName();Set members = msg.getMembers();// 群管理器GroupSession groupSession = GroupSessionFactory.getGroupSession();Group group = groupSession.createGroup(groupName, members);if (group == null) {// 发生成功消息ctx.writeAndFlush(new GroupCreateResponseMessage(true, groupName + "创建成功"));// 发送拉群消息List channels = groupSession.getMembersChannel(groupName);for (Channel channel : channels) {channel.writeAndFlush(new GroupCreateResponseMessage(true, "您已被拉入" + groupName));}} else {ctx.writeAndFlush(new GroupCreateResponseMessage(false, groupName + "已经存在"));}}
}
群聊
@ChannelHandler.Sharable
public class GroupChatRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, GroupChatRequestMessage msg) throws Exception {List channels = GroupSessionFactory.getGroupSession().getMembersChannel(msg.getGroupName());for (Channel channel : channels) {channel.writeAndFlush(new GroupChatResponseMessage(msg.getFrom(), msg.getContent()));}}
}
加入群聊
@ChannelHandler.Sharable
public class GroupJoinRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, GroupJoinRequestMessage msg) throws Exception {Group group = GroupSessionFactory.getGroupSession().joinMember(msg.getGroupName(), msg.getUsername());if (group != null) {ctx.writeAndFlush(new GroupJoinResponseMessage(true, msg.getGroupName() + "群加入成功"));} else {ctx.writeAndFlush(new GroupJoinResponseMessage(true, msg.getGroupName() + "群不存在"));}}
}
退出群聊
@ChannelHandler.Sharable
public class GroupQuitRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, GroupQuitRequestMessage msg) throws Exception {Group group = GroupSessionFactory.getGroupSession().removeMember(msg.getGroupName(), msg.getUsername());if (group != null) {ctx.writeAndFlush(new GroupJoinResponseMessage(true, "已退出群" + msg.getGroupName()));} else {ctx.writeAndFlush(new GroupJoinResponseMessage(true, msg.getGroupName() + "群不存在"));}}
}
查看成员
@ChannelHandler.Sharable
public class GroupMembersRequestMessageHandler extends SimpleChannelInboundHandler {@Overrideprotected void channelRead0(ChannelHandlerContext ctx, GroupMembersRequestMessage msg) throws Exception {Set members = GroupSessionFactory.getGroupSession().getMembers(msg.getGroupName());ctx.writeAndFlush(new GroupMembersResponseMessage(members));}
}
3.5.聊天室业务-退出
@Slf4j
@ChannelHandler.Sharable
public class QuitHandler extends ChannelInboundHandlerAdapter {// 当连接断开时触发 inactive 事件@Overridepublic void channelInactive(ChannelHandlerContext ctx) throws Exception {SessionFactory.getSession().unbind(ctx.channel());log.debug("{} 已经断开", ctx.channel());}// 当出现异常时触发@Overridepublic void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {SessionFactory.getSession().unbind(ctx.channel());log.debug("{} 已经异常断开 异常是{}", ctx.channel(), cause.getMessage());}
}
3.6.聊天室业务-空闲检测
连接假死
原因
- 网络设备出现故障，例如网卡，机房等，底层的 TCP 连接已经断开了，但应用程序没有感知到，仍然占用着资源。
- 公网网络不稳定，出现丢包。如果连续出现丢包，这时现象就是客户端数据发不出去，服务端也一直收不到数据，就这么一直耗着
- 应用程序线程阻塞，无法进行数据读写
问题
- 假死的连接占用的资源不能自动释放
- 向假死的连接发送数据，得到的反馈是发送超时
服务器端解决
- 怎么判断客户端连接是否假死呢？如果能收到客户端数据，说明没有假死。因此策略就可以定为，每隔一段时间就检查这段时间内是否接收到客户端数据，没有就可以判定为连接假死
// 用来判断是不是 读空闲时间过长，或 写空闲时间过长
// 5s 内如果没有收到 channel 的数据，会触发一个 IdleState#READER_IDLE 事件
ch.pipeline().addLast(new IdleStateHandler(5, 0, 0));
// ChannelDuplexHandler 可以同时作为入站和出站处理器
ch.pipeline().addLast(new ChannelDuplexHandler() {// 用来触发特殊事件@Overridepublic void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception{IdleStateEvent event = (IdleStateEvent) evt;// 触发了读空闲事件if (event.state() == IdleState.READER_IDLE) {log.debug("已经 5s 没有读到数据了");ctx.channel().close();}}
});
客户端定时心跳：客户端可以定时向服务器端发送数据，只要这个时间间隔小于服务器定义的空闲检测的时间间隔，那么就能防止前面提到的误判，客户端可以定义如下心跳处理器。
// 用来判断是不是 读空闲时间过长，或 写空闲时间过长
// 3s 内如果没有向服务器写数据，会触发一个 IdleState#WRITER_IDLE 事件
ch.pipeline().addLast(new IdleStateHandler(0, 3, 0));
// ChannelDuplexHandler 可以同时作为入站和出站处理器
ch.pipeline().addLast(new ChannelDuplexHandler() {// 用来触发特殊事件@Overridepublic void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception{IdleStateEvent event = (IdleStateEvent) evt;// 触发了写空闲事件if (event.state() == IdleState.WRITER_IDLE) {// log.debug("3s 没有写数据了，发送一个心跳包");ctx.writeAndFlush(new PingMessage());}}
});
相关内容
热门资讯
埃菲尔铁塔在哪 中国仿建埃菲尔...
2019年4月26日，广西南宁市，街头惊现一座巨型山寨版埃菲尔铁塔，高约20米，白色塔身，造型逼真，...
北京的名胜古迹 北京最著名的景...
北京从元代开始，逐渐走上帝国首都的道路，先是成为大辽朝五大首都之一的南京城，随着金灭辽，金代从海陵王...
苗族的传统节日 贵州苗族节日有...
【岜沙苗族芦笙节】岜沙，苗语叫“分送”，距从江县城7.5公里，是世界上最崇拜树木并以树为神的枪手部落...
长白山自助游攻略 吉林长白山游...
昨天介绍了西坡的景点详细请看链接：一个人的旅行，据说能看到长白山天池全凭运气，您的运气如何？今日介绍...
世界上最漂亮的人 世界上最漂亮...
此前在某网上，选出了全球265万颜值姣好的女性。从这些数量庞大的女性群体中，人们投票选出了心目中最美...
应用未安装解决办法 平板应用未...
---IT小技术，每天Get一个小技能！一、前言描述苹果IPad2居然不能安装怎么办？与此IPad不...
脚上的穴位图 脚面经络图对应的...
人体穴位作用图解大全更清晰直观的标注了各个人体穴位的作用，包括头部穴位图、胸部穴位图、背部穴位图、胳...
demo什么意思 demo版本...
618快到了，各位的小金库大概也在准备开闸放水了吧。没有小金库的，也该向老婆撒娇卖萌服个软了，一切只...
猫咪吃了塑料袋怎么办 猫咪误食...
你知道吗？塑料袋放久了会长猫哦！要说猫咪对塑料袋的喜爱程度完完全全可以媲美纸箱家里只要一有塑料袋的响...
埃菲尔铁塔在哪 中国仿建埃菲尔...
2019年4月26日，广西南宁市，街头惊现一座巨型山寨版埃菲尔铁塔，高约20米，白色塔身，造型逼真，...
北京的名胜古迹 北京最著名的景...
北京从元代开始，逐渐走上帝国首都的道路，先是成为大辽朝五大首都之一的南京城，随着金灭辽，金代从海陵王...
苗族的传统节日 贵州苗族节日有...
【岜沙苗族芦笙节】岜沙，苗语叫“分送”，距从江县城7.5公里，是世界上最崇拜树木并以树为神的枪手部落...
世界上最漂亮的人 世界上最漂亮...
此前在某网上，选出了全球265万颜值姣好的女性。从这些数量庞大的女性群体中，人们投票选出了心目中最美...
长白山自助游攻略 吉林长白山游...
昨天介绍了西坡的景点详细请看链接：一个人的旅行，据说能看到长白山天池全凭运气，您的运气如何？今日介绍...
