发布-订阅模式和无线电广播有些类似，在你收听之前发送的消息你将无从得知，收到消息的多少又会取决于你的接收能力。让人吃惊的是，对于那些追求完美的工程师来说，这种机器恰恰符合他们的需求，且广为传播，成为现实生活中分发消息的最佳机制。想想非死不可、推特、BBS新闻、体育新闻等应用就知道了。

        但是，在很多情形下，可靠的发布-订阅模式同样是有价值的。正如我们讨论请求-应答模式一样，我们会根据“故障”来定义“可靠性”，下面几项便是发布-订阅模式中可能发生的故障：

                1、订阅者连接太慢，因此没有收到发布者最初发送的消息；

                2、订阅者速度太慢，同样会丢失消息；

                3、订阅者可能会断开，其间的消息也会丢失。

        还有一些情况我们碰到的比较少，但不是没有：

                1、订阅者崩溃、重启，从而丢失了所有已收到的消息；

                2、订阅者处理消息的速度过慢，导致消息在队列中堆砌并溢出；

                3、因网络过载而丢失消息（特别是PGM协议下的连接）；

                4、网速过慢，消息在发布者处溢出，从而崩溃。

        其实还会有其他出错的情况，只是以上这些在现实应用中是比较典型的。

        我们已经有方法解决上面的某些问题了，比如对于慢速订阅者可以使用自杀的蜗牛模式。但是，对于其他的问题，我们最后能有一个可复用的框架来编写可靠的发布-订阅模式。

        难点在于，我们并不知道目标应用程序会怎样处理这些数据。它们会进行过滤、只处理一部分消息吗？它们是否会将消息记录起来供日后使用？它们是否会将消息转发给其下的worker进行处理？需要考虑的情况实在太多了，每种情况都有其所谓的可靠性。

        所以，我们将问题抽象出来，供多种应用程序使用。这种抽象应用我们称之为共享的键值缓存，它的功能是通过唯一的键名存储二进制数据块。

        不要将这个抽象应用和分布式哈希表混淆起来，它是用来解决节点在分布式网络中相连接的问题的；也不要和分布式键值表混淆，它更像是一个NoSQL数据库。我们要建立的应用是将内存中的状态可靠地传递给一组客户端，它要做到的是：

                1、客户端可以随时加入网络，并获得服务端当前的状态；

                2、任何客户端都可以改变键值缓存（插入、更新、删除）；

                3、将这种变化以最短的延迟可靠地传达给所有的客户端；

                4、能够处理大量的客户端，成百上千。

        克隆模式的要点在于客户端会反过来和服务端进行通信，这在简单的发布-订阅模式中并不常见。所以我这里使用“服务端”、“客户端”而不是“发布者”、“订阅者”这两个词。我们会使用发布-订阅模式作为核心消息模式，不过还需要夹杂其他模式。

分发键值更新事件

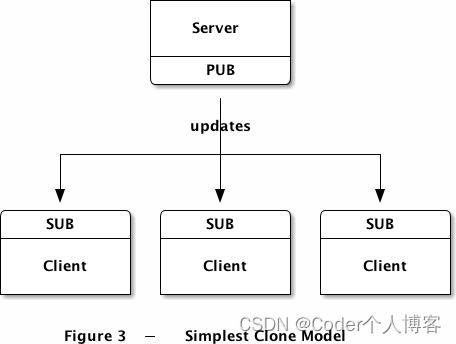

        我们会分阶段实施克隆模式。首先，我们看看如何从服务器发送键值更新事件给所有的客户端。我们将第一章中使用的天气服务模型进行改造，以键值对的方式发送信息，并让客户端使用哈希表来保存：

        以下是服务端代码：

        clonesrv1: Clone server, Model One in C

//
//  克隆模式服务端模型1
////  让我们直接编译，不生成类库
#include "kvsimple.c"int main (void)
{//  准备上下文和PUB套接字zctx_t *ctx = zctx_new ();void *publisher = zsocket_new (ctx, ZMQ_PUB);zsocket_bind (publisher, "tcp://*:5556");zclock_sleep (200);zhash_t *kvmap = zhash_new ();int64_t sequence = 0;srandom ((unsigned) time (NULL));while (!zctx_interrupted) {//  使用键值对分发消息kvmsg_t *kvmsg = kvmsg_new (++sequence);kvmsg_fmt_key  (kvmsg, "%d", randof (10000));kvmsg_fmt_body (kvmsg, "%d", randof (1000000));kvmsg_send     (kvmsg, publisher);kvmsg_store   (&kvmsg, kvmap);}printf (" 已中止\n已发送 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}

        以下是客户端代码：

        clonecli1: Clone client, Model One in C

//
//  克隆模式客户端模型1
////  让我们直接编译，不生成类库
#include "kvsimple.c"int main (void)
{//  准备上下文和SUB套接字zctx_t *ctx = zctx_new ();void *updates = zsocket_new (ctx, ZMQ_SUB);zsocket_connect (updates, "tcp://localhost:5556");zhash_t *kvmap = zhash_new ();int64_t sequence = 0;while (TRUE) {kvmsg_t *kvmsg = kvmsg_recv (updates);if (!kvmsg)break;          //  中断kvmsg_store (&kvmsg, kvmap);sequence++;}printf (" 已中断\n收到 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}

        几点说明：

                1、所有复杂的工作都在kvmsg类中完成了，这个类能够处理键值对类型的消息对象，其实质上是一个ZMQ多帧消息，共有三帧：键（ZMQ字符串）、编号（64位，按字节顺序排列）、二进制体（保存所有附加信息）。

                2、服务端随机生成消息，使用四位数作为键，这样可以模拟大量而不是过量的哈希表（1万个条目）。

                3、服务端绑定套接字后会等待200毫秒，以避免订阅者连接延迟而丢失数据的问题。我们会在后面的模型中解决这一点。

                4、我们使用“发布者”和“订阅者”来命名程序中使用的套接字，这样可以避免和后续模型中的其他套接字发生混淆。

        以下是kvmsg的代码，已经经过了精简：
        kvsimple: Key-value message class in C

/*  =====================================================================kvsimple - simple key-value message class for example applications---------------------------------------------------------------------Copyright (c) 1991-2011 iMatix Corporation Copyright other contributors as noted in the AUTHORS file.This file is part of the ZeroMQ Guide: http://zguide.zeromq.orgThis is free software; you can redistribute it and/or modify it underthe terms of the GNU Lesser General Public License as published bythe Free Software Foundation; either version 3 of the License, or (atyour option) any later version.This software is distributed in the hope that it will be useful, butWITHOUT ANY WARRANTY; without even the implied warranty ofMERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNULesser General Public License for more details.You should have received a copy of the GNU Lesser General PublicLicense along with this program. If not, see.=====================================================================
*/#include "kvsimple.h"
#include "zlist.h"//  键是一个短字符串
#define KVMSG_KEY_MAX   255//  消息被格式化成三帧
//  frame 0: 键（ZMQ字符串）
//  frame 1: 编号（8个字节，按顺序排列）
//  frame 2: 内容（二进制数据块）
#define FRAME_KEY       0
#define FRAME_SEQ       1
#define FRAME_BODY      2
#define KVMSG_FRAMES    3//  类结构
struct _kvmsg {//  消息中某帧是否存在int present [KVMSG_FRAMES];//  对应的ZMQ消息帧zmq_msg_t frame [KVMSG_FRAMES];//  将键转换为C语言字符串char key [KVMSG_KEY_MAX + 1];
};//  ---------------------------------------------------------------------
//  构造函数，设置编号kvmsg_t *
kvmsg_new (int64_t sequence)
{kvmsg_t*self;self = (kvmsg_t *) zmalloc (sizeof (kvmsg_t));kvmsg_set_sequence (self, sequence);return self;
}//  ---------------------------------------------------------------------
//  析构函数//  释放消息中的帧，可供zhash_freefn()函数调用
void
kvmsg_free (void *ptr)
{if (ptr) {kvmsg_t *self = (kvmsg_t *) ptr;//  销毁消息中的帧int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++)if (self->present [frame_nbr])zmq_msg_close (&self->frame [frame_nbr]);//  释放对象本身free (self);}
}void
kvmsg_destroy (kvmsg_t **self_p)
{assert (self_p);if (*self_p) {kvmsg_free (*self_p);*self_p = NULL;}
}//  ---------------------------------------------------------------------
//  从套接字中读取键值消息，返回kvmsg实例kvmsg_t *
kvmsg_recv (void *socket)
{assert (socket);kvmsg_t *self = kvmsg_new (0);//  读取所有帧，出错则销毁对象int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++) {if (self->present [frame_nbr])zmq_msg_close (&self->frame [frame_nbr]);zmq_msg_init (&self->frame [frame_nbr]);self->present [frame_nbr] = 1;if (zmq_recvmsg (socket, &self->frame [frame_nbr], 0) == -1) {kvmsg_destroy (&self);break;}//  验证多帧消息int rcvmore = (frame_nbr < KVMSG_FRAMES - 1)? 1: 0;if (zsockopt_rcvmore (socket) != rcvmore) {kvmsg_destroy (&self);break;}}return self;
}//  ---------------------------------------------------------------------
//  向套接字发送键值对消息，不检验消息帧的内容void
kvmsg_send (kvmsg_t *self, void *socket)
{assert (self);assert (socket);int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++) {zmq_msg_t copy;zmq_msg_init (©);if (self->present [frame_nbr])zmq_msg_copy (©, &self->frame [frame_nbr]);zmq_sendmsg (socket, ©,(frame_nbr < KVMSG_FRAMES - 1)? ZMQ_SNDMORE: 0);zmq_msg_close (©);}
}//  ---------------------------------------------------------------------
//  从消息中获取键值，不存在则返回NULLchar *
kvmsg_key (kvmsg_t *self)
{assert (self);if (self->present [FRAME_KEY]) {if (!*self->key) {size_t size = zmq_msg_size (&self->frame [FRAME_KEY]);if (size > KVMSG_KEY_MAX)size = KVMSG_KEY_MAX;memcpy (self->key,zmq_msg_data (&self->frame [FRAME_KEY]), size);self->key [size] = 0;}return self->key;}elsereturn NULL;
}//  ---------------------------------------------------------------------
//  返回消息的编号int64_t
kvmsg_sequence (kvmsg_t *self)
{assert (self);if (self->present [FRAME_SEQ]) {assert (zmq_msg_size (&self->frame [FRAME_SEQ]) == 8);byte *source = zmq_msg_data (&self->frame [FRAME_SEQ]);int64_t sequence = ((int64_t) (source [0]) << 56)+ ((int64_t) (source [1]) << 48)+ ((int64_t) (source [2]) << 40)+ ((int64_t) (source [3]) << 32)+ ((int64_t) (source [4]) << 24)+ ((int64_t) (source [5]) << 16)+ ((int64_t) (source [6]) << 8)+  (int64_t) (source [7]);return sequence;}elsereturn 0;
}//  ---------------------------------------------------------------------
//  返回消息内容，不存在则返回NULLbyte *
kvmsg_body (kvmsg_t *self)
{assert (self);if (self->present [FRAME_BODY])return (byte *) zmq_msg_data (&self->frame [FRAME_BODY]);elsereturn NULL;
}//  ---------------------------------------------------------------------
//  返回消息内容的大小size_t
kvmsg_size (kvmsg_t *self)
{assert (self);if (self->present [FRAME_BODY])return zmq_msg_size (&self->frame [FRAME_BODY]);elsereturn 0;
}//  ---------------------------------------------------------------------
//  设置消息的键void
kvmsg_set_key (kvmsg_t *self, char *key)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_KEY];if (self->present [FRAME_KEY])zmq_msg_close (msg);zmq_msg_init_size (msg, strlen (key));memcpy (zmq_msg_data (msg), key, strlen (key));self->present [FRAME_KEY] = 1;
}//  ---------------------------------------------------------------------
//  设置消息的编号void
kvmsg_set_sequence (kvmsg_t *self, int64_t sequence)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_SEQ];if (self->present [FRAME_SEQ])zmq_msg_close (msg);zmq_msg_init_size (msg, 8);byte *source = zmq_msg_data (msg);source [0] = (byte) ((sequence >> 56) & 255);source [1] = (byte) ((sequence >> 48) & 255);source [2] = (byte) ((sequence >> 40) & 255);source [3] = (byte) ((sequence >> 32) & 255);source [4] = (byte) ((sequence >> 24) & 255);source [5] = (byte) ((sequence >> 16) & 255);source [6] = (byte) ((sequence >> 8)  & 255);source [7] = (byte) ((sequence)       & 255);self->present [FRAME_SEQ] = 1;
}//  ---------------------------------------------------------------------
//  设置消息内容void
kvmsg_set_body (kvmsg_t *self, byte *body, size_t size)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_BODY];if (self->present [FRAME_BODY])zmq_msg_close (msg);self->present [FRAME_BODY] = 1;zmq_msg_init_size (msg, size);memcpy (zmq_msg_data (msg), body, size);
}//  ---------------------------------------------------------------------
//  使用printf()格式设置消息键void
kvmsg_fmt_key (kvmsg_t *self, char *format, ...)
{char value [KVMSG_KEY_MAX + 1];va_list args;assert (self);va_start (args, format);vsnprintf (value, KVMSG_KEY_MAX, format, args);va_end (args);kvmsg_set_key (self, value);
}//  ---------------------------------------------------------------------
//  使用springf()格式设置消息内容void
kvmsg_fmt_body (kvmsg_t *self, char *format, ...)
{char value [255 + 1];va_list args;assert (self);va_start (args, format);vsnprintf (value, 255, format, args);va_end (args);kvmsg_set_body (self, (byte *) value, strlen (value));
}//  ---------------------------------------------------------------------
//  若kvmsg结构的键值均存在，则存入哈希表；
//  如果kvmsg结构已没有引用，则自动销毁和释放。void
kvmsg_store (kvmsg_t **self_p, zhash_t *hash)
{assert (self_p);if (*self_p) {kvmsg_t *self = *self_p;assert (self);if (self->present [FRAME_KEY]&&  self->present [FRAME_BODY]) {zhash_update (hash, kvmsg_key (self), self);zhash_freefn (hash, kvmsg_key (self), kvmsg_free);}*self_p = NULL;}
}//  ---------------------------------------------------------------------
//  将消息内容打印至标准错误输出，用以调试和跟踪void
kvmsg_dump (kvmsg_t *self)
{if (self) {if (!self) {fprintf (stderr, "NULL");return;}size_t size = kvmsg_size (self);byte  *body = kvmsg_body (self);fprintf (stderr, "[seq:%" PRId64 "]", kvmsg_sequence (self));fprintf (stderr, "[key:%s]", kvmsg_key (self));fprintf (stderr, "[size:%zd] ", size);int char_nbr;for (char_nbr = 0; char_nbr < size; char_nbr++)fprintf (stderr, "%02X", body [char_nbr]);fprintf (stderr, "\n");}elsefprintf (stderr, "NULL message\n");
}//  ---------------------------------------------------------------------
//  测试用例int
kvmsg_test (int verbose)
{kvmsg_t*kvmsg;printf (" * kvmsg: ");//  准备上下文和套接字zctx_t *ctx = zctx_new ();void *output = zsocket_new (ctx, ZMQ_DEALER);int rc = zmq_bind (output, "ipc://kvmsg_selftest.ipc");assert (rc == 0);void *input = zsocket_new (ctx, ZMQ_DEALER);rc = zmq_connect (input, "ipc://kvmsg_selftest.ipc");assert (rc == 0);zhash_t *kvmap = zhash_new ();//  测试简单消息的发送和接受kvmsg = kvmsg_new (1);kvmsg_set_key  (kvmsg, "key");kvmsg_set_body (kvmsg, (byte *) "body", 4);if (verbose)kvmsg_dump (kvmsg);kvmsg_send (kvmsg, output);kvmsg_store (&kvmsg, kvmap);kvmsg = kvmsg_recv (input);if (verbose)kvmsg_dump (kvmsg);assert (streq (kvmsg_key (kvmsg), "key"));kvmsg_store (&kvmsg, kvmap);//  关闭并销毁所有对象zhash_destroy (&kvmap);zctx_destroy (&ctx);printf ("OK\n");return 0;
}

        我们会在下文编写一个更为完整的kvmsg类，可以用到现实环境中。

        客户端和服务端都会维护一个哈希表，但这个模型需要所有的客户端都比服务端启动得早，而且不能崩溃，这显然不能满足可靠性的要求。

创建快照

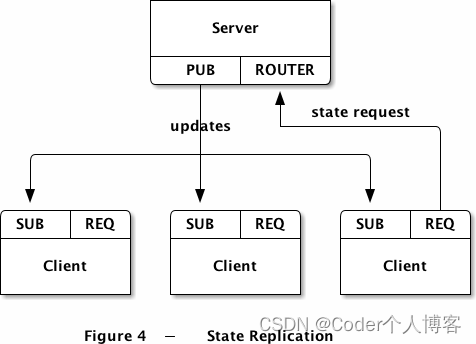

        为了让后续连接的（或从故障中恢复的）客户端能够获取服务器上的状态信息，需要让它在连接时获取一份快照。正如我们将“消息”的概念简化为“已编号的键值对”，我们也可以将“状态”简化为“一个哈希表”。为获取服务端状态，客户端会打开一个REQ套接字进行请求：

        我们需要考虑时间的问题，因为生成快照是需要一定时间的，我们需要知道应从哪个更新事件开始更新快照，服务端是不知道何时有更新事件的。一种方法是先开始订阅消息，收到第一个消息之后向服务端请求“将该条更新之前的所有内容发送给”。这样一来，服务器需要为每一次更新保存一份快照，这显然是不现实的。

        所以，我们会在客户端用以下方式进行同步：

                1、客户端开始订阅服务器的更新事件，然后请求一份快照。这样就能保证这份快照是在上一次更新事件之后产生的。

                2、客户端开始等待服务器的快照，并将更新事件保存在队列中，做法很简单，不要从套接字中读取消息就可以了，ZMQ会自动将这些消息保存起来，这时不应设置阈值（HWM）。

                3、当客户端获取到快照后，它将再次开始读取更新事件，但是需要丢弃那些早于快照生成时间的事件。如快照生成时包含了200次更新，那客户端会从第201次更新开始读取。

                4、随后，客户端就会用更新事件去更新自身的状态了。

        这是一个比较简单的模型，因为它用到了ZMQ消息队列的机制。服务端代码如下：

        clonesrv2: Clone server, Model Two in C

//
//  克隆模式 - 服务端 - 模型2
////  让我们直接编译，不创建类库
#include "kvsimple.c"static int s_send_single (char *key, void *data, void *args);
static void state_manager (void *args, zctx_t *ctx, void *pipe);int main (void)
{//  准备套接字和上下文zctx_t *ctx = zctx_new ();void *publisher = zsocket_new (ctx, ZMQ_PUB);zsocket_bind (publisher, "tcp://*:5557");int64_t sequence = 0;srandom ((unsigned) time (NULL));//  开启状态管理器，并等待同步信号void *updates = zthread_fork (ctx, state_manager, NULL);free (zstr_recv (updates));while (!zctx_interrupted) {//  分发键值消息kvmsg_t *kvmsg = kvmsg_new (++sequence);kvmsg_fmt_key  (kvmsg, "%d", randof (10000));kvmsg_fmt_body (kvmsg, "%d", randof (1000000));kvmsg_send     (kvmsg, publisher);kvmsg_send     (kvmsg, updates);kvmsg_destroy (&kvmsg);}printf (" 已中断\n已发送 %d 条消息\n", (int) sequence);zctx_destroy (&ctx);return 0;
}//  快照请求方信息
typedef struct {void *socket;           //  用于发送快照的ROUTER套接字zframe_t *identity;     //  请求方的标识
} kvroute_t;//  发送快照中单个键值对
//  使用kvmsg对象作为载体
static int
s_send_single (char *key, void *data, void *args)
{kvroute_t *kvroute = (kvroute_t *) args;//  先发送接收方标识zframe_send (&kvroute->identity,kvroute->socket, ZFRAME_MORE + ZFRAME_REUSE);kvmsg_t *kvmsg = (kvmsg_t *) data;kvmsg_send (kvmsg, kvroute->socket);return 0;
}//  该线程维护服务端状态，并处理快照请求。
//
static void
state_manager (void *args, zctx_t *ctx, void *pipe)
{zhash_t *kvmap = zhash_new ();zstr_send (pipe, "READY");void *snapshot = zsocket_new (ctx, ZMQ_ROUTER);zsocket_bind (snapshot, "tcp://*:5556");zmq_pollitem_t items [] = {{ pipe, 0, ZMQ_POLLIN, 0 },{ snapshot, 0, ZMQ_POLLIN, 0 }};int64_t sequence = 0;       //  当前快照版本while (!zctx_interrupted) {int rc = zmq_poll (items, 2, -1);if (rc == -1 && errno == ETERM)break;              //  上下文异常//  等待主线程的更新事件if (items [0].revents & ZMQ_POLLIN) {kvmsg_t *kvmsg = kvmsg_recv (pipe);if (!kvmsg)break;          //  中断sequence = kvmsg_sequence (kvmsg);kvmsg_store (&kvmsg, kvmap);}//  执行快照请求if (items [1].revents & ZMQ_POLLIN) {zframe_t *identity = zframe_recv (snapshot);if (!identity)break;          //  中断//  请求内容在第二帧中char *request = zstr_recv (snapshot);if (streq (request, "ICANHAZ?"))free (request);else {printf ("E: 错误的请求，程序中止\n");break;}//  发送快照给客户端kvroute_t routing = { snapshot, identity };//  逐项发送zhash_foreach (kvmap, s_send_single, &routing);//  发送结束标识，内含快照版本号printf ("正在发送快照，版本号 %d\n", (int) sequence);zframe_send (&identity, snapshot, ZFRAME_MORE);kvmsg_t *kvmsg = kvmsg_new (sequence);kvmsg_set_key  (kvmsg, "KTHXBAI");kvmsg_set_body (kvmsg, (byte *) "", 0);kvmsg_send     (kvmsg, snapshot);kvmsg_destroy (&kvmsg);}}zhash_destroy (&kvmap);
}

        以下是客户端代码：

        clonecli2: Clone client, Model Two in C

//
// 克隆模式 - 客户端 - 模型2
////  让我们直接编译，不生成类库
#include "kvsimple.c"int main (void)
{//  准备上下文和SUB套接字zctx_t *ctx = zctx_new ();void *snapshot = zsocket_new (ctx, ZMQ_DEALER);zsocket_connect (snapshot, "tcp://localhost:5556");void *subscriber = zsocket_new (ctx, ZMQ_SUB);zsocket_connect (subscriber, "tcp://localhost:5557");zhash_t *kvmap = zhash_new ();//  获取快照int64_t sequence = 0;zstr_send (snapshot, "ICANHAZ?");while (TRUE) {kvmsg_t *kvmsg = kvmsg_recv (snapshot);if (!kvmsg)break;          //  中断if (streq (kvmsg_key (kvmsg), "KTHXBAI")) {sequence = kvmsg_sequence (kvmsg);printf ("已获取快照，版本号=%d\n", (int) sequence);kvmsg_destroy (&kvmsg);break;          //  完成}kvmsg_store (&kvmsg, kvmap);}//  应用队列中的更新事件，丢弃过时事件while (!zctx_interrupted) {kvmsg_t *kvmsg = kvmsg_recv (subscriber);if (!kvmsg)break;          //  中断if (kvmsg_sequence (kvmsg) > sequence) {sequence = kvmsg_sequence (kvmsg);kvmsg_store (&kvmsg, kvmap);}elsekvmsg_destroy (&kvmsg);}zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}

        几点说明：

                1、客户端使用两个线程，一个用来生成随机的更新事件，另一个用来管理状态。两者之间使用PAIR套接字通信。可能你会考虑使用SUB套接字，但是“慢连接”的问题会影响到程序运行。PAIR套接字会让两个线程严格同步的。

                2、我们在updates套接字上设置了阈值（HWM），避免更新服务内存溢出。在inproc协议的连接中，阈值是两端套接字阈值的加和，所以要分别设置。

                3、客户端比较简单，用C语言编写，大约60行代码。大多数工作都在kvmsg类中完成了，不过总的来说，克隆模式实现起来还是比较简单的。

                4、我们没有用特别的方式来序列化状态内容。键值对用kvmsg对象表示，保存在一个哈希表中。在不同的时间请求状态时会得到不同的快照。

                5、我们假设客户端只和一个服务进行通信，而且服务必须是正常运行的。我们暂不考虑如何从服务崩溃的情形中恢复过来。

        现在，这两段程序都还没有真正地工作起来，但已经能够正确地同步状态了。这是一个多种消息模式的混合体：进程内的PAIR、发布-订阅、ROUTER-DEALER等。

重发键值更新事件

        第二个模型中，键值更新事件都来自于服务器，构成了一个中心化的模型。但是我们需要的是一个能够在客户端进行更新的缓存，并能同步到其他客户端中。这时，服务端只是一个无状态的中间件，带来的好处有：

                1、我们不用太过关心服务端的可靠性，因为即使它崩溃了，我们仍能从客户端中获取完整的数据。

                2、我们可以使用键值缓存在动态节点之间分享数据。

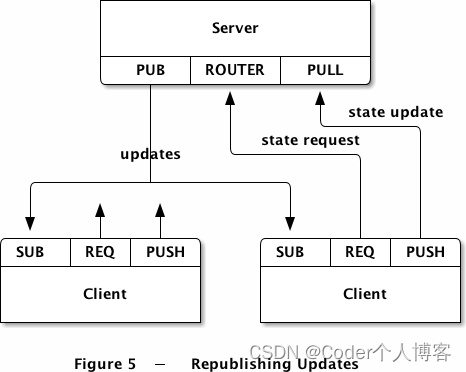

        客户端的键值更新事件会通过PUSH-PULL套接字传达给服务端：

        我们为什么不让客户端直接将更新信息发送给其他客户端呢？虽然这样做可以减少延迟，但是就无法为更新事件添加自增的唯一编号了。很多应用程序都需要更新事件以某种方式排序，只有将消息发给服务端，由服务端分发更新消息，才能保证更新事件的顺序。

        有了唯一的编号后，客户端还能检测到更多的故障：网络堵塞或队列溢出。如果客户端发现消息输入流有一段空白，它能采取措施。可能你会觉得此时让客户端通知服务端，让它重新发送丢失的信息，可以解决问题。但事实上没有必要这么做。消息流的空挡表示网络状况不好，如果再进行这样的请求，只会让事情变得更糟。所以一般的做法是由客户端发出警告，并停止运行，等到有专人来维护后再继续工作。
        我们开始创建在客户端进行状态更新的模型。以下是客户端代码：

        clonesrv3: Clone server, Model Three in C

//
//  克隆模式 服务端 模型3
////  直接编译，不创建类库
#include "kvsimple.c"static int s_send_single (char *key, void *data, void *args);//  快照请求方信息
typedef struct {void *socket;           //  ROUTER套接字zframe_t *identity;     //  请求方标识
} kvroute_t;int main (void)
{//  准备上下文和套接字zctx_t *ctx = zctx_new ();void *snapshot = zsocket_new (ctx, ZMQ_ROUTER);zsocket_bind (snapshot, "tcp://*:5556");void *publisher = zsocket_new (ctx, ZMQ_PUB);zsocket_bind (publisher, "tcp://*:5557");void *collector = zsocket_new (ctx, ZMQ_PULL);zsocket_bind (collector, "tcp://*:5558");int64_t sequence = 0;zhash_t *kvmap = zhash_new ();zmq_pollitem_t items [] = {{ collector, 0, ZMQ_POLLIN, 0 },{ snapshot, 0, ZMQ_POLLIN, 0 }};while (!zctx_interrupted) {int rc = zmq_poll (items, 2, 1000 * ZMQ_POLL_MSEC);//  执行来自客户端的更新事件if (items [0].revents & ZMQ_POLLIN) {kvmsg_t *kvmsg = kvmsg_recv (collector);if (!kvmsg)break;          //  中断kvmsg_set_sequence (kvmsg, ++sequence);kvmsg_send (kvmsg, publisher);kvmsg_store (&kvmsg, kvmap);printf ("I: 发布更新事件 %5d\n", (int) sequence);}//  响应快照请求if (items [1].revents & ZMQ_POLLIN) {zframe_t *identity = zframe_recv (snapshot);if (!identity)break;          //  中断//  请求内容在消息的第二帧中char *request = zstr_recv (snapshot);if (streq (request, "ICANHAZ?"))free (request);else {printf ("E: 错误的请求，程序中止\n");break;}//  发送快照kvroute_t routing = { snapshot, identity };//  逐条发送zhash_foreach (kvmap, s_send_single, &routing);//  发送结束标识和编号printf ("I: 正在发送快照，版本号：%d\n", (int) sequence);zframe_send (&identity, snapshot, ZFRAME_MORE);kvmsg_t *kvmsg = kvmsg_new (sequence);kvmsg_set_key  (kvmsg, "KTHXBAI");kvmsg_set_body (kvmsg, (byte *) "", 0);kvmsg_send     (kvmsg, snapshot);kvmsg_destroy (&kvmsg);}}printf (" 已中断\n已处理 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}//  发送一条键值对状态给套接字，使用kvmsg对象保存键值对
static int
s_send_single (char *key, void *data, void *args)
{kvroute_t *kvroute = (kvroute_t *) args;//  Send identity of recipient firstzframe_send (&kvroute->identity,kvroute->socket, ZFRAME_MORE + ZFRAME_REUSE);kvmsg_t *kvmsg = (kvmsg_t *) data;kvmsg_send (kvmsg, kvroute->socket);return 0;
}

        以下是客户端代码：

        clonecli3: Clone client, Model Three in C

//
//  克隆模式 - 客户端 - 模型3
////  直接编译，不创建类库
#include "kvsimple.c"int main (void)
{//  准备上下文和SUB套接字zctx_t *ctx = zctx_new ();void *snapshot = zsocket_new (ctx, ZMQ_DEALER);zsocket_connect (snapshot, "tcp://localhost:5556");void *subscriber = zsocket_new (ctx, ZMQ_SUB);zsocket_connect (subscriber, "tcp://localhost:5557");void *publisher = zsocket_new (ctx, ZMQ_PUSH);zsocket_connect (publisher, "tcp://localhost:5558");zhash_t *kvmap = zhash_new ();srandom ((unsigned) time (NULL));//  获取状态快照int64_t sequence = 0;zstr_send (snapshot, "ICANHAZ?");while (TRUE) {kvmsg_t *kvmsg = kvmsg_recv (snapshot);if (!kvmsg)break;          //  中断if (streq (kvmsg_key (kvmsg), "KTHXBAI")) {sequence = kvmsg_sequence (kvmsg);printf ("I: 已收到快照，版本号：%d\n", (int) sequence);kvmsg_destroy (&kvmsg);break;          //  完成}kvmsg_store (&kvmsg, kvmap);}int64_t alarm = zclock_time () + 1000;while (!zctx_interrupted) {zmq_pollitem_t items [] = { { subscriber, 0, ZMQ_POLLIN, 0 } };int tickless = (int) ((alarm - zclock_time ()));if (tickless < 0)tickless = 0;int rc = zmq_poll (items, 1, tickless * ZMQ_POLL_MSEC);if (rc == -1)break;              //  上下文被关闭if (items [0].revents & ZMQ_POLLIN) {kvmsg_t *kvmsg = kvmsg_recv (subscriber);if (!kvmsg)break;          //  中断//  丢弃过时消息，包括心跳if (kvmsg_sequence (kvmsg) > sequence) {sequence = kvmsg_sequence (kvmsg);kvmsg_store (&kvmsg, kvmap);printf ("I: 收到更新事件：%d\n", (int) sequence);}elsekvmsg_destroy (&kvmsg);}//  创建一个随机的更新事件if (zclock_time () >= alarm) {kvmsg_t *kvmsg = kvmsg_new (0);kvmsg_fmt_key  (kvmsg, "%d", randof (10000));kvmsg_fmt_body (kvmsg, "%d", randof (1000000));kvmsg_send     (kvmsg, publisher);kvmsg_destroy (&kvmsg);alarm = zclock_time () + 1000;}}printf (" 已准备\n收到 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}

        几点说明：

                1、服务端整合为一个线程，负责收集来自客户端的更新事件并转发给其他客户端。它使用PULL套接字获取更新事件，ROUTER套接字处理快照请求，以及PUB套接字发布更新事件。

                2、客户端会每隔1秒左右发送随机的更新事件给服务端，现实中这一动作由应用程序触发。

子树克隆

        现实中的键值缓存会越变越多，而客户端可能只会需要部分缓存。我们可以使用子树的方式来实现：客户端在发送快照请求时告诉服务端它需要的子树，在订阅更新事件时也指明子树。

        关于子树的语法有很多，一种是“分层路径”结构，另一种是“主题树”

                1、分层路径：/some/list/of/paths。

                2、主题树：some.list.of.topics

        这里我们会使用分层路径结构，以此扩展服务端和客户端，进行子树操作。维护多个子树其实并不太困难，因此我们不在这里演示。

        下面是服务端代码，由模型3衍化而来：

        clonesrv4: Clone server, Model Four in C

//
//  克隆模式 服务端 模型4
////  直接编译，不创建类库
#include "kvsimple.c"static int s_send_single (char *key, void *data, void *args);//  快照请求方信息
typedef struct {void *socket;           //  ROUTER套接字zframe_t *identity;     //  请求方标识char *subtree;          //  指定的子树
} kvroute_t;int main (void)
{//  准备上下文和套接字zctx_t *ctx = zctx_new ();void *snapshot = zsocket_new (ctx, ZMQ_ROUTER);zsocket_bind (snapshot, "tcp://*:5556");void *publisher = zsocket_new (ctx, ZMQ_PUB);zsocket_bind (publisher, "tcp://*:5557");void *collector = zsocket_new (ctx, ZMQ_PULL);zsocket_bind (collector, "tcp://*:5558");int64_t sequence = 0;zhash_t *kvmap = zhash_new ();zmq_pollitem_t items [] = {{ collector, 0, ZMQ_POLLIN, 0 },{ snapshot, 0, ZMQ_POLLIN, 0 }};while (!zctx_interrupted) {int rc = zmq_poll (items, 2, 1000 * ZMQ_POLL_MSEC);//  执行来自客户端的更新事件if (items [0].revents & ZMQ_POLLIN) {kvmsg_t *kvmsg = kvmsg_recv (collector);if (!kvmsg)break;          //  Interruptedkvmsg_set_sequence (kvmsg, ++sequence);kvmsg_send (kvmsg, publisher);kvmsg_store (&kvmsg, kvmap);printf ("I: 发布更新事件 %5d\n", (int) sequence);}//  响应快照请求if (items [1].revents & ZMQ_POLLIN) {zframe_t *identity = zframe_recv (snapshot);if (!identity)break;          //  Interrupted//  请求内容在消息的第二帧中char *request = zstr_recv (snapshot);char *subtree = NULL;if (streq (request, "ICANHAZ?")) {free (request);subtree = zstr_recv (snapshot);}else {printf ("E: 错误的请求，程序中止\n");break;}//  发送快照kvroute_t routing = { snapshot, identity, subtree };//  逐条发送zhash_foreach (kvmap, s_send_single, &routing);//  发送结束标识和编号printf ("I: 正在发送快照，版本号：%d\n", (int) sequence);zframe_send (&identity, snapshot, ZFRAME_MORE);kvmsg_t *kvmsg = kvmsg_new (sequence);kvmsg_set_key  (kvmsg, "KTHXBAI");kvmsg_set_body (kvmsg, (byte *) subtree, 0);kvmsg_send     (kvmsg, snapshot);kvmsg_destroy (&kvmsg);free (subtree);}}printf (" 已中断\n已处理 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}//  发送一条键值对状态给套接字，使用kvmsg对象保存键值对
static int
s_send_single (char *key, void *data, void *args)
{kvroute_t *kvroute = (kvroute_t *) args;kvmsg_t *kvmsg = (kvmsg_t *) data;if (strlen (kvroute->subtree) <= strlen (kvmsg_key (kvmsg))&&  memcmp (kvroute->subtree,kvmsg_key (kvmsg), strlen (kvroute->subtree)) == 0) {//  先发送接收方的标识zframe_send (&kvroute->identity,kvroute->socket, ZFRAME_MORE + ZFRAME_REUSE);kvmsg_send (kvmsg, kvroute->socket);}return 0;
}

        下面是客户端代码：

        clonecli4: Clone client, Model Four in C

//
//  克隆模式 - 客户端 - 模型4
////  直接编译，不创建类库
#include "kvsimple.c"#define SUBTREE "/client/"int main (void)
{//  准备上下文和SUB套接字zctx_t *ctx = zctx_new ();void *snapshot = zsocket_new (ctx, ZMQ_DEALER);zsocket_connect (snapshot, "tcp://localhost:5556");void *subscriber = zsocket_new (ctx, ZMQ_SUB);zsocket_connect (subscriber, "tcp://localhost:5557");zsockopt_set_subscribe (subscriber, SUBTREE);void *publisher = zsocket_new (ctx, ZMQ_PUSH);zsocket_connect (publisher, "tcp://localhost:5558");zhash_t *kvmap = zhash_new ();srandom ((unsigned) time (NULL));//  获取状态快照int64_t sequence = 0;zstr_sendm (snapshot, "ICANHAZ?");zstr_send  (snapshot, SUBTREE);while (TRUE) {kvmsg_t *kvmsg = kvmsg_recv (snapshot);if (!kvmsg)break;          //  Interruptedif (streq (kvmsg_key (kvmsg), "KTHXBAI")) {sequence = kvmsg_sequence (kvmsg);printf ("I: 已收到快照，版本号：%d\n", (int) sequence);kvmsg_destroy (&kvmsg);break;          //  Done}kvmsg_store (&kvmsg, kvmap);}int64_t alarm = zclock_time () + 1000;while (!zctx_interrupted) {zmq_pollitem_t items [] = { { subscriber, 0, ZMQ_POLLIN, 0 } };int tickless = (int) ((alarm - zclock_time ()));if (tickless < 0)tickless = 0;int rc = zmq_poll (items, 1, tickless * ZMQ_POLL_MSEC);if (rc == -1)break;              //  上下文被关闭if (items [0].revents & ZMQ_POLLIN) {kvmsg_t *kvmsg = kvmsg_recv (subscriber);if (!kvmsg)break;          //  中断//  丢弃过时消息，包括心跳if (kvmsg_sequence (kvmsg) > sequence) {sequence = kvmsg_sequence (kvmsg);kvmsg_store (&kvmsg, kvmap);printf ("I: 收到更新事件：%d\n", (int) sequence);}elsekvmsg_destroy (&kvmsg);}//  创建一个随机的更新事件if (zclock_time () >= alarm) {kvmsg_t *kvmsg = kvmsg_new (0);kvmsg_fmt_key  (kvmsg, "%s%d", SUBTREE, randof (10000));kvmsg_fmt_body (kvmsg, "%d", randof (1000000));kvmsg_send     (kvmsg, publisher);kvmsg_destroy (&kvmsg);alarm = zclock_time () + 1000;}}printf (" 已准备\n收到 %d 条消息\n", (int) sequence);zhash_destroy (&kvmap);zctx_destroy (&ctx);return 0;
}

瞬间值

        瞬间值指的是那些会立刻过期的值。如果你用克隆模式搭建一个类似DNS的服务时，就可以用瞬间值来模拟动态DNS解析了。当节点连接网络，对外发布它的地址，并不断地更新地址。如果节点断开连接，则它的地址也会失效。

        瞬间值可以和会话（session）联系起来，当会话结束时，瞬间值也就失效了。克隆模式中，会话是由客户端定义的，并会在客户端断开连接时消亡。

        更简单的方法是为每一个瞬间值设定一个过期时间，客户端会不断延长这个时间，当断开连接时这个时间将得不到更新，服务器就会自动将其删除。

        我们会用这种简单的方法来实现瞬间值，因为太过复杂的方法可能不值当，它们的差别仅在性能上体现。如果客户端有很多瞬间值，那为每个值设定过期时间是恰当的；如果瞬间值到达一定的量，那最好还是将其和会话相关联，统一进行过期处理。

        首先，我们需要设法在键值对消息中加入过期时间。我们可以增加一个消息帧，但这样一来每当我们需要增加消息内容时就需要修改kvmsg类库了，这并不合适。所以，我们一次性增加一个“属性”消息帧，用于添加不同的消息属性。

        其次，我们需要设法删除这条数据。目前为止服务端和客户端会盲目地增改哈希表中的数据，我们可以这样定义：当消息的值是空的，则表示删除这个键的数据。

        下面是一个更为完整的kvmsg类代码，它实现了“属性”帧，以及一个UUID帧，我们后面会用到。该类还会负责处理值为空的消息，达到删除的目的：

        kvmsg: Key-value message class - full in C

/*  =====================================================================kvmsg - key-value message class for example applications---------------------------------------------------------------------Copyright (c) 1991-2011 iMatix Corporation Copyright other contributors as noted in the AUTHORS file.This file is part of the ZeroMQ Guide: http://zguide.zeromq.orgThis is free software; you can redistribute it and/or modify it underthe terms of the GNU Lesser General Public License as published bythe Free Software Foundation; either version 3 of the License, or (atyour option) any later version.This software is distributed in the hope that it will be useful, butWITHOUT ANY WARRANTY; without even the implied warranty ofMERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNULesser General Public License for more details.You should have received a copy of the GNU Lesser General PublicLicense along with this program. If not, see.=====================================================================
*/#include "kvmsg.h"
#include
#include "zlist.h"//  键是短字符串
#define KVMSG_KEY_MAX   255//  消息包含五帧
//  frame 0: 键(ZMQ字符串)
//  frame 1: 编号(8个字节，按顺序排列)
//  frame 2: UUID(二进制块，16个字节)
//  frame 3: 属性(ZMQ字符串)
//  frame 4: 值(二进制块)
#define FRAME_KEY       0
#define FRAME_SEQ       1
#define FRAME_UUID      2
#define FRAME_PROPS     3
#define FRAME_BODY      4
#define KVMSG_FRAMES    5//  类结构
struct _kvmsg {//  帧是否存在int present [KVMSG_FRAMES];//  对应消息帧zmq_msg_t frame [KVMSG_FRAMES];//  键，C语言字符串格式char key [KVMSG_KEY_MAX + 1];//  属性列表，key=value形式zlist_t *props;size_t props_size;
};//  将属性列表序列化为字符串
static void
s_encode_props (kvmsg_t *self)
{zmq_msg_t *msg = &self->frame [FRAME_PROPS];if (self->present [FRAME_PROPS])zmq_msg_close (msg);zmq_msg_init_size (msg, self->props_size);char *prop = zlist_first (self->props);char *dest = (char *) zmq_msg_data (msg);while (prop) {strcpy (dest, prop);dest += strlen (prop);*dest++ = '\n';prop = zlist_next (self->props);}self->present [FRAME_PROPS] = 1;
}//  从字符串中解析属性列表
static void
s_decode_props (kvmsg_t *self)
{zmq_msg_t *msg = &self->frame [FRAME_PROPS];self->props_size = 0;while (zlist_size (self->props))free (zlist_pop (self->props));size_t remainder = zmq_msg_size (msg);char *prop = (char *) zmq_msg_data (msg);char *eoln = memchr (prop, '\n', remainder);while (eoln) {*eoln = 0;zlist_append (self->props, strdup (prop));self->props_size += strlen (prop) + 1;remainder -= strlen (prop) + 1;prop = eoln + 1;eoln = memchr (prop, '\n', remainder);}
}//  ---------------------------------------------------------------------
//  构造函数，指定消息编号kvmsg_t *
kvmsg_new (int64_t sequence)
{kvmsg_t*self;self = (kvmsg_t *) zmalloc (sizeof (kvmsg_t));self->props = zlist_new ();kvmsg_set_sequence (self, sequence);return self;
}//  ---------------------------------------------------------------------
//  析构函数//  释放内存函数，供zhash_free_fn()调用
void
kvmsg_free (void *ptr)
{if (ptr) {kvmsg_t *self = (kvmsg_t *) ptr;//  释放所有消息帧int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++)if (self->present [frame_nbr])zmq_msg_close (&self->frame [frame_nbr]);//  释放属性列表while (zlist_size (self->props))free (zlist_pop (self->props));zlist_destroy (&self->props);//  释放对象本身free (self);}
}void
kvmsg_destroy (kvmsg_t **self_p)
{assert (self_p);if (*self_p) {kvmsg_free (*self_p);*self_p = NULL;}
}//  ---------------------------------------------------------------------
//  复制kvmsg对象kvmsg_t *
kvmsg_dup (kvmsg_t *self)
{kvmsg_t *kvmsg = kvmsg_new (0);int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++) {if (self->present [frame_nbr]) {zmq_msg_t *src = &self->frame [frame_nbr];zmq_msg_t *dst = &kvmsg->frame [frame_nbr];zmq_msg_init_size (dst, zmq_msg_size (src));memcpy (zmq_msg_data (dst),zmq_msg_data (src), zmq_msg_size (src));kvmsg->present [frame_nbr] = 1;}}kvmsg->props = zlist_copy (self->props);return kvmsg;
}//  ---------------------------------------------------------------------
//  从套接字总读取键值对，返回kvmsg实例kvmsg_t *
kvmsg_recv (void *socket)
{assert (socket);kvmsg_t *self = kvmsg_new (0);//  读取所有帧，若有异常则直接返回空int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++) {if (self->present [frame_nbr])zmq_msg_close (&self->frame [frame_nbr]);zmq_msg_init (&self->frame [frame_nbr]);self->present [frame_nbr] = 1;if (zmq_recvmsg (socket, &self->frame [frame_nbr], 0) == -1) {kvmsg_destroy (&self);break;}//  验证多帧消息int rcvmore = (frame_nbr < KVMSG_FRAMES - 1)? 1: 0;if (zsockopt_rcvmore (socket) != rcvmore) {kvmsg_destroy (&self);break;}}if (self)s_decode_props (self);return self;
}//  ---------------------------------------------------------------------
//  向套接字发送键值对消息，空消息也发送void
kvmsg_send (kvmsg_t *self, void *socket)
{assert (self);assert (socket);s_encode_props (self);int frame_nbr;for (frame_nbr = 0; frame_nbr < KVMSG_FRAMES; frame_nbr++) {zmq_msg_t copy;zmq_msg_init (©);if (self->present [frame_nbr])zmq_msg_copy (©, &self->frame [frame_nbr]);zmq_sendmsg (socket, ©,(frame_nbr < KVMSG_FRAMES - 1)? ZMQ_SNDMORE: 0);zmq_msg_close (©);}
}//  ---------------------------------------------------------------------
//  返回消息的键char *
kvmsg_key (kvmsg_t *self)
{assert (self);if (self->present [FRAME_KEY]) {if (!*self->key) {size_t size = zmq_msg_size (&self->frame [FRAME_KEY]);if (size > KVMSG_KEY_MAX)size = KVMSG_KEY_MAX;memcpy (self->key,zmq_msg_data (&self->frame [FRAME_KEY]), size);self->key [size] = 0;}return self->key;}elsereturn NULL;
}//  ---------------------------------------------------------------------
//  返回消息的编号int64_t
kvmsg_sequence (kvmsg_t *self)
{assert (self);if (self->present [FRAME_SEQ]) {assert (zmq_msg_size (&self->frame [FRAME_SEQ]) == 8);byte *source = zmq_msg_data (&self->frame [FRAME_SEQ]);int64_t sequence = ((int64_t) (source [0]) << 56)+ ((int64_t) (source [1]) << 48)+ ((int64_t) (source [2]) << 40)+ ((int64_t) (source [3]) << 32)+ ((int64_t) (source [4]) << 24)+ ((int64_t) (source [5]) << 16)+ ((int64_t) (source [6]) << 8)+  (int64_t) (source [7]);return sequence;}elsereturn 0;
}//  ---------------------------------------------------------------------
//  返回消息的UUIDbyte *
kvmsg_uuid (kvmsg_t *self)
{assert (self);if (self->present [FRAME_UUID]&&  zmq_msg_size (&self->frame [FRAME_UUID]) == sizeof (uuid_t))return (byte *) zmq_msg_data (&self->frame [FRAME_UUID]);elsereturn NULL;
}//  ---------------------------------------------------------------------
//  返回消息的内容byte *
kvmsg_body (kvmsg_t *self)
{assert (self);if (self->present [FRAME_BODY])return (byte *) zmq_msg_data (&self->frame [FRAME_BODY]);elsereturn NULL;
}//  ---------------------------------------------------------------------
//  返回消息内容的长度size_t
kvmsg_size (kvmsg_t *self)
{assert (self);if (self->present [FRAME_BODY])return zmq_msg_size (&self->frame [FRAME_BODY]);elsereturn 0;
}//  ---------------------------------------------------------------------
//  设置消息的键void
kvmsg_set_key (kvmsg_t *self, char *key)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_KEY];if (self->present [FRAME_KEY])zmq_msg_close (msg);zmq_msg_init_size (msg, strlen (key));memcpy (zmq_msg_data (msg), key, strlen (key));self->present [FRAME_KEY] = 1;
}//  ---------------------------------------------------------------------
//  设置消息的编号void
kvmsg_set_sequence (kvmsg_t *self, int64_t sequence)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_SEQ];if (self->present [FRAME_SEQ])zmq_msg_close (msg);zmq_msg_init_size (msg, 8);byte *source = zmq_msg_data (msg);source [0] = (byte) ((sequence >> 56) & 255);source [1] = (byte) ((sequence >> 48) & 255);source [2] = (byte) ((sequence >> 40) & 255);source [3] = (byte) ((sequence >> 32) & 255);source [4] = (byte) ((sequence >> 24) & 255);source [5] = (byte) ((sequence >> 16) & 255);source [6] = (byte) ((sequence >> 8)  & 255);source [7] = (byte) ((sequence)       & 255);self->present [FRAME_SEQ] = 1;
}//  ---------------------------------------------------------------------
//  生成并设置消息的UUIDvoid
kvmsg_set_uuid (kvmsg_t *self)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_UUID];uuid_t uuid;uuid_generate (uuid);if (self->present [FRAME_UUID])zmq_msg_close (msg);zmq_msg_init_size (msg, sizeof (uuid));memcpy (zmq_msg_data (msg), uuid, sizeof (uuid));self->present [FRAME_UUID] = 1;
}//  ---------------------------------------------------------------------
//  设置消息的内容void
kvmsg_set_body (kvmsg_t *self, byte *body, size_t size)
{assert (self);zmq_msg_t *msg = &self->frame [FRAME_BODY];if (self->present [FRAME_BODY])zmq_msg_close (msg);self->present [FRAME_BODY] = 1;zmq_msg_init_size (msg, size);memcpy (zmq_msg_data (msg), body, size);
}//  ---------------------------------------------------------------------
//  使用printf()格式设置消息的键
void
kvmsg_fmt_key (kvmsg_t *self, char *format, ...)
{char value [KVMSG_KEY_MAX + 1];va_list args;assert (self);va_start (args, format);vsnprintf (value, KVMSG_KEY_MAX, format, args);va_end (args);kvmsg_set_key (self, value);
}//  ---------------------------------------------------------------------
//  使用printf()格式设置消息内容void
kvmsg_fmt_body (kvmsg_t *self, char *format, ...)
{char value [255 + 1];va_list args;assert (self);va_start (args, format);vsnprintf (value, 255, format, args);va_end (args);kvmsg_set_body (self, (byte *) value, strlen (value));
}//  ---------------------------------------------------------------------
//  获取消息属性，无则返回空字符串char *
kvmsg_get_prop (kvmsg_t *self, char *name)
{assert (strchr (name, '=') == NULL);char *prop = zlist_first (self->props);size_t namelen = strlen (name);while (prop) {if (strlen (prop) > namelen&&  memcmp (prop, name, namelen) == 0&&  prop [namelen] == '=')return prop + namelen + 1;prop = zlist_next (self->props);}return "";
}//  ---------------------------------------------------------------------
//  设置消息属性
//  属性名称不能包含=号，值的最大长度是255void
kvmsg_set_prop (kvmsg_t *self, char *name, char *format, ...)
{assert (strchr (name, '=') == NULL);char value [255 + 1];va_list args;assert (self);va_start (args, format);vsnprintf (value, 255, format, args);va_end (args);//  分配空间char *prop = malloc (strlen (name) + strlen (value) + 2);//  删除已存在的属性sprintf (prop, "%s=", name);char *existing = zlist_first (self->props);while (existing) {if (memcmp (prop, existing, strlen (prop)) == 0) {self->props_size -= strlen (existing) + 1;zlist_remove (self->props, existing);free (existing);break;}existing = zlist_next (self->props);}//  添加新属性strcat (prop, value);zlist_append (self->props, prop);self->props_size += strlen (prop) + 1;
}//  ---------------------------------------------------------------------
//  在哈希表中保存kvmsg对象
//  当kvmsg对象不再被使用时进行释放操作；
//  若传入的值为空，则删除该对象。void
kvmsg_store (kvmsg_t **self_p, zhash_t *hash)
{assert (self_p);if (*self_p) {kvmsg_t *self = *self_p;assert (self);if (kvmsg_size (self)) {if (self->present [FRAME_KEY]&&  self->present [FRAME_BODY]) {zhash_update (hash, kvmsg_key (self), self);zhash_freefn (hash, kvmsg_key (self), kvmsg_free);}}elsezhash_delete (hash, kvmsg_key (self));*self_p = NULL;}
}//  ---------------------------------------------------------------------
//  将消息内容输出到标准错误输出void
kvmsg_dump (kvmsg_t *self)
{if (self) {if (!self) {fprintf (stderr, "NULL");return;}size_t size = kvmsg_size (self);byte  *body = kvmsg_body (self);fprintf (stderr, "[seq:%" PRId64 "]", kvmsg_sequence (self));fprintf (stderr, "[key:%s]", kvmsg_key (self));fprintf (stderr, "[size:%zd] ", size);if (zlist_size (self->props)) {fprintf (stderr, "[");char *prop = zlist_first (self->props);while (prop) {fprintf (stderr, "%s;", prop);prop = zlist_next (self->props);}fprintf (stderr, "]");}int char_nbr;for (char_nbr = 0; char_nbr < size; char_nbr++)fprintf (stderr, "%02X", body [char_nbr]);fprintf (stderr, "\n");}elsefprintf (stderr, "NULL message\n");
}//  ---------------------------------------------------------------------
//  测试用例int
kvmsg_test (int verbose)
{kvmsg_t*kvmsg;printf (" * kvmsg: ");//  准备上下文和套接字zctx_t *ctx = zctx_new ();void *output = zsocket_new (ctx, ZMQ_DEALER);int rc = zmq_bind (output, "ipc://kvmsg_selftest.ipc");assert (rc == 0);void *input = zsocket_new (ctx, ZMQ_DEALER);rc = zmq_connect (input, "ipc://kvmsg_selftest.ipc");assert (rc == 0);zhash_t *kvmap = zhash_new ();//  测试简单消息的收发kvmsg = kvmsg_new (1);kvmsg_set_key  (kvmsg, "key");kvmsg_set_uuid (kvmsg);kvmsg_set_body (kvmsg, (byte *) "body", 4);if (verbose)kvmsg_dump (kvmsg);kvmsg_send (kvmsg, output);kvmsg_store (&kvmsg, kvmap);kvmsg = kvmsg_recv (input);if (verbose)kvmsg_dump (kvmsg);assert (streq (kvmsg_key (kvmsg), "key"));kvmsg_store (&kvmsg, kvmap);// 测试带有属性的消息的收发kvmsg = kvmsg_new (2);kvmsg_set_prop (kvmsg, "prop1", "value1");kvmsg_set_prop (kvmsg, "prop2", "value1");kvmsg_set_prop (kvmsg, "prop2", "value2");kvmsg_set_key  (kvmsg, "key");kvmsg_set_uuid (kvmsg);kvmsg_set_body (kvmsg, (byte *) "body", 4);assert (streq (kvmsg_get_prop (kvmsg, "prop2"), "value2"));if (verbose)kvmsg_dump (kvmsg);kvmsg_send (kvmsg, output);kvmsg_destroy (&kvmsg);kvmsg = kvmsg_recv (input);if (verbose)kvmsg_dump (kvmsg);assert (streq (kvmsg_key (kvmsg), "key"));assert (streq (kvmsg_get_prop (kvmsg, "prop2"), "value2"));kvmsg_destroy (&kvmsg);//  关闭并销毁所有对象zhash_destroy (&kvmap);zctx_destroy (&ctx);printf ("OK\n");return 0;
}

        客户端模型5和模型4没有太大区别，只是kvmsg类库变了。在更新消息的时候还需要添加一个过期时间的属性：

kvmsg_set_prop (kvmsg, "ttl", "%d", randof (30));

        服务端模型5有较大的变化，我们会用反应堆来代替轮询，这样就能混合处理定时事件和套接字事件了，只是在C语言中是比较麻烦的。下面是代码：

        clonesrv5: Clone server, Model Five in C

//
//  克隆模式 - 服务端 - 模型5
////  直接编译，不建类库
#include "kvmsg.c"//  反应堆处理器
static int s_snapshots  (zloop_t *loop, void *socket, void *args);
static int s_collector  (zloop_t *loop, void *socket, void *args);
static int s_flush_ttl  (zloop_t *loop, void *socket, void *args);//  服务器属性
typedef struct {zctx_t *ctx;                //  上下文zhash_t *kvmap;             //  键值对存储zloop_t *loop;              //  zloop反应堆int port;                   //  主端口int64_t sequence;           //  更新事件编号void *snapshot;             //  处理快照请求void *publisher;            //  发布更新事件void *collector;            //  从客户端收集接收更新事件
} clonesrv_t;int main (void)
{clonesrv_t *self = (clonesrv_t *) zmalloc (sizeof (clonesrv_t));self->port = 5556;self->ctx = zctx_new ();self->kvmap = zhash_new ();self->loop = zloop_new ();zloop_set_verbose (self->loop, FALSE);//  打开克隆模式服务端套接字self->snapshot  = zsocket_new (self->ctx, ZMQ_ROUTER);self->publisher = zsocket_new (self->ctx, ZMQ_PUB);self->collector = zsocket_new (self->ctx, ZMQ_PULL);zsocket_bind (self->snapshot,  "tcp://*:%d", self->port);zsocket_bind (self->publisher, "tcp://*:%d", self->port + 1);zsocket_bind (self->collector, "tcp://*:%d", self->port + 2);//  注册反应堆处理程序zloop_reader (self->loop, self->snapshot, s_snapshots, self);zloop_reader (self->loop, self->collector, s_collector, self);zloop_timer  (self->loop, 1000, 0, s_flush_ttl, self);//  运行反应堆，直至中断zloop_start (self->loop);zloop_destroy (&self->loop);zhash_destroy (&self->kvmap);zctx_destroy (&self->ctx);free (self);return 0;
}//  ---------------------------------------------------------------------
//  发送快照内容static int s_send_single (char *key, void *data, void *args);//  请求方信息
typedef struct {void *socket;           //  ROUTER套接字zframe_t *identity;     //  请求方标识char *subtree;          //  子树信息
} kvroute_t;static int
s_snapshots (zloop_t *loop, void *snapshot, void *args)
{clonesrv_t *self = (clonesrv_t *) args;zframe_t *identity = zframe_recv (snapshot);if (identity) {//  请求位于消息第二帧char *request = zstr_recv (snapshot);char *subtree = NULL;if (streq (request, "ICANHAZ?")) {free (request);subtree = zstr_recv (snapshot);}elseprintf ("E: 错误的请求，程序中止\n");if (subtree) {//  发送状态快照kvroute_t routing = { snapshot, identity, subtree };zhash_foreach (self->kvmap, s_send_single, &routing);//  发送结束符和版本号zclock_log ("I: 正在发送快照，版本号：%d", (int) self->sequence);zframe_send (&identity, snapshot, ZFRAME_MORE);kvmsg_t *kvmsg = kvmsg_new (self->sequence);kvmsg_set_key  (kvmsg, "KTHXBAI");kvmsg_set_body (kvmsg, (byte *) subtree, 0);kvmsg_send     (kvmsg, snapshot);kvmsg_destroy (&kvmsg);free (subtree);}}return 0;
}//  每次发送一个快照键值对
static int
s_send_single (char *key, void *data, void *args)
{kvroute_t *kvroute = (kvroute_t *) args;kvmsg_t *kvmsg = (kvmsg_t *) data;if (strlen (kvroute->subtree) <= strlen (kvmsg_key (kvmsg))&&  memcmp (kvroute->subtree,kvmsg_key (kvmsg), strlen (kvroute->subtree)) == 0) {//  先发送接收方标识zframe_send (&kvroute->identity,kvroute->socket, ZFRAME_MORE + ZFRAME_REUSE);kvmsg_send (kvmsg, kvroute->socket);}return 0;
}//  ---------------------------------------------------------------------
//  收集更新事件static int
s_collector (zloop_t *loop, void *collector, void *args)
{clonesrv_t *self = (clonesrv_t *) args;kvmsg_t *kvmsg = kvmsg_recv (collector);if (kvmsg) {kvmsg_set_sequence (kvmsg, ++self->sequence);kvmsg_send (kvmsg, self->publisher);int ttl = atoi (kvmsg_get_prop (kvmsg, "ttl"));if (ttl)kvmsg_set_prop (kvmsg, "ttl","%" PRId64, zclock_time () + ttl * 1000);kvmsg_store (&kvmsg, self->kvmap);zclock_log ("I: 正在发布更新事件 %d", (int) self->sequence);}return 0;
}//  ---------------------------------------------------------------------
//  删除过期的瞬间值static int s_flush_single (char *key, void *data, void *args);static int
s_flush_ttl (zloop_t *loop, void *unused, void *args)
{clonesrv_t *self = (clonesrv_t *) args;zhash_foreach (self->kvmap, s_flush_single, args);return 0;
}//  删除过期的键值对，并广播该事件
static int
s_flush_single (char *key, void *data, void *args)
{clonesrv_t *self = (clonesrv_t *) args;kvmsg_t *kvmsg = (kvmsg_t *) data;int64_t ttl;sscanf (kvmsg_get_prop (kvmsg, "ttl"), "%" PRId64, &ttl);if (ttl && zclock_time () >= ttl) {kvmsg_set_sequence (kvmsg, ++self->sequence);kvmsg_set_body (kvmsg, (byte *) "", 0);kvmsg_send (kvmsg, self->publisher);kvmsg_store (&kvmsg, self->kvmap);zclock_log ("I: 发布删除事件 %d", (int) self->sequence);}return 0;
}
