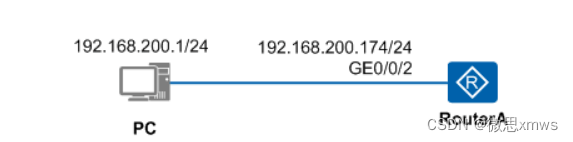

组网图形

组网需求

RouterA的管理网口与用户侧主机HostA相连。要求通过BootROM菜单下载系统文件至RouterA完成系统升级。

操作步骤

1.在PC端启动FTP Server服务。

2.用串口线连接并通过Console口登录设备。

3.重启设备，在设备出现“Press Ctrl+B to break auto startup ...”打印信息时，按下“Ctrl+B”并键入密码后进入BootROM主菜单。

BIOS Creation Date : Nov 10 2011, 14:41:12                                      DDR DRAM init : OK                                                              Start Memory Test ? ('t' or 'T' is test):skip                                   Copying Data : Done                                                             Uncompressing : Done                                                            USB2 Host Stack Initialized.                                                    USB Hub Driver Initialized                                                      USBD  Wind River Systems, Inc. 562 Initialized                                  Octeon Host Controller Initialize......Done.      Press Ctrl+B to break auto startup ... 2

4.进入BootROM菜单后，选择第3项，进入网络子菜单。

Main Menu                                                                                                                                                   1. Default Startup                                                              2. Serial Menu                                                                  3. Network Menu                                                                 4. Startup Select                                                               5. File Manager                                                                 6. Password Manager                                                             7. Reboot                                                                                                                                                   Enter your choice(1-7):3

5.进入网络子菜单后，选择第2项，修改属性。

       ​​​​​​

 Network Menu                                                                                                                                                1. Display parameter                                                            2. Modify parameter                                                             3. Save parameter                                                               4. Download file                                                                0. Return                                                                                                                                                   Enter your choice(0-4):2

6.选择Ftp type为FTP类型，设置设备管理网口的IP地址、子网掩码和网关地址，设置FTP Server的IP地址、用户名和密码。

NOTE:                                                                           Ftp type define:  0(ftp), 1(tftp),                                              ENTER = no change; '.' = clear;                                                                                                                                 Ftp type            : 0                                                         File name           : software.cc                           Ethernet ip address : 192.168.200.174                                           Ethernet ip mask    : ffffff00                                                  Gateway ip address  :                                                           Ftp host ip address : 192.168.200.1                                             Ftp user            : huawei                                                        Ftp password        : **********

7.完成属性配置后，自动返回至网络子菜单，选择第4项，从FTP服务器上下载资源文件。

​​​​​​​

 Network Menu                                                                                                                                                1. Display parameter                                                            2. Modify parameter                                                             3. Save parameter                                                               4. Download file                                                                0. Return                                                                                                                                                   Enter your choice(0-4):4

8.选择文件存放路径后下载文件。

Download file to: [ 1:flash 2:sd1 ]:2                                           Check SD Card[1] file system. Please wait....                                                                                                                   sd1:/  - Volume is OK                                                                                                                                           File system check OK!                                                           Downloading ....                                                                Get 77773440 Bytes from 192.168.200.1.                                          Writing file:[sd1:/software.cc] to file system.......................................................................................................................................................................................................................................................................................................................................OK!

​​​​​​​

9.下载文件成功后返回主菜单，修改启动配置信息。        Network Menu                                                                                                                                                1. Display parameter                                                            2. Modify parameter                                                             3. Save parameter                                                               4. Download file                                                                0. Return                                                                                                                                                   Enter your choice(0-4):0                                                                Main Menu                                                                                                                                                   1. Default Startup                                                              2. Serial Menu                                                                  3. Network Menu                                                                 4. Startup Select                                                               5. File Manager                                                                 6. Password Manager                                                             7. Reboot                                                                                                                                                   Enter your choice(1-7):4

10.设置下次启动的系统软件。

​​​​​​​

  Startup Select     1. Display Startup    2. Set Boot File    3. Set Config File    4. Startupfile Check Manage    5. Set Startup Waiting Time    0. return Enter your choice(0-5):2        Select Boot File     1. Flash    2. SDCard[1]    0. Return Enter your choice(0-2):2NOTE: Boot file must be .cc or .CC Current boot file: sd1:/softwarenew.ccPress ENTER directly for no change.Or, please input the new file name: sd1:/software.ccSave the boot file name: sd1:/software.cc ? Yes or No(Y/N)ySave load state word...OK!

11.返回主菜单，重启设备。

     Select Boot File     1. Flash    2. SDCard[1]    0. Return Enter your choice(0-2):0        Startup Select     1. Display Startup    2. Set Boot File    3. Set Config File    4. Startupfile Check Manage    5. Set Startup Waiting Time    0. return Enter your choice(0-5):0        Main Menu                                                                                                                                                   1. Default Startup                                                              2. Serial Menu                                                                  3. Network Menu                                                                 4. Startup Select                                                               5. File Manager                                                                 6. Password Manager                                                             7. Reboot                                                                                                                                                   Enter your choice(1-7):7
