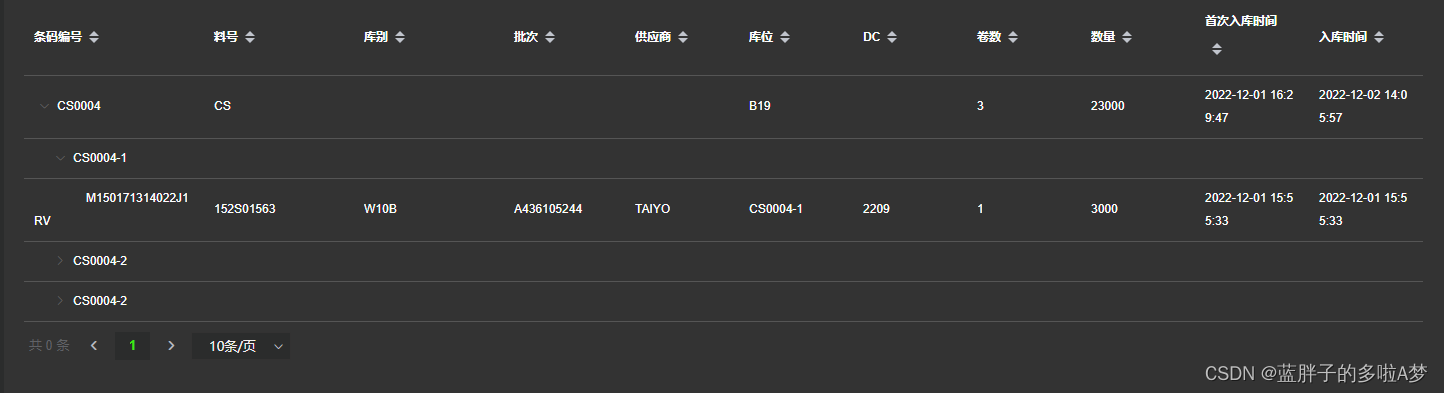

实现效果：

element官网提示设置tree-props为{children: ‘children’,hasChildren: ‘hasChildren’}，data数据需要设置children和hasChildren属性，row-key也绑定了数据的唯一值变量id，但是树形结构的第三级就是出不来

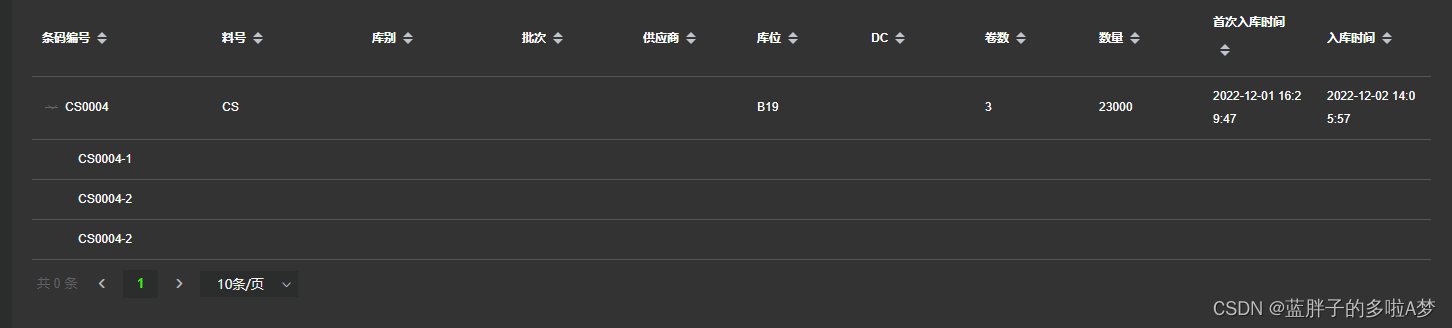

如图

可以看到只有第二级，第三级并没有，于是查看了数据格式，和官方要求的也是一样的呢，但是第三层级就是不展示

最后发现

在el-table中，支持树类型的数据的显示。当 row 中包含 children 字段时，被视为树形数据。渲染树形数据时，必须要指定 row-key。支持子节点数据异步加载。

设置 Table 的 lazy 属性为 true 与加载函数 load 。通过指定 row 中的 hasChildren 字段来指定哪些行是包含子节点。children 与 hasChildren 都可以通过 tree-props 配置。

default-expand-all属性表示默认展开，不需要展开可以删除。row-key="id" 和 row里面的属性有children字段(即数据里面需要有children字段) 是必须的，:tree-props="{children: ‘children’,hasChildren: ‘hasChildren’}可有可无。

如果不是懒加载的话，后端不要设置hasChildren 这个属性，要不然树形不能显示；

如果是懒加载，则需要设置hasChildren字段。

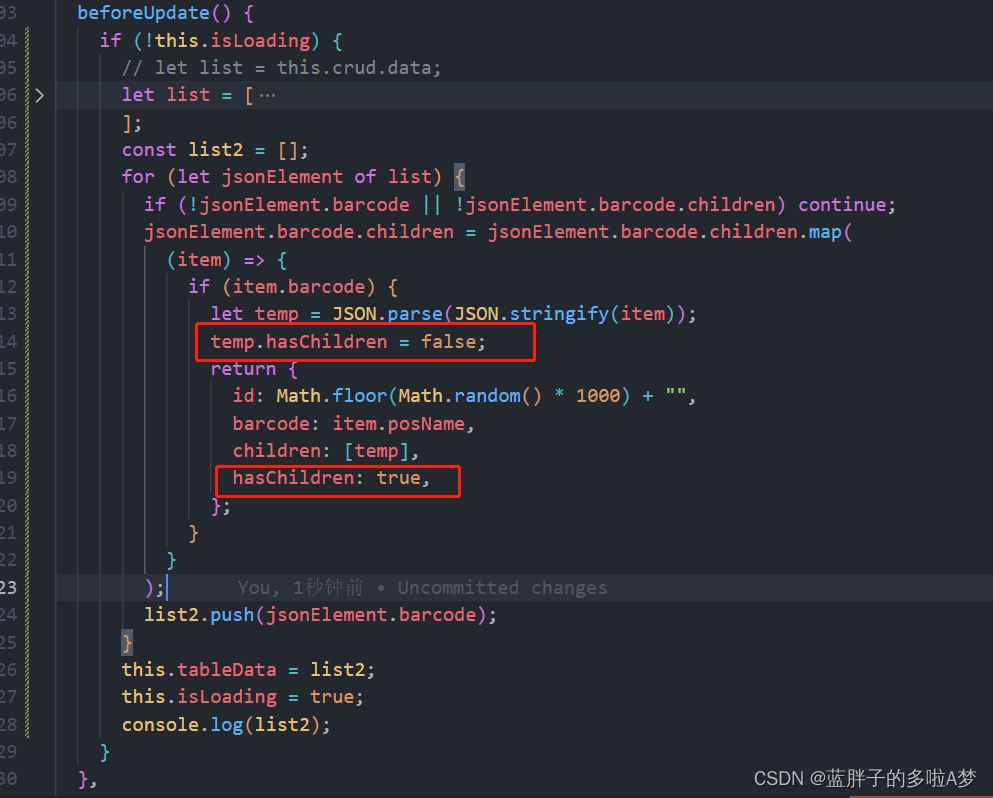

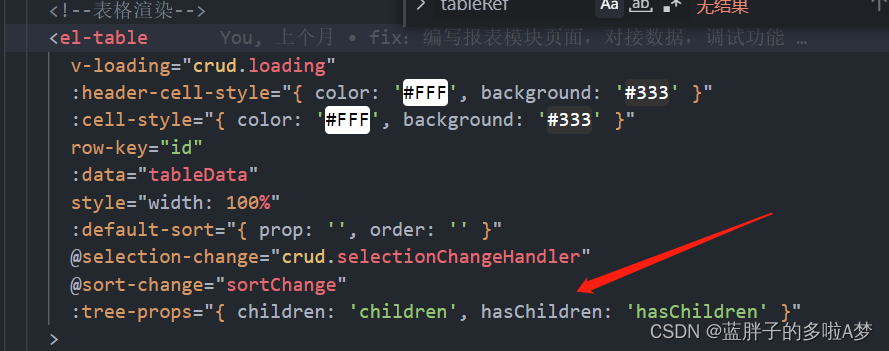

错误代码：

因为我的数据不是懒加载，所以不需要添加后面的 hasChildren: 'hasChildren' 配置
并且在组装数据格式时，也不需要加上 hasChildren=true / hasChildren=false 的字段

完整代码：

接口返回的数据 为 二级 数据格式 但是table表格中要展示 三个层级 需要前端自己来处理 组装需要的格式
（有和我一样的小伙伴，可以让后端组装好格式返回噢）

 let list = [{canCheckOutTime: 1669613688280enabled: truegroupId: ""groupName: ""h: 8humidity: ""id: "21"labelId: ""labelName: ""posName: "C1"priority: 1storageId: "1"temperature: ""used: truew: 7warmPos: false
},{barcode: {amount: 23000,barcode: "CS0004",batch: "",children: [{amount: 3000,barcode: "M150171314022J1RV",batch: "A436105244",createDate: "2022-12-01 15:55:32",dateCode: "2209",firstPutInDate: "2022-12-01 15:55:33",fullCode:"152S01563-017131|A436105244-2209|3000|M150171314022J1RV|TAIYO|4101546111011J1007FS",height: 8,id: "92",initialAmount: 0,labelAmount: 3000,maxStorageTime: 0,mixTime: 0,onlySingleOut: false,partNumber: "152S01563",partitionCount: 1,plateSize: 7,posName: "CS0004-1",provider: "TAIYO",providerNumber: "017131",putInDate: "2022-12-01 15:55:33",putInTime: 1669881333306,putInTimeStr: "2022-12-01 15:55:306",reelAmount: 1,relationCodes: [],size: "7X8",solder: false,solderStatus: 0,startWarmTime: -1,status: 0,thickness: "",type: 0,updateDate: "2022-12-01 15:55:33",used: false,usedCount: 0,warehouseCode: "W10B",warmTime: 0,},{amount: 10000,barcode: "A1179700142220JB6S",batch: "TPA2233000KP",createDate: "2022-12-01 15:56:01",dateCode: "2022080",firstPutInDate: "2022-12-01 15:56:02",fullCode:"118S0176-797001|TPA2233000KP-20220807|10000|A1179700142220JB6S|CYNTEC|TPA2233000KP0000JB6S",height: 8,id: "95",initialAmount: 0,labelAmount: 10000,maxStorageTime: 0,mixTime: 0,onlySingleOut: false,partNumber: "118S0176",partitionCount: 2,plateSize: 7,posName: "CS0004-2",provider: "CYNTEC",providerNumber: "797001",putInDate: "2022-12-01 15:56:02",putInTime: 1669881362306,putInTimeStr: "2022-12-01 15:56:306",reelAmount: 1,relationCodes: [],size: "7X8",solder: false,solderStatus: 0,startWarmTime: -1,status: 0,thickness: "",type: 0,updateDate: "2022-12-01 15:56:02",used: false,usedCount: 0,warehouseCode: "W10B",warmTime: 0,},{amount: 10000,barcode: "A1179700142220JB7L",batch: "TPA2233000KP",createDate: "2022-12-01 15:56:06",dateCode: "2022080",firstPutInDate: "2022-12-01 15:56:07",fullCode:"118S0176-797001|TPA2233000KP-20220807|10000|A1179700142220JB7L|CYNTEC|TPA2233000KP0000JB7L",height: 8,id: "96",initialAmount: 0,labelAmount: 10000,maxStorageTime: 0,mixTime: 0,onlySingleOut: false,partNumber: "118S0176",partitionCount: 2,plateSize: 7,posName: "CS0004-2",provider: "CYNTEC",providerNumber: "797001",putInDate: "2022-12-01 15:56:07",putInTime: 1669881367304,putInTimeStr: "2022-12-01 15:56:304",reelAmount: 1,relationCodes: [],size: "7X8",solder: false,solderStatus: 0,startWarmTime: -1,status: 0,thickness: "",type: 0,updateDate: "2022-12-01 15:56:07",used: false,usedCount: 0,warehouseCode: "W10B",warmTime: 0,},],createDate: "2022-12-01 15:55:05",firstPutInDate: "2022-12-01 16:29:47",fullCode: "CS0004-1",height: 8,id: "90",initialAmount: 0,labelAmount: 0,maxStorageTime: 0,mixTime: 0,onlySingleOut: false,outOpor: "",partNumber: "CS",partitionCount: 0,plateSize: 7,posName: "B19",putInDate: "2022-12-02 14:05:57",putInTime: 1669883387333,putInTimeStr: "2022-12-01 16:29:333",reelAmount: 3,relationCodes: [],size: "7X8",solder: false,solderStatus: 0,startWarmTime: -1,status: 0,subCodeList: [],thickness: "",type: 0,updateDate: "2022-12-02 14:05:57",used: true,usedCount: 4,usedDate: "2022-12-01 17:03:30",warmTime: 0,},canCheckOutTime: 1669961157870,enabled: true,groupId: "",groupName: "",h: 8,humidity: "",id: "59",labelId: "",labelName: "",posName: "B19",priority: 19,storageId: "3",temperature: "",used: true,w: 7,warmPos: false,},];

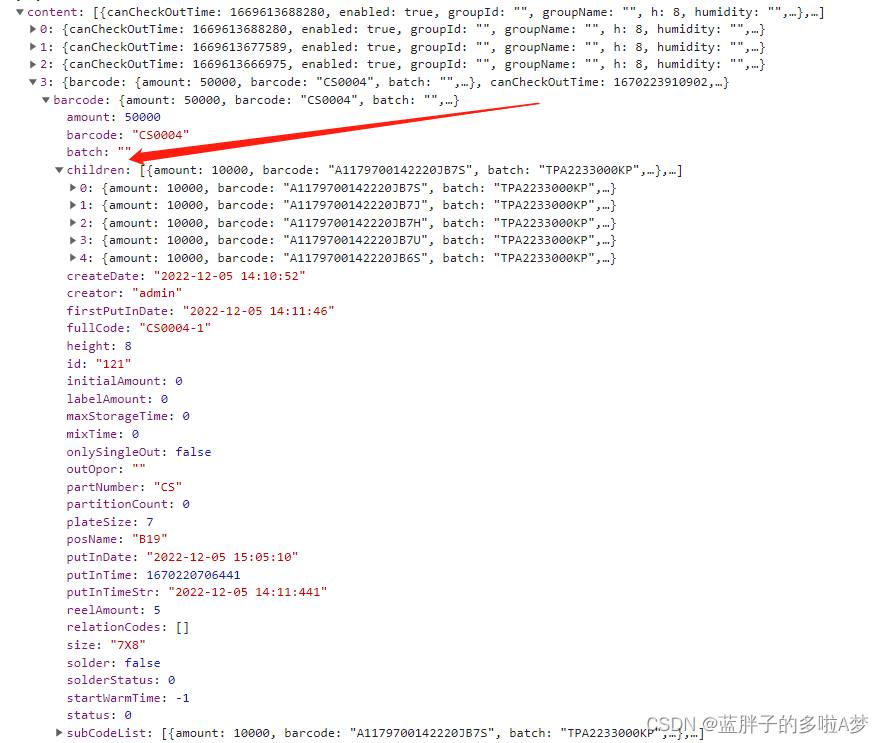

可以看出

有的数据中没有children字段，有的有children字段
后端返回的树形结构数据一个二级数据格式，还需要前端处理，将children中每一条数据里的 posName 字段值取出来 并赋值给一个 barcode 的新字段 加上id 组成第二级数据，后端返回的 第二层级数据 作为 树形结构的 第三层级数据 使用

js代码

  methods: {//从接口中获取数据getList() {let data = this.query;outerInventory(data).then((res) => {this.pageLength = res.totalElements;this.changeTableJson(res.content); //调用组装数据方法});},// 组装表格需要的数据格式changeTableJson(listArray) {if (!this.isLoading) {const list2 = [];for (let jsonElement of listArray) {if (!jsonElement.barcode || !jsonElement.barcode.children) {list2.push(jsonElement);continue;}jsonElement.barcode.children = jsonElement.barcode.children.map((item) => {if (item.barcode) {let temp = JSON.parse(JSON.stringify(item));return {id: Math.floor(Math.random() * 1000) + "",barcode: item.posName,children: [temp],};}});list2.push(jsonElement.barcode);}this.tableData = list2;this.isLoading = true;console.log(list2);}},
}

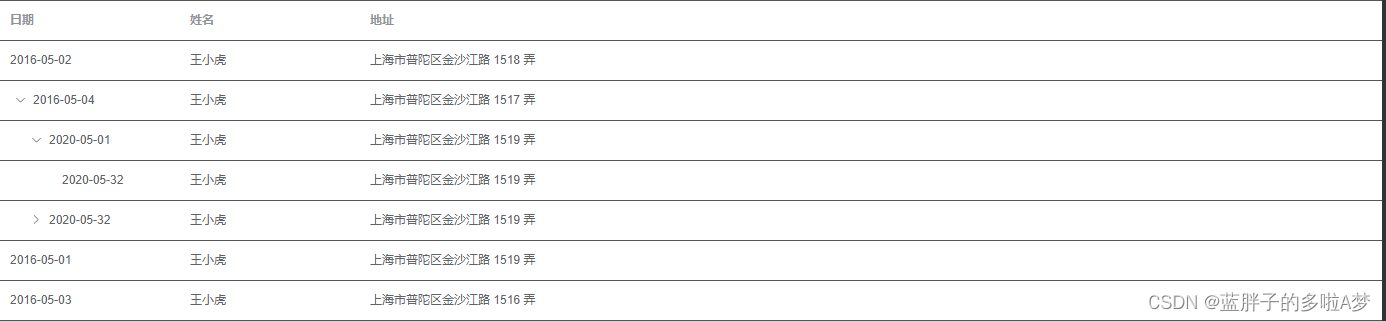

三级树形结构 官方例子

data() {return {tableData1: [{id: 1,date: '2016-05-02',name: '王小虎',address: '上海市普陀区金沙江路 1518 弄'},{id: 2,date: '2016-05-04',name: '王小虎',address: '上海市普陀区金沙江路 1517 弄',children: [{id: 31,date: '2020-05-01',name: '王小虎',address: '上海市普陀区金沙江路 1519 弄',children: [{id: 33,date: '2020-05-32',name: '王小虎',address: '上海市普陀区金沙江路 1519 弄'}]},{id: 32,date: '2020-05-32',name: '王小虎',address: '上海市普陀区金沙江路 1519 弄',children: [{id: 34,date: '2020-05-32',name: '王小虎',address: '上海市普陀区金沙江路 1519 弄'}]}]},{id: 3,date: '2016-05-01',name: '王小虎',address: '上海市普陀区金沙江路 1519 弄',},{id: 4,date: '2016-05-03',name: '王小虎',address: '上海市普陀区金沙江路 1516 弄'}]}},

实现效果
