opencv c++ 霍夫直线检测
目的：在进行图像边缘提取后，将数据从平面坐标转换到极坐标空间，即完成了直线的信息提取。
1、原理
平面坐标系：通过之间的斜率k和截距b来确定一条直线。y = kx+b
极坐标系：通过半径r、角度θ来确定一条直线。r = xcosθ + y sinθ
注：在图像处理中，定义的平面坐标原点位于左上角，横轴为x，右方向为正方向，纵轴为y，下方向为正方向。
对于直线上任意一点
，都有：

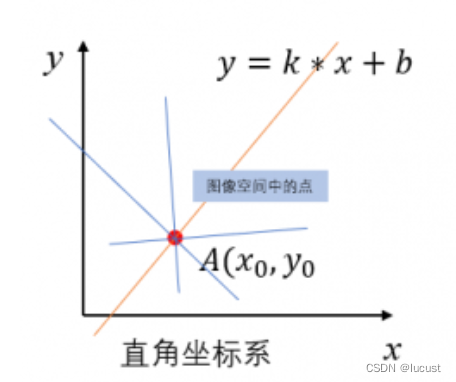

对于任意点，经过它的线有无数：

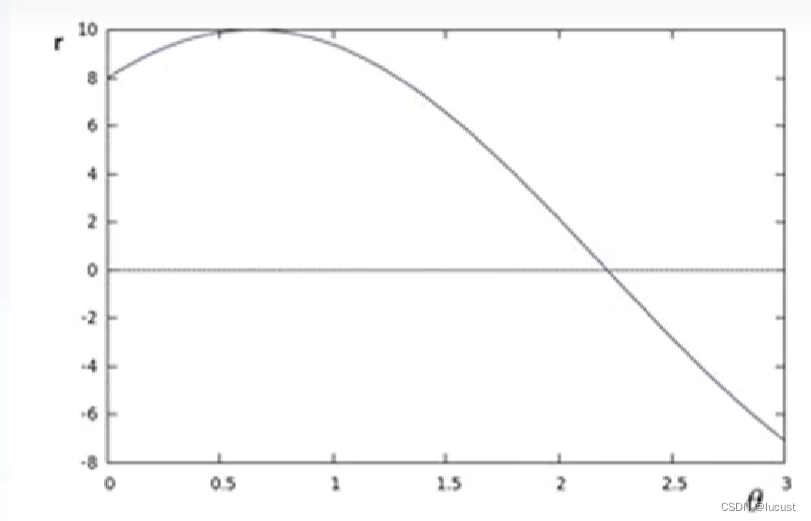

将其通过公式转换为极坐标的形式，这些线就变成了θ-r坐标系上的一系列点：

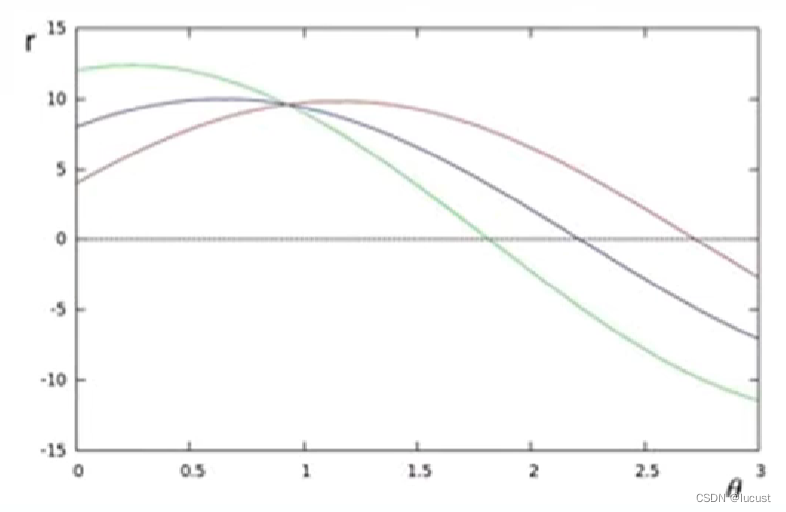

当引入其他点后，通过极坐标的曲线交点就能确定这些点所处的直线的r、θ信息。：
注：在实际算法中，会设定一个阈值T，当相交于同一点的点确定的曲线数量大于T时，才将这条被确定直线纳入统计，反之则排除它。
参考：(36条消息) 霍夫直线检测原理详解_秃头小苏的博客-CSDN博客_霍夫直线
2、API
OpenCV: Feature Detection
这两个计算直线的API的输出均为 vector
void cv::HoughLines ( InputArray image,OutputArray lines,double rho,double theta,int threshold,double srn = 0,double stn = 0,double min_theta = 0,double max_theta = CV_PI )
void cv::HoughLinesP ( InputArray image,OutputArray lines,double rho,double theta,int threshold,double minLineLength = 0,double maxLineGap = 0 ) image——二值化后的图像。
lines——输出的直线信息， vector/vector 。形式，分别储存距离、角度、累加值(用于判断该直线是否纳入统计)
rho——距离步长
theta ——角度步长
threshold ——累加值阈值，只统计交点累计格式大于该值的直线。
srn ——用于多阶霍夫变换, it is a divisor for the distance resolution rho . The coarse accumulator distance resolution is rho and the accurate accumulator resolution is rho/srn . If both srn=0 and stn=0 , the classical Hough transform is used. Otherwise, both these parameters should be positive.
stn ——用于多阶霍夫变换, it is a divisor for the distance resolution theta.
min_theta ——最小角度阈值
max_theta ——最大角度阈值。Must fall between min_theta and CV_PI.minLineLength Minimum line length. Line segments shorter than that are rejected.
maxLineGap ——当直线有间断时，认为互相间断的两条直线为同一直线的允许最大像素间隔数。
HoughLines 与 HoughLinesP 区别：
HoughLines 输出 vector

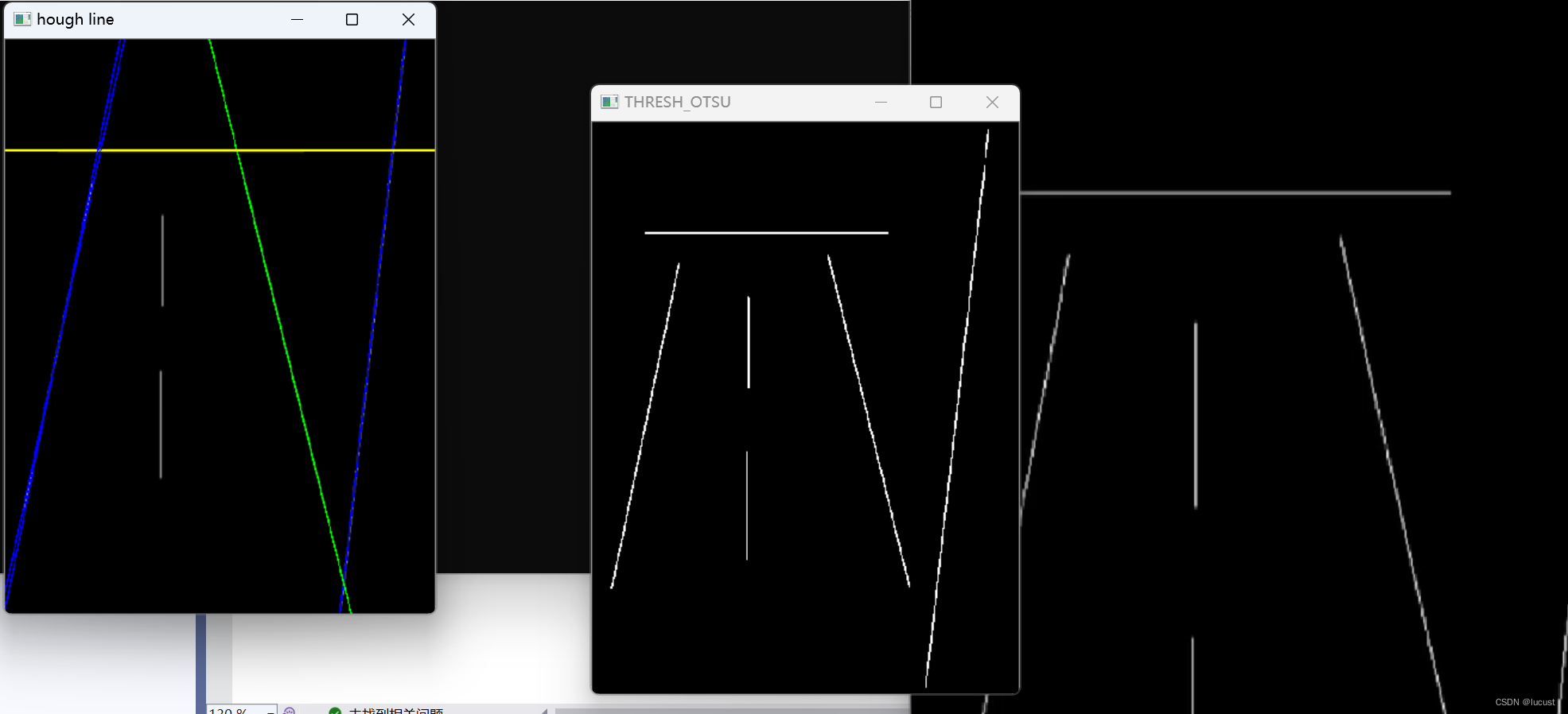

void QuickDemo::hough_line_detect(Mat& image)
{GaussianBlur(image, image, Size(3, 3), 0);Mat gray;cvtColor(image, gray, COLOR_BGR2GRAY);Mat binary;threshold(gray, binary, 0, 255, THRESH_BINARY | THRESH_OTSU);namedWindow("THRESH_OTSU", WINDOW_FREERATIO);imshow("THRESH_OTSU", binary);vector> contours;vector hierachy;findContours(binary, contours, hierachy, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE, Point());//霍夫直线检测vector lines;HoughLines(binary, lines, 1, CV_PI / 180.0, 300, 0, 0);//绘制检测出的直线Point ptz1, ptz2;for (size_t i = 0; i < lines.size(); ++i) {float rth = lines[i][0];//距离float theta = lines[i][1];//角度float accu = lines[i][2];//累加值//cout << "rth:" << rth << ",theta:" << theta << ",accu:" << accu << endl;double a = cos(theta);double b = sin(theta);double x0 = a * rth, y0 = b * rth;ptz1.x = cvRound(x0 + 1000 * (-b));ptz1.y = cvRound(y0 + 1000 * (a));ptz2.x = cvRound(x0 - 1000 * (-b));ptz2.y = cvRound(y0 - 1000 * (a));//line(image, ptz1, ptz2, Scalar(255, 0, 0), 2, 8);//根据角度给线不同的颜色int angle = round((theta / CV_PI) * 180);if (rth > 0) {line(image, ptz1, ptz2, Scalar(255, 0, 0), 2, 8);if(angle == 90)line(image, ptz1, ptz2, Scalar(0, 255, 255), 2, 8);if(angle < 1)line(image, ptz1, ptz2, Scalar(0, 255, 255), 2, 8);}elseline(image, ptz1, ptz2, Scalar(0, 255, 0), 2, 8);}namedWindow("hough line", WINDOW_FREERATIO);imshow("hough line", image);
}

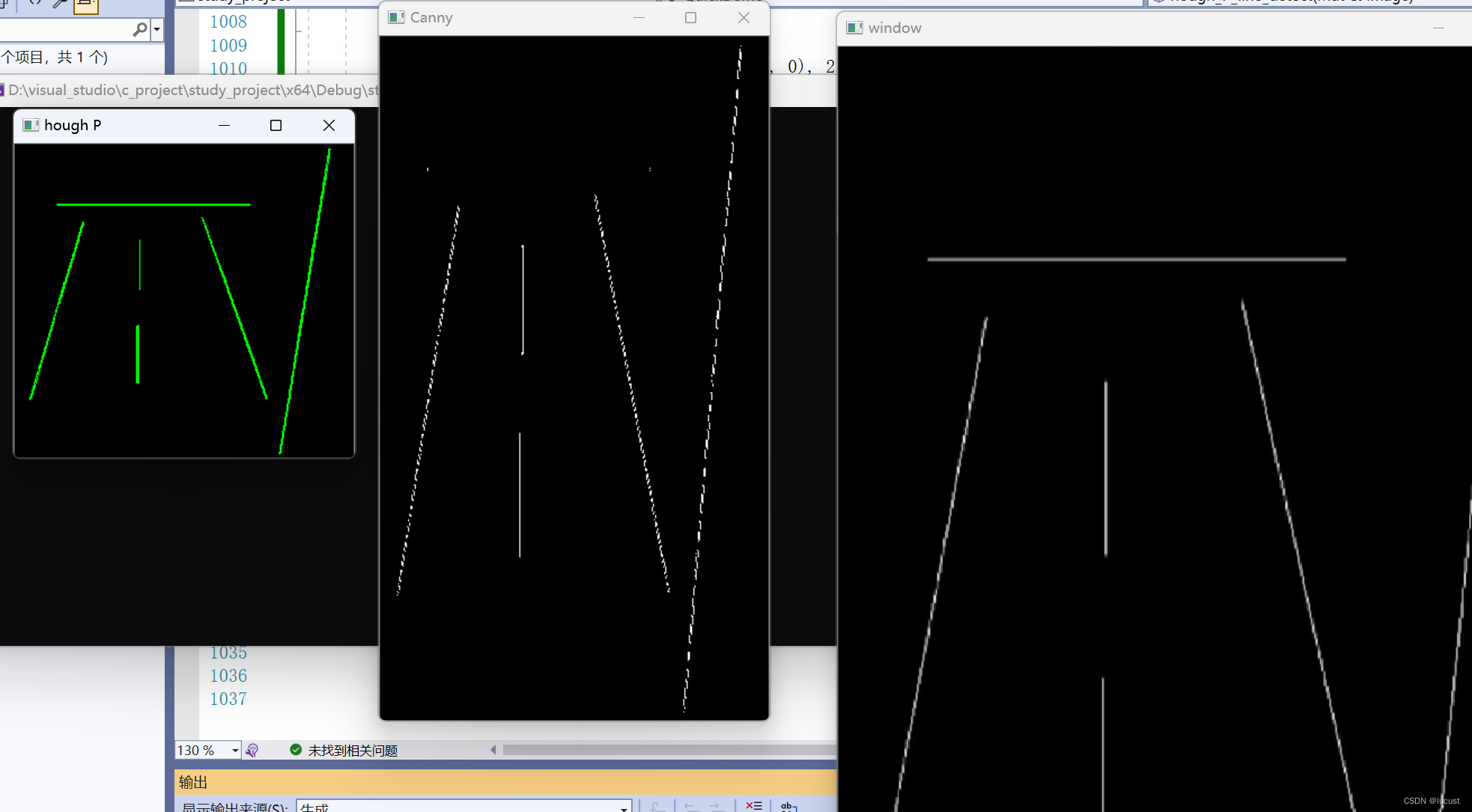

void QuickDemo::hough_P_line_detect(Mat& image)
{Mat gray, binary;cvtColor(image, gray, COLOR_BGR2GRAY);Canny(gray, binary, 80, 160, 3, false);namedWindow("Canny", WINDOW_FREERATIO);imshow("Canny", binary);vector lines;HoughLinesP(binary, lines, 1, CV_PI / 180.0, 80, 30, 10);Mat result = Mat::zeros(image.size(), image.type());for (int i = 0; i < lines.size(); ++i) {line(result, Point(lines[i][0], lines[i][1]), Point(lines[i][2], lines[i][3]), Scalar(0, 255, 0),2, 8);}namedWindow("hough P", WINDOW_FREERATIO);imshow("hough P", result);}
