chrome新特性-recorder

• • 一、简介
  • 二、录制
  • 三、录制回放
  • • 1.Chrome DevTool工具
    • 2.Puppeteer脚本
    • • (1) 介绍
      • (2) 使用

一、简介

recorder
与Selenium IDE浏览器插件类似，可用于自动化测试及脚本生成(Puppeteer脚本);前者为Web自动化测试框架Selenium的配套浏览器插件支持Java、Python等测试脚本的生成。

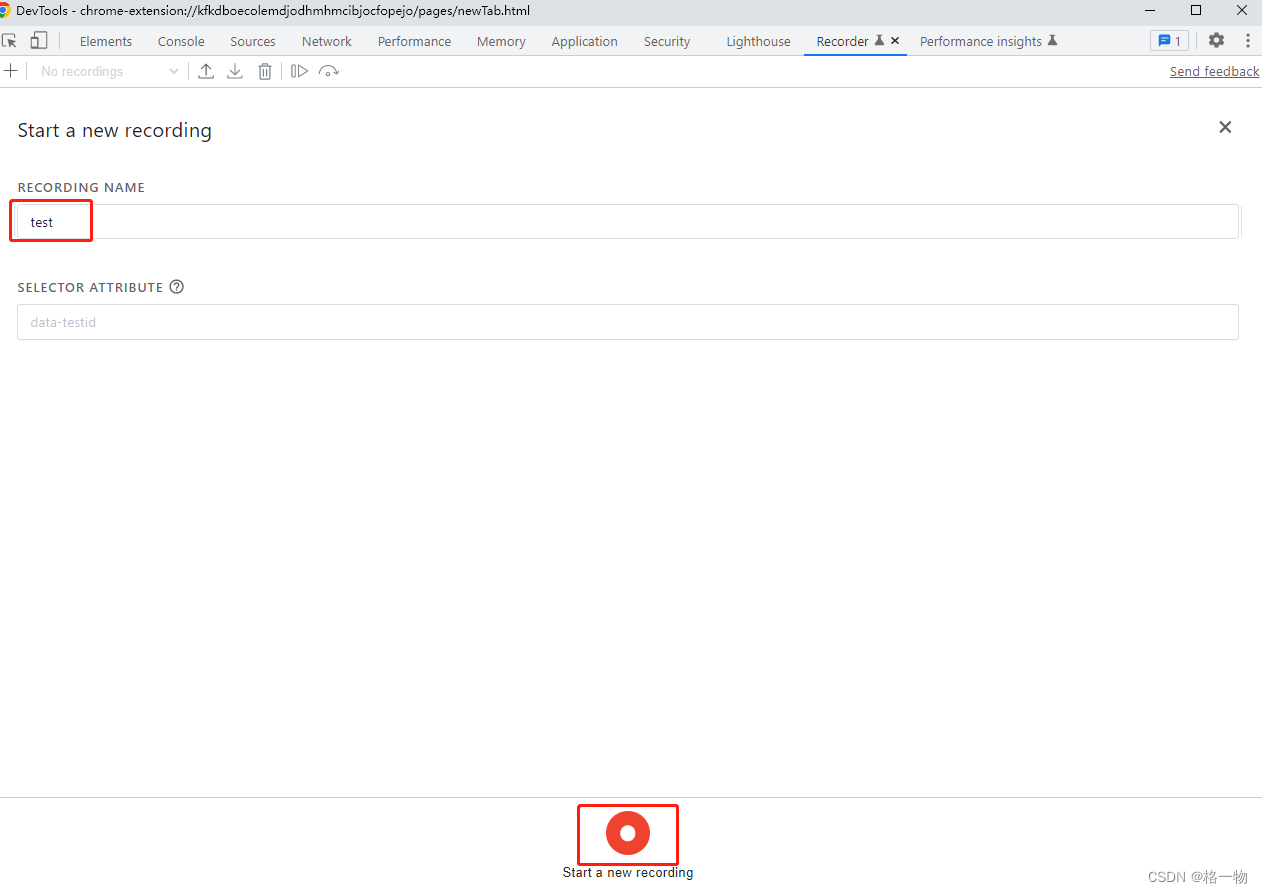

二、录制

三、录制回放

下面介绍两种录制回放方式

1.Chrome DevTool工具

导入json配置文件，通过Chrome DevTool工具回放

2.Puppeteer脚本

(1) 介绍

Puppeteer 是一个 Node library，提供了一套完整的通过 DevTools 协议操纵 Chrome 或 Chromium 的 API。Puppeteer 默认以 无头（headless） 的方式运行, 也可以使用 GUI 的方式运行 Chrome 和 Chromium。
熟悉爬虫或者 UI 自动化的同学可能会联想到 PhantomJS、CasperJS 或者 Selenium，而作为 Chrome DevTools 团队亲自出品和维护的 puppeteer 不管是在功能的完整性、稳定性、兼容性、安全性还是性能都将成为碾压其他工具的存在。

(2) 使用

• 安装并配置nodejs

可参考 nodejs环境配置

• 安装依赖包

npm install -g puppeteer
npm install -g url
npm install -g @puppeteer/replay

• 修改js脚本

禁用headless模式(启用GUI模式)

    const browser = await puppeteer.launch();

改为

    const browser = await puppeteer.launch({headless: false, // GUI模式});

• 运行js脚本

node test.js

• test.js

recorder导出的puppeteer脚本如下

const puppeteer = require('puppeteer'); // v13.0.0 or later(async () => {const browser = await puppeteer.launch({headless: false, // GUI模式});const page = await browser.newPage();const timeout = 5000;page.setDefaultTimeout(timeout);{const targetPage = page;await targetPage.setViewport({"width":1752,"height":884})}{const targetPage = page;const promises = [];promises.push(targetPage.waitForNavigation());await targetPage.goto("https://www.baidu.com/");await Promise.all(promises);}{const targetPage = page;await scrollIntoViewIfNeeded([["#kw"],["xpath///*[@id=\"kw\"]"]], targetPage, timeout);const element = await waitForSelectors([["#kw"],["xpath///*[@id=\"kw\"]"]], targetPage, { timeout, visible: true });const type = await element.evaluate(el => el.type);if (["select-one"].includes(type)) {await element.select("你好");} else if (["textarea","text","url","tel","search","password","number","email"].includes(type)) {await element.type("你好");} else {await element.focus();await element.evaluate((el, value) => {el.value = value;el.dispatchEvent(new Event('input', { bubbles: true }));el.dispatchEvent(new Event('change', { bubbles: true }));}, "你好");}}{const targetPage = page;await targetPage.keyboard.down("Enter");}{const targetPage = page;await targetPage.keyboard.up("Enter");}{const targetPage = page;await scrollIntoViewIfNeeded([["aria/你好，汉语词语，百度百科[role=\"link\"]"],["#\\31  > div > div > h3 > a"],["xpath///*[@id=\"1\"]/div/div/h3/a"],["text/你好(汉语词语) - 百度百科"]], targetPage, timeout);const element = await waitForSelectors([["aria/你好，汉语词语，百度百科[role=\"link\"]"],["#\\31  > div > div > h3 > a"],["xpath///*[@id=\"1\"]/div/div/h3/a"],["text/你好(汉语词语) - 百度百科"]], targetPage, { timeout, visible: true });await element.click({offset: {x: 99,y: 14,},});}await browser.close();async function waitForSelectors(selectors, frame, options) {for (const selector of selectors) {try {return await waitForSelector(selector, frame, options);} catch (err) {console.error(err);}}throw new Error('Could not find element for selectors: ' + JSON.stringify(selectors));}async function scrollIntoViewIfNeeded(selectors, frame, timeout) {const element = await waitForSelectors(selectors, frame, { visible: false, timeout });if (!element) {throw new Error('The element could not be found.');}await waitForConnected(element, timeout);const isInViewport = await element.isIntersectingViewport({threshold: 0});if (isInViewport) {return;}await element.evaluate(element => {element.scrollIntoView({block: 'center',inline: 'center',behavior: 'auto',});});await waitForInViewport(element, timeout);}async function waitForConnected(element, timeout) {await waitForFunction(async () => {return await element.getProperty('isConnected');}, timeout);}async function waitForInViewport(element, timeout) {await waitForFunction(async () => {return await element.isIntersectingViewport({threshold: 0});}, timeout);}async function waitForSelector(selector, frame, options) {if (!Array.isArray(selector)) {selector = [selector];}if (!selector.length) {throw new Error('Empty selector provided to waitForSelector');}let element = null;for (let i = 0; i < selector.length; i++) {const part = selector[i];if (element) {element = await element.waitForSelector(part, options);} else {element = await frame.waitForSelector(part, options);}if (!element) {throw new Error('Could not find element: ' + selector.join('>>'));}if (i < selector.length - 1) {element = (await element.evaluateHandle(el => el.shadowRoot ? el.shadowRoot : el)).asElement();}}if (!element) {throw new Error('Could not find element: ' + selector.join('|'));}return element;}async function waitForElement(step, frame, timeout) {const count = step.count || 1;const operator = step.operator || '>=';const comp = {'==': (a, b) => a === b,'>=': (a, b) => a >= b,'<=': (a, b) => a <= b,};const compFn = comp[operator];await waitForFunction(async () => {const elements = await querySelectorsAll(step.selectors, frame);return compFn(elements.length, count);}, timeout);}async function querySelectorsAll(selectors, frame) {for (const selector of selectors) {const result = await querySelectorAll(selector, frame);if (result.length) {return result;}}return [];}async function querySelectorAll(selector, frame) {if (!Array.isArray(selector)) {selector = [selector];}if (!selector.length) {throw new Error('Empty selector provided to querySelectorAll');}let elements = [];for (let i = 0; i < selector.length; i++) {const part = selector[i];if (i === 0) {elements = await frame.$$(part);} else {const tmpElements = elements;elements = [];for (const el of tmpElements) {elements.push(...(await el.$$(part)));}}if (elements.length === 0) {return [];}if (i < selector.length - 1) {const tmpElements = [];for (const el of elements) {const newEl = (await el.evaluateHandle(el => el.shadowRoot ? el.shadowRoot : el)).asElement();if (newEl) {tmpElements.push(newEl);}}elements = tmpElements;}}return elements;}async function waitForFunction(fn, timeout) {let isActive = true;const timeoutId = setTimeout(() => {isActive = false;}, timeout);while (isActive) {const result = await fn();if (result) {clearTimeout(timeoutId);return;}await new Promise(resolve => setTimeout(resolve, 100));}throw new Error('Timed out');}
})().catch(err => {console.error(err);process.exit(1);
});

参考：
chrome开发者工具-recorder-录制回放
Puppeteer 入门指引
