树的企业应用-哈夫曼编码树-有趣的数据压缩算法

哈夫曼编码 描述

张三去李四家里,但 李四是一个女生,所以张三找李四去上海迪尼斯玩 …

亚历山大.张三去伊丽莎白.李四家里,但 伊丽莎白.李四是一个女生,所以亚历山大.张三找伊丽莎白.李四去美国迪尼斯玩 …

我们发现 一个关键点 有些重复的也不多 无非就高亮的地方 所以简化一下

声明一下 在上方的引言里 凡是出现高亮的 统统替换为 “张三” and “李四”

张三去李四家里,但 李四是一个女生,所以张三找李四去上海迪尼斯玩 ………

张三去李四家里,但 李四是一个女生,所以张三找李四去美国迪尼斯玩 ………

哈夫曼编码:把字符出现的次数压缩成只有一个

这就是哈夫曼编码 基本描述

哈夫曼编码树原理

字符串为 **"yyds ndd yygq bbq jjz xdxl jj qq wx dy wb bz ww " **

进行压缩变成如下表格:

我们使用文本的方式储存这些 字符和出现的频率(注意:此博主比较懒输入,干脆整成一个文件)

input.txt:

y 5 d 5 g 1 q 4 z 2 x 3 j 4 w 4   13

那问题来了 哈夫曼编码树? 这些只是从文件读取到内存里整成了一个顺序表, 而已

我们使用C I/O的函数 来读取 文件 .

回过神来!

能看得出来这些是一体的 所以ndd(你懂的),我们应该定义 全新的数据类型 : Huffman_Code

哈夫曼编码树数据域定义

 struct HuffmanCode{char Val;//数据int weight;//频率}

定义完 先实现读取字符和频率

既然是顺序表 那还得用 统计 input.txt 文件的数据和频率多少个元素

const char* FileName = "input.txt";
const char* OpenMode = "r";
//读取的格式： 数据 空格 权值 空格
const  char* readFormat = "%c %d ";//统计文件中的数据和频率的个数并且通过参数修改
bool  getSize(int& size) {FILE* ReadStream = nullptr;const	errno_t  openState = fopen_s(&ReadStream, FileName, OpenMode);bool ret = openState == 0;if (ret) {int i = 0;char ch = getc(ReadStream);ret = ch != EOF;if (ret) {ungetc(ch, ReadStream);HuffmanCodeValue value{};int ReadNum = 0;char read[alignof(HuffmanCodeValue) +2];//&value.value, sizeof(value.value), &space, sizeof(space), &value.weight, sizeof(value.weight)while (!feof(ReadStream)) {ReadNum = fscanf_s(ReadStream, readFormat, &value.value, sizeof(value.value), &value.weight, sizeof(value.weight));++i;}size = i;}else {cerr << "错误:" << FileName << "里文件为空" << endl;}fclose(ReadStream);ReadStream = nullptr;}else {char error[1024]{};strerror_s(error, errno);cerr << "错误:" << error << endl;}return ret;
}

分配好内存 之后 读取文件中的数据

//获取文件 哈夫曼编码 以及编码的权值
void loadValue(HuffmanCodeValue* value, const int &size) {if (size!=0){FILE* ReadStream = nullptr;const errno_t  openState = fopen_s(&ReadStream, FileName, OpenMode);bool ret = openState == 0;if (ret) {auto First = 0;int ReadNum = 0;char read[alignof(HuffmanCodeValue)+ 1];while (First != size && !feof(ReadStream)) {ReadNum = fscanf_s(ReadStream, readFormat, &value[First].value, sizeof(value[First].value), &value[First].weight, sizeof(value[First].weight));++First;}fclose(ReadStream);//free(ReadStream);ReadStream = nullptr;}}
}

读取完毕后 ,是时候 该设计一些数据结构了(也是,最骚脑的时刻)

哈夫曼编码树的定义

//哈夫曼编码树节点
struct HuffmanCodeTreeNode{HuffmanCode value;//数据HuffmanCodeTreeNode* Parent;//父节点HuffmanCodeTreeNode* LeftChild;//左子节点HuffmanCodeTreeNode* RightChild;//右子节点
};
//哈夫曼编码树
struct HuffmanCodeTree {HuffmanCodeTreeNode* root;//根节点
};

你以为到这里就结束了吗 …

那你就有点小瞧了哈夫曼编码树 还得按照优先级的频率来的

所以 还得吧写好的优先级队列搬出来

#ifndef __PriorityQueue_H__
#define __PriorityQueue_H__
#include"HuffmanTree.h"using Element = HuffmanCodeTreeNode*;
using  PriorityQueueNode = struct _PriorityQueueNode;using  PriorityCompare = bool (*)(const int &, const int &);using PriorityQueueAuxiliary = struct _PriorityQueueAuxiliary;using  PriorityQueue = struct _PriorityQueue;struct _PriorityQueueNode {int Priority;Element value;PriorityQueueNode* next;
};struct  _PriorityQueueAuxiliary {PriorityQueueNode* froot;PriorityQueueNode* back;
};struct _PriorityQueue {PriorityCompare Compare;size_t size;PriorityQueueAuxiliary Auxiliary;
};const size_t MaxSize = 1024;void initPriorityQueue(PriorityQueue& priorityQueue, PriorityCompare c);
void PushPriorityQueue(PriorityQueue& priorityQueue,const Element& value);
bool fullPriorityQueue(const PriorityQueue& priorityQueue);
bool emptyPriorityQueue(const PriorityQueue& priorityQueue);
Element& PriorityQueueFroot(PriorityQueue& priorityQueue);// 禁止
//删除优先级队列 Element& value 设置到 value 里
void PopPriorityQueue(PriorityQueue& priorityQueue, Element& value);
void setCompare(PriorityQueue& priorityQueue, PriorityCompare Compare);
const size_t& PriorityQueueSize(PriorityQueue& priorityQueue);
void destroyPriorityQueue(PriorityQueue& priorityQueue);#endif

PriorityQueue.cpp

#include"PriorityQueue.h"
#include
using namespace std;using Node = PriorityQueueNode;
const size_t zero = 0;//创建优先级队列元素
Node* CreatePriorityQueueNode(const Element& value, Node* nullPtr = nullptr) {Node* node = new Node{ value->value.weight,value,nullPtr };return node;
}void initPriorityQueue(PriorityQueue& priorityQueue, PriorityCompare c) {priorityQueue.Auxiliary = { nullptr,nullptr };priorityQueue.size = zero;priorityQueue.Compare = c;
}bool fullPriorityQueue(const PriorityQueue& priorityQueue) {return priorityQueue.size == MaxSize;
}bool emptyPriorityQueue(const PriorityQueue& priorityQueue) {return priorityQueue.size == zero;
}void GetPriorityNode(Node*&, PriorityCompare&);Element& PriorityQueueFroot(PriorityQueue& priorityQueue)
{if (emptyPriorityQueue(priorityQueue)) {destroyPriorityQueue(priorityQueue);terminate();}return priorityQueue.Auxiliary.froot->value;
}void Link(Node*& node, Node* NewNode) {if (node) {node->next = NewNode;}node = NewNode;
}const size_t& PriorityQueueSize(PriorityQueue& priorityQueue) {return priorityQueue.size;
}void PushPriorityQueue(PriorityQueue& priorityQueue, const Element& value) {const bool iSfront = priorityQueue.size == zero;if (fullPriorityQueue(priorityQueue)) {destroyPriorityQueue(priorityQueue);terminate();}auto&& newNode = CreatePriorityQueueNode(value);auto& Froot = priorityQueue.Auxiliary.froot;auto& back = priorityQueue.Auxiliary.back;if (!iSfront) {Link(newNode->next ,Froot);//小的 调整Froot = newNode;}else{Link(back, newNode);Froot = back;	}++priorityQueue.size;
}void GetPriorityNode(Node*& froot, PriorityCompare& Compare) {Node** node = &froot;Node* last = (froot);if (last) {Node* current = last->next;while (current) {if (Compare(current->Priority, (*node)->Priority)) {node = &(last->next);}last = current;current = current->next;}froot = *node;}
}void setCompare(PriorityQueue& priorityQueue, PriorityCompare Compare) {priorityQueue.Compare = Compare;
}void PopPriorityQueue(PriorityQueue& priorityQueue, Element& value) {if (emptyPriorityQueue(priorityQueue)) {destroyPriorityQueue(priorityQueue);terminate();}size_t& size = priorityQueue.size;Node** prev = NULL, * prev_node = NULL;Node* last = NULL, * tmp = NULL;prev = &(priorityQueue.Auxiliary.froot);last = priorityQueue.Auxiliary.froot;if (!last){--size;}else {tmp = last->next;while (tmp) {if (priorityQueue.Compare(tmp->Priority, (*prev)->Priority)) {prev = &(last->next);prev_node = last;}last = tmp;tmp = tmp->next;}value = (*prev)->value;auto DeleteNode = *prev;*prev = (*prev)->next;delete DeleteNode;DeleteNode = nullptr;--size;}if (size == zero) {(priorityQueue.Auxiliary.back) = nullptr;}if (prev_node && prev_node->next == NULL) {(priorityQueue.Auxiliary.back = prev_node);}
}void destroyPriorityQueue(PriorityQueue& priorityQueue) {PriorityQueueAuxiliary& Auxiliary = priorityQueue.Auxiliary;Node*& Firsh = Auxiliary.froot;Node*& deleteNode = Firsh;size_t& size = priorityQueue.size;while (Firsh) {Node* next = Firsh->next;delete deleteNode;deleteNode = next;}priorityQueue = {};}

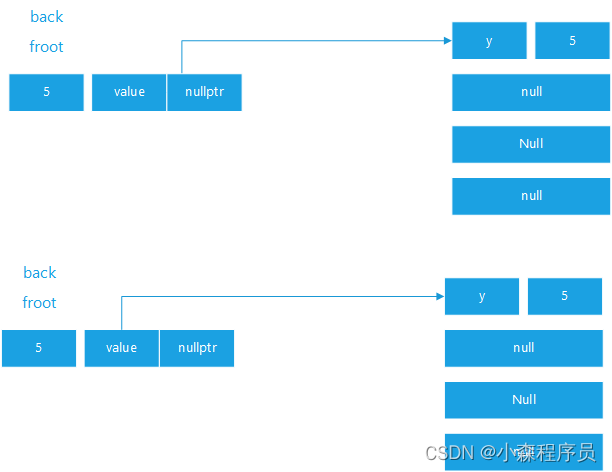

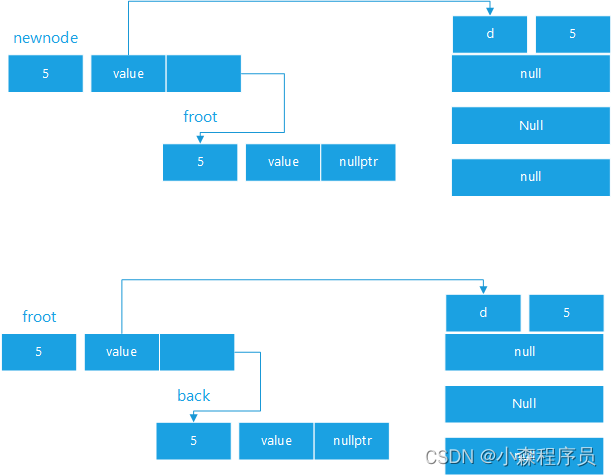

插入小调整

按照比较函数 经过比较函数来达到出队的目的

HuffmanTree.cpp

#include "HuffmanTree.h"
#include"PriorityQueue.h"
#include
using std::cout;
using std::endl;bool  priorityCompare(const int& Left, const int& Right){return Left < Right;
}

构建哈夫曼编码树

void build_HuffmanCodeTree(HuffmanCodeTree& tree, HuffmanCodeValue* value, size_t Size) {PriorityQueue priorityQueue;initPriorityQueue(priorityQueue, priorityCompare);HuffmanCodeTreeNode* newNode = nullptr;for (size_t i = 0; i < Size; i++) {newNode = new HuffmanCodeTreeNode{};newNode->value = value[i];PushPriorityQueue(priorityQueue, newNode);}HuffmanCodeTreeNode* Node1 = nullptr;HuffmanCodeTreeNode* Node2 = nullptr;int	i = 0;do {if (!emptyPriorityQueue(priorityQueue)) {PopPriorityQueue(priorityQueue, Node1);if (OutputISspace(Node1->value.value) == "空格")	{cout << "第"<<++i<<"次优先级队列 出队数据为:" << OutputISspace(Node1->value.value) << " 权值:" << Node1->value.weight << endl << endl;}else {cout << "第" << ++i << "次优先级队列 出队数据为:" << (Node1->value.value) << " 权值:" << Node1->value.weight << endl << endl;}}else {break;}if (!emptyPriorityQueue(priorityQueue)) {newNode = new HuffmanCodeTreeNode();PopPriorityQueue(priorityQueue, Node2);if (OutputISspace(Node2->value.value) == "空格") {cout << "第" << ++i << "次优先级队列 出队数据为:"<value.value) << " 权值:" << Node2->value.weight << endl << endl;}else {cout << "第" << ++i << "次优先级队列 出队数据为:"<<(Node2->value.value) << " 权值:" << Node2->value.weight << endl << endl;}newNode->LeftChild = Node1;Node1->Parent = newNode;newNode->RightChild = Node2;Node2->Parent = newNode;newNode->value.value = Space;newNode->value.weight = Node1->value.weight + Node2->value.weight;cout << "合并新结点 优先级队列 入队数据为:" << OutputISspace(newNode->value.value) << " 权值:" << newNode->value.weight << endl << endl;PushPriorityQueue(priorityQueue, newNode);}else {tree.root = Node1;break;}} while (true);destroyPriorityQueue(priorityQueue);
}

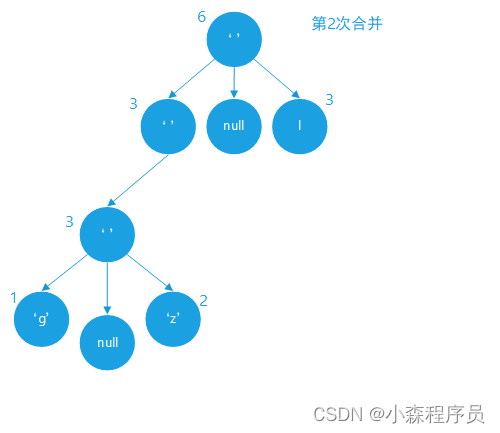

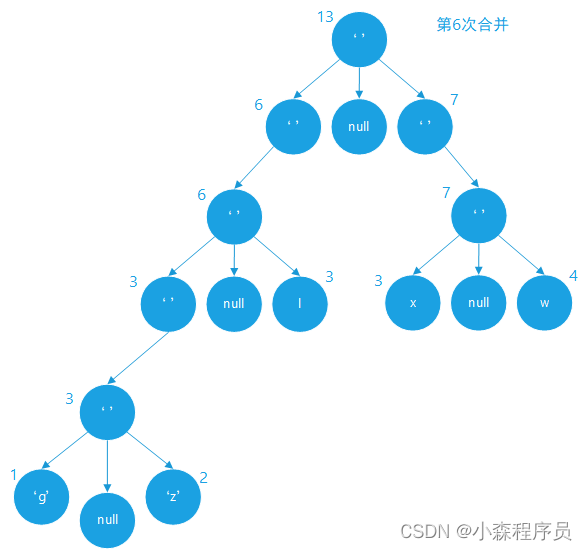

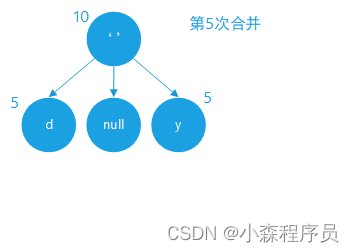

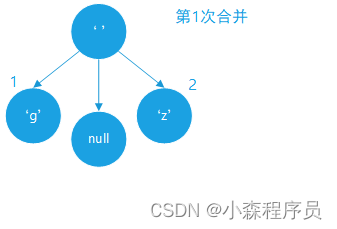

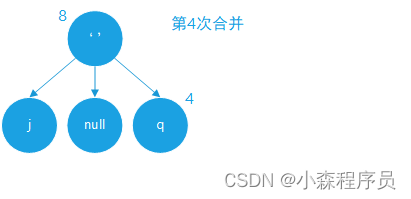

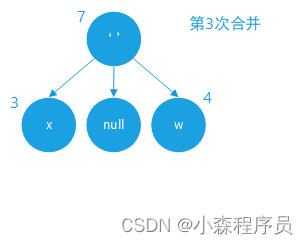

合并成新的树节点

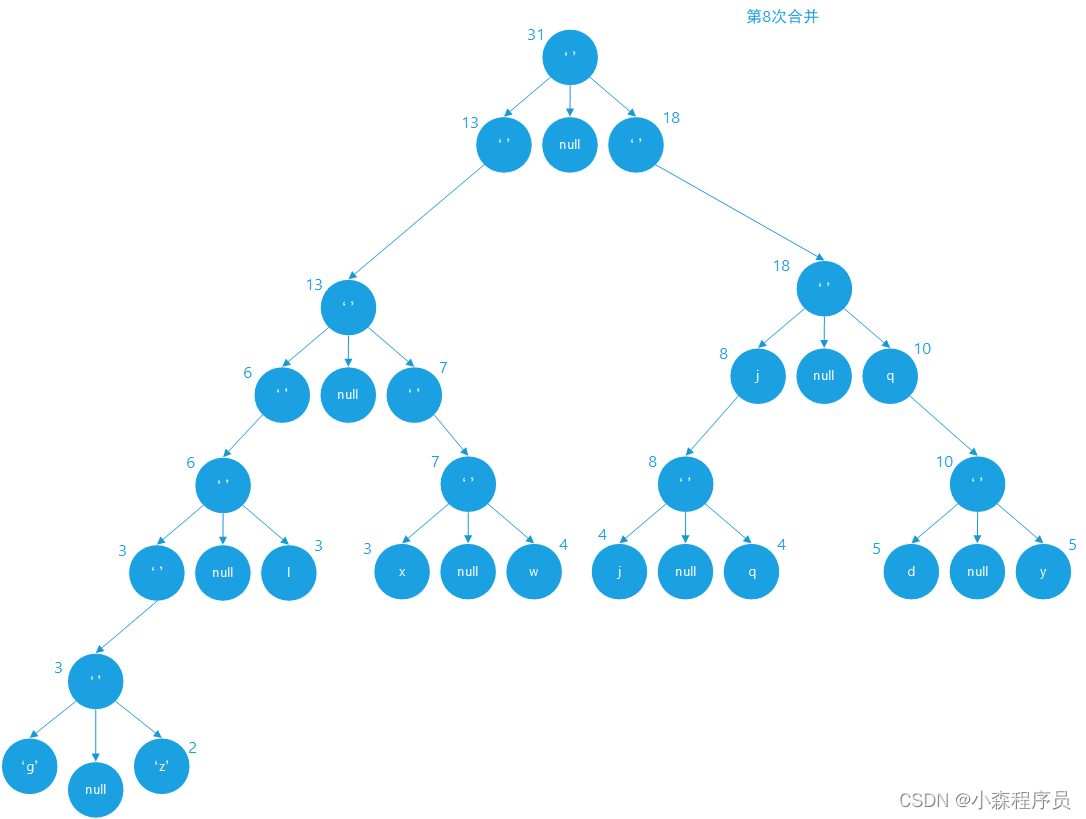

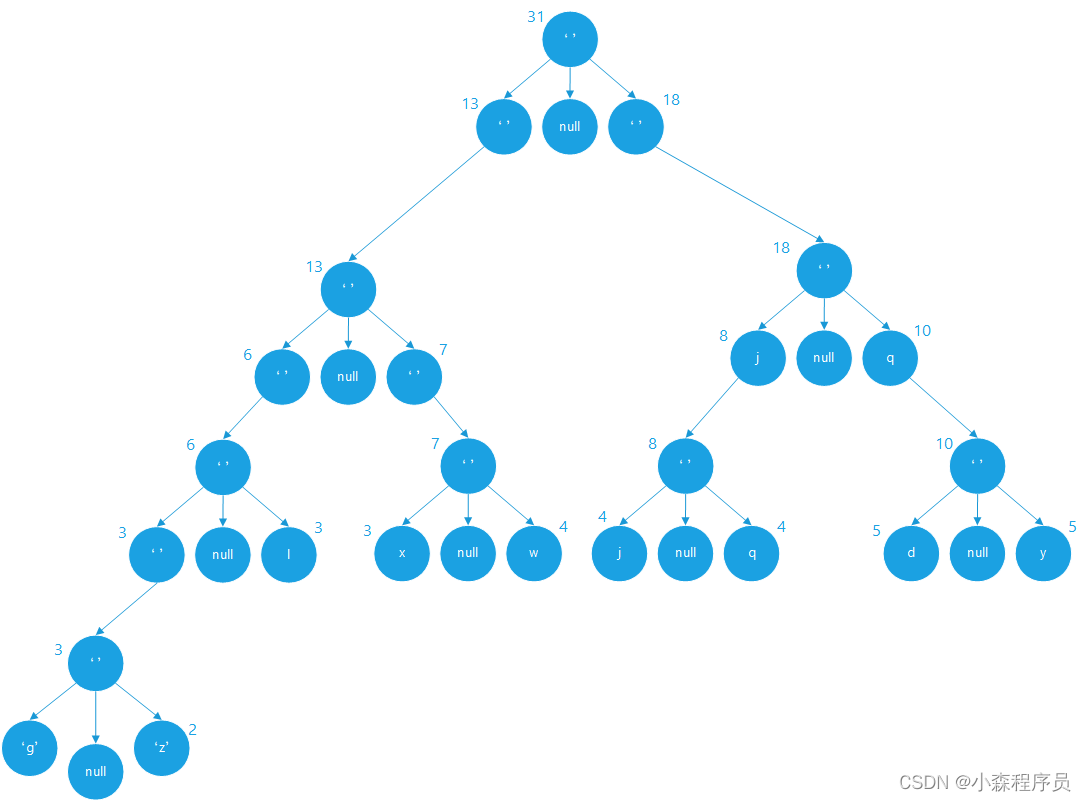

合并的结果

哈夫曼编码树算法实现

算法声明

bool  priorityCompare(const int& Left, const int& Right);
//构建哈夫曼编码树
void build_HuffmanCodeTree(HuffmanCodeTree& tree, HuffmanCodeValue* value, size_t Size);
//前序遍历
void FirstOrderRecursiveTraversal(HuffmanCodeTreeNode*& Root);
//销毁哈夫曼编码树
void DestroyHuffmanCodeTree(HuffmanCodeTreeNode*& root);

算法实现

#include "HuffmanTree.h"
#include"PriorityQueue.h"
#include
using std::cout;
using std::endl;bool  priorityCompare(const int& Left, const int& Right){return Left < Right;
}void build_HuffmanCodeTree(HuffmanCodeTree& tree, HuffmanCodeValue* value, size_t Size) {PriorityQueue priorityQueue;initPriorityQueue(priorityQueue, priorityCompare);HuffmanCodeTreeNode* newNode = nullptr;for (size_t i = 0; i < Size; i++) {newNode = new HuffmanCodeTreeNode{};newNode->value = value[i];PushPriorityQueue(priorityQueue, newNode);}HuffmanCodeTreeNode* Node1 = nullptr;HuffmanCodeTreeNode* Node2 = nullptr;int	i = 0;do {if (!emptyPriorityQueue(priorityQueue)) {PopPriorityQueue(priorityQueue, Node1);if (OutputISspace(Node1->value.value) == "空格")	{cout << "第"<<++i<<"次优先级队列 出队数据为:" << OutputISspace(Node1->value.value) << " 权值:" << Node1->value.weight << endl << endl;}else {cout << "第" << ++i << "次优先级队列 出队数据为:" << (Node1->value.value) << " 权值:" << Node1->value.weight << endl << endl;}}else {break;}if (!emptyPriorityQueue(priorityQueue)) {newNode = new HuffmanCodeTreeNode();PopPriorityQueue(priorityQueue, Node2);if (OutputISspace(Node2->value.value) == "空格") {cout << "第" << ++i << "次优先级队列 出队数据为:"<value.value) << " 权值:" << Node2->value.weight << endl << endl;}else {cout << "第" << ++i << "次优先级队列 出队数据为:"<<(Node2->value.value) << " 权值:" << Node2->value.weight << endl << endl;}newNode->LeftChild = Node1;Node1->Parent = newNode;newNode->RightChild = Node2;Node2->Parent = newNode;newNode->value.value = Space;newNode->value.weight = Node1->value.weight + Node2->value.weight;cout << "合并新结点 优先级队列 入队数据为:" << OutputISspace(newNode->value.value) << " 权值:" << newNode->value.weight << endl << endl;PushPriorityQueue(priorityQueue, newNode);}else {tree.root = Node1;break;}} while (true);destroyPriorityQueue(priorityQueue);
}void FirstOrderRecursiveTraversal(HuffmanCodeTreeNode*& Root) {if (Root) {cout << "- :" << (Root->value.value) << " -" << endl;//cout << "压缩数据为:" << (Root->value.value) << endl;FirstOrderRecursiveTraversal(Root->LeftChild);FirstOrderRecursiveTraversal(Root->RightChild);}
}void DestroyHuffmanCodeTree(HuffmanCodeTreeNode*& root) {if (root) {DestroyHuffmanCodeTree(root->LeftChild);DestroyHuffmanCodeTree(root->RightChild);delete root;root = {};}
}

main函数

#include
#include"HuffmanTree.h"
#include"PriorityQueue.h"using namespace std;const char* FileName = "input.txt";
const char* OpenMode = "r";
//读取的格式： 数据 空格 权值 空格
const  char* readFormat = "%c %d ";//统计文件中的数据和频率的个数并且通过参数修改
bool  getSize(int& size) {FILE* ReadStream = nullptr;const	errno_t  openState = fopen_s(&ReadStream, FileName, OpenMode);bool ret = openState == 0;if (ret) {int i = 0;char ch = getc(ReadStream);ret = ch != EOF;if (ret) {ungetc(ch, ReadStream);HuffmanCodeValue value{};int ReadNum = 0;char read[alignof(HuffmanCodeValue) +2];//&value.value, sizeof(value.value), &space, sizeof(space), &value.weight, sizeof(value.weight)while (!feof(ReadStream)) {ReadNum = fscanf_s(ReadStream, readFormat, &value.value, sizeof(value.value), &value.weight, sizeof(value.weight));++i;}size = i;}else {cerr << "错误:" << FileName << "里文件为空" << endl;}fclose(ReadStream);ReadStream = nullptr;}else {char error[1024]{};strerror_s(error, errno);cerr << "错误:" << error << endl;}return ret;
}//获取文件 哈夫曼编码 以及编码的权值
void loadValue(HuffmanCodeValue* value, const int &size) {if (size!=0){FILE* ReadStream = nullptr;const errno_t  openState = fopen_s(&ReadStream, FileName, OpenMode);bool ret = openState == 0;if (ret) {auto First = 0;int ReadNum = 0;char read[alignof(HuffmanCodeValue)+ 1];while (First != size && !feof(ReadStream)) {ReadNum = fscanf_s(ReadStream, readFormat, &value[First].value, sizeof(value[First].value), &value[First].weight, sizeof(value[First].weight));++First;}fclose(ReadStream);//free(ReadStream);ReadStream = nullptr;}}
}int main(void) {HuffmanCodeValue* value;HuffmanCodeTree tree{};int size;if (getSize(size)){value = new  HuffmanCodeValue[size];loadValue(value, size);build_HuffmanCodeTree(tree, value, size);FirstOrderRecursiveTraversal(tree.root);delete [] value;DestroyHuffmanCodeTree(tree.root);}return 0;
}

output:

第1次优先级队列 出队数据为:g 权值:1第2次优先级队列 出队数据为:z 权值:2合并新结点 优先级队列 入队数据为:空格 权值:3第3次优先级队列 出队数据为:空格 权值:3第4次优先级队列 出队数据为:1 权值:3合并新结点 优先级队列 入队数据为:空格 权值:6第5次优先级队列 出队数据为:x 权值:3第6次优先级队列 出队数据为:w 权值:4合并新结点 优先级队列 入队数据为:空格 权值:7第7次优先级队列 出队数据为:j 权值:4第8次优先级队列 出队数据为:q 权值:4合并新结点 优先级队列 入队数据为:空格 权值:8第9次优先级队列 出队数据为:d 权值:5第10次优先级队列 出队数据为:y 权值:5合并新结点 优先级队列 入队数据为:空格 权值:10第11次优先级队列 出队数据为:空格 权值:6第12次优先级队列 出队数据为:空格 权值:7合并新结点 优先级队列 入队数据为:空格 权值:13第13次优先级队列 出队数据为:空格 权值:8第14次优先级队列 出队数据为:空格 权值:10合并新结点 优先级队列 入队数据为:空格 权值:18第15次优先级队列 出队数据为:空格 权值:13第16次优先级队列 出队数据为:空格 权值:18合并新结点 优先级队列 入队数据为:空格 权值:31第17次优先级队列 出队数据为:空格 权值:31- :  -
- :  -
- :  -
- :  -
- :g -
- :z -
- :1 -
- :  -
- :x -
- :w -
- :  -
- :  -
- :j -
- :q -
- :  -
- :d -
- :y -
