1.具体如何做呢？

1.1安装Tesseract-OCR

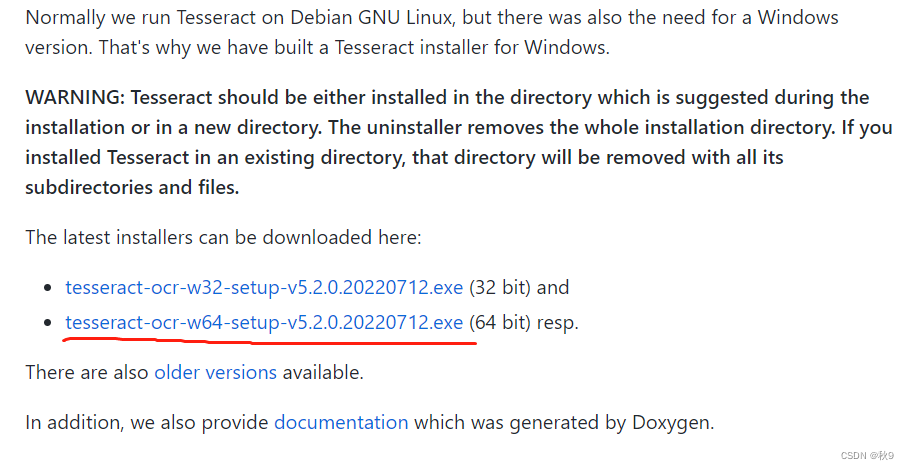

windows安装包下载地址：https://github.com/UB-Mannheim/tesseract/wiki

下载的文件名为tesseract-ocr-w64-setup-v5.2.0.20220712.exe

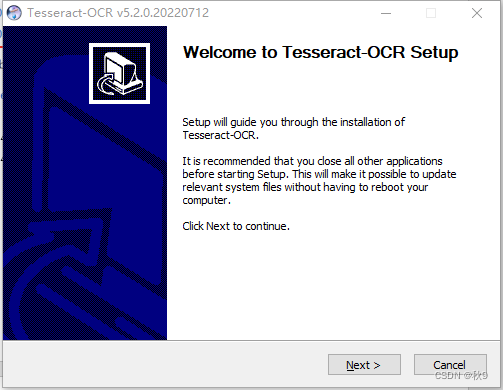

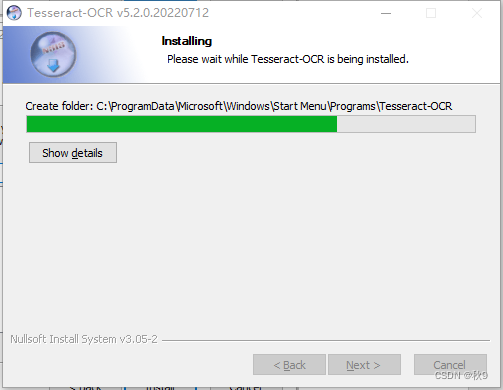

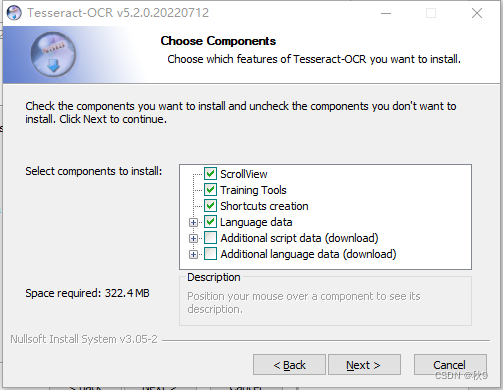

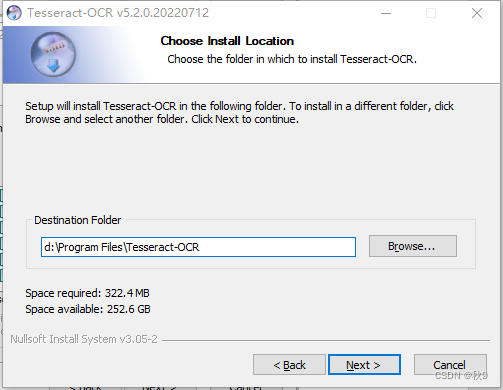

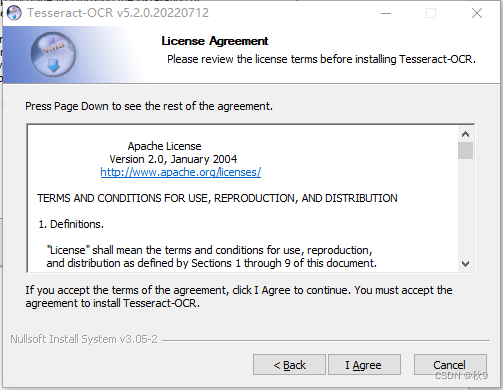

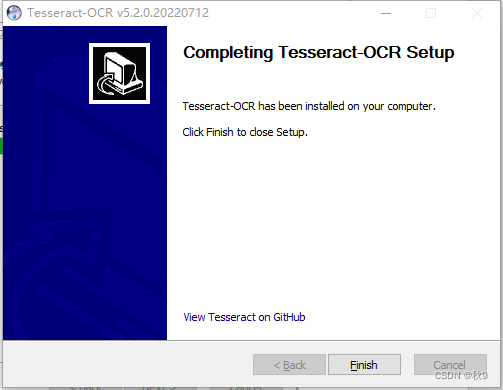

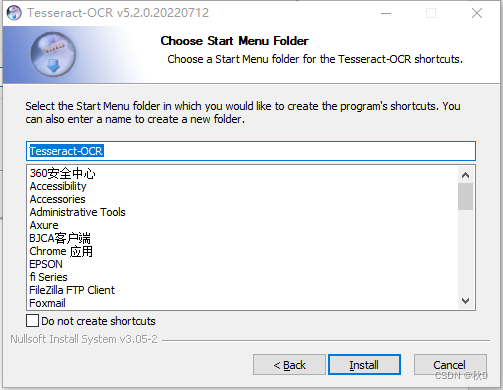

右击管理员运行tesseract-ocr-w64-setup-v5.2.0.20220712.exe

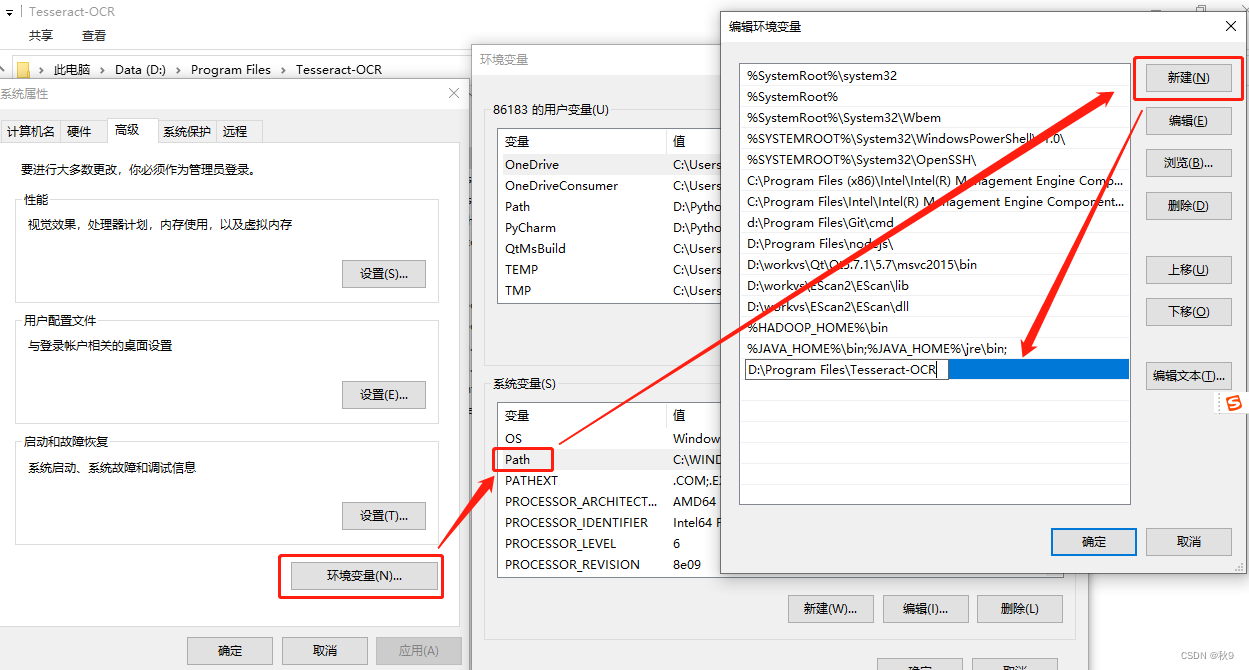

1.2配置环境

1.3安装Tesseract中文包

下载地址和如何安装，见另外一篇分享文章

Tesseract最新中文语言包chi_sim.traineddata(4.0.0)三种获取方式_秋9的博客-CSDN博客

1.4.安装pytesseract和pillow

pip install pytesseract 和pip install pillow

具体操作如下：

D:\1\ocr>pip install pytesseract
Collecting pytesseractDownloading pytesseract-0.3.10-py3-none-any.whl (14 kB)
Requirement already satisfied: Pillow>=8.0.0 in d:\python\python381\lib\site-packages (from pytesseract) (9.2.0)
Collecting packaging>=21.3Downloading packaging-21.3-py3-none-any.whl (40 kB)|████████████████████████████████| 40 kB 123 kB/s
Requirement already satisfied: pyparsing!=3.0.5,>=2.0.2 in d:\python\python381\lib\site-packages (from packaging>=21.3->pytesseract) (2.4.7)
Installing collected packages: packaging, pytesseractAttempting uninstall: packagingFound existing installation: packaging 21.0Uninstalling packaging-21.0:Successfully uninstalled packaging-21.0
Successfully installed packaging-21.3 pytesseract-0.3.10
WARNING: You are using pip version 21.0.1; however, version 22.3 is available.
You should consider upgrading via the 'd:\python\python381\python.exe -m pip install --upgrade pip' command.D:\1\ocr>pip install pillow
Requirement already satisfied: pillow in d:\python\python381\lib\site-packages (9.2.0)
WARNING: You are using pip version 21.0.1; however, version 22.3 is available.
You should consider upgrading via the 'd:\python\python381\python.exe -m pip install --upgrade pip' command.D:\1\ocr>

2.代码和测试效果

2.1识别英文图片

代码如下：

from PIL import Image
import pytesseract
path="test2.png"
im=Image.open(path)
text=pytesseract.image_to_string(im)
print(text)

test2.png图片如下：

识别效果：

结论：只有第1个字母识别错误

2.2 识别中文图片

代码如下：

from PIL import Image
import pytesseract
path="test4.png"
im=Image.open(path)
text=pytesseract.image_to_string(im,lang='chi_sim')
print(text)

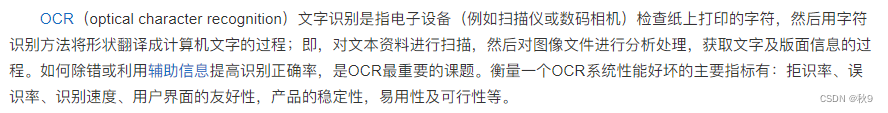

test4.png图片如下：

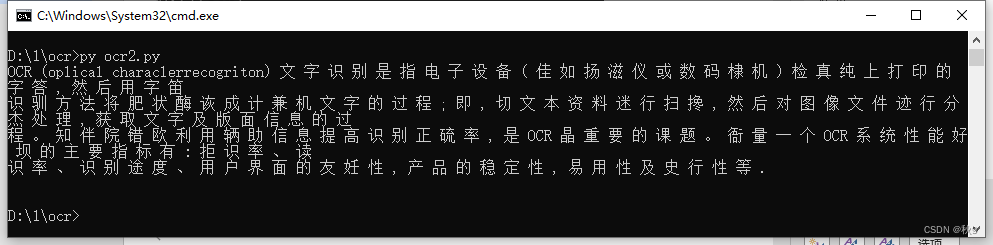

识别效果：

中文识别效果比较差。

欢迎小伙伴们，留言讨论
