一、集成Druid

在昨天的基础上

参考网址

https://github.com/alibaba/druid/tree/master/druid-spring-boot-starter

添加pom依赖

     com.alibabadruid-spring-boot-starter1.1.10

配置

application.yml

mybatis:mapper-locations: classpath:mappers/*xmltype-aliases-package: com.cdl.springboot04.model
server:port: 8080servlet:context-path: /springboot04
spring:application:name: springboot04datasource:driver-class-name: com.mysql.jdbc.Drivername: defaultDataSourcepassword: 123456url: jdbc:mysql://localhost:3306/mysql?useUnicode=true&characterEncoding=UTF-8&useSSL=falseusername: roottype: com.alibaba.druid.pool.DruidDataSourcedruid:#2.连接池配置#初始化连接池的连接数量 大小，最小，最大initial-size: 5min-idle: 5max-active: 20#配置获取连接等待超时的时间max-wait: 60000#配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒time-between-eviction-runs-millis: 60000# 配置一个连接在池中最小生存的时间，单位是毫秒min-evictable-idle-time-millis: 30000validation-query: SELECT 1 FROM DUALtest-while-idle: truetest-on-borrow: truetest-on-return: false# 是否缓存preparedStatement，也就是PSCache  官方建议MySQL下建议关闭   个人建议如果想用SQL防火墙 建议打开pool-prepared-statements: truemax-pool-prepared-statement-per-connection-size: 20# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙filter:stat:merge-sql: trueslow-sql-millis: 5000#3.基础监控配置web-stat-filter:enabled: trueurl-pattern: /*#设置不统计哪些URLexclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"session-stat-enable: truesession-stat-max-count: 100stat-view-servlet:enabled: trueurl-pattern: /druid/*reset-enable: true#设置监控页面的登录名和密码login-username: adminlogin-password: adminallow: 127.0.0.1#deny: 192.168.1.100freemarker:cache: falsecharset: utf-8expose-request-attributes: trueexpose-session-attributes: truesuffix: .ftltemplate-loader-path: classpath:/templates/
#    resources:
#       static-locations: classpath:/static/# 应用服务 WEB 访问端口mvc:static-path-pattern: classpath:/static/
pagehelper:reasonable: truesupportMethodsArguments: truepage-size-zero: truehelper-dialect: mysqllogging:level:com.cdl.springboot04: debug

运行启动类

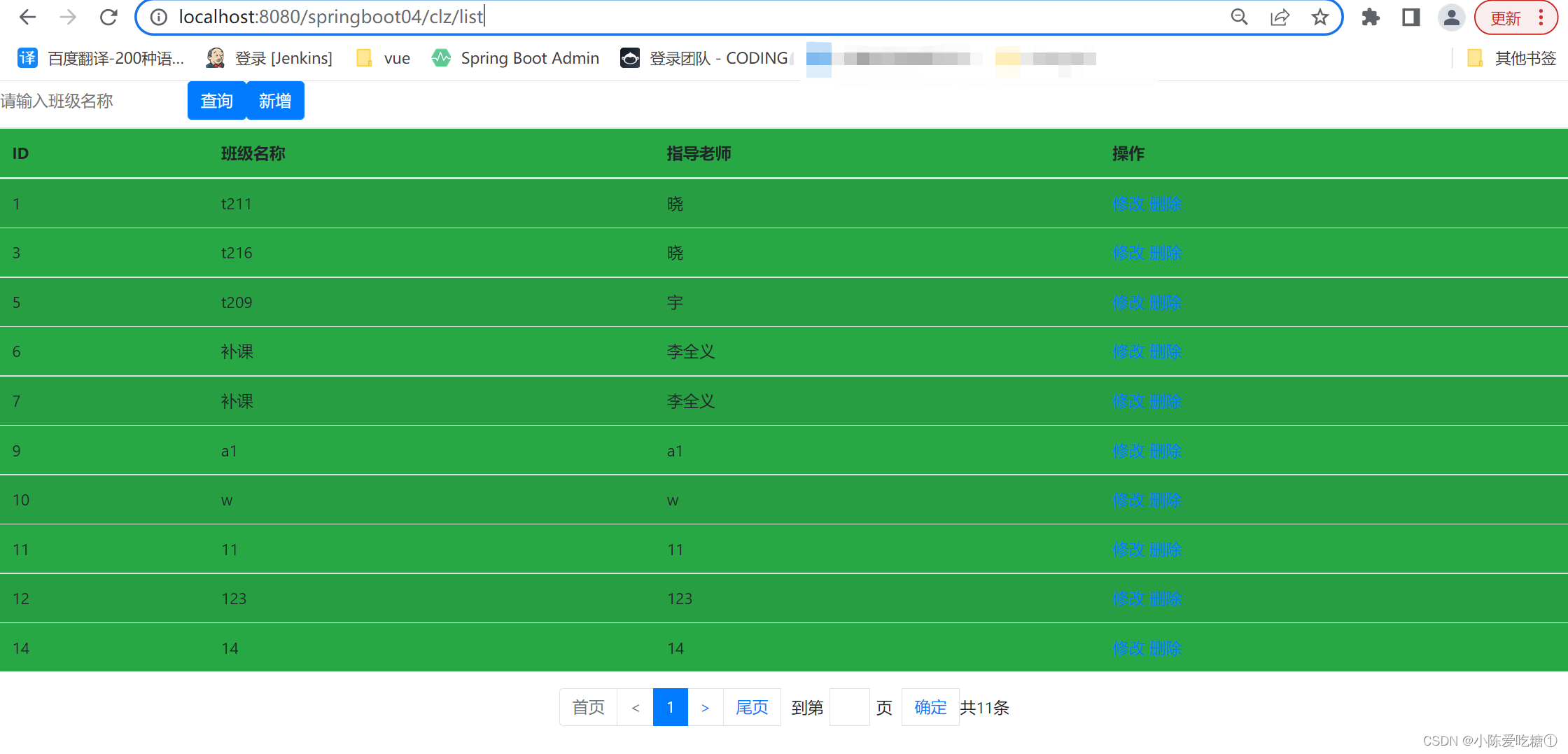

打开我们的班级列表

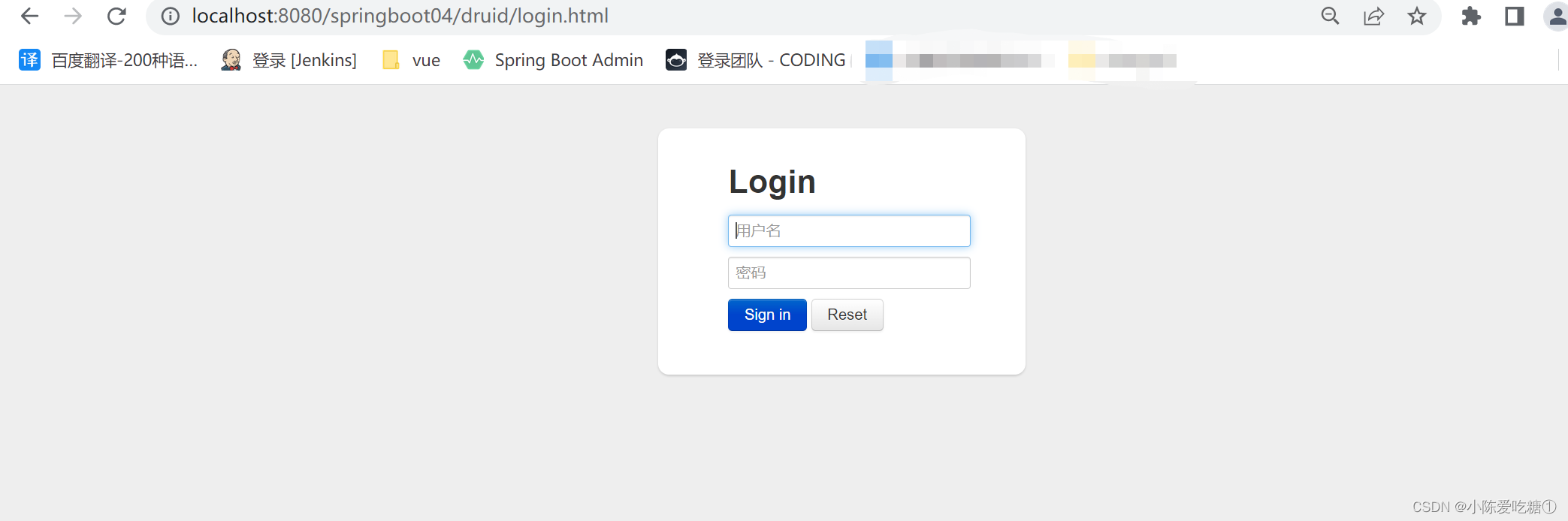

 通过手动输入druid的登录界面

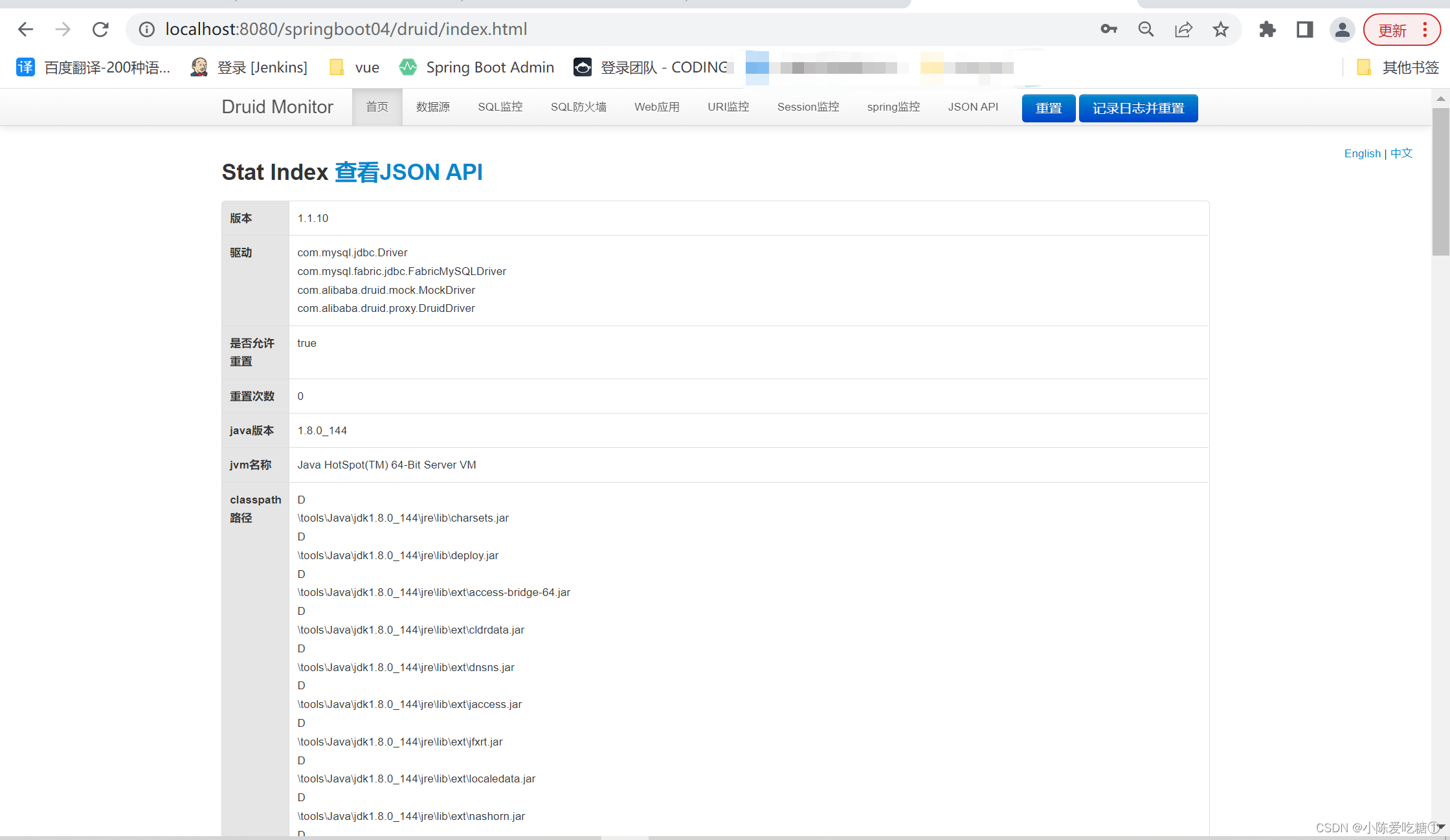

 登录之后

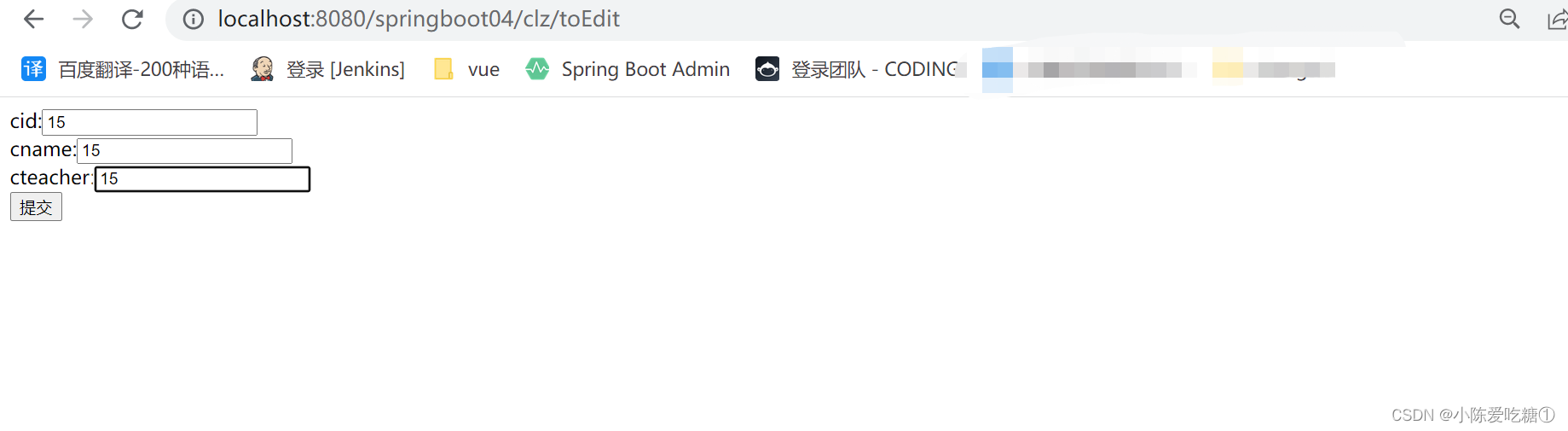

 当我们对班级列表进行操作时，例如增加

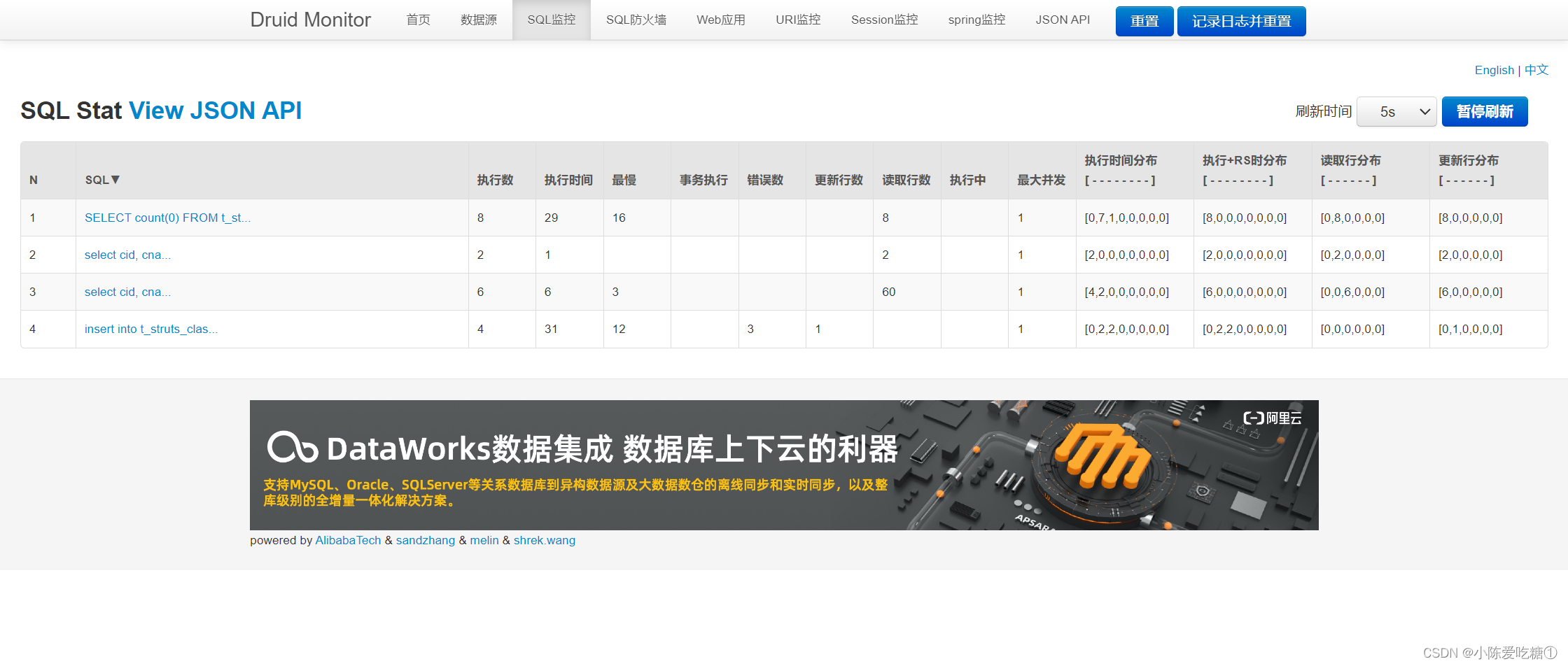

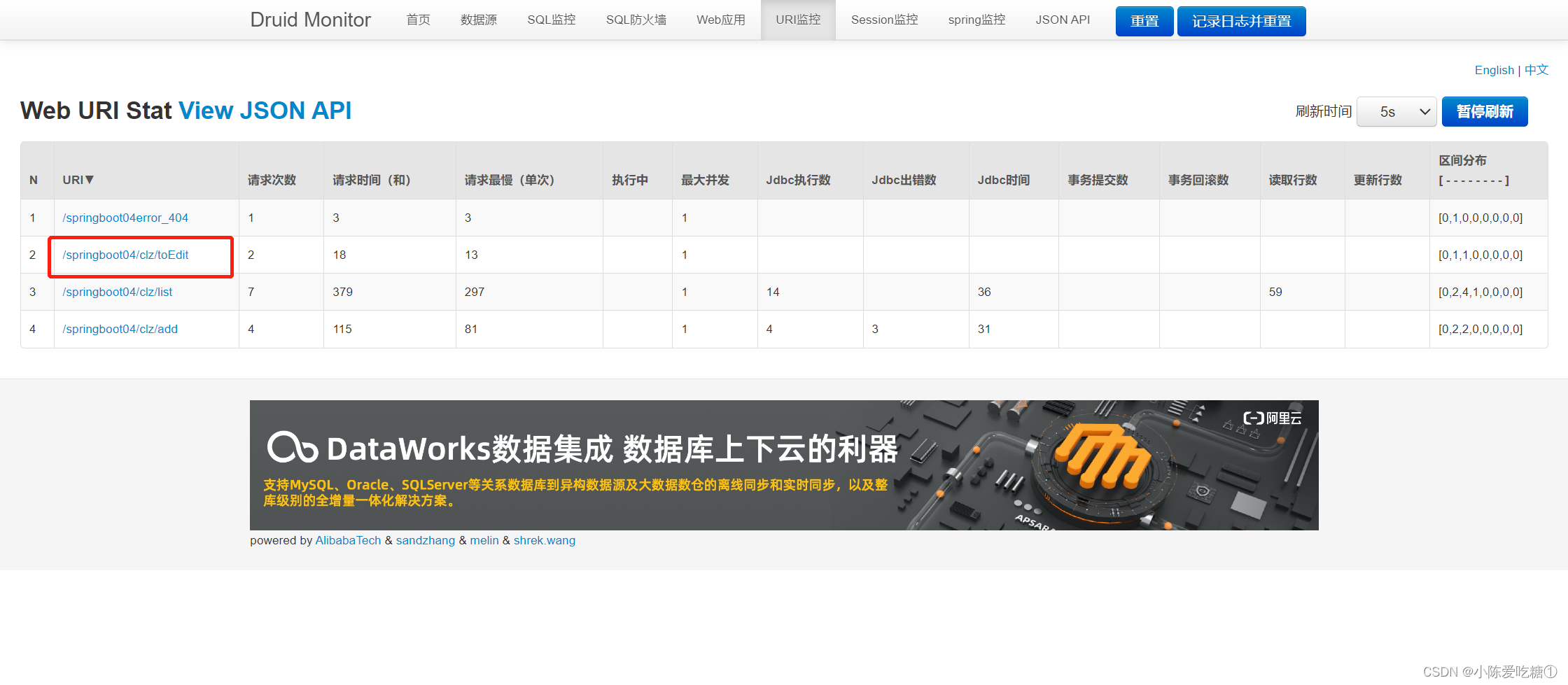

 此时SQL监控，URL监控

若增加一个重复的id 则URL监控就显示error

二、集成redis之非注解式开发

添加需要的pom依赖

org.springframework.bootspring-boot-starter-data-redis

pom.xml

4.0.0com.cdlspringboot040.0.1-SNAPSHOTspringboot04Demo project for Spring Boot1.8UTF-8UTF-82.3.7.RELEASEorg.springframework.bootspring-boot-starter-freemarkerorg.springframework.bootspring-boot-starter-jdbcorg.springframework.bootspring-boot-starter-weborg.mybatis.spring.bootmybatis-spring-boot-starter2.1.4mysqlmysql-connector-java5.1.44org.springframeworkspring-aspects5.0.2.RELEASEcom.github.pagehelperpagehelper-spring-boot-starter1.2.3com.alibabadruid-spring-boot-starter1.1.10org.springframework.bootspring-boot-starter-data-redisorg.projectlomboklomboktrueorg.springframework.bootspring-boot-starter-testtestorg.junit.vintagejunit-vintage-engineorg.springframework.bootspring-boot-dependencies${spring-boot.version}pomimportorg.apache.maven.pluginsmaven-compiler-plugin3.8.11.81.8UTF-8org.springframework.bootspring-boot-maven-plugin2.3.7.RELEASEcom.cdl.springboot04.Springboot04Applicationrepackagerepackage

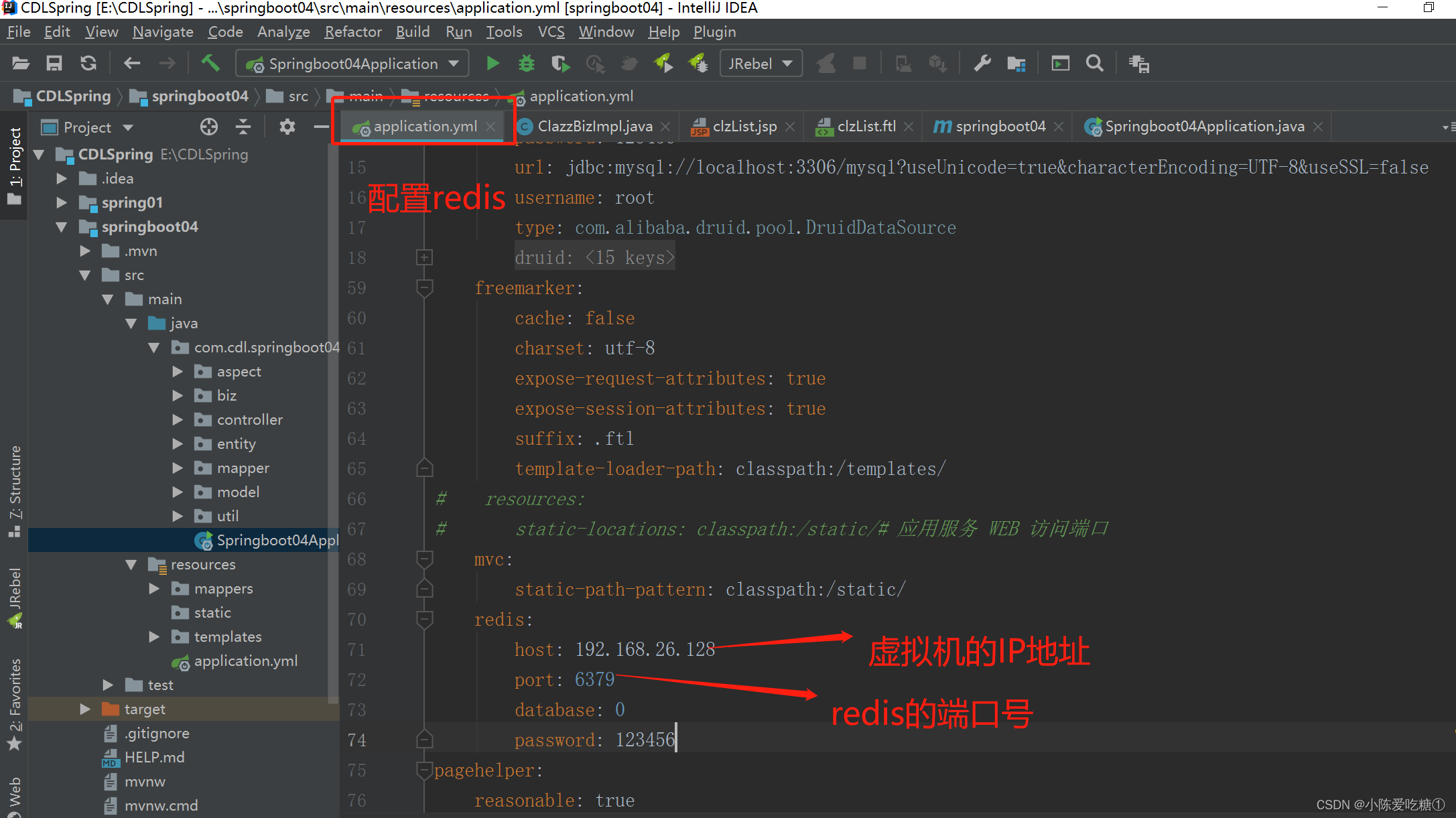

配置

application.yml

mybatis:mapper-locations: classpath:mappers/*xmltype-aliases-package: com.cdl.springboot04.model
server:port: 8080servlet:context-path: /springboot04
spring:application:name: springboot04datasource:driver-class-name: com.mysql.jdbc.Drivername: defaultDataSourcepassword: 123456url: jdbc:mysql://localhost:3306/mysql?useUnicode=true&characterEncoding=UTF-8&useSSL=falseusername: roottype: com.alibaba.druid.pool.DruidDataSourcedruid:#2.连接池配置#初始化连接池的连接数量 大小，最小，最大initial-size: 5min-idle: 5max-active: 20#配置获取连接等待超时的时间max-wait: 60000#配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒time-between-eviction-runs-millis: 60000# 配置一个连接在池中最小生存的时间，单位是毫秒min-evictable-idle-time-millis: 30000validation-query: SELECT 1 FROM DUALtest-while-idle: truetest-on-borrow: truetest-on-return: false# 是否缓存preparedStatement，也就是PSCache  官方建议MySQL下建议关闭   个人建议如果想用SQL防火墙 建议打开pool-prepared-statements: truemax-pool-prepared-statement-per-connection-size: 20# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙filter:stat:merge-sql: trueslow-sql-millis: 5000#3.基础监控配置web-stat-filter:enabled: trueurl-pattern: /*#设置不统计哪些URLexclusions: "*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*"session-stat-enable: truesession-stat-max-count: 100stat-view-servlet:enabled: trueurl-pattern: /druid/*reset-enable: true#设置监控页面的登录名和密码login-username: adminlogin-password: adminallow: 127.0.0.1#deny: 192.168.1.100freemarker:cache: falsecharset: utf-8expose-request-attributes: trueexpose-session-attributes: truesuffix: .ftltemplate-loader-path: classpath:/templates/
#    resources:
#       static-locations: classpath:/static/# 应用服务 WEB 访问端口mvc:static-path-pattern: classpath:/static/redis:host: 192.168.26.128port: 6379database: 0password: 123456
pagehelper:reasonable: truesupportMethodsArguments: truepage-size-zero: truehelper-dialect: mysqllogging:level:com.cdl.springboot04: debug

新建一个包 config 配置类

RedisConfig

package com.cdl.springboot04.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;/*** @author CDL* @site www.cdl.com** @Configuration：凡是被@Configuration注解所标记，就代表当前这个类为配置类* 而配置类等价于ssm阶段中spring-*.xml这一类的配置文件** spring-*.xml中：* @Bean：代表某个类交给spring进行管理****/
@Configuration
public class RedisConfig {@Beanpublic RedisTemplate getRedisTemplate(RedisConnectionFactory connectionFactory){RedisTemplate redisTemplate = new RedisTemplate<>();//配置序列化器  针对于key 针对于valueredisTemplate.setKeySerializer(new StringRedisSerializer());redisTemplate.setHashKeySerializer(new StringRedisSerializer());redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());
//        redisTemplate.afterPropertiesSet();根据redis的版本考虑要不要让其生效//ConnectionFactory是包含了redis的连接信息redisTemplate.setConnectionFactory(connectionFactory);return redisTemplate;}
}

在service层ClazzBizImpl.java使用

ClazzBizImpl.java

package com.cdl.springboot04.biz.impl;import com.cdl.springboot04.biz.ClazzBiz;
import com.cdl.springboot04.mapper.ClazzMapper;
import com.cdl.springboot04.model.Clazz;
import com.cdl.springboot04.util.PageBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;import java.util.List;
import java.util.Map;/*** @author CDL* @site www.cdl.com* @company xxx公司* @create  2022-08-17 15:13*/
@Service
public class ClazzBizImpl implements ClazzBiz {@Autowiredprivate ClazzMapper clazzMapper;@Autowiredprivate RedisTemplate redisTemplate;@Overridepublic int deleteByPrimaryKey(Integer cid) {
//        System.out.println("不做任何操作...");return clazzMapper.deleteByPrimaryKey(cid);
//        return 0;}@Overridepublic int insert(Clazz record) {return clazzMapper.insert(record);}@Overridepublic int insertSelective(Clazz record) {return clazzMapper.insertSelective(record);}@Overridepublic Clazz selectByPrimaryKey(Integer cid) {return clazzMapper.selectByPrimaryKey(cid);}@Overridepublic int updateByPrimaryKeySelective(Clazz record) {return clazzMapper.updateByPrimaryKeySelective(record);}@Overridepublic int updateByPrimaryKey(Clazz record) {return clazzMapper.updateByPrimaryKey(record);}@Overridepublic List listPager(Clazz clazz, PageBean pageBean) {//将班级缓存到redis中List clzs = clazzMapper.listPager(clazz);// redisTemplate.opsForValue().set("clz:1",clzs.get(0));redisTemplate.opsForValue().set("clzs",clzs);// redisTemplate.opsForHash().entries();return clzs;}@Overridepublic List

运行：

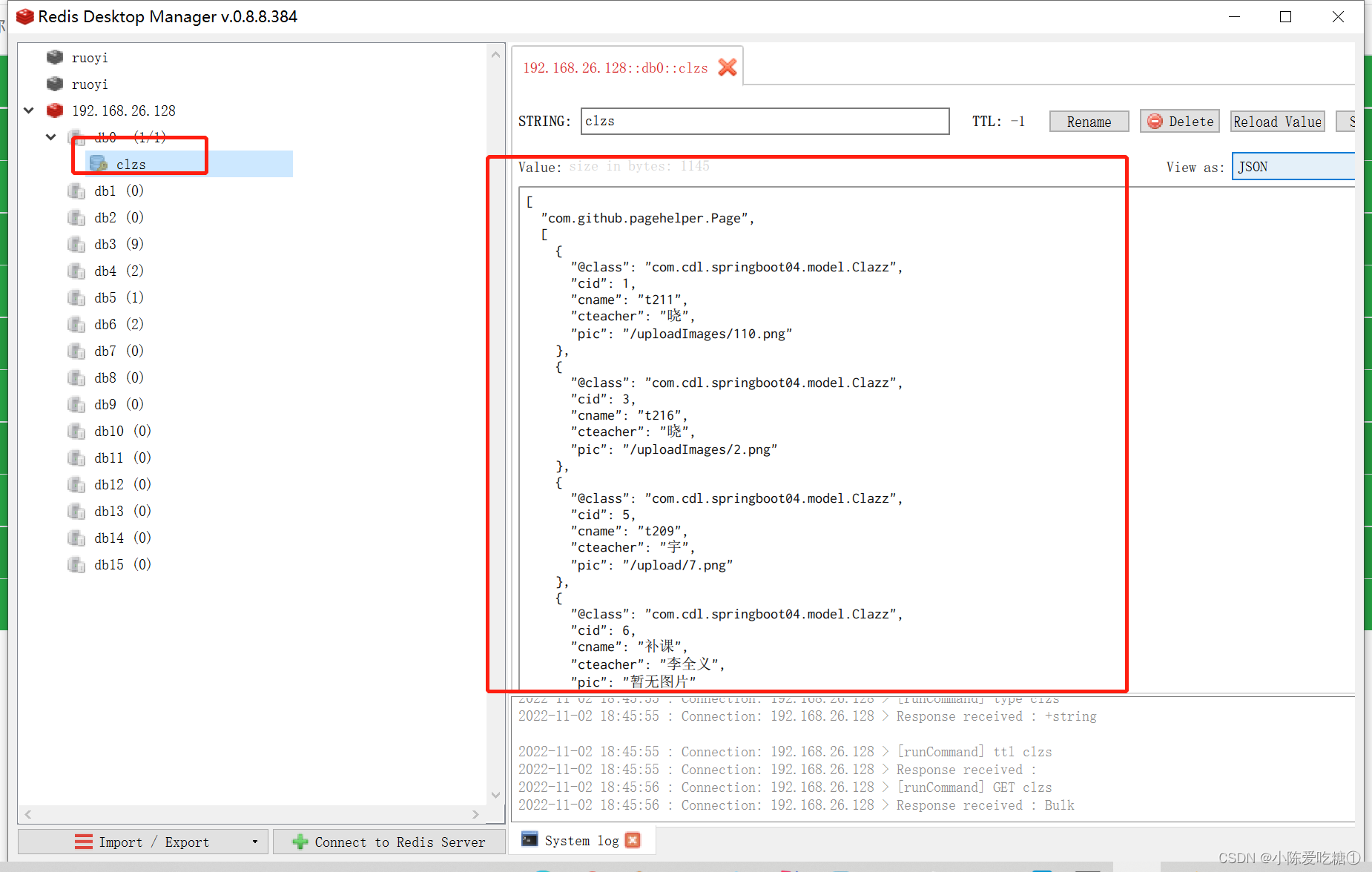

 此时：可见已经缓存进去了

三、集成redis之注解缓存开发

还要在配置类配置缓存管理器

RedisConfig

package com.cdl.springboot04.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.StringRedisSerializer;import java.time.Duration;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;/*** @author CDL* @site www.cdl.com** @Configuration：凡是被@Configuration注解所标记，就代表当前这个类为配置类* 而配置类等价于ssm阶段中spring-*.xml这一类的配置文件** spring-*.xml中：* @Bean：代表某个类交给spring进行管理****/
@Configuration
public class RedisConfig {private final int defaultExpireTime = 600;//默认的缓存槽private final int userCacheExpireTime = 60;//用来缓存用户的槽private final String userCacheName = "test";//用户槽的名称@Beanpublic RedisTemplate getRedisTemplate(RedisConnectionFactory connectionFactory){RedisTemplate redisTemplate = new RedisTemplate<>();//配置序列化器  针对于key 针对于valueredisTemplate.setKeySerializer(new StringRedisSerializer());redisTemplate.setHashKeySerializer(new StringRedisSerializer());redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());
//        redisTemplate.afterPropertiesSet();根据redis的版本考虑要不要让其生效//ConnectionFactory是包含了redis的连接信息redisTemplate.setConnectionFactory(connectionFactory);return redisTemplate;}@Bean//配置缓存管理器public RedisCacheManager redis(RedisConnectionFactory connectionFactory){RedisCacheConfiguration defaultCacheConfig = RedisCacheConfiguration.defaultCacheConfig();// 设置缓存管理器管理的缓存的默认过期时间defaultCacheConfig = defaultCacheConfig.entryTtl(Duration.ofSeconds(defaultExpireTime))// 设置 key为string序列化.serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(new StringRedisSerializer()))// 设置value为json序列化.serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(new GenericJackson2JsonRedisSerializer()))// 不缓存空值.disableCachingNullValues();Set cacheNames = new HashSet<>();cacheNames.add(userCacheName);// 对每个缓存空间应用不同的配置Map configMap = new HashMap<>();configMap.put(userCacheName, defaultCacheConfig.entryTtl(Duration.ofSeconds(userCacheExpireTime)));RedisCacheManager cacheManager = RedisCacheManager.builder(connectionFactory).cacheDefaults(defaultCacheConfig).initialCacheNames(cacheNames).withInitialCacheConfigurations(configMap).build();return cacheManager;}
}

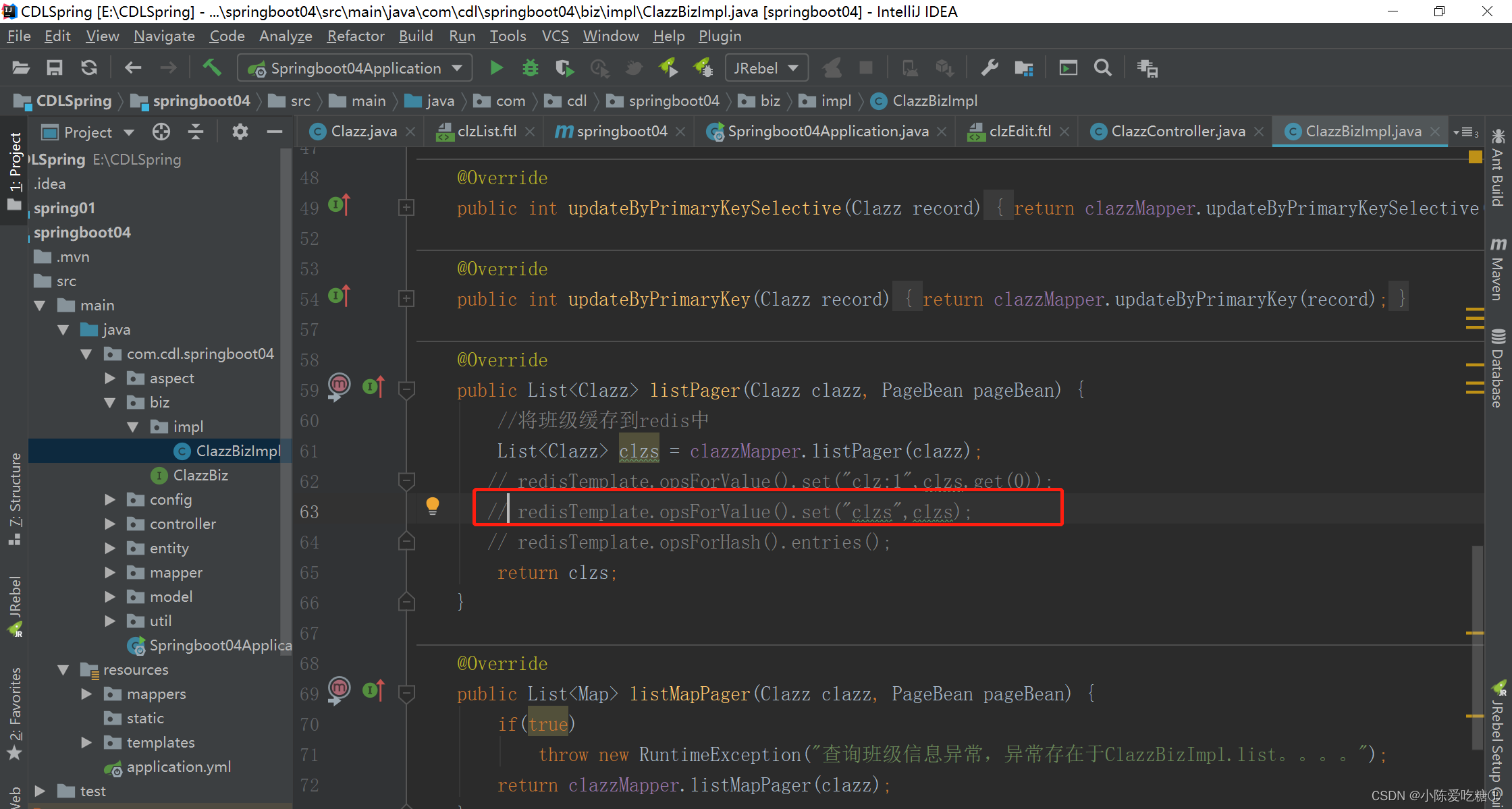

将非注解式缓存的Java代码注掉

 RedisConfig

package com.cdl.springboot04.config;import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.GenericJackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.RedisSerializationContext;
import org.springframework.data.redis.serializer.StringRedisSerializer;import java.time.Duration;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;/*** @author CDL* @site www.cdl.com** @Configuration：凡是被@Configuration注解所标记，就代表当前这个类为配置类* 而配置类等价于ssm阶段中spring-*.xml这一类的配置文件** spring-*.xml中：* @Bean：代表某个类交给spring进行管理***@EnableCaching 替代了下面的配置*  */

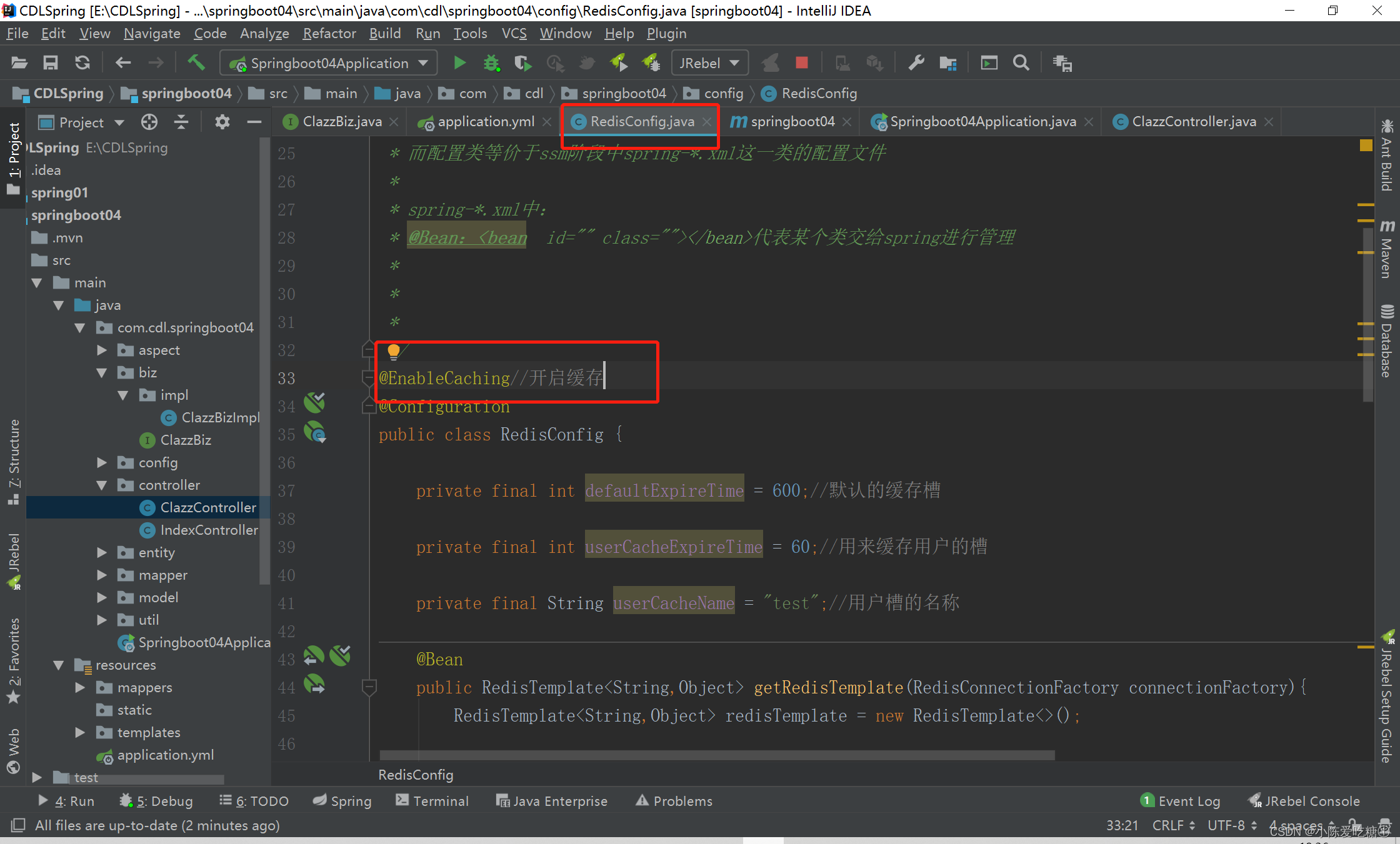

@EnableCaching//开启缓存
@Configuration
public class RedisConfig {private final int defaultExpireTime = 600;//默认的缓存槽private final int userCacheExpireTime = 60;//用来缓存用户的槽private final String userCacheName = "test";//用户槽的名称@Beanpublic RedisTemplate getRedisTemplate(RedisConnectionFactory connectionFactory){RedisTemplate redisTemplate = new RedisTemplate<>();//配置序列化器  针对于key 针对于valueredisTemplate.setKeySerializer(new StringRedisSerializer());redisTemplate.setHashKeySerializer(new StringRedisSerializer());redisTemplate.setValueSerializer(new GenericJackson2JsonRedisSerializer());redisTemplate.setHashValueSerializer(new GenericJackson2JsonRedisSerializer());
//        redisTemplate.afterPropertiesSet();根据redis的版本考虑要不要让其生效//ConnectionFactory是包含了redis的连接信息redisTemplate.setConnectionFactory(connectionFactory);return redisTemplate;}@Bean//配置缓存管理器public RedisCacheManager redis(RedisConnectionFactory connectionFactory){RedisCacheConfiguration defaultCacheConfig = RedisCacheConfiguration.defaultCacheConfig();// 设置缓存管理器管理的缓存的默认过期时间defaultCacheConfig = defaultCacheConfig.entryTtl(Duration.ofSeconds(defaultExpireTime))// 设置 key为string序列化.serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(new StringRedisSerializer()))// 设置value为json序列化.serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(new GenericJackson2JsonRedisSerializer()))// 不缓存空值.disableCachingNullValues();Set cacheNames = new HashSet<>();cacheNames.add(userCacheName);// 对每个缓存空间应用不同的配置Map configMap = new HashMap<>();configMap.put(userCacheName, defaultCacheConfig.entryTtl(Duration.ofSeconds(userCacheExpireTime)));RedisCacheManager cacheManager = RedisCacheManager.builder(connectionFactory).cacheDefaults(defaultCacheConfig).initialCacheNames(cacheNames).withInitialCacheConfigurations(configMap).build();return cacheManager;}
}

 测试查询单个能不能缓存进去

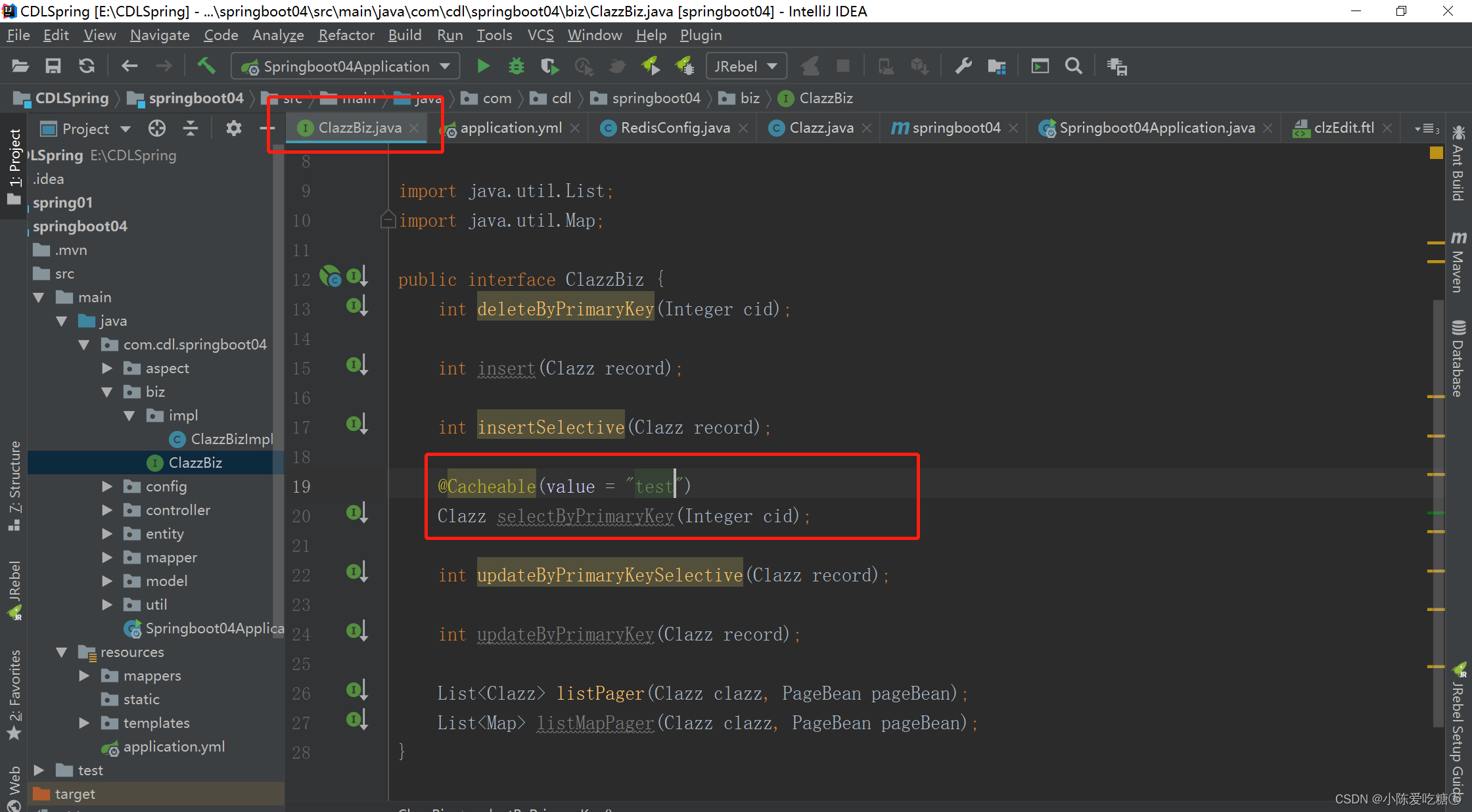

给查询单个的方法添加注解

 在ClazzController中添加一个查询单个的方法

  @ResponseBody@RequestMapping("/load")public Clazz load(Clazz clazz, HttpServletRequest request){return clazzBiz.selectByPrimaryKey(clazz.getCid());}

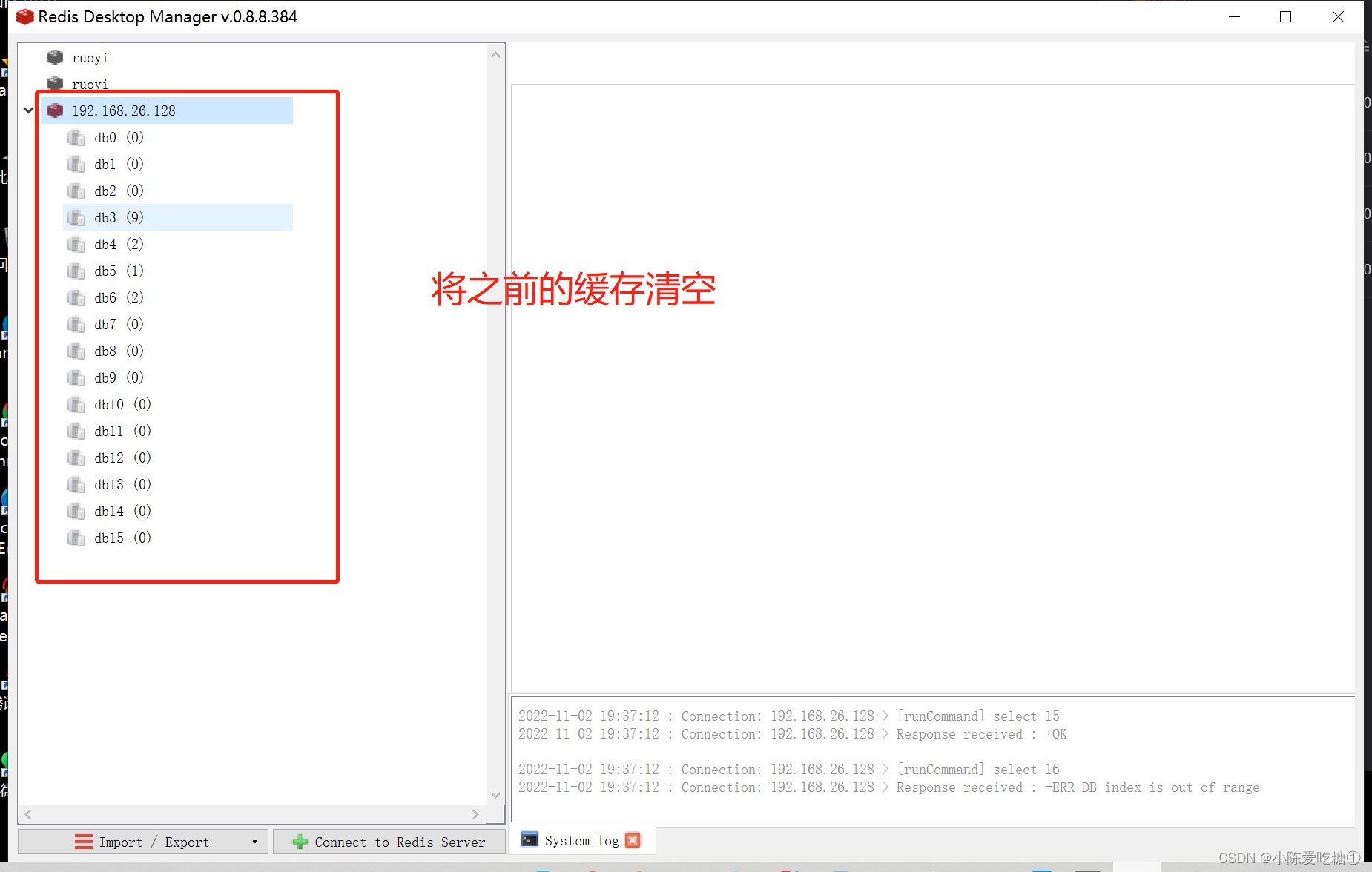

启动前先将redis中的数据清空

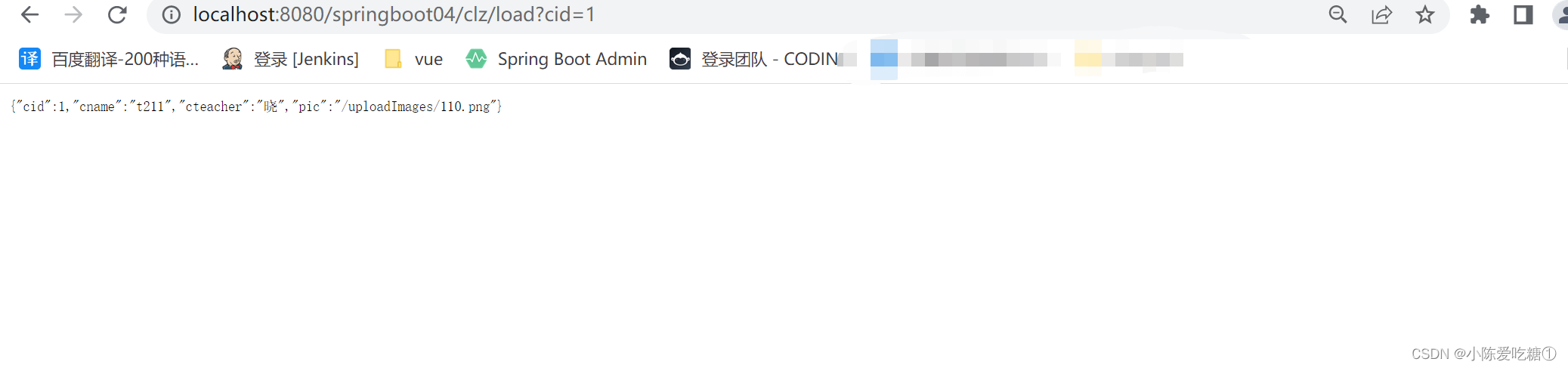

 访问数据

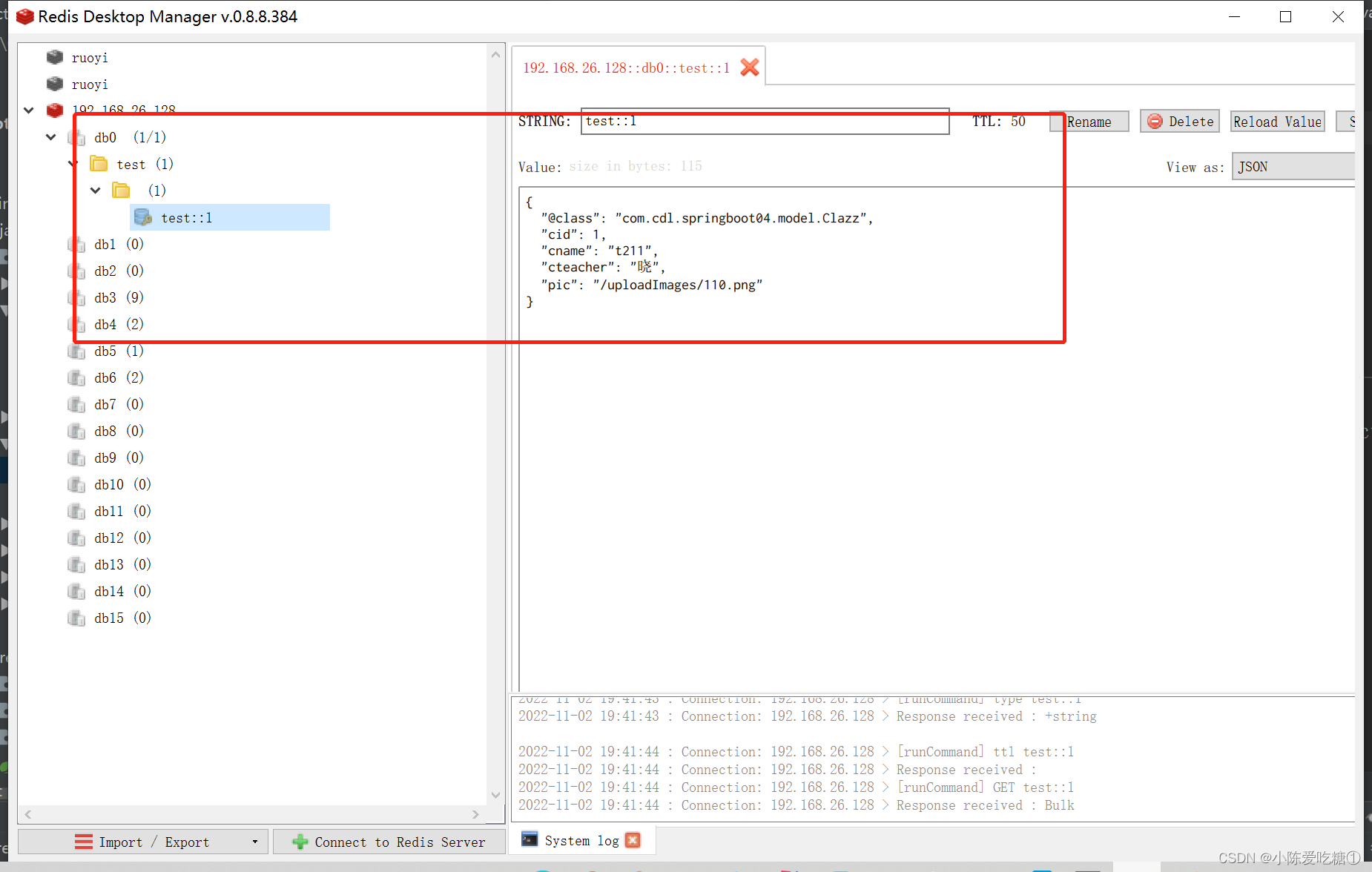

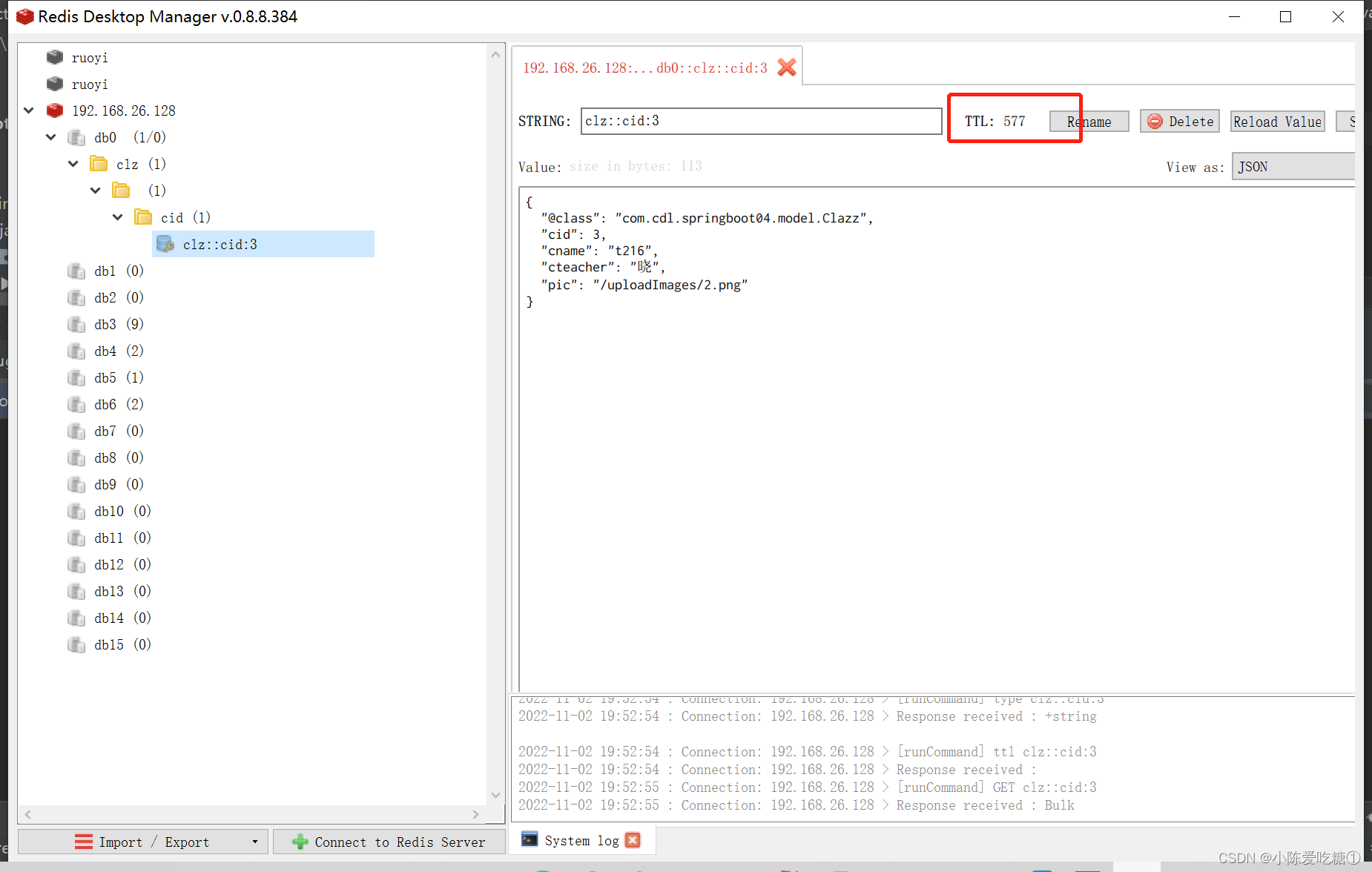

 缓存成功

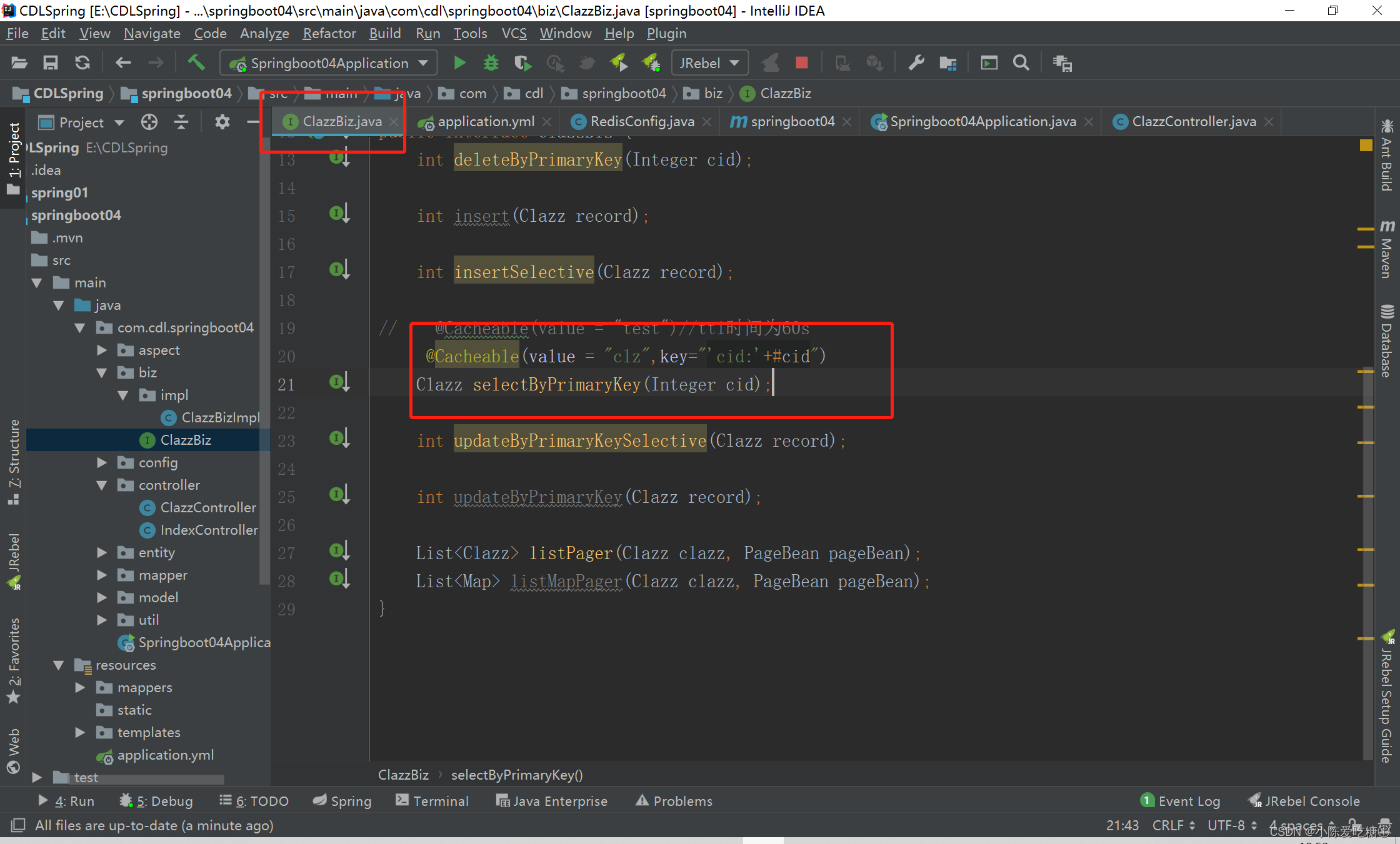

 换个槽看下 时间

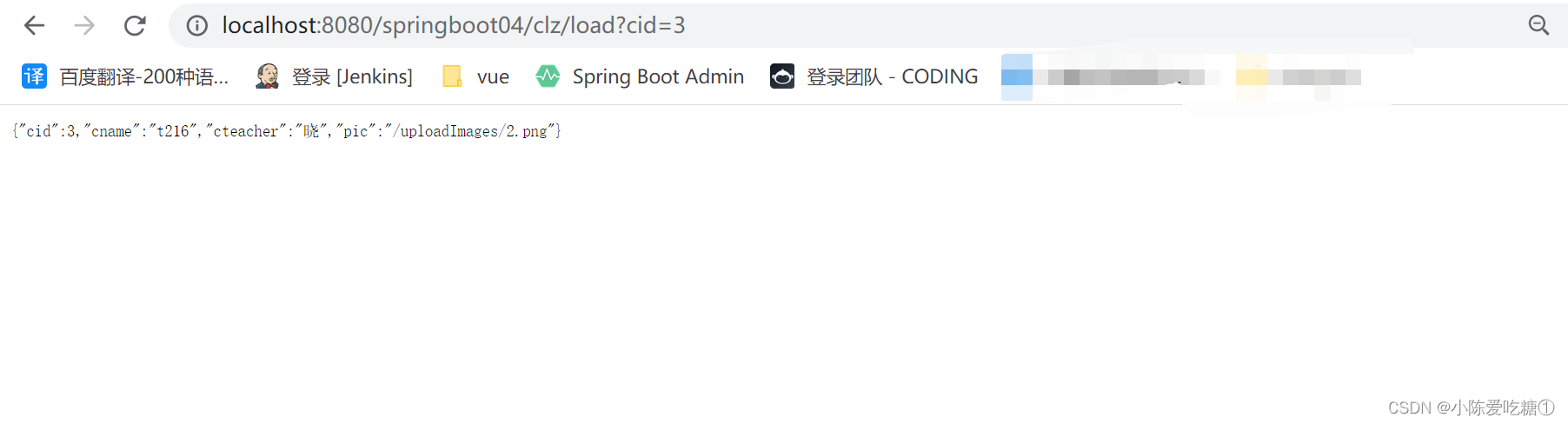

 查看单个

 缓存
