背景

• 本文仅探讨java层的未捕获异常的监控
• 为什么我们自己的异常捕获总是比 Bugly 收到的信息少？

Android未捕获异常的监控与收集

Java层未捕获异常监控的基本实现

先看看Java层未捕获异常监控的运行过程：

public class MyUncaughtExceptionHandler implements UncaughtExceptionHandler {private static UncaughtExceptionHandler oriHandler;private static volatile boolean disable = false;public static void disable() {disable = true;}public static void register() {if (!disable) {// 1.保存原有的UncaughtExceptionHandler实例oriHandler = Thread.getDefaultUncaughtExceptionHandler();// 2.设置自定义的UncaughtExceptionHandler实例，替代原有的Thread.setDefaultUncaughtExceptionHandler(new MyUncaughtExceptionHandler());}}private MyUncaughtExceptionHandler() {}public void uncaughtException(Thread thread, Throwable ex) {// 3.收到未捕获异常时，进行相应的业务处理handleCrash(ex);// 4.将异常信息继续丢回给原有的UncaughtExceptionHandlerif (oriHandler != null) {oriHandler.uncaughtException(thread, ex);}}
}

提问：有没有可能某些第三方SDK甚至应用自己私吞异常，不向下传递？
对于这个猜测的证伪，需要从源码层面分析，下面来看看。

Framework 对未捕获异常的处理流程分析

应用启动流程中会执行到 RumtimeInit.commonInit() 中：

// RuntimeInit.java
protected static final void commonInit() {if (DEBUG) Slog.d(TAG, "Entered RuntimeInit!");/** set handlers; these apply to all threads in the VM. Apps can replace* the default handler, but not the pre handler.*/// LoggingHandler 与 KillApplicationHandler 都是 UncaughtExceptionHandler 的实现类// UncaughtExceptionPreHandler 无法被应用替换，只有系统能用LoggingHandler loggingHandler = new LoggingHandler();RuntimeHooks.setUncaughtExceptionPreHandler(loggingHandler);// defaultUncaughtExceptionHandler 是可以被应用替换掉的Thread.setDefaultUncaughtExceptionHandler(new KillApplicationHandler(loggingHandler));...
}

可见，系统在应用启动时，同时注册了 LoggingHandler 与 KillApplicationHandler 两个 UncaughtExceptionHandler 的实现类，用于监听未捕获异常。为什么这么做呢，我们分别分析两个实现类的流程：

先分析 RuntimeHooks.setUncaughtExceptionPreHandler(loggingHandler) ：

// RuntimeHooks.java
public static void setUncaughtExceptionPreHandler(Thread.UncaughtExceptionHandler uncaughtExceptionHandler) {// 直接调用Thread.setUncaughtExceptionPreHandler()Thread.setUncaughtExceptionPreHandler(uncaughtExceptionHandler);
}

// Thread.java
// Thread 同时提供了UncaughtExceptionPreHandler的set/get方法
public static void setUncaughtExceptionPreHandler(UncaughtExceptionHandler eh) {uncaughtExceptionPreHandler = eh;
}// getUncaughtExceptionPreHandler() 方法会被 Thread.dispatchUncaughtException(Throwable e) 调用
public static UncaughtExceptionHandler getUncaughtExceptionPreHandler() {return uncaughtExceptionPreHandler;
}// 分发异常
public final void dispatchUncaughtException(Throwable e) {// BEGIN Android-added: uncaughtExceptionPreHandler for use by platform.// 分发给 UncaughtExceptionPreHandlerThread.UncaughtExceptionHandler initialUeh =Thread.getUncaughtExceptionPreHandler();if (initialUeh != null) {try {initialUeh.uncaughtException(this, e);} catch (RuntimeException | Error ignored) {// Throwables thrown by the initial handler are ignored}}// END Android-added: uncaughtExceptionPreHandler for use by platform.// 分发给 UncaughtExceptionHandler（就是应用可以自行注册的UEH）getUncaughtExceptionHandler().uncaughtException(this, e);
}

可见，系统会将未捕获异常同时分发给 uncaughtExceptionPreHandler 和 UncaughtExceptionHandler。所以，接下来就要弄明白这两个 UEH 各自做了什么，先看 LoggingHandler ：

// RuntimeInit.java
// LoggingHandler 是 RuntimeInit 的内部类
private static class LoggingHandler implements Thread.UncaughtExceptionHandler {public volatile boolean mTriggered = false;@Overridepublic void uncaughtException(Thread t, Throwable e) {mTriggered = true;// Don't re-enter if KillApplicationHandler has already runif (mCrashing) return;// mApplicationObject is null for non-zygote java programs (e.g. "am")// There are also apps running with the system UID. We don't want the// first clause in either of these two cases, only for system_server.if (mApplicationObject == null && (Process.SYSTEM_UID == Process.myUid())) {Clog_e(TAG, "*** FATAL EXCEPTION IN SYSTEM PROCESS: " + t.getName(), e);} else {// 大部分情况都会走到这里logUncaught(t.getName(), ActivityThread.currentProcessName(), Process.myPid(), e);}}
}public static void logUncaught(String threadName, String processName, int pid, Throwable e) {// 生成一段msgStringBuilder message = new StringBuilder();// The "FATAL EXCEPTION" string is still used on Android even though// apps can set a custom UncaughtExceptionHandler that renders uncaught// exceptions non-fatal.message.append("FATAL EXCEPTION: ").append(threadName).append("\n");if (processName != null) {message.append("Process: ").append(processName).append(", ");}message.append("PID: ").append(pid);// 打印Clog_e(TAG, message.toString(), e);
}private static int Clog_e(String tag, String msg, Throwable tr) {return Log.printlns(Log.LOG_ID_CRASH, Log.ERROR, tag, msg, tr);
}

可见，LoggingHandler 在收到异常回调时，仅仅做了一些系统打印操作。那么，KillApplicationHandler 呢？

// RuntimeInit.java
// KillApplicationHandler 是 RuntimeInit 的内部类
/*** Handle application death from an uncaught exception.  The framework* catches these for the main threads, so this should only matter for* threads created by applications. Before this method runs, the given* instance of {@link LoggingHandler} should already have logged details* (and if not it is run first).*/
private static class KillApplicationHandler implements Thread.UncaughtExceptionHandler {// 持有 pre-handler（LoggingHandler）的引用，作用是确保 LoggingHandler.uncaughtException() 被触发private final LoggingHandler mLoggingHandler;public KillApplicationHandler(LoggingHandler loggingHandler) {this.mLoggingHandler = Objects.requireNonNull(loggingHandler);}@Overridepublic void uncaughtException(Thread t, Throwable e) {try {// 确保 LoggingHandler.uncaughtException() 被触发ensureLogging(t, e);// Don't re-enter -- avoid infinite loops if crash-reporting crashes.if (mCrashing) return;mCrashing = true;/** 如果正在使用 profiler 跟踪代码，就应该停止 profiling，否则杀死应用进程时会导致 * profiler 的内存数据丢失，而正确的 stopProfiling，可以保证用户能通过 profiler 跟踪crash*/// Try to end profiling. If a profiler is running at this point, and we kill the// process (below), the in-memory buffer will be lost. So try to stop, which will// flush the buffer. (This makes method trace profiling useful to debug crashes.)if (ActivityThread.currentActivityThread() != null) {// 如果应用的UEH拦截了异常，不传回给系统，主要有影响的其实就是这里ActivityThread.currentActivityThread().stopProfiling();}// 弹出崩溃提示框// Bring up crash dialog, wait for it to be dismissedActivityManager.getService().handleApplicationCrash(mApplicationObject, new ApplicationErrorReport.ParcelableCrashInfo(e));} catch (Throwable t2) {if (t2 instanceof DeadObjectException) {// System process is dead; ignore} else {try {Clog_e(TAG, "Error reporting crash", t2);} catch (Throwable t3) {// Even Clog_e() fails!  Oh well.}}} finally {// 最终结束进程// Try everything to make sure this process goes away.Process.killProcess(Process.myPid());System.exit(10);}}/*** Ensures that the logging handler has been triggered.** See b/73380984. This reinstates the pre-O behavior of**   {@code thread.getUncaughtExceptionHandler().uncaughtException(thread, e);}** logging the exception (in addition to killing the app). This behavior* was never documented / guaranteed but helps in diagnostics of apps* using the pattern.** If this KillApplicationHandler is invoked the "regular" way (by* {@link Thread#dispatchUncaughtException(Throwable)* Thread.dispatchUncaughtException} in case of an uncaught exception)* then the pre-handler (expected to be {@link #mLoggingHandler}) will already* have run. Otherwise, we manually invoke it here.*/private void ensureLogging(Thread t, Throwable e) {if (!mLoggingHandler.mTriggered) {try {mLoggingHandler.uncaughtException(t, e);} catch (Throwable loggingThrowable) {// Ignored.}}}
}

最后，让我们再多看一眼 ActivityThread.currentActivityThread().stopProfiling() ，确认一下它到底是不是如推测的那样，是控制 Profiler 的：

// ActivityThread.java
/*** Public entrypoint to stop profiling. This is required to end profiling when the app crashes,* so that profiler data won't be lost.** @hide*/
public void stopProfiling() {if (mProfiler != null) {mProfiler.stopProfiling();}
}// Profiler 是 ActivityThread 的内部类
static final class Profiler {...public void stopProfiling() {if (profiling) {profiling = false;// traceview 等工具做代码跟踪时，都会用到的方法Debug.stopMethodTracing();if (profileFd != null) {try {profileFd.close();} catch (IOException e) {}}profileFd = null;profileFile = null;}}
}

至此，Framework 处理未捕获异常的完整流程就分析完了。

最后做个总结

• 系统会同时注册两个 UncaughtExceptionHandler 实例：LoggingHandler 和 KillApplicationHandler

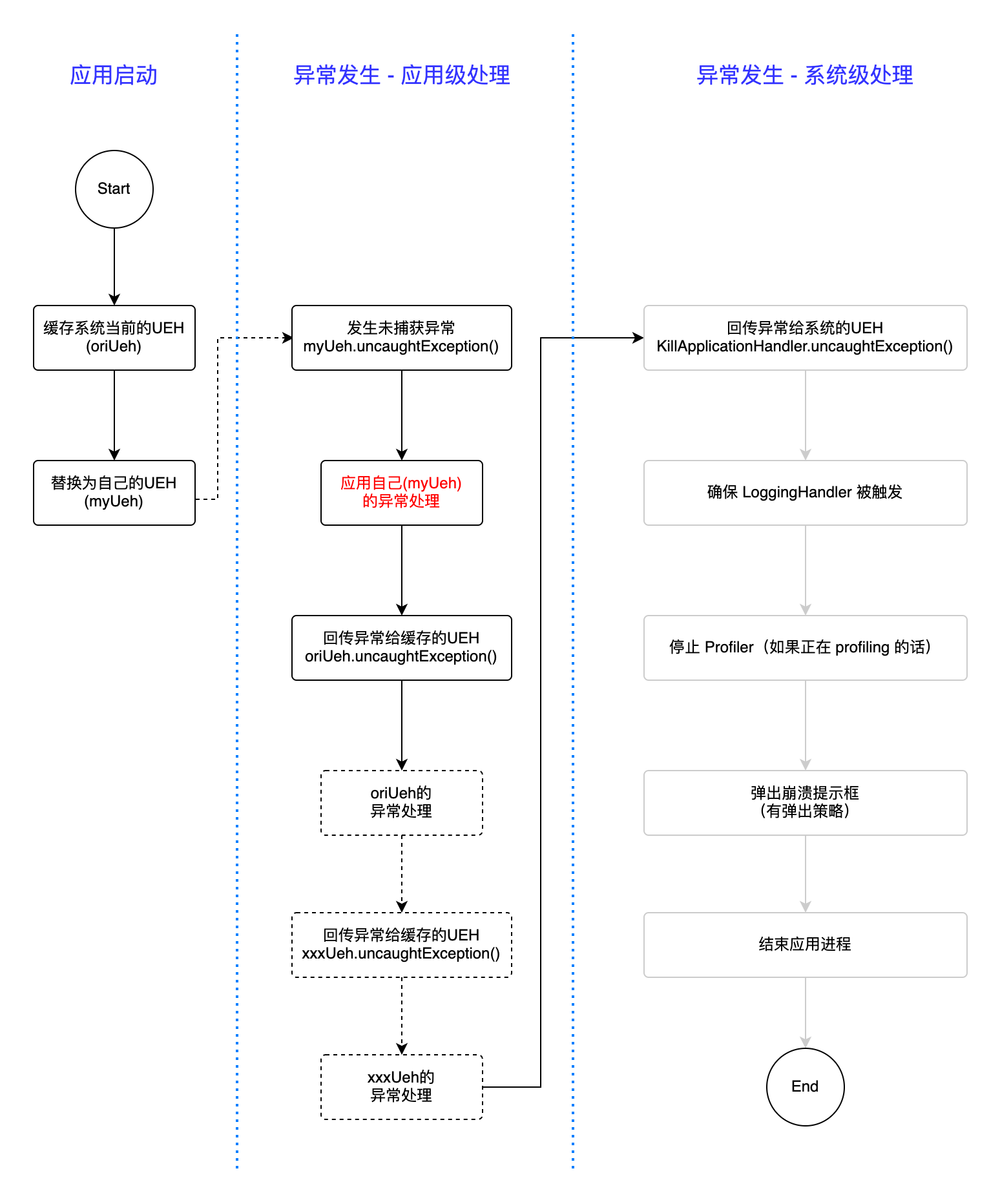

完整的未捕获异常处理流程

回到最初的“猜测”

基于以上分析，文初的“猜测”基本上不存在可能性，原因如下：

• 异常的传递是必须的，最终要传回给系统进行处理，如果私吞，应用会停留在前台，但无法响应任何操作，这不符合大部分产品的设计理念

当然，你可以私吞异常，并且自行杀死进程，以避免应用停留前台，如下操作：

	public void uncaughtException(Thread thread, Throwable ex) {handleCrash(ex);System.exit(10);// 不往下传递异常信息
//		if (oriHandler != null) {
//			oriHandler.uncaughtException(thread, ex);
//		}}

但作为sdk，私吞异常还会导致应用自己的UEH也捕获不到异常，会被应用投诉，得不偿失！而作为应用，如此操作会导致无法使用第三方异常监控工具，也会导致 profiler 失效，影响自己内部调试。

所以说，私吞异常是一个损人不利己的行为，甚至是害人害己。

更可靠的推测

崩溃处理流程中的一切异步操作，均有失败的风险

新的优化方向：异步 → 同步

• 上传失败：数据安全，下次启动时会上传
• 缓存DB失败：数据丢失，本次/下次均不会上传

因此，至少要将“缓存DB”改为同步操作，才能保证缓存成功。

问题：uncaughtException()是在主线程触发的，而我们禁止主线程I/O？

Bugly 源码分析

• crashreport：4.1.9

反编译bugly，验证其异常系统的核心实现：

// com.tencent.bugly.proguard.av.java
/*** 注册监控*/
public final synchronized void registerUeh() {if (this.j >= 10) {BuglyLog.a("java crash handler over %d, no need set.", new Object[]{Integer.valueOf(10)});return;}this.enable = true;Thread.UncaughtExceptionHandler uncaughtExceptionHandler;if ((uncaughtExceptionHandler = Thread.getDefaultUncaughtExceptionHandler()) != null) {String str1 = getClass().getName();String str2 = uncaughtExceptionHandler.getClass().getName();// 注册过的Bugly监控不再注册，避免重复注册if (str1.equals(str2)) {return;}// 当前的UEH是系统默认的，缓存起来（系统默认的在高版本中是RuntimeInit$KillApplicationHandler，bugly未做适配）if ("com.android.internal.os.RuntimeInit$UncaughtHandler".equals(uncaughtExceptionHandler.getClass().getName())) {BuglyLog.a("backup system java handler: %s", new Object[]{uncaughtExceptionHandler.toString()});this.sysDefUeh = uncaughtExceptionHandler;this.custUeh = uncaughtExceptionHandler;} else {// 当前的UEH是应用自定义的BuglyLog.a("backup java handler: %s", new Object[]{uncaughtExceptionHandler.toString()});this.custUeh = uncaughtExceptionHandler;}}// 设置Bugly的UEH实例，替代原有的Thread.setDefaultUncaughtExceptionHandler(this);this.j++;BuglyLog.a("registered java monitor: %s", new Object[]{toString()});
}

// com.tencent.bugly.proguard.av.java
public final void uncaughtException(Thread paramThread, Throwable paramThrowable) {synchronized (i) {handleException(paramThread, paramThrowable, true, null, null, this.d.Q);return;}
}/*** 异常处理** @param paramThread* @param paramThrowable* @param uncaughtException* @param paramString* @param paramArrayOfbyte* @param paramBoolean2*/
public final void handleException(Thread paramThread, Throwable paramThrowable, boolean uncaughtException, String paramString, byte[] paramArrayOfbyte, boolean paramBoolean2) {// uncaughtException = trueif (uncaughtException) {BuglyLog.e("Java Crash Happen cause by %s(%d)", new Object[]{paramThread.getName(), Long.valueOf(paramThread.getId())});// 已处理过if (isHandled(paramThread)) {BuglyLog.a("this class has handled this exception", new Object[0]);// 有系统默认的UEH，交给系统处理if (this.sysDefUeh != null) {BuglyLog.a("call system handler", new Object[0]);this.sysDefUeh.uncaughtException(paramThread, paramThrowable);} else {// 自行结束进程exit();}}} else {BuglyLog.e("Java Catch Happen", new Object[0]);}// 核心处理try {// 监控被禁用，结束if (!this.enable) {BuglyLog.c("Java crash handler is disable. Just return.", new Object[0]);return;}// 没有设置StrategyBeanif (!this.c.b()) {BuglyLog.d("no remote but still store!", new Object[0]);}// crash report被禁用，且设置了StrategyBean，则本地打印crash日志，结束if (!this.c.getStrategy().enableCrashReport && this.c.b()) {BuglyLog.e("crash report was closed by remote , will not upload to Bugly , print local for helpful!", new Object[0]);as.printLocal(uncaughtException ? "JAVA_CRASH" : "JAVA_CATCH", ap.a(), this.d.d, paramThread.getName(), ap.a(paramThrowable), null);return;}CrashDetailBean crashDetailBean;// 打包crash数据，生成CrashDetailBean，如果失败就退出if ((crashDetailBean = makeCrashDetailBean(paramThread, paramThrowable, uncaughtException, paramString, paramArrayOfbyte, paramBoolean2)) == null) {BuglyLog.e("pkg crash datas fail!", new Object[0]);return;}as.printLocal(uncaughtException ? "JAVA_CRASH" : "JAVA_CATCH", ap.a(), this.d.d, paramThread.getName(), ap.a(paramThrowable), crashDetailBean);// 保存到本地数据库，并返回操作结果（推断如果失败，不再执行上传）if (!this.b.saveDb(crashDetailBean, uncaughtException)) {// 根据BuglyStrategy的设置，决定是否要立即上传this.b.uploadOnNecessary(crashDetailBean, uncaughtException);}if (uncaughtException) {// 内部只是一个日志打印的逻辑this.b.a(crashDetailBean);}} catch (Throwable throwable) {if (!BuglyLog.a((Throwable) (paramString = null))) {paramString.printStackTrace();}} finally {// uncaughtException = trueif (uncaughtException) {// 有应用自定义的UEH，且 它没有在处理当前异常，就传给它处理if (this.custUeh != null && targetUehNotHandling(this.custUeh)) {BuglyLog.e("sys default last handle start!", new Object[0]);this.custUeh.uncaughtException(paramThread, paramThrowable);BuglyLog.e("sys default last handle end!", new Object[0]);// 没有自定义的，但有系统默认的UEH，就传给系统处理} else if (this.sysDefUeh != null) {BuglyLog.e("system handle start!", new Object[0]);this.sysDefUeh.uncaughtException(paramThread, paramThrowable);BuglyLog.e("system handle end!", new Object[0]);// 都没有，就自行结束进程} else {BuglyLog.e("crashreport last handle start!", new Object[0]);exit();BuglyLog.e("crashreport last handle end!", new Object[0]);}}}
}

bugly的实现完全符合标准流程，同时通过测试其执行日志，与上述代码中的日志输出也完全一致，Bugly 确实不会私吞异常。

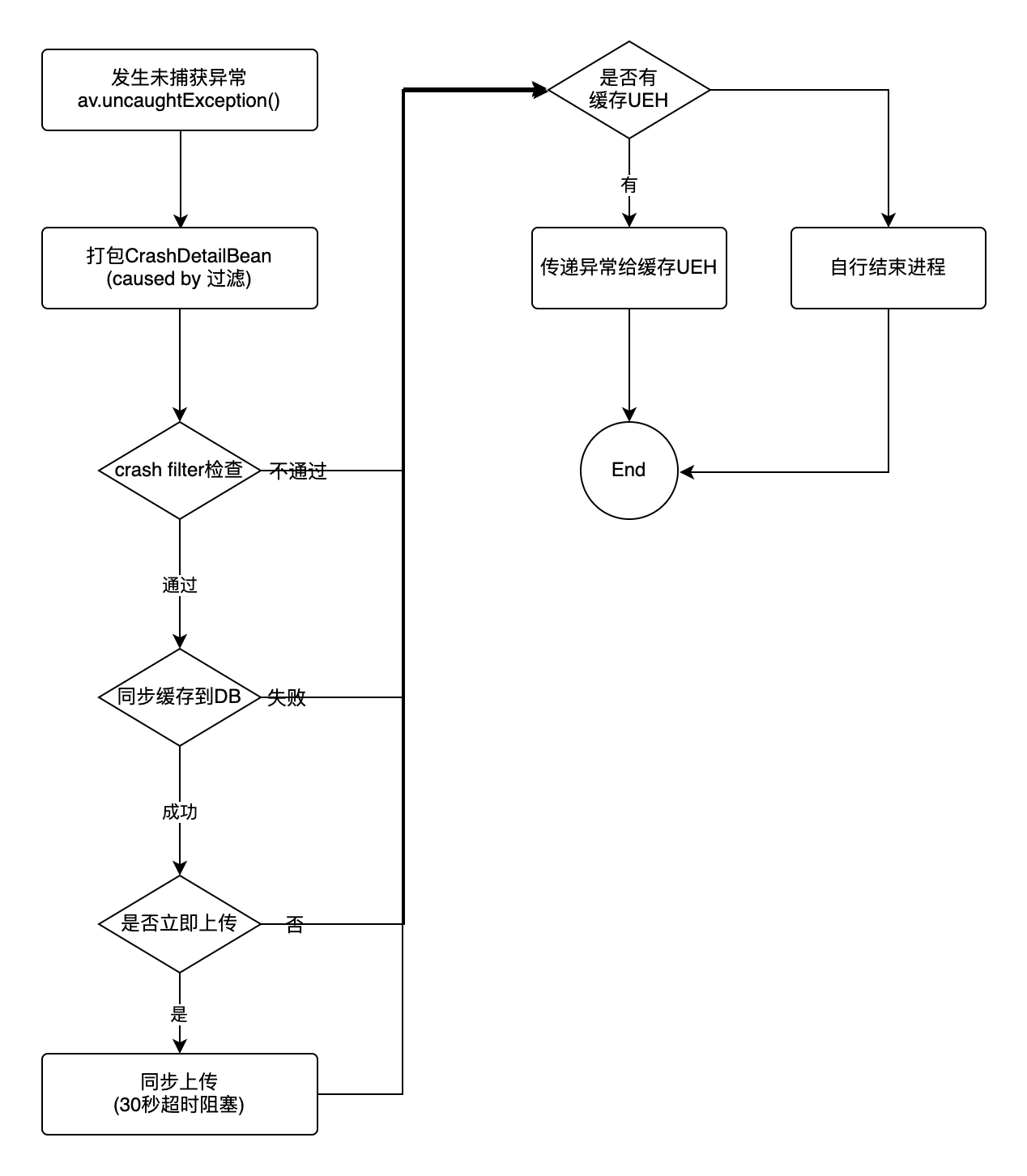

Bugly未捕获异常处理流程
