前言

MindSpore着重提升易用性并降低AI开发者的开发门槛，MindSpore原生适应每个场景包括端、边缘和云，并能够在按需协同的基础上，通过实现AI算法即代码，使开发态变得更加友好，显著减少模型开发时间，降低模型开发门槛。通过MindSpore自身的技术创新及MindSpore与华为昇腾AI处理器的协同优化，实现了运行态的高效，大大提高了计算性能；MindSpore也支持GPU、CPU等其它处理器。

一、什么是MindSpore Hub

1.简单介绍

官方版本的预训练模型中心库---MindSpore Hub

 mindspore_hub 是一个Python库

下载网址：点击跳转

2.MindSpore Hub包含功能

• 即插即用的模型加载

• 简单易用的迁移学习

import mindspore
import mindspore_hub as mshub
from mindspore import set_context, GRAPH_MODEset_context(mode=GRAPH_MODE,device_target="Ascend",device_id=0)model = "mindspore/1.6/googlenet_cifar10"# Initialize the number of classes based on the pre-trained model.
network = mshub.load(model, num_classes=10)
network.set_train(False)# ...

3.MindSpore Hub使用场景

· 推理验证：mindspore_hub.load用于加载预训练模型，可以实现一行代码完成模型的加载。

· 迁移学习：通过mindspore_hub.load完成模型加载后，可以增加一个额外的参数项只加载神经网络的特征提取部分，这样就能很容易地在之后增加一些新的层进行迁移学习。

· 发布模型：可以将自己训练好的模型按照指定的步骤发布到MindSpore Hub中，以供其他用户进行下载和使用。

二、安装MindSpore Hub

1.确认系统环境信息

• 硬件平台支持Ascend、GPU和CPU。

• 确认安装Python 3.7.5版本。

• MindSpore Hub与MindSpore的版本需保持一致。

• MindSpore Hub支持使用x86 64位或ARM 64位架构的Linux发行版系统。

• 在联网状态下，安装whl包时会自动下载setup.py中的依赖项，其余情况需自行安装。

2.安装

在命令行中输入下面代码进行下载MindSpore Hub whl包

pip install https://ms-release.obs.cn-north-4.myhuaweicloud.com/{version}/Hub/any/mindspore_hub-{version}-py3-none-any.whl --trusted-host ms-release.obs.cn-north-4.myhuaweicloud.com -i https://pypi.tuna.tsinghua.edu.cn/simple

 3.下载源码

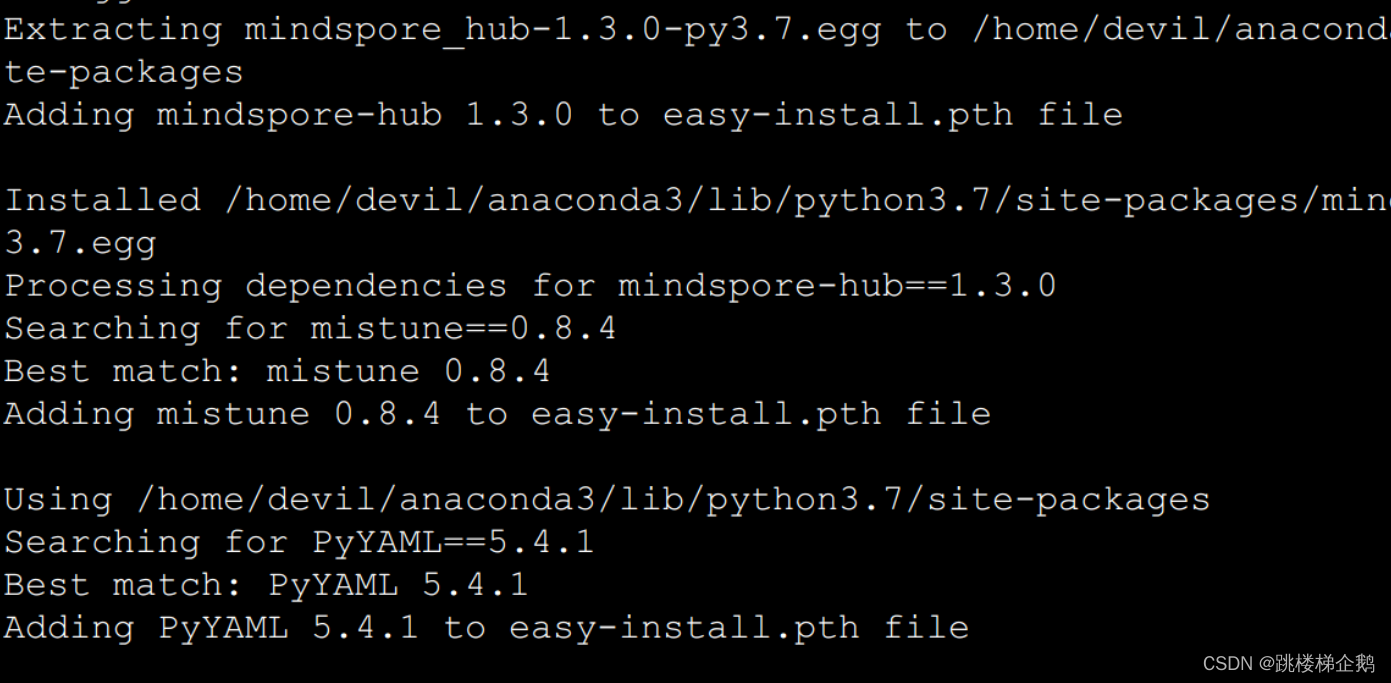

从Gitee下载源码。git clone https://gitee.com/mindspore/hub.git -b r1.9编译安装MindSpore Hub。cd hub   ##切换到hub文件下
python setup.py install   ## 下载

 4.进行验证

在能联网的环境中执行以下命令，验证安装结果。import mindspore_hub as mshubmodel = mshub.load("mindspore/1.6/lenet_mnist", num_class=10)如果出现下列提示，说明安装成功：Downloading data from url https://gitee.com/mindspore/hub/raw/r1.9/mshub_res/assets/mindspore/1.6/lenet_mnist.mdDownload finished!
File size = 0.00 Mb
Checking /home/ma-user/.mscache/mindspore/1.6/lenet_mnist.md...Passed!

三、加载模型

1.介绍

于个人开发者来说，从零开始训练一个较好模型，需要大量的标注完备的数据、足够的计算资源和大量训练调试时间。使得模型训练非常消耗资源，提升了AI开发的门槛，针对以上问题，MindSpore Hub提供了很多训练完成的模型权重文件，可以使得开发者在拥有少量数据的情况下，只需要花费少量训练时间，即可快速训练出一个较好的模型。

2.推理验证

##使用url完成模型的加载import mindspore_hub as mshub
import mindspore
from mindspore import Tensor, nn, Model, set_context, GRAPH_MODE
from mindspore import dtype as mstype
import mindspore.dataset.vision as visionset_context(mode=GRAPH_MODE,device_target="Ascend",device_id=0)model = "mindspore/1.6/googlenet_cifar10"# Initialize the number of classes based on the pre-trained model.
network = mshub.load(model, num_classes=10)
network.set_train(False)

 最后使用MindSpore进行推理

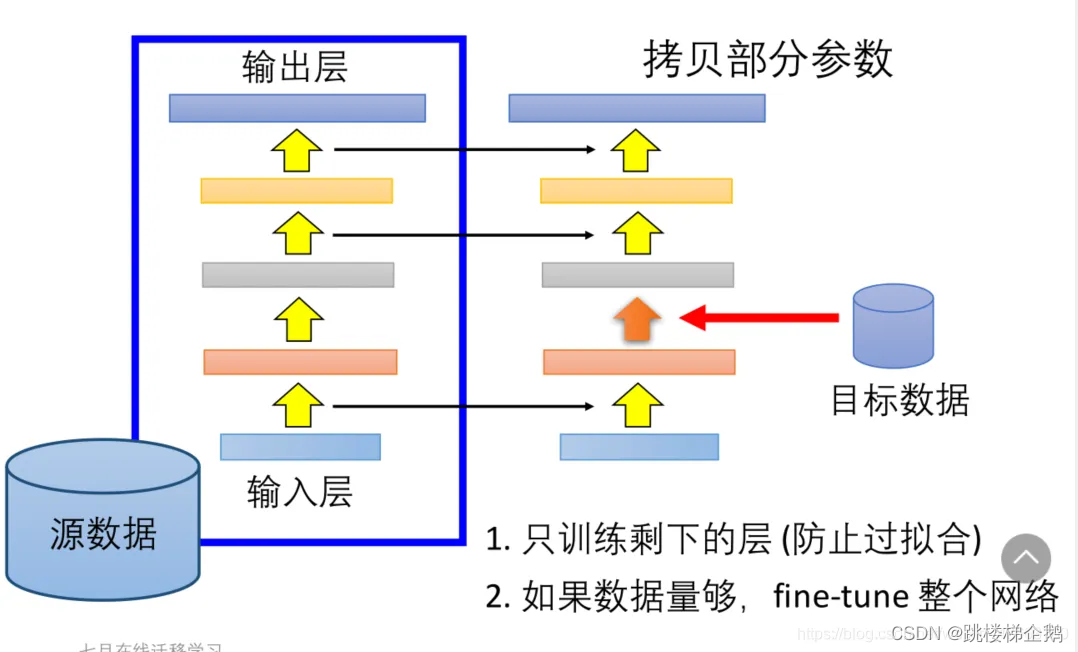

3.迁移学习

#使用url进行MindSpore Hub模型的加载，注意：include_top参数需要模型开发者提供。import os
import mindspore_hub as mshub
import mindspore
from mindspore import Tensor, nn, set_context, GRAPH_MODE
from mindspore.nn import Momentum
from mindspore import save_checkpoint, load_checkpoint,load_param_into_net
from mindspore import ops
import mindspore.dataset as ds
import mindspore.dataset.transforms as transforms
import mindspore.dataset.vision as vision
from mindspore import dtype as mstype
from mindspore import Model
set_context(mode=GRAPH_MODE, device_target="Ascend", device_id=0)model = "mindspore/1.6/mobilenetv2_imagenet2012"
network = mshub.load(model, num_classes=500, include_top=False, activation="Sigmoid")
network.set_train(False)#在现有模型结构基础上，增加一个与新任务相关的分类层。class ReduceMeanFlatten(nn.Cell):def __init__(self):super(ReduceMeanFlatten, self).__init__()self.mean = ops.ReduceMean(keep_dims=True)self.flatten = nn.Flatten()def construct(self, x):x = self.mean(x, (2, 3))x = self.flatten(x)return x# Check MindSpore Hub website to conclude that the last output shape is 1280.
last_channel = 1280# The number of classes in target task is 10.
num_classes = 10reducemean_flatten = ReduceMeanFlatten()classification_layer = nn.Dense(last_channel, num_classes)
classification_layer.set_train(True)train_network = nn.SequentialCell([network, reducemean_flatten, classification_layer])#定义数据集加载函数。def create_cifar10dataset(dataset_path, batch_size, usage='train', shuffle=True):data_set = ds.Cifar10Dataset(dataset_dir=dataset_path, usage=usage, shuffle=shuffle)# define map operationstrans = [vision.Resize((256, 256)),vision.RandomHorizontalFlip(prob=0.5),vision.Rescale(1.0 / 255.0, 0.0),vision.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5]),vision.HWC2CHW()]type_cast_op = transforms.TypeCast(mstype.int32)data_set = data_set.map(operations=type_cast_op, input_columns="label", num_parallel_workers=8)data_set = data_set.map(operations=trans, input_columns="image", num_parallel_workers=8)# apply batch operationsdata_set = data_set.batch(batch_size, drop_remainder=True)return data_set# Create Dataset
dataset_path = "/path_to_dataset/cifar-10-batches-bin"
dataset = create_cifar10dataset(dataset_path, batch_size=32, usage='train', shuffle=True)#为模型训练选择损失函数、优化器和学习率。def generate_steps_lr(lr_init, steps_per_epoch, total_epochs):total_steps = total_epochs * steps_per_epochdecay_epoch_index = [0.3*total_steps, 0.6*total_steps, 0.8*total_steps]lr_each_step = []for i in range(total_steps):if i < decay_epoch_index[0]:lr = lr_initelif i < decay_epoch_index[1]:lr = lr_init * 0.1elif i < decay_epoch_index[2]:lr = lr_init * 0.01else:lr = lr_init * 0.001lr_each_step.append(lr)return lr_each_step# Set epoch size
epoch_size = 60# Wrap the backbone network with loss.
loss_fn = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction="mean")
loss_net = nn.WithLossCell(train_network, loss_fn)
steps_per_epoch = dataset.get_dataset_size()
lr = generate_steps_lr(lr_init=0.01, steps_per_epoch=steps_per_epoch, total_epochs=epoch_size)# Create an optimizer.
optim = Momentum(filter(lambda x: x.requires_grad, classification_layer.get_parameters()), Tensor(lr, mindspore.float32), 0.9, 4e-5)
train_net = nn.TrainOneStepCell(loss_net, optim)#开始重训练。for epoch in range(epoch_size):for i, items in enumerate(dataset):data, label = itemsdata = mindspore.Tensor(data)label = mindspore.Tensor(label)loss = train_net(data, label)print(f"epoch: {epoch}/{epoch_size}, loss: {loss}")# Save the ckpt file for each epoch.if not os.path.exists('ckpt'):os.mkdir('ckpt')ckpt_path = f"./ckpt/cifar10_finetune_epoch{epoch}.ckpt"save_checkpoint(train_network, ckpt_path)#在测试集上测试模型精度。model = "mindspore/1.6/mobilenetv2_imagenet2012"network = mshub.load(model, num_classes=500, pretrained=True, include_top=False, activation="Sigmoid")
network.set_train(False)
reducemean_flatten = ReduceMeanFlatten()
classification_layer = nn.Dense(last_channel, num_classes)
classification_layer.set_train(False)
softmax = nn.Softmax()
network = nn.SequentialCell([network, reducemean_flatten, classification_layer, softmax])# Load a pre-trained ckpt file.
ckpt_path = "./ckpt/cifar10_finetune_epoch59.ckpt"
trained_ckpt = load_checkpoint(ckpt_path)
load_param_into_net(classification_layer, trained_ckpt)loss = nn.SoftmaxCrossEntropyWithLogits(sparse=True, reduction="mean")# Define loss and create model.
eval_dataset = create_cifar10dataset(dataset_path, batch_size=32, do_train=False)
eval_metrics = {'Loss': nn.Loss(),'Top1-Acc': nn.Top1CategoricalAccuracy(),'Top5-Acc': nn.Top5CategoricalAccuracy()}
model = Model(network, loss_fn=loss, optimizer=None, metrics=eval_metrics)
metrics = model.eval(eval_dataset)
print("metric: ", metrics)

四、模型发布

#将你的预训练模型托管在可以访问的存储位置。参照模板，在你自己的代码仓中添加模型生成文件mindspore_hub_conf.py，文件放置的位置如下：googlenet
├── src
│   ├── googlenet.py
├── script
│   ├── run_train.sh
├── train.py
├── test.py
├── mindspore_hub_conf.py#参照模板，在hub/mshub_res/assets/mindspore/1.6文件夹下创建{model_name}_{dataset}.md文件，其中1.6为MindSpore的版本号，hub/mshub_res的目录结构为：hub
├── mshub_res
│   ├── assets
│       ├── mindspore
│           ├── 1.6
│               ├── googlenet_cifar10.md
│   ├── tools
│       ├── get_sha256.py
│       ├── load_markdown.py
│       └── md_validator.py

本次分享完
