用python gdal裁剪栅格数据提取添加xy经纬度和栅格值

问题：把遥感影像转为一张表。

现有一全球经济作物数据alfalfa的产量。

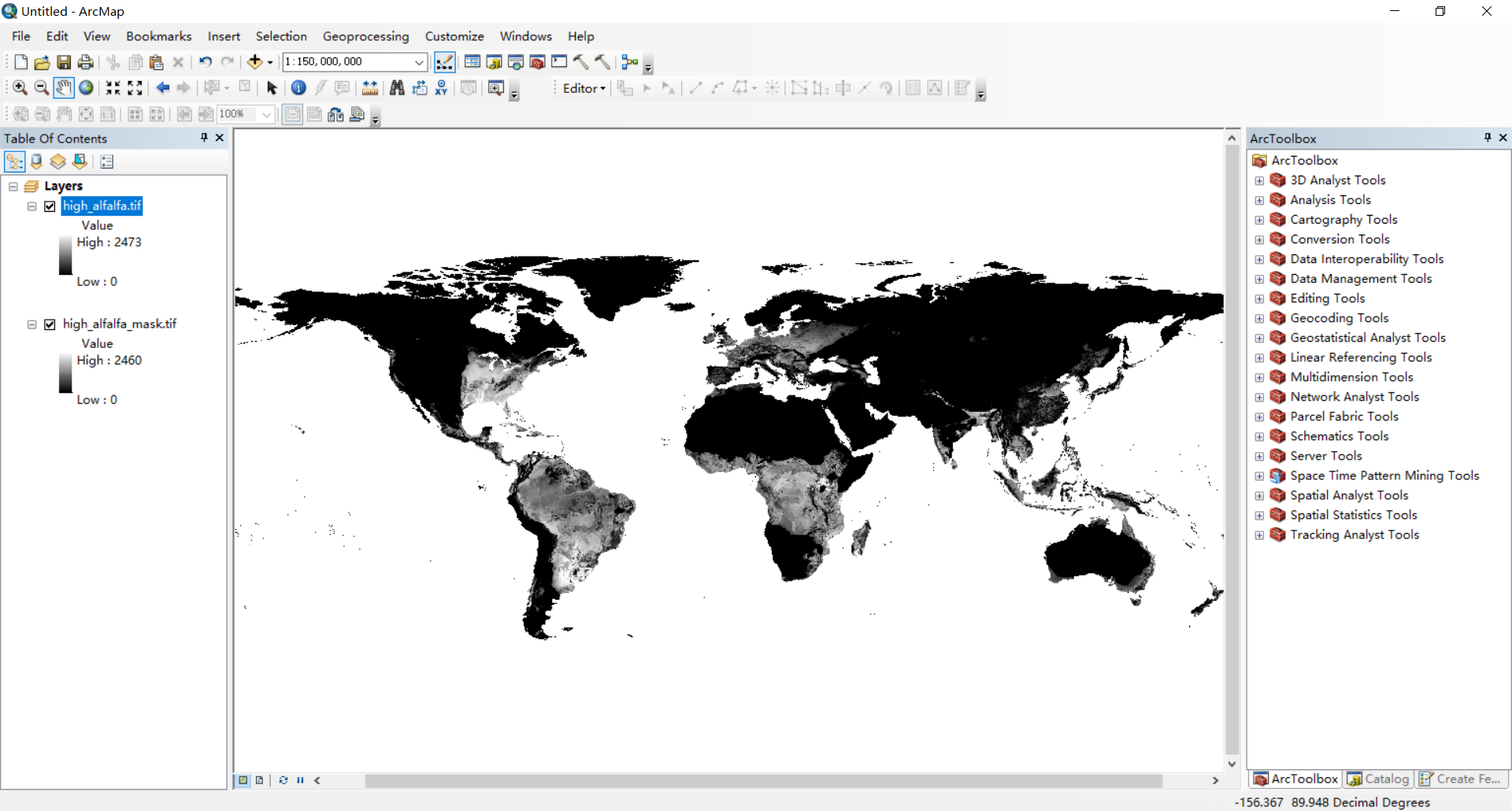

alfalfa是一种亚洲西南部多年生草本植物，是重要的经济作物。在图中也可以看到，主要分布在热带和南美洲。

我们想把影像转表，即经纬度、栅格值（苜蓿产量）

上述功能在ArcGIS中是这样实现的。

对于我上述全球影像来说，栅格转点需要6分钟。添加字段和计算几何都需要花费更多的时间。

采用python的gdal方法，首先进行影像裁剪。直接上代码：

dataset = gdal.Open("D:/work/0318/Suitability Raster files/Suitability Raster files/High input/high_banana_plaintain.tif")
output_raster=r'D:/work/0318/Suitability Raster files/Suitability Raster files/High_mask/high_banana_plaintain_mask.tif'
input_shape = r'D:/work/0318/shp/Africa.shp'# 开始裁剪
ds = gdal.Warp(output_raster,dataset,format = 'GTiff',cutlineDSName = input_shape,      cutlineWhere="FIELD = 'whatever'",dstNodata = -90)

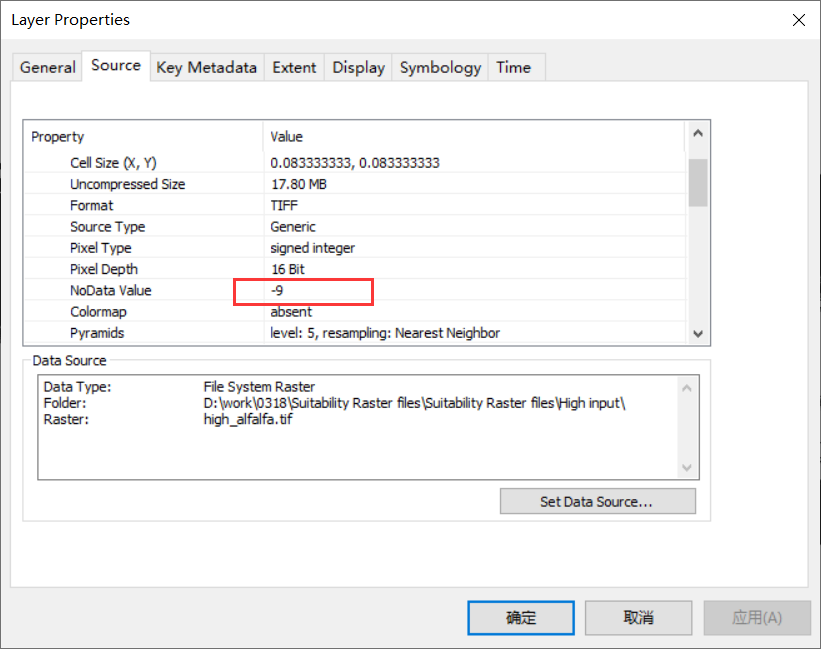

这里我设置nodata为负值，是我本来影像的nodata值，可以在GIS查看

然后再进行统计：

import time
from osgeo import gdal
import numpy as np
import pandas as pd
import osdef rasterToPoints(rasterfile, nodata=None, v_name=None):""":param rasterfile: 待执行栅格转点的栅格文件:param nodata:栅格中的无数据值,默认取栅格的最小值:param v_name:导出表格中栅格值所在列的名称，默认为栅格的文件名:return:x、y、value"""# numpy禁用科学计数法,pandas中存储浮点型时只保留四位小数np.set_printoptions(suppress=True)pd.set_option('display.float_format', lambda x: '%.4f' % x)rds = gdal.Open(rasterfile)  # type:gdal.Datasetif rds.RasterCount != 1:print("Warning, RasterCount > 1")cols = rds.RasterXSizerows = rds.RasterYSizeband = rds.GetRasterBand(1)  # type:gdal.Bandtransform = rds.GetGeoTransform()print(transform)x_origin = transform[0]y_origin = transform[3]pixel_width = transform[1]pixel_height = transform[5]if (pixel_height + pixel_width) != 0:print("Warning, pixelWidth != pixelHeight")# 读取栅格values = np.array(band.ReadAsArray())x = np.arange(x_origin + pixel_width * 0.5, x_origin + (cols + 0.5) * pixel_width, pixel_width)y = np.arange(y_origin + pixel_height*0.5, y_origin + (rows+0.5) * pixel_height, pixel_height)px, py = np.meshgrid(x, y)if v_name is None:v_name = os.path.splitext(os.path.split(rasterfile)[1])[0]dataset = {"x": px.ravel(),"y": py.ravel(),v_name: values.ravel()}df_temp = pd.DataFrame(dataset, dtype="float32")# 删除缺失值if nodata is None:nodata = df_temp[v_name].min()df_temp = df_temp[df_temp[v_name] != nodata]else:df_temp = df_temp[df_temp[v_name] != nodata]df_temp.index = range(len(df_temp))return df_tempif __name__ == "__main__":# 禁用科学计数法np.set_printoptions(suppress=True)pd.set_option('display.float_format', lambda x: '%.4f' % x)# 执行栅格转点，并计时s = time.time()# in_tif是输入栅格，刚才裁剪的结果in_tif = r"D:/work/0318/Suitability Raster files/Suitability Raster files/High_mask/high_banana_plaintain_mask.tif" outfile = rasterToPoints(in_tif, v_name="high_banana_plaintain") # v_name是你自己定义的栅格字段列名称outfile.to_csv("high_banana_plaintain.csv") # 导出csv文件e = time.time()print("time used {0}s".format(e-s))

成功了。

看看统计结果

cs = pd.read_csv('high_banana_plaintain.csv')
cs

360812 rows × 4 columns

很完美。
