Linux keepalived高可用集群+keepaliced+LVS

keepalived+lvs集群

环境准备

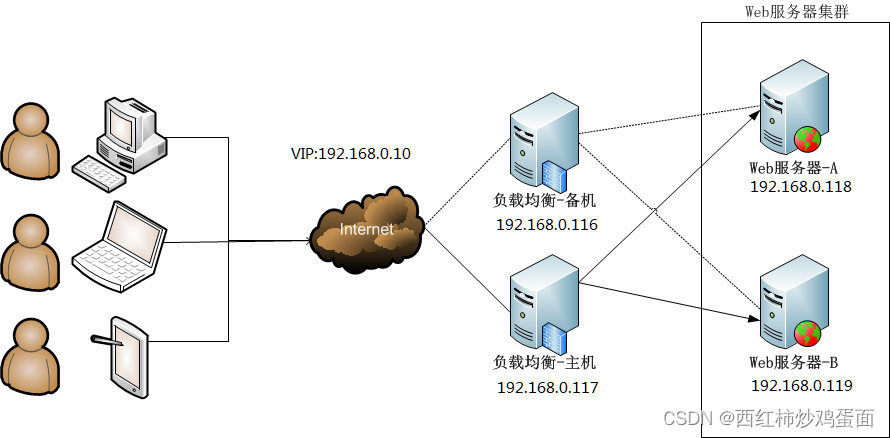

拓扑：

192.168.0.116 dr1 负载均衡器
192.168.0.117 dr2 负载均衡器
192.168.0.118 rs1 web1
192.168.0.119 rs2 web2

1.在master上安装配置Keepalived:

yum install keepalived  ipvsadm -y		#ipvsadm安装并不启动

2.在master上修改配置文件

vim /etc/keepalived/keepalived.conf

! Configuration File for keepalived
global_defs {						router_id Director1    #两边不一样}vrrp_instance VI_1 {				state MASTER				#另外一台机器是BACKUP	interface ens32				#心跳网卡	virtual_router_id 51			#虚拟路由编号，主备要一致priority 150				#优先级	advert_int 1				#检查间隔，单位秒	authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.0.20/24 dev ens32	#VIP和工作端口}}virtual_server 192.168.0.20 80 {		#LVS 配置，VIPdelay_loop 3				#服务论询的时间间隔lb_algo rr				#LVS 调度算法lb_kind DR	 			#LVS 集群模式protocol TCPreal_server 192.168.0.118 80 {weight 1TCP_CHECK {connect_timeout 3}}real_server 192.168.0.119 80 {weight 1TCP_CHECK {connect_timeout 3}}
}

3.在backup上安装keepalived:

yum install keepalived   ipvsadm -y  #ipvsadm安装并不启动

4.拷贝master上的keepalived.conf到backup上：

scp  192.168.0.116:/etc/keepalived/keepalived.conf 192.168.0.117:/etc/keepalived/

5.拷贝后,修改配置文件
router_id Director2
state BACKUP
priority 100

! Configuration File for keepalived
global_defs {router_id Director2}vrrp_instance VI_1 {state BACKUP                            #另外一台机器是BACKUPinterface ens32                         #心跳网卡virtual_router_id 52priority 100                            #优先级advert_int 1                            #检查间隔，单位秒authentication {auth_type PASSauth_pass 1111}virtual_ipaddress {192.168.0.20/24 dev ens32       #VIP和工作端口}}virtual_server 192.168.0.20 80 {                #LVS 配置，VIPdelay_loop 3                            #服务论询的时间间隔lb_algo rr                              #LVS 调度算法lb_kind DR                              #LVS 集群模式protocol TCPreal_server 192.168.0.118 80 {weight 1TCP_CHECK {connect_timeout 3}}real_server 192.168.0.119 80 {weight 1TCP_CHECK {connect_timeout 3}}
}

6.master和backup上启动服务:

systemctl enable keepalived
systemctl start keepalived
reboot

7.web服务器配置
web1和web2同配置
（1）安装web测试站点

yum install -y httpd && systemctl start httpd && systemctl enable httpd

（2）配置虚拟地址

#cp /etc/sysconfig/network-scripts/{ifcfg-lo,ifcfg-lo:0}
#vim /etc/sysconfig/network-scripts/ifcfg-lo:0
DEVICE=lo:0
IPADDR=192.168.0.20
NETMASK=255.255.255.255
ONBOOT=yes
#其他行注释掉

（3）配置路由

#vim /etc/rc.local
/sbin/route add host 192.168.0.20 dev lo:0

（4）配置ARP

vim /etc/sysctl.conf

net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.default.arp_ignore = 1
net.ipv4.conf.default.arp_announce = 2
net.ipv4.conf.lo.arp_ignore = 1
net.ipv4.conf.lo.arp_announce = 2

reboot

8.测试：
1）观察lvs路由条目
master上 查询
# ipvsadm -L

IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags-> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  localhost.localdomain:http rr-> 192.168.0.124:http           Route   1      0          0

2）观察vip地址在哪台机器上
master上 查询 # ip a

ens32: inet 192.168.0.120/24 brd 192.168.0.255 scope global dynamic ens32inet 192.168.0.20/32 scope global ens32

3）客户端浏览器访问vip
访问正常
4）关闭master上的keepalived服务，再次访问vip

master上 关闭 # systemctl stop keepalived.service

5）关闭web1站点服务，再次访问VIP
访问正常
