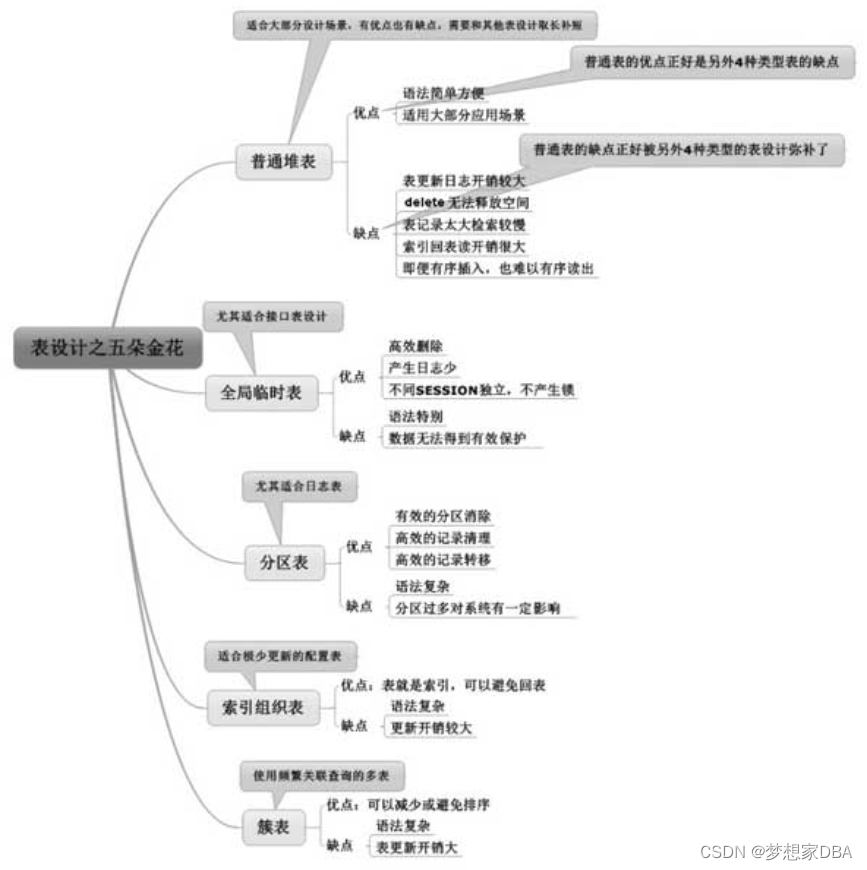

表设计主要强调什么场合该选择什么技术，没有最高级的技术，只有最适合的技术。

1.表的特性

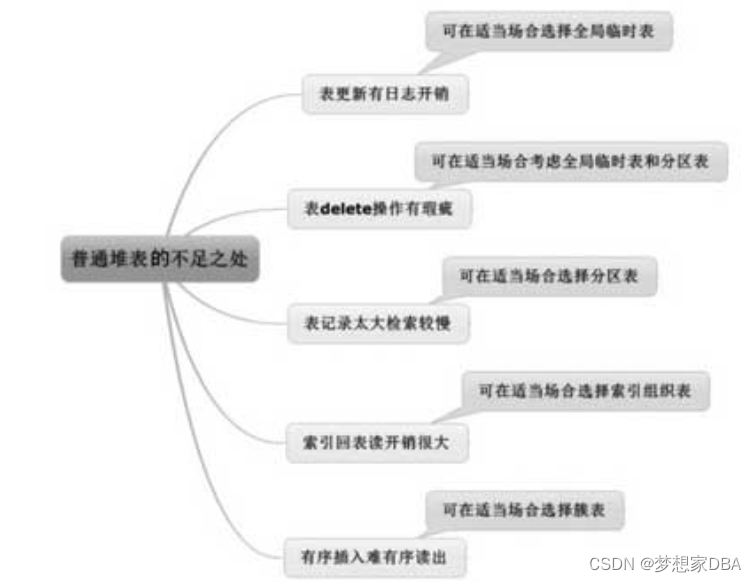

普通堆表的不足之处

 1.查看产生多少日志

[oracle@oracle-db-19c ~]$ sqlplus / as sysdbaSQL*Plus: Release 19.0.0.0.0 - Production on Wed Jan 4 14:27:13 2023
Version 19.3.0.0.0Copyright (c) 1982, 2019, Oracle.  All rights reserved.Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0SQL> alter session set container=PDB1;Session altered.SQL> select a.name,b.value2    from v$statname a,v$mystat b3  where a.statistic#=b.statistic#4   and a.name='redo size';NAME
--------------------------------------------------------------------------------VALUE
----------
redo size0SQL>

[oracle@MaxwellDBA ~]$ sqlplus / as sysdbaSQL*Plus: Release 19.0.0.0.0 - Production on Wed Jan 4 15:25:31 2023
Version 19.3.0.0.0Copyright (c) 1982, 2019, Oracle.  All rights reserved.Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0sys@cdb$root:orclcdb> alter session set container=ORCLPDB1;Session altered.sys@cdb$root:orclcdb> select a.name,b.value2                       from v$statname a,v$mystat b3                   where a.statistic#=b.statistic#4                    and a.name='redo size';NAME                                                                  VALUE
---------------------------------------------------------------- ----------
redo size                                                                 01 row selected.sys@cdb$root:orclcdb>

实验准备工作，创建观察redo的视图

[oracle@MaxwellDBA ~]$ sqlplus / as sysdbaSQL*Plus: Release 19.0.0.0.0 - Production on Wed Jan 4 15:25:31 2023
Version 19.3.0.0.0Copyright (c) 1982, 2019, Oracle.  All rights reserved.Connected to:
Oracle Database 19c Enterprise Edition Release 19.0.0.0.0 - Production
Version 19.3.0.0.0sys@cdb$root:orclcdb> alter session set container=ORCLPDB1;Session altered.sys@cdb$root:orclcdb> select a.name,b.value2                       from v$statname a,v$mystat b3                   where a.statistic#=b.statistic#4                    and a.name='redo size';NAME                                                                  VALUE
---------------------------------------------------------------- ----------
redo size                                                                 01 row selected.sys@cdb$root:orclcdb>

观察删除记录产生了多少redo

SQL> select * from v_redo_size;NAME
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------VALUE
----------
redo size11871068SQL> delete from t;73262 rows deleted.SQL> select * from v_redo_size;NAME
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------VALUE
----------
redo size22920220SQL> select 22920220 - 11871068 from dual;22920220-11871068
-----------------11049152SQL>

删除语句产生了差不多11M的日志量

观察插入记录产生了多少redo

SQL>
SQL> insert into t select * from dba_objects;73264 rows created.SQL> select * from v_redo_size;NAME
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------VALUE
----------
redo size34265784SQL> select 34265784 - 22920220 from dual;34265784-22920220
-----------------11345564SQL>

观察更新记录产生了多少redo

SQL>
SQL> update t set object_id=rownum;73264 rows updated.SQL> select * from v_redo_size;NAME
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------VALUE
----------
redo size47178732SQL> select 47178732 - 34265784 from dual;47178732-34265784
-----------------12912948SQL>

更新语句产生了差不多12M的redo

三个试验说明了对表的更新操作，无论是删除、插入还是修改，都会产生日志.

虽说安全第一，不过在某些特定的场合，某些表的记录只是作为中间结果临时运算而根本无须永久保留，这些表无须写日志，那就既高效又安全了！

delete无法释放空间

实际上工作中不少性能问题都和delete操作有关。

原因是：delete是最耗性能的操作，产生的undo最多，而且因为undo需要redo来保护的缘故，delete产生的redo量也最大。所以不少性能问题都和delete操作有关。

观察未删除表时产生的逻辑读

SQL> show user;
USER is "MAXWELLPAN"
SQL> drop table t purge;Table dropped.SQL>
SQL> create table t as select * from dba_objects;Table created.SQL> set autotrace on
SQL> select count(*) from t;COUNT(*)
----------73263Execution Plan
----------------------------------------------------------
Plan hash value: 2966233522-------------------------------------------------------------------
| Id  | Operation          | Name | Rows  | Cost (%CPU)| Time     |
-------------------------------------------------------------------
|   0 | SELECT STATEMENT   |      |     1 |   397   (1)| 00:00:01 |
|   1 |  SORT AGGREGATE    |      |     1 |            |          |
|   2 |   TABLE ACCESS FULL| T    | 73263 |   397   (1)| 00:00:01 |
-------------------------------------------------------------------Statistics
----------------------------------------------------------75  recursive calls0  db block gets1546  consistent gets1422  physical reads0  redo size552  bytes sent via SQL*Net to client384  bytes received via SQL*Net from client2  SQL*Net roundtrips to/from client20  sorts (memory)0  sorts (disk)1  rows processedSQL>

用delete命令删除t所有记录后，逻辑读发生了微小的变化

SQL>
SQL> set autotrace off
SQL> delete from t;73263 rows deleted.SQL> commit;Commit complete.SQL> set autotrace on
SQL> select count(*) from t;COUNT(*)
----------0Execution Plan
----------------------------------------------------------
Plan hash value: 2966233522-------------------------------------------------------------------
| Id  | Operation          | Name | Rows  | Cost (%CPU)| Time     |
-------------------------------------------------------------------
|   0 | SELECT STATEMENT   |      |     1 |   397   (1)| 00:00:01 |
|   1 |  SORT AGGREGATE    |      |     1 |            |          |
|   2 |   TABLE ACCESS FULL| T    | 73263 |   397   (1)| 00:00:01 |
-------------------------------------------------------------------Statistics
----------------------------------------------------------0  recursive calls0  db block gets1426  consistent gets0  physical reads0  redo size549  bytes sent via SQL*Net to client384  bytes received via SQL*Net from client2  SQL*Net roundtrips to/from client0  sorts (memory)0  sorts (disk)1  rows processedSQL>

使用truncate命令清空表后，逻辑读终于大幅度下降了。

SQL>
SQL> set autotrace off
SQL> truncate table t;Table truncated.SQL> set autotrace on
SQL> select count(*) from t;COUNT(*)
----------0Execution Plan
----------------------------------------------------------
Plan hash value: 2966233522-------------------------------------------------------------------
| Id  | Operation          | Name | Rows  | Cost (%CPU)| Time     |
-------------------------------------------------------------------
|   0 | SELECT STATEMENT   |      |     1 |   397   (1)| 00:00:01 |
|   1 |  SORT AGGREGATE    |      |     1 |            |          |
|   2 |   TABLE ACCESS FULL| T    | 73263 |   397   (1)| 00:00:01 |
-------------------------------------------------------------------Statistics
----------------------------------------------------------1  recursive calls1  db block gets3  consistent gets0  physical reads104  redo size549  bytes sent via SQL*Net to client384  bytes received via SQL*Net from client2  SQL*Net roundtrips to/from client0  sorts (memory)0  sorts (disk)1  rows processedSQL>

delete 删除并不能释放空间，虽然delete将很多块的记录删除了，但是空块依然保留，Oracle在查询时依然会去查询这些空块。而truncate是一种释放高水平位的动作，这些空块被回收，空间也被释放了。

不过truncate显然不能替代delete，因为truncate是一种DDL操作而非DML操作，truncate后面是不能带条件的，即truncate table t where…是不允许的。但是如果表中这些where条件能形成有效的分区，Oracle是支持在分区表中做truncate分区的，命令大致为 alter table t truncate partition ＇分区名＇，如果where 条件就是分区条件，那等同于换个角度实现了 truncate table t where…的功能。

这就是分区表最实用的功能之一了，高效地清理数据，释放空间，老师将在后续章节中详细描述分区表的特性。

表记录太多检索较慢

有没有什么好方法能提升检索的速度呢？主要思路就是缩短访问路径来完成同样的更新查询操作。简单地说，完成同样的需求，访问块的个数越少越好。Oracle 为了尽可能减少访问路径提供了两种主要技术，一种是索引技术，另一种则是分区技术。

索引本身也是一把双刃剑，既能给数据库开发应用带来极大的帮助，也会给数据库带来不小的灾难。

分区表，除了之前描述的具有高效清理数据的功能外，还有减少访问路径的神奇本领。

索引回表读开销很大

观察TABLE ACCESS BY INDEX ROWID 产生的开销

SQL>
SQL> show user;
USER is "MAXWELLPAN"
SQL> drop table t purge;Table dropped.SQL> create table t as select * from dba_objects where rownum<=200;Table created.SQL> create index idx_obj_id on t(object_id);Index created.SQL> set linesize 1000
SQL> set autotrace traceonly
SQL> select * from t where object_id<=10;9 rows selected.Execution Plan
----------------------------------------------------------
Plan hash value: 3784017797--------------------------------------------------------------------------------------------------
| Id  | Operation                           | Name       | Rows  | Bytes | Cost (%CPU)| Time     |
--------------------------------------------------------------------------------------------------
|   0 | SELECT STATEMENT                    |            |     9 |   927 |     2   (0)| 00:00:01 |
|   1 |  TABLE ACCESS BY INDEX ROWID BATCHED| T          |     9 |   927 |     2   (0)| 00:00:01 |
|*  2 |   INDEX RANGE SCAN                  | IDX_OBJ_ID |     9 |       |     1   (0)| 00:00:01 |
--------------------------------------------------------------------------------------------------Predicate Information (identified by operation id):
---------------------------------------------------2 - access("OBJECT_ID"<=10)Statistics
----------------------------------------------------------51  recursive calls126  db block gets54  consistent gets3  physical reads25504  redo size3584  bytes sent via SQL*Net to client397  bytes received via SQL*Net from client2  SQL*Net roundtrips to/from client0  sorts (memory)0  sorts (disk)9  rows processedSQL>
